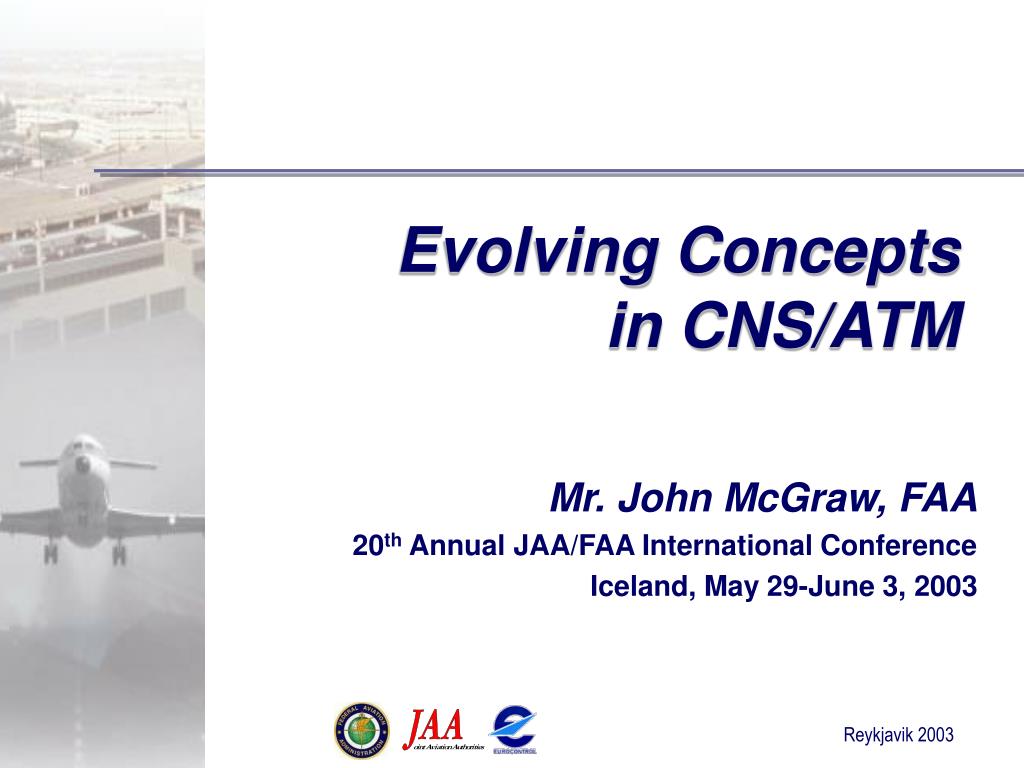

Evolving Concepts in CNS/ATM

Mr. John McGraw, FAA

20th Annual JAA/FAA International Conference

Iceland, May 29-June 3, 2003

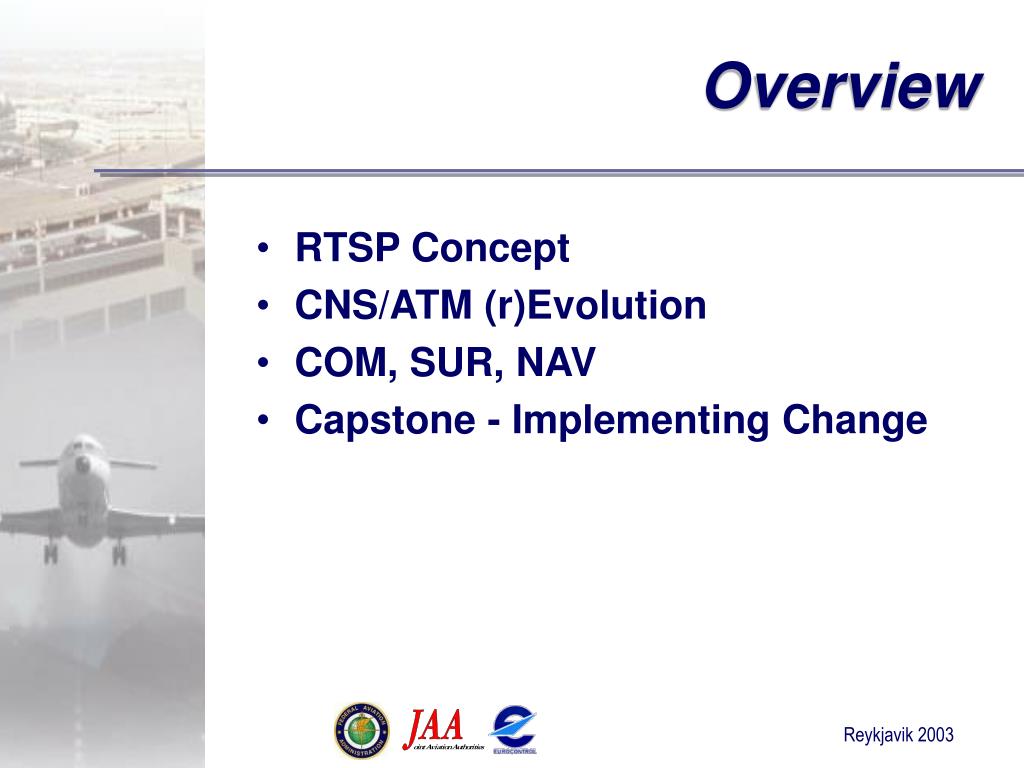

Overview
Overview

  • RTSP Concept

  • CNS/ATM (r)Evolution

  • COM, SUR, NAV

  • Capstone - Implementing Change


R

T

S

P

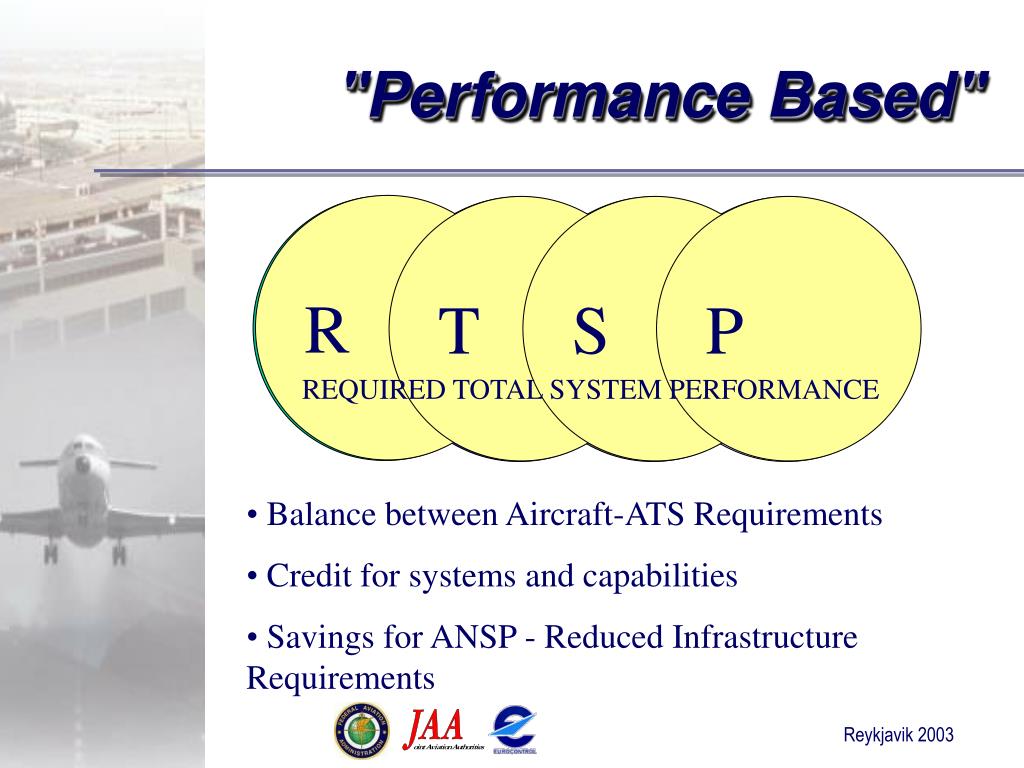

REQUIRED TOTAL SYSTEM PERFORMANCE

"Performance Based"

COM

RCP

NAV

RNP

SUR

RSP

ATM

  • Balance between Aircraft-ATS Requirements

  • Credit for systems and capabilities

  • Savings for ANSP - Reduced Infrastructure Requirements

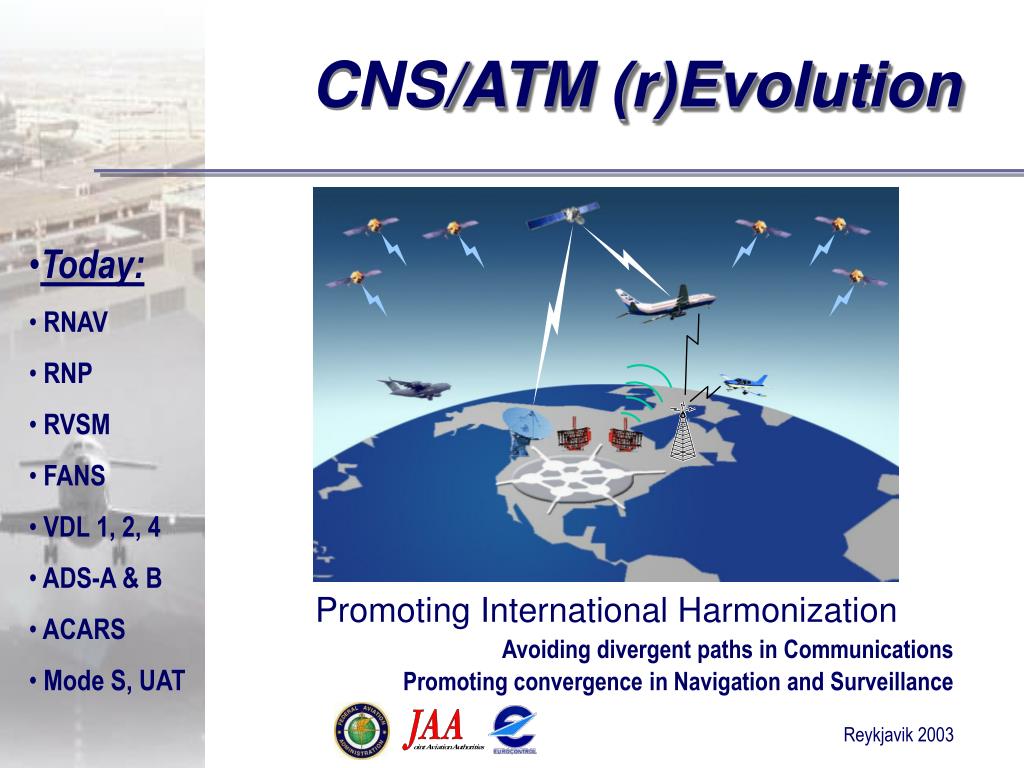

CNS/ATM (r)Evolution

Promoting International Harmonization

  • Today:

  • RNAV

  • RNP

  • RVSM

  • FANS

  • VDL 1, 2, 4

  • ADS-A & B

  • ACARS

  • Mode S, UAT

  • Avoiding divergent paths in Communications

  • Promoting convergence in Navigation and Surveillance

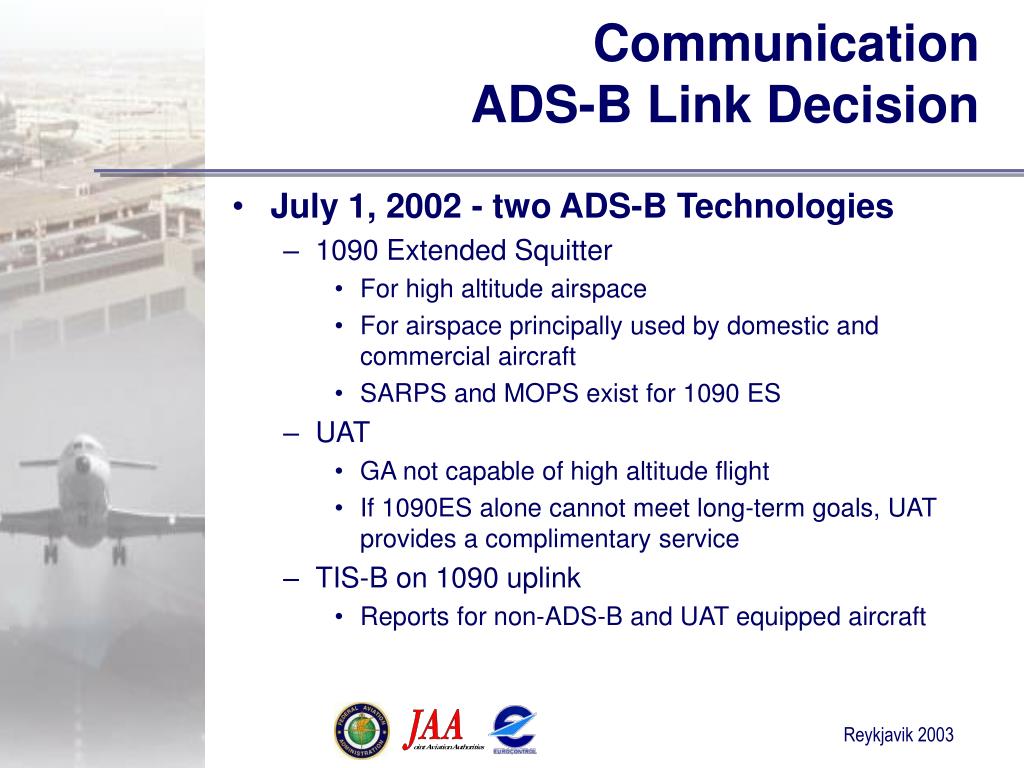

Communication ads b link decision
CommunicationADS-B Link Decision

  • July 1, 2002 - two ADS-B Technologies

    • 1090 Extended Squitter

      • For high altitude airspace

      • For airspace principally used by domestic and commercial aircraft

      • SARPS and MOPS exist for 1090 ES

    • UAT

      • GA not capable of high altitude flight

      • If 1090ES alone cannot meet long-term goals, UAT provides a complimentary service

    • TIS-B on 1090 uplink

      • Reports for non-ADS-B and UAT equipped aircraft


Nexcom transition to digital communications

Dem/Val

NEXCOM“Transition to Digital Communications”

5-10 years

Next 5 years

10-15 years

15-20 years

Enroute High Airspace

VDL-3Link

0101010100110010101

0101010100110010101

0101010100110010101

01010101001

VDL-2 Datalink

0101

01010101001

RCAG

10011001011010101

Analog

Voice

ARTCC

01010

AFSS

National Airspace

Terminal

Airspace

  • Analog Voice, 25 KHz

  • Initial Datalink (VDL-2)

  • Full Operational Evaluation& Exercise of Digital Voiceand Datalink (VDL-3)

  • Maintain Terminal Analog Voice

  • Implement VDL-3Digital Voice

  • Expand Datalink VDL-2Applications

  • Expand EnrouteDigital Voice (VDL-3)

  • Initiate TerminalDigital Voice (VDL-3)

  • Increase Datalink Capacity& Capability (VDL-2 & VDL-3)

  • Expand Digital Voice (VDL-3) to all domains

  • Expand Datalink Capacityin all domainsand all applications(VDL-2 & VDL-3)

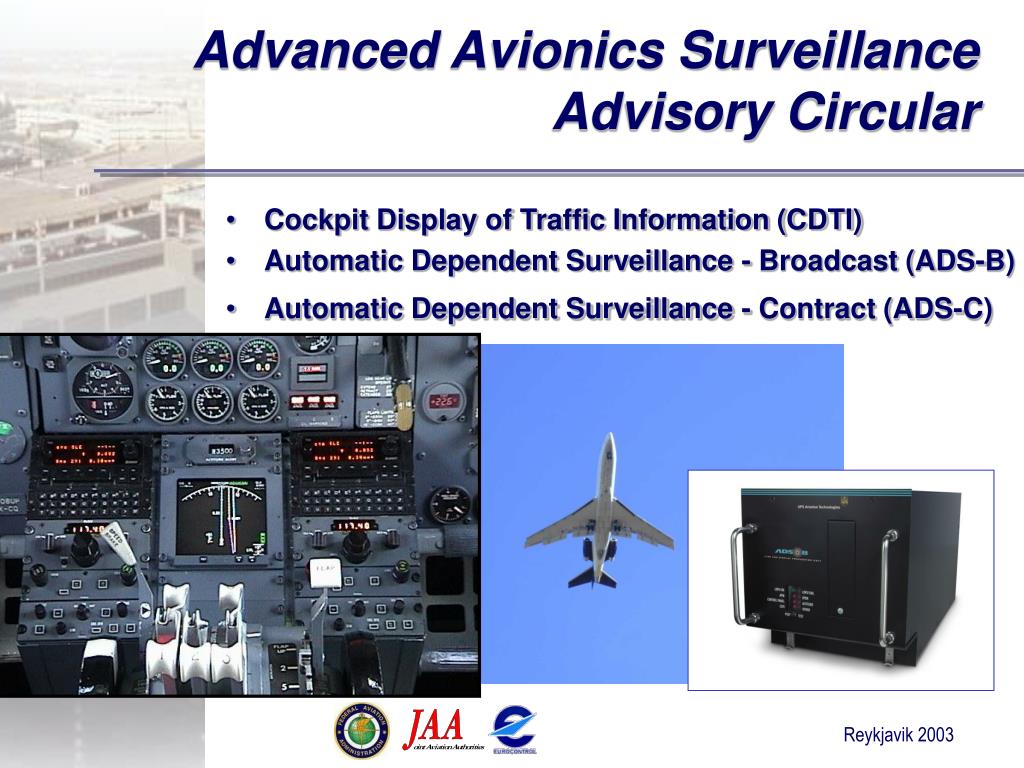

Advanced avionics surveillance advisory circular
Advanced Avionics Surveillance Advisory Circular

  • Cockpit Display of Traffic Information (CDTI)

  • Automatic Dependent Surveillance - Broadcast (ADS-B)

  • Automatic Dependent Surveillance - Contract (ADS-C)

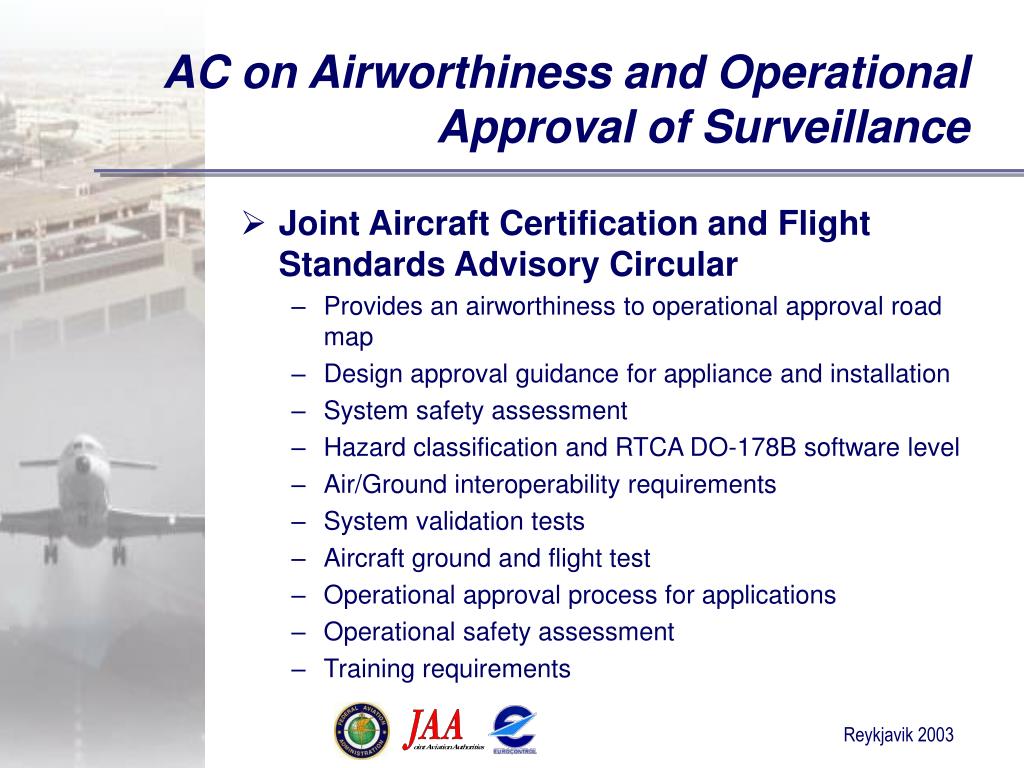

AC on Airworthiness and Operational

Approval of Surveillance

  • Joint Aircraft Certification and Flight Standards Advisory Circular

    • Provides an airworthiness to operational approval road map

    • Design approval guidance for appliance and installation

    • System safety assessment

    • Hazard classification and RTCA DO-178B software level

    • Air/Ground interoperability requirements

    • System validation tests

    • Aircraft ground and flight test

    • Operational approval process for applications

    • Operational safety assessment

    • Training requirements

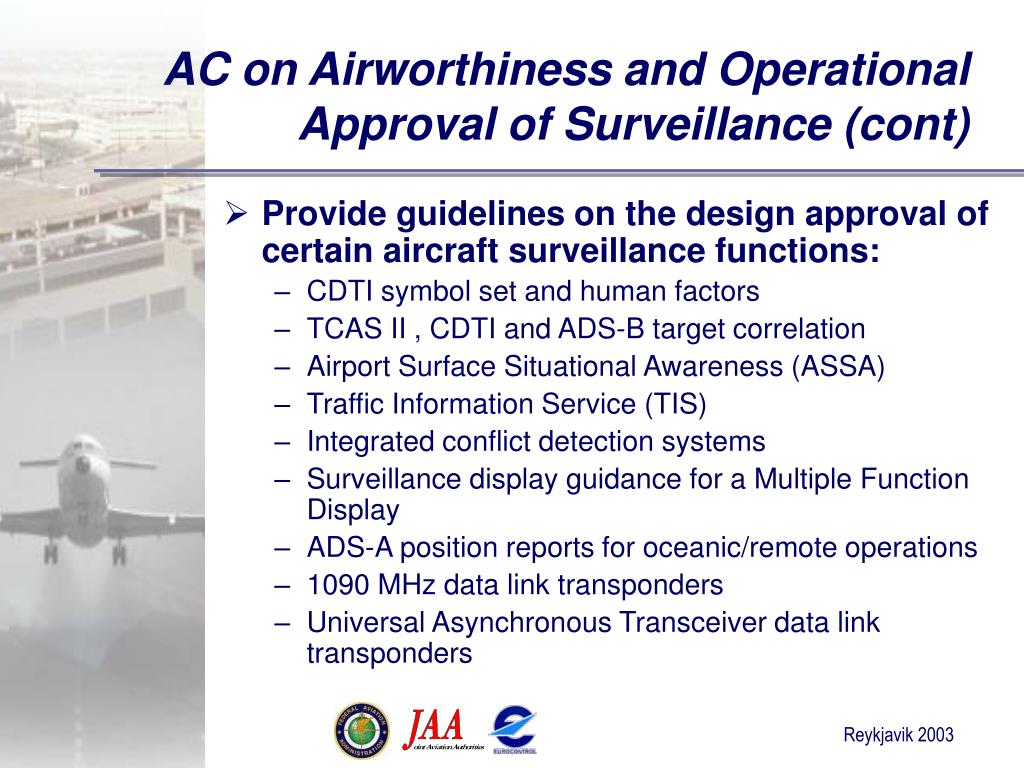

AC on Airworthiness and Operational

Approval of Surveillance (cont)

  • Provide guidelines on the design approval of certain aircraft surveillance functions:

    • CDTI symbol set and human factors

    • TCAS II , CDTI and ADS-B target correlation

    • Airport Surface Situational Awareness (ASSA)

    • Traffic Information Service (TIS)

    • Integrated conflict detection systems

    • Surveillance display guidance for a Multiple Function Display

    • ADS-A position reports for oceanic/remote operations

    • 1090 MHz data link transponders

    • Universal Asynchronous Transceiver data link transponders


January 21, 2003

April 30, 2003

December 30, 2003

March 15, 2004

May 31, 2004

July 28, 2004

Begin initial draft advisory circular

Begin AIR-130/AFS 400 formal review

Clearance record signoff

Publish document in the Federal Register

Disposition comments

Published Approved AC

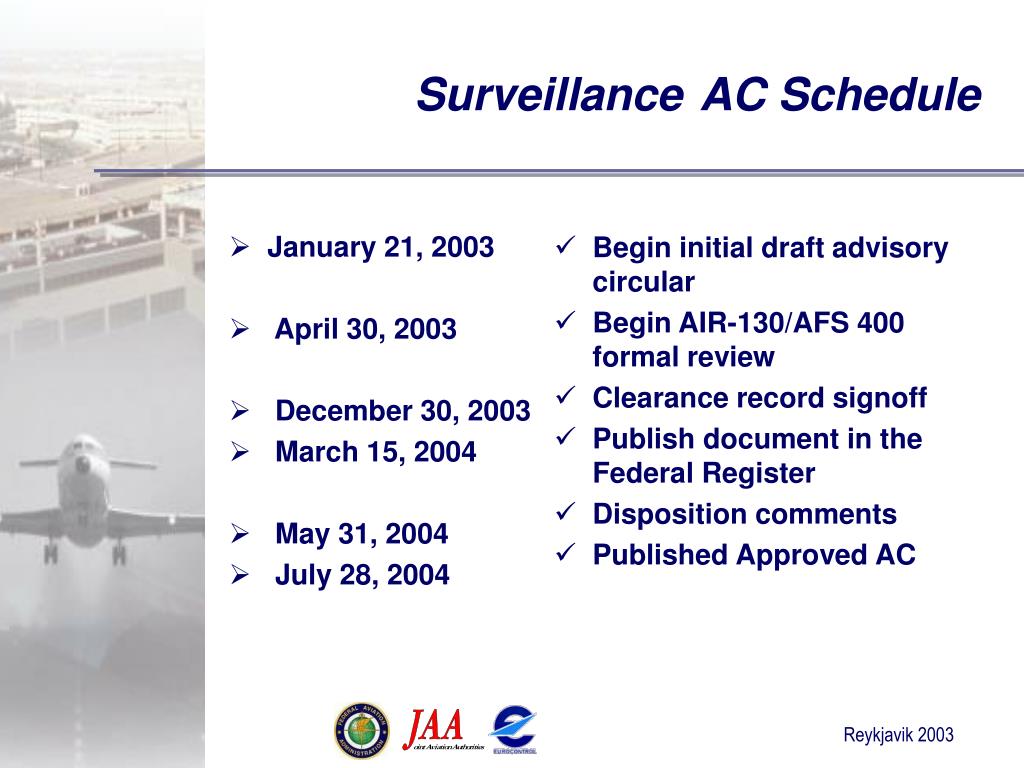

SurveillanceAC Schedule

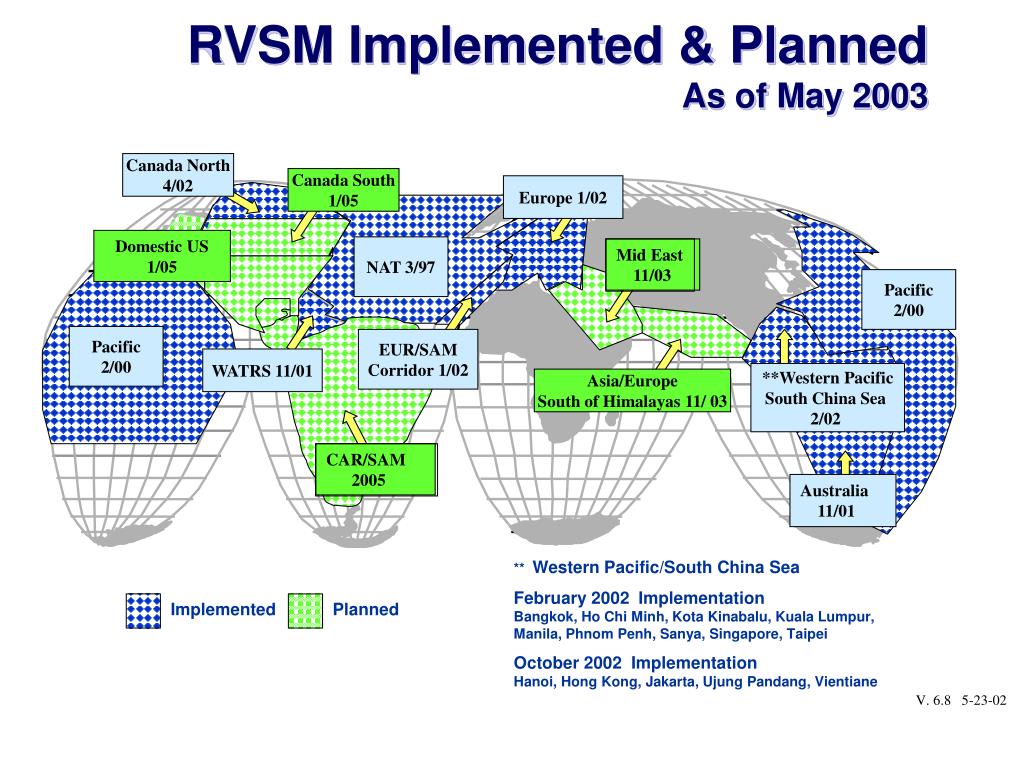

RVSM Implemented & PlannedAs of May 2003

Canada North

4/02

Canada South

1/05

Europe 1/02

Domestic US

1/05

NAT 3/97

Mid East

11/03

Pacific

2/00

Pacific

2/00

EUR/SAM

Corridor 1/02

WATRS 11/01

**Western Pacific

South China Sea

2/02

Asia/Europe

South of Himalayas 11/ 03

CAR/SAM

2005

Australia

11/01

** Western Pacific/South China Sea

February 2002 Implementation Bangkok, Ho Chi Minh, Kota Kinabalu, Kuala Lumpur, Manila, Phnom Penh, Sanya, Singapore, Taipei

October 2002 Implementation Hanoi, Hong Kong, Jakarta, Ujung Pandang, Vientiane

Implemented

Planned

V. 6.8 5-23-02

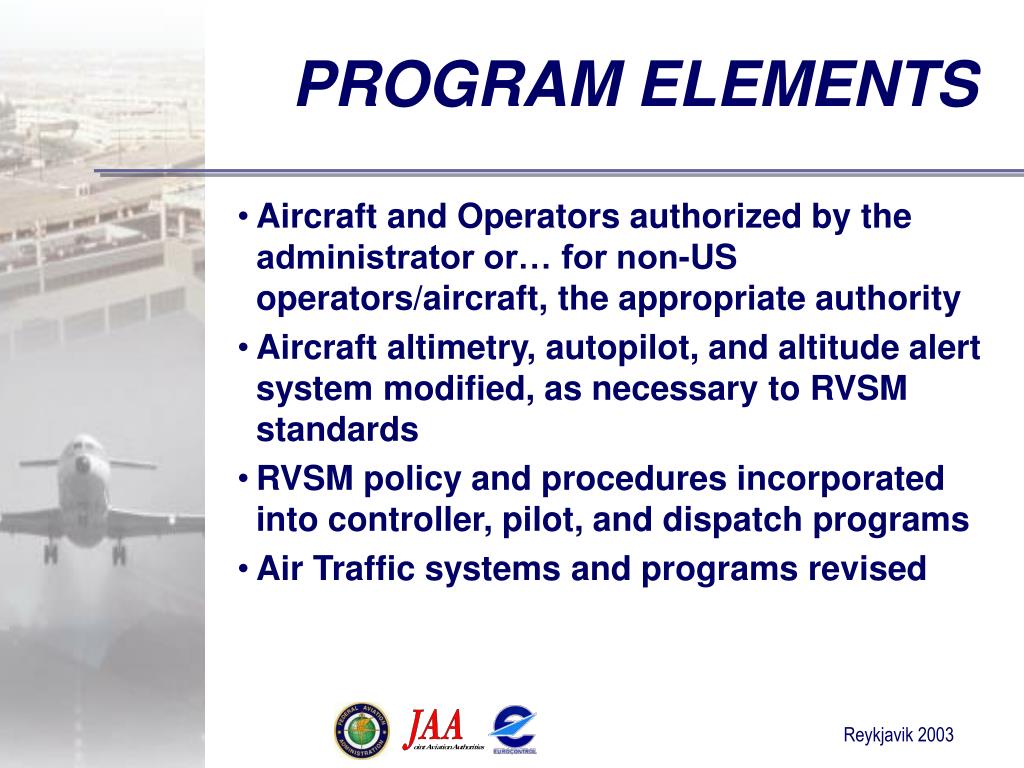

Program elements

PROGRAM ELEMENTS

Aircraft and Operators authorized by the administrator or… for non-US operators/aircraft, the appropriate authority

Aircraft altimetry, autopilot, and altitude alert system modified, as necessary to RVSM standards

RVSM policy and procedures incorporated into controller, pilot, and dispatch programs

Air Traffic systems and programs revised


Program elements cont

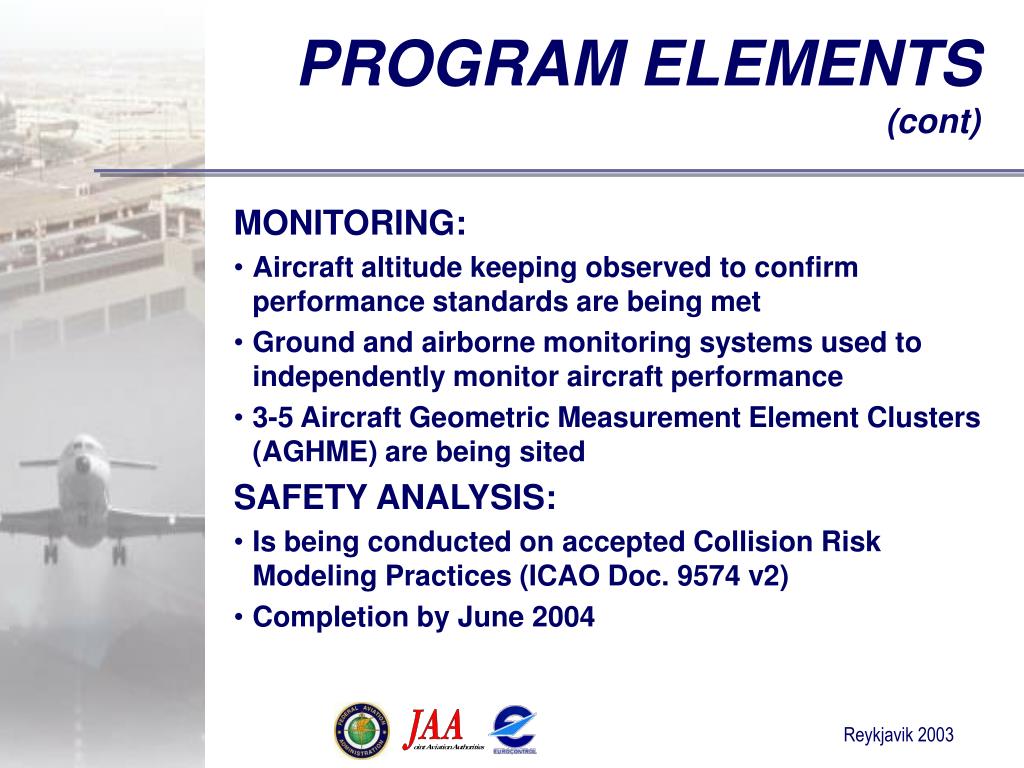

PROGRAM ELEMENTS (cont)

MONITORING:

Aircraft altitude keeping observed to confirm performance standards are being met

Ground and airborne monitoring systems used to independently monitor aircraft performance

3-5 Aircraft Geometric Measurement Element Clusters (AGHME) are being sited

SAFETY ANALYSIS:

Is being conducted on accepted Collision Risk Modeling Practices (ICAO Doc. 9574 v2)

Completion by June 2004

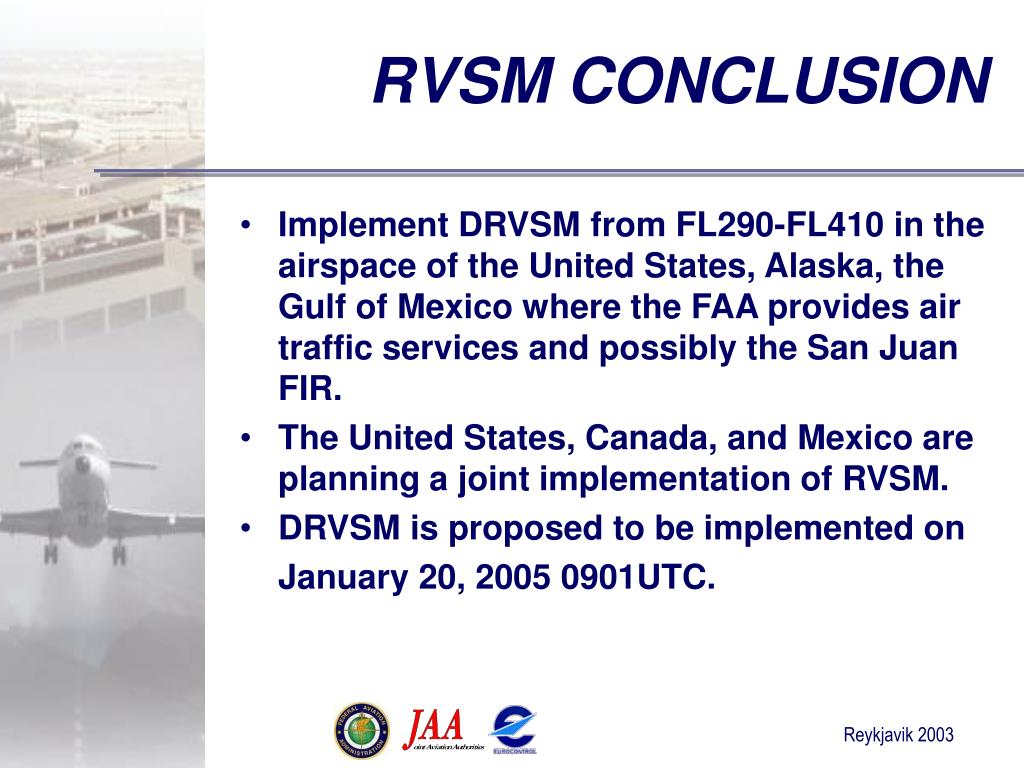

Rvsm conclusion
RVSM CONCLUSION

  • Implement DRVSM from FL290-FL410 in the airspace of the United States, Alaska, the Gulf of Mexico where the FAA provides air traffic services and possibly the San Juan FIR.

  • The United States, Canada, and Mexico are planning a joint implementation of RVSM.

  • DRVSM is proposed to be implemented on

    January 20, 2005 0901UTC.

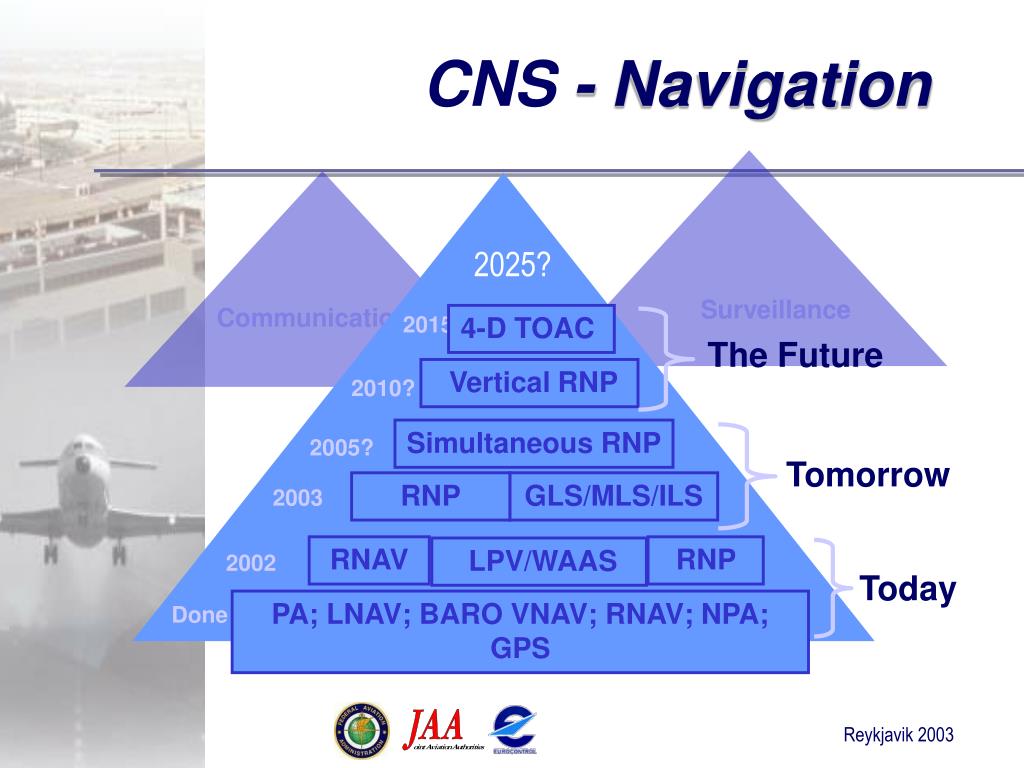

Cns navigation

2025?

2015?

4-D TOAC

TheFuture

Vertical RNP

2010?

Simultaneous RNP

2005?

Tomorrow

RNP

GLS/MLS/ILS

2003

RNAV

RNP

LPV/WAAS

2002

Today

PA; LNAV; BARO VNAV; RNAV; NPA; GPS

Done

CNS - Navigation

Surveillance

Communication


Rnp for departure and approach enhanced airport capacity destination access safety

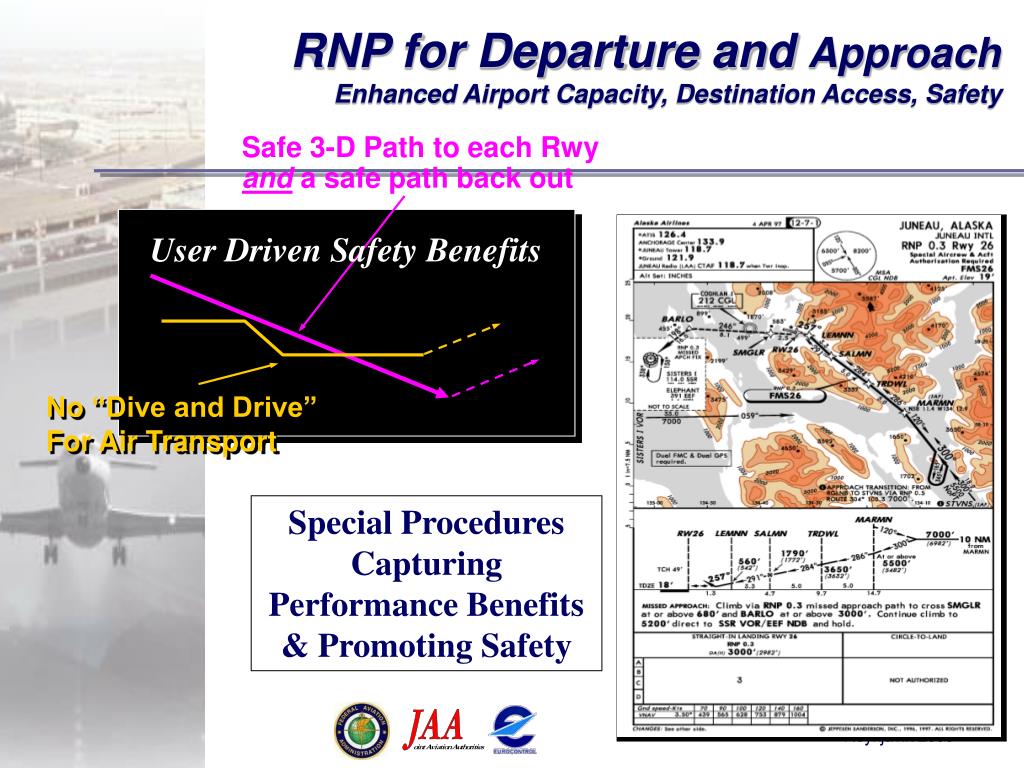

RNP for Departure and Approach Enhanced Airport Capacity, Destination Access, Safety

Safe 3-D Path to each Rwy

and a safe path back out

User Driven Safety Benefits

No “Dive and Drive”

For Air Transport

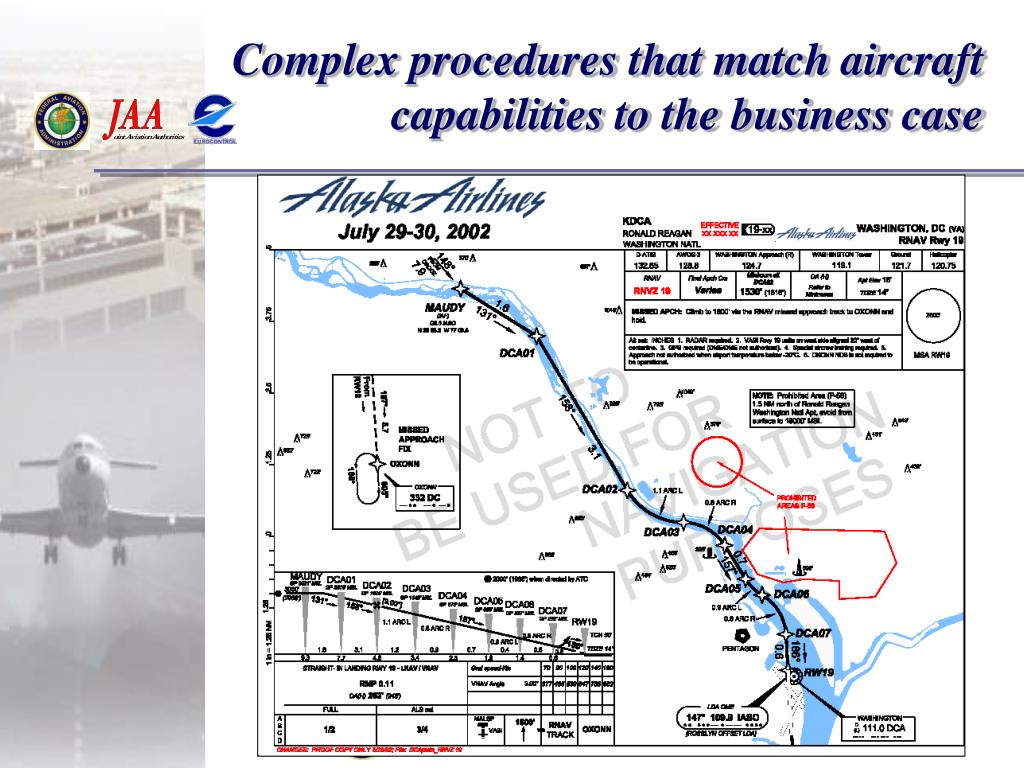

Special Procedures Capturing Performance Benefits & Promoting Safety


New York Traffic Flow Proposal

LaGuardia vs Kennedy


Performance as an Enabler

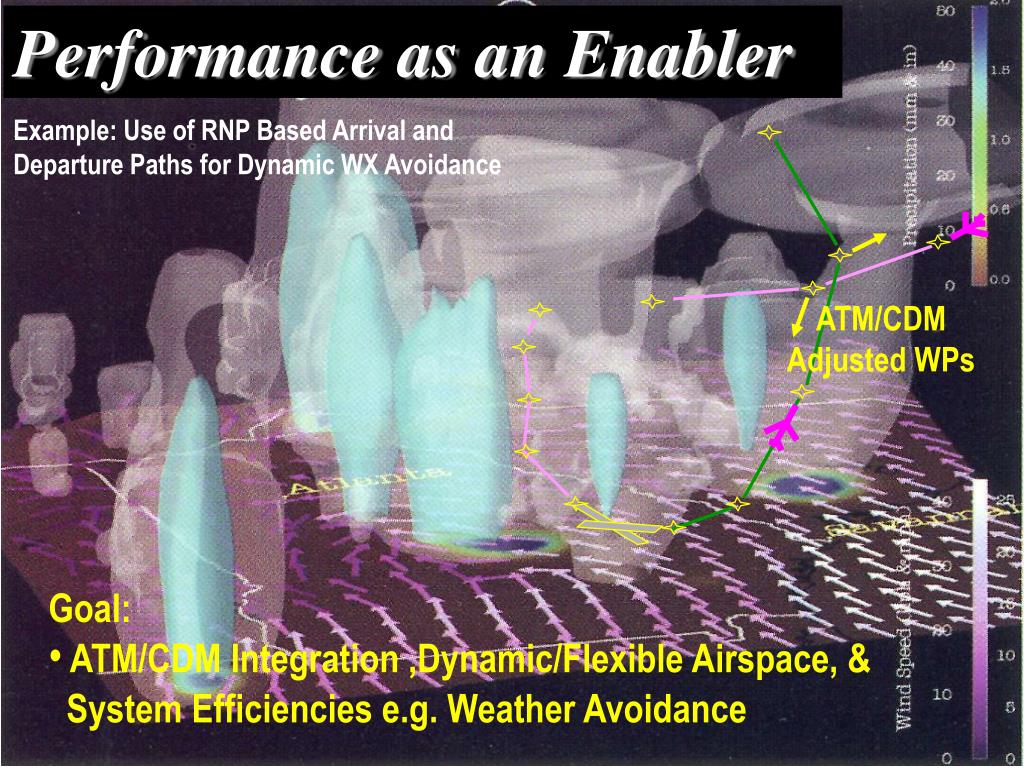

Example: Use of RNP Based Arrival and Departure Paths for Dynamic WX Avoidance

ATM/CDM Adjusted WPs

  • Goal:

  • ATM/CDM Integration ,Dynamic/Flexible Airspace, &

  • System Efficiencies e.g. Weather Avoidance

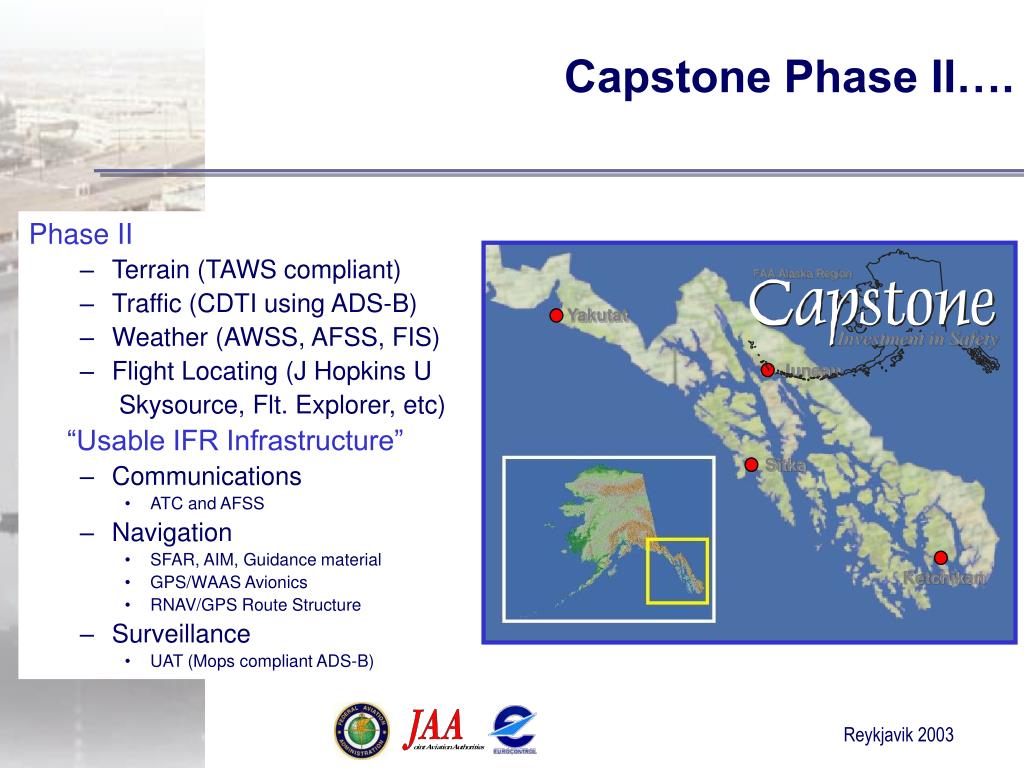

Capstone phase ii

FAA Alaska Region business case

Investment in Safety

Yakutat

Juneau

Sitka

Ketchikan

Capstone Phase II….

Phase II

  • Terrain (TAWS compliant)

  • Traffic (CDTI using ADS-B)

  • Weather (AWSS, AFSS, FIS)

  • Flight Locating (J Hopkins U

    Skysource, Flt. Explorer, etc)

    “Usable IFR Infrastructure”

  • Communications

    • ATC and AFSS

  • Navigation

    • SFAR, AIM, Guidance material

    • GPS/WAAS Avionics

    • RNAV/GPS Route Structure

  • Surveillance

    • UAT (Mops compliant ADS-B)

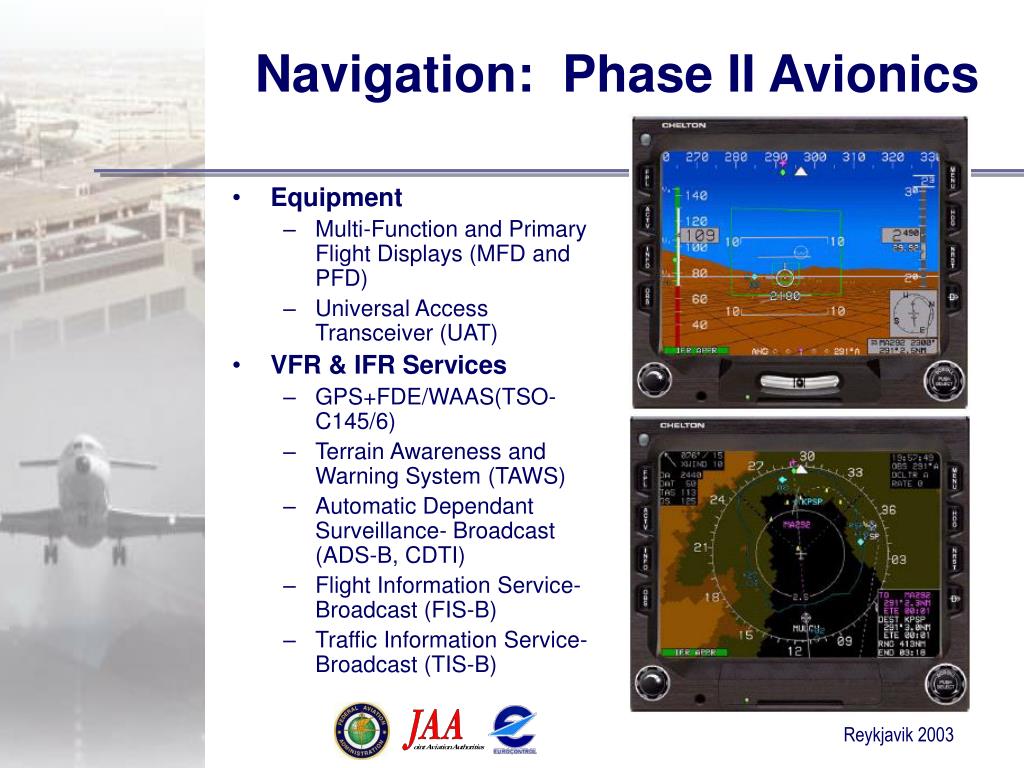

Navigation phase ii avionics
Navigation: Phase II Avionics business case

  • Equipment

    • Multi-Function and Primary Flight Displays (MFD and PFD)

    • Universal Access Transceiver (UAT)

  • VFR & IFR Services

    • GPS+FDE/WAAS(TSO-C145/6)

    • Terrain Awareness and Warning System (TAWS)

    • Automatic Dependant Surveillance- Broadcast (ADS-B, CDTI)

    • Flight Information Service-Broadcast (FIS-B)

    • Traffic Information Service-Broadcast (TIS-B)


Chelton certification
Chelton Certification business case

  • Chelton avionics certification “before and after” University of Alaska C-172 provisional STC installation

    • http://www.nlavionics.com/capstone2

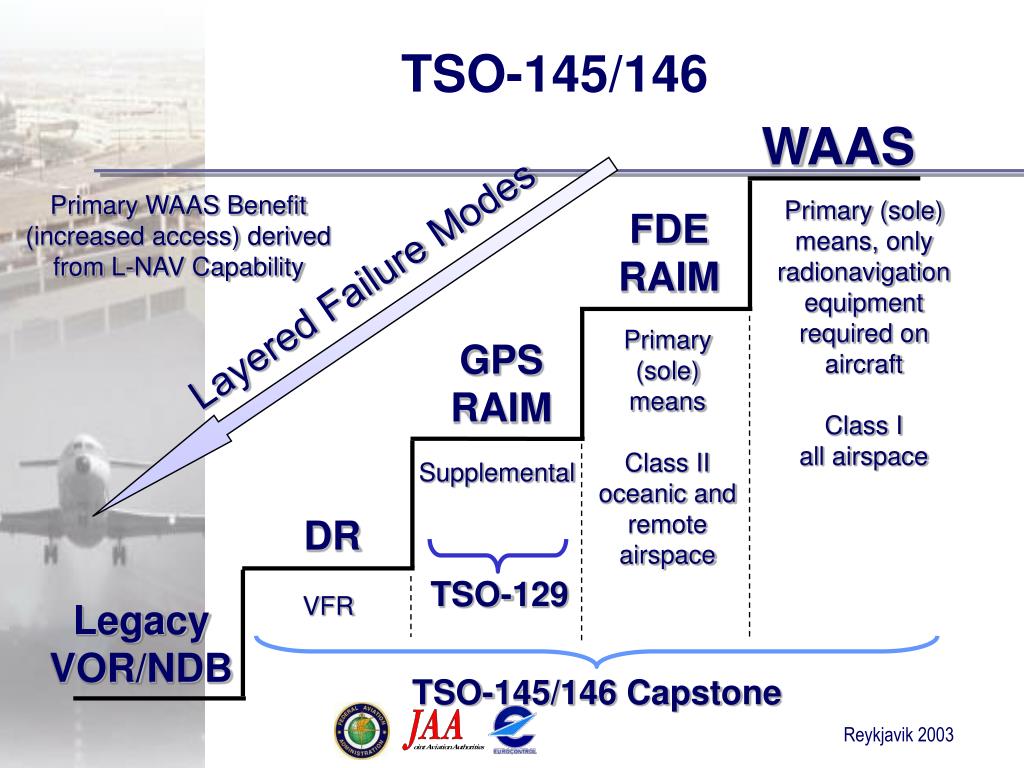

Tso 145 146
TSO-145/146 business case

WAAS

Primary WAAS Benefit (increased access) derived from L-NAV Capability

Primary (sole) means, only radionavigation equipment required on aircraft

Class I

all airspace

FDE

RAIM

Layered Failure Modes

Primary (sole) means

Class II oceanic and remote airspace

GPSRAIM

Supplemental

DR

TSO-129

VFR

Legacy

VOR/NDB

TSO-145/146 Capstone


Communications atc voice coverage @ 2000ft

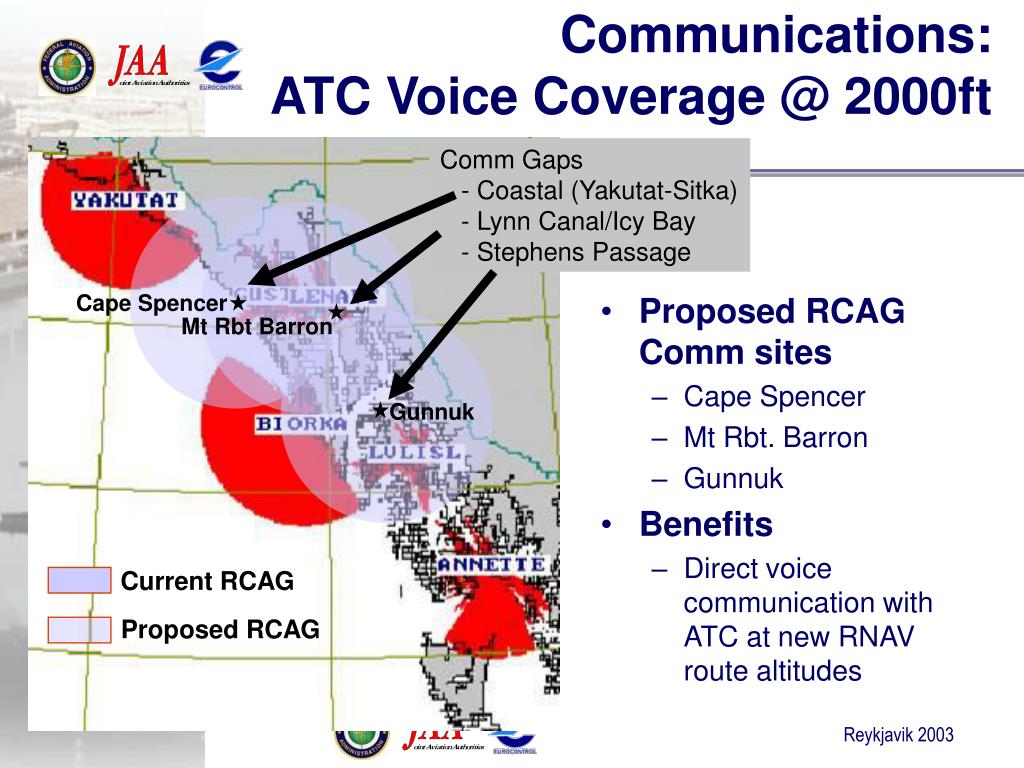

Communications: business caseATC Voice Coverage @ 2000ft

Comm Gaps

- Coastal (Yakutat-Sitka)

- Lynn Canal/Icy Bay

- Stephens Passage

Cape Spencer

  • Proposed RCAG Comm sites

    • Cape Spencer

    • Mt Rbt. Barron

    • Gunnuk

  • Benefits

    • Direct voice communication with ATC at new RNAV route altitudes

Mt Rbt Barron

Gunnuk

Current RCAG

Proposed RCAG


Navigation rnav structure
Navigation: RNAV Structure business case

  • RNAV/GPS MEAs on Existing Routes

  • Approach/DepartureRNAV Procedures

FAF

4000 ft

GUMLE

CIBIX

FAF

JIGMI

FAF

2500 ft

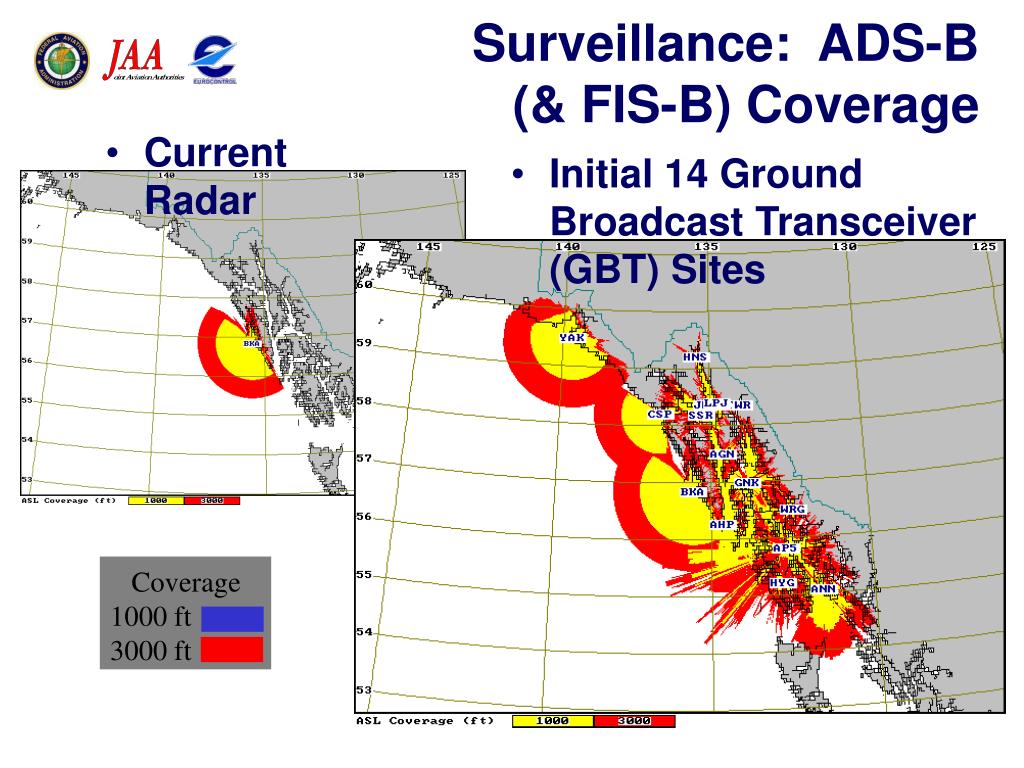

Surveillance ads b fis b coverage

Coverage business case

1000 ft

3000 ft

Surveillance: ADS-B (& FIS-B) Coverage

  • Current Radar

  • Initial 14 Ground Broadcast Transceiver (GBT) Sites


Thoughts for tomorrow

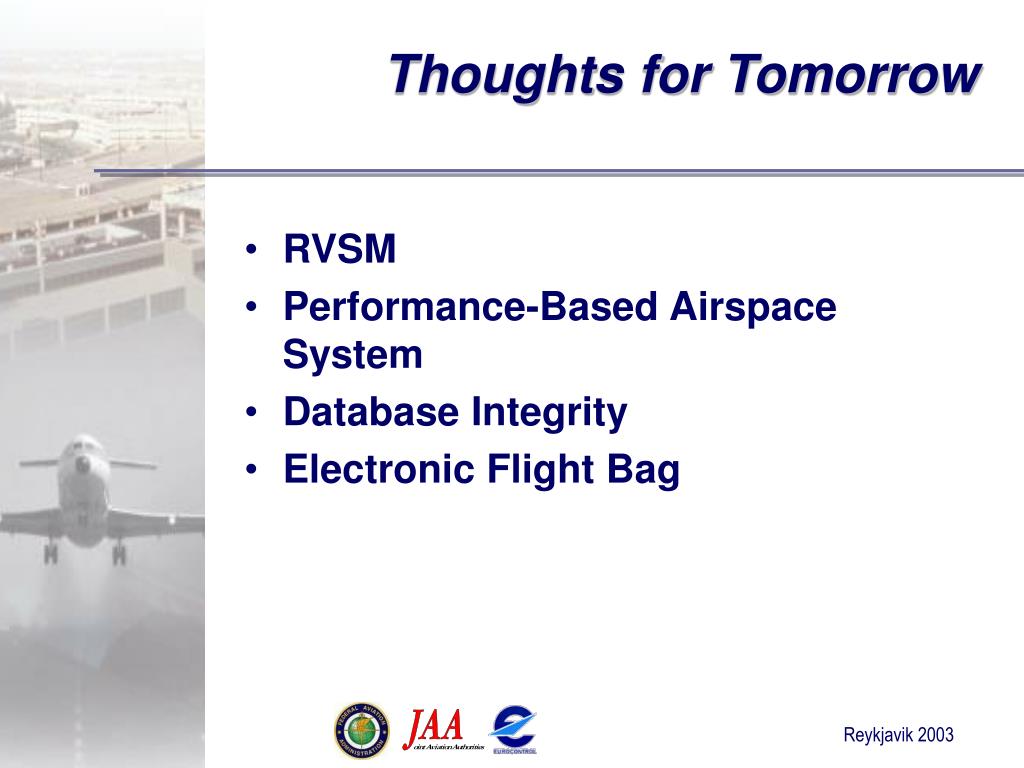

Thoughts for Tomorrow business case

  • RVSM

  • Performance-Based Airspace System

  • Database Integrity

  • Electronic Flight Bag
