Ch 1 wans and routers

Ch.1 – WANs and Routers

CCNA 2 version 3.0

Rick Graziani

Cabrillo College


Note to instructors

Note to instructors

  • If you have downloaded this presentation from the Cisco Networking Academy Community FTP Center, this may not be my latest version of this PowerPoint.

  • For the latest PowerPoints for all my CCNA, CCNP, and Wireless classes, please go to my web site:

    http://www.cabrillo.cc.ca.us/~rgraziani/

    • The username is cisco and the password is perlman for all of my materials.

  • If you have any questions on any of my materials or the curriculum, please feel free to email me at [email protected] (I really don’t mind helping.) Also, if you run across any typos or errors in my presentations, please let me know.

  • I will add “(Updated – date)” next to each presentation on my web site that has been updated since these have been uploaded to the FTP center.

    Thanks! Rick

  • Rick Graziani [email protected]

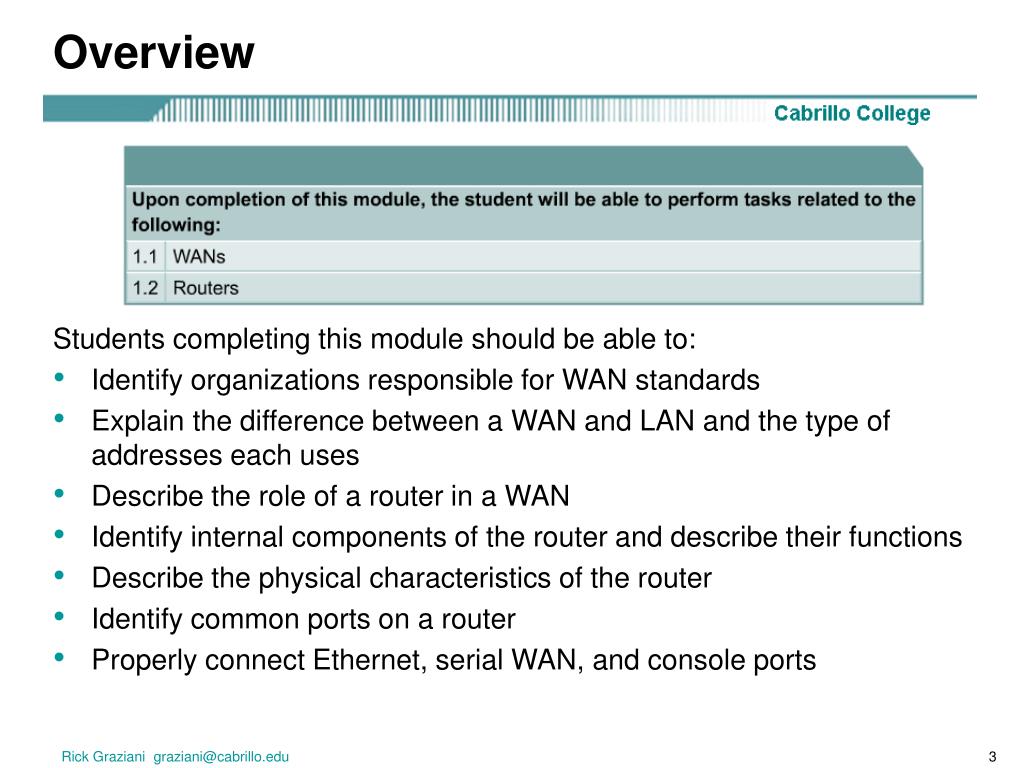

    Overview

    Overview

    Students completing this module should be able to:

    • Identify organizations responsible for WAN standards

    • Explain the difference between a WAN and LAN and the type of addresses each uses

    • Describe the role of a router in a WAN

    • Identify internal components of the router and describe their functions

    • Describe the physical characteristics of the router

    • Identify common ports on a router

    • Properly connect Ethernet, serial WAN, and console ports

    Rick Graziani [email protected]


    Introduction to wans

    Introduction to WANs

    These are the major characteristics of WANs:

    • They connect devices that are separated by wide geographical areas.

    • They use the services of carriers such as the Regional Bell Operating Companies (RBOCs), Sprint, MCI, VPM Internet Services, Inc., and Altantes.net.

    • They use serial connections of various types to access bandwidth over large geographic areas.

    Rick Graziani [email protected]

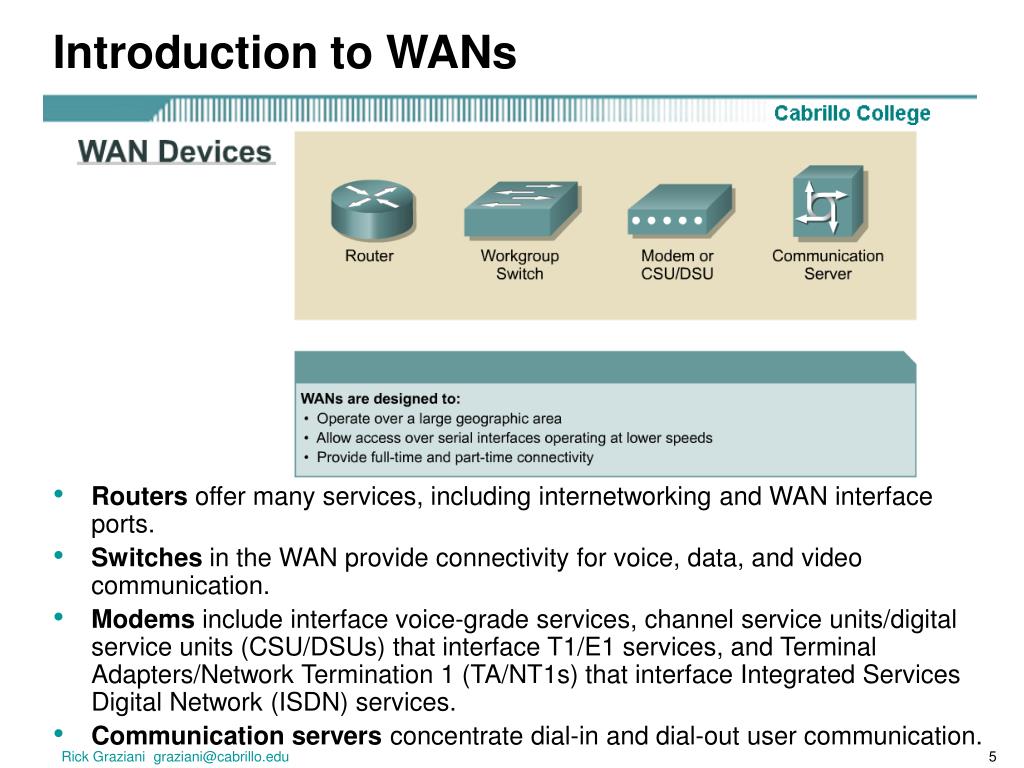

    Introduction to wans1

    Introduction to WANs

    • Routers offer many services, including internetworking and WAN interface ports.

    • Switches in the WAN provide connectivity for voice, data, and video communication.

    • Modems include interface voice-grade services, channel service units/digital service units (CSU/DSUs) that interface T1/E1 services, and Terminal Adapters/Network Termination 1 (TA/NT1s) that interface Integrated Services Digital Network (ISDN) services.

    • Communication servers concentrate dial-in and dial-out user communication.

    Rick Graziani [email protected]


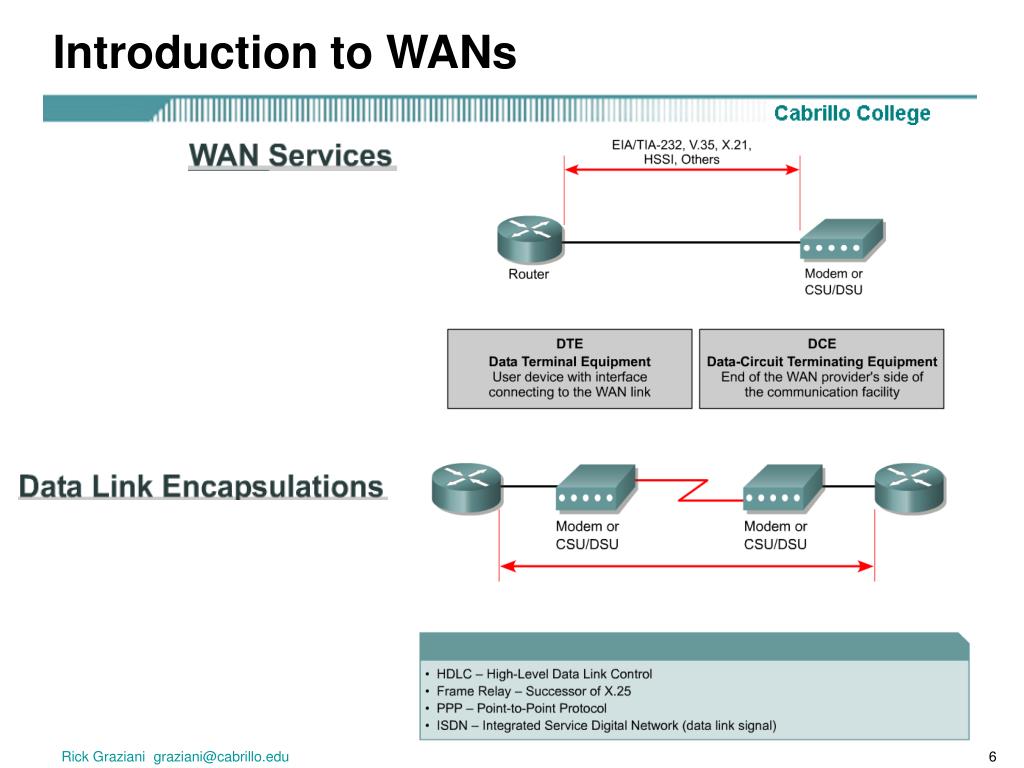

    Introduction to wans2

    Introduction to WANs

    Rick Graziani [email protected]

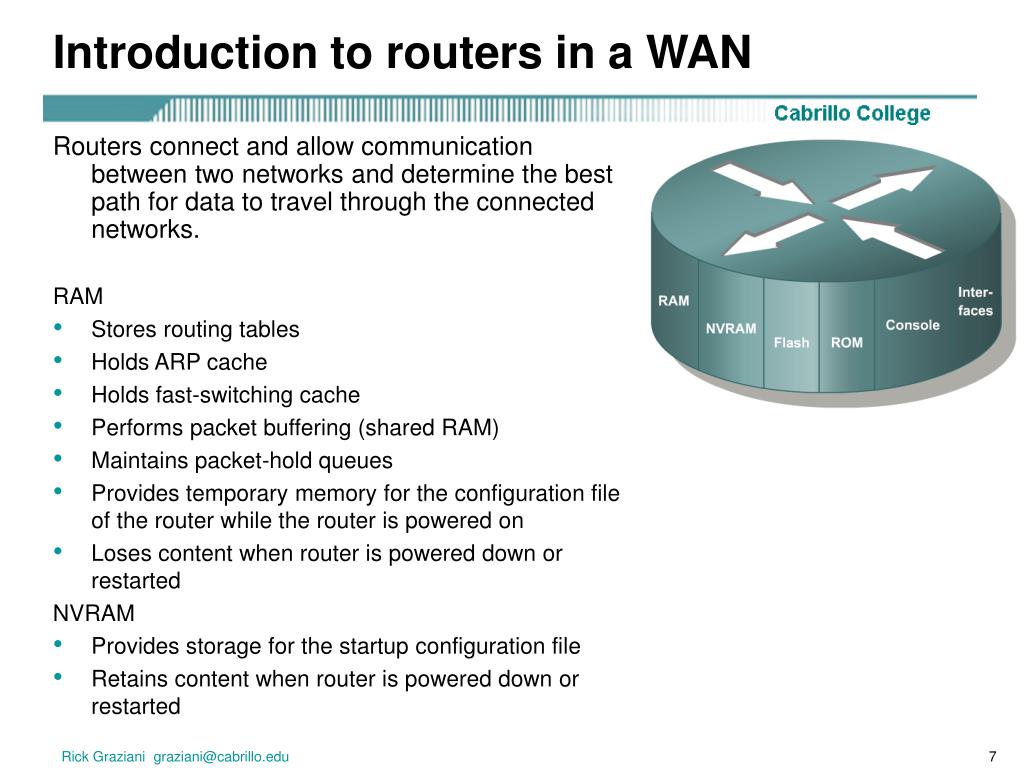

    Introduction to routers in a wan

    Introduction to routers in a WAN

    Routers connect and allow communication between two networks and determine the best path for data to travel through the connected networks.

    RAM

    • Stores routing tables

    • Holds ARP cache

    • Holds fast-switching cache

    • Performs packet buffering (shared RAM)

    • Maintains packet-hold queues

    • Provides temporary memory for the configuration file of the router while the router is powered on

    • Loses content when router is powered down or restarted

      NVRAM

    • Provides storage for the startup configuration file

    • Retains content when router is powered down or restarted

    Rick Graziani [email protected]


    Introduction to routers in a wan1

    Introduction to routers in a WAN

    Flash memory

    • Holds the operating system image (IOS)

    • Allows software to be updated without removing and replacing chips on the processor

    • Retains content when router is powered down or restarted

    • Can store multiple versions of IOS software

    • Is a type of electronically erasable, programmable ROM (EEPROM)

      Read-only memory (ROM) has the following characteristics and functions:

    • Maintains instructions for power-on self test (POST) diagnostics

    • Stores bootstrap program and basic operating system software

    • Requires replacing pluggable chips on the motherboard for software upgrades

    Interfaces

    • Connect router to network for frame entry and exit

    • Can be on the motherboard or on a separate module

    Rick Graziani [email protected]


    Router lans and wans

    Router LANs and WANs

    • Smaller broadcast domains

    • Connecting Layer 3 networks

    Rick Graziani [email protected]


    Router lans and wans1

    Router LANs and WANs

    • Routers are the backbone devices of large intranets and of the Internet.

    • They operate at Layer 3 of the OSI model, making decisions based on network addresses.

    • The two main functions of a router are the selection of best path for and the switching of frames to the proper interface.

    • Routers accomplish this by building routing tables and exchanging network information with other routers.

    Rick Graziani [email protected]


    Router role in a wan

    Router role in a WAN

    • The WAN physical layer describes the interface between the data terminal equipment (DTE) and the data circuit-terminating equipment (DCE).

    • Generally, the DCE is the service provider and the DTE is the attached device. In this model, the services offered to the DTE are made available through a modem or a CSU/DSU.

    Rick Graziani [email protected]


    Router role in a wan1

    Router role in a WAN

    • The primary WAN roles of a router are therefore not routing, but providing connections to and between the various WAN physical and data-link standards.

    • For example, a router may have an ISDN interface using PPP encapsulation and a serial interface terminating a T1 line using Frame Relay encapsulation.

    Rick Graziani [email protected]


    Academy approach to hands on labs

    Academy approach to hands-on labs

    • In the academy lab, devices that make up the WAN cloud are simulated by the connection between the back-to-back DTE-DCE cables.

    • One of the routers will provide the clock rate (later).

    Rick Graziani [email protected]

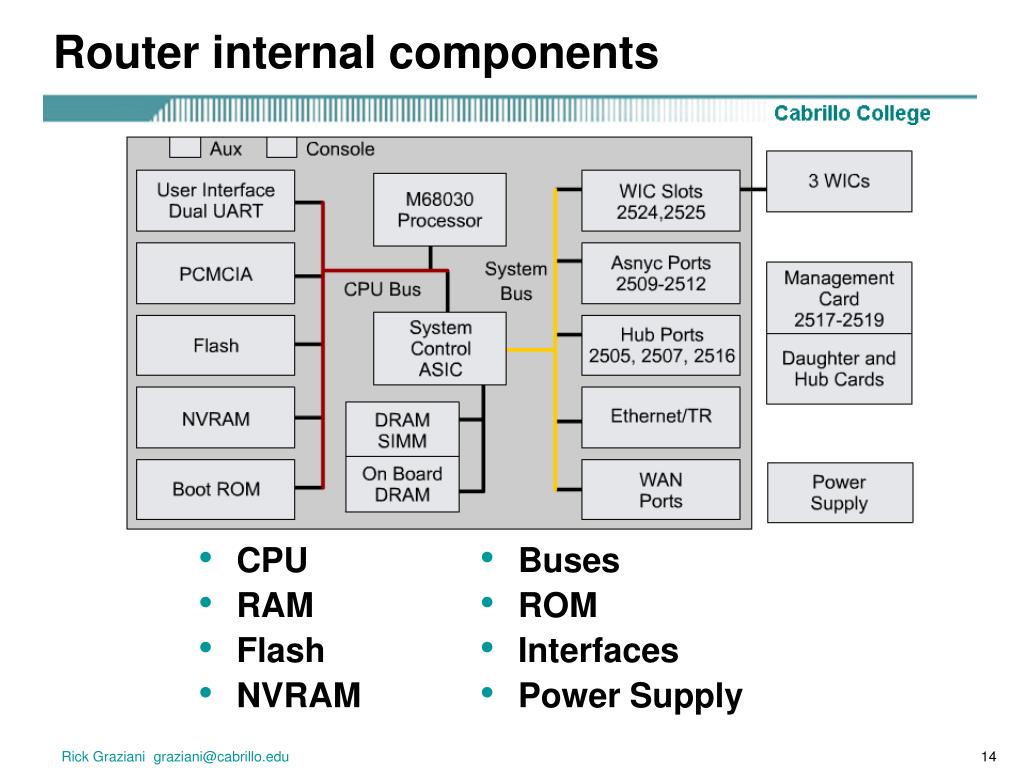

    Router internal components

    Router internal components

    • CPU

    • RAM

    • Flash

    • NVRAM

    • Buses

    • ROM

    • Interfaces

    • Power Supply

    Rick Graziani [email protected]


    Router physical characteristics

    Router physical characteristics

    Rick Graziani [email protected]


    Router external connections

    Router external connections

    Rick Graziani [email protected]

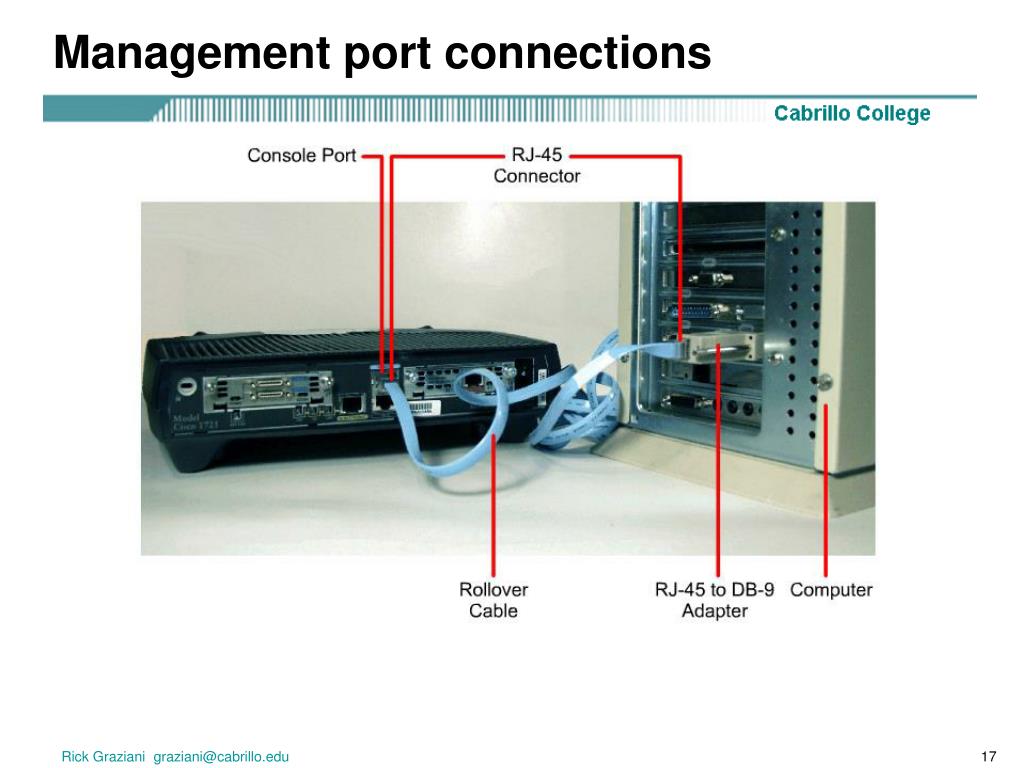

    Management port connections

    Management port connections

    Rick Graziani [email protected]

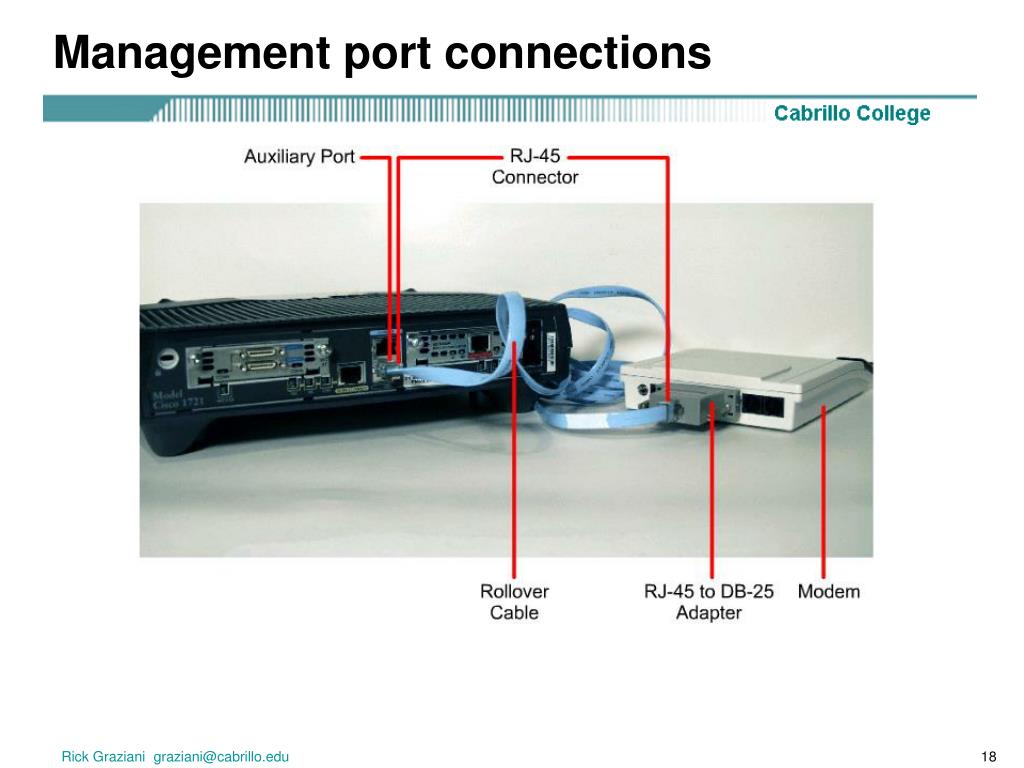

    Management port connections1

    Management port connections

    Rick Graziani [email protected]


    Connecting console interfaces

    Connecting console interfaces

    When connected using the console interface, the computer is acting as a “dumb terminal”.

    <Router Output>

    Rick Graziani [email protected]


    Connecting console interfaces1

    Connecting console interfaces

    Rick Graziani [email protected]


    Connecting console interfaces2

    Connecting console interfaces

    <Router Output>

    Rick Graziani [email protected]


    Connecting lan interfaces

    Connecting LAN interfaces

    Rick Graziani [email protected]

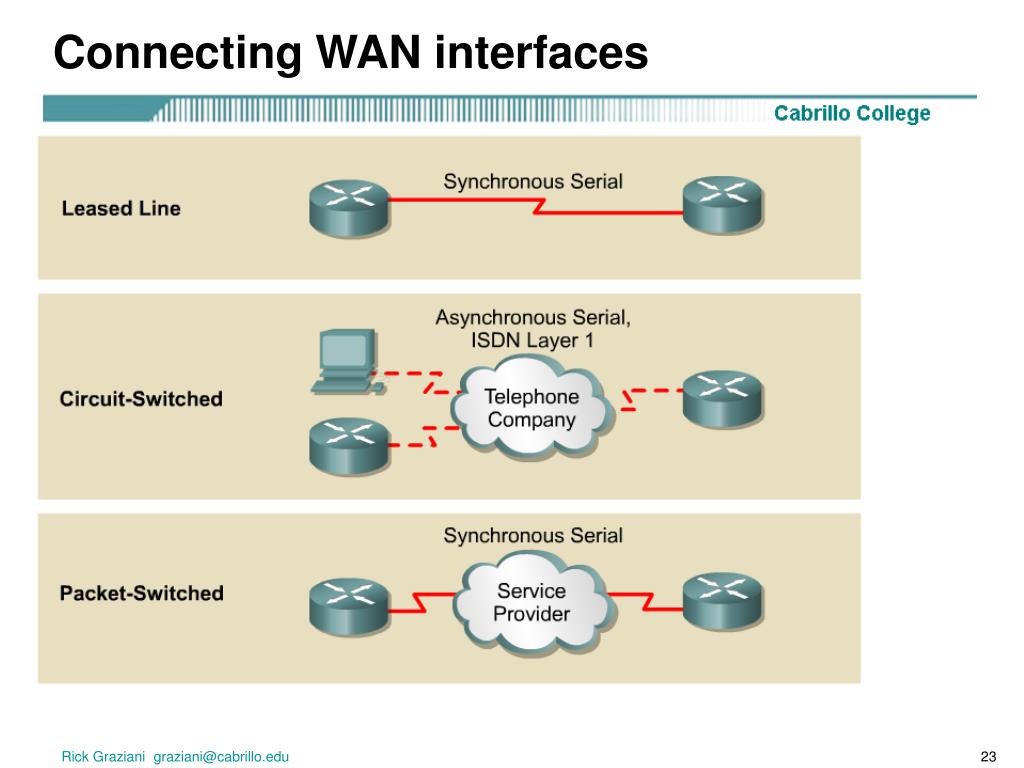

    Connecting wan interfaces

    Connecting WAN interfaces

    Rick Graziani [email protected]


    Connecting wan interfaces1

    Connecting WAN interfaces

    Rick Graziani [email protected]

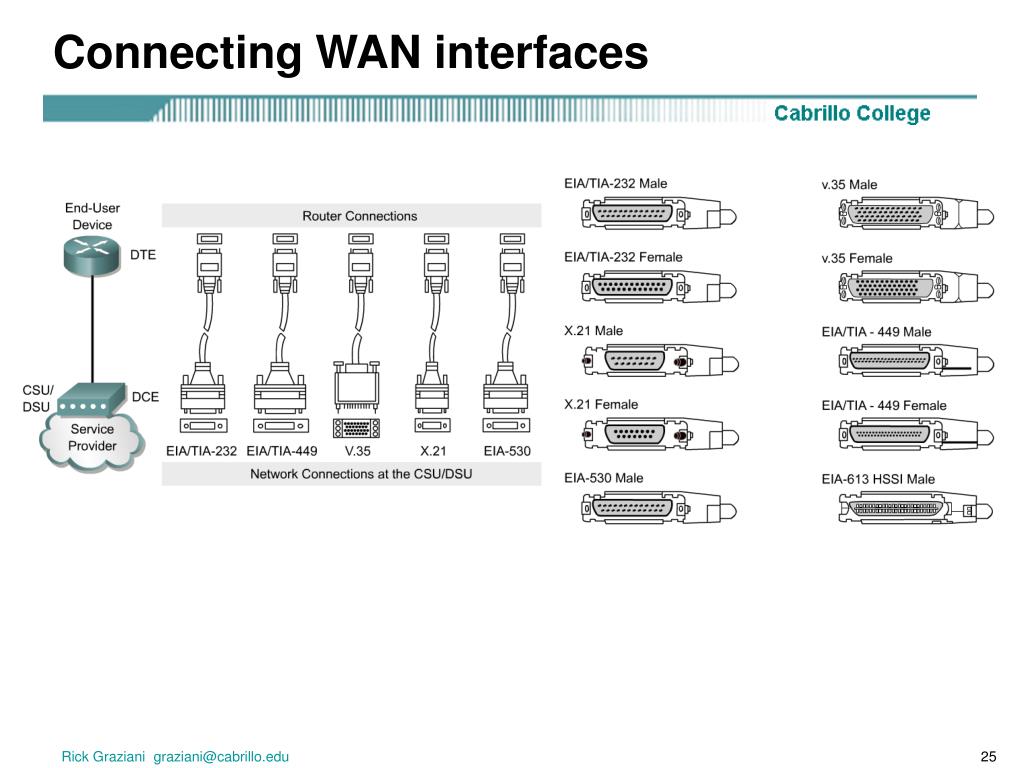

    Connecting wan interfaces2

    Connecting WAN interfaces

    Rick Graziani [email protected]

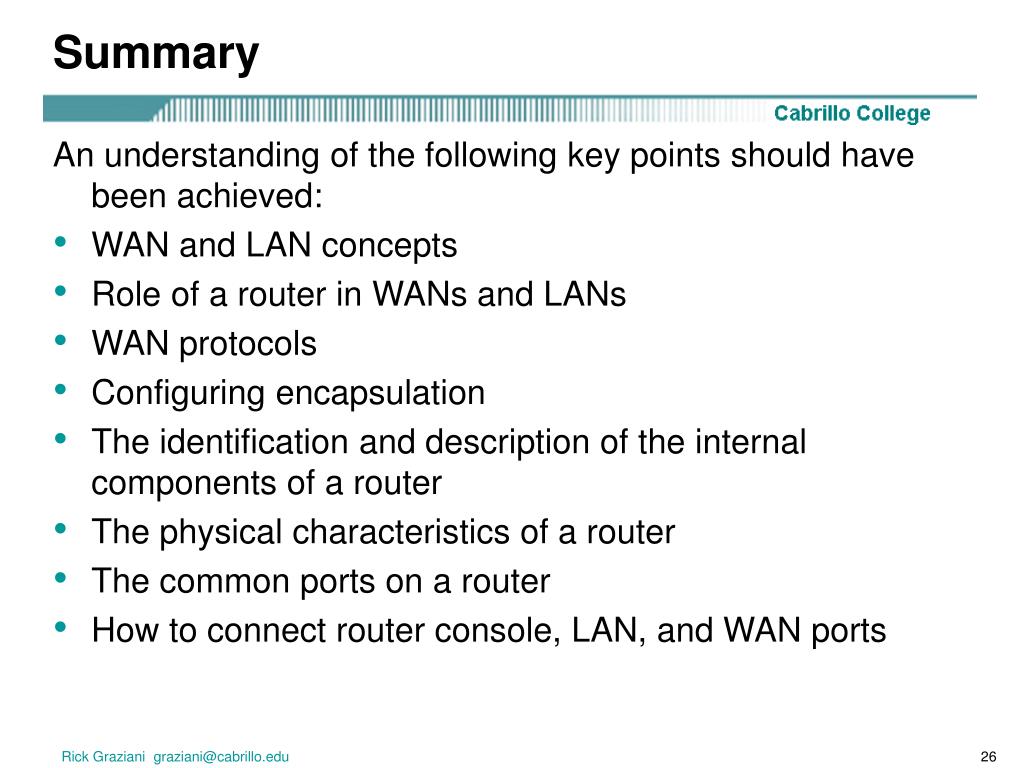

    Summary

    Summary

    An understanding of the following key points should have been achieved:

    • WAN and LAN concepts

    • Role of a router in WANs and LANs

    • WAN protocols

    • Configuring encapsulation

    • The identification and description of the internal components of a router

    • The physical characteristics of a router

    • The common ports on a router

    • How to connect router console, LAN, and WAN ports
