  1. Bureau of ReclamationMid-Pacific Region California Departmentof Water Resources Upper San Joaquin River BasinStorage Investigation Workshop #3 October 18, 2002

  2. Workshop Purpose and Objectives • Review and Discuss Initial Surface Storage Option Screening • Review Investigation Relationship to Other Programs • Review and Discuss Initial Single Purpose Modeling Results

  3. Workshop #3 Agenda • Investigation Purpose and Process • Surface Storage Option Screening • Conjunctive Management • Model Modifications and Preliminary Results • Next Steps Bureau of ReclamationMid-Pacific Region California Departmentof Water Resources October 18, 2002

  4. Participation Principles • Participate -- Attend the workshops • Learn -- Learn about resources, people, roles, and process • Represent -- Bring issues and interests forward from others whose interests you share • Cooperate -- Work with others in the workshops to share information and consider options • Educate -- Report back to others who share your interests

  5. Workshop Ground Rules • Commit to Being Fully Present • No cell phones, pagers, voicemail, etc. • Ask for what you need from the meeting process and participants • Honor Our Time Limits • Keep comments and discussion concise • Stay focused on the topic – Use the parking lot for other issues • Respect Each Other • Listen carefully to other participants • Respond to ideas and issues, not individuals • Support Constructive Discussion • Suggest improvements and solutions • Build on others’ ideas – Use “and” instead of “but”

  6. Parking Lot • Describe the planning process • Describe participants’ role in document review • Describe the relationship of this Investigation and the Conjunctive Management Program • Describe the relationship of this Investigation and the CALFED watershed program and approaches • Interact with FWUA/NRDC process. Define the relationship/match of objectives with the goals of the Friant/NRDC discussions • TMDL requirements Today Next Workshop When Friant/ NRDC Reports are available Phase II Objectives

  7. Parking Lot (continued) As part of Conjunctive Mgmt. analysis • Investigate the re-operation of Friant • Include information regarding Metropolitan Water District’s/ Friant Water Users regional exchanges • Consider channel maintenance and floodplain integrity • Assume Fish and Game code Section 5937 will be honored • Currently in litigation, can not be included until the litigation is completed Phase II

  8. Phase I Phase II Appraisal Study Recommend Feasibility Study Feasibility Study EIS/EIR Recommended Project UPPER SAN JOAQUIN RIVER BASIN STORAGE INVESTIGATION – A Two-Phase Investigation Approach

  9. Investigation Goals and Phase 1 Purpose Statement • CALFED Goals for Upper San Joaquin River Basin Storage • Contribute to restoration of San Joaquin River • Improve water quality in San Joaquin River • Facilitate conjunctive water management and water exchanges • Phase 1 Study Purpose Statement • “Determine if CALFED agencies should pursue a water storage • feasibility study that could meet the CALFED goals for Upper • San Joaquin River Basin Storage and assist in solving other • regional problems.”

  10. We Are Here Phase 1 Planning Approach P l a n F o r m u l a t I o n S t r a t e g y CALFED Agencies Phase IInvestigationReport Planning Team Stakeholders PlanningProcessAgreements Phase IStudy Purpose Goals Objectives ContinuationCriteria Problems andOpportunities Modeling Tools andAssumptions ModelRefinement Evaluation Functional Equivalence AlternativesDevelopmentand Modeling PreliminaryEvaluation ContinuationRecommendation Friant EnlargementConcept Initial Evaluation AlternativesDevelopment Surface StorageOptions OptionsScreening OptionsModeling

  11. Review and Comment Process • Review Process • Draft materials from team to participants • Workshop discussion • Review comments from participants to team • Revised materials to participants and web site • Formal document review at key milestones • In-Progress Phase 1 Report -- Early 2003 • Draft Phase 1 Report -- Mid-2003 • Roles • Participants provide oral and written comments • Team incorporates comments or provides rationale for alternate approach/strategy

  12. Workshop #3 Agenda • Investigation Purpose and Process • Surface Storage Option Screening • Conjunctive Management • Model Modifications and Preliminary Results • Next Steps Bureau of ReclamationMid-Pacific Region California Departmentof Water Resources October 18, 2002

  13. Surface Storage OptionsOverview of Phase 1 Approach • Review each surface storage option • Could it be built? • What would it accomplish? • How much would it cost ? • Who would be willing to share in project costs? • Include retained options in preliminary alternatives

  14. Surface Storage OptionsOverview of Phase 1 Approach • Assess preliminary alternatives using traditional planning criteria • Effectiveness • Efficiency • Completeness • Acceptability

  15. Surface Storage OptionsThree-Step Screening Approach • Constructability • Major engineering and environmental issues • Operational Performance • How an option would contribute to Investigation Goals • Compare performance of options • Cost and Acceptability • Compare cost-effectiveness • Evaluate potential acceptability of options

  16. Surface Storage Option Review Status • Began with list of options from previous studies • USBR, DWR, local agencies, and NRDC/FWUA • Dropped options that have been authorized • Completed constructability review • Engineering features • Environmental issues of concern

  17. Surface Storage Options Constructability ReviewEngineering Review • Reviewed previous studies • Configurations, water sources, and uses • Conducted preliminary field visits • Site access, construction staging, borrow opportunities • Seismic and geologic conditions • Identified major features • Updated quantities and costs • Considered opportunities for hydropower generation

  18. Surface Storage Options Constructability ReviewEnvironmental Review • Reviewed previous studies and other literature • Significant features that would be affected • Known and potential environmental conditions • Conducted preliminary field visits • Identified major environmental issues • Botany, wildlife, aquatic biology, land use, recreation • Considered opportunities for mitigation

  19. Merced River Watershed Montgomery San Joaquin River Watershed Raise Friant Dam Fine Gold Creek Temperance Flat Enlarge Kerckhoff Lake Enlarge Mammoth Pool Big Dry Creek Watershed Big Dry Creek Kings River Watershed Raise Pine Flat Dam Mill Creek Rodgers Crossing Dinkey Creek Kaweah River Watershed Raise Terminus Dam Dry Creek Yokohl Creek Tule River Watershed Raise Sucess Dam Hungry Hollow Surface Storage Option Review Initial List of Surface Storage Options Considered

  20. Review of Surface Storage Options To Be Dropped Based on Constructability Review

  21. Montgomery Reservoir Potential project • New dam & reservoir on Dry Creek, tributary to Merced River downstream of Lake McClure • Capacity of 241 TAF • Reservoir surface area 8,000 acres • Two-way canal, with pumps, pipeline and siphon Water sources • Merced River, diverted via MID canal from Merced Falls

  22. Montgomery Reservoir • Engineering findings • No engineering constructability concerns • Shallow reservoir would elevate water temperature • Environmental findings • Generally undeveloped area • Potential for vernal pools • Recommendation - Drop • Warm water undesirable to local water users

  23. Big Dry Creek Reservoir • Existing facility (Fresno MetropolitanFlood Control Dist.) • 30 TAF flood detention basin • Temporary storage only • Downstream recharge facilities in place • Potential project • Modify dam for up to 30 TAF long-term storage • Add turn-out from Friant-Kern Canal • Water sources • Big & Little Dry Creeks and Friant-Kern Canal

  24. Big Dry Creek Reservoir • Engineering findings • Dam designed for temporary storage • Seepage concerns(DSOD & Corps) • Could further enhance ground water recharge • Environmental findings • Potential for vernal pools in reservoir area • Recommendation - Drop for long-term storage • High local interest in conjunctive use opportunity

  25. Rodgers Crossing Reservoir • Potential project • Concrete arch dam on main stem of Kings River, just above confluence with North Fork • Two sizes considered from previous studies

  26. Rodgers Crossing Reservoir • Engineering findings • Favorable geotechnical conditions • Environmental findings • Both options would affect wild trout stream and Kings River Special Management Area • Both options affect popular whitewater rafting run • Large option would also affect Wild and Scenic River • Recommendation - Drop • High environmental impacts • Low likelihood of public acceptance

  27. Potential project Two sizes considered from previous studies Dinkey Creek Reservoir

  28. Dinkey Creek Reservoir • Engineering findings • Favorable geotechnical conditions • Environmental findings • Extensive wetlands and riparian habitat • Recreation based community • Access to other Sierra recreation areas • Recommendation - Drop • Environmental mitigation may not be possible • Low likelihood of public acceptance

  29. Hungry Hollow Reservoir • Potential project • Located on Deer Creek, a tributary of the Tule River • 267-ft high earthfill embankment and 3 saddle dams • 800 TAF capacity • Water sources - Two possible configurations: • Option 1 – Friant Kern Canal • 9 mile canal, 3 pump stations • Option 2 – Friant Kern Canal and Tule River • 3 mile tunnel from Lake Success, outlet channel to FKC

  30. Hungry Hollow Reservoir • Engineering findings • Dam site is above 300 ft of loose, saturated alluvium • Very high construction cost anticipated even without seismic modifications • Local water supply small, pumping would be required • Environmental findings • Low potential for significant environmental impacts • Recommendation – Drop • Seismic stability concerns on foundation

  31. Surface Storage Options To Be Carried Forward For Operational Performance

  32. Friant Dam Raise • Raise between 25 ft and 140 ft • Downstream overlay • Additional storage ranges from 132 TAF to 870 TAF • Dike along south rim • Land use impacts increase with dam height • Potential aquatic impacts on San Joaquin River above existing Millerton Lake limit

  33. Temperance Flat Reservoir • 3 Sites Considered • Retained site at RM 279 • Reservoir elevations between 900 ft and 1100 ft • Capacity up to 1,234 TAF • Power replacement • Impacts to whitewater recreation and aquatic biology

  34. Fine Gold Creek Reservoir • Dam height ranges from 380 ft to 580 ft • Storage volume ranges from 132 TAF to 780 TAF • Powerplant and pumping plant (pumped storage) • Impacts to native fisheries, botany and wildlife

  35. Kerckhoff Reservoir Enlargement • New Kerckhoff Dam (RM 286) • 5 miles downstream of existing Kerckhoff Dam • Identified during review of Temperance Flat options • Heights range from 400 (el. 1120) to 680 ft. (el. 1400) • Storage volume ranges from 250 TAF to 2,000 TAF • Power plant to replace upstream facilities • Environmental impacts not yet reviewed

  36. Raise Mammoth Pool • Install spillway gates for surcharge operation • Increase capacity by about 35 TAF • Low potential for environmental impacts • SCE interest not known at this time • Details on existing and proposed facilities not readily available • DSOD has preference for uncontrolled spillways

  37. Raise Pine Flat Dam • Increase pool elevation 12 ft. • Increase capacity by 124 TAF • Raise upstream powerplant • Potential to increase net power generation • Moderate environmental impacts

  38. Mill Creek Reservoir • Tributary to Kings River downstream of Pine Flat Dam • Main structures • 250-ft high dam • 5,000-ft tunnel from Pine Flat • Capacity - 200 TAF • Aquatic, botany, and wildlife impacts • Land use impacts • Ranchettes and dude ranch

  39. Dry Creek Reservoir • Kaweah River tributary, downstream and north of Terminus Dam • Major features • 143-ft high dam • 3,210-ft long gravity tunnel from Lake Kaweah • Capacity - 70 TAF • No anticipated unmitigatable environmental impacts

  40. Yokohl Creek Reservoir • Kaweah River tributary downstream of Lake Kaweah • 2 configurations considered • pumped storage from Friant Kern Canal • diversion from Lake Kaweah • Favorable geotechnical conditions • No unmitigatable environmental impacts anticipated

  41. Workshop #3 Agenda • Investigation Purpose and Process • Surface Storage Option Screening • Conjunctive Management • Model Modifications and Preliminary Results • Next Steps Bureau of ReclamationMid-Pacific Region California Departmentof Water Resources October 18, 2002

  42. CALFED PROGRAMSPrograms Established in Record of Decision Ecosystem Restoration Levee Integrity Water Quality Conveyance Water Use Efficiency Storage Watershed Management Water Transfer

  43. CALFED PROGRAMSStorage Program Elements • Surface storage projects to be pursued • In-Delta storage • Expand Shasta Reservoir • Expand Los Vaqueros Reservoir • Surface storage projects requiring further consideration • Sites Reservoir • Additional storage in Upper San Joaquin River watershed • Groundwater storage and conjunctive management • Groundwater management

  44. CALFED PROGRAMSCommon Assumptions • CALFED is developing a set of common assumptions for use in storage project evaluations • Common assumptions will address • Level of development and water demands • Regulations and operating criteria • Conjunctive management • Conservation and water use efficiency • Other

  45. Integrating Conjunctive Management • Phase I decision will be whether to initiate a feasibility study for storage in the Upper San Joaquin River Basin • Decision will be supported by information on: • Costs and potential benefits of surface storage options • How surface storage could meet CALFED goals • Other ways to improve water supply • Conjunctive management • Water use efficiency • Conservation

  46. Conjunctive Water Management Program • Program Goals and Approach • Partnership Funding Opportunities • Conjunctive Water Management Integration Strategy

  47. Goal and EmphasisConjunctive Water Management Program • CALFED Goal - Increase statewide water supply reliability through planned, coordinated management and use of groundwater and surface water resources • 500,000 to 1 million acre-feet of conjunctive management • Emphasis - Partnerships with local agencies and stakeholders • Local control and management • Shared technical data and costs

  48. Primary Programmatic PrinciplesConjunctive Water Management Program • Establish local basin-wide planning partnerships • Facilitate local groundwater basin monitoring • Ensure voluntary local implementation and control of projects • Maintain priority for in-basin water needs and compensation for out-of-basin transfers

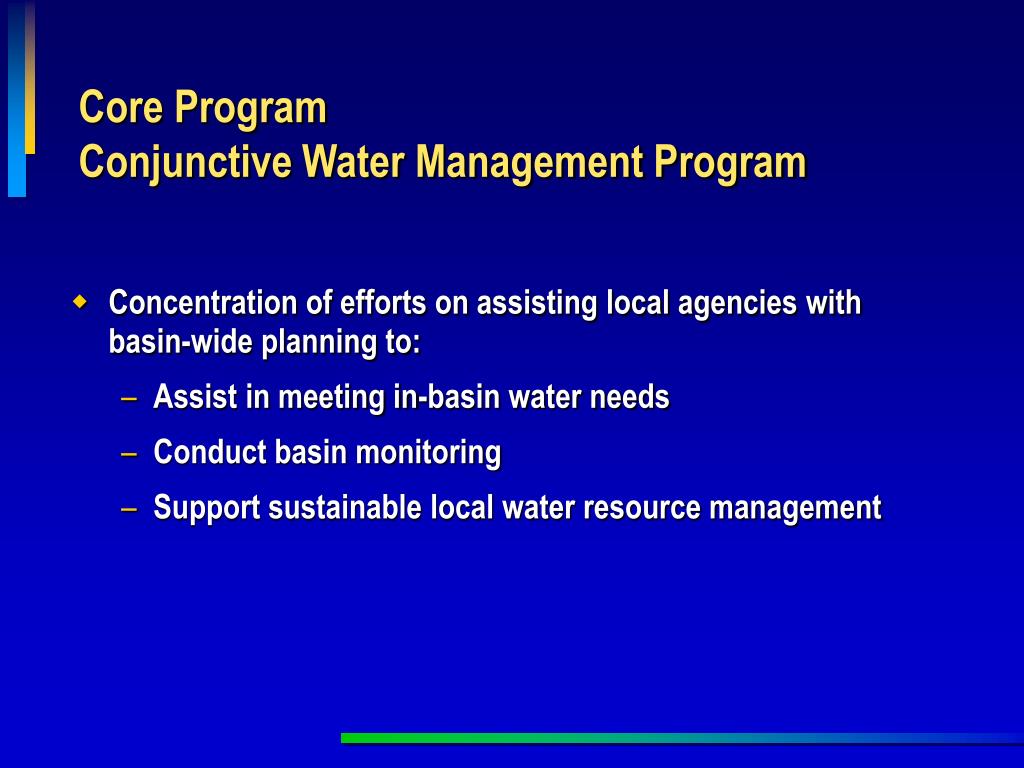

  49. Core ProgramConjunctive Water Management Program • Concentration of efforts on assisting local agencies with basin-wide planning to: • Assist in meeting in-basin water needs • Conduct basin monitoring • Support sustainable local water resource management

  50. Phased ApproachConjunctive Water Management Program • Memorandum of Understanding • Establish partnerships with local agencies • Coordinate studies to evaluate conjunctive water management options • Stakeholder Involvement • Assessment, education, outreach, ongoing meetings • Convene stakeholder advisory groups to guide the phased implementation process
