  1. The Big Bang A Case Study in Upgrading Oracle Applications and Migrating to Linux Jeff Slavitz Oracle Applications DBA Jeff@OracleAppsPro.Com

  2. Overview • Last September Camelbak upgraded from 11.5.4 to 11.5.10 and migrated database and application from Solaris to Linux. • This presentation will focus on migration and not on the 11.5.10 upgrade (we only have an hour) • Goal is to give DBAs a road map of the documents and steps to migrate database and application • Discuss migration problems and lessons learned • IT Manager will review business issues related to the Big Bang Jeff Slavitz - NorCal OAUG Training Day 2008

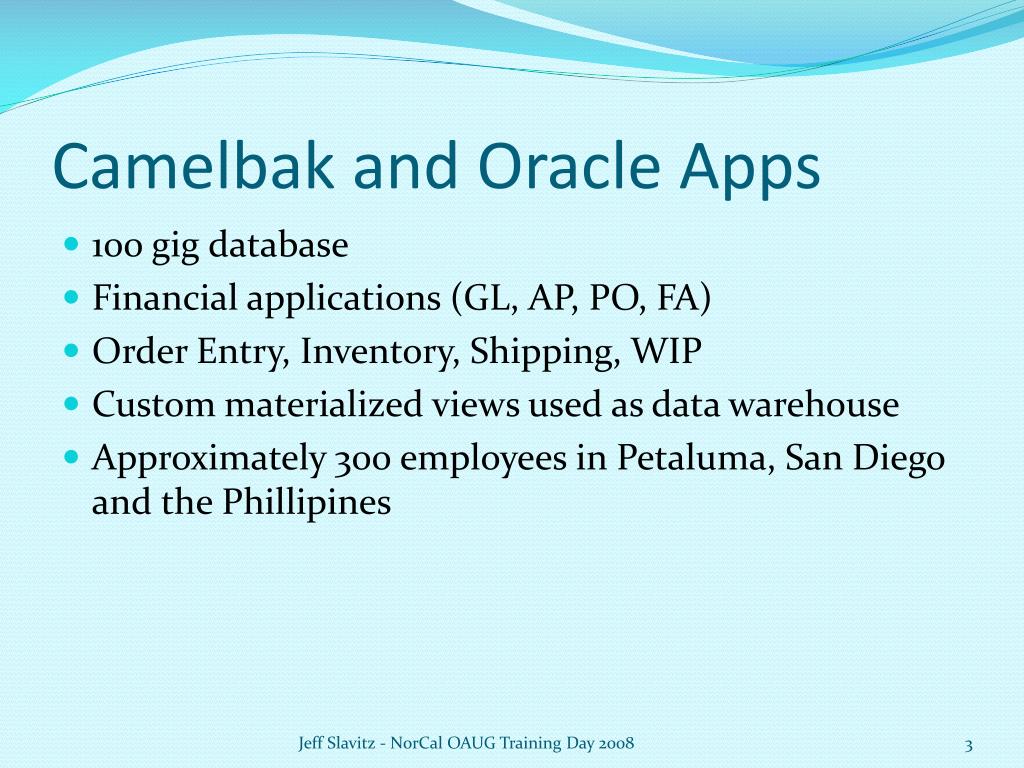

  3. Camelbak and Oracle Apps • 100 gig database • Financial applications (GL, AP, PO, FA) • Order Entry, Inventory, Shipping, WIP • Custom materialized views used as data warehouse • Approximately 300 employees in Petaluma, San Diego and the Phillipines Jeff Slavitz - NorCal OAUG Training Day 2008

  4. Technical Issues • Running 11.5.4 / 8.1.7 / Solaris since 2002 • Database, application and operating system unchanged since then • Extremely poor performance – Nightly materialized view refresh takes 8 hours, user complaints • Difficulty getting patches from Support • Want to upgrade to 11.5.10 and migrate to Linux • Customer wants to do a Big Bang, not a big explosion Jeff Slavitz - NorCal OAUG Training Day 2008

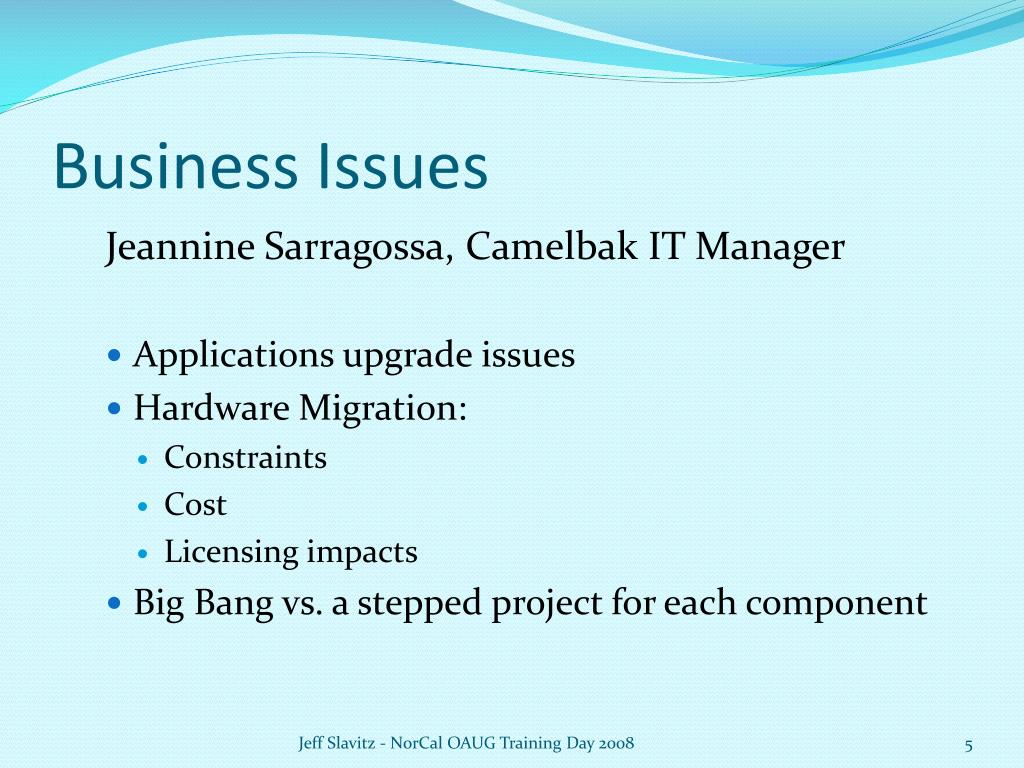

  5. Business Issues Jeannine Sarragossa, Camelbak IT Manager • Applications upgrade issues • Hardware Migration: • Constraints • Cost • Licensing impacts • Big Bang vs. a stepped project for each component Jeff Slavitz - NorCal OAUG Training Day 2008

  6. Old Hardware • Database and concurrent manager server • Sun E3500 running Solaris • 4 processors • 4 gig memory • Forms server • Sun E3500 running Solaris • 2 processors • 2 gig memory Jeff Slavitz - NorCal OAUG Training Day 2008

  7. New Hardware • Database server • Dell PowerEdge 2950 running Red Hat Linux 64 bit • Two Dual Core 2.33 ghz processors • 16 gb memory • Application server • Dell PowerEdge 2950 running Red Hat Linux 32 bit • Two Dual Core 2.33 ghz processors • 16 gb memory • Note to self: • Buy as much horsepower as you can budget. • Buy more disk space than you think you will need. Jeff Slavitz - NorCal OAUG Training Day 2008

  8. The Big Bang Overview • Process took 8 months from initial planning to Go Live • Four full CRP runs to test the master task list • Several mini-CRP runs to test which upgrade/migration path was fastest: • Experimented with staged APPL_TOP • Tested upgrade and migration time on different machines • Go Live downtime estimate reduced from 14 to 7 days • Normally would have pre-applied as many patches to PROD as possible, but didn’t due to system age and testing requirements Jeff Slavitz - NorCal OAUG Training Day 2008

  9. The Big Bang Overview • First step in upgrade/migration was to clone PROD to loaner Solaris system. This machine was faster, cloned from two tier to one. This allowed original PROD to be used for fallback system. • Set all PROD tablespaces to read-only so company could run reports during upgrade downtime. • While on 11.5.4 upgraded database from 8.1.7 to 10.1. Skipped 9i; 10.2 not supported with 11.5.4. • Upgrade application from 11.5.4 to 11.5.10 on Solaris; 11.5.4 not supported on Linux. • Upgrade database from 10.1 to 10.2 on Solaris. Datapump faster in 10.2 • Migrate database and application to Linux Jeff Slavitz - NorCal OAUG Training Day 2008

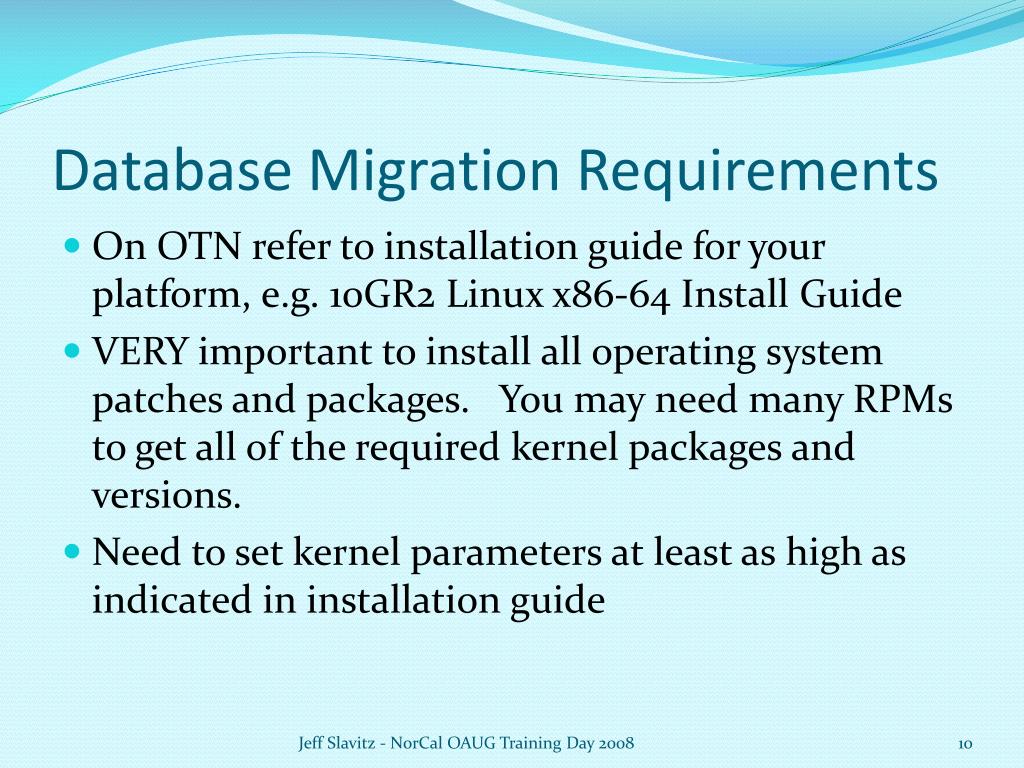

  10. Database Migration Requirements • On OTN refer to installation guide for your platform, e.g. 10GR2 Linux x86-64 Install Guide • VERY important to install all operating system patches and packages. You may need many RPMs to get all of the required kernel packages and versions. • Need to set kernel parameters at least as high as indicated in installation guide Jeff Slavitz - NorCal OAUG Training Day 2008

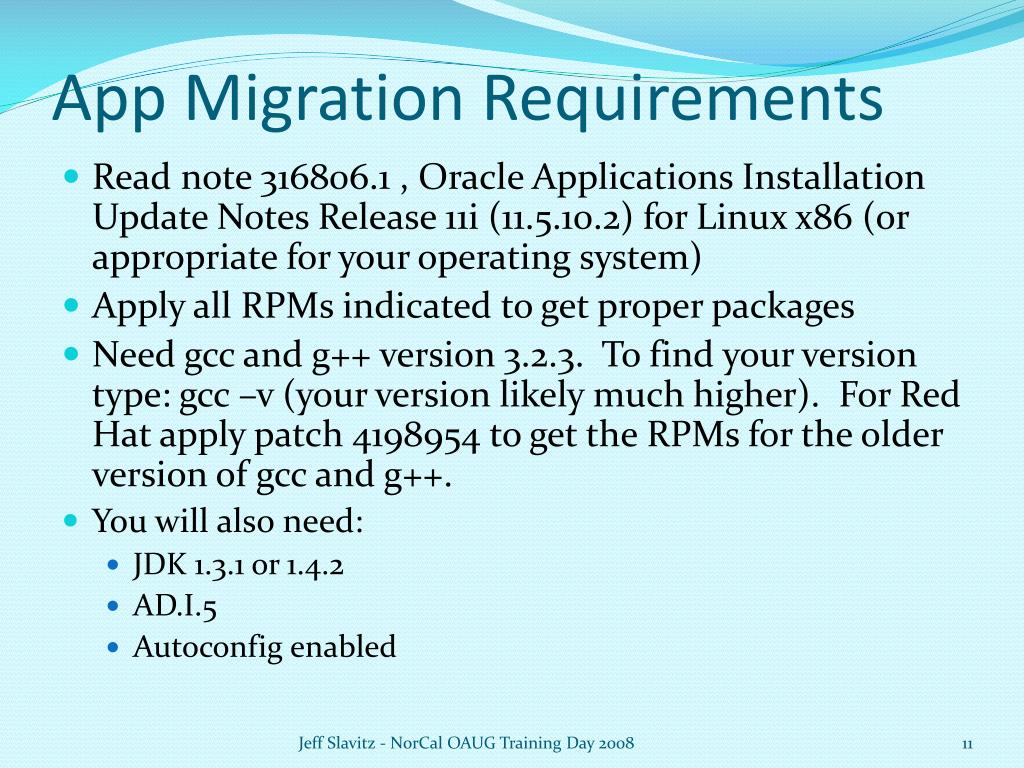

  11. App Migration Requirements • Read note 316806.1 , Oracle Applications Installation Update Notes Release 11i (11.5.10.2) for Linux x86 (or appropriate for your operating system) • Apply all RPMs indicated to get proper packages • Need gcc and g++ version 3.2.3. To find your version type: gcc –v (your version likely much higher). For Red Hat apply patch 4198954 to get the RPMs for the older version of gcc and g++. • You will also need: • JDK 1.3.1 or 1.4.2 • AD.I.5 • Autoconfig enabled Jeff Slavitz - NorCal OAUG Training Day 2008

  12. Migration Thoughts • Consider upgrading source to highest RDBMS supported BEFORE migration to get improved DataPump performance and cool new features, e.g. attach and detach from running jobs • 9i export/import slow • 10GR1 DataPump 2 x faster than 9i • 10GR2 DataPump 3 x faster than 9i • Need to trade off expdp/impdp performance over time to upgrade if source machine is slower than target • 10GR2 100gb export on Solaris – 7 hours • 10GR2 100gb import on Linux – 5 hours • Your mpg will vary based on your hardware configuration Jeff Slavitz - NorCal OAUG Training Day 2008

  13. Migration Thoughts • If using ssh setup trusted FTP access between all computers involved in the upgrade: • Run "ssh-keygen -t rsa1" on source • Copy source $HOME/.ssh/identity.pub to target $HOME/.ssh/authorized_keys • Run "ssh-keygen -t dsa" on source • Concatenate source $HOME/.ssh/id_dsa.pub to target $HOME/.ssh/authorized_keys Jeff Slavitz - NorCal OAUG Training Day 2008

  14. Database Migration • Many documents - 3 binders, 25 page master task list and notes - organization is important • Main document - Note 362205.1 – Export/Import Process for 11i Using 10GR2. The major steps in the process are: • Clear existing network topology (application’s understanding of which nodes belong to application) • Deregister source database server as shown in note 362203.1 steps 1-4. • Easier way is to clear entire network topology using FND_NET_SERVICES.remove_server as shown in note 218089.1, Autoconfig FAQ • Create new topology by running autoconfig first on RDBMS and then on application. Jeff Slavitz - NorCal OAUG Training Day 2008

  15. Database Migration • Apply patches to the source system. • Minimize invalid objects. Run $ORACLE_HOME/rdbms/admin/utlirp to invalidate all database objects. Then run utlrp to compile all database objects. • Run scripts to extract settings, mainly advanced queue settings which aren’t recreated by the import process. Jeff Slavitz - NorCal OAUG Training Day 2008

  16. Database Migration • Use expdp to export source. Export log may show warning messages for export of application triggers. Apply database patch 5459871 on source and target to prevent this problem. • Time saver - Prepare target while export is running. Install 10GR2 as shown in note 362203.1 steps 6-12. Create target database and schemas and prepare for import. • Time saver - Backup target before import! Jeff Slavitz - NorCal OAUG Training Day 2008

  17. Database Migration • Use impdp to import export file into target. Many messages in logfile. • Perform post-import updates to setup advance queues, create context and spatial objects, and setup database context file. Jeff Slavitz - NorCal OAUG Training Day 2008

  18. Split Configuration • During test upgrades can bring up the application at this point (application on old hardware, database on new hardware) to confirm database migration was successful. • In application context file change s_dbhost, s_dbdomain and s_dbport to reflect new database configuration. • Remove old database tier or clear network topology if you haven’t already • Run autoconfig and start application. • See note 369693.1 for more details. Jeff Slavitz - NorCal OAUG Training Day 2008

  19. Migrating Application • Much easier than database migration • Main document - Note 238276.1 – Migrating to Linux with Oracle Applications Release 11. The major steps in the process are: • Enable autoconfig in source if it isn’t already • Copy APPL_TOP, OA_HTML, OA_JAVA, COMMON_TOP/util, COMMON_TOP/pages to target • Run adgenpsf.pl to generate manifest of customer specific files. Upload file to Oracle • Within 30 minutes a download patch file is ready. This patch contains Linux library files. Jeff Slavitz - NorCal OAUG Training Day 2008

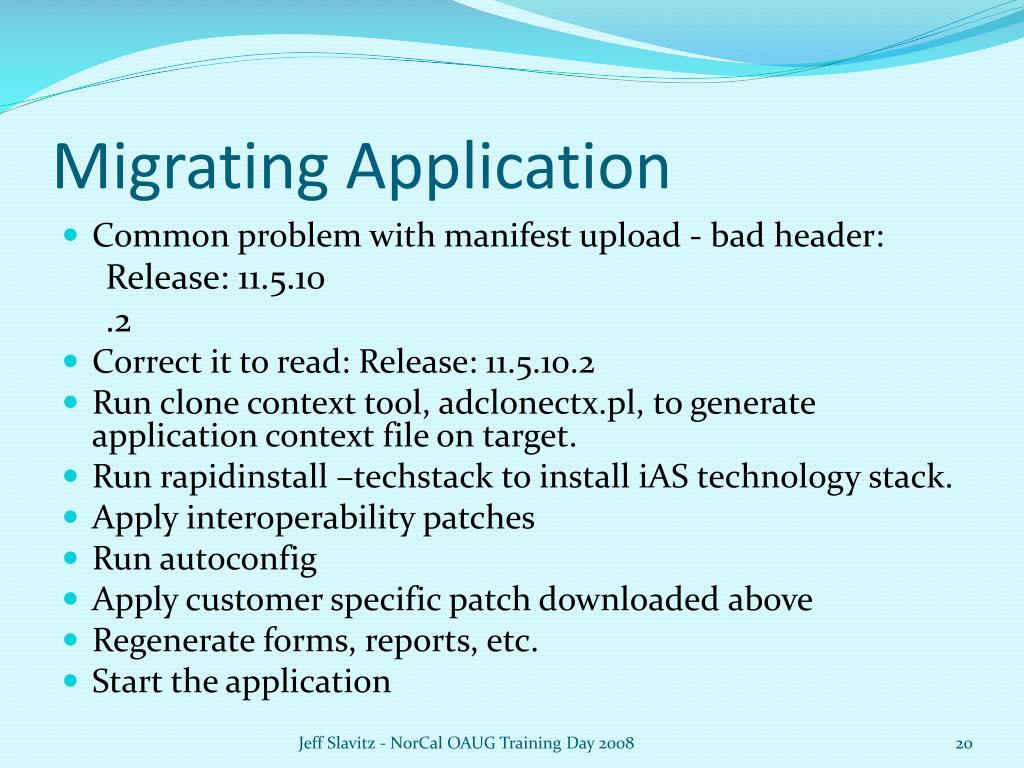

  20. Migrating Application • Common problem with manifest upload - bad header: Release: 11.5.10 .2 • Correct it to read: Release: 11.5.10.2 • Run clone context tool, adclonectx.pl, to generate application context file on target. • Run rapidinstall –techstack to install iAS technology stack. • Apply interoperability patches • Run autoconfig • Apply customer specific patch downloaded above • Regenerate forms, reports, etc. • Start the application Jeff Slavitz - NorCal OAUG Training Day 2008

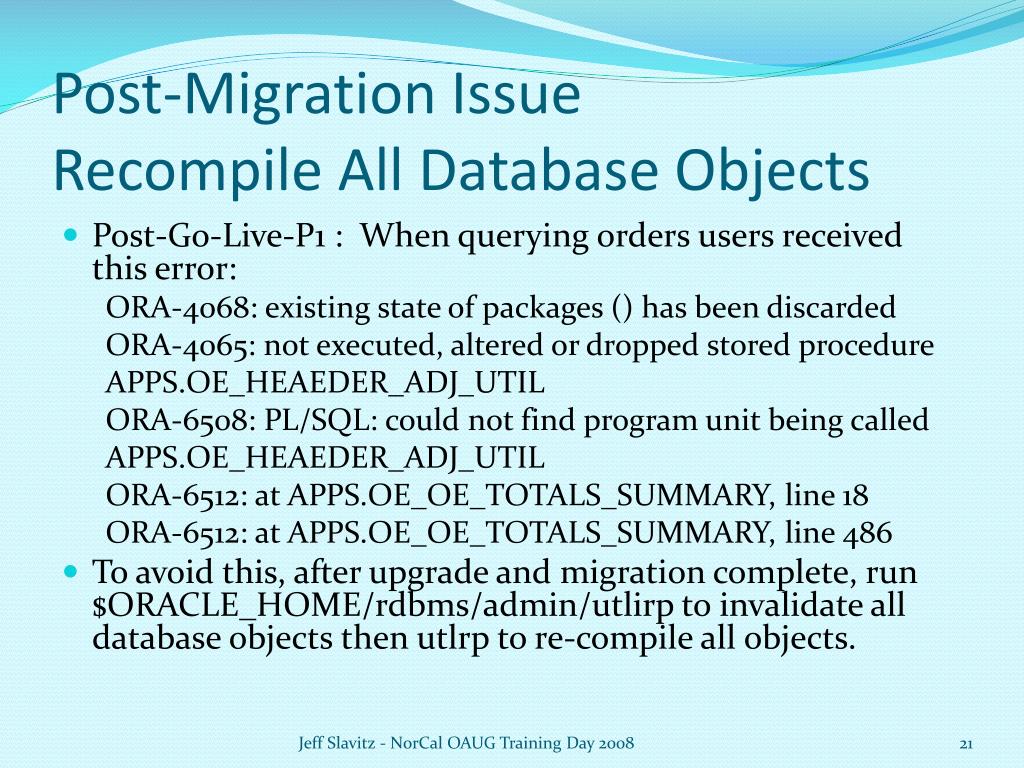

  21. Post-Migration IssueRecompile All Database Objects • Post-Go-Live-P1 : When querying orders users received this error: ORA-4068: existing state of packages () has been discarded ORA-4065: not executed, altered or dropped stored procedure APPS.OE_HEAEDER_ADJ_UTIL ORA-6508: PL/SQL: could not find program unit being called APPS.OE_HEAEDER_ADJ_UTIL ORA-6512: at APPS.OE_OE_TOTALS_SUMMARY, line 18 ORA-6512: at APPS.OE_OE_TOTALS_SUMMARY, line 486 • To avoid this, after upgrade and migration complete, run $ORACLE_HOME/rdbms/admin/utlirp to invalidate all database objects then utlrp to re-compile all objects. Jeff Slavitz - NorCal OAUG Training Day 2008

  22. Post-Migration IssueConfirm Concurrent Mgr Nodes • After application migration concurrent manager administration screen may show nodes from source system. This causes concurrent manager to error on startup. Jeff Slavitz - NorCal OAUG Training Day 2008

  23. Confirm Concurrent Mgr Nodes Jeff Slavitz - NorCal OAUG Training Day 2008

  24. Confirm Concurrent Mgr Nodes • To change nodes to point to target system: • As apps, exec fnd_conc_clone.setup_clean • Run autoconfig on database then application node Jeff Slavitz - NorCal OAUG Training Day 2008

  25. Post Migration IssueRMAN Bug • Bug 5247609 - With Oracle 10G RMAN has severe performance degradation when using cost based optimizer. • Switch to rule based optimization at the start of all RMAN scripts: • sql “alter session set optimizer_mode=RULE”; Jeff Slavitz - NorCal OAUG Training Day 2008

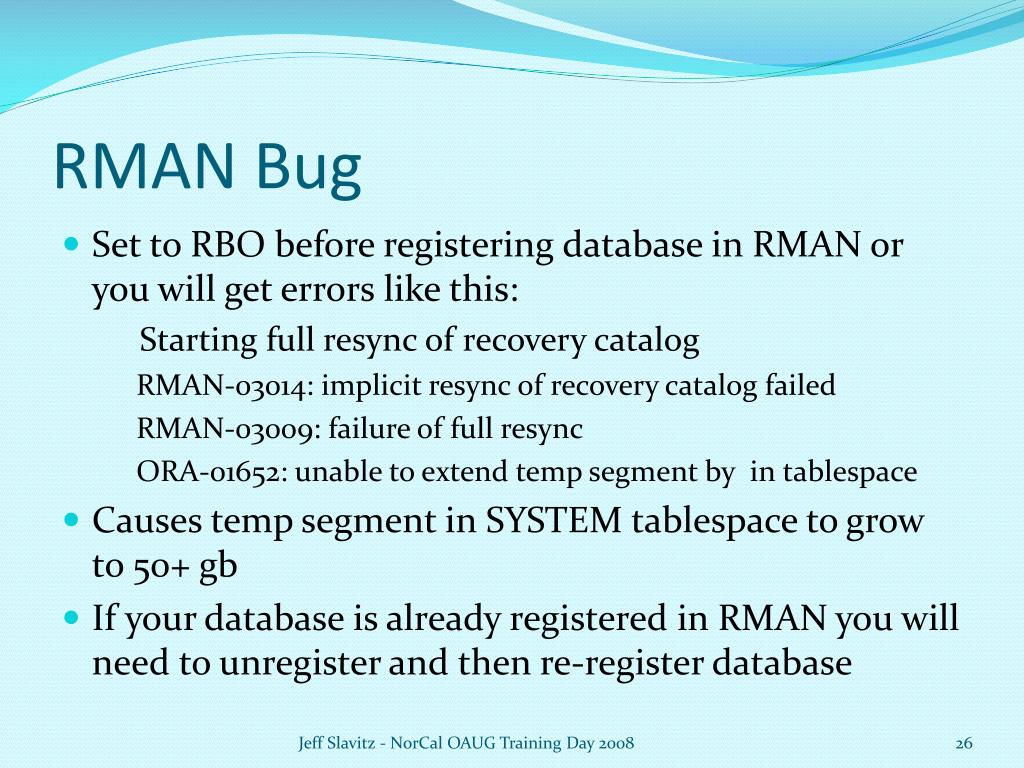

  26. RMAN Bug • Set to RBO before registering database in RMAN or you will get errors like this: Starting full resync of recovery catalog RMAN-03014: implicit resync of recovery catalog failed RMAN-03009: failure of full resync ORA-01652: unable to extend temp segment by in tablespace • Causes temp segment in SYSTEM tablespace to grow to 50+ gb • If your database is already registered in RMAN you will need to unregister and then re-register database Jeff Slavitz - NorCal OAUG Training Day 2008

  27. Post-Migration IdeaUse an SPFILE • Use spfile instead of init.ora to start database • Allows you to maintain database initialization parameters across instance shutdown and startup • Allows you to dynamically change system parameters, e.g. alter system set xxx scope=[spfile,memory,both] • To create initial spfile, export init.ora to spfile: • cd $ORACLE_HOME/dbs • create spfile='spfilePROD.ora' from pfile='initPROD.ora'; • Restart database – spfile will be used automatically • UNLESS … Jeff Slavitz - NorCal OAUG Training Day 2008

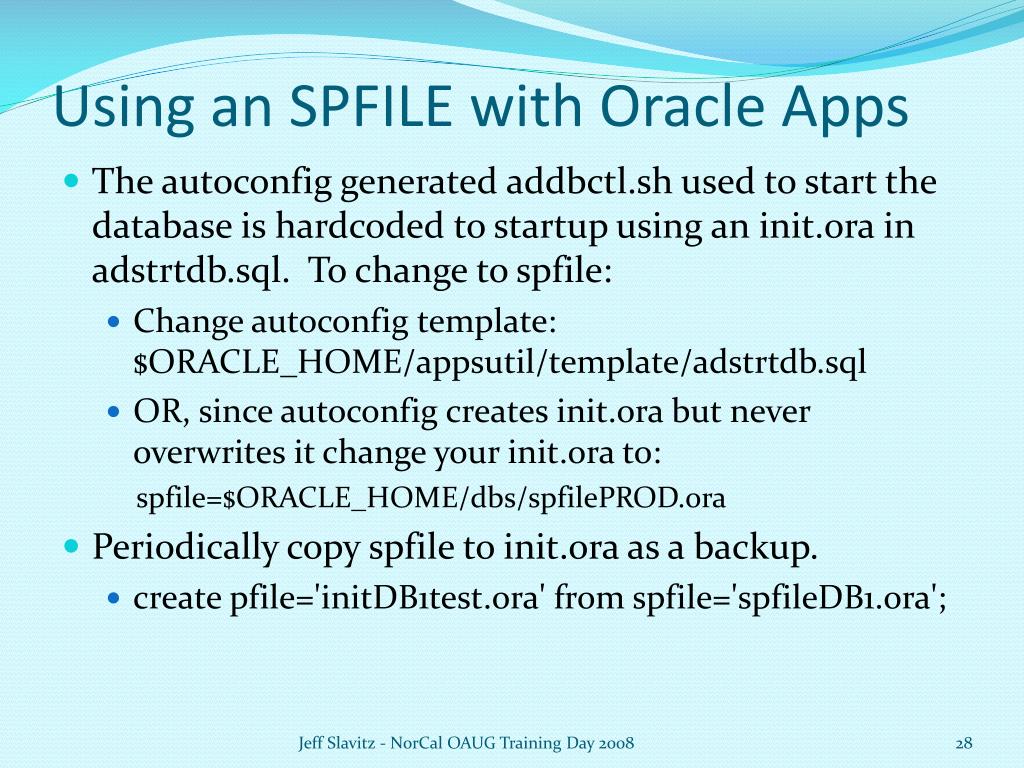

  28. Using an SPFILE with Oracle Apps • The autoconfig generated addbctl.sh used to start the database is hardcoded to startup using an init.ora in adstrtdb.sql. To change to spfile: • Change autoconfig template: $ORACLE_HOME/appsutil/template/adstrtdb.sql • OR, since autoconfig creates init.ora but never overwrites it change your init.ora to: spfile=$ORACLE_HOME/dbs/spfilePROD.ora • Periodically copy spfile to init.ora as a backup. • create pfile='initDB1test.ora' from spfile='spfileDB1.ora'; Jeff Slavitz - NorCal OAUG Training Day 2008

  29. Using an SPFILE with Oracle Apps • If you want to recreate SPFILE as part of running autoconfig: • Delete init.ora • Run autoconfig to create new init.ora • Shutdown database and restart using new init.ora • Create new spfile from new init.ora • Shutdown database • Replace init.ora with custom init.ora that specifies spfile (or change adstrtdb.sql template) • Restart database using new spfile • Note 249664.1 - Pfile vs SPfile Jeff Slavitz - NorCal OAUG Training Day 2008

  30. Performance Before After • Database server frequently running at 100% capacity during business hours • Users frequently complain about slowness • Custom materialized view refresh took 8 hours to complete • Database server load rarely above 25% even at peak times • Users never complain about performance • Custom materialized view refresh takes 5 minutes to complete Jeff Slavitz - NorCal OAUG Training Day 2008

  31. Lessons Learned • Required a great deal of organization with documents • Buy more CPUs and memory than you think you need • Buy more disk space than you think you can use • Disk drive failed during migration – have spare hardware on-site • Much of the work was done remotely. At one point my PC at work was unplugged. Consider using console with remote console software • Use more than one DBA. Have all DBAs practice entire master task list so they can be interchangeable. Jeff Slavitz - NorCal OAUG Training Day 2008

  32. Lessons Learned • As a DBA I was concerned about the Big Bang • The business dictates the timing of the project. • Alternatives would have been to upgrade now/migrate later, migrate database now/application later … • The cost to the business of not doing the Big Bang was more downtime, more user testing of each stage and delay of final implementation. • The more you are going to do at one time the more you need a strong technical team. Jeff Slavitz - NorCal OAUG Training Day 2008

  33. Questions? Jeff Slavitz Jeff@OracleAppsPro.com (415) 388 - 3003 Jeff Slavitz - NorCal OAUG Training Day 2008
