Presentation Transcript


Lesson 1 2

Lesson 1.2

Intro to Geometry


Lesson 1 2

Learning Target

I can understand basic geometric terms and postulates.


1 points

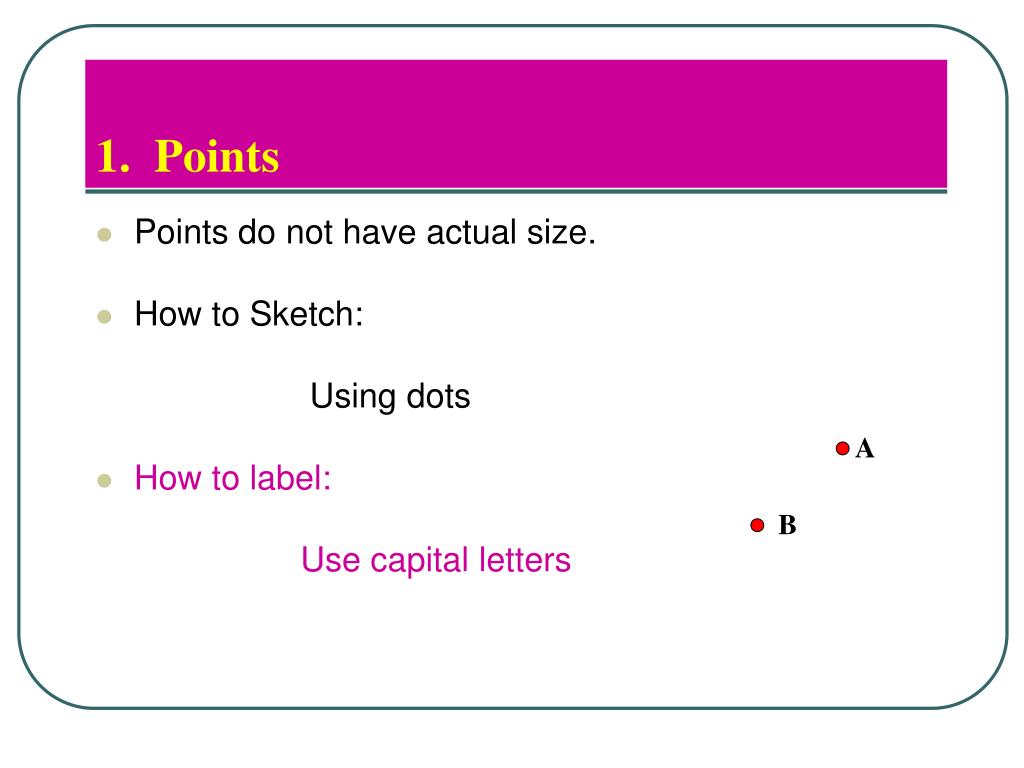

1. Points

  • Points do not have actual size.

  • How to Sketch:

    Using dots

  • How to label:

    Use capital letters

A

B


2 postulates

2. Postulates

  • An accepted statement of fact.


3 line postulate through any two points there is exactly one line

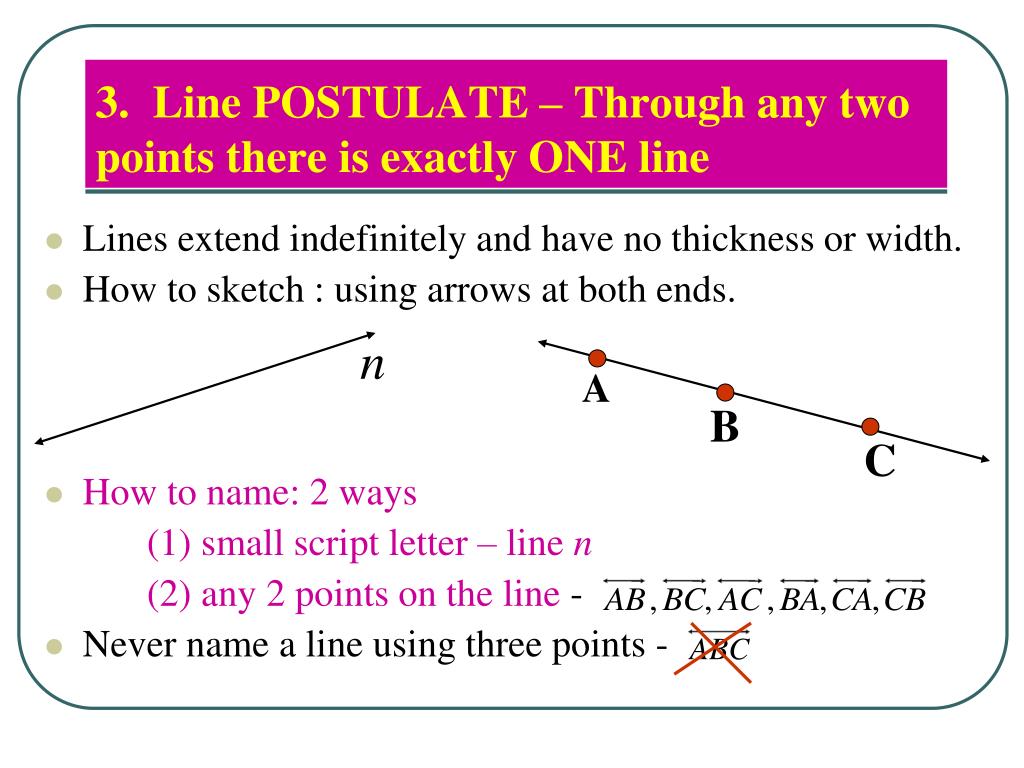

3. Line POSTULATE – Through any two points there is exactly ONE line

  • Lines extend indefinitely and have no thickness or width.

  • How to sketch : using arrows at both ends.

  • How to name: 2 ways

    (1) small script letter – line n

    (2) any 2points on the line -

  • Never name a line using three points -

n

A

B

C


4 segment

4. Segment

A part of a line that consists of two endpoints and all the points in between them.

How to name: by 2 endpoints

A

B

C


5 ray

5. Ray

  • A part of a line that consists of one endpoint and all the points to one side of that endpoint.

A

B

C

How to name: 2 points with ENDPOINT FIRST

Not like this…


6 col line ar points

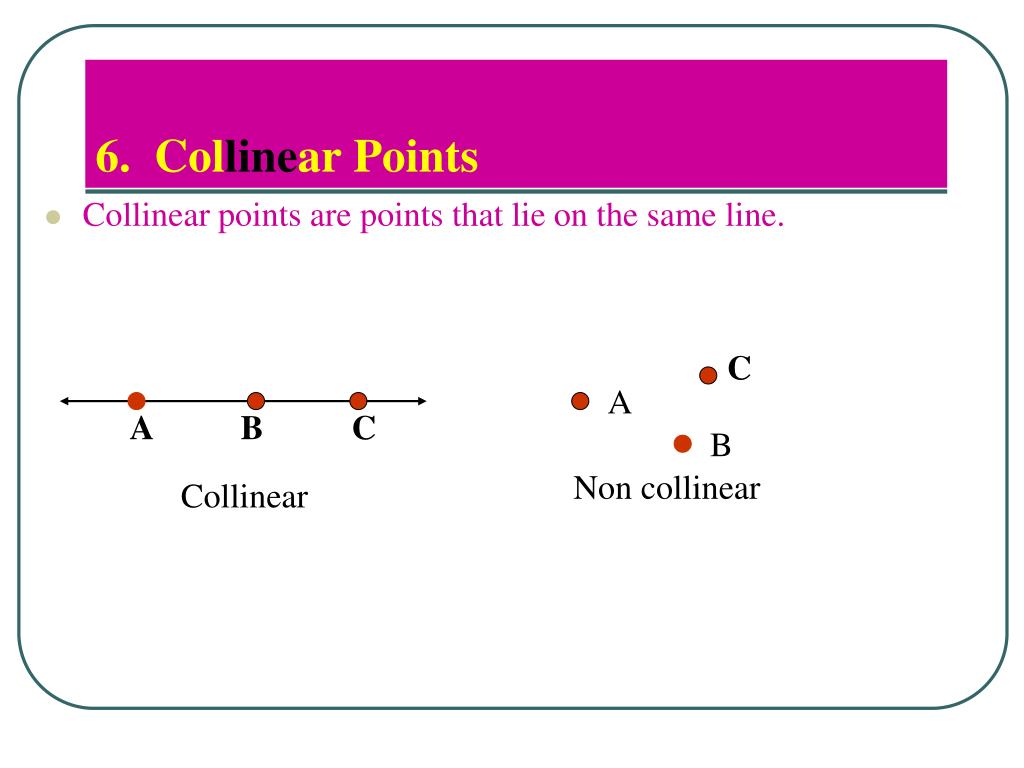

6. Collinear Points

  • Collinear points are points that lie on the same line.

C

A

A

B

C

B

Non collinear

Collinear


7 planes postulate through any 3 non collinear points there is exactly one plane

7. Planes POSTULATE – Through any 3 non-collinear points there is exactly ONE plane

  • A plane is a flat surface that extends indefinitely in all directions.

  • How to sketch: Use a parallelogram (four sided figure)

  • How to name: 2 ways

    (1) Capital script letter – Plane M

    (2) Any 3 non collinear points in the plane - Plane: ABCor BCA or BAC, etc.

A

M

B

C


Different planes in a figure

Different planes in a figure:

A

B

Plane BCG

Plane ABF

Plane CDH

Etc.

D

C

E

F

H

G


Other planes in the same figure

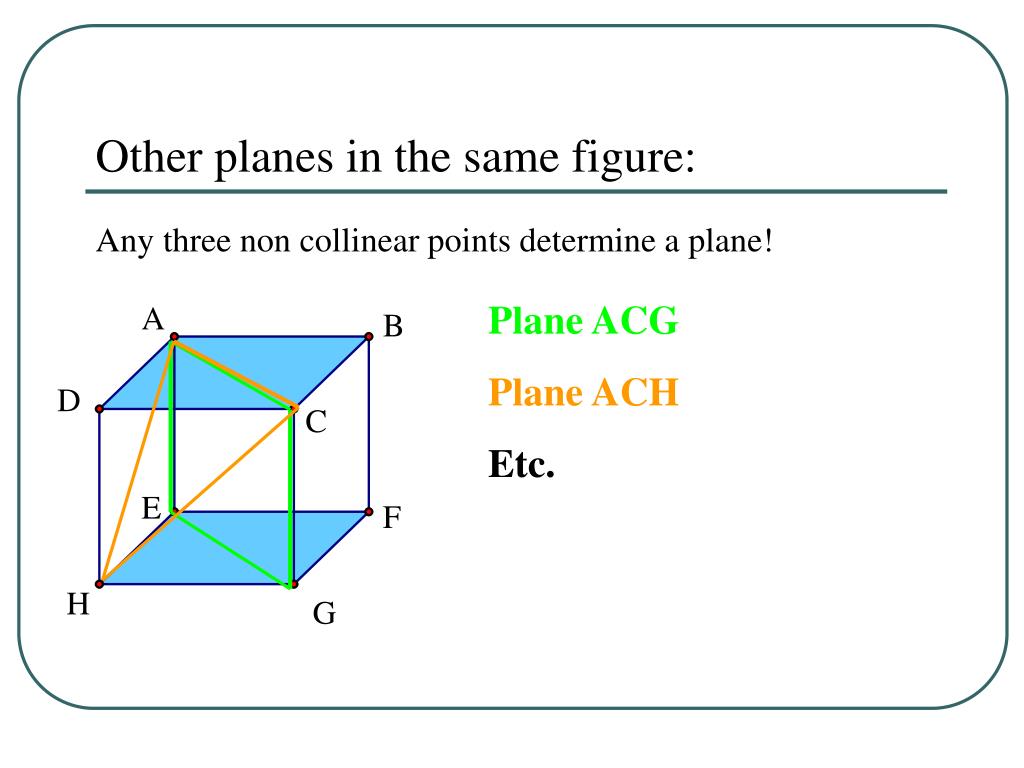

Other planes in the same figure:

Any three non collinear points determine a plane!

Plane ACG

Plane ACH

Etc.


8 co planar objects

8. CoplanarObjects

Coplanar objects (points, lines, etc.) are objects that lie on the same plane.

Are the following points coplanar?

A, B, C ?

Yes

A, B, C, F ?

No

H, G, F, E ?

Yes

E, H, C, B ?

Yes

A, G, F ?

Yes

C, B, F, H ?

No


9 intersection of two lines postulate

9. Intersection of Two Lines POSTULATE

The intersection of two lines is a point.

m

Line m and line n intersect at point P.

P

n


10 intersection of two planes postulate

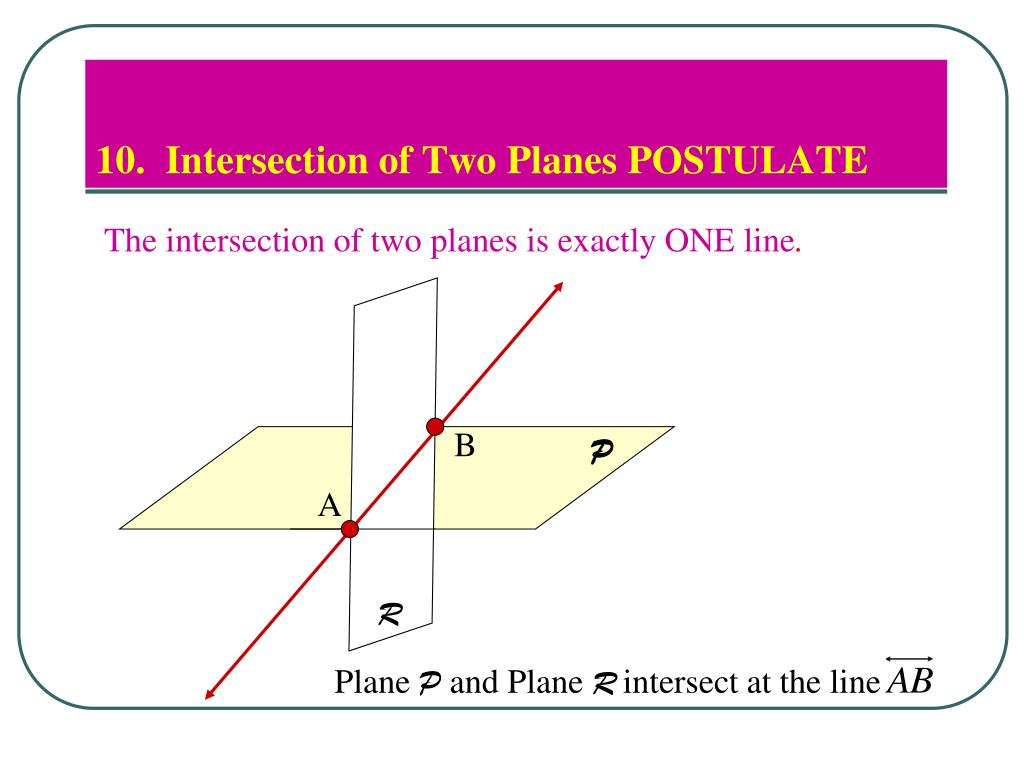

10. Intersection of Two Planes POSTULATE

The intersection of two planes is exactly ONE line.

B

P

A

R

Plane P and Plane R intersect at the line
