Dt22 8 3


Software and Knowledge Engineering

Lecturer: Deirdre Lawless

Data information knowledge wisdom


is raw.

simply exists and has no significance beyond its existence (in and of itself).


data that has been given meaning by way of relational connection.

"meaning" can be useful, but does not have to be.


the appropriate collection of information, such that it's intent is to be useful.


cognitive and analytical.

It is the process by which you can take knowledge and synthesize new knowledge from the previously held knowledge.

The difference between understanding and knowledge is the difference between "learning" and "memorizing".

People who have understanding can undertake useful actions


an extrapolative and non-deterministic, non-probabilistic process.

It calls upon all the previous levels of consciousness, and specifically upon special types of human programming (moral, ethical codes, etc.).

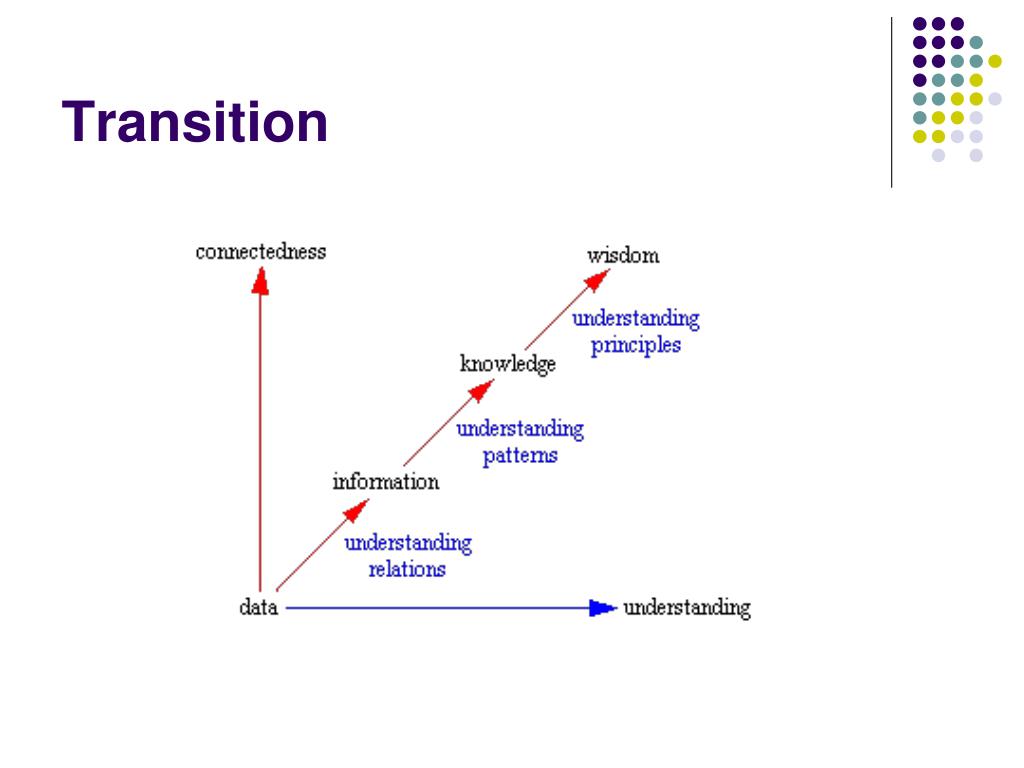

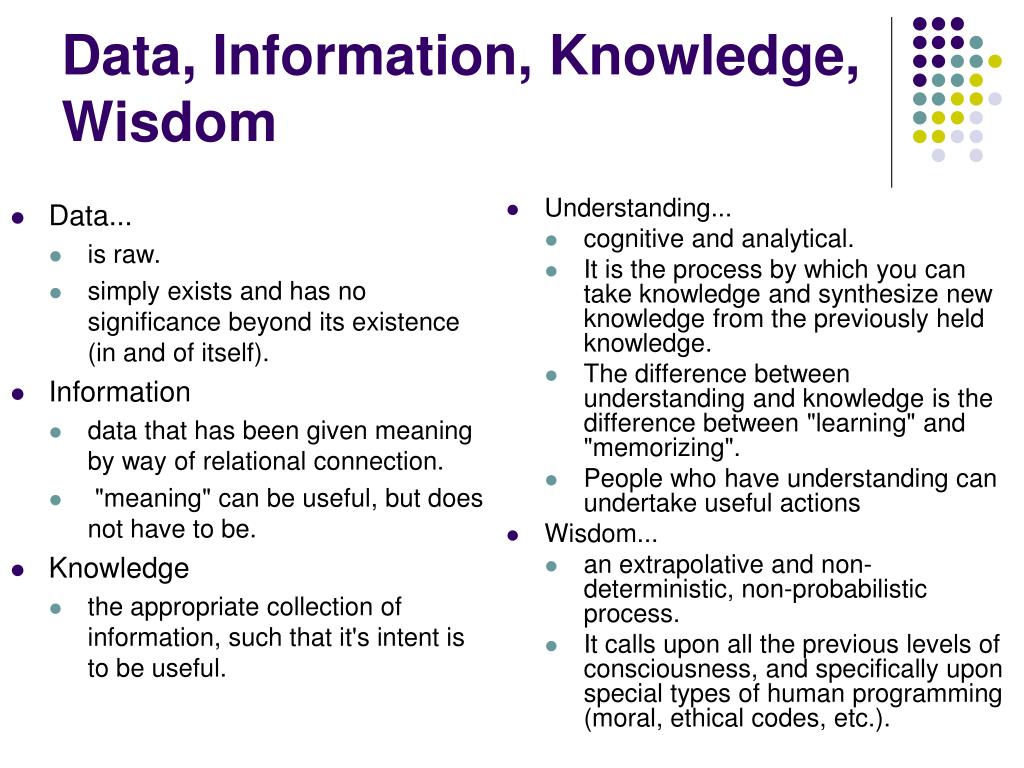

Data, Information, Knowledge, Wisdom

Data information knowledge wisdom examples

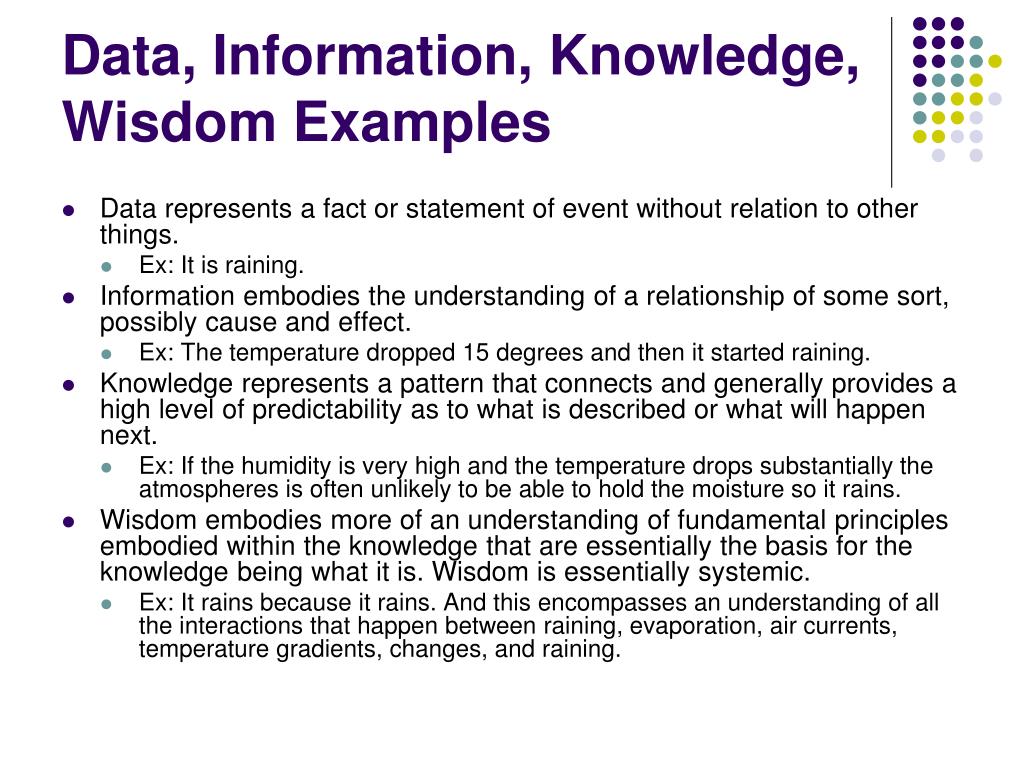

Data, Information, Knowledge, Wisdom Examples

  • Data represents a fact or statement of event without relation to other things.

    • Ex: It is raining.

  • Information embodies the understanding of a relationship of some sort, possibly cause and effect.

    • Ex: The temperature dropped 15 degrees and then it started raining.

  • Knowledge represents a pattern that connects and generally provides a high level of predictability as to what is described or what will happen next.

    • Ex: If the humidity is very high and the temperature drops substantially the atmospheres is often unlikely to be able to hold the moisture so it rains.

  • Wisdom embodies more of an understanding of fundamental principles embodied within the knowledge that are essentially the basis for the knowledge being what it is. Wisdom is essentially systemic.

    • Ex: It rains because it rains. And this encompasses an understanding of all the interactions that happen between raining, evaporation, air currents, temperature gradients, changes, and raining.

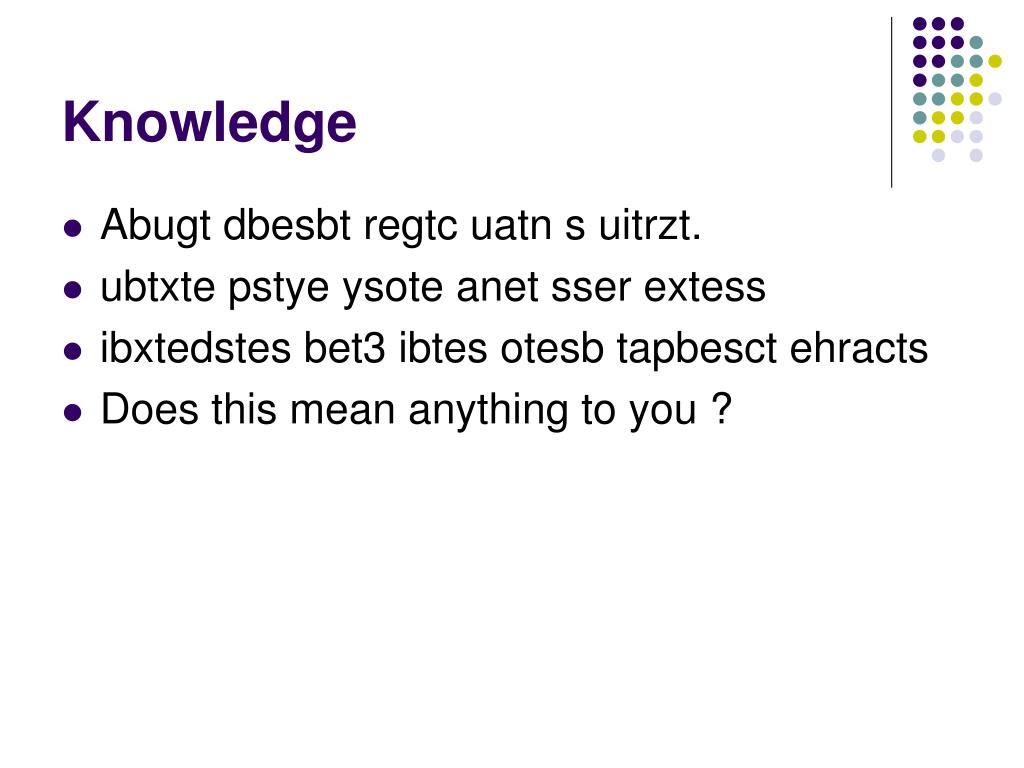

  • Abugt dbesbt regtc uatn s uitrzt.

  • ubtxte pstye ysote anet sser extess

  • ibxtedstes bet3 ibtes otesb tapbesct ehracts

  • Does this mean anything to you ?

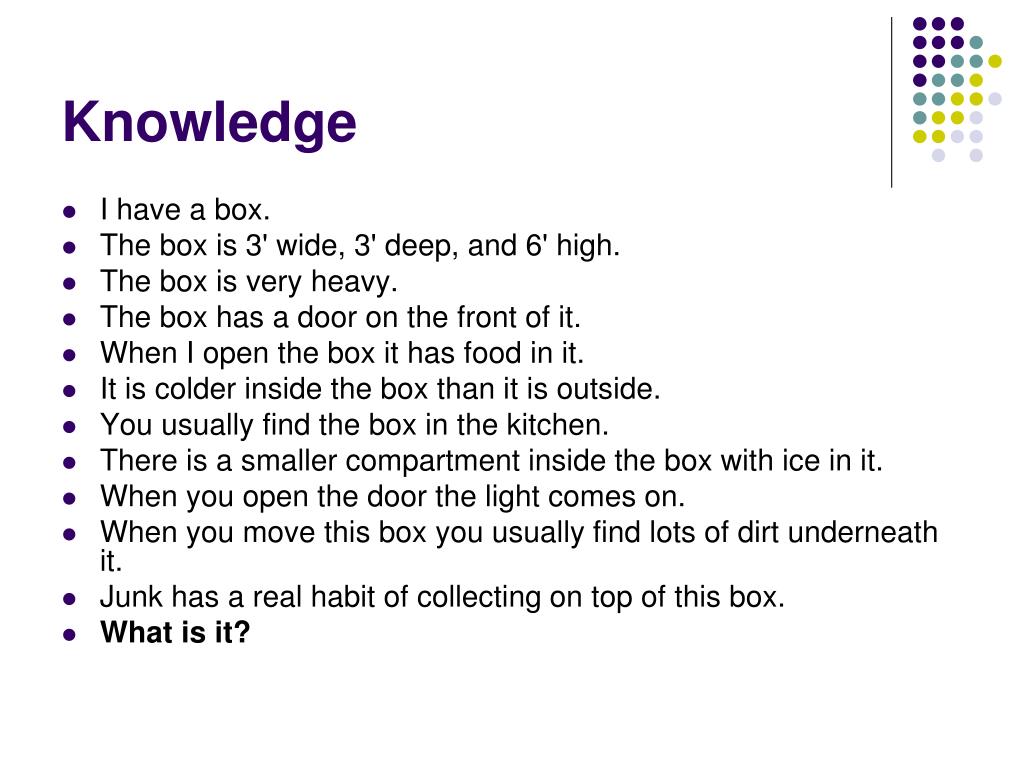

  • I have a box.

  • The box is 3' wide, 3' deep, and 6' high.

  • The box is very heavy.

  • The box has a door on the front of it.

  • When I open the box it has food in it.

  • It is colder inside the box than it is outside.

  • You usually find the box in the kitchen.

  • There is a smaller compartment inside the box with ice in it.

  • When you open the door the light comes on.

  • When you move this box you usually find lots of dirt underneath it.

  • Junk has a real habit of collecting on top of this box.

  • What is it?

What is knowledge management

What is Knowledge Management ?

  • An approach based on the central role of knowledge in organisations

  • Objective to manage and support knowledge work and to maximise the added value of knowledge for the organisation

  • Aims:

    • identifying and analysing knowledge and knowledge work

    • developing procedures and systems for generating, storing, distributing and using knowledge in the organisation.

What is knowledge management about

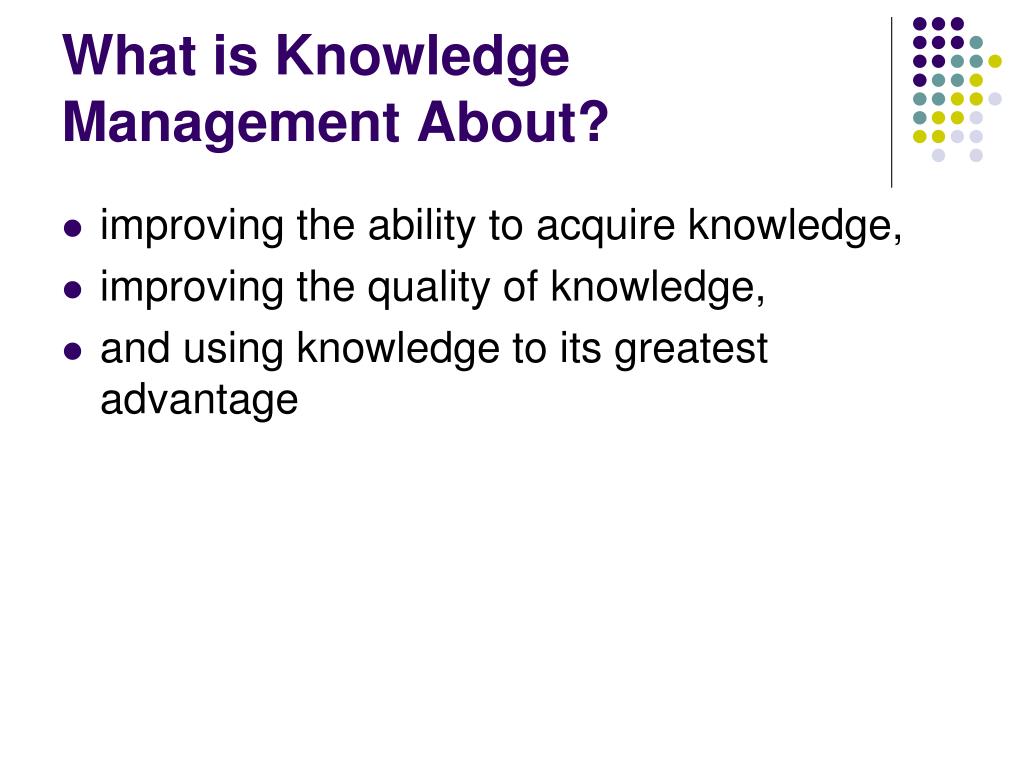

What is Knowledge Management About?

  • improving the ability to acquire knowledge,

  • improving the quality of knowledge,

  • and using knowledge to its greatest advantage

Objective of km

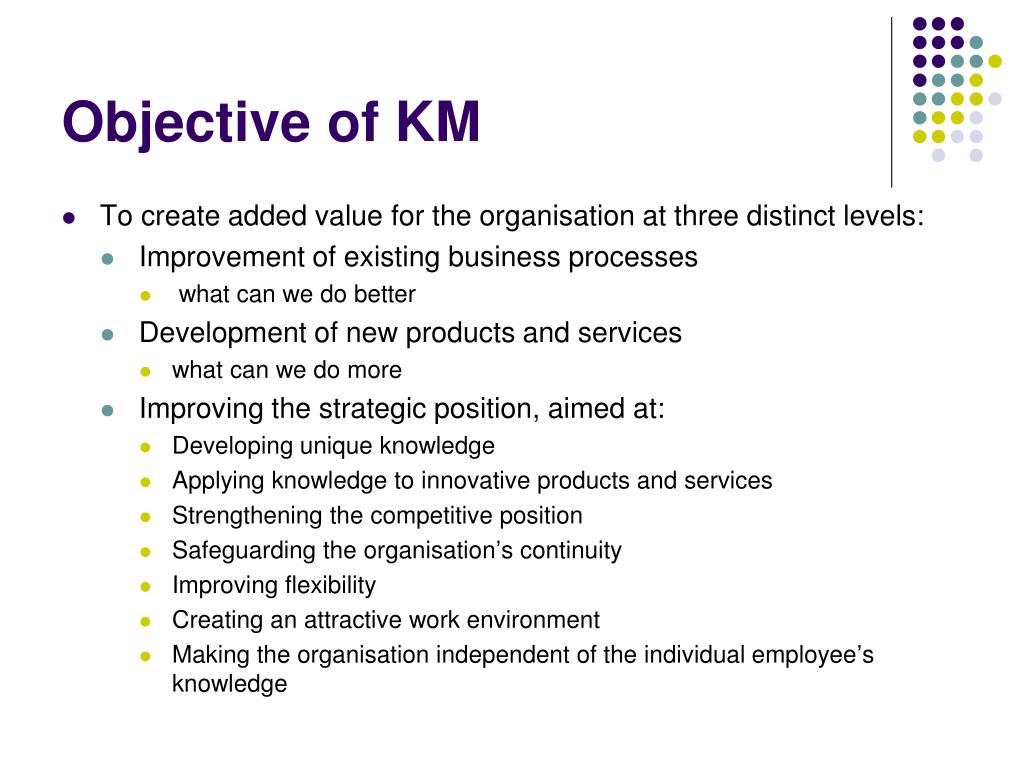

Objective of KM

  • To create added value for the organisation at three distinct levels:

    • Improvement of existing business processes

      • what can we do better

    • Development of new products and services

      • what can we do more

    • Improving the strategic position, aimed at:

      • Developing unique knowledge

      • Applying knowledge to innovative products and services

      • Strengthening the competitive position

      • Safeguarding the organisation’s continuity

      • Improving flexibility

      • Creating an attractive work environment

      • Making the organisation independent of the individual employee’s knowledge

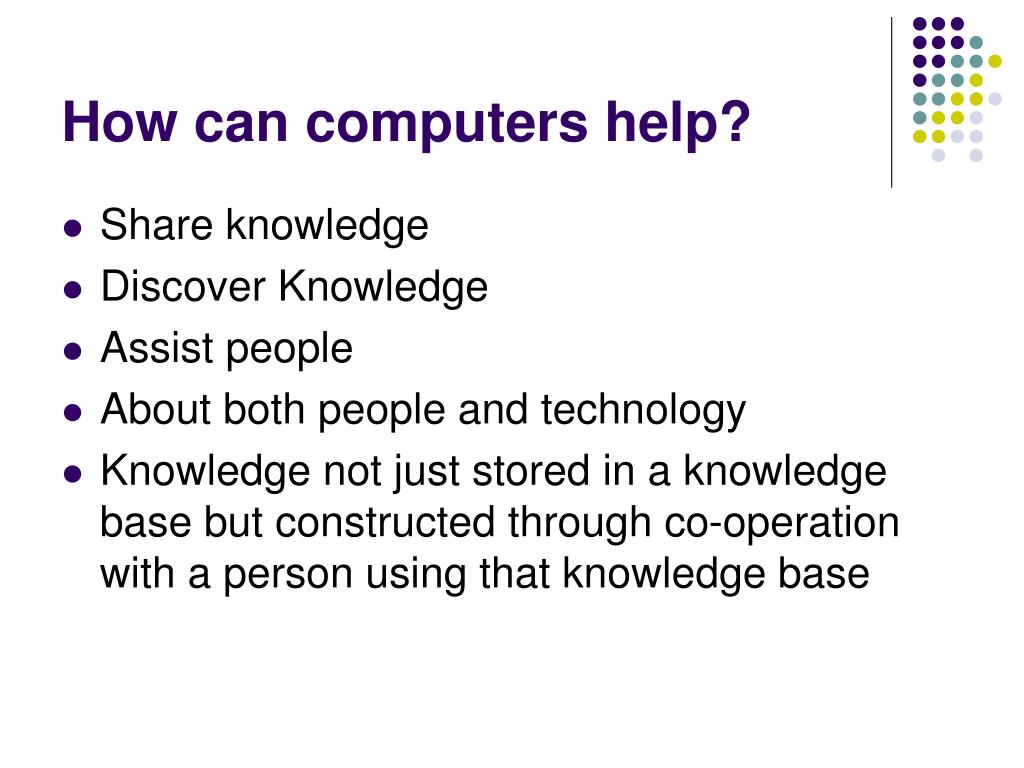

How can computers help

How can computers help?

  • Share knowledge

  • Discover Knowledge

  • Assist people

  • About both people and technology

  • Knowledge not just stored in a knowledge base but constructed through co-operation with a person using that knowledge base

Knowledge engineering

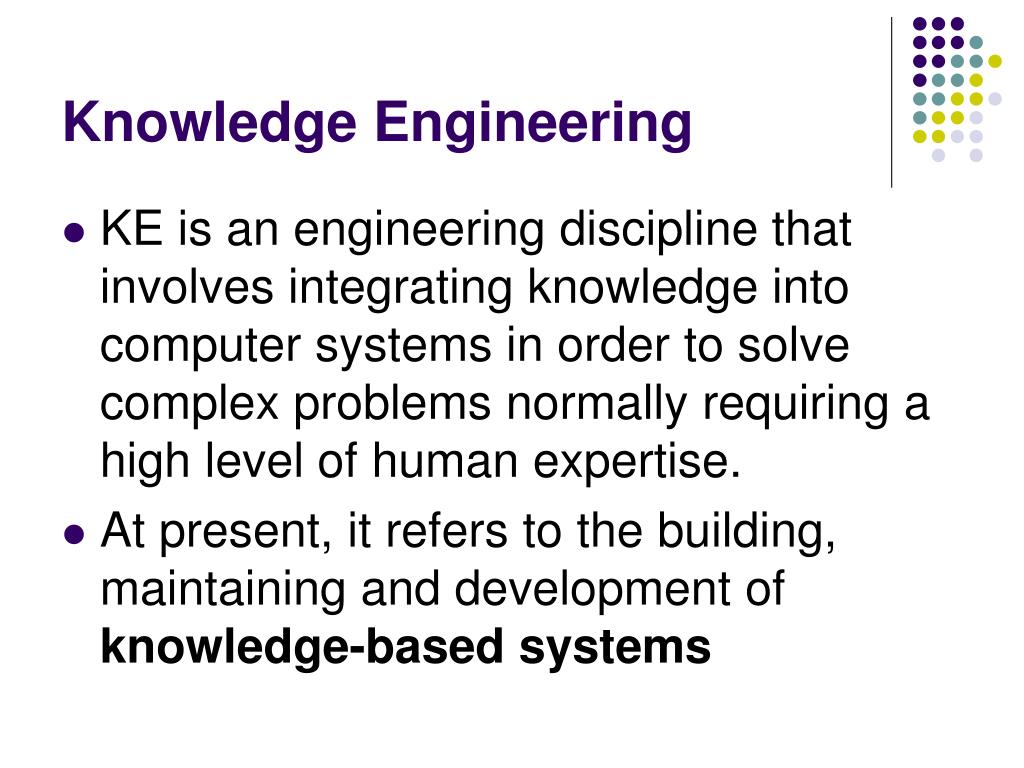

Knowledge Engineering

  • KE is an engineering discipline that involves integrating knowledge into computer systems in order to solve complex problems normally requiring a high level of human expertise.

  • At present, it refers to the building, maintaining and development of knowledge-based systems

Knowledge engineering1

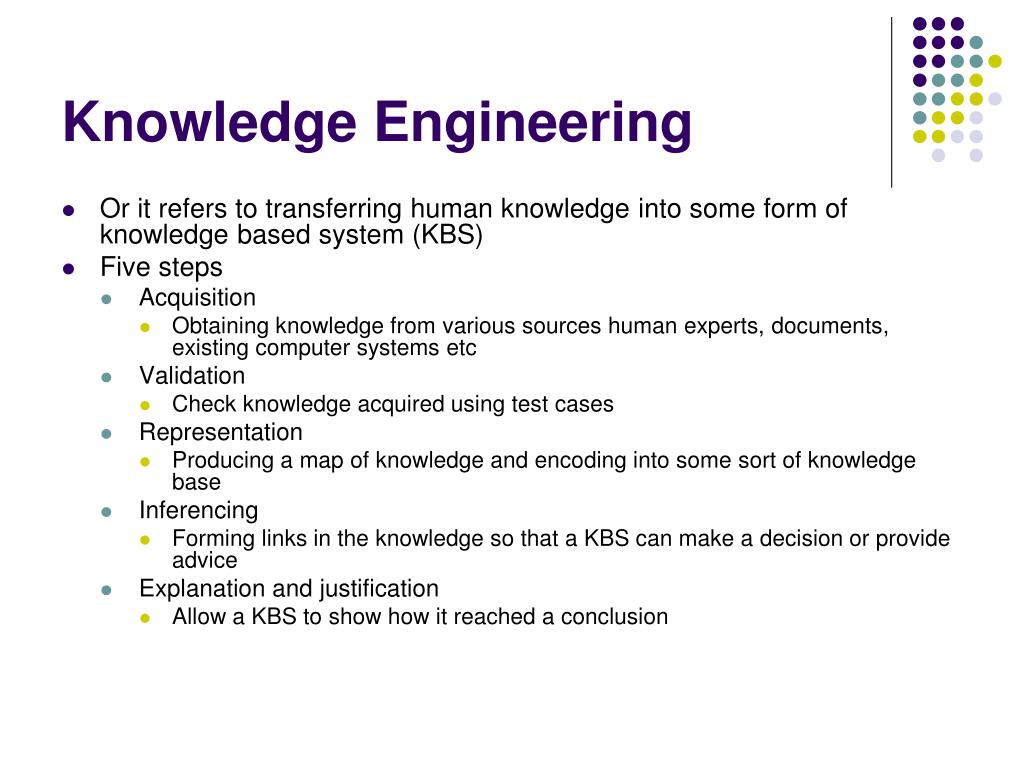

Knowledge Engineering

  • Or it refers to transferring human knowledge into some form of knowledge based system (KBS)

  • Five steps

    • Acquisition

      • Obtaining knowledge from various sources human experts, documents, existing computer systems etc

    • Validation

      • Check knowledge acquired using test cases

    • Representation

      • Producing a map of knowledge and encoding into some sort of knowledge base

    • Inferencing

      • Forming links in the knowledge so that a KBS can make a decision or provide advice

    • Explanation and justification

      • Allow a KBS to show how it reached a conclusion

Knowledge engineer

Knowledge Engineer

  • Person who translates knowledge relating to an area of expertise into the knowledge base which supports a KBS

Types of knowledge

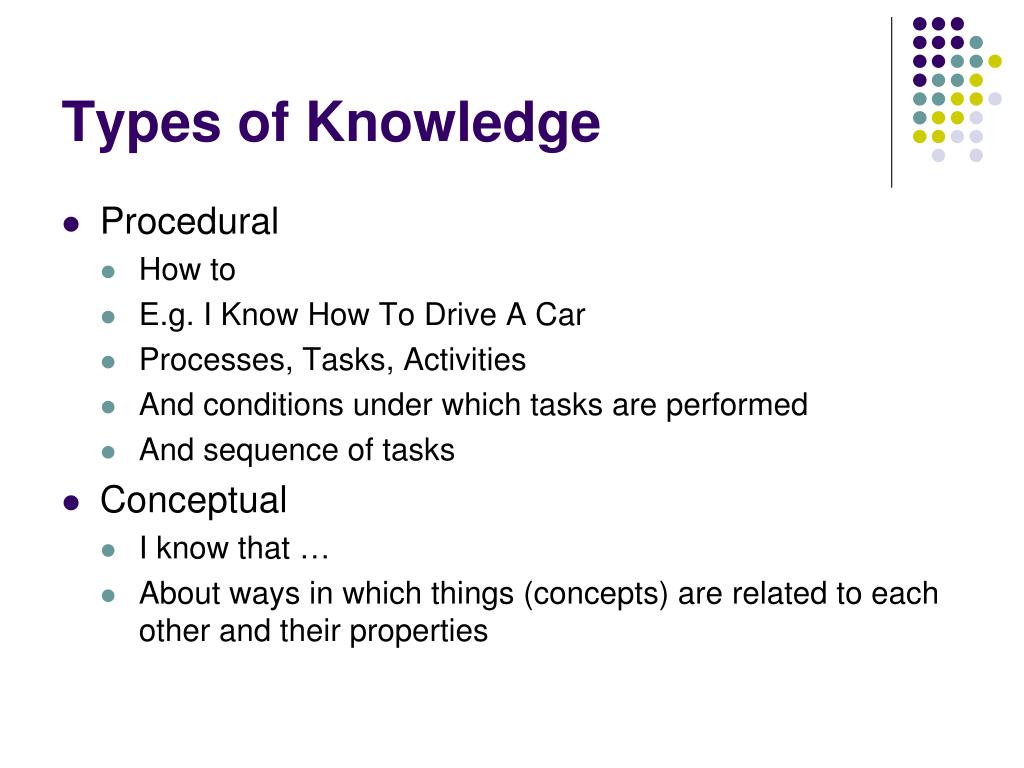

Types of Knowledge

  • Procedural

    • How to

    • E.g. I Know How To Drive A Car

    • Processes, Tasks, Activities

    • And conditions under which tasks are performed

    • And sequence of tasks

  • Conceptual

    • I know that …

    • About ways in which things (concepts) are related to each other and their properties

Types of knowledge1

Types of Knowledge

  • Explicit

    • Knowledge at the forefront of a person’s brain

    • Thought about in a deliberate, conscious way

    • Concerned with basic tasks, basic relationships between concepts, basic properties of concepts

    • Not difficult to explain

  • Tacit

    • Deep, embedded knowledge

    • At the back of a person’s brain

    • Built from experience rather than being taught

    • Gain when practice

    • Leads to activities which seem to require no conscious thought at all

Types of knowledge2

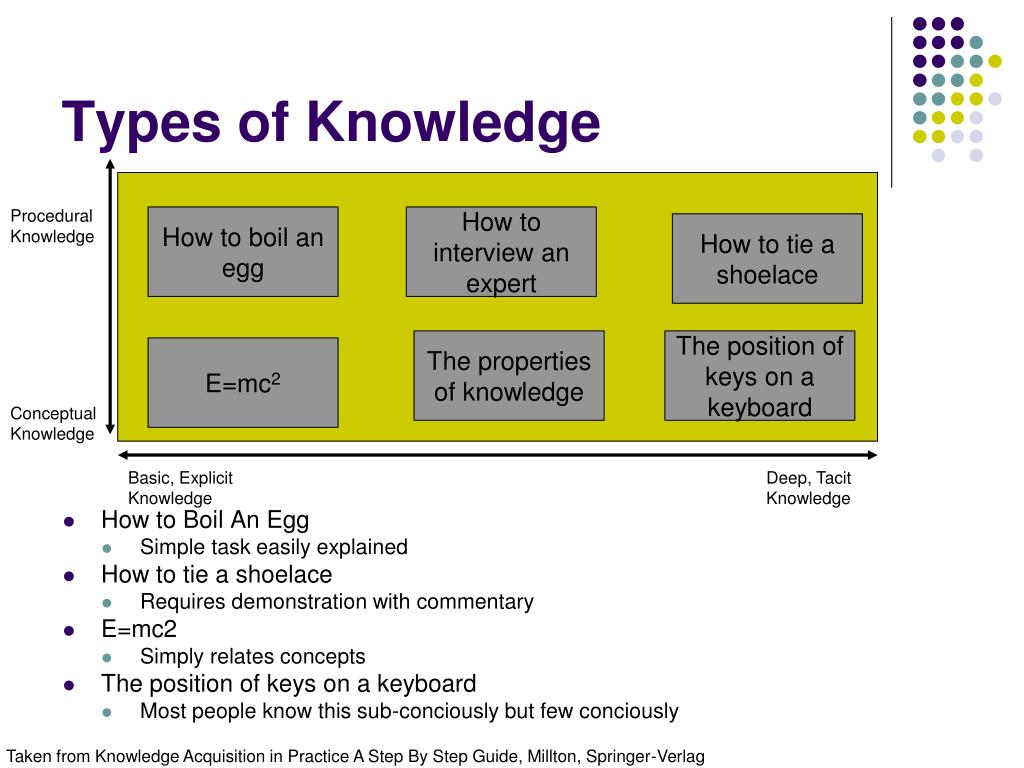

Procedural Knowledge

How to boil an egg

How to interview an expert

How to tie a shoelace

The properties of knowledge

The position of keys on a keyboard


Conceptual Knowledge

Basic, Explicit Knowledge

Deep, Tacit Knowledge

Types of Knowledge

  • How to Boil An Egg

    • Simple task easily explained

  • How to tie a shoelace

    • Requires demonstration with commentary

  • E=mc2

    • Simply relates concepts

  • The position of keys on a keyboard

    • Most people know this sub-conciously but few conciously

Taken from Knowledge Acquisition in Practice A Step By Step Guide, Millton, Springer-Verlag

Eliciting knowledge

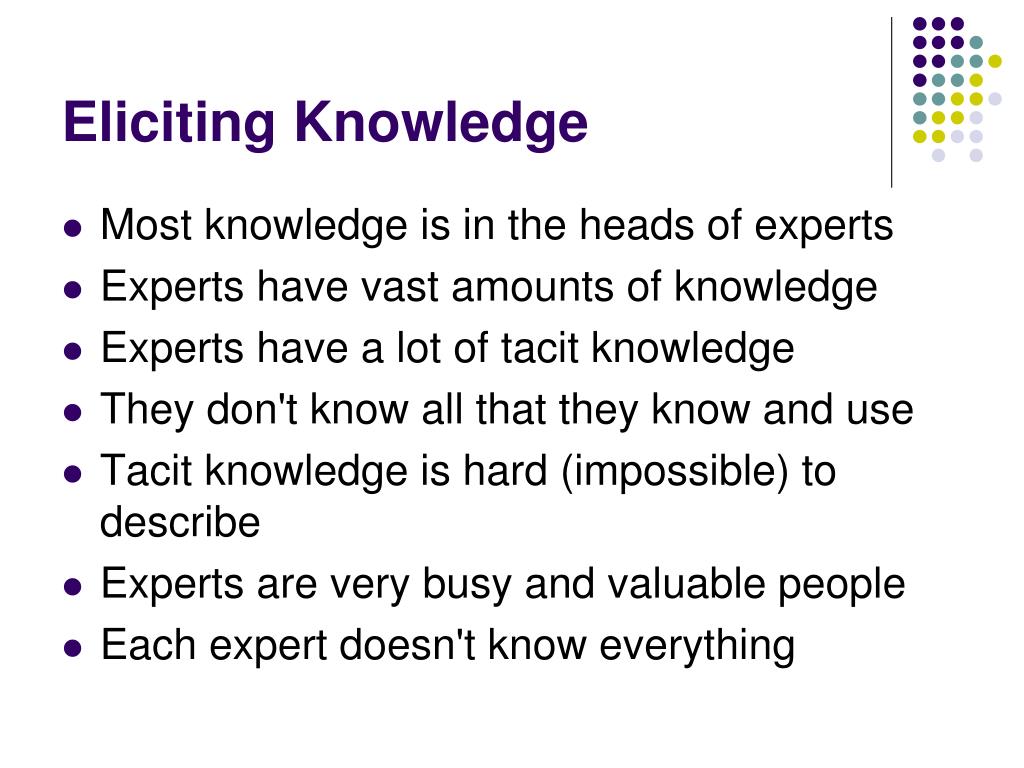

Eliciting Knowledge

Most knowledge is in the heads of experts

Experts have vast amounts of knowledge

Experts have a lot of tacit knowledge

They don't know all that they know and use

Tacit knowledge is hard (impossible) to describe

Experts are very busy and valuable people

Each expert doesn't know everything

Knowledge acquisition knowledge engineering

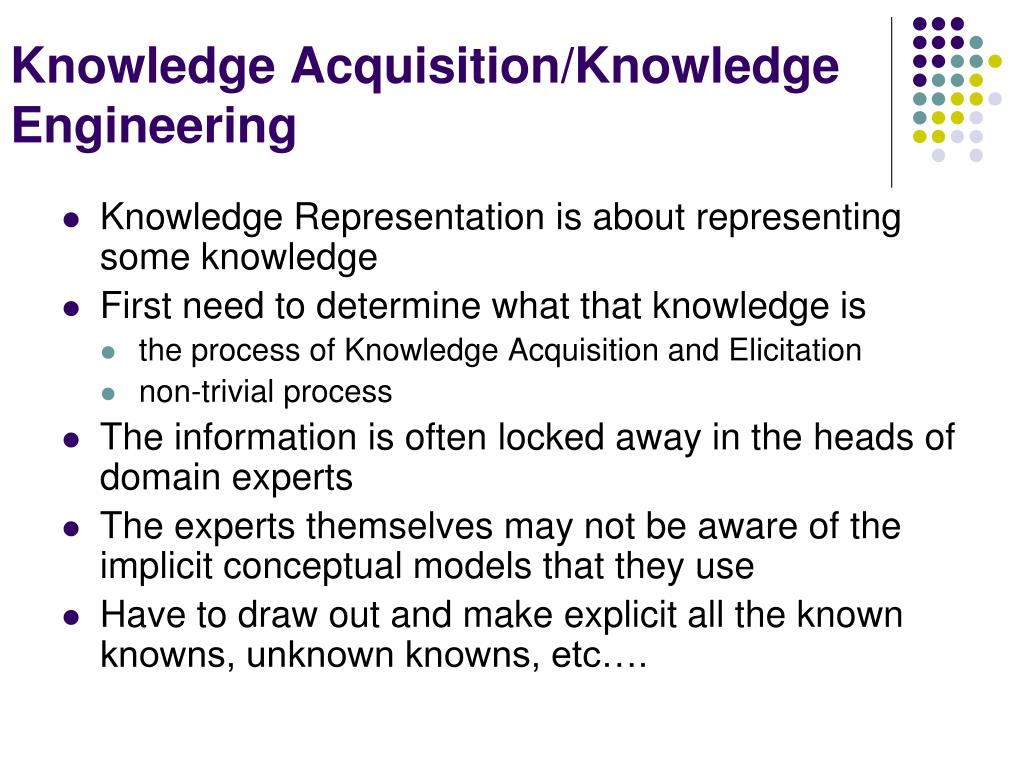

Knowledge Acquisition/Knowledge Engineering

Knowledge Representation is about representing some knowledge

First need to determine what that knowledge is

the process of Knowledge Acquisition and Elicitation

non-trivial process

The information is often locked away in the heads of domain experts

The experts themselves may not be aware of the implicit conceptual models that they use

Have to draw out and make explicit all the known knowns, unknown knowns, etc….

Knowledge acquisition

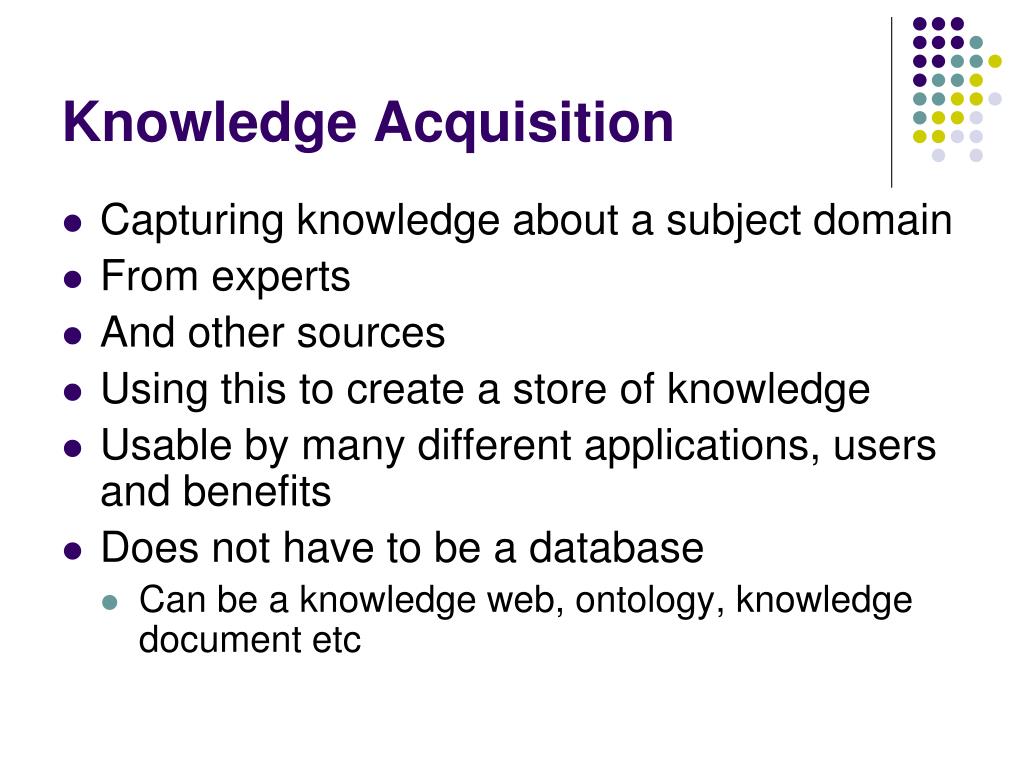

Knowledge Acquisition

  • Capturing knowledge about a subject domain

  • From experts

  • And other sources

  • Using this to create a store of knowledge

  • Usable by many different applications, users and benefits

  • Does not have to be a database

    • Can be a knowledge web, ontology, knowledge document etc

Difficulties of knowledge acquisition

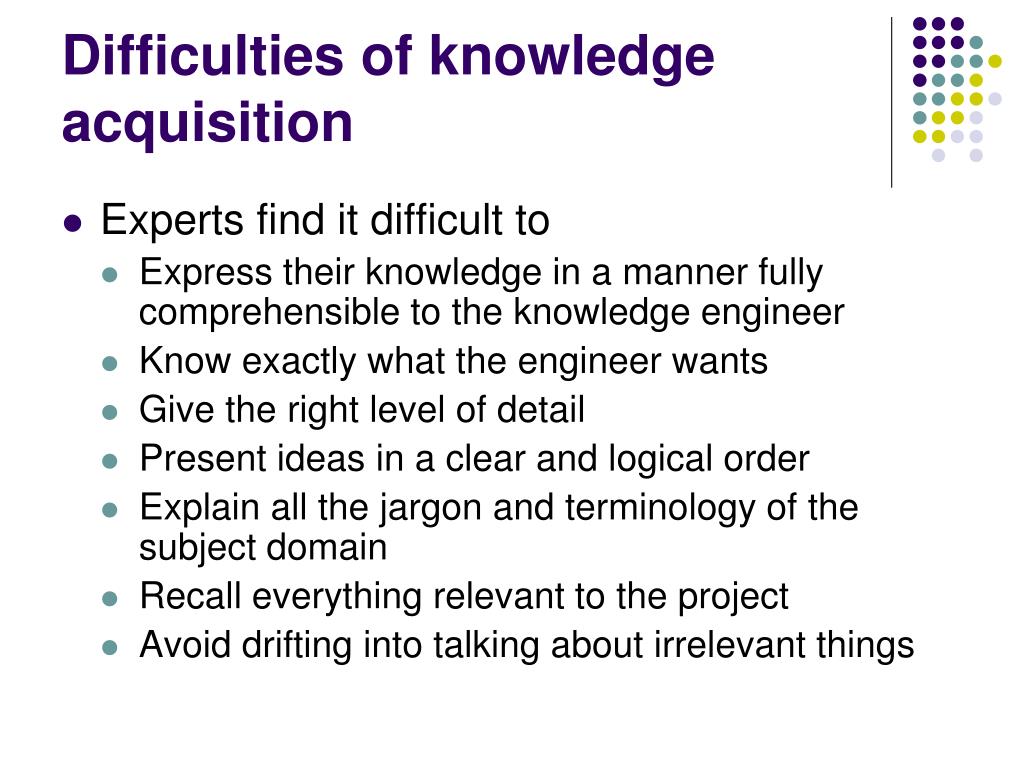

Difficulties of knowledge acquisition

  • Experts find it difficult to

    • Express their knowledge in a manner fully comprehensible to the knowledge engineer

    • Know exactly what the engineer wants

    • Give the right level of detail

    • Present ideas in a clear and logical order

    • Explain all the jargon and terminology of the subject domain

    • Recall everything relevant to the project

    • Avoid drifting into talking about irrelevant things

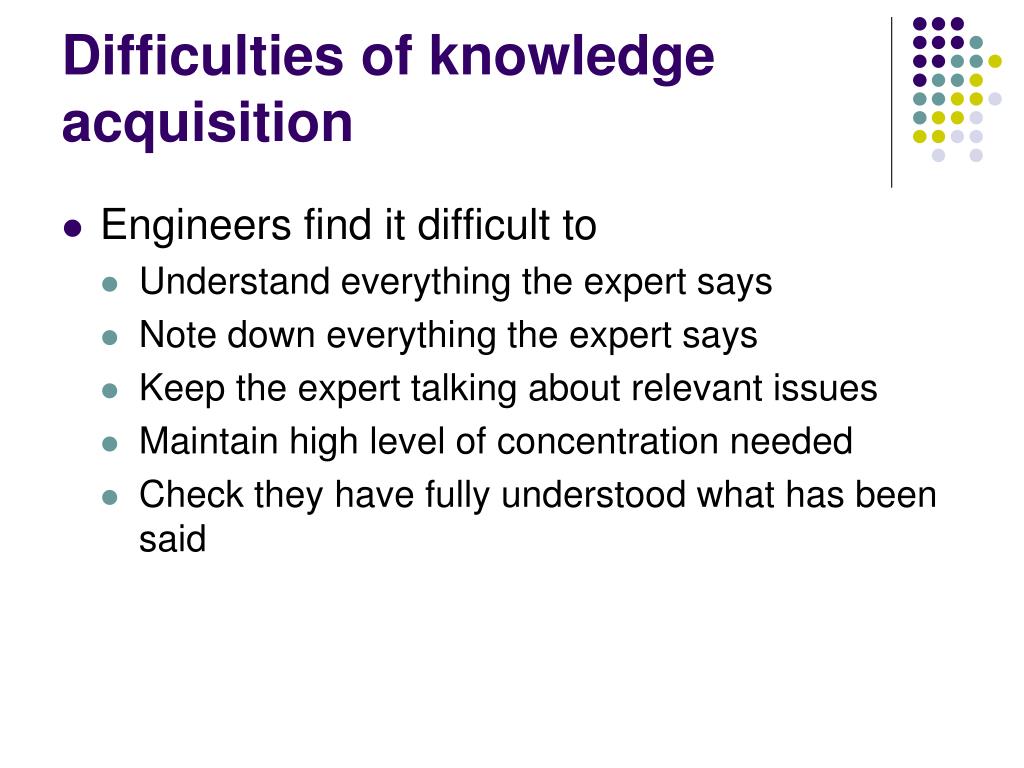

Difficulties of knowledge acquisition1

Difficulties of knowledge acquisition

  • Engineers find it difficult to

    • Understand everything the expert says

    • Note down everything the expert says

    • Keep the expert talking about relevant issues

    • Maintain high level of concentration needed

    • Check they have fully understood what has been said

Difficulties of knowledge acquisition2

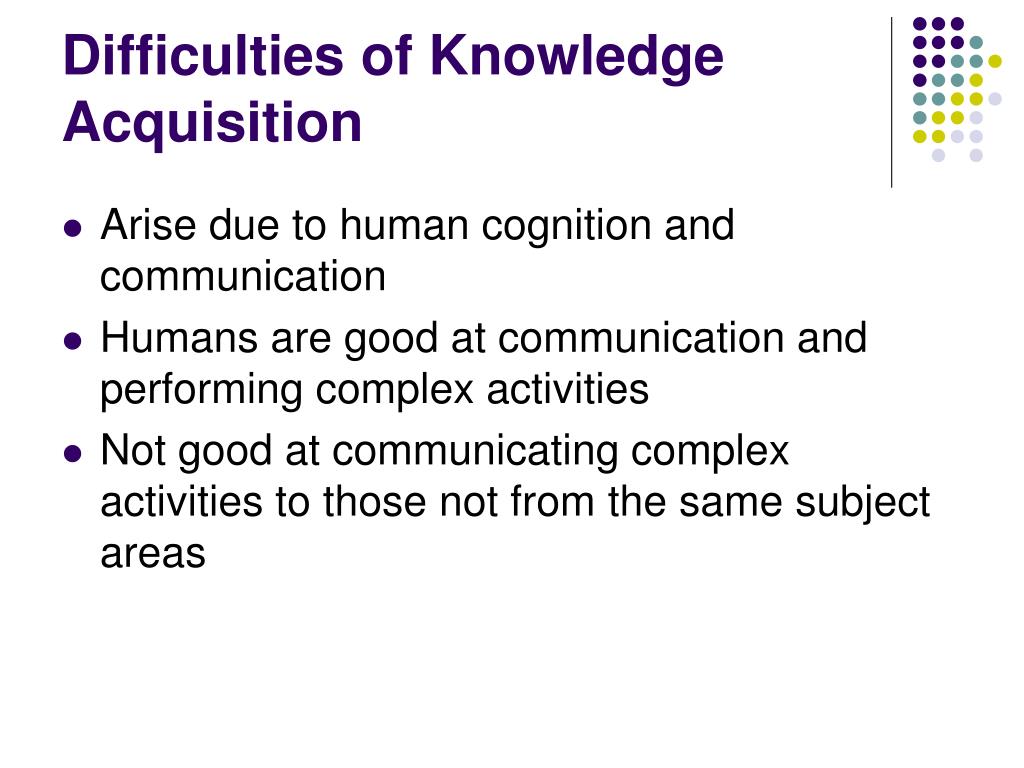

Difficulties of Knowledge Acquisition

  • Arise due to human cognition and communication

  • Humans are good at communication and performing complex activities

  • Not good at communicating complex activities to those not from the same subject areas

Knowledge acquisition bottleneck

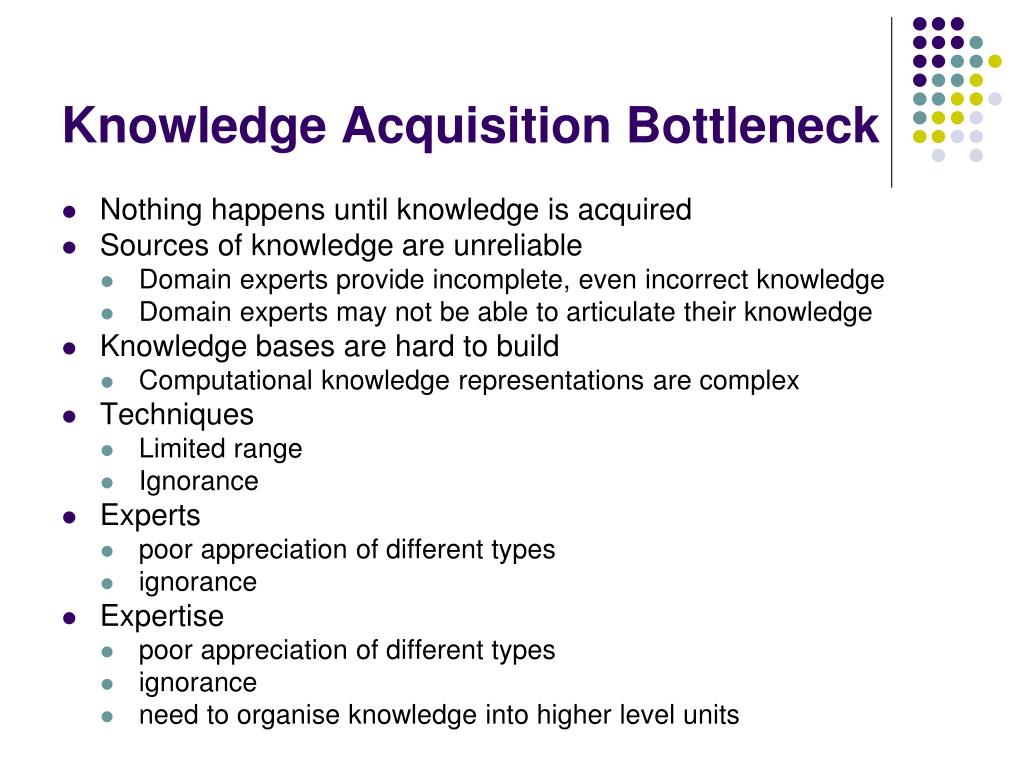

Knowledge Acquisition Bottleneck

Nothing happens until knowledge is acquired

Sources of knowledge are unreliable

Domain experts provide incomplete, even incorrect knowledge

Domain experts may not be able to articulate their knowledge

Knowledge bases are hard to build

Computational knowledge representations are complex


Limited range



poor appreciation of different types



poor appreciation of different types


need to organise knowledge into higher level units

What is a knowledge based system

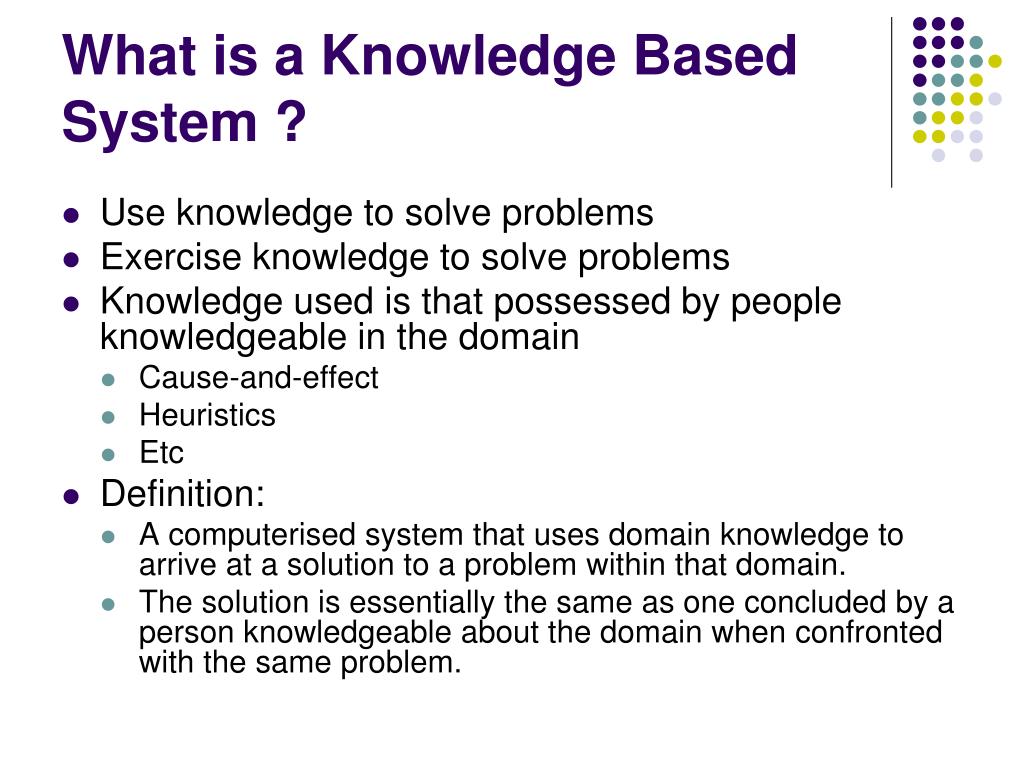

What is a Knowledge Based System ?

Use knowledge to solve problems

Exercise knowledge to solve problems

Knowledge used is that possessed by people knowledgeable in the domain





A computerised system that uses domain knowledge to arrive at a solution to a problem within that domain.

The solution is essentially the same as one concluded by a person knowledgeable about the domain when confronted with the same problem.

What is a knowledge based system1

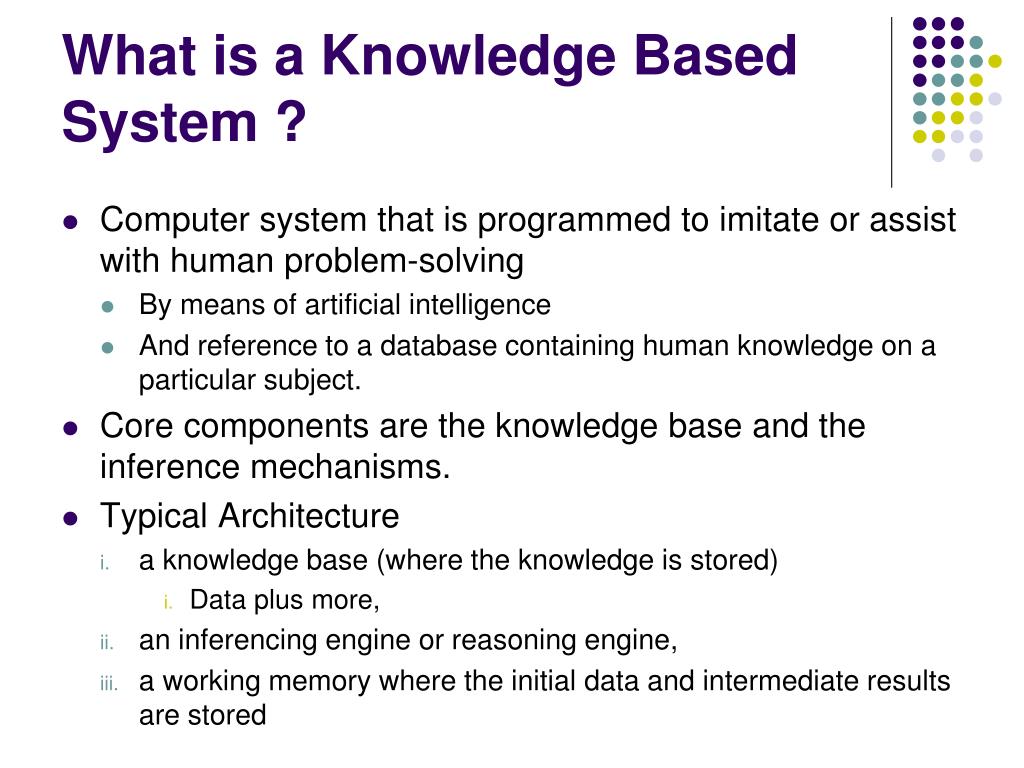

What is a Knowledge Based System ?

Computer system that is programmed to imitate or assist with human problem-solving

By means of artificial intelligence

And reference to a database containing human knowledge on a particular subject.

Core components are the knowledge base and the inference mechanisms.

Typical Architecture

a knowledge base (where the knowledge is stored)

Data plus more,

an inferencing engine or reasoning engine,

a working memory where the initial data and intermediate results are stored

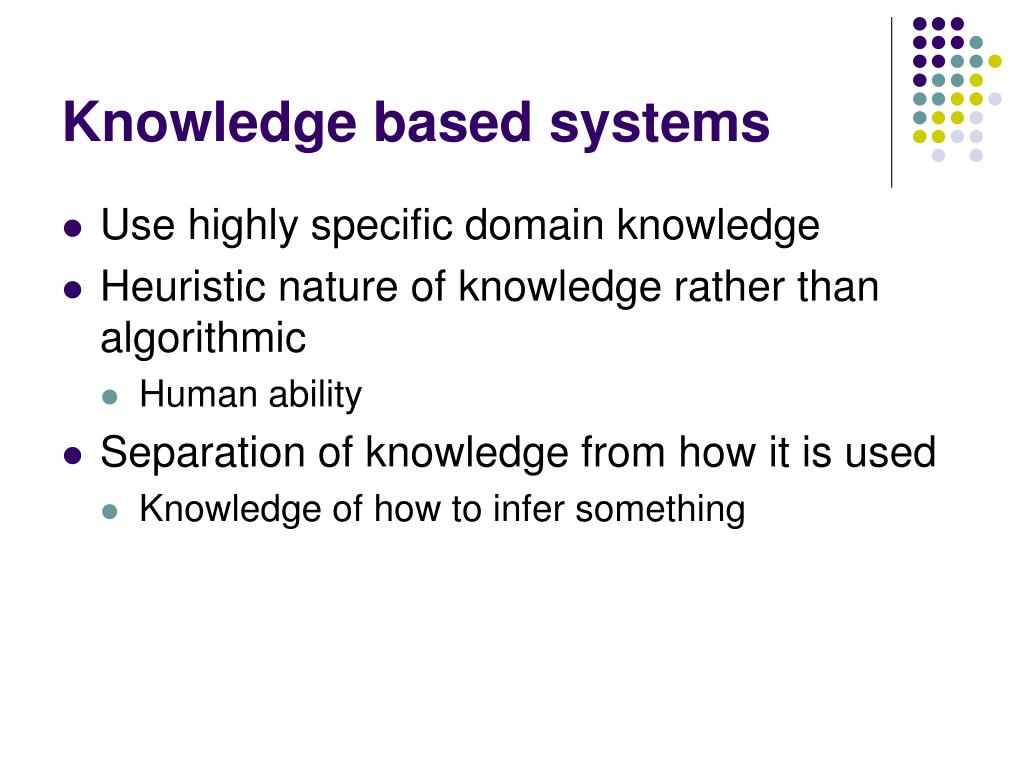

Knowledge based systems

Knowledge based systems

Use highly specific domain knowledge

Heuristic nature of knowledge rather than algorithmic

Human ability

Separation of knowledge from how it is used

Knowledge of how to infer something

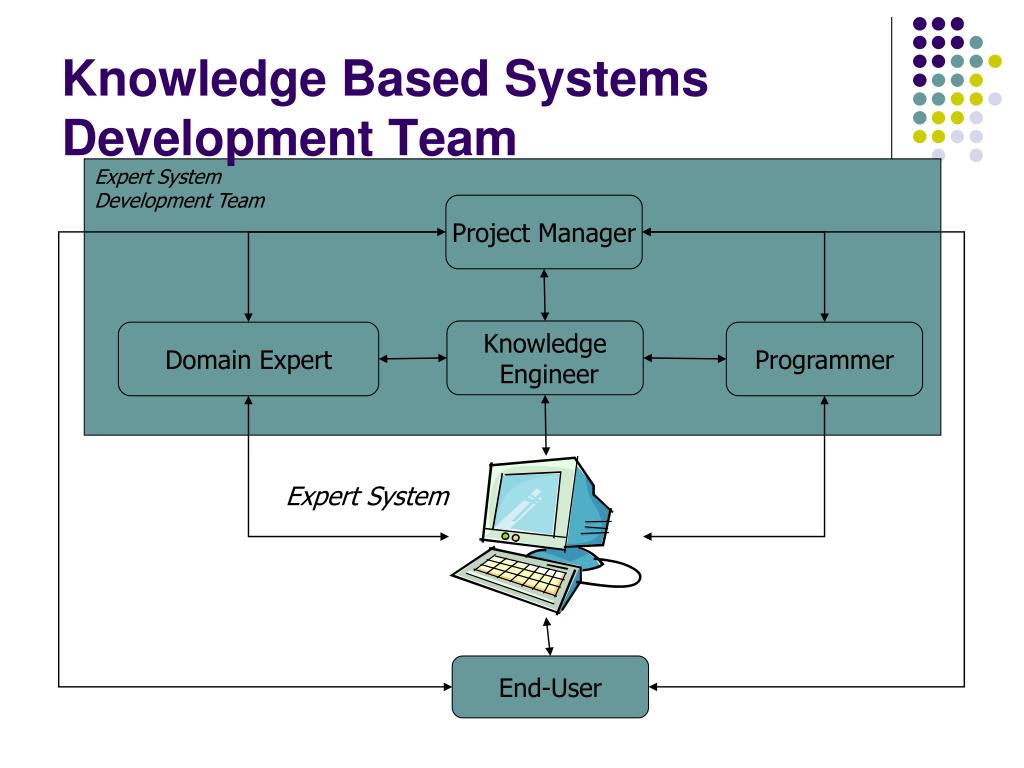

Knowledge based systems development team

Knowledge Based Systems Development Team

Expert System

Development Team

Project Manager



Domain Expert


Expert System





Intelligent system

Intelligent System

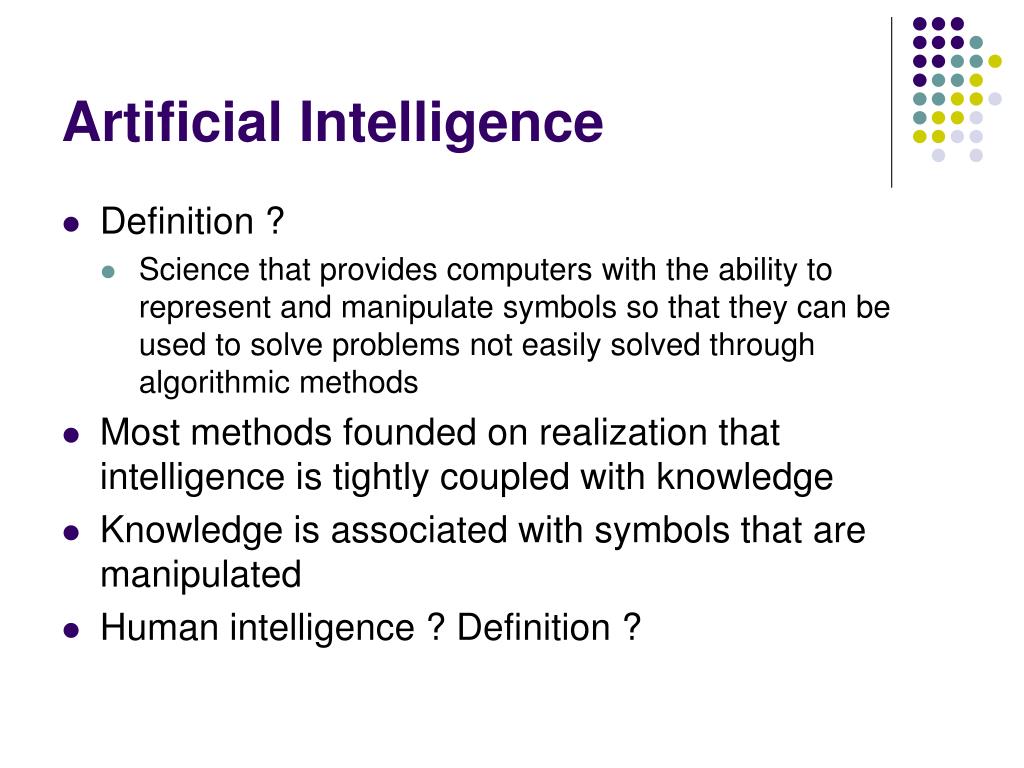

Artificial intelligence

Artificial Intelligence

Definition ?

Science that provides computers with the ability to represent and manipulate symbols so that they can be used to solve problems not easily solved through algorithmic methods

Most methods founded on realization that intelligence is tightly coupled with knowledge

Knowledge is associated with symbols that are manipulated

Human intelligence ? Definition ?

What is artificial intelligence

What is Artificial Intelligence ?

Agreement that it is concerned with two things

Studying human thought processes

Representing these processes via machines



Artificial Intelligence is behaviour by a machine which if performed by a human would be considered intelligent

“Artificial Intelligence is the study of how to make computers do things at which, at the moment, people are better” (Rich & Knight 1991)

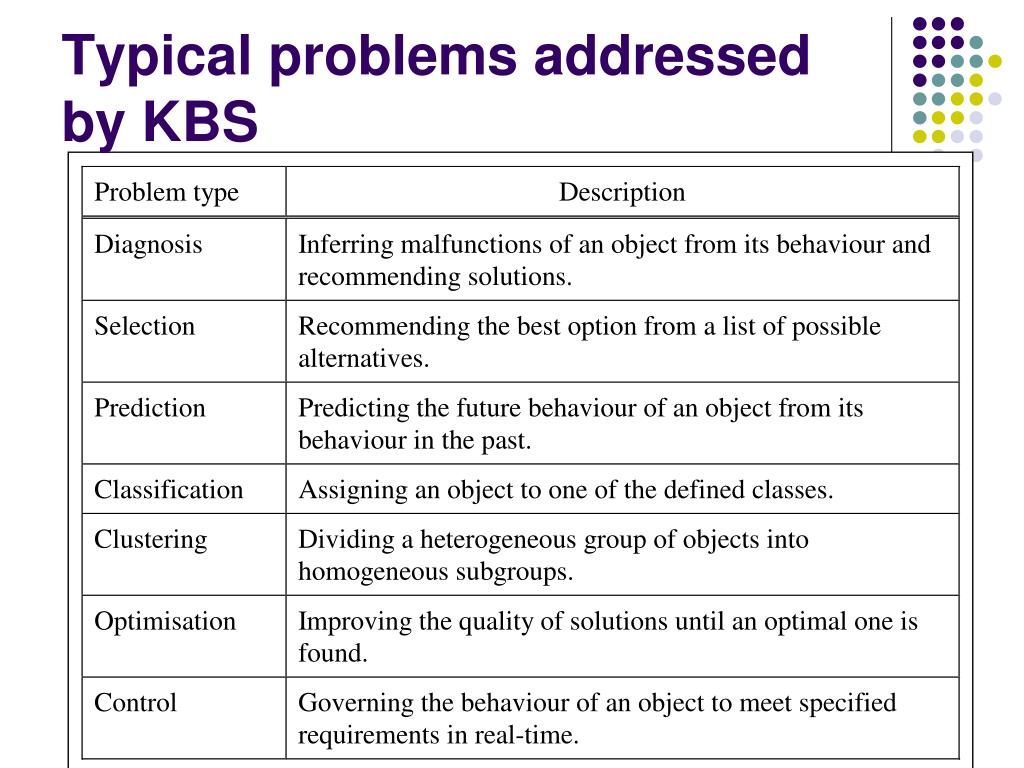

Typical problems addressed by kbs

Typical problems addressed by KBS

Knowledge representation

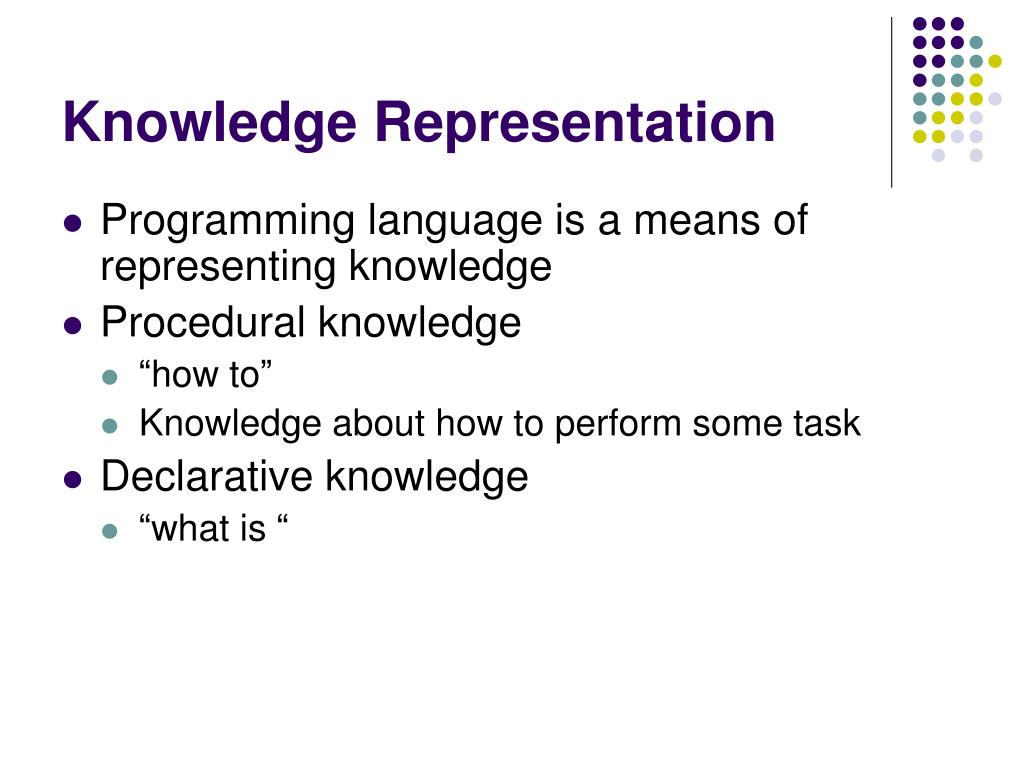

Knowledge Representation

Programming language is a means of representing knowledge

Procedural knowledge

“how to”

Knowledge about how to perform some task

Declarative knowledge

“what is “

Rule based reasoning

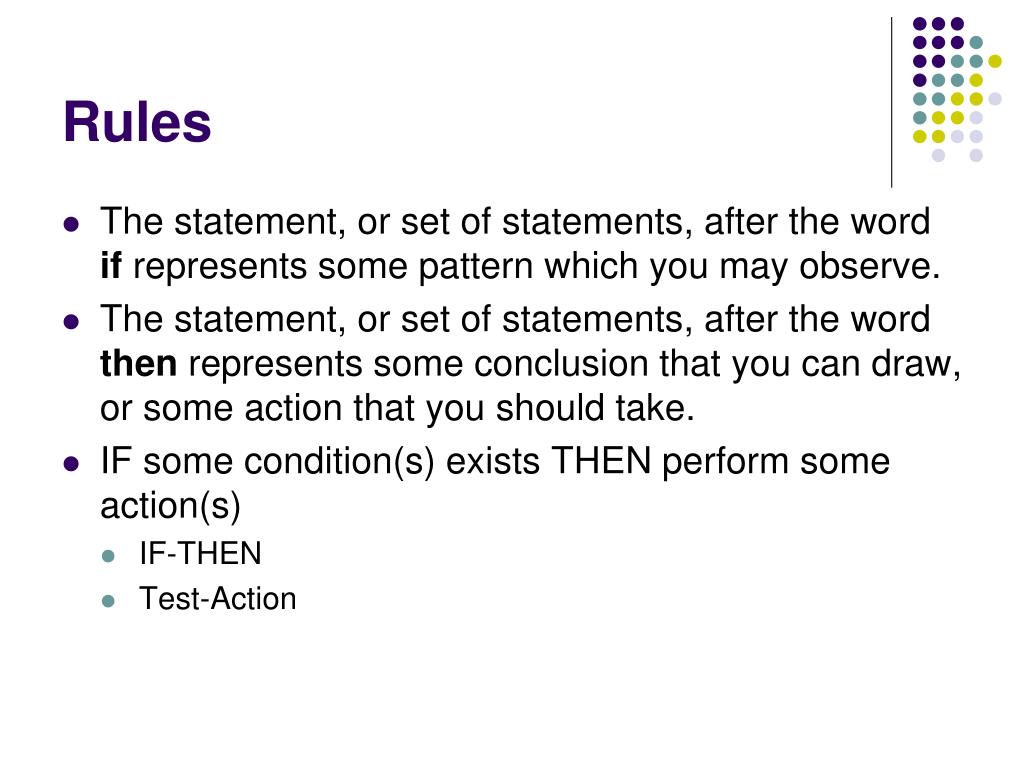

Rule-based reasoning

  • One can often represent the expertise that someone uses to do an expert task as rules.

  • A rule means a structure which has an if component and a then component.

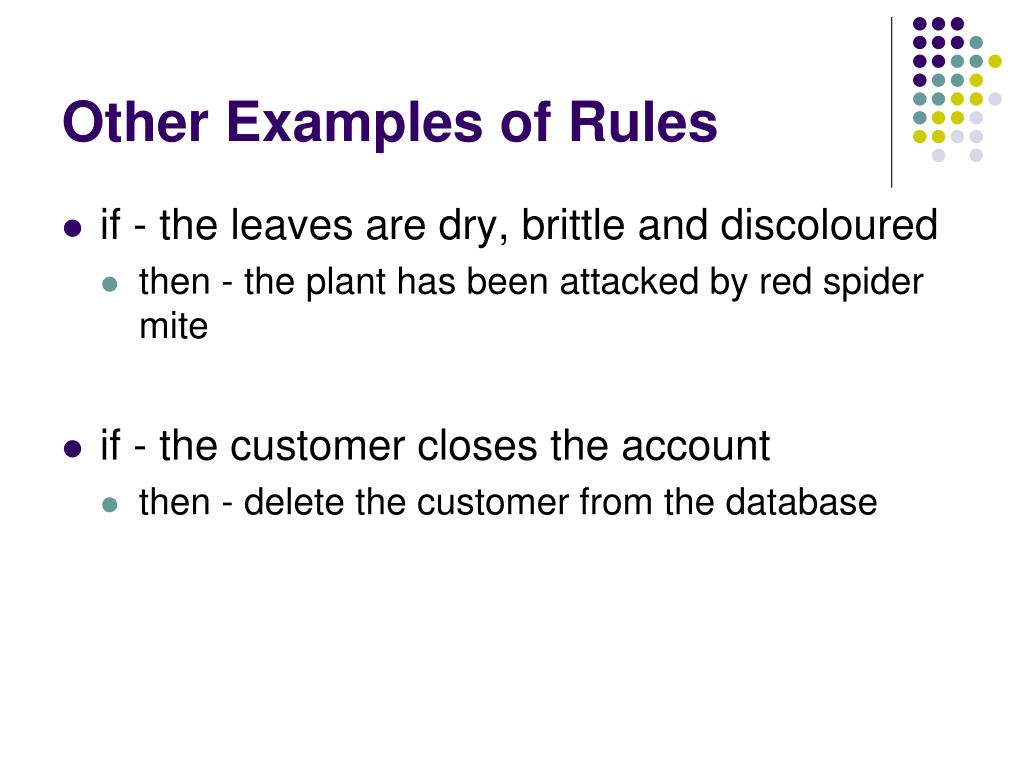

Other examples of rules

Other Examples of Rules

  • if - the leaves are dry, brittle and discoloured

    • then - the plant has been attacked by red spider mite

  • if - the customer closes the account

    • then - delete the customer from the database



  • The statement, or set of statements, after the word if represents some pattern which you may observe.

  • The statement, or set of statements, after the word then represents some conclusion that you can draw, or some action that you should take.

  • IF some condition(s) exists THEN perform some action(s)

    • IF-THEN

    • Test-Action

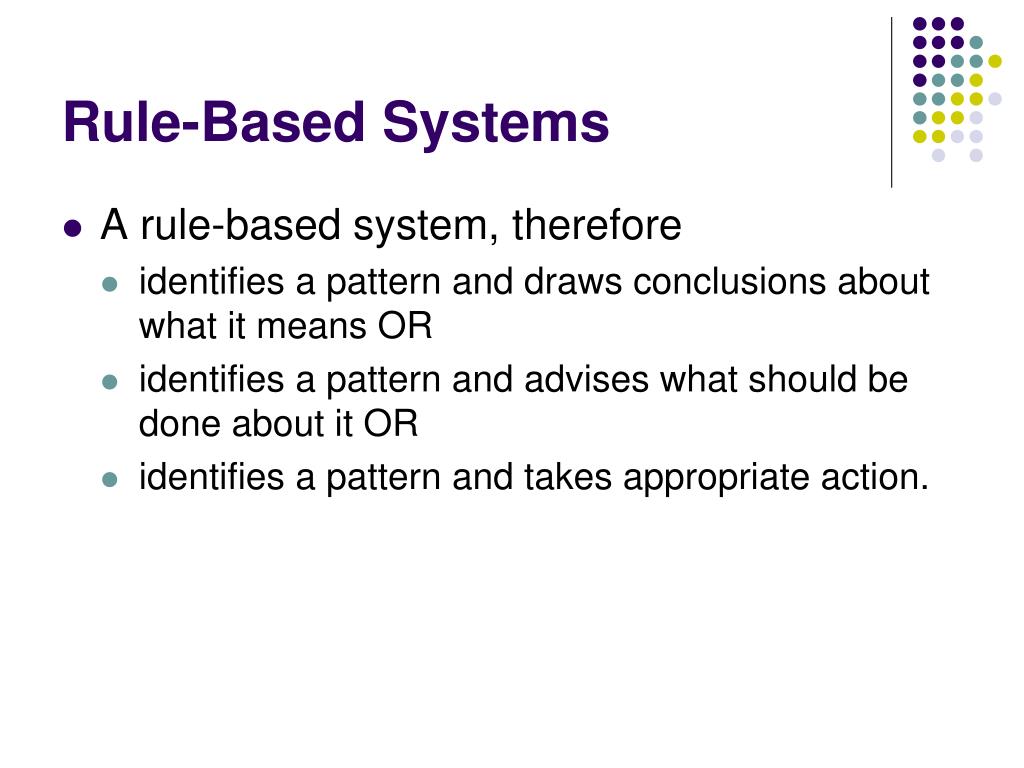

Rule based systems

Rule-Based Systems

  • A rule-based system, therefore

    • identifies a pattern and draws conclusions about what it means OR

    • identifies a pattern and advises what should be done about it OR

    • identifies a pattern and takes appropriate action.

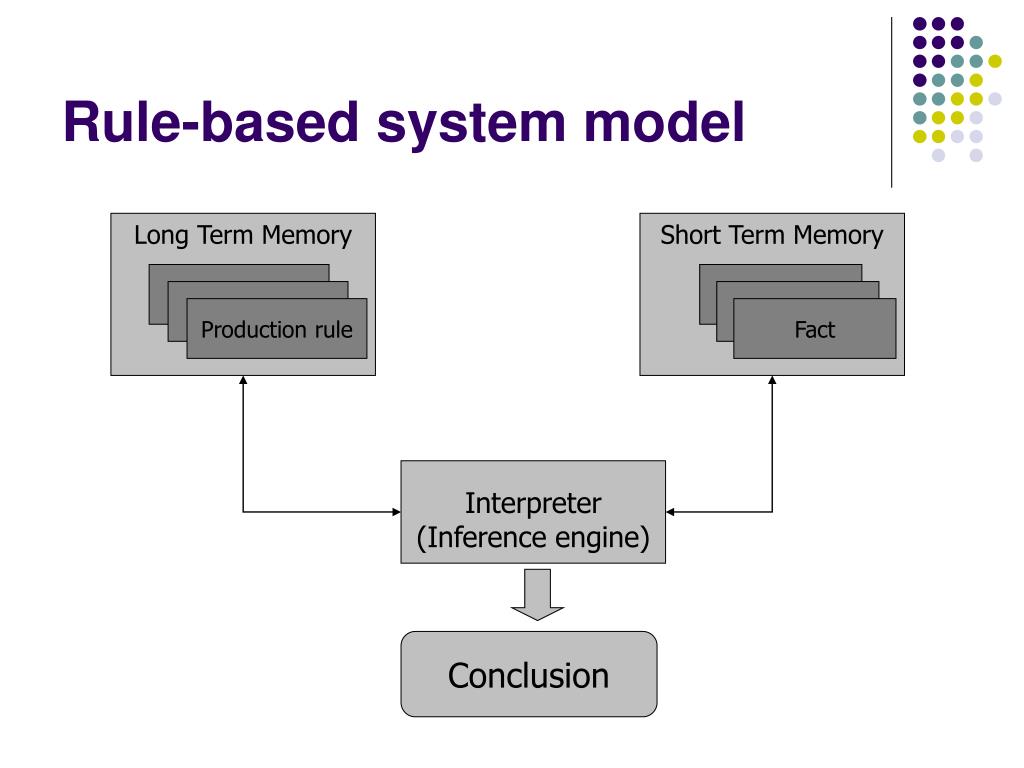

Rule based system model

Long Term Memory

Short Term Memory

Production rule



(Inference engine)


Rule-based system model

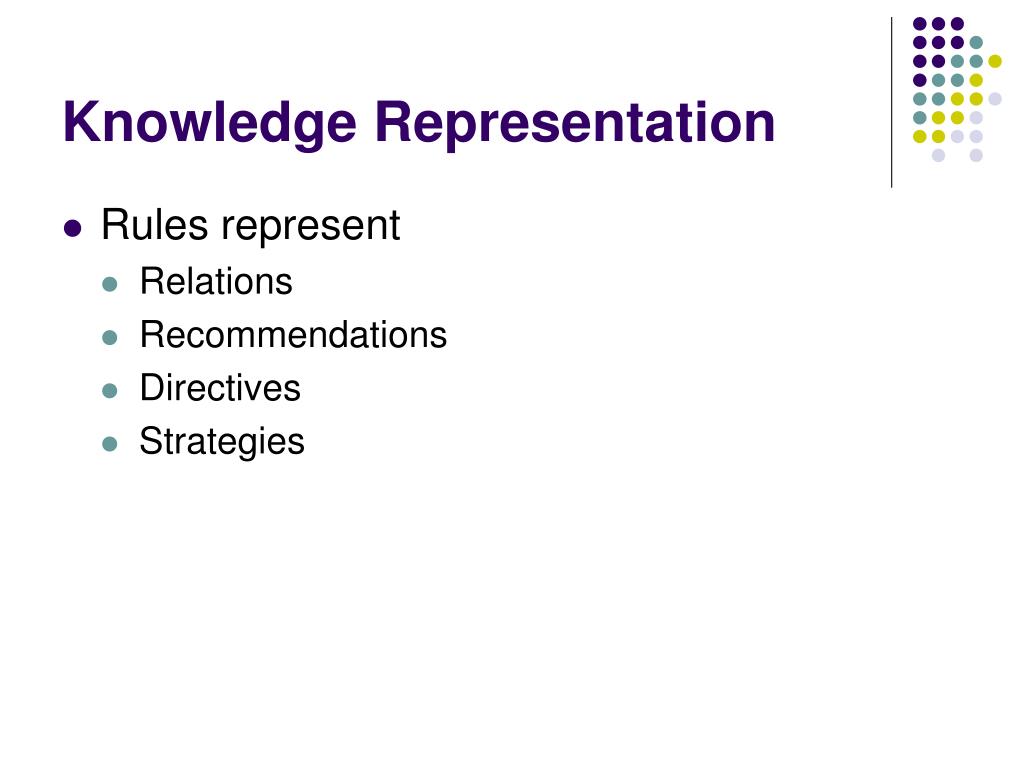

Knowledge representation1

Knowledge Representation

Rules represent

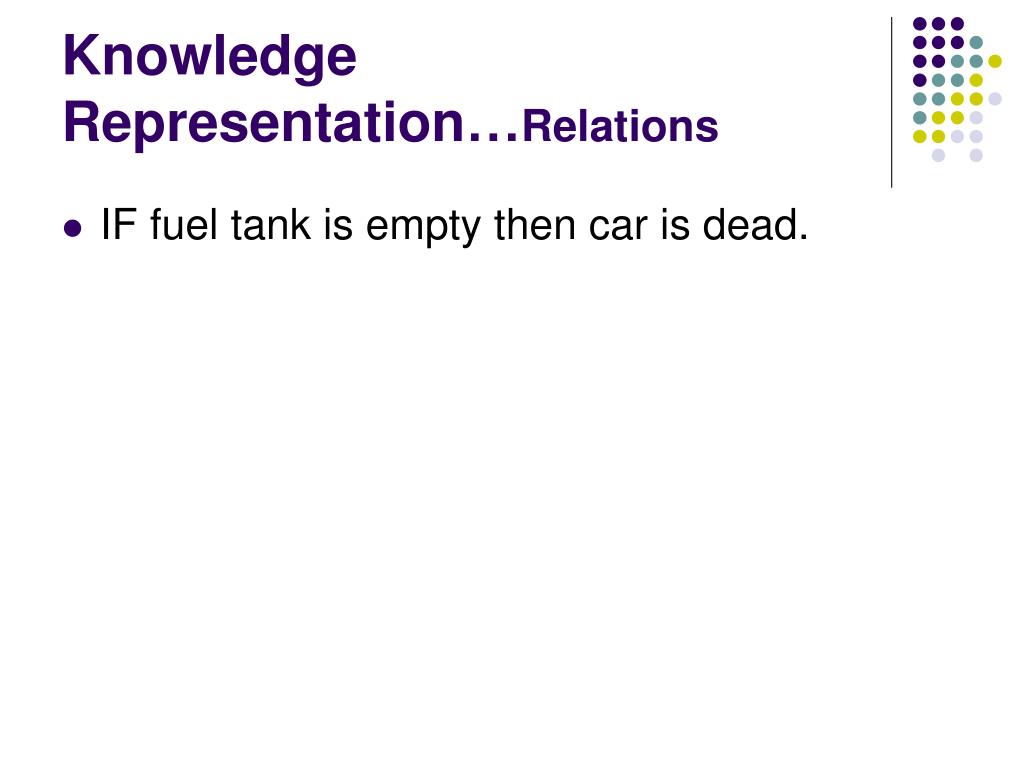

Knowledge representation relations

Knowledge Representation…Relations

  • IF fuel tank is empty then car is dead.

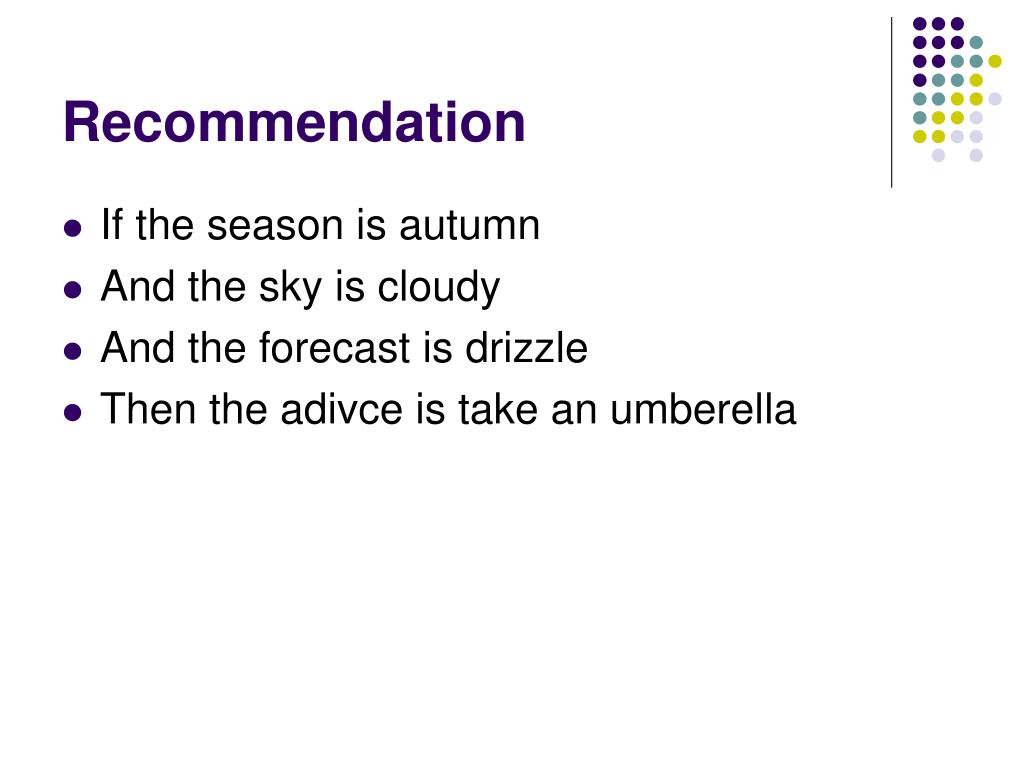

  • If the season is autumn

  • And the sky is cloudy

  • And the forecast is drizzle

  • Then the adivce is take an umberella

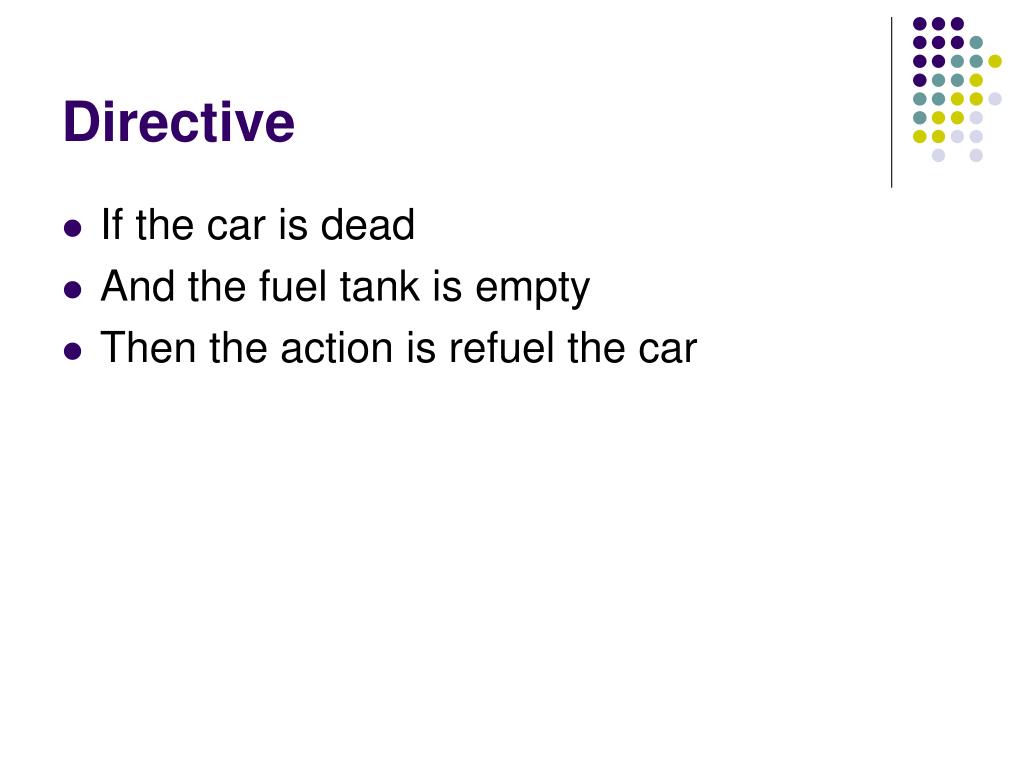

  • If the car is dead

  • And the fuel tank is empty

  • Then the action is refuel the car



  • If the car is dead

  • Then the action is check the fuel tank

  • step 1 is complete

  • If step1 is complete

  • And the fuel tank is empty

  • Then check the battery

  • step 2 is complete

Class exercise rule based system for tic tac toe

Class Exercise : Rule-Based System for Tic-Tac-Toe

What rules do we need ?

Rules may have tests that are satisfied at the same time – need some mechanism for selecting right rule

  • Login
