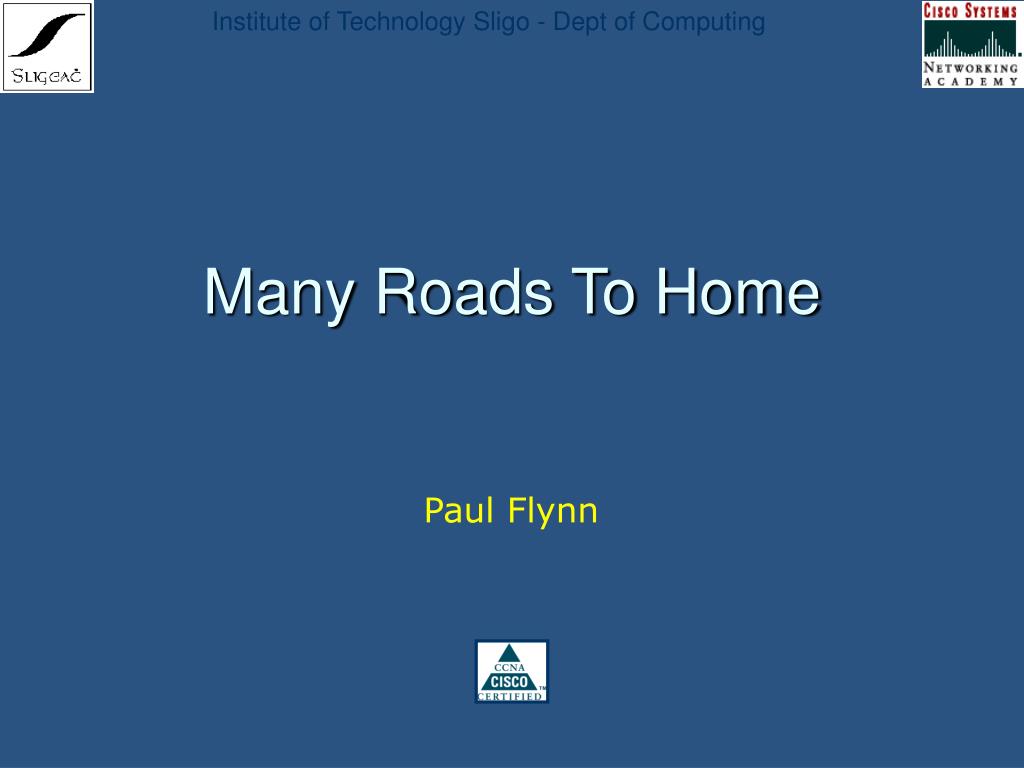

  1. Many Roads To Home Paul Flynn

  2. LAN Roads • UTP • STP • Coaxial • Fiber Optics

  3. Unshielded Twisted Pair (UTP) • Relies on cancellation to reduce EMI • Precise specifications for the number of twists per braid • Resistance = 100 ohms • Be sure to handle & inspect our classroom sample of UTP

  4. Unshielded Twisted Pair (UTP) Advantages • Easy to install • Least expensive of all media • Small diameter of cable • Proper termination procedures insures reliable connection

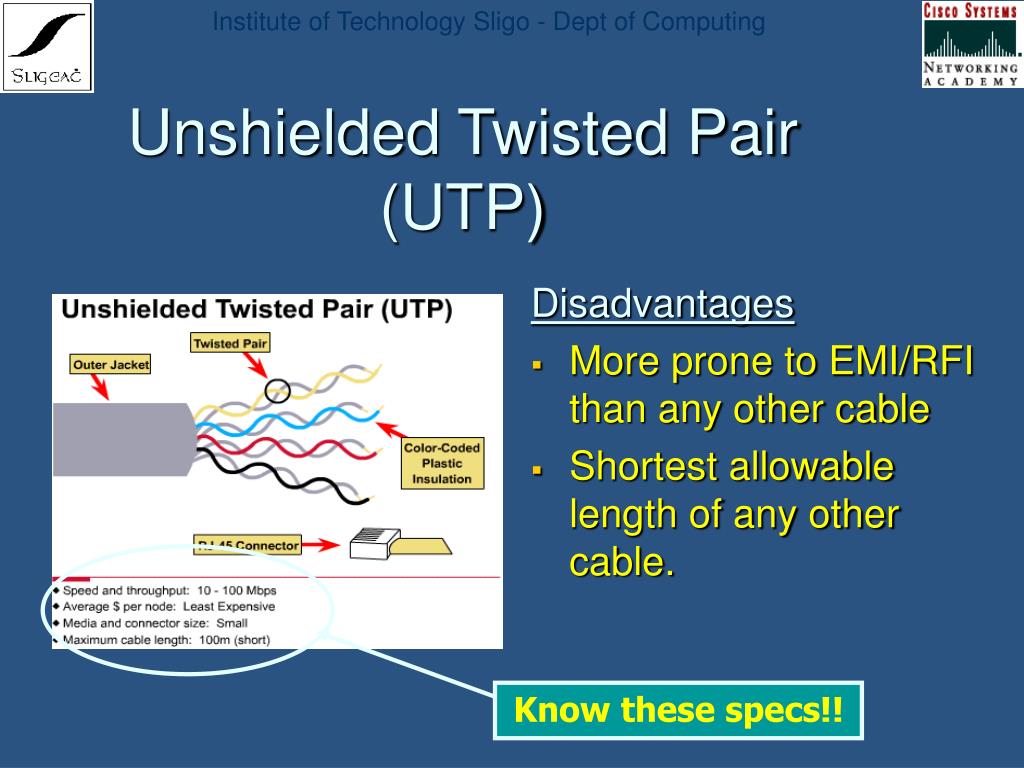

  5. Know these specs!! Unshielded Twisted Pair (UTP) Disadvantages • More prone to EMI/RFI than any other cable • Shortest allowable length of any other cable.

  6. Know these specs!! Shielded Twisted Pair (STP) • All the advantages and disadvantages of UTP. • Foil shields provide greater protection against EMI & RFI. • Increased cost of cable • Be sure to handle & inspect our classroom sample of STP

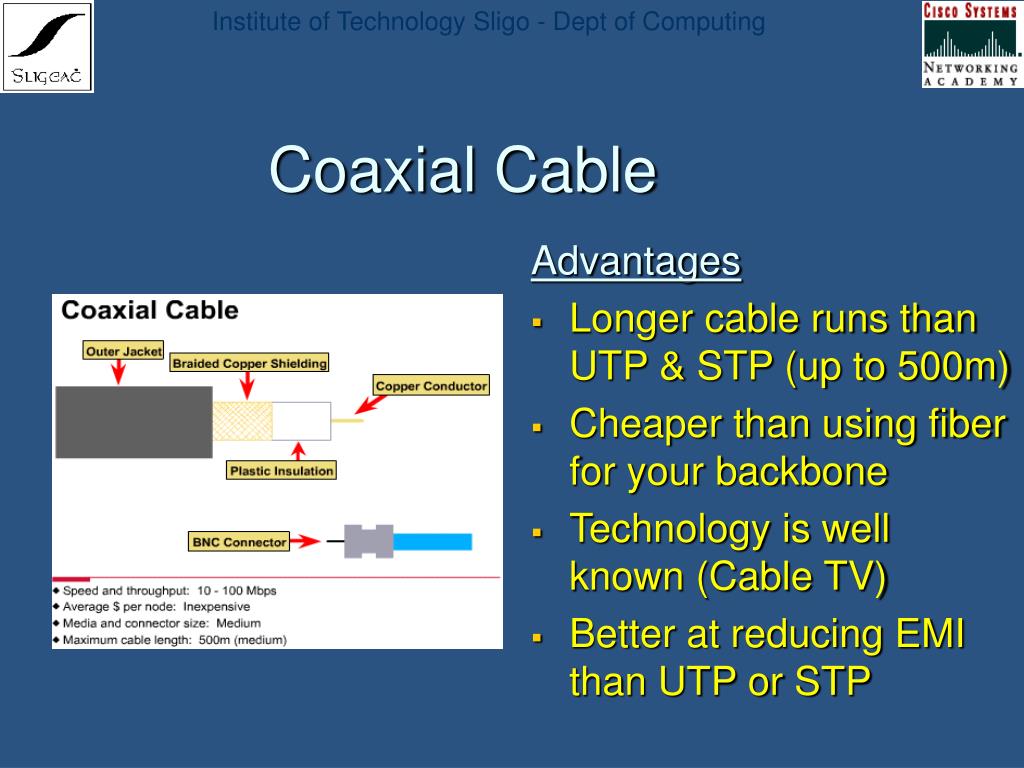

  7. Coaxial Cable Advantages • Longer cable runs than UTP & STP (up to 500m) • Cheaper than using fiber for your backbone • Technology is well known (Cable TV) • Better at reducing EMI than UTP or STP

  8. Coaxial Cable Disadvantages • Thickness of cable • Copper shielding must be grounded at both ends of the connection • No longer used as a LAN media

  9. Know these specs!! Coaxial Cable • Know these diagramed parts & their purpose • Be sure to handle & inspect our classroom samples of coaxial cable

  10. Fiber Optics • Know these diagramed parts & their purpose Advantages Longer runs than any other cable (2km) Higher data rates than any other cable (>100Mbps) NO EMI!!

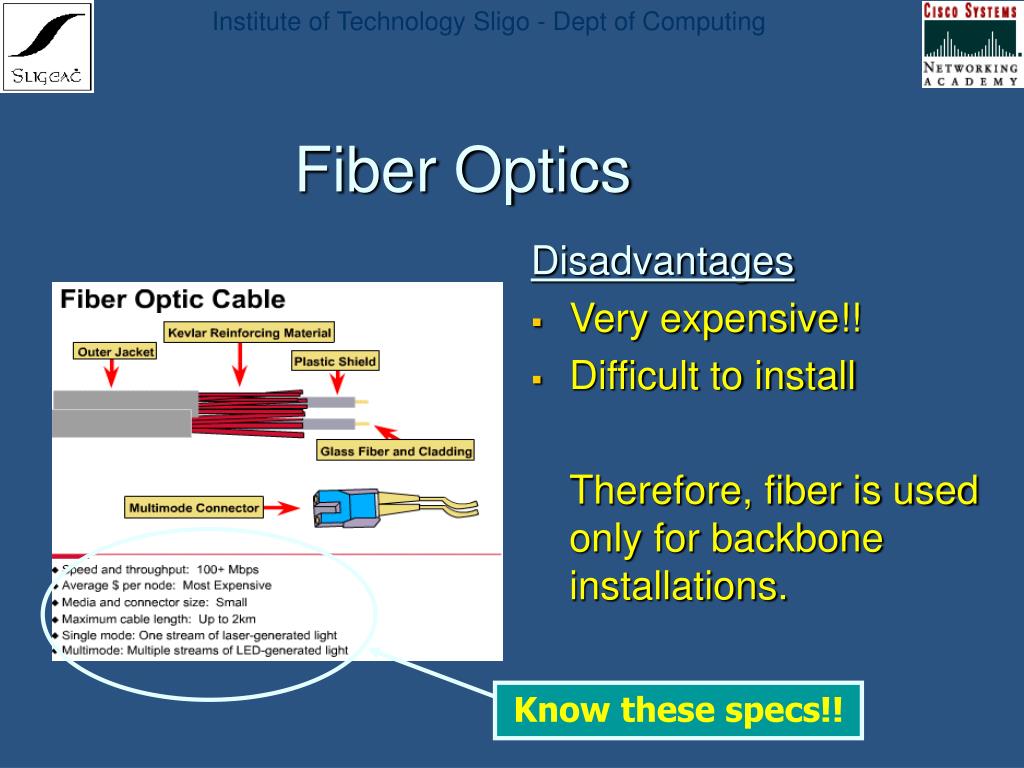

  11. Know these specs!! Fiber Optics Disadvantages • Very expensive!! • Difficult to install Therefore, fiber is used only for backbone installations.

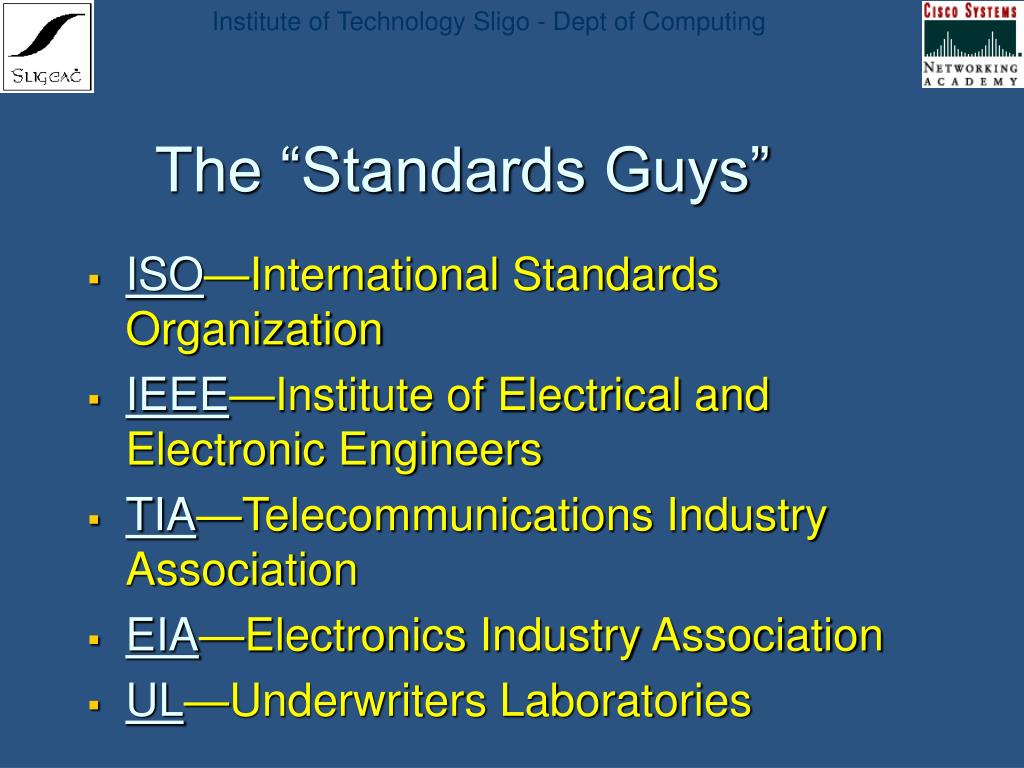

  12. The “Standards Guys” • ISO—International Standards Organization • IEEE—Institute of Electrical and Electronic Engineers • TIA—Telecommunications Industry Association • EIA—Electronics Industry Association • UL—Underwriters Laboratories

  13. TIA/EIA • TIA & EIA issue standards together for technologies that involve both telecommunications & electronics. • TIA & EIA have had the greatest impact on networking media standards • TIA/EIA 568A is the cable standard we will use when making our cables

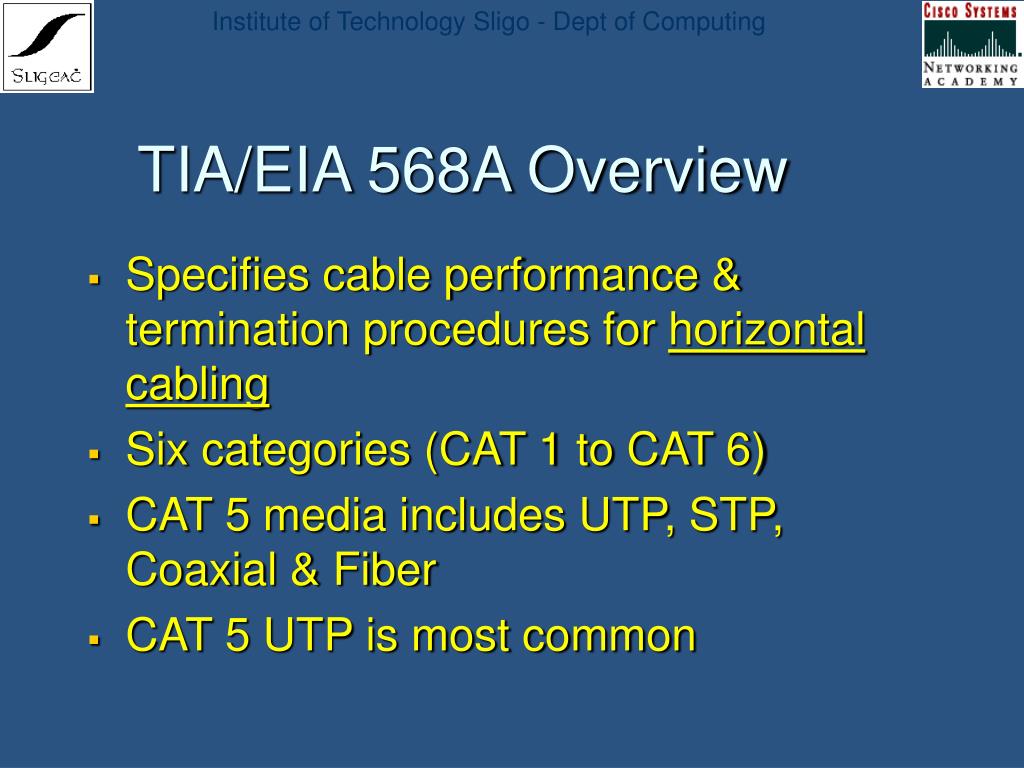

  14. TIA/EIA 568A Overview • Specifies cable performance & termination procedures for horizontal cabling • Six categories (CAT 1 to CAT 6) • CAT 5 media includes UTP, STP, Coaxial & Fiber • CAT 5 UTP is most common

  15. Horizontal v. Vertical Cabling • Horizontal Cabling includes all cabling that runs from work areas to the wiring closet. • Example:All Cat 5 UTP cabling in this classroom is horizontal cabling • Vertical Cabling is another name for backbone cabling. • Example:The fiber optic cabling at Carroll High School is vertical cabling

  16. Work Station (Patch Cable) Cross-Connect Jumpers (Patch Cable) Horizontal Cable Run Horizontal Cabling (TIA/EIA 568A) + + 90m 3m 6m 99m = ...or approx. 100 meters for CAT 5 UTP

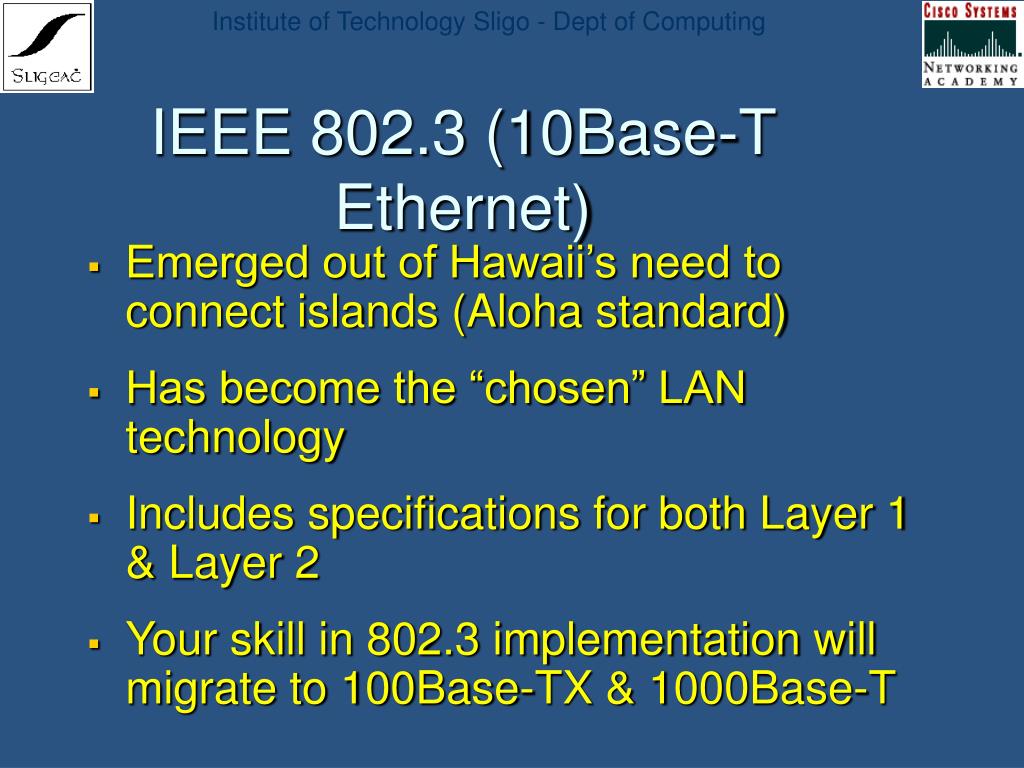

  17. IEEE 802.3 (10Base-T Ethernet) • Emerged out of Hawaii’s need to connect islands (Aloha standard) • Has become the “chosen” LAN technology • Includes specifications for both Layer 1 & Layer 2 • Your skill in 802.3 implementation will migrate to 100Base-TX & 1000Base-T

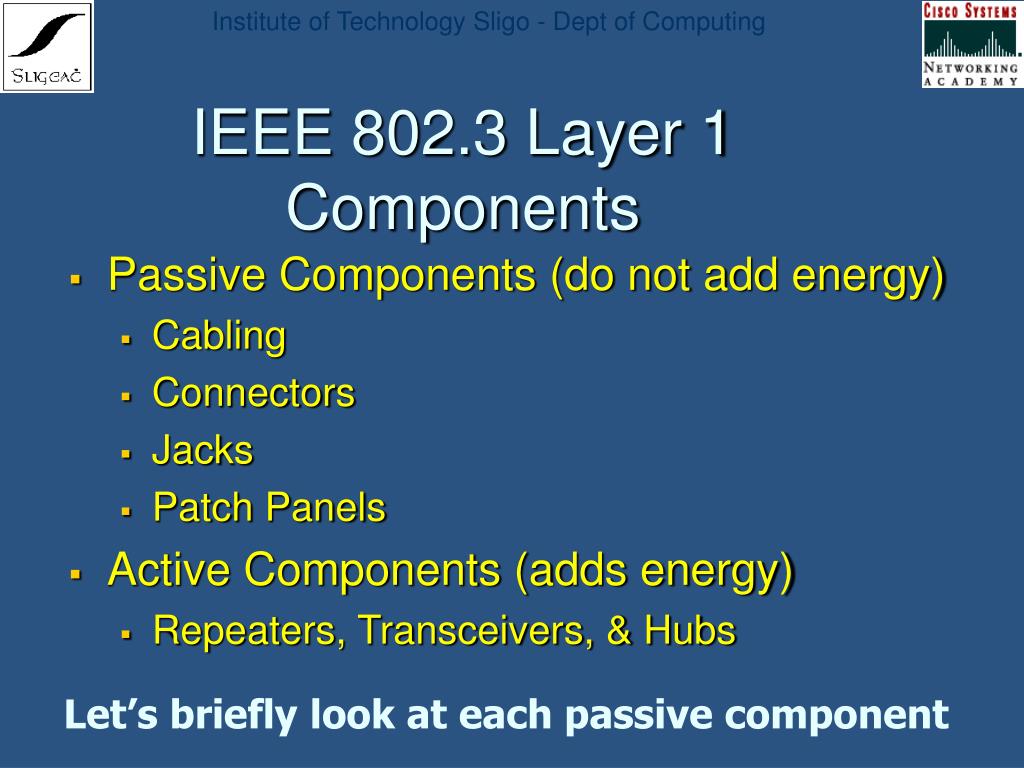

  18. IEEE 802.3 Layer 1 Components • Passive Components (do not add energy) • Cabling • Connectors • Jacks • Patch Panels • Active Components (adds energy) • Repeaters, Transceivers, & Hubs Let’s briefly look at each passive component

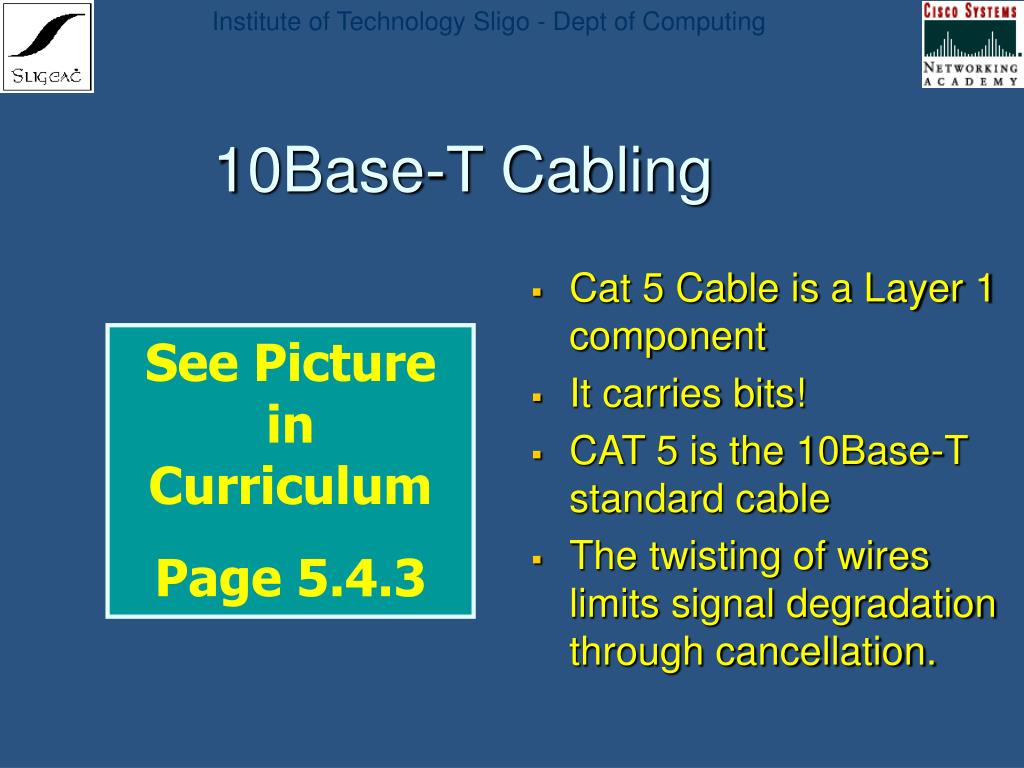

  19. 10Base-T Cabling • Cat 5 Cable is a Layer 1 component • It carries bits! • CAT 5 is the 10Base-T standard cable • The twisting of wires limits signal degradation through cancellation. See Picture in Curriculum Page 5.4.3

  20. 10Base-T Connectors • Standard 10Base-T Termination is the Registered Jack-45 • Similar to phone plug except the RJ-45 has 8 pins instead of 4 pins • Reduces noise, reflection, & mechanical stability problems See Picture in Curriculum Page 5.4.2

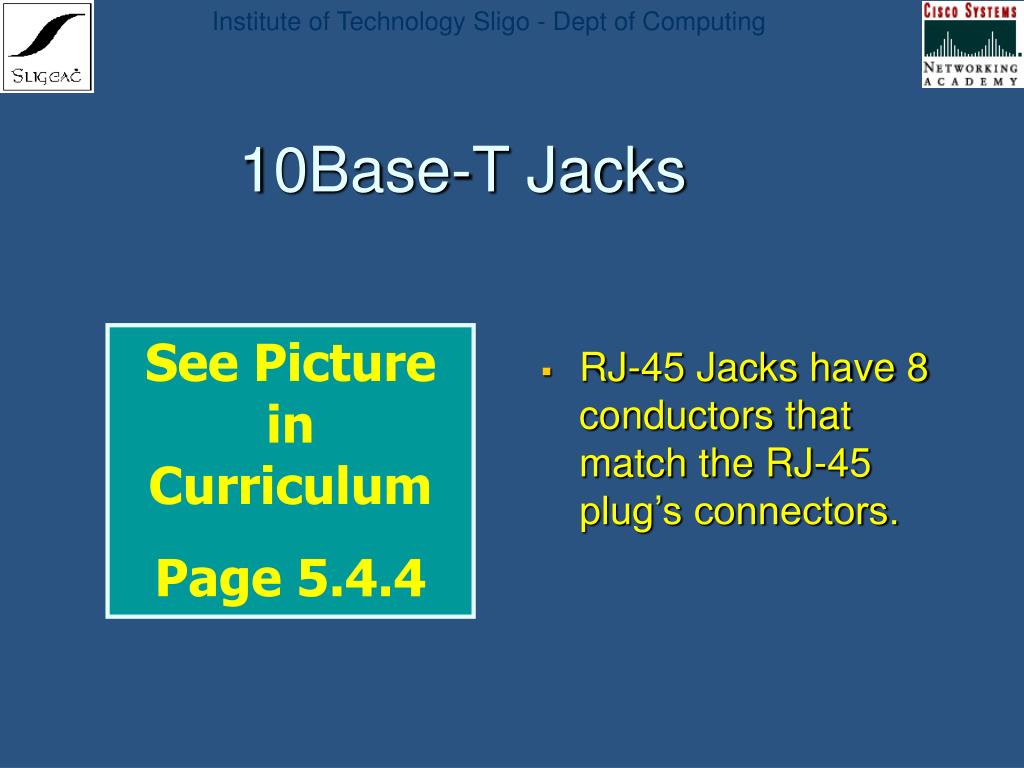

  21. 10Base-T Jacks • RJ-45 Jacks have 8 conductors that match the RJ-45 plug’s connectors. See Picture in Curriculum Page 5.4.4

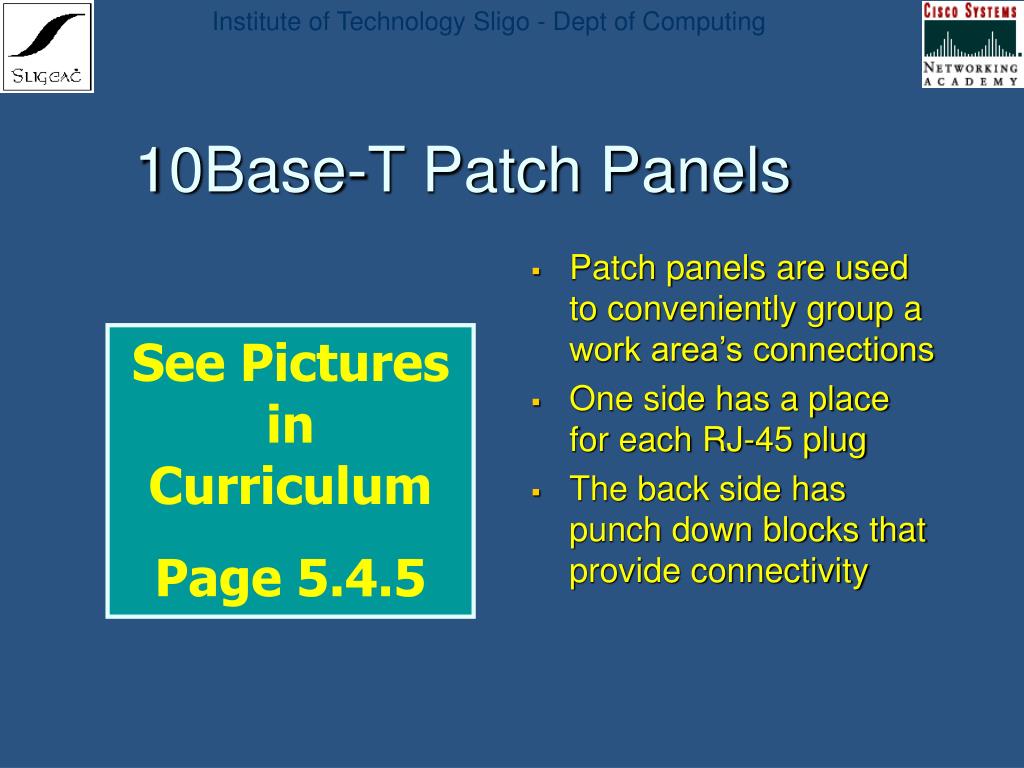

  22. 10Base-T Patch Panels • Patch panels are used to conveniently group a work area’s connections • One side has a place for each RJ-45 plug • The back side has punch down blocks that provide connectivity See Pictures in Curriculum Page 5.4.5

  23. Collisions

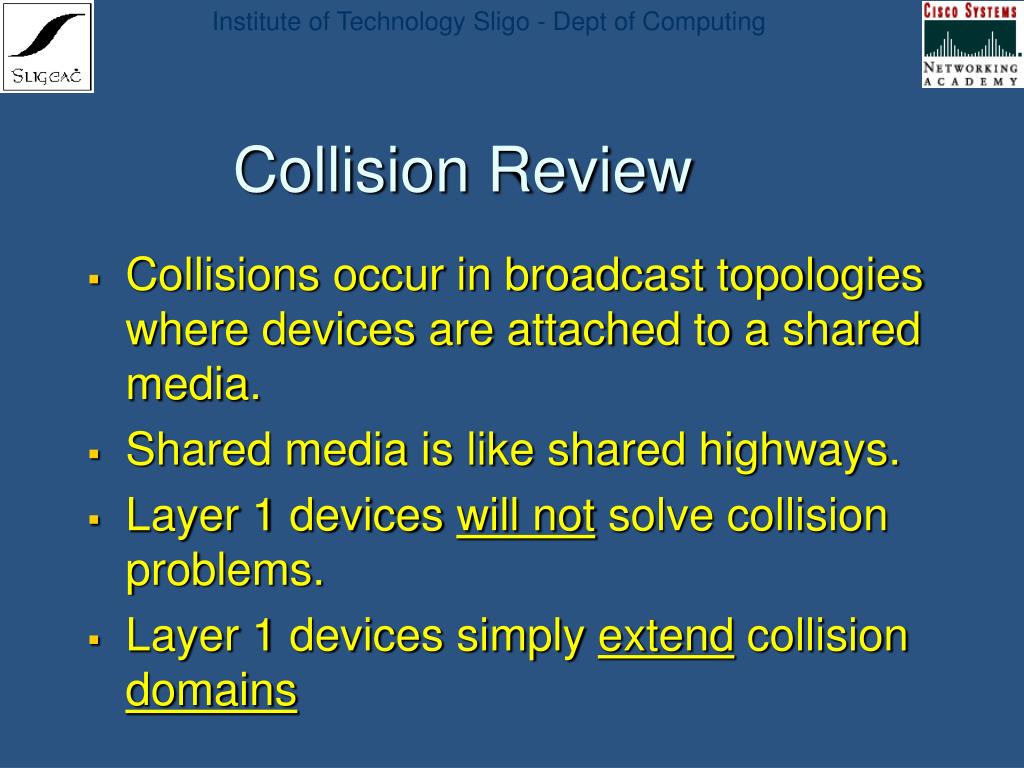

  24. Collision Review • Collisions occur in broadcast topologies where devices are attached to a shared media. • Shared media is like shared highways. • Layer 1 devices will not solve collision problems. • Layer 1 devices simply extend collision domains

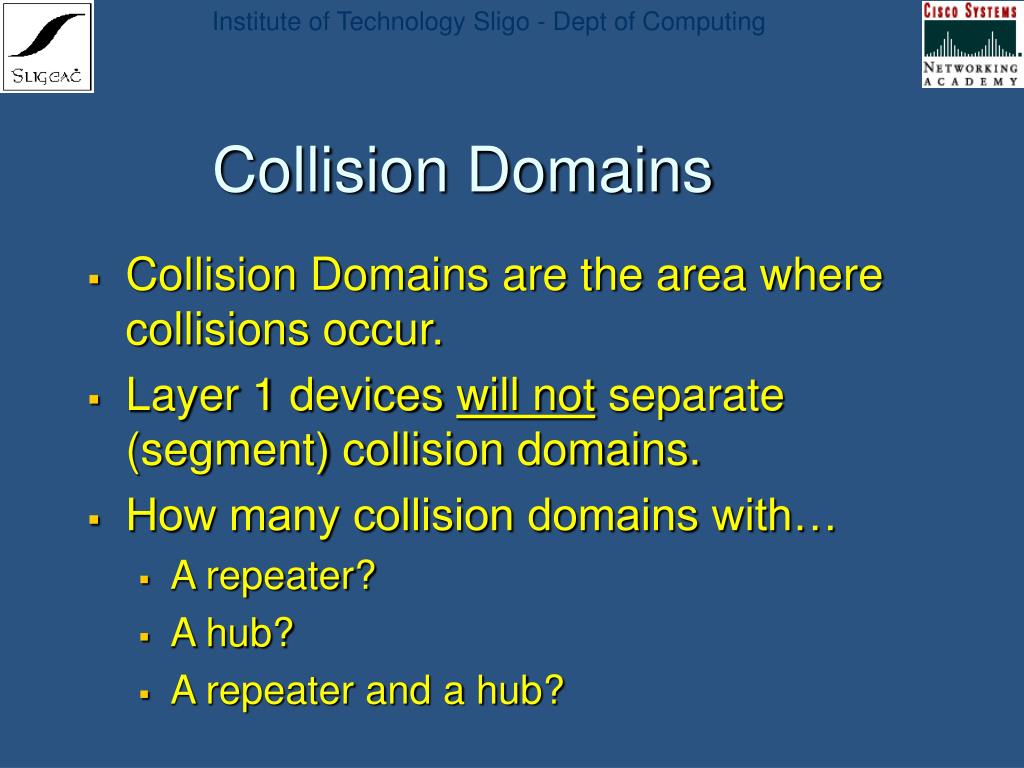

  25. Collision Domains • Collision Domains are the area where collisions occur. • Layer 1 devices will not separate (segment) collision domains. • How many collision domains with… • A repeater? • A hub? • A repeater and a hub?

  26. Collision Domain Segmentation • Segmentation is the process of dividing a collision domain into two or more collision domains. • Layer 1 devices will not segment a collision domain. Why? • The only way to segment a collision domain is to use a device that can filter network traffic. • What devices are capable of filtering?

  27. Topology Overview

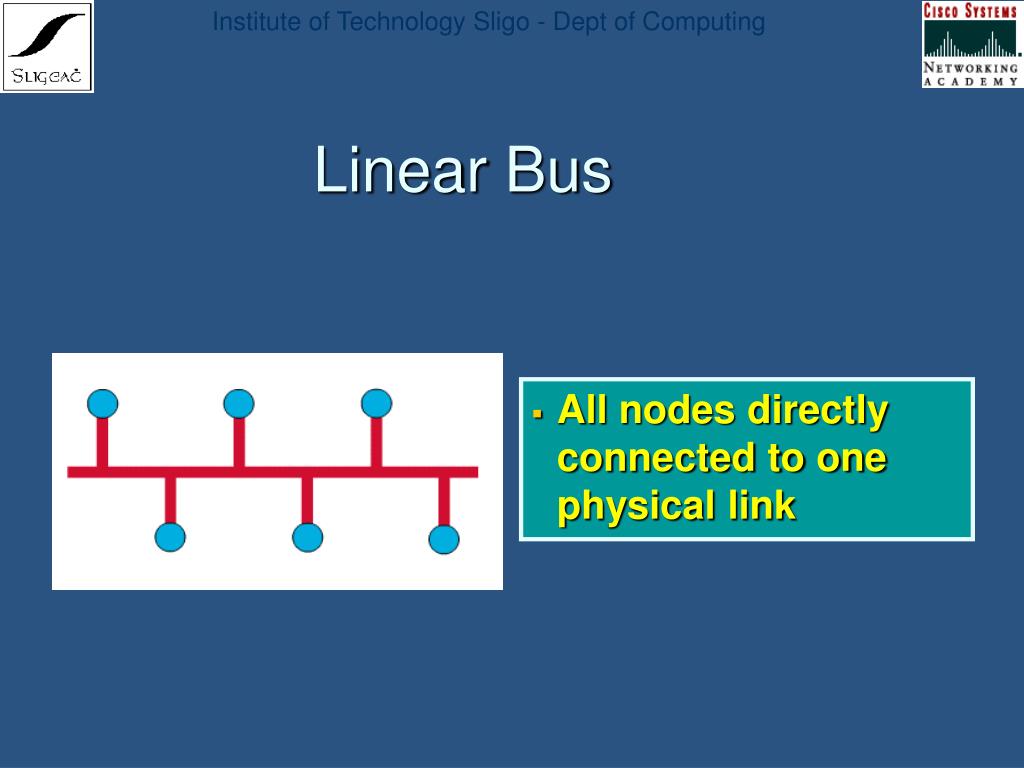

  28. Linear Bus • All nodes directly connected to one physical link

  29. Ring • Each node connected only to adjacent nodes.

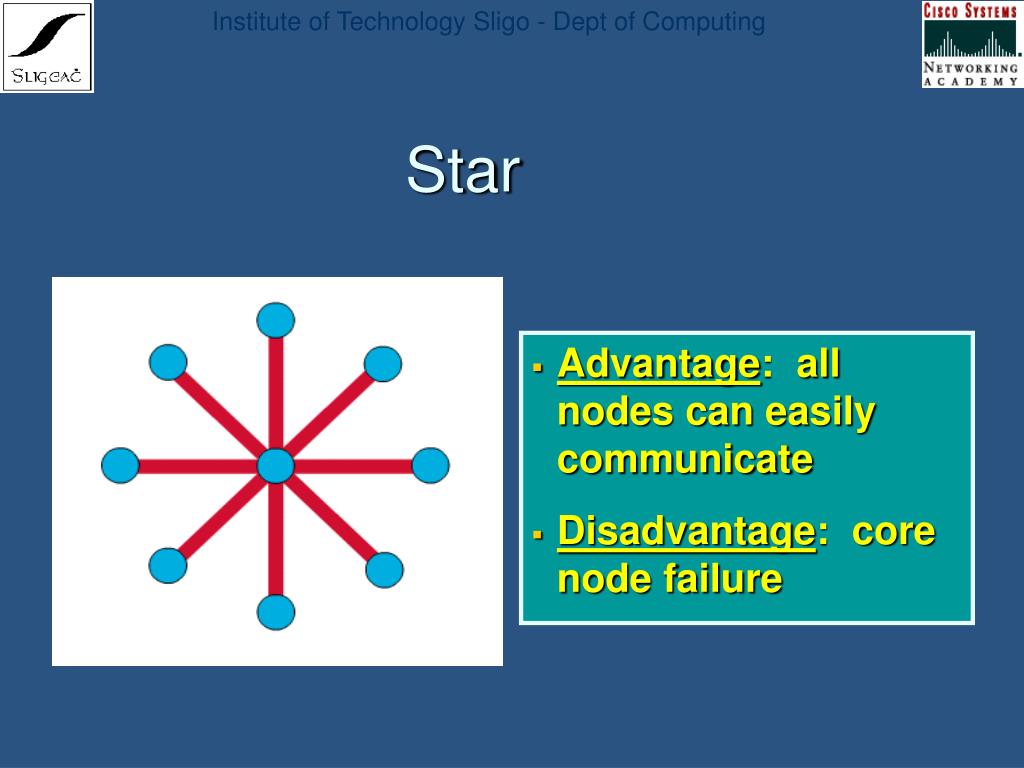

  30. Star • Advantage: all nodes can easily communicate • Disadvantage: core node failure

  31. Extended Star • Each end node of the core acts as its own star topology

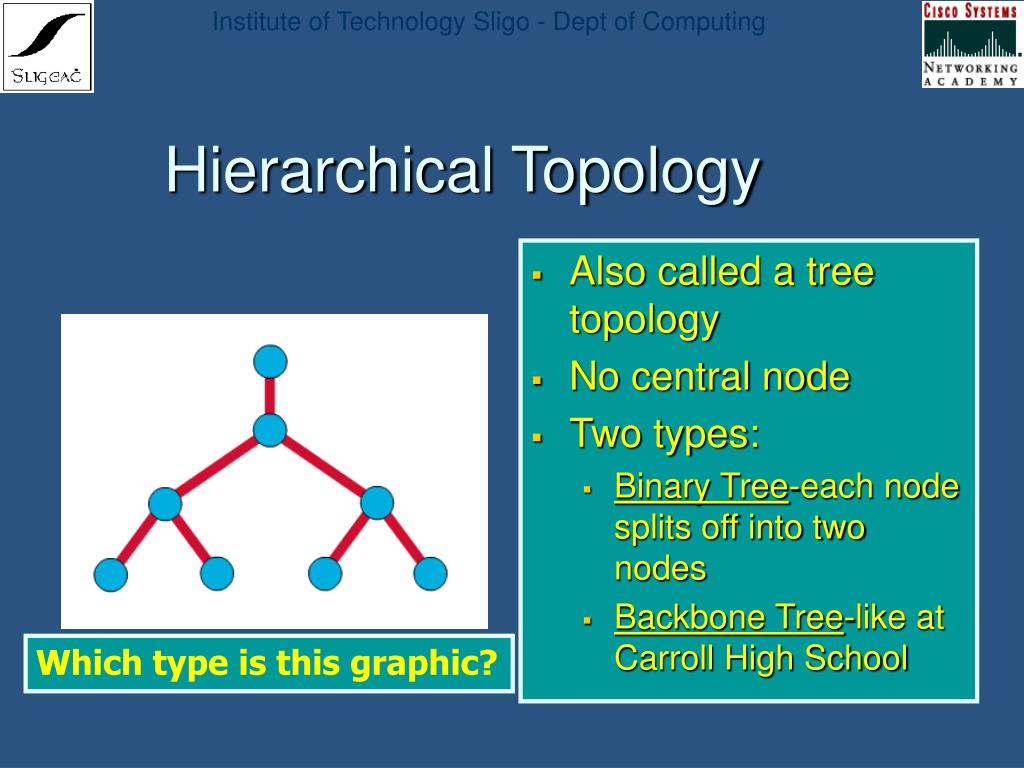

  32. Hierarchical Topology • Also called a tree topology • No central node • Two types: • Binary Tree-each node splits off into two nodes • Backbone Tree-like at Carroll High School Which type is this graphic?

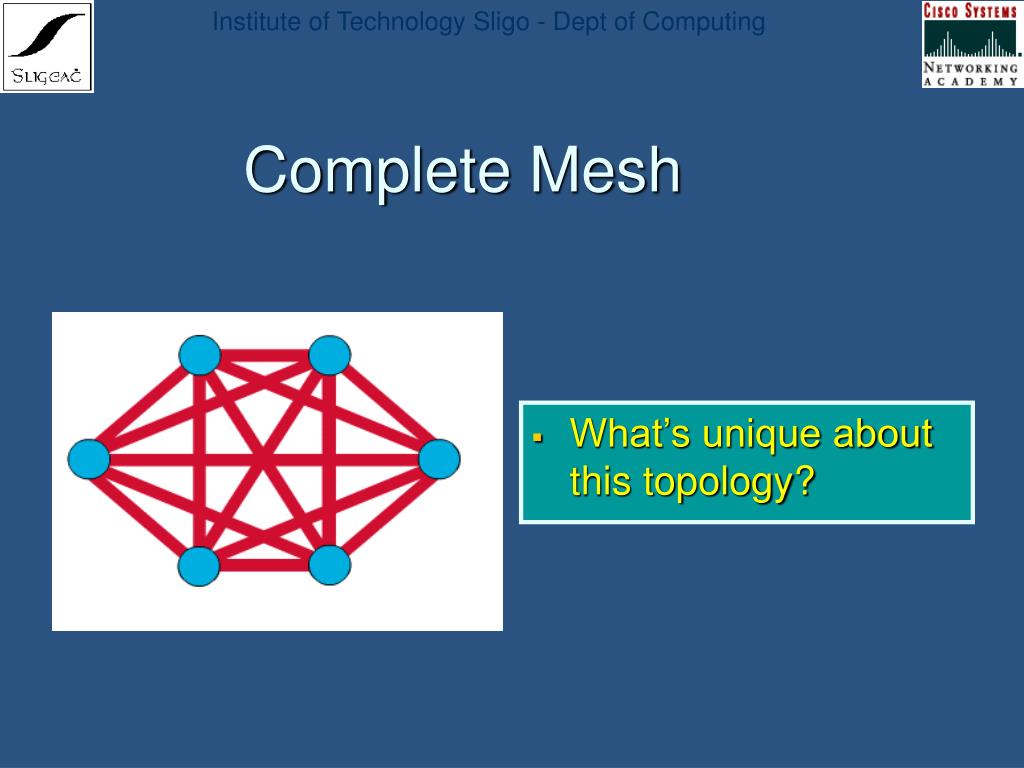

  33. Complete Mesh • What’s unique about this topology?
