  1. The ABC of RSI Jason Boschin Critical Care Paramedic

  2. Advanced Airway • Anatomic Considerations • Rapid Sequence induction • Neuromuscular Blockade • Induction Agents • Intubation tricks & thoughts

  3. Indications for Definitive Airway

  4. ANATOMIC CONSIDERATIONS FOR INTUBATION • Mouth: • Tongue : • variable in size (angioedema) • attached inferior to epiglottis • Mandible • Uvula • Pharynx • Tonsils • Merges with larynx anterior, esophagus posterior • Epiglottis high long flaccid and narrow in child

  5. ANATOMIC CONSIDERATIONS FOR INTUBATION (cont.) • The Larynx • High relative to mandible in child • Cricoid smaller in child, narrow part of airway • vocal cord narrow part of adult airway • arytenoid cartilages

  6. Netter; Atlas of Human Anatomy

  7. ANATOMIC CONSIDERATIONS FOR INTUBATION (cont.) • Trachea • 12-15 cm. Adult • 4 cm. Newborn • right mainstem larger,shorter and less angle Anderson; Grant’s Atlas of Anatomy

  8. OTHER CONSIDERATIONS FOR INTUBATION (cont.) • Tube Sizes (Kids) • Fit through nose • Age(years)/4 + 4 • Oral tube length • Age(years)/2 + 12 cm. • Nasal add 3 cm. • No cuff under 6 to 8 years

  9. OTHER CONSIDERATIONS FOR INTUBATION (cont.) • Difficult tubes • Immobilized trauma patient • Combative patient • Children, esp. Infants • Short neck • Prominent upper incisors • Receding mandible • Limited jaw opening, limited cervical mobility • Upper airway conditions • Facial, laryngeal trauma

  10. Correct Placement for intubation (b)

  11. Patient in correct position for intubation (sniffing position)

  12. Incorrect airway position (hyperflexed)

  13. Rapid Sequence Induction • Indications • Ventilatory failure (eg’s) • Airway maintenance/protection • Treatment and evaluation • neuro resuscitation(hyperventilate) • shock • drug overdose

  14. Rapid Sequence Induction • Contraindications • Cardiac arrest • Adequate ventilation • Deeply comatose patient, absent tone • Airway Anatomy use LEMON

  15. Whitten; Anyone Can Intubate Rapid Sequence Induction • Contraindications (cont.) • Intubation likely unsuccessful • Partially obstructed airway • Severe facial abnormality(trauma, etc.)

  16. McIntyre; The difficult tracheal intubation

  17. Rapid Sequence Induction • Maintain adequate oxygenation • Airway protection • Prevent regurgitation, aspiration • Obtund adverse cardiovascular and ICP response to intubation • Better early than late • Hypoxemia and acidosis effects

  18. Rapid Sequence Induction • Treatment Algorithm (6 P’s) • Preparation T-10” • Pre-oxygenation( functional reserve capacity) T-5” • Pre-medication T-3” • Paralysis T-0 • Placement of Tube T+45 • Post Management T+2”

  19. DO NO HARM!TAKE AWAY NOTHING FROM THE PATIENT YOU CANNOT REPLACE

  20. Rapid Sequence Induction • Anticipate the difficulties • Identify in advancethe patient who may require RSI • Identify the patient with anatomic difficulty • Have sufficient skill and training : • TRAINING NOT DONE ON SCENE..NO EGO’S!!! • Have apreformulatedplan for potential disaster

  21. Airway Evaluation Problem Airway epiglottis Vocal cords

  22. Rapid Sequence Induction • Be prepared: • Competence with all equipment • Working equipment • Be prepared for surgical management • Master the art of bagging • Have at least one, if not two, working IV lines • STAY ONE STEP AHEAD!!

  23. Rapid Sequence Induction • Equipment: • Suction, Oxygen • Laryngoscope, ET Tubes, Stylet • BVMR • Pharmacologic agents, mixed and ready • Monitoring equipment • Continuous cardiac monitoring • Pulse oximeter (continuous) • NIBP (ideal) • CO2 device (ET confirmation device)

  24. Rapid Sequence Induction • Pre-oxygenation: • Functional residual capacity • Oxygen 6-10 l/min via snug mask • Three minutes ideal, if spontaneous breathing assist only. • BEWARE BVM while spontaneously breathing..Gastric insufflation is real!! • Avoid BVMR if Spo2 >90% if breathing….

  25. ...

  26. Rapid Sequence Induction • Pre-medication: • Atropine • All children under 12 years • Adults with heart rate 100 or less *** • Second dose of Succinylcholine • Dosage: 0.5 to 1.0 mg adult • Dosage 0.01 to 0.02 mg child (1 mg max) • Give ideally 2-3 minutes prior to intubation

  27. Rapid Sequence Induction Paralytics Have No Sedative or Analgesic Qualities!!! • Sedation Agents • Goal is to blunt the pt’s physiologic responses to intubation ie: minimizes bradycardia, hypoxemia, gag/cough & increases in ICP/IOP/IGP • Selection of agent(s) • perfusion state • presence of head injury • clinical diagnosis

  28. Rapid Sequence Induction • Selection of Sedative (cont.) • Benzodiazepines • Amnestic and at high dose, anesthetic • Little cardiovascular depression if titrated • Midazolam • Rapid onset • Potent amnestic • Moderate decrease in ICP • 1-5 mg IV (adult) as per CPG • 0.1 mg/Kg titrated in kids

  29. Rapid Sequence Induction • Selection of Sedative (cont.) • Narcotics • Potent analgesics/sedatives • Rapid onset w/ brief duration • Effect can be reversed! Fentanyl • Rapid acting (<1min), duration of 30min • No histamine release • May decrease tachycardia and hypertension associated with intubation

  30. Dailey; The airway: emergency management Induction Agents • ACh binds to post synaptic receptors causing depolarization … Contraction of muscle • ACh removed by acetylcholinesterase and by diffusion …. Relaxation of muscle Neuromuscular Junction

  31. Induction Agents • Mechanism of action: • Nondepolarizers • Competitive • Block ACh receptors … paralysis • Depolarizers • Noncompetitive • Persistent stimulation …fasciculations • Unresponsiveness to ACh….Paralysis

  32. Dailey; The airway: emergency management

  33. Induction Agents • Depolarizing • Succinylcholine • Vagal effects • Excessive bronchial secretions (blunted by Atropine?) • Negative inotropic and chronotropic, esp. with repeated dose and in children (Bradycardia..Atropine) • Fasciculations (amelioration) • Malignant hyperthermia? • Complete paralysis w/in 30-45 sec. Lasting 4-6 min • 1.5-2 mg/kg IV

  34. Induction Agents • Succinylcholine (cont.) • Metabolized via Cholinesterase • 0.3% defective enzyme • Contraindications • Absolute - none • Hyperkalemia • Renal failure • Crush injury • Burns • Myotonia • Paraplegia

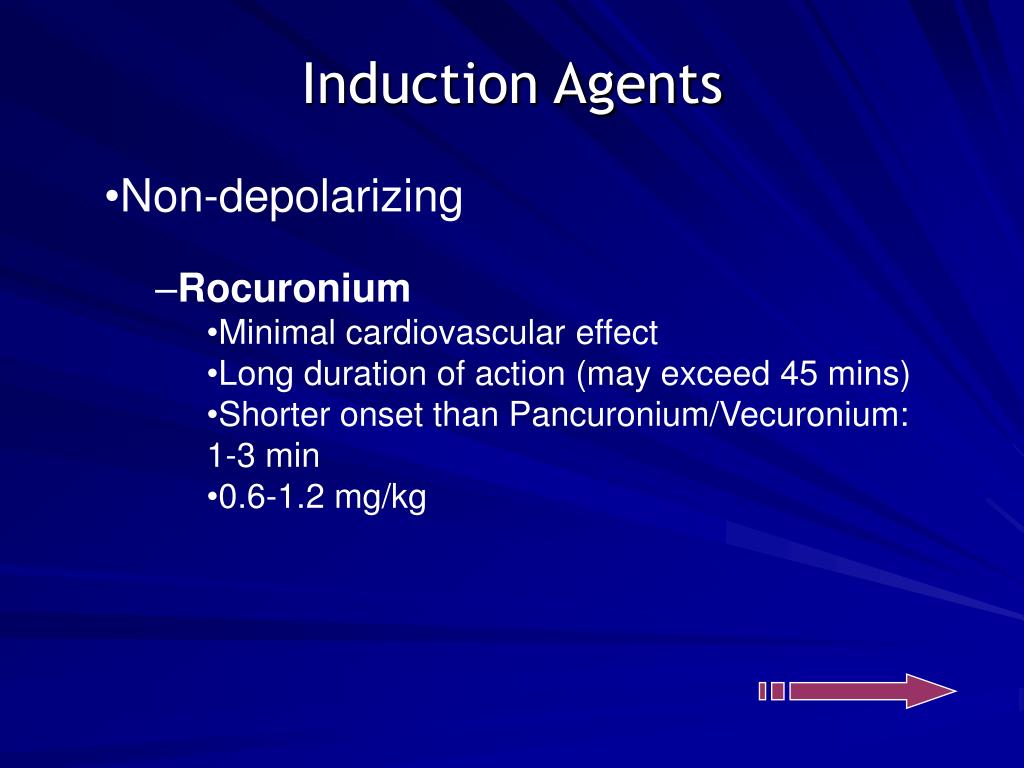

  35. Induction Agents • Non-depolarizing • Rocuronium • Minimal cardiovascular effect • Long duration of action (may exceed 45 mins) • Shorter onset than Pancuronium/Vecuronium: 1-3 min • 0.6-1.2 mg/kg

  36. Airway Management

  37. Airway Management

  38. Airway Management

  39. Intubation Tricks • Digital Tactile Intubation • Retrograde • Airtraq • Fiberscope • BURP

  40. SURGICAL AIRWAYS • Cricothyrotomy • Indications (Identified need for intubation) • Maxillofacial trauma • Oropharyngeal obstruction • Edema • FBAO • Mass Lesion • Cancer • Unsuccessful oral/nasal tracheal • Difficult anatomy • Massive hemorrhage/regurgitation

  41. SURGICAL AIRWAYS • Cricothyrotomy (cont..) • Contraindications: • Age <10-12 • Laryngeal crush injury • Laryngeal tumor/stricture • Tracheal transsection • subglottic stenosis • Expanding hematoma • Coagulopathy • Unfamiliar w/ procedure

  42. SURGICAL AIRWAYS • Anatomy: • Thyroid cartilage • Cricoid ring • Cricoid cartilage • Thyroid gland • Trachea • Major vessels

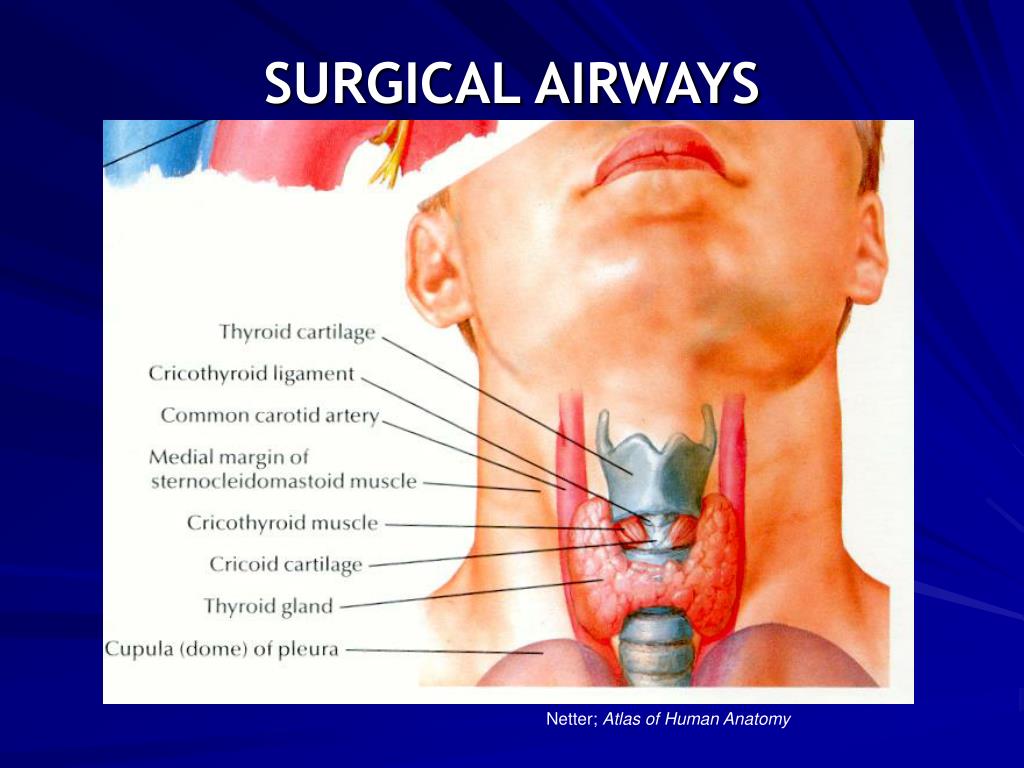

  43. Netter; Atlas of Human Anatomy SURGICAL AIRWAYS

  44. SURGICAL AIRWAYS • Procedure: • Identify thyroid cartilage • Cricothyroid membrane • Vertical incision through skin • Prep prior • Incise membrane • Open incision • Dilator/tracheal hook • Insert ETT/Trach tube • Ventilate patient

  45. SURGICAL AIRWAYS • Complications: • Incorrect placement • Long execution time • Hemorrhage • Passage sub Q • Plugging • Pneumomediastinum • Aspiration • etc.

  46. Anderson; Grant’s Atlas of Anatomy SURGICAL AIRWAYS

  47. SURGICAL AIRWAYS • Retrograde Tracheal Intubation (RTI): • Indications • Abnormal anatomy • Pt. W/ epiglottitis • Severe kyphosis • Cervical spondylosis • Trauma • Reasonable alternative to Surg and Needle Crike

  48. SURGICAL AIRWAYS • RTI (cont...): • Contraindications • Trismus (w/o paralytic) • Coagulopathy • Enlarged thyroid • Procedure: • Supplemental O2 • Catheter over needle into CTM • Insert guidewire through catheter • Visualize guidewire and pass tube

  49. Dailey; The airway: emergency management

  50. QUESTIONS ?? Defasiculating Doses (priming with 10% NDNMB) Ketamine Braeslow system for Kids
