Lecture 12 parallel processing architectures

Lecture 12Parallel Processing Architectures

Parallel Processing Architectures


Lecture 12 parallel processing architectures1

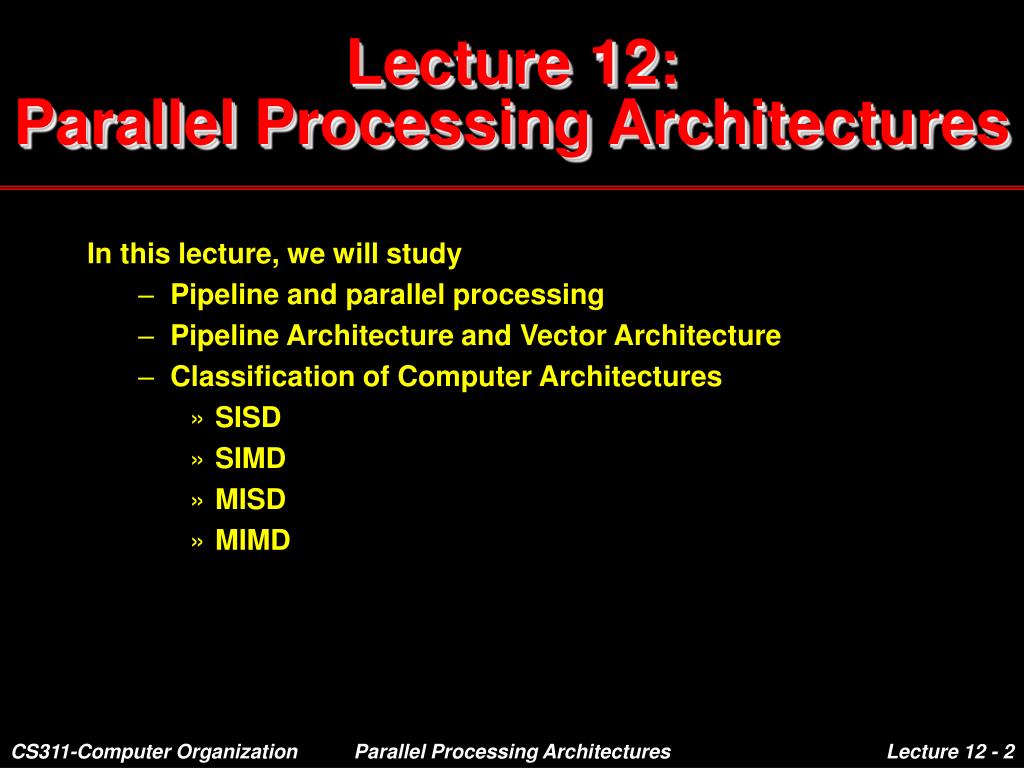

Lecture 12: Parallel Processing Architectures

In this lecture, we will study

  • Pipeline and parallel processing

  • Pipeline Architecture and Vector Architecture

  • Classification of Computer Architectures

    • SISD

    • SIMD

    • MISD

    • MIMD

Parallel Processing Architectures


Parallel processing

Parallel Processing

  • A job requires n seconds to complete using machine A:

  • There are m(m is a large number) jobs which need to be completed.

  • A will complete the jobs in m x n seconds

  • Machine A can be organized with h stages, A1, A2, … , Ah, with identical processing delay such that

    • When the task j in job i completes in stage Aj,

      • Job i enters the stage j+1 to execute the task j+1, and

      • Job i+1 enters from Aj-1 to Aj to execute the task j

This is a pipeline execution and it will, on the average, complete

a job in every delay of the pipeline stage. Thus, m jobs will be

completed in

(n/h) x (h-1) + (n/h) x m seconds

Parallel Processing Architectures


Parallel processing1

P m/p x n 0

P1

Pn-1

. . .

Parallel Processing

Instruction execution time remain same as ordinary single computer.

Throughput - amount work done in a unit time

Throughput becomes n times the single processor

Parallel Processing Architectures

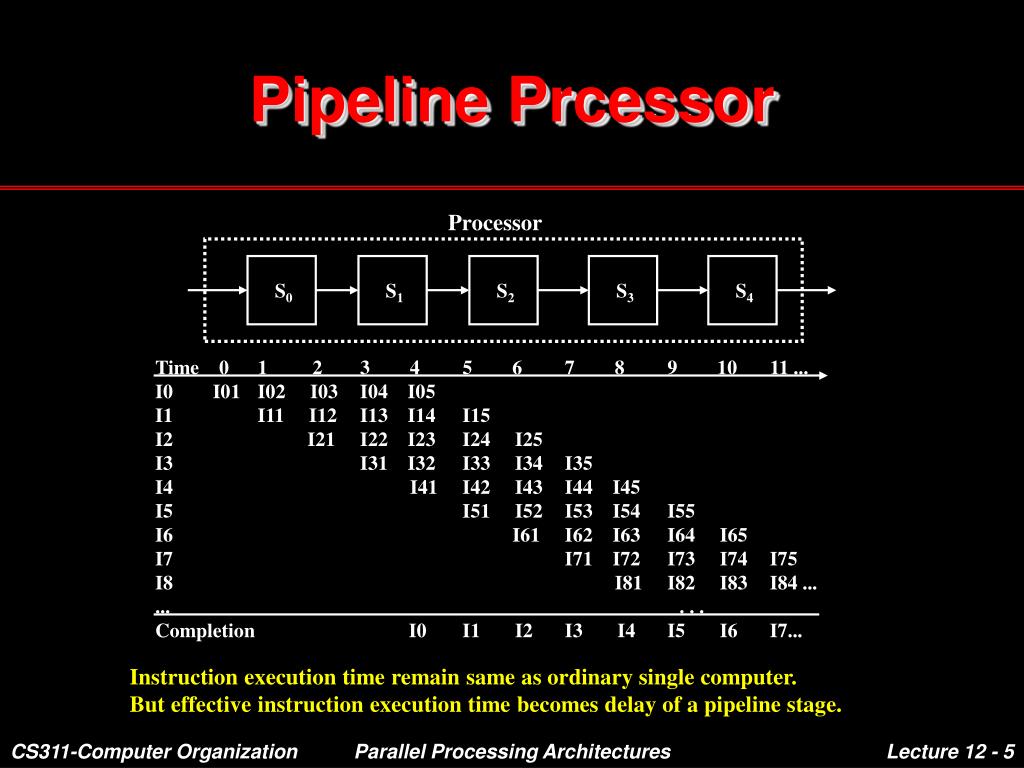

Pipeline prcessor

Processor m/p x n

S0

S1

S2

S3

S4

Time 0 1 2 3 4 5 6 7 8 9 10 11 ...

I0 I01 I02 I03 I04 I05

I1 I11 I12 I13 I14 I15

I2 I21 I22 I23 I24 I25

I3 I31 I32 I33 I34 I35

I4 I41 I42 I43 I44 I45

I5 I51 I52 I53 I54 I55

I6 I61 I62 I63 I64 I65

I7 I71 I72 I73 I74 I75

I8 I81 I82 I83 I84 ...

... . . .

Completion I0 I1 I2 I3 I4 I5 I6 I7...

Pipeline Prcessor

Instruction execution time remain same as ordinary single computer.

But effective instruction execution time becomes delay of a pipeline stage.

Parallel Processing Architectures


Vector processor

Input/Output m/p x n

Data Bus

Control Processor

Processor

Control Memory

PE0 PE1 PEn-1

. . .

Processor

Processor

Processor

Local Memory

Local Memory

Local Memory

Control

Interconnection Network

Vector Processor

Parallel Processing Architectures

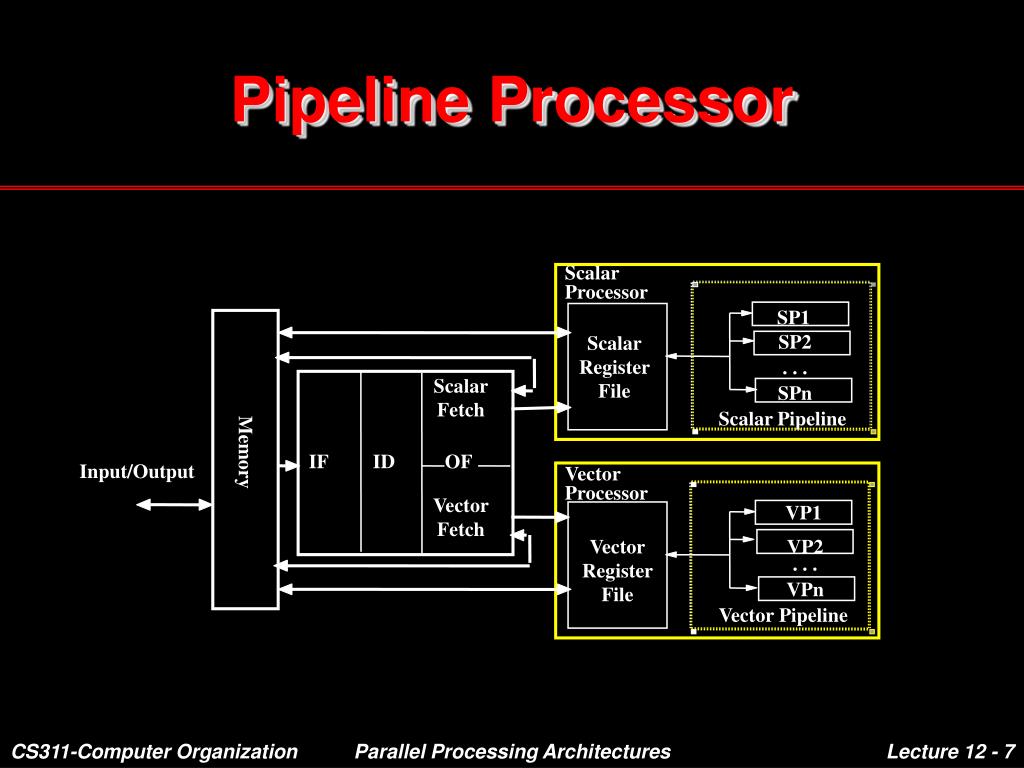

Pipeline processor

Scalar m/p x n

Processor

SP1

SP2

Scalar

Register

File

. . .

Scalar

Fetch

Vector

Fetch

SPn

Scalar Pipeline

Memory

IF ID OF

Input/Output

Vector

Processor

VP1

Vector

Register

File

VP2

. . .

VPn

Vector Pipeline

Pipeline Processor

Parallel Processing Architectures


Classification of computer architecture
Classification m/p x n of Computer Architecture

  • Flynn’s classification

    Instruction Stream

    • Continuous instruction sequence executed by a processor

      Data Stream

    • Continuous data sequence processed by a processor

  • SISD

  • SIMD

  • MISD

  • MIMD

Parallel Processing Architectures


Sisd and simd

IS m/p x n

PU

IS

DS

CU

P

M

Common Memory

DS

PU1

MM1

DS

PU2

MM2

IS

CU

. . .

. . .

DS

PUn

MMm

IS

SISD and SIMD

  • SISD

  • SIMD

Parallel Processing Architectures


Misd and mimd

IS m/p x n 1

IS1

CU1

PU1

IS2

IS2

CU2

PU2

Common Memory

...

...

ISn

ISn

MM1

MMm

MM2

...

CUn

PUn

DS

ISn ...

IS2

IS1

IS1

IS1

DS1

Common M

CU1

PU1

IS1

MM1

IS2

IS2

DS2

IS2

CU2

PU2

MM2

...

...

...

ISn

ISn

DSn

CUn

PUn

ISn

MMn

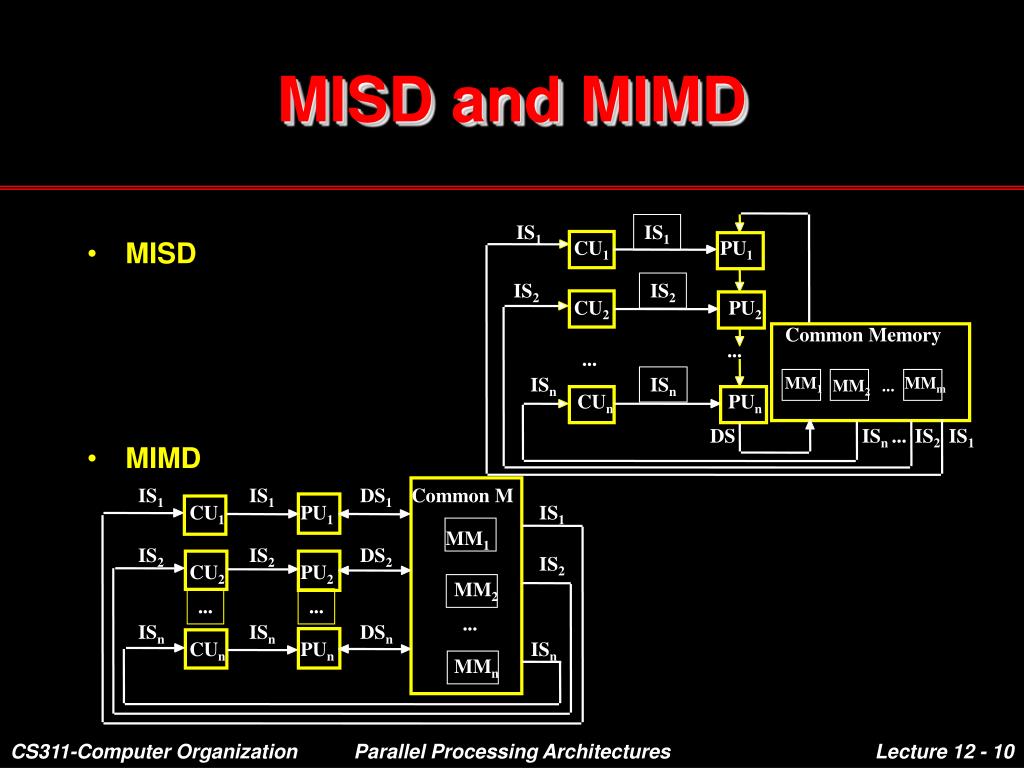

MISD and MIMD

  • MISD

  • MIMD
