Presentation Transcript


Vpn virtual private network l.jpg

VPN: Virtual Private Network

Presented By:

Gregg Dowdy

Liz Farricker

Whitney Mayoras

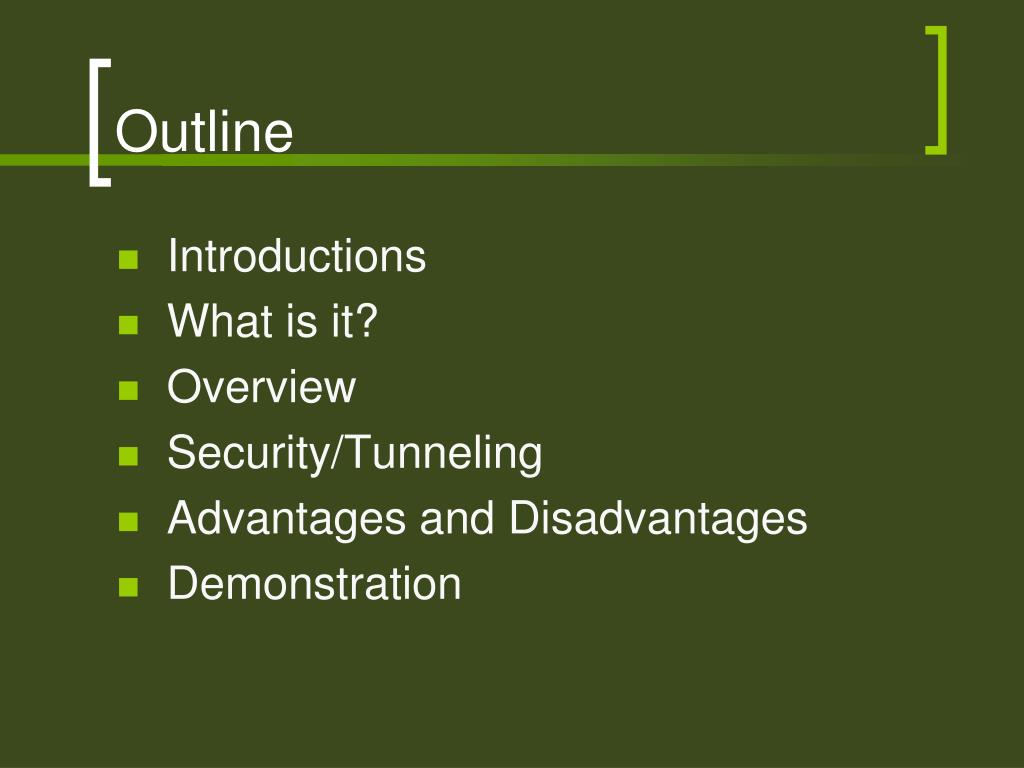

Outline l.jpg

Outline

  • Introductions

  • What is it?

  • Overview

  • Security/Tunneling

  • Advantages and Disadvantages

  • Demonstration


Introductions l.jpg

Introductions

  • Gregg

    • BSG – Student Developer

    • Unified Western Grocers – Retail Technology Specialist

  • Liz

    • BSG – Business Analyst

    • ResNet – Network Technician

    • COB CRC: Tier 2/3 Support Technician

  • Whitney

    • BSG – Student Tester/Analyst


Vpn what is it l.jpg

VPN: What is it?

  • Virtual Private Network

  • Remote network communication through Internet

  • Used by companies/organizations who want to communicate confidentially

  • Two parts:

    • Protected or “inside” network

    • “Outside” network or segment (less trustworthy)


Vpn types l.jpg

VPN: Types

  • Secure VPNs use cryptographic tunneling protocols.

    • IPsec, SSL/TLS, OpenVPN, PPTP, L2TP, L2TPv3, VPN-Q and MPVPN

  • Trusted VPNs rely on the security of a single provider’s network to protect the traffic.

    • MPLS and L2F


Vpn security l.jpg

VPN: Security

  • Encryption

  • IPSec

  • Authentication

    • User/System and Data

    • AAA Servers

      (Authentication, Authorization, and Accounting)

  • Firewalls


Vpn tunneling l.jpg

VPN: Tunneling

  • Requires 3 protocols

    • Carrier

      • Default network protocol

    • Passenger

      • Original data

    • Encapsulation

      • GRE, IPSec, L2F, PPTP, L2TP


Vpn encapsulation l.jpg

VPN: Encapsulation

Figure 1

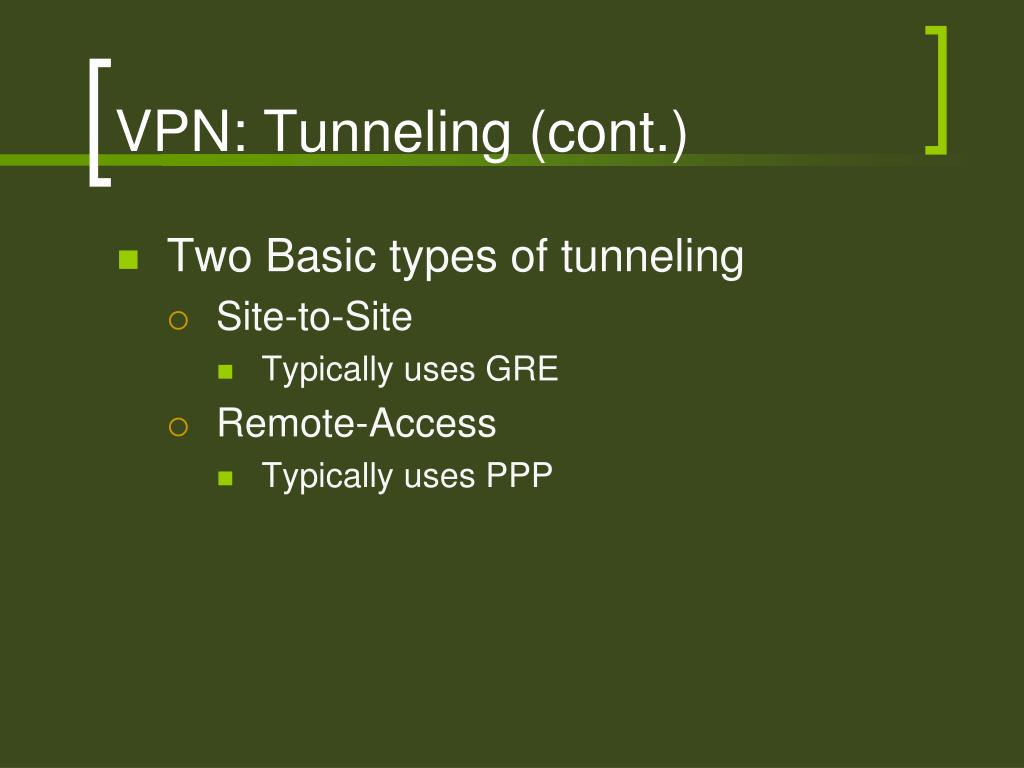

Vpn tunneling cont l.jpg

VPN: Tunneling (cont.)

  • Two Basic types of tunneling

    • Site-to-Site

      • Typically uses GRE

    • Remote-Access

      • Typically uses PPP


Vpn advantages l.jpg

VPN: Advantages

  • Cost Effective

  • Greater scalability

  • Easy to add/remove users

  • Mobility

  • Security

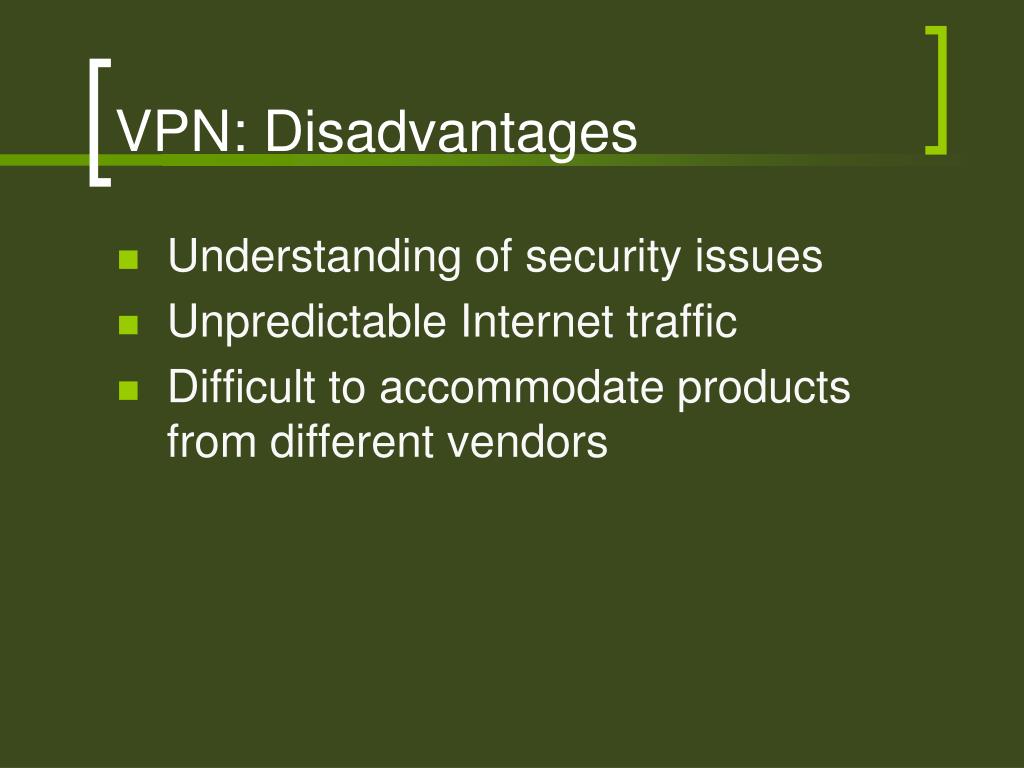

Vpn disadvantages l.jpg

VPN: Disadvantages

  • Understanding of security issues

  • Unpredictable Internet traffic

  • Difficult to accommodate products from different vendors


Vpn demonstration l.jpg

VPN Demonstration

Click on Start – select Network Connections


Vpn demonstration13 l.jpg

VPN Demonstration

In Network Connections on the left hand side there is a link to “Create New Connection” – click on this and a wizard will pop up assisting the user


Vpn demonstration14 l.jpg

VPN Demonstration

Select “Connect to the Network at my Workplace”


Vpn demonstration15 l.jpg

VPN Demonstration

Select “Virtual Private Network Connection”


Vpn demonstration16 l.jpg

VPN Demonstration

Make a name for this connection that you are establishing – to distinguish this connection from other VPN connections that might already be established

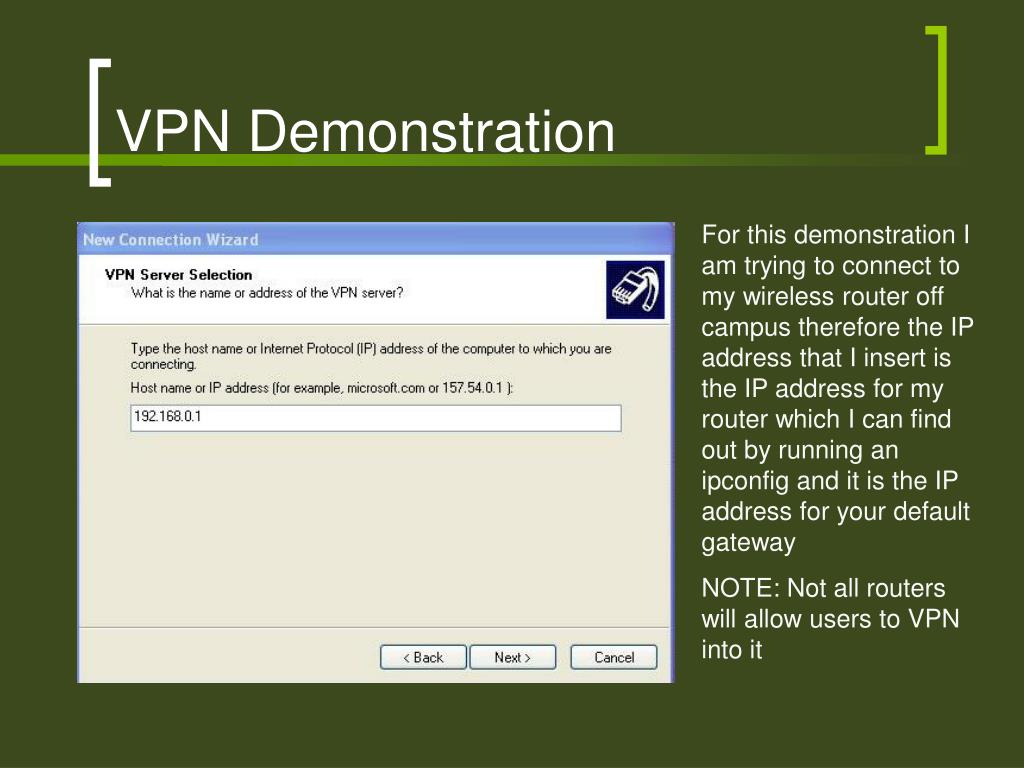

Vpn demonstration17 l.jpg

VPN Demonstration

For this demonstration I am trying to connect to my wireless router off campus therefore the IP address that I insert is the IP address for my router which I can find out by running an ipconfig and it is the IP address for your default gateway

NOTE: Not all routers will allow users to VPN into it


Vpn demonstration18 l.jpg

VPN Demonstration

Personal preference as to whether or not you want other users to be able to use this VPN connection on this computer


Vpn demonstration19 l.jpg

VPN Demonstration


Vpn demonstration20 l.jpg

VPN Demonstration


Vpn demonstration21 l.jpg

VPN Demonstration

This is a profile (username and password) that has already been created on your router – which can be created by typing in the IP address of your router in a web browser


Vpn demonstration22 l.jpg

VPN Demonstration


Vpn demonstration23 l.jpg

VPN Demonstration

In Start – Run insert the IP address of the computer that you want to access that is connected to the router


Vpn demonstration24 l.jpg

VPN Demonstration

Using the same username and password already established for the router you can connect to this specific computer

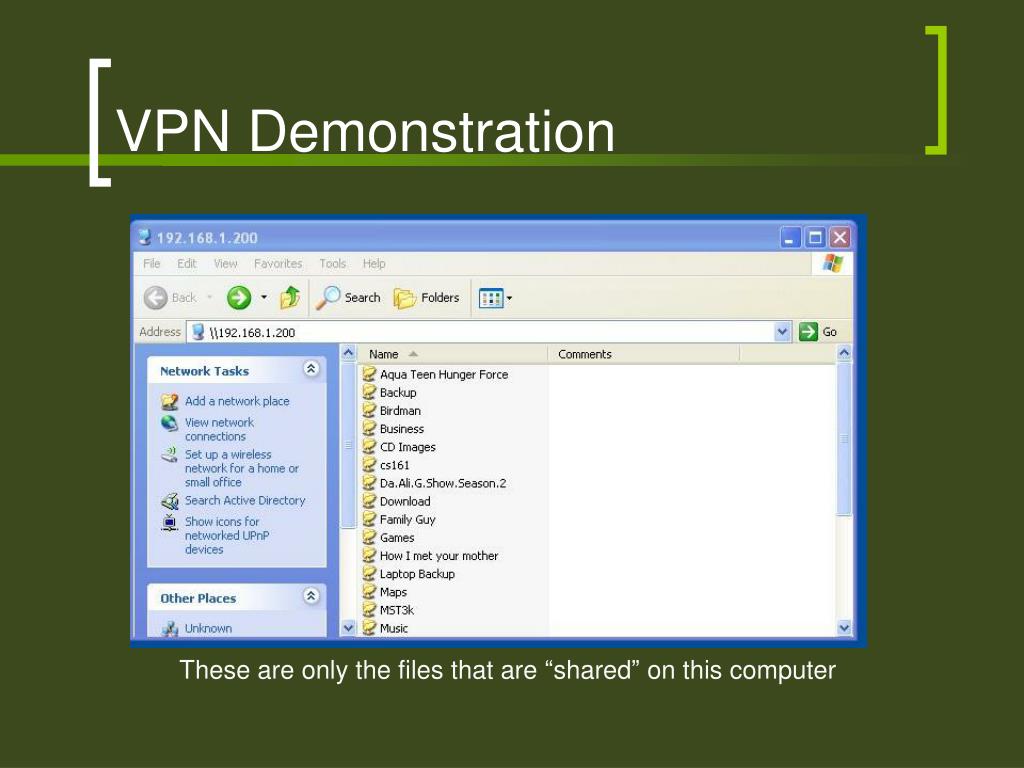

Vpn demonstration25 l.jpg

VPN Demonstration

These are only the files that are “shared” on this computer

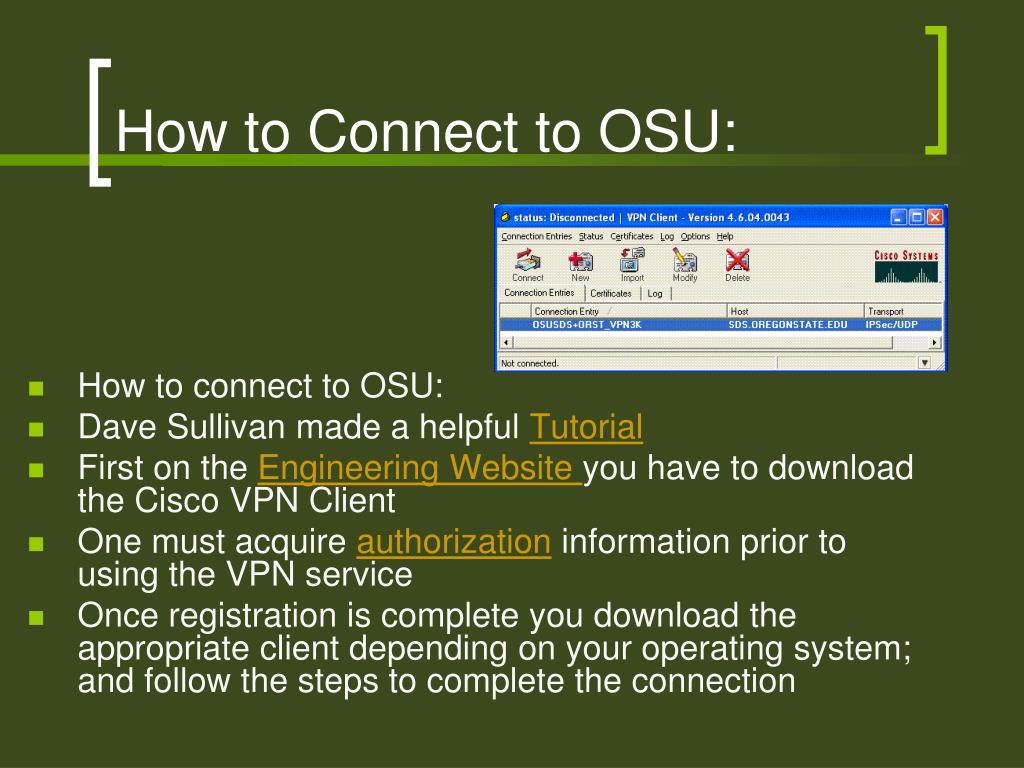

How to connect to osu l.jpg

How to Connect to OSU:

  • How to connect to OSU:

  • Dave Sullivan made a helpful Tutorial

  • First on the Engineering Website you have to download the Cisco VPN Client

  • One must acquire authorization information prior to using the VPN service

  • Once registration is complete you download the appropriate client depending on your operating system; and follow the steps to complete the connection

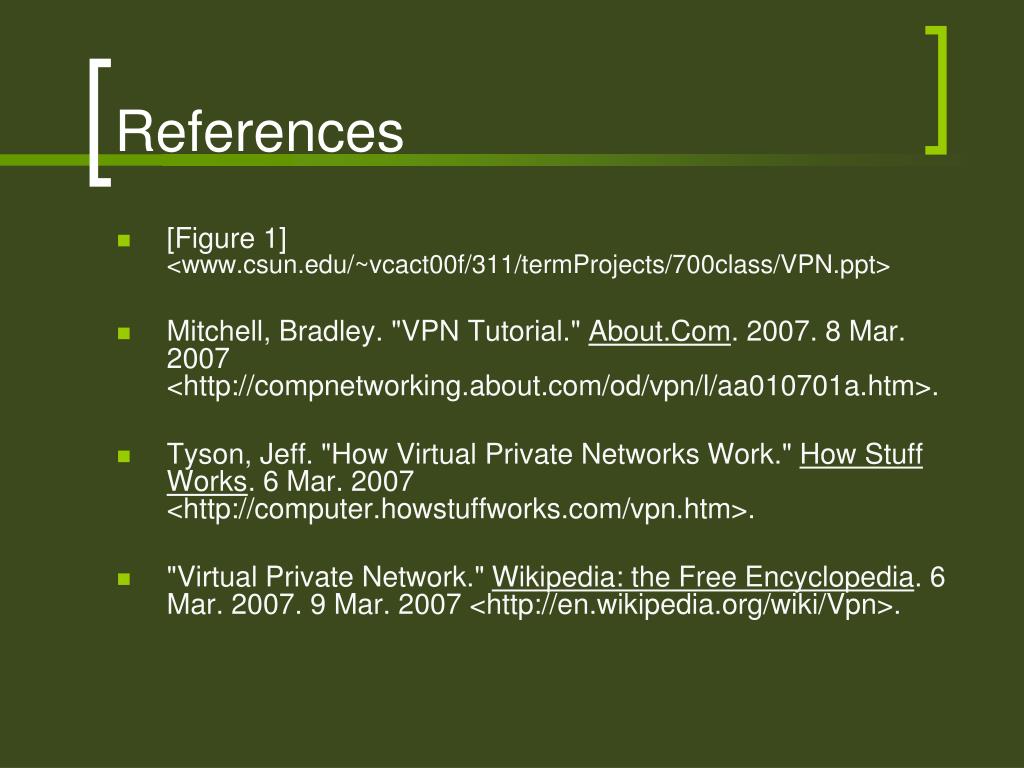

References l.jpg

References

  • [Figure 1] <www.csun.edu/~vcact00f/311/termProjects/700class/VPN.ppt>

  • Mitchell, Bradley. "VPN Tutorial." About.Com. 2007. 8 Mar. 2007 <http://compnetworking.about.com/od/vpn/l/aa010701a.htm>.

  • Tyson, Jeff. "How Virtual Private Networks Work." How Stuff Works. 6 Mar. 2007 <http://computer.howstuffworks.com/vpn.htm>.

  • "Virtual Private Network." Wikipedia: the Free Encyclopedia. 6 Mar. 2007. 9 Mar. 2007 <http://en.wikipedia.org/wiki/Vpn>.
