  1. Acceleration G. Futch/J. Willis CMS

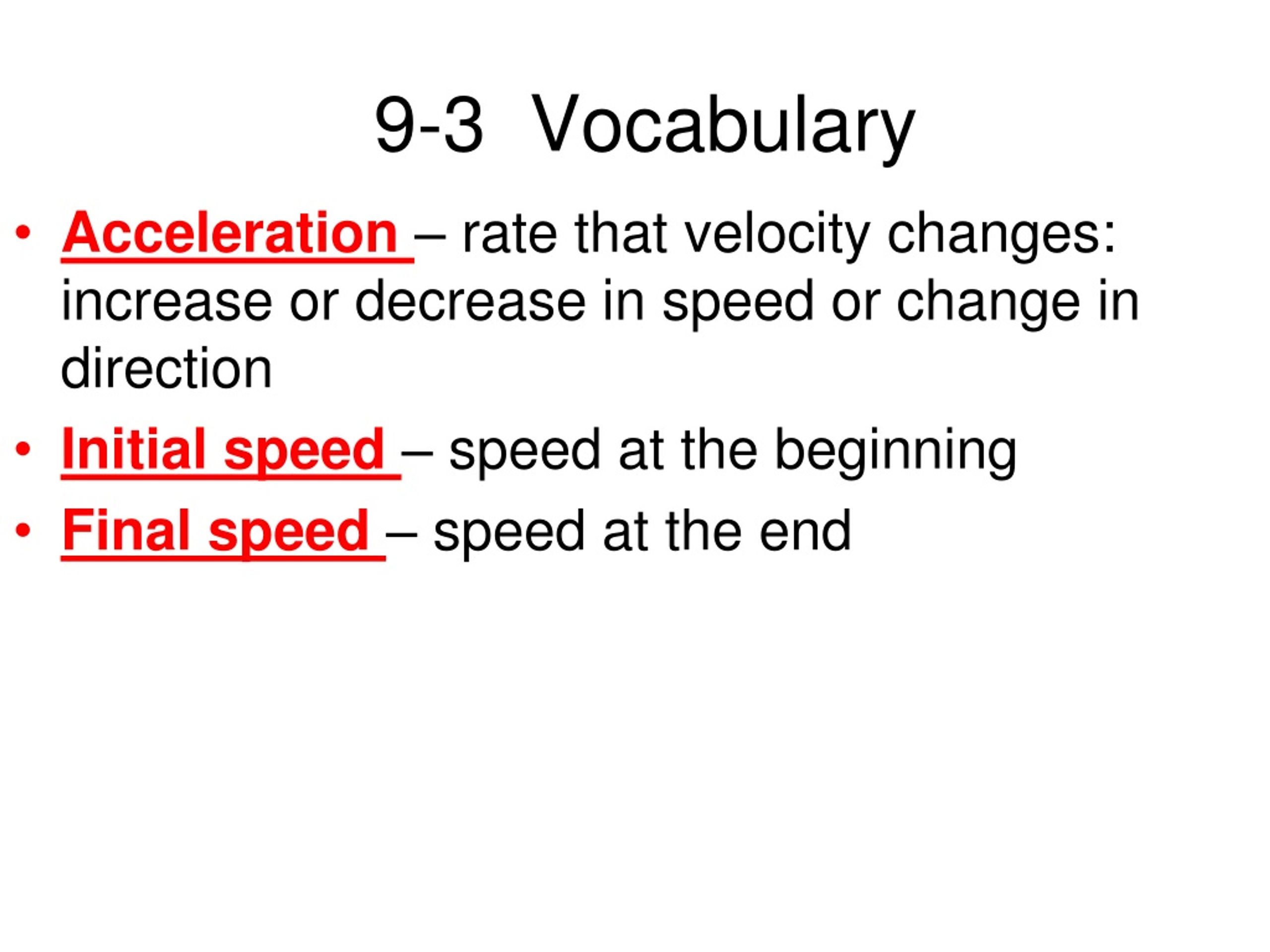

  2. 9-3 Vocabulary Acceleration – rate that velocity changes: increase or decrease in speed or change in direction Initial speed – speed at the beginning Final speed – speed at the end

  3. Acceleration • Acceleration can happen three ways. 1) Increase in speed (Positive Acceleration) 2) Decrease in speed (Negative Acceleration or Deceleration) 3) Change in Direction

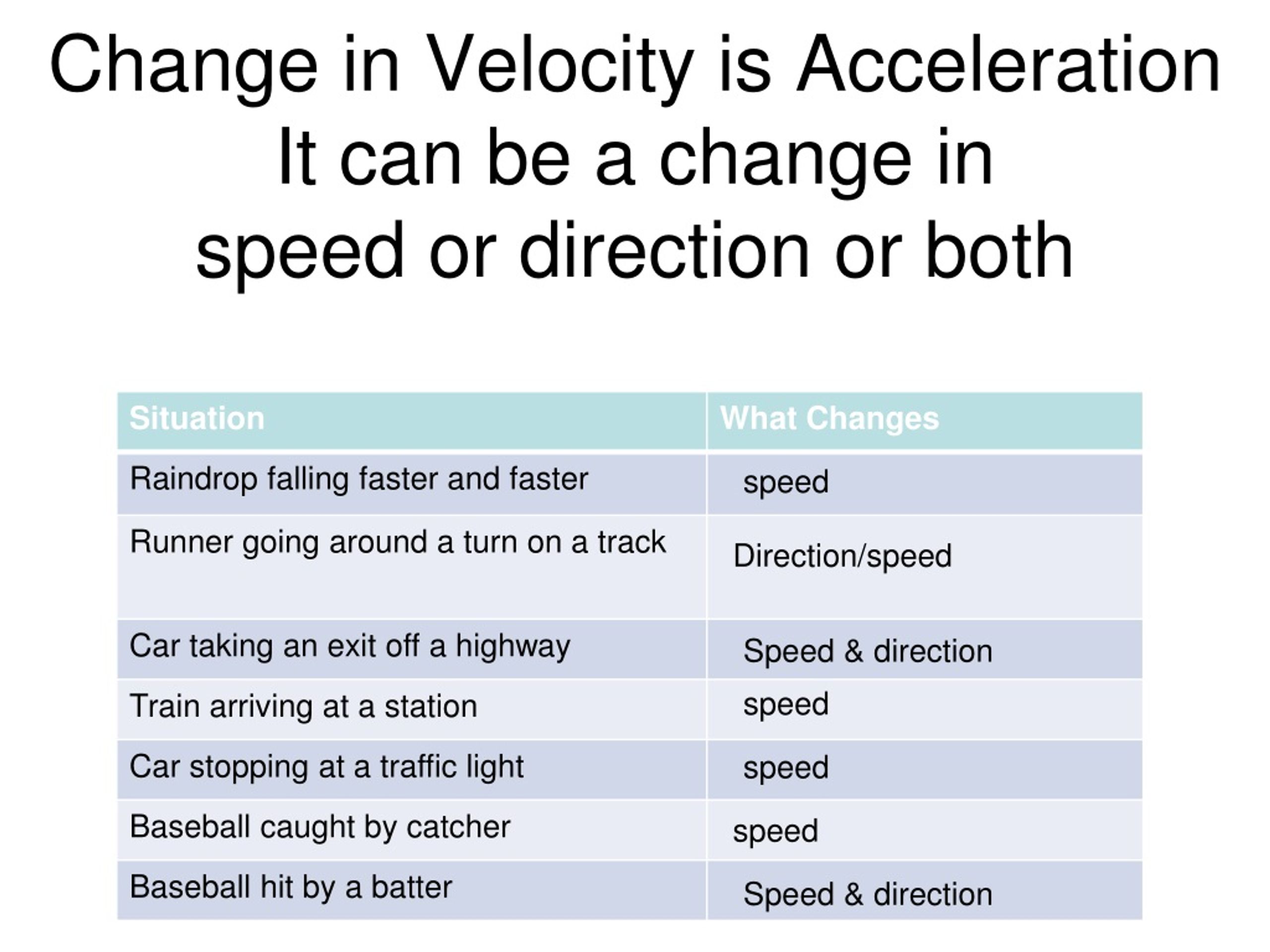

  4. Change in Velocity is AccelerationIt can be a change in speed or direction or both speed Direction/speed Speed & direction speed speed speed Speed & direction

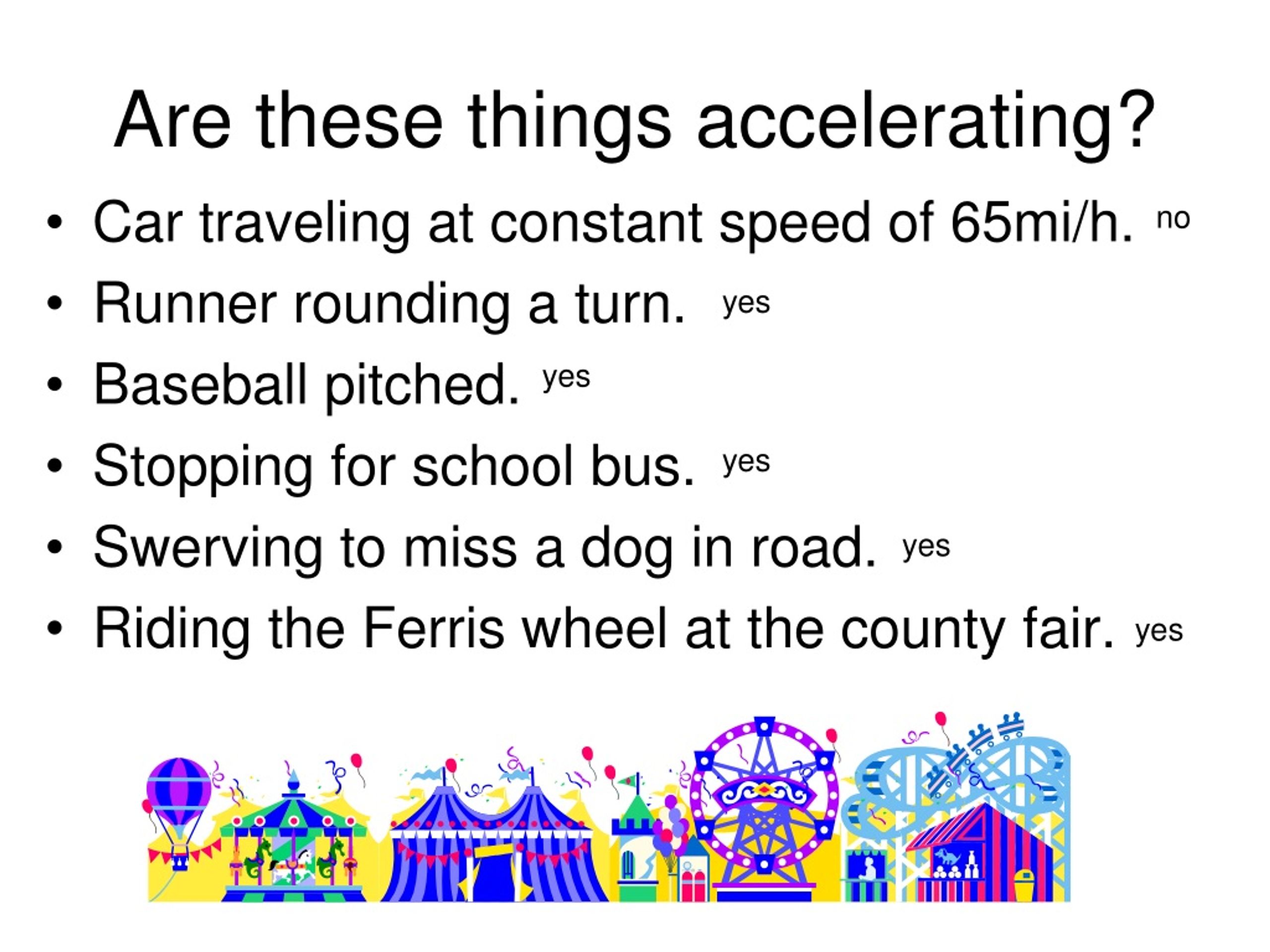

  5. Are these things accelerating? no yes yes yes yes yes Car traveling at constant speed of 65mi/h. Runner rounding a turn. Baseball pitched. Stopping for school bus. Swerving to miss a dog in road. Riding the Ferris wheel at the county fair.

  6. Calculating Acceleration • Acceleration = Final speed – Initial speed Time Unit for Acceleration will have TWO TIMES m/s2 or m/s/s mph/s or km/h/min

  7. As a roller coaster car starts down a slope, its speed is 4m/s. But 3 seconds later, at the bottom, its speed is 22m/s. What is its average acceleration?

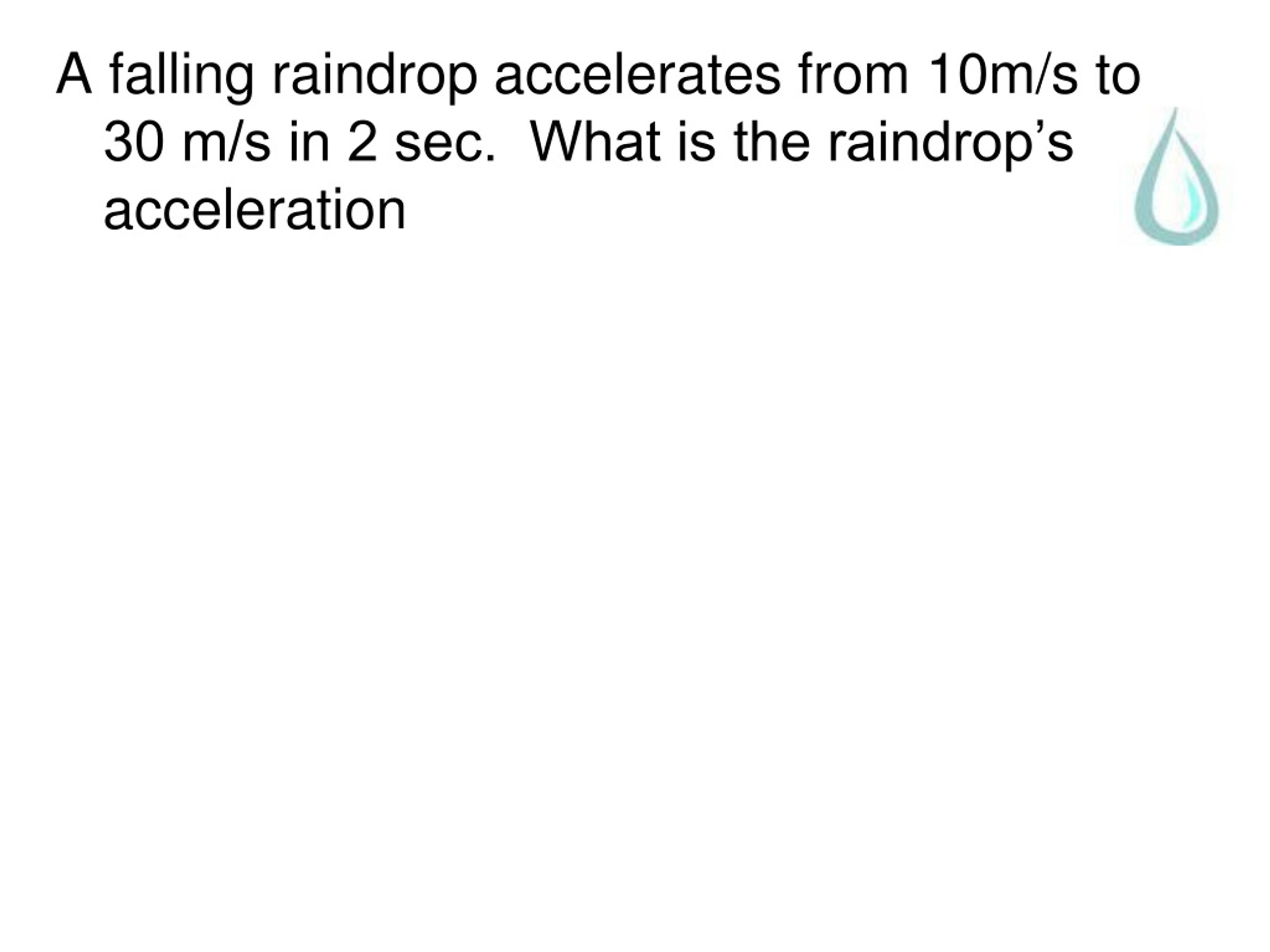

  8. A falling raindrop accelerates from 10m/s to 30 m/s in 2 sec. What is the raindrop’s acceleration

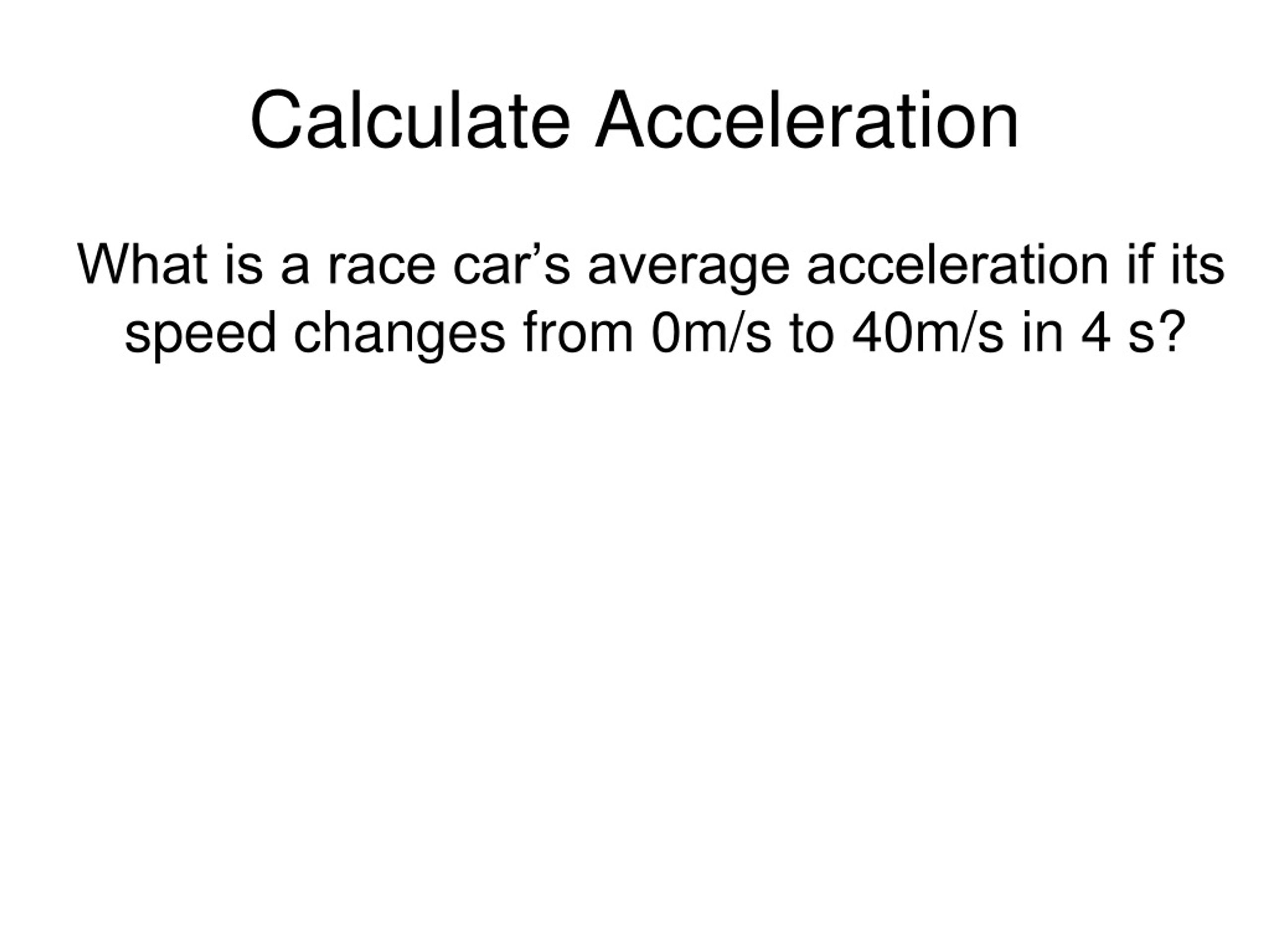

  9. Calculate Acceleration What is a race car’s average acceleration if its speed changes from 0m/s to 40m/s in 4 s?

  10. You try… An airplane accelerates on a runway to 40m/s after 5seconds. What is the acceleration?

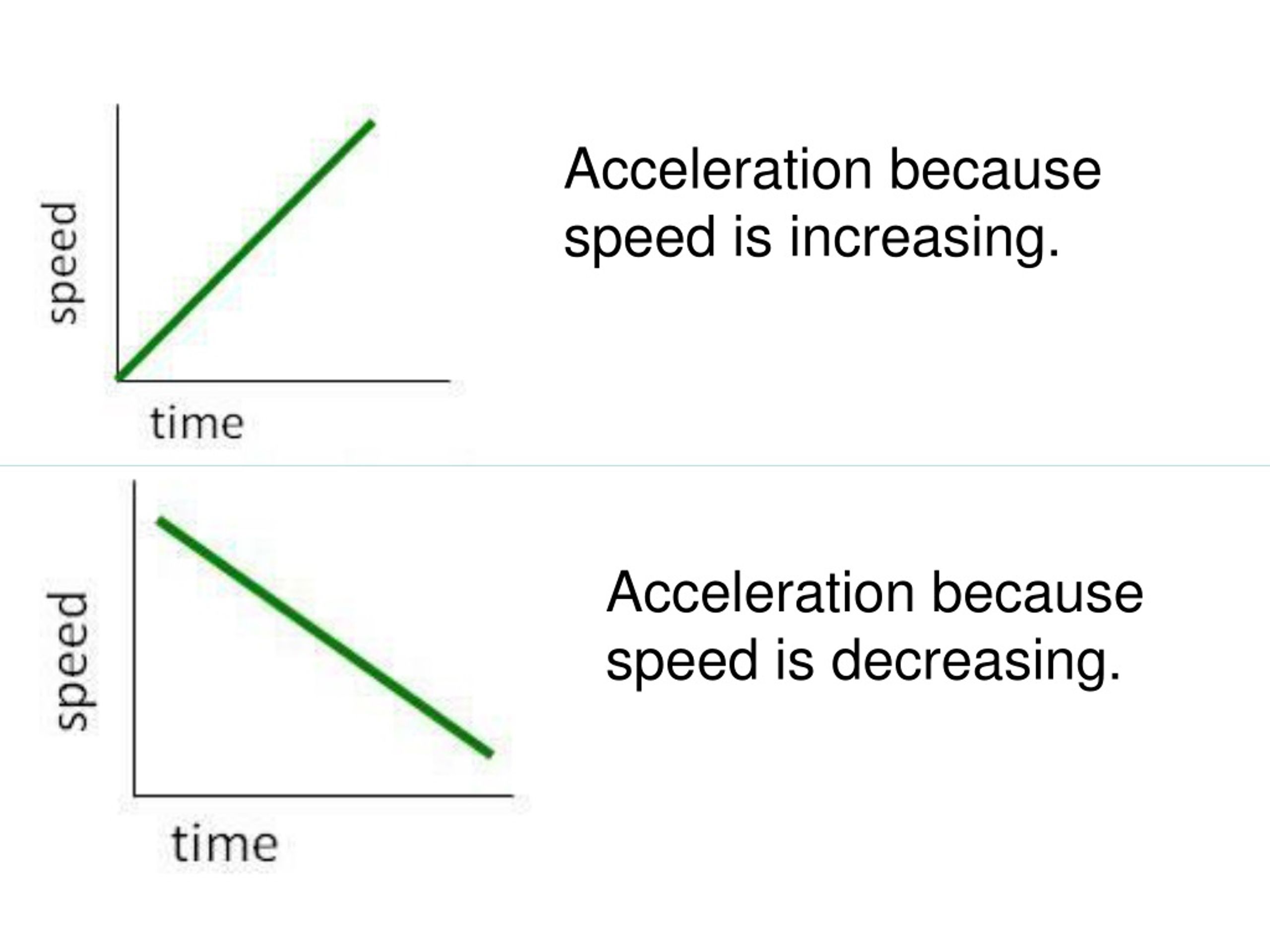

  11. Acceleration because speed is increasing. Acceleration because speed is decreasing.

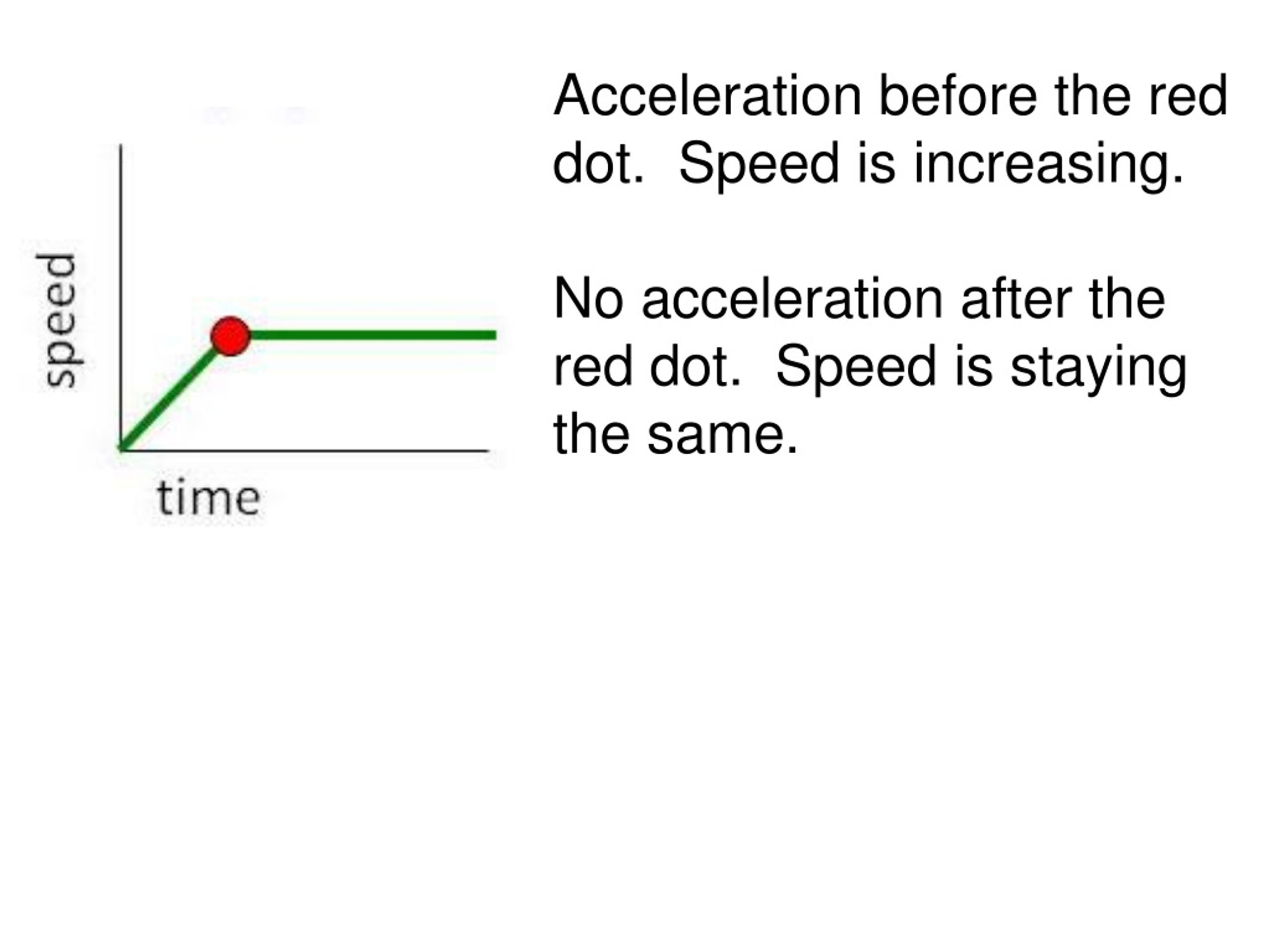

  12. Acceleration before the red dot. Speed is increasing. No acceleration after the red dot. Speed is staying the same.

  13. No acceleration because speed is constant.

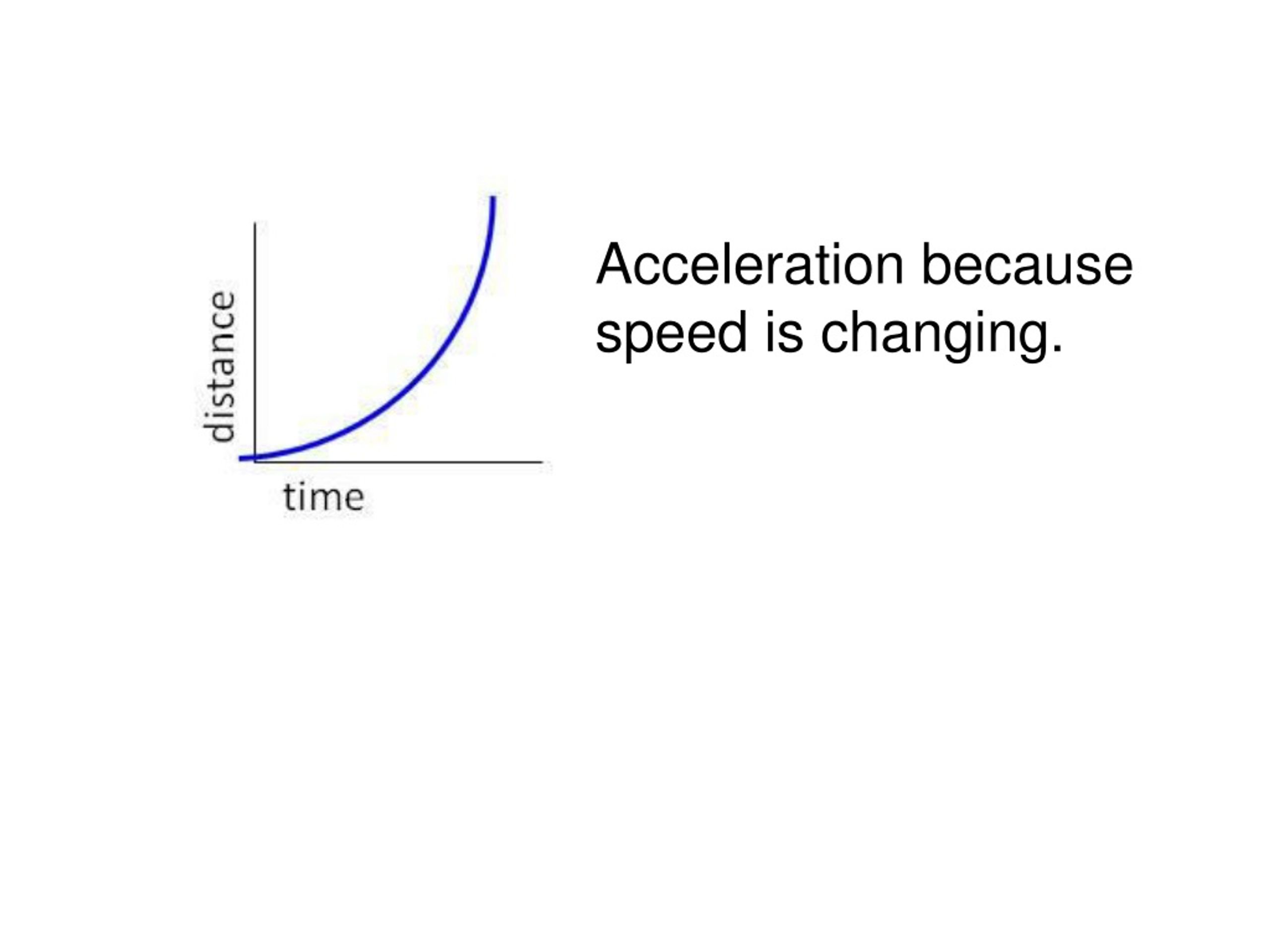

  14. Acceleration because speed is changing.

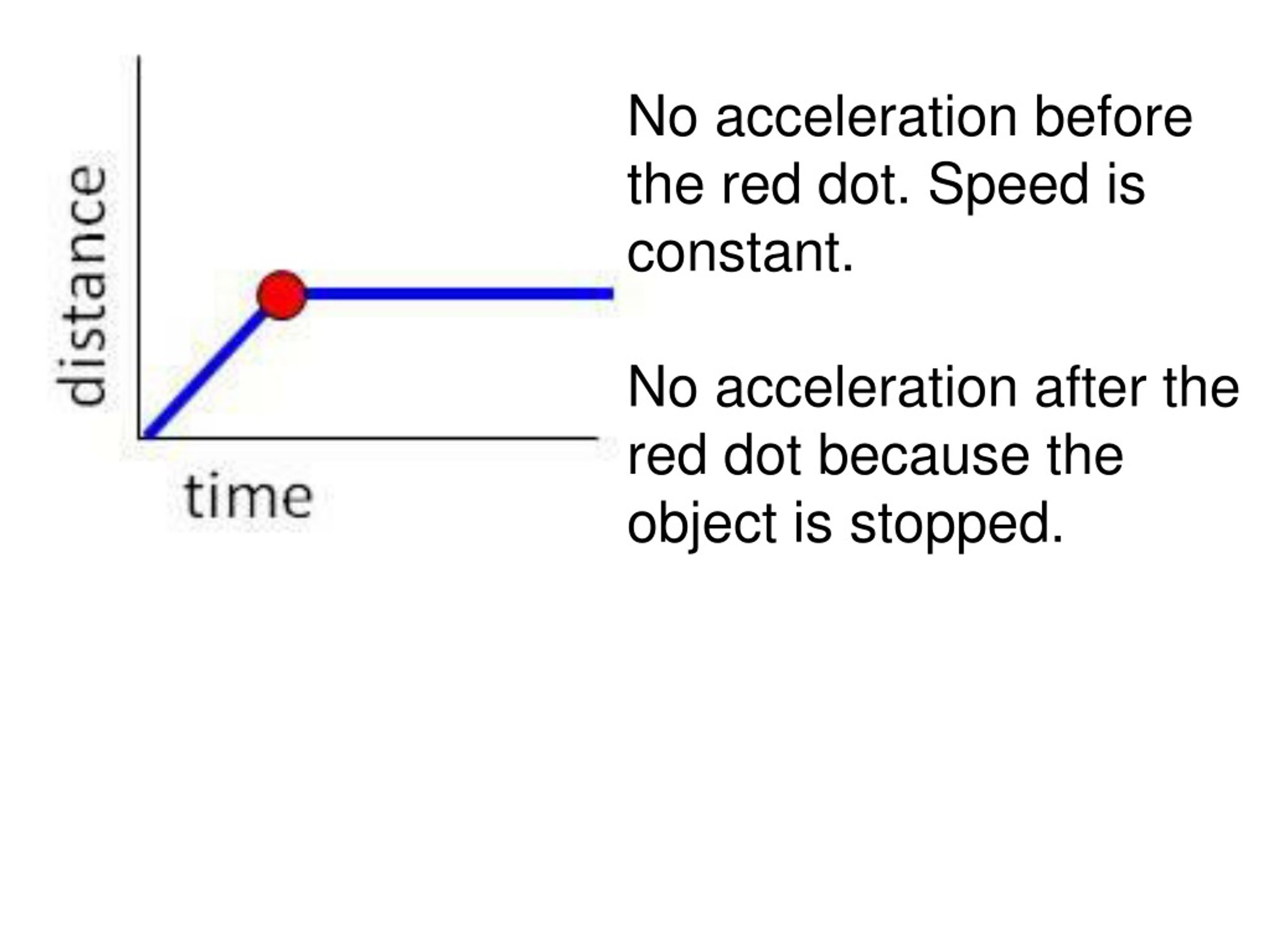

  15. No acceleration before the red dot. Speed is constant. No acceleration after the red dot because the object is stopped.

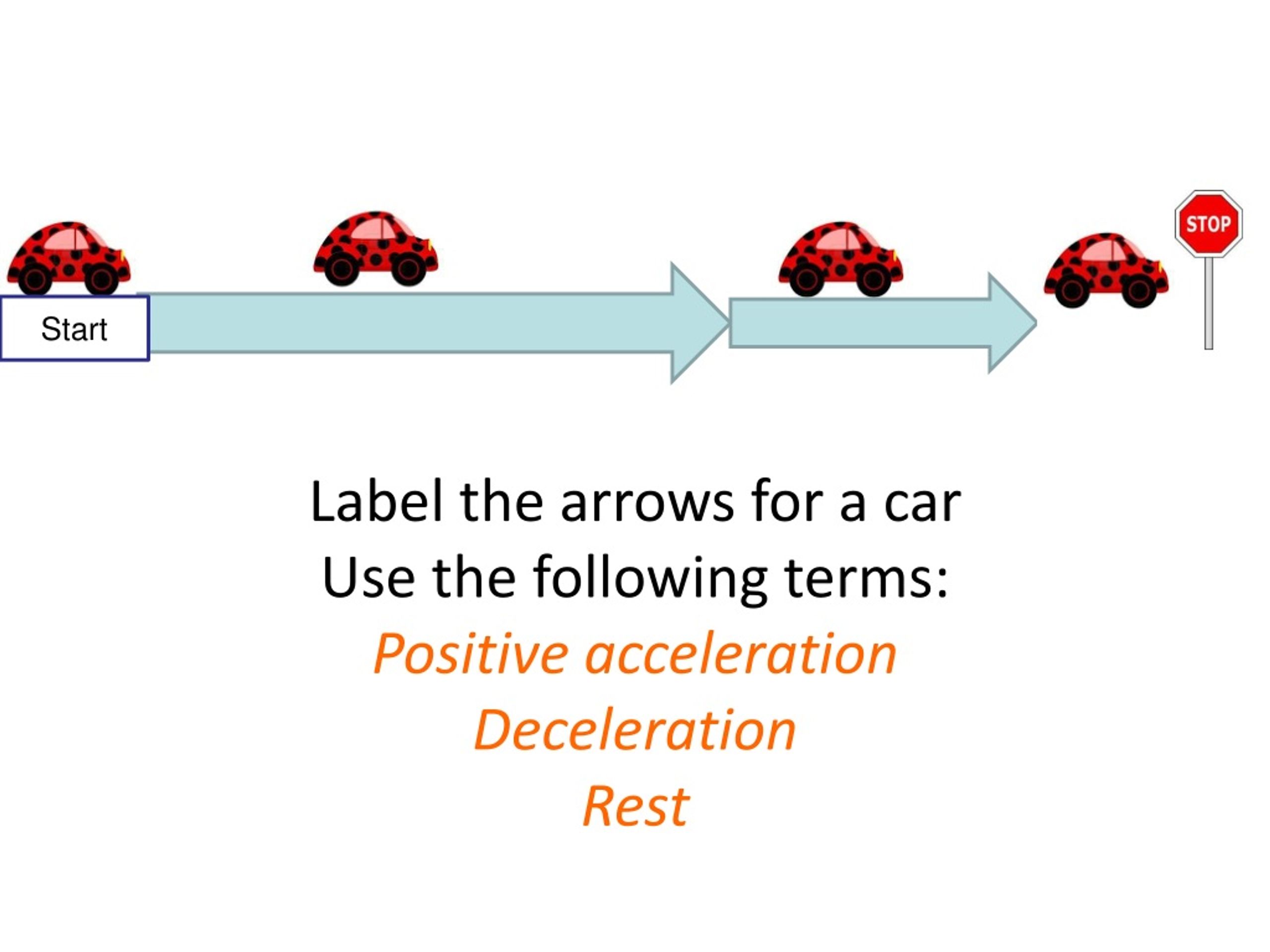

  16. Start Label the arrows for a car Use the following terms: Positive acceleration Deceleration Rest

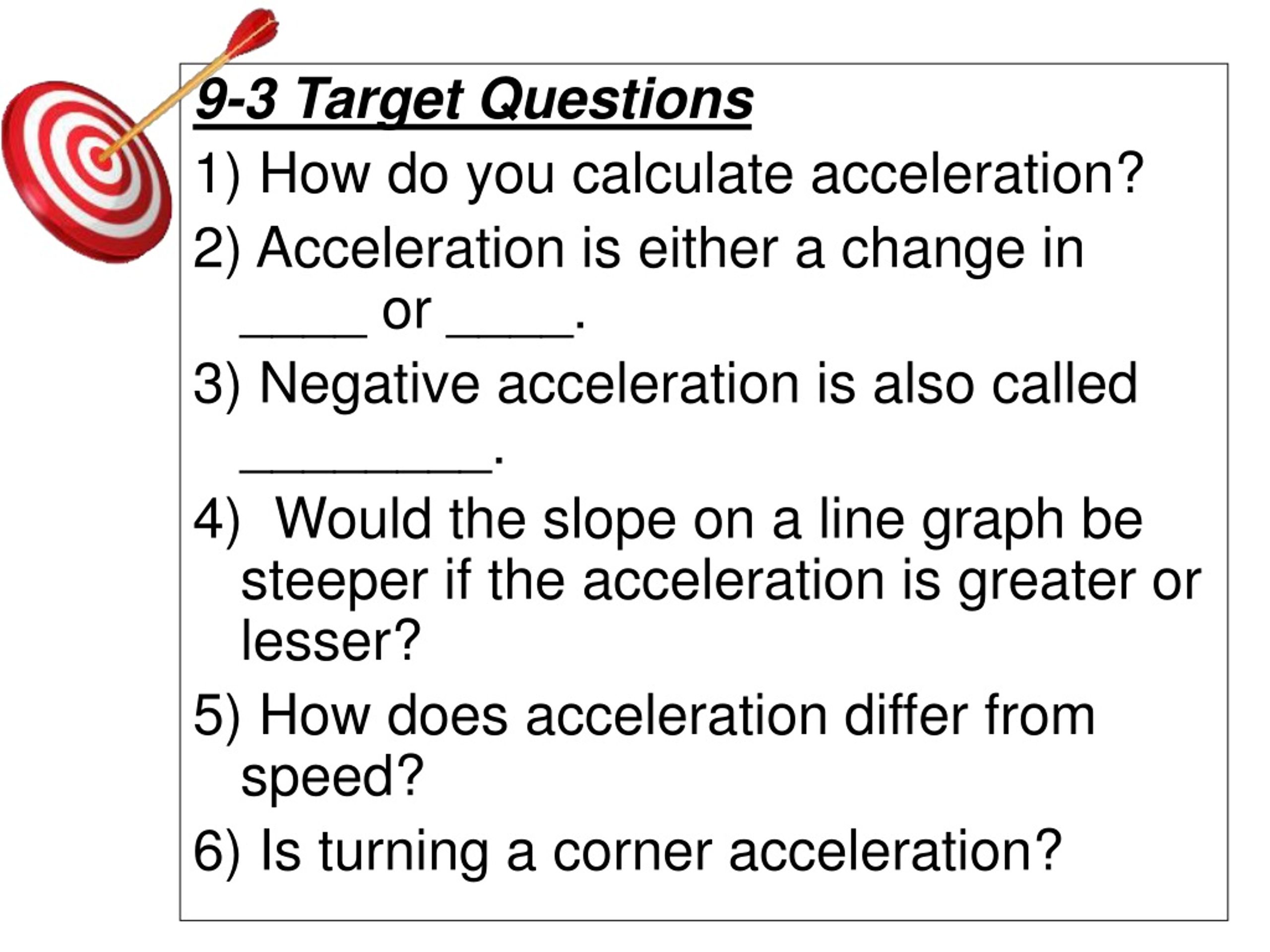

  17. 9-3 Target Questions • 1) How do you calculate acceleration? • 2) Acceleration is either a change in ____ or ____. • 3) Negative acceleration is also called ________. • 4) Would the slope on a line graph be steeper if the acceleration is greater or lesser? • 5) How does acceleration differ from speed? • 6) Is turning a corner acceleration?

  18. Workbook Pages • 133-136

  19. AccelerationCloze Notes G. Futch/J. Willis CMS

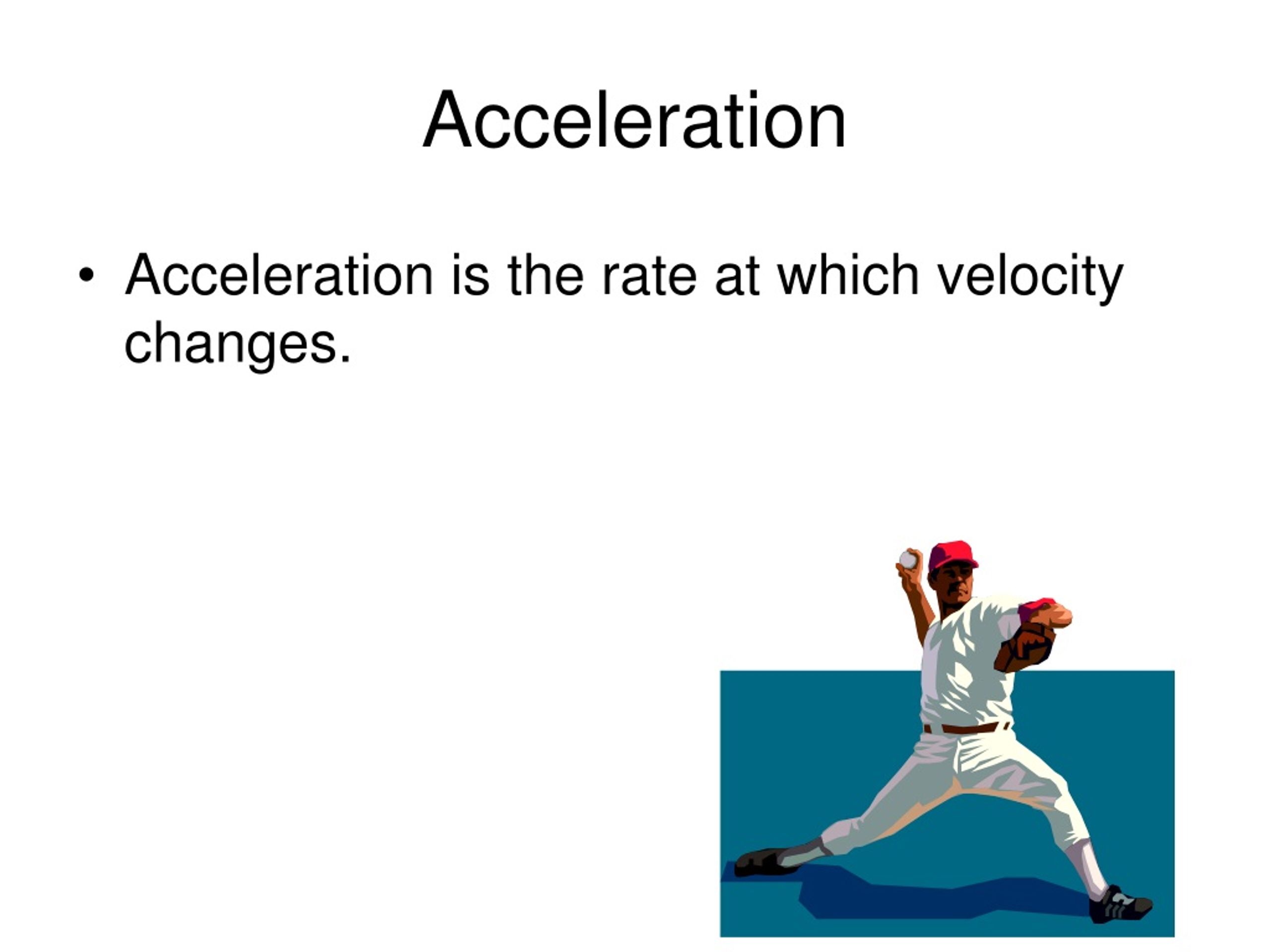

  20. Acceleration • Acceleration is the rate at which velocity changes.

  21. increase in speed is decrease in speed is

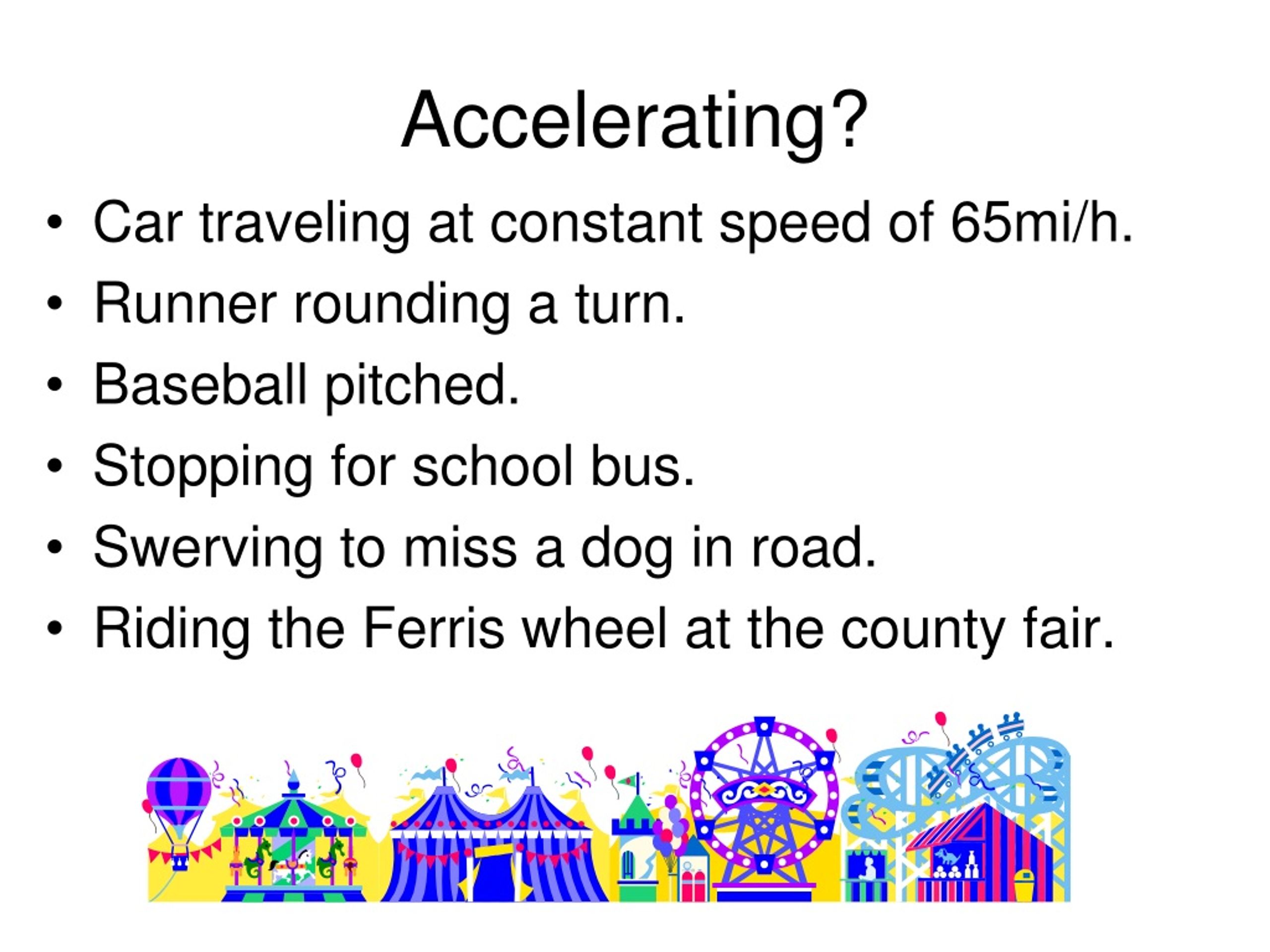

  22. Accelerating? Car traveling at constant speed of 65mi/h. Runner rounding a turn. Baseball pitched. Stopping for school bus. Swerving to miss a dog in road. Riding the Ferris wheel at the county fair.

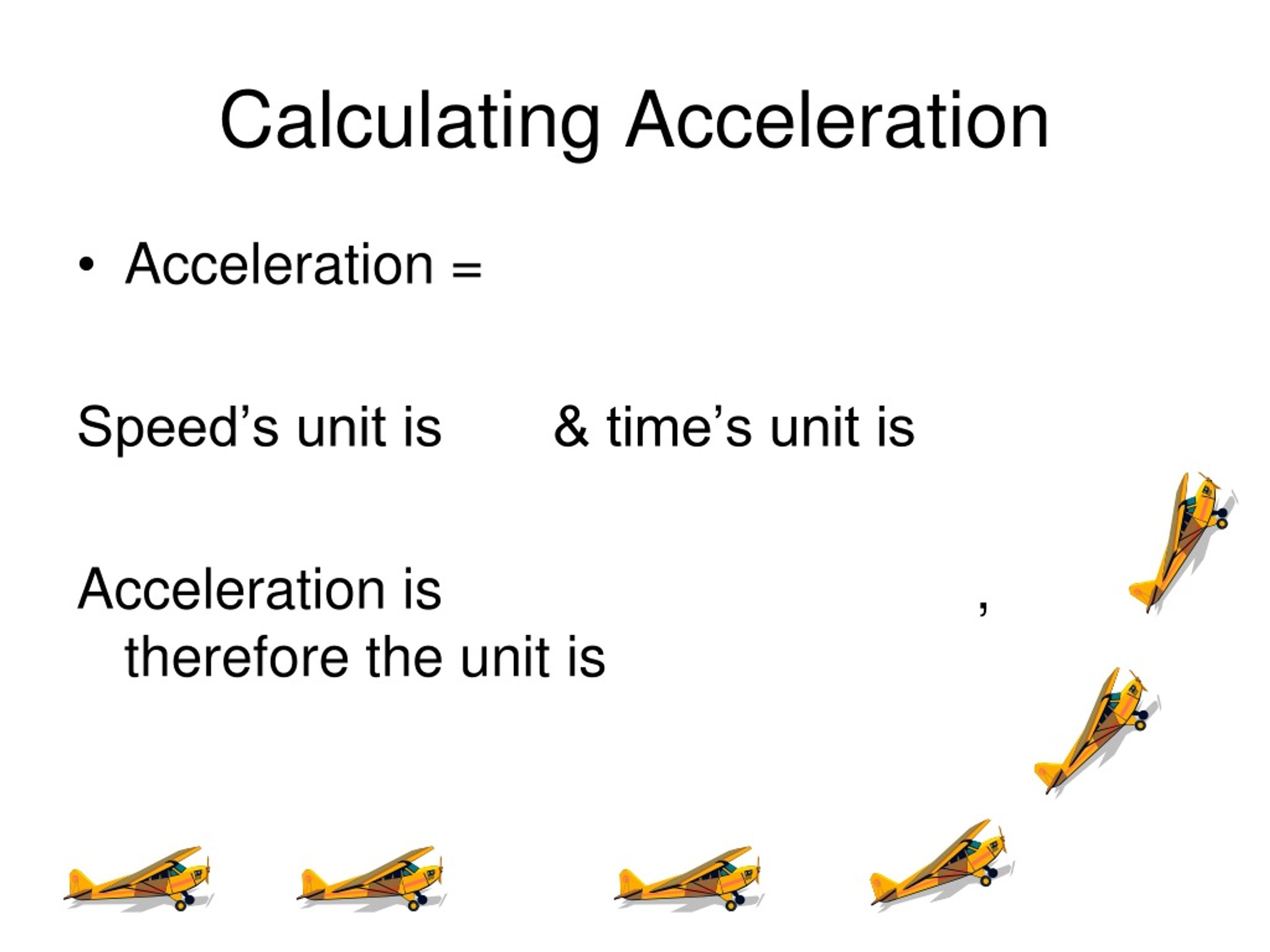

  23. Calculating Acceleration • Acceleration = Speed’s unit is & time’s unit is Acceleration is , therefore the unit is

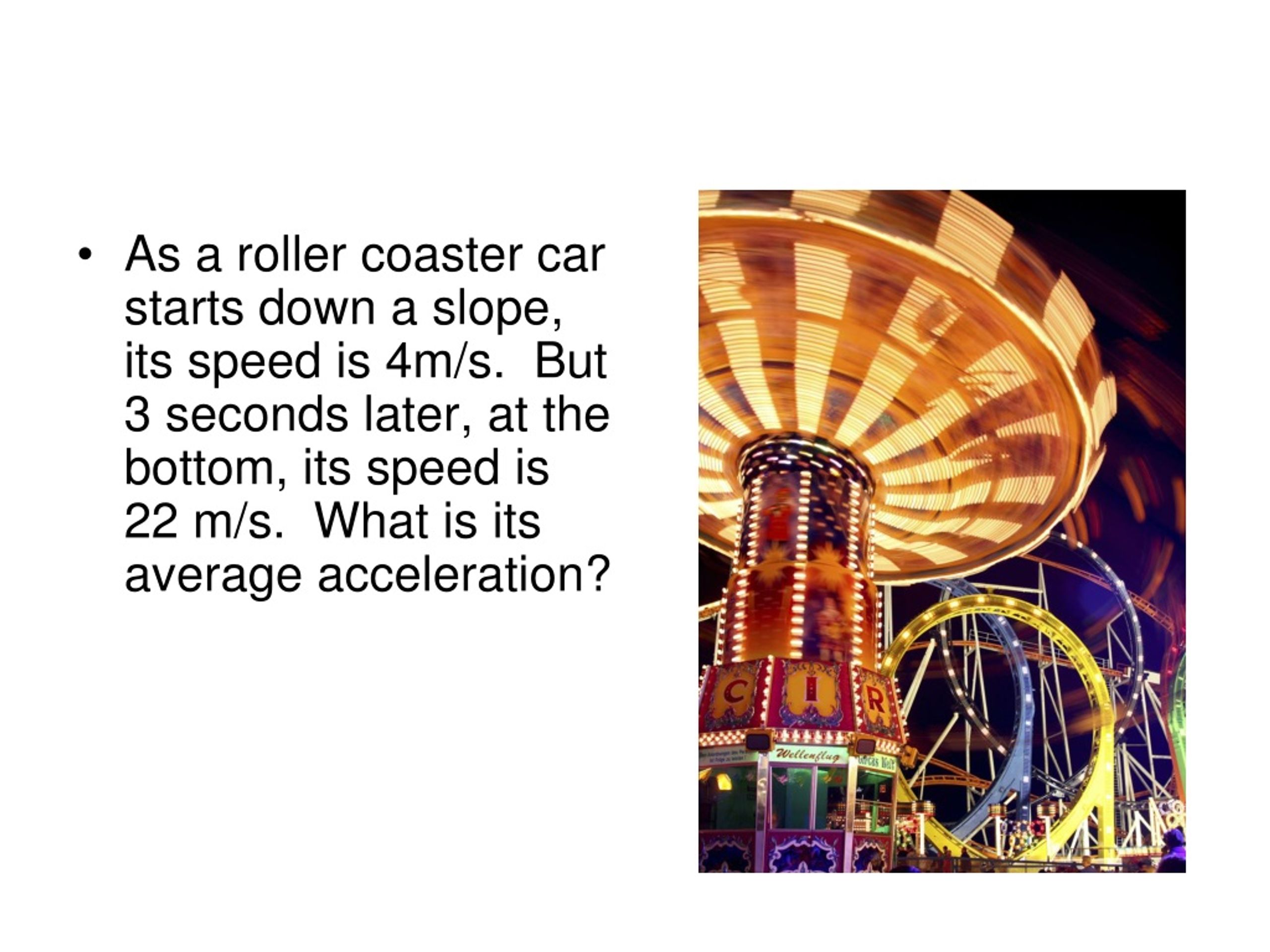

  24. As a roller coaster car starts down a slope, its speed is 4m/s. But 3 seconds later, at the bottom, its speed is 22 m/s. What is its average acceleration?

  25. Calculate Acceleration A falling raindrop accelerates from 10m/s to 30 m/s in 2 sec. What is the raindrop’s acceleration

  26. Calculate Acceleration What is a race car’s average acceleration if its speed changes from 0m/s to 40m/s in 4 s?

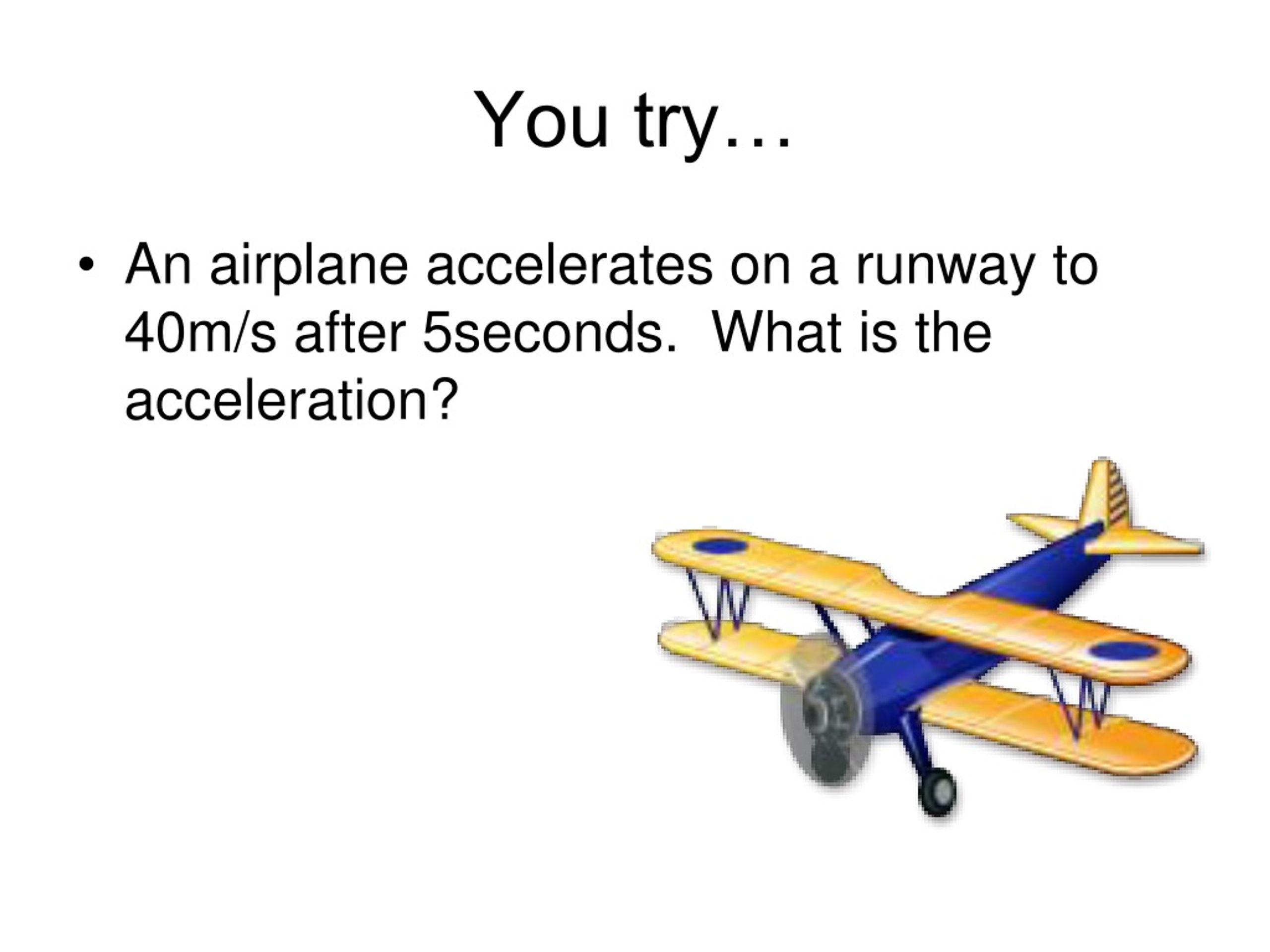

  27. You try… An airplane accelerates on a runway to 40m/s after 5seconds. What is the acceleration?

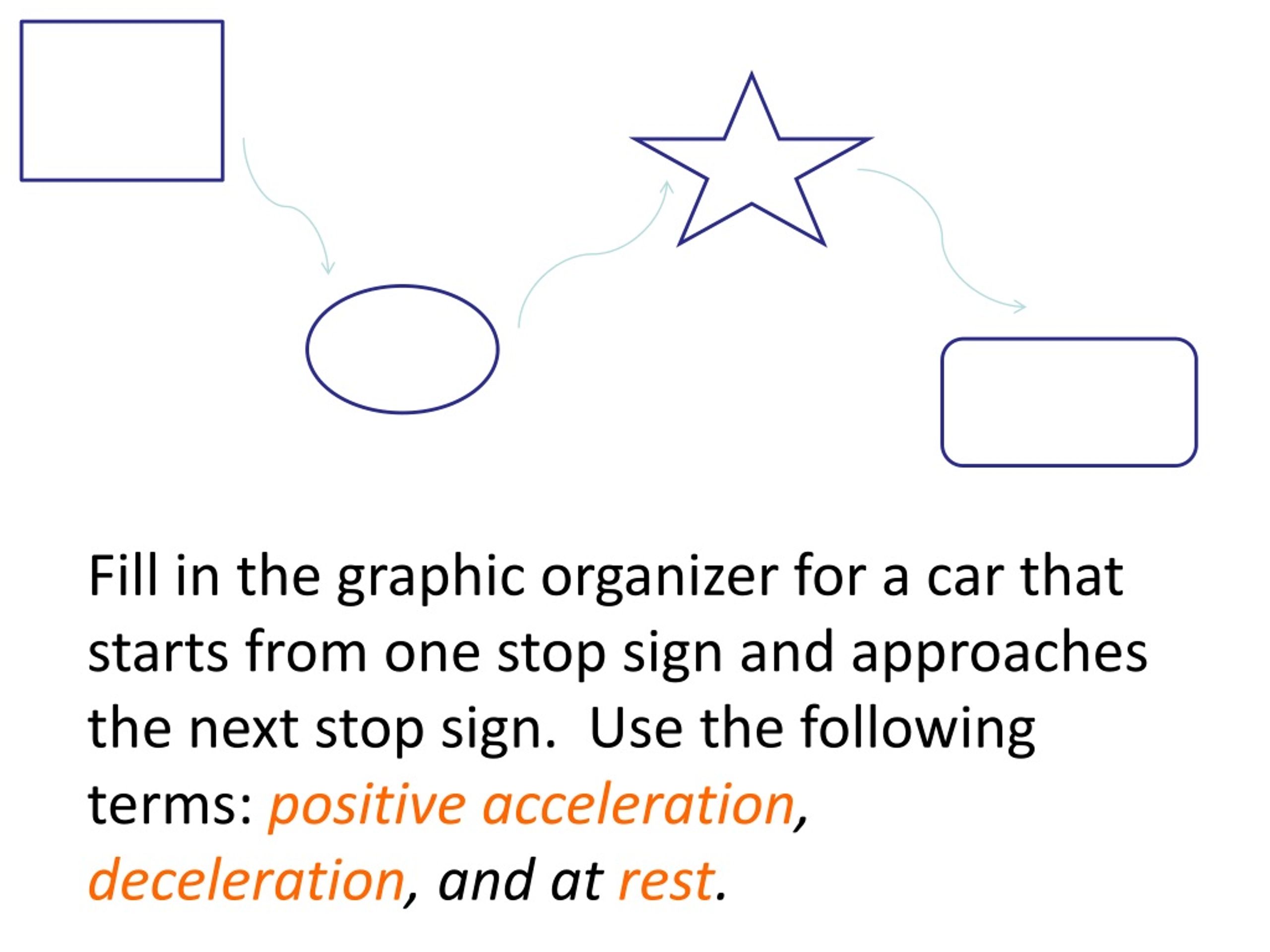

  28. Fill in the graphic organizer for a car that starts from one stop sign and approaches the next stop sign. Use the following terms:positive acceleration, deceleration, and at rest.

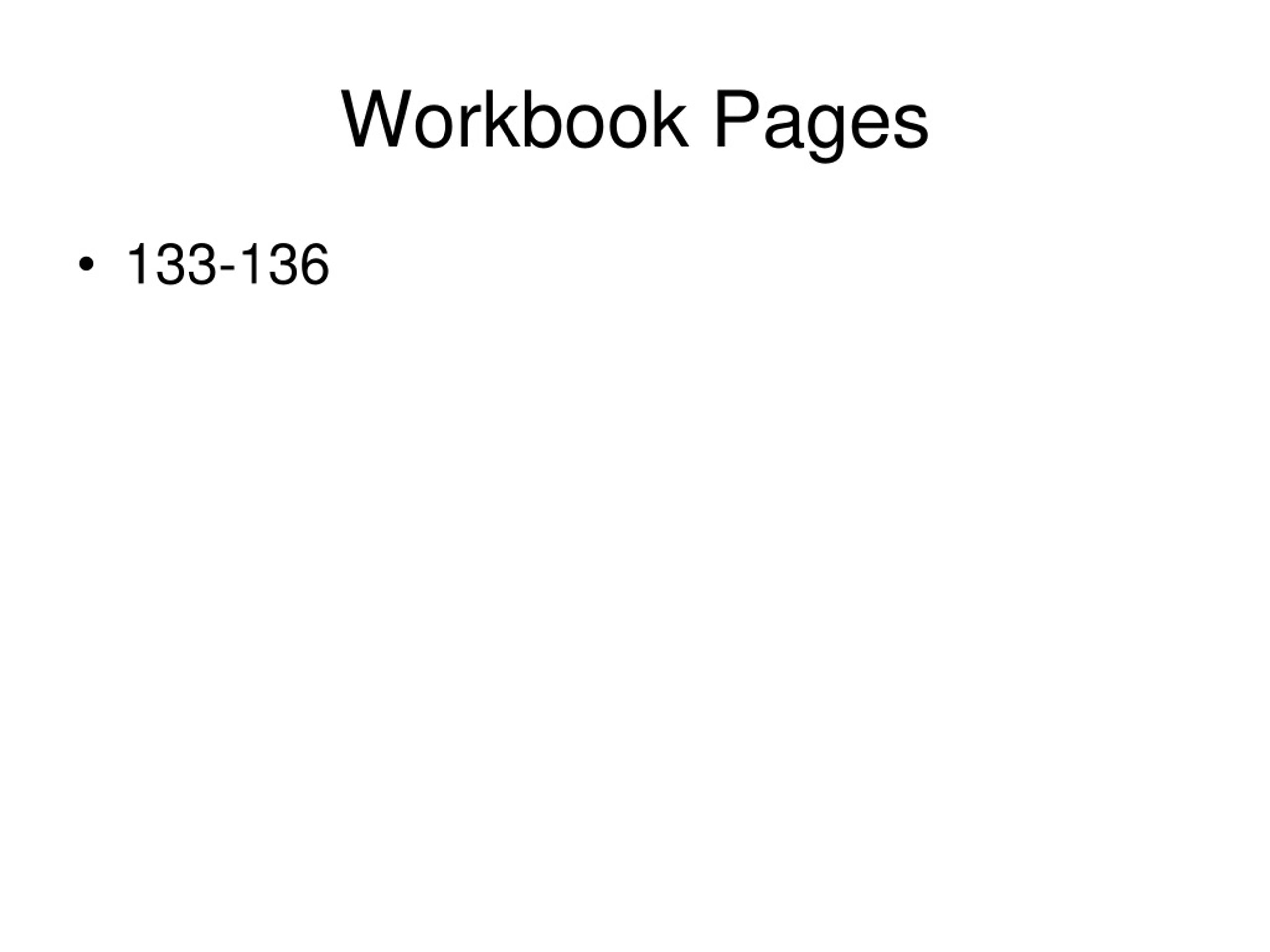

  29. Workbook Pages • 133-136
