  1. December, 3rd 2007 Philippe LABOUCHERE Annika BEHRENS Quantum Cryptography

  2. Introduction • Photon sources • Quantum Secret Sharing

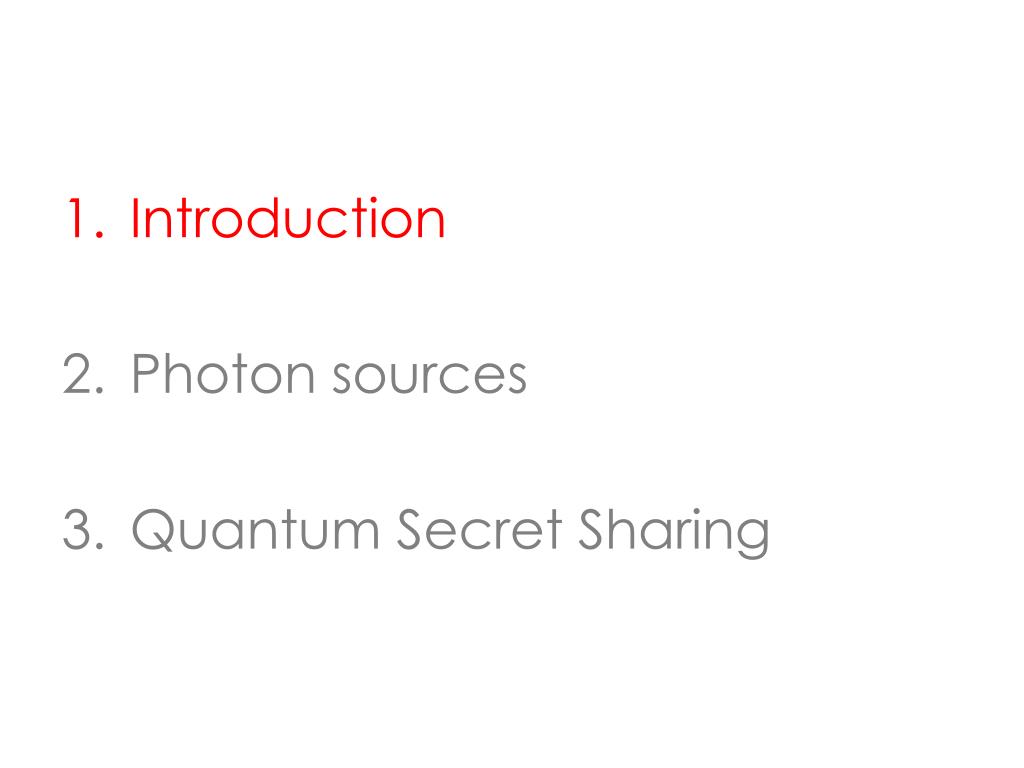

  3. Introduction • Photon sources • Quantum Secret Sharing

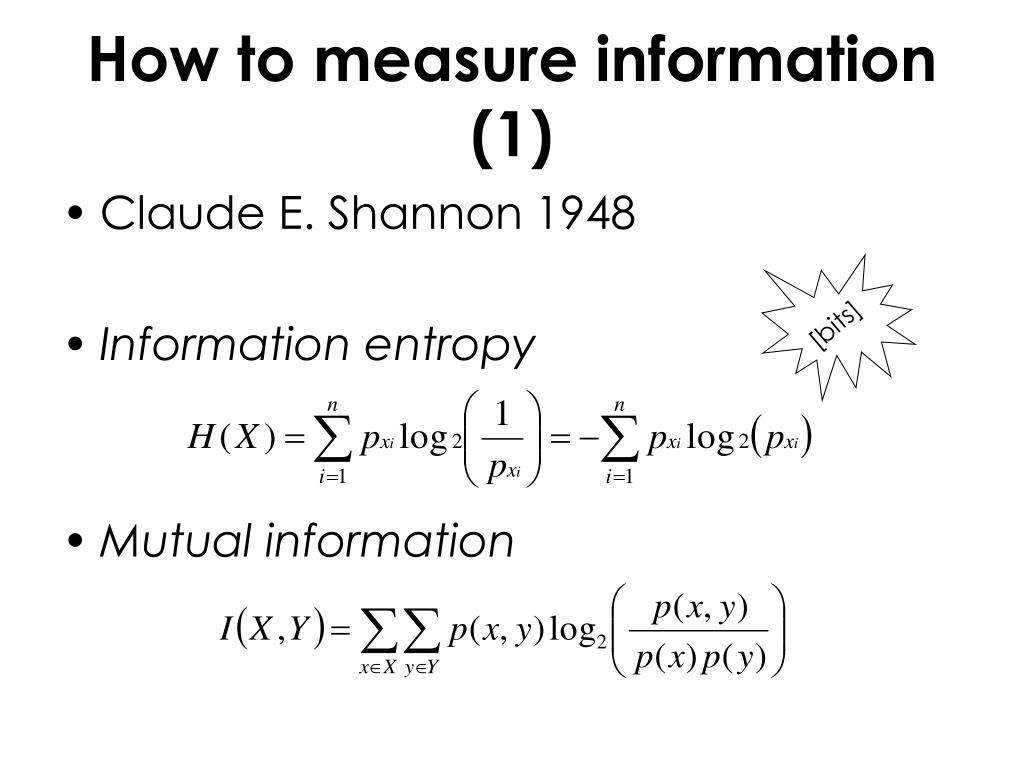

  4. How to measure information (1) • Claude E. Shannon 1948 • Information entropy • Mutual information [bits]

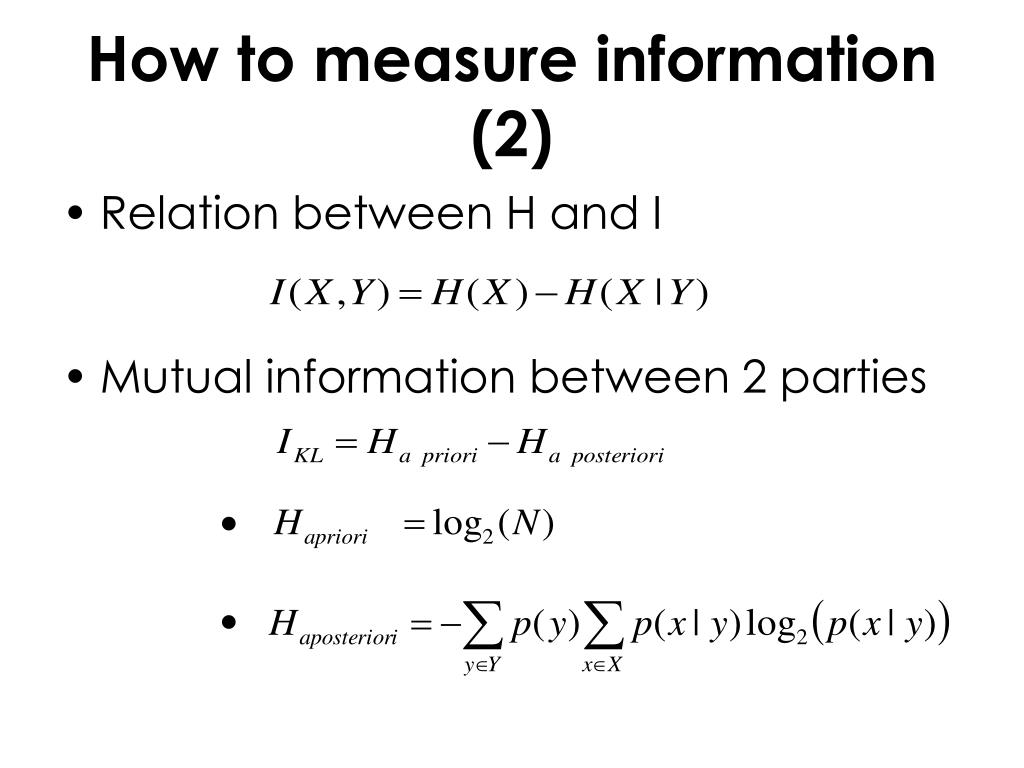

  5. How to measure information (2) • Relation between H and I • Mutual information between 2 parties

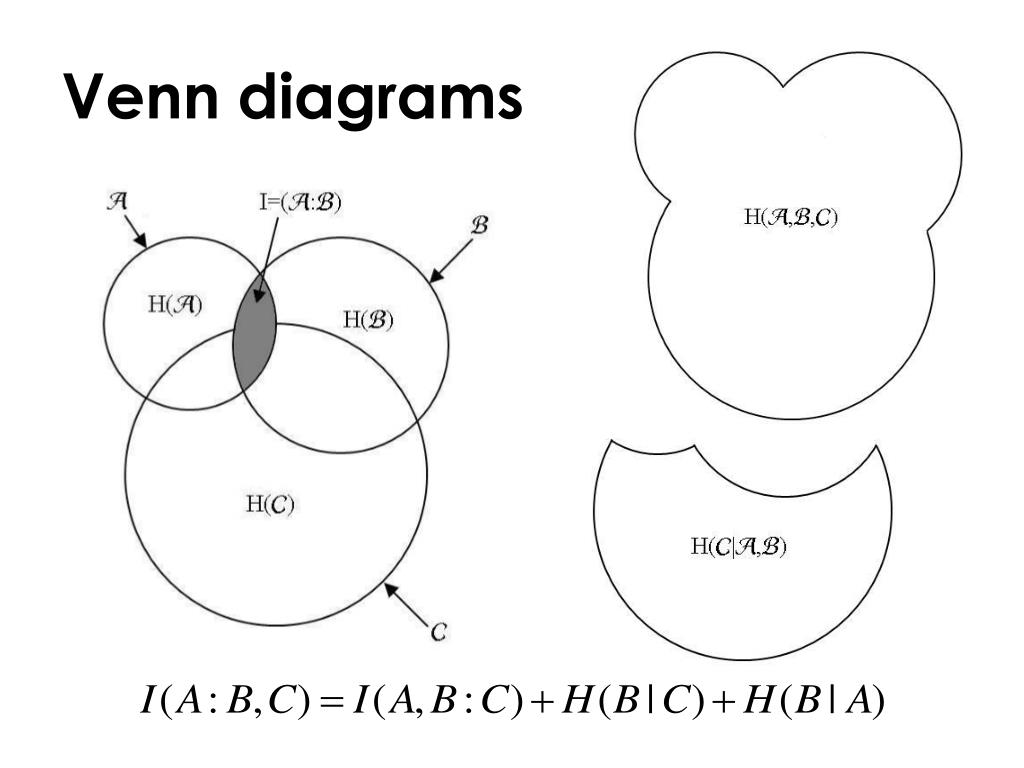

  6. Venn diagrams

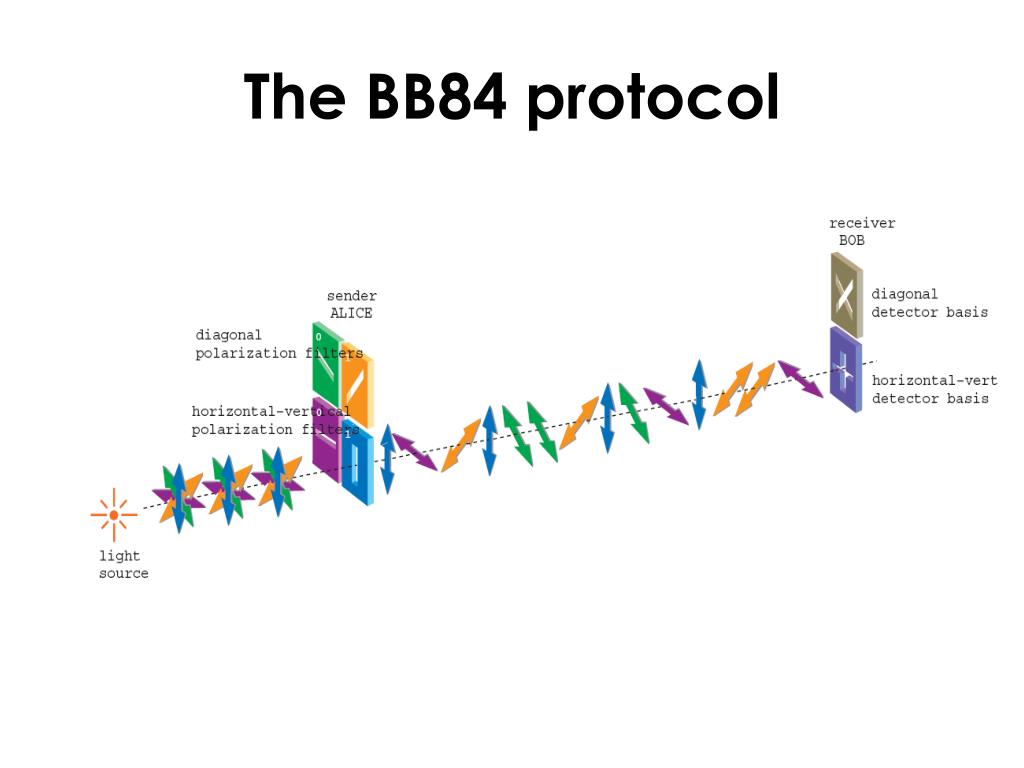

  7. The BB84 protocol

  8. The BB84 protocol: principle • 2 conjugate basis • Information encoded in photon’s polarization → ’0’ ≡ —& / → ’1’ ≡ | & \ • Quantum & classical channels used for key exchange Charles H. Bennett Gilles Brassard

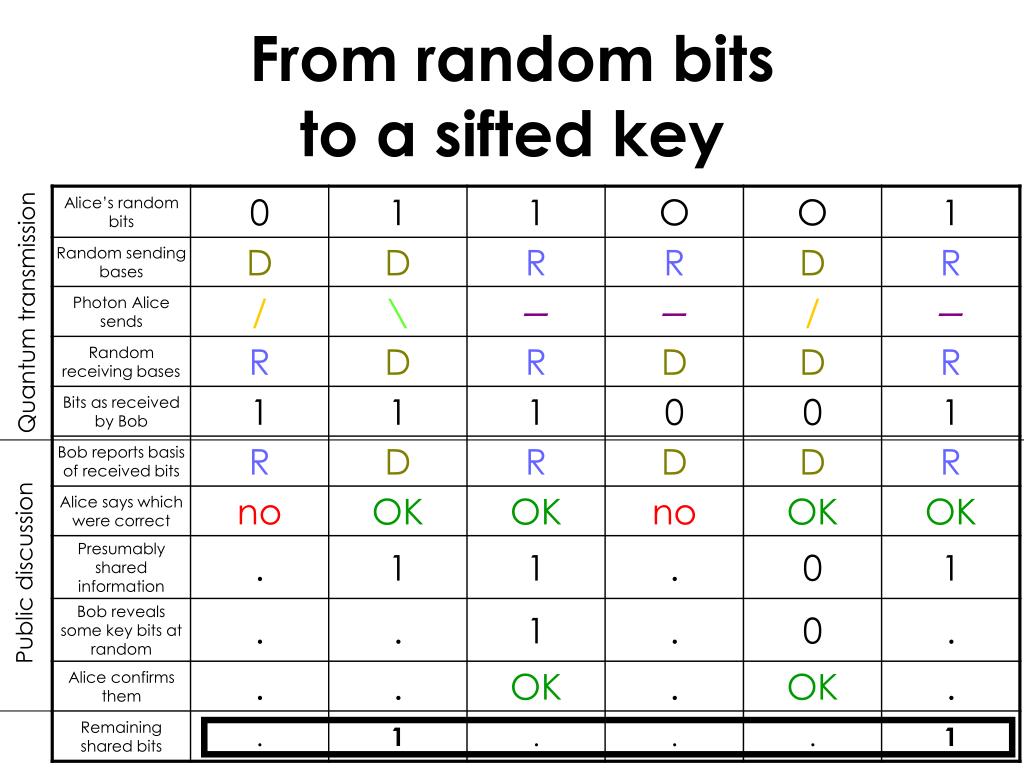

  9. From random bits to a sifted key Quantum transmission Public discussion

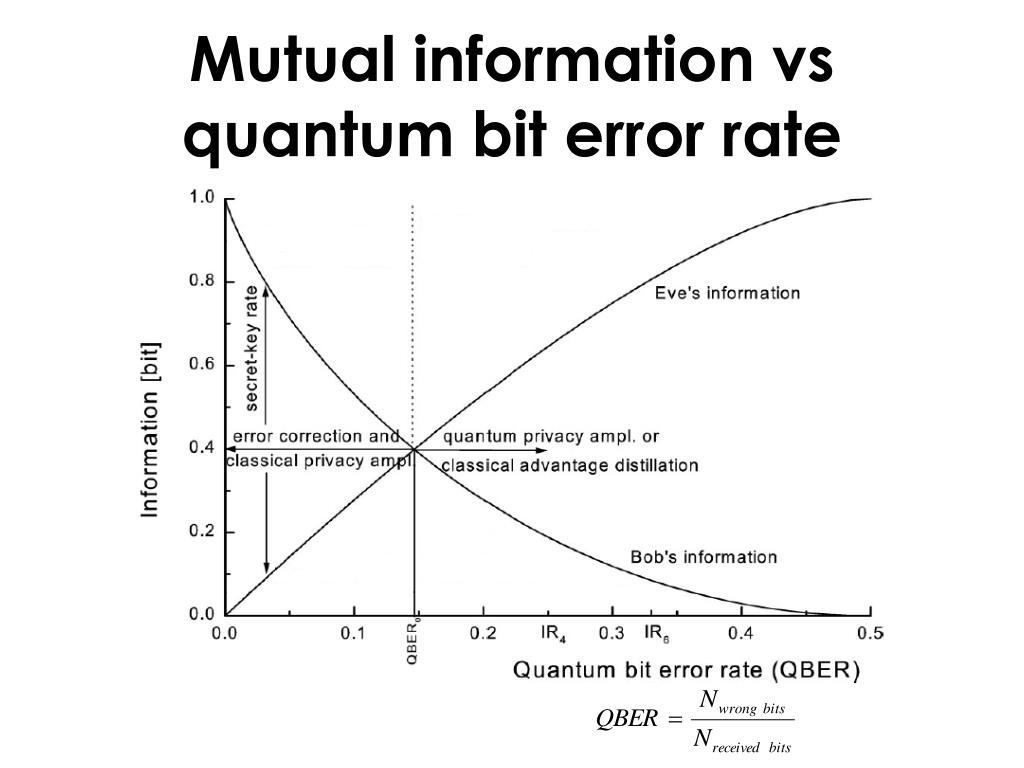

  10. Mutual information vs quantum bit error rate

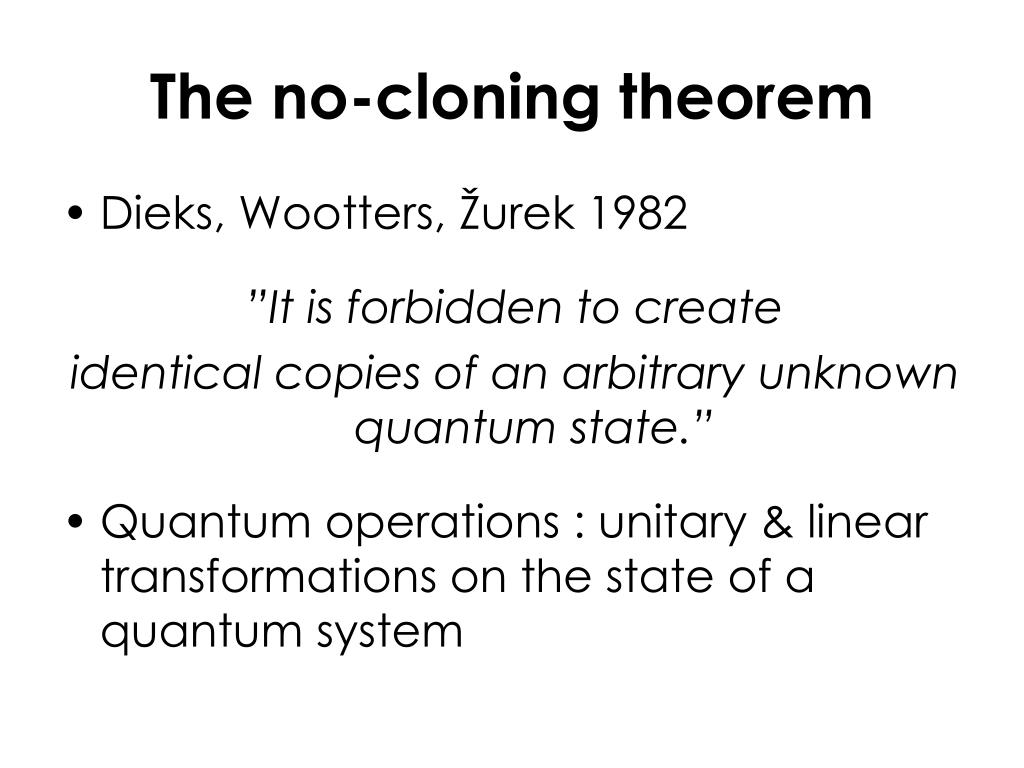

  11. The no-cloning theorem • Dieks, Wootters, Žurek 1982 ”It is forbidden to create identical copies of an arbitrary unknown quantum state.” • Quantum operations : unitary & linear transformations on the state of a quantum system

  12. Introduction • Photon sources • Quantum Secret Sharing

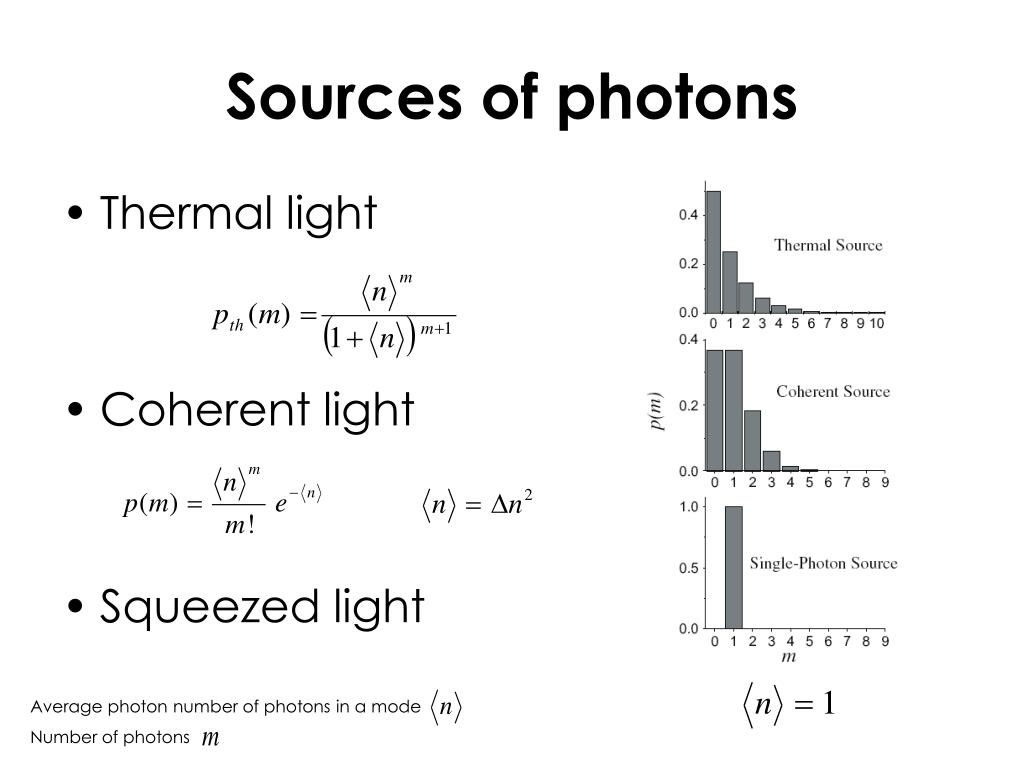

  13. Sources of photons • Thermal light • Coherent light • Squeezed light Average photon number of photons in a mode Number of photons

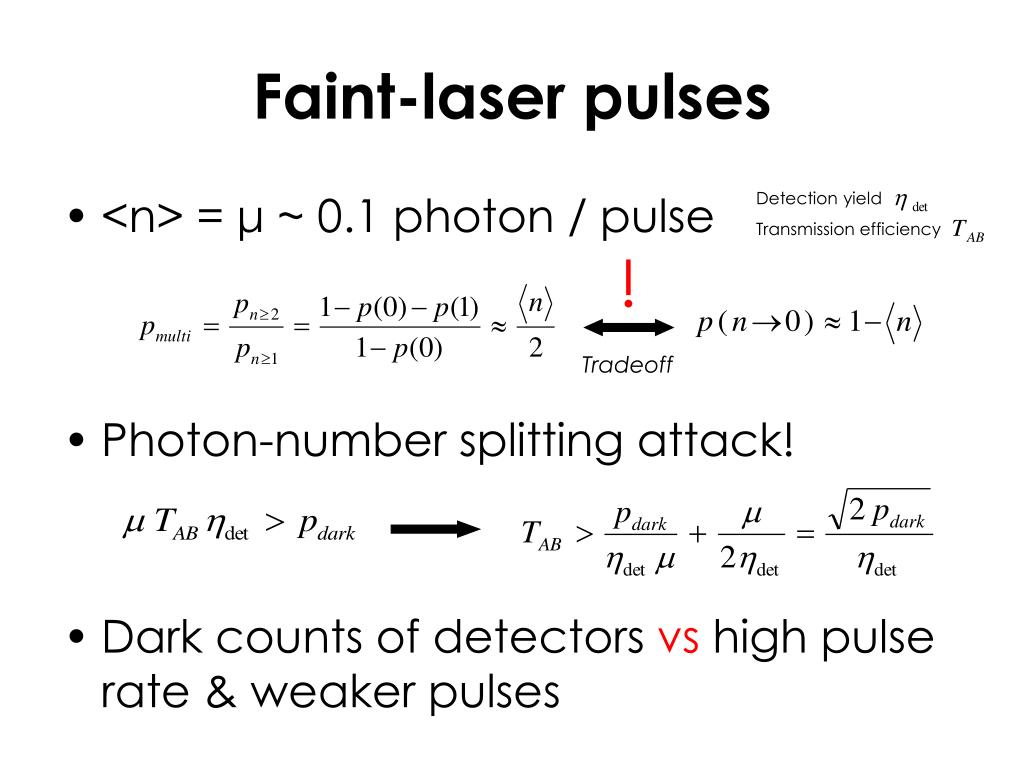

  14. Faint-laser pulses • <n> = μ~ 0.1 photon / pulse • Photon-number splitting attack! • Dark counts of detectors vs high pulse rate & weaker pulses Detection yield Transmission efficiency ! Tradeoff

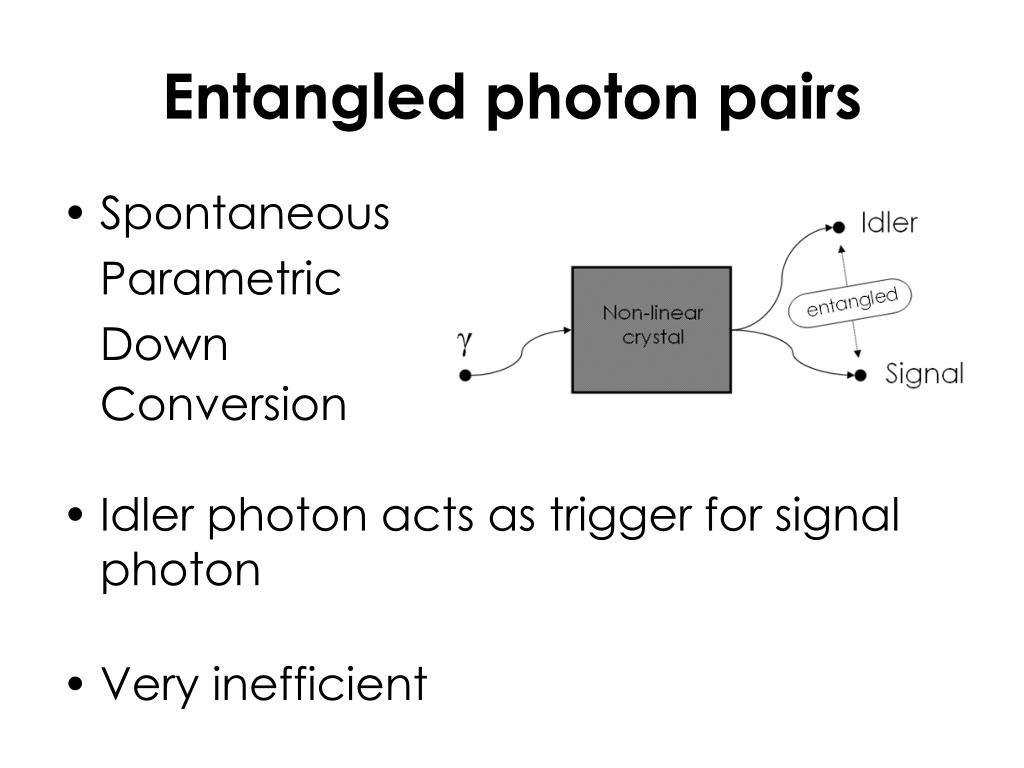

  15. Entangled photon pairs • Spontaneous Parametric Down Conversion • Idler photon acts as trigger for signal photon • Very inefficient

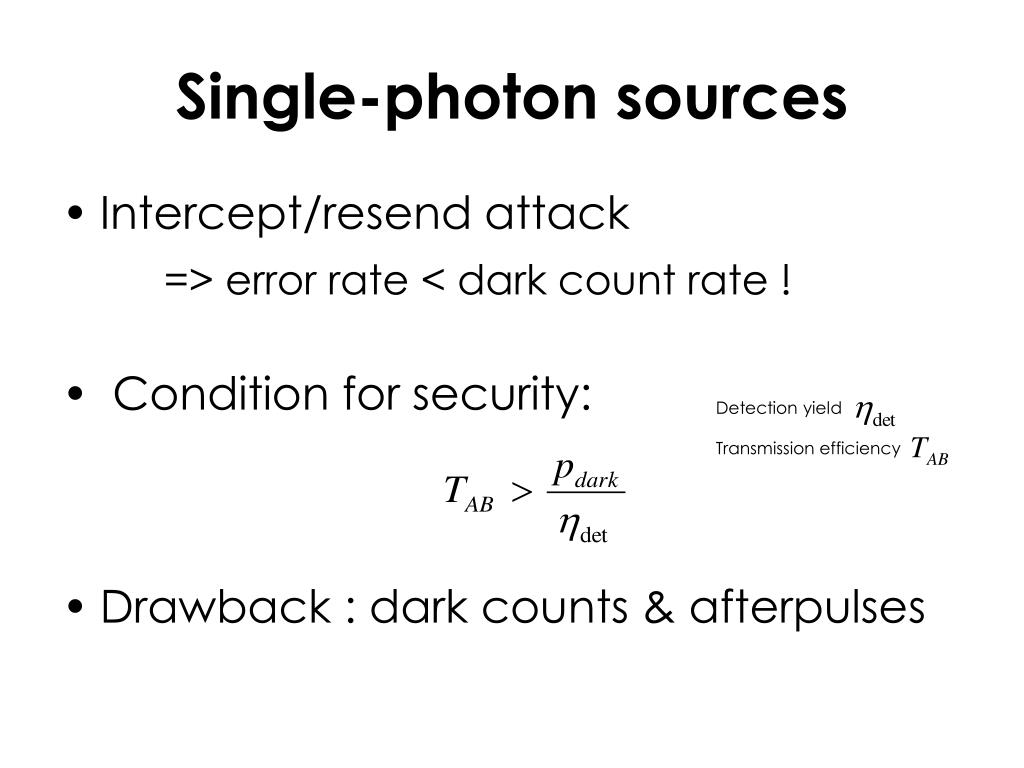

  16. Single-photon sources • Intercept/resend attack => error rate < dark count rate ! • Condition for security: • Drawback : dark counts & afterpulses Detection yield Transmission efficiency

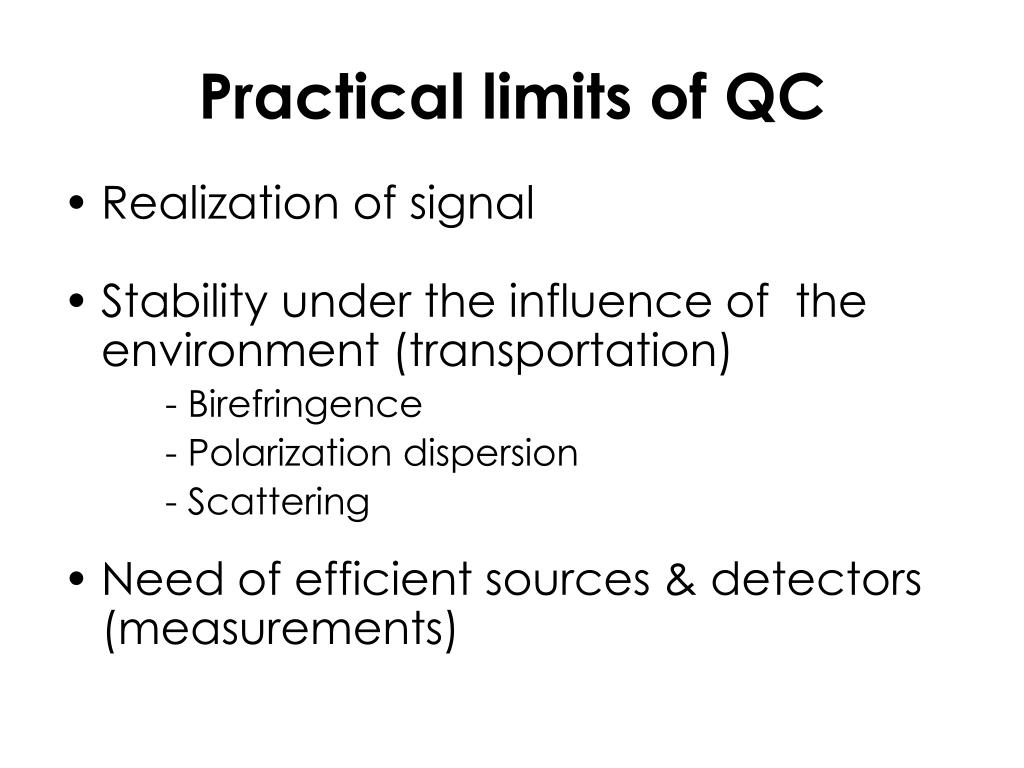

  17. Practical limits of QC • Realization of signal • Stability under the influence of the environment (transportation) - Birefringence - Polarization dispersion - Scattering • Need of efficient sources & detectors (measurements)

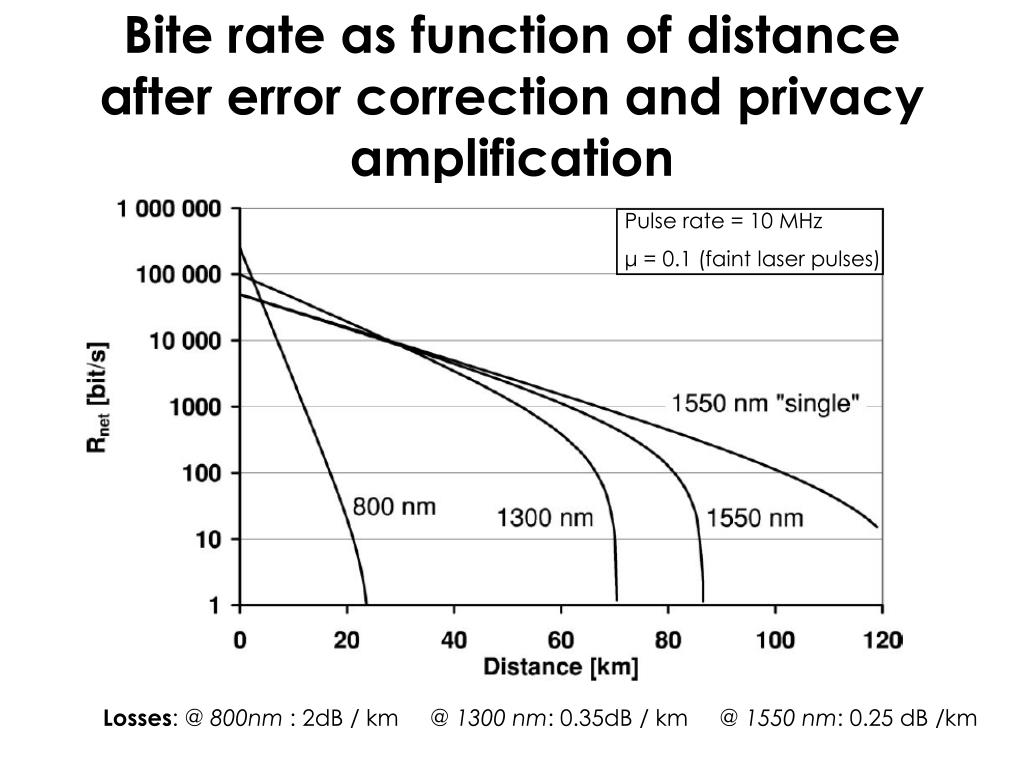

  18. Bite rate as function of distance after error correction and privacy amplification Pulse rate = 10 MHz μ = 0.1 (faint laser pulses) Losses:@ 800nm : 2dB / km @ 1300 nm: 0.35dB / km @ 1550 nm: 0.25 dB /km

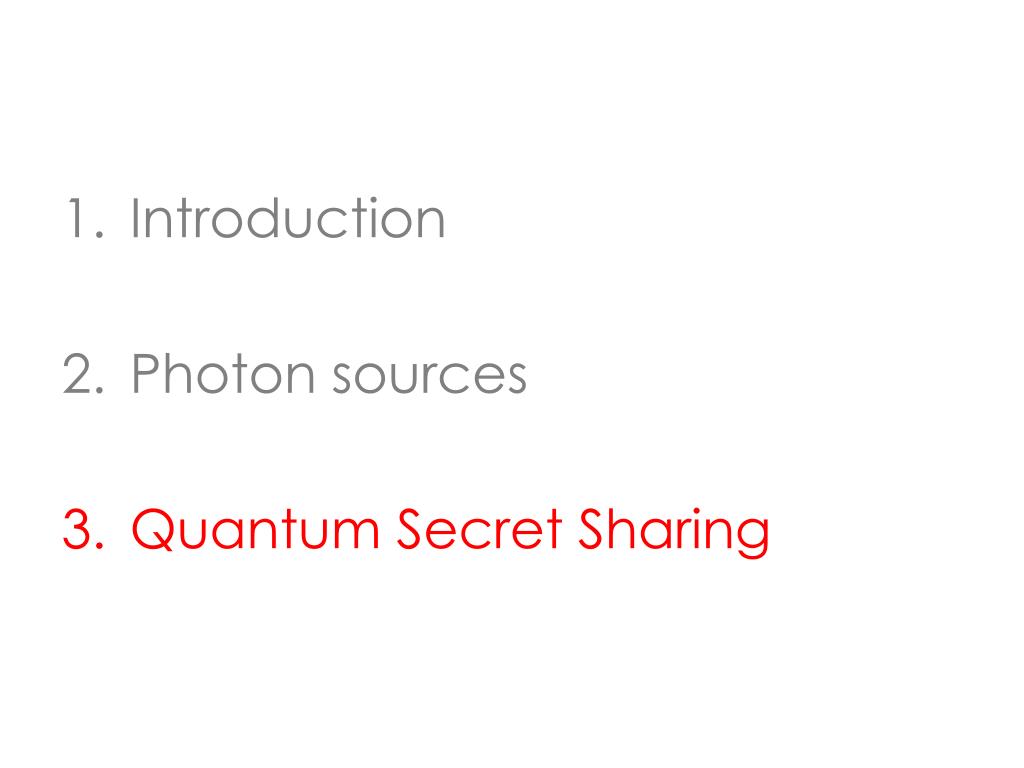

  19. Introduction • Photon sources • Quantum Secret Sharing

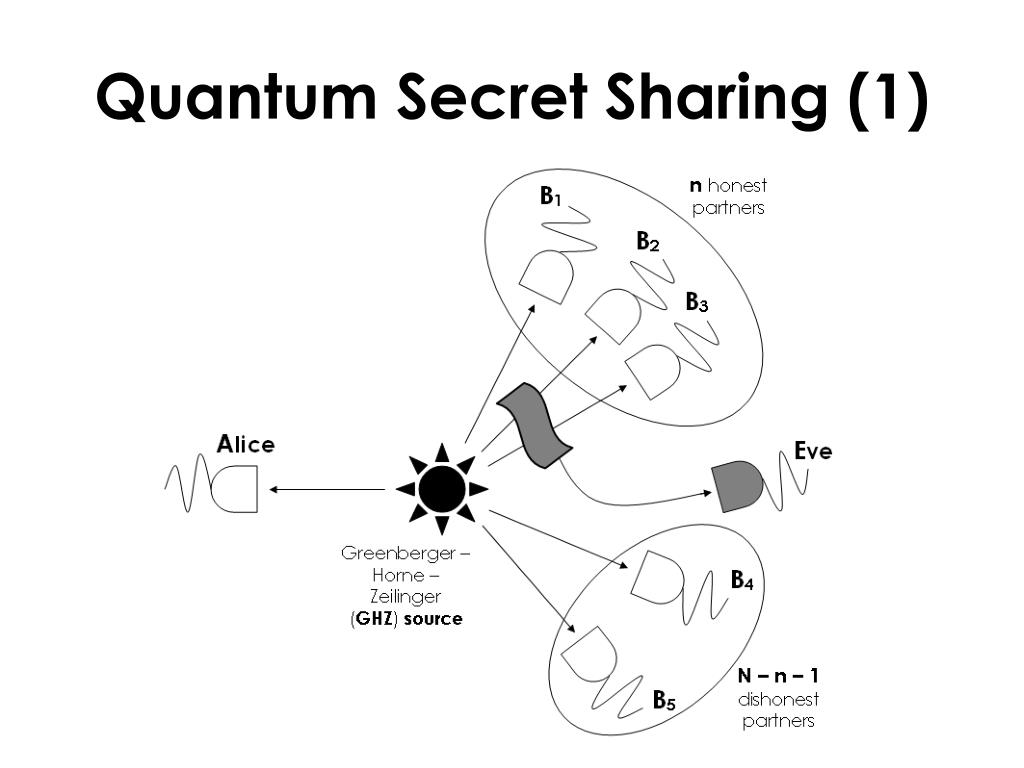

  20. Quantum Secret Sharing (1)

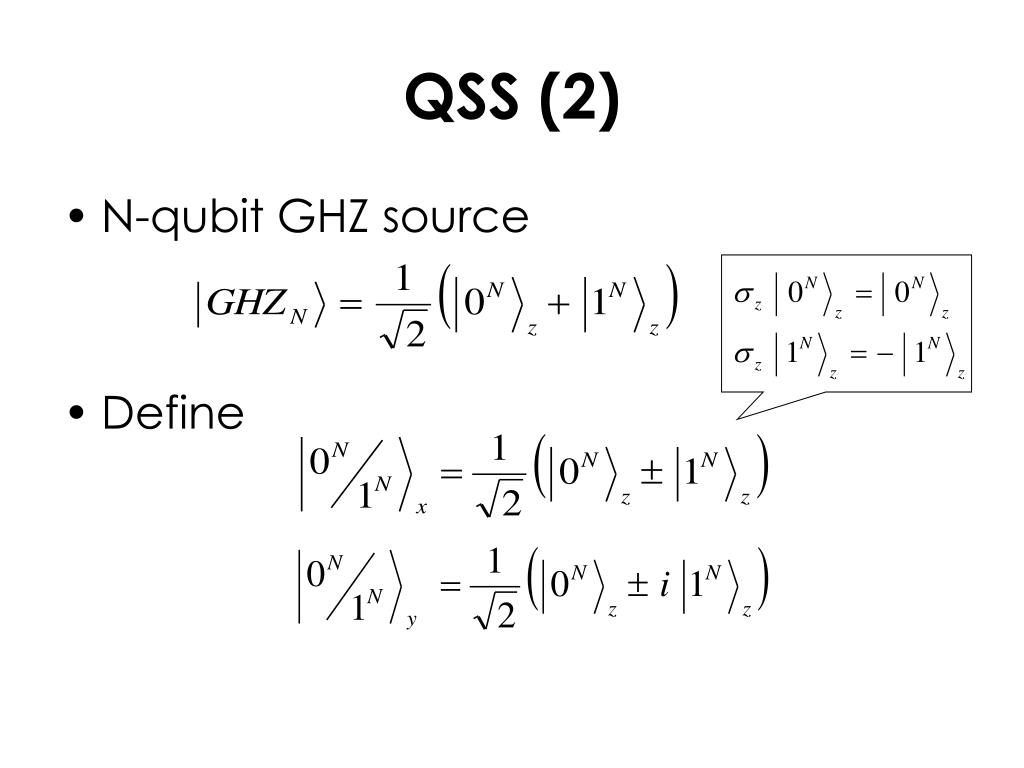

  21. QSS (2) • N-qubit GHZ source • Define

  22. Goodbye GHZ, welcome single qubit

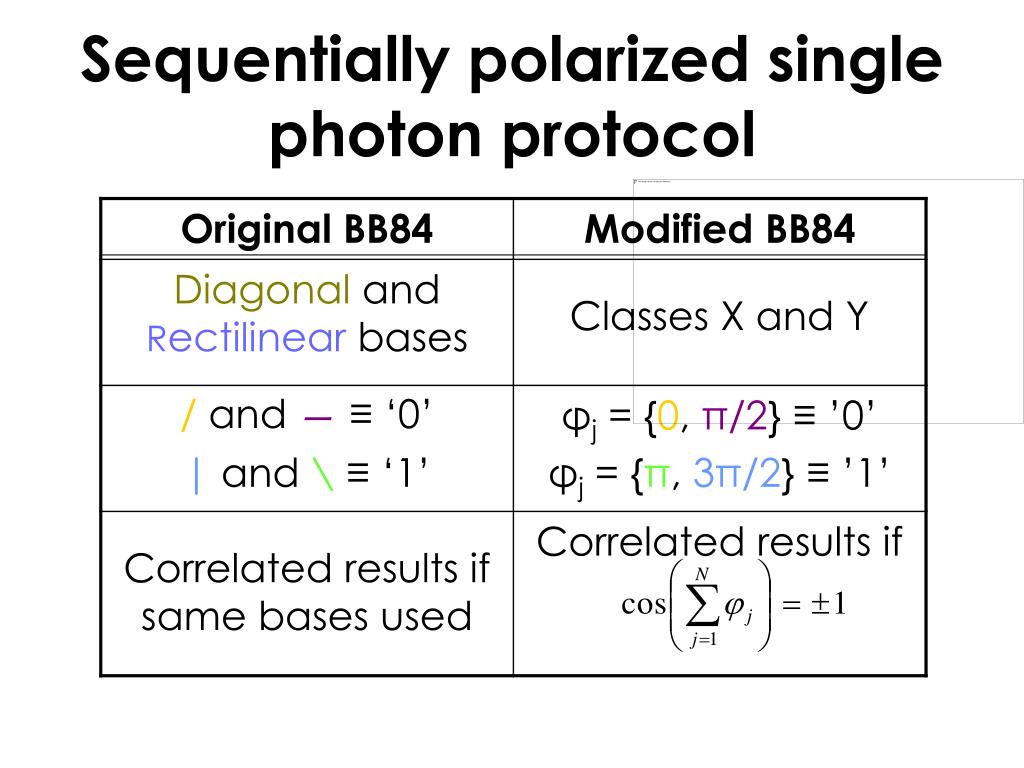

  23. Sequentially polarized single photon protocol

  24. Questions ?
