R trees a dynamic index structure for spatial searching by a guttman sigmod 1984 l.jpg

R-TREES: A Dynamic Index Structure for Spatial Searchingby A. Guttman, SIGMOD 1984.

Shahram Ghandeharizadeh

Computer Science Department

University of Southern California


Motivating example l.jpg

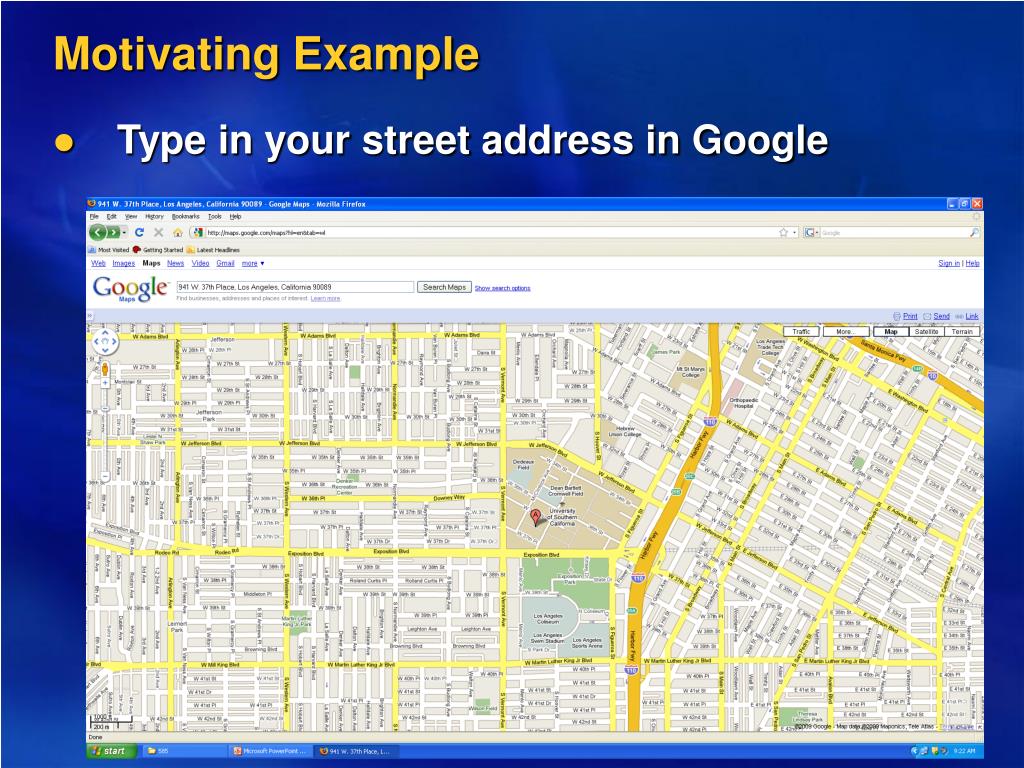

Motivating Example

  • Type in your street address in Google


Example cont l.jpg

Example (Cont…)

  • Show me all the pizza places close by:


Terminology l.jpg

Terminology

  • Example query is termed a spatial query.

  • R-tree is a spatial index structure.

    • K-D-B trees are useful for point data only.

      • Exact-point lookup!

        • Show me the USC Salvatory Computer Science building.

    • R-tree represents data objects in intervals in several dimensions.

      • Exact-point and range lookups!

        • Show me all Pizza places in a 2 mile radius of USC Salvatory Computer Science building.

  • R-tree is:

    • A height-balanced tree similar to B-tree with index records in its leaf nodes containing pointers to data objects.

    • A node is a disk page.

    • Assumes each tuple has a unique identifier, RID.


R tree leaf nodes l.jpg

R-Tree: Leaf Nodes

  • Leaf nodes contain index records:

    • (I, tuple-identifier)

  • tuple-identifier is RID,

  • I is an n-dimensional rectangle that bounds the indexed spatial object

  • I = (I0, I1, …, In-1) where n is the number of dimensions.

  • Ii is a closed bounded interval [a,b] describing the extent of the object along dimension i.

  • Values for a and b might be infinity, indicating an unbounded object along dimension i.


R tree non leaf nodes l.jpg

R-Tree: Non-leaf nodes

  • Non-leaf nodes contain entries of the form:

  • (I, child-pointer)

  • Child-pointer is the address of a lower node in the R-Tree.

  • I covers all rectangles in the lower node’s entries.


R tree a 2 d n 2 example l.jpg

R-Tree: A 2-D (n=2) Example


R tree non leaf nodes8 l.jpg

R-Tree: Non-leaf nodes

  • Non-leaf nodes contain entries of the form:

  • (I, child-pointer)

  • Child-pointer is the address of a lower node in the R-Tree.

  • I covers all rectangles in the lower node’s entries.

  • Questions?


R tree non leaf nodes9 l.jpg

R-Tree: Non-leaf nodes

  • Non-leaf nodes contain entries of the form:

  • (I, child-pointer)

  • Child-pointer is the address of a lower node in the R-Tree.

  • I covers all rectangles in the lower node’s entries.

  • Questions?

What is this?


R tree non leaf nodes10 l.jpg

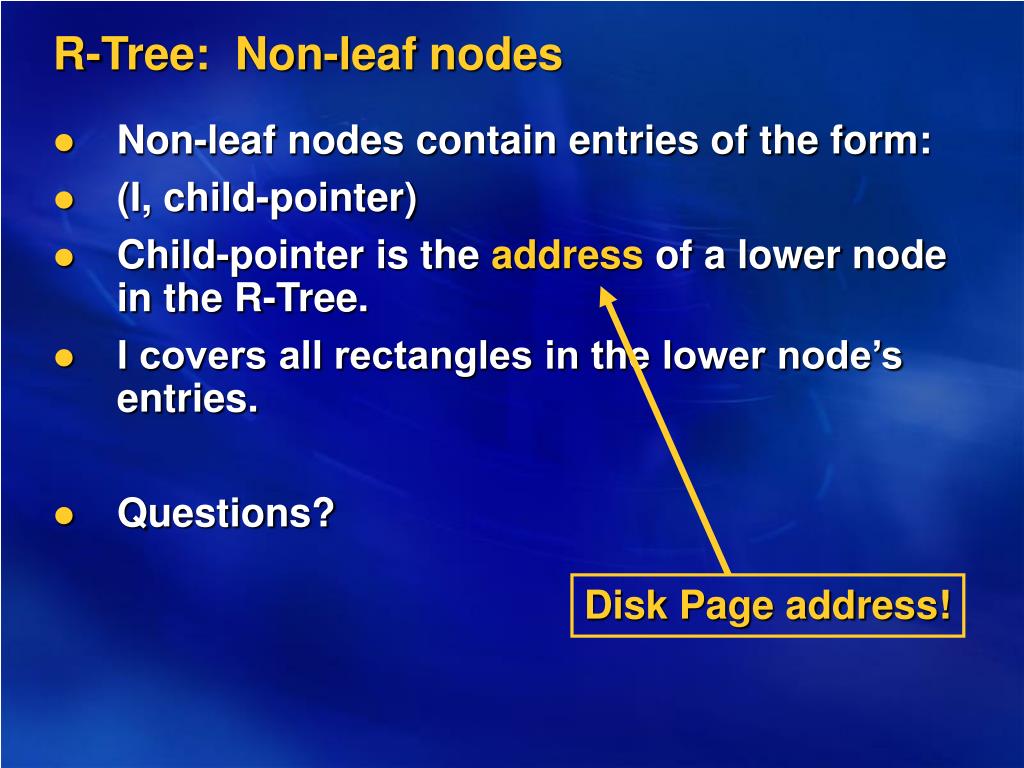

R-Tree: Non-leaf nodes

  • Non-leaf nodes contain entries of the form:

  • (I, child-pointer)

  • Child-pointer is the address of a lower node in the R-Tree.

  • I covers all rectangles in the lower node’s entries.

  • Questions?

Disk Page address!


R tree non leaf nodes11 l.jpg

R-Tree: Non-leaf nodes

  • Non-leaf nodes contain entries of the form:

  • (I, child-pointer)

  • Child-pointer is the address of a lower node in the R-Tree.

  • I covers all rectangles in the lower node’s entries.

  • Questions?

How about this? What is it?


R tree non leaf nodes12 l.jpg

R-Tree: Non-leaf nodes

  • Non-leaf nodes contain entries of the form:

  • (I, child-pointer)

  • Child-pointer is the address of a lower node in the R-Tree.

  • I covers all rectangles in the lower node’s entries.

  • Questions?

An n dimensional rectangle:

I = (I0, I1, …, In-1)


R tree properties l.jpg

R-tree: Properties

  • Assume:

    • M = Maximum number of entries in a node.

    • m <= M/2

    • N = Number of records

  • R-tree has the following properties:

    • Every leaf node contains between m and M index records. Root node is the exception.

    • For each index record (I, tuple-identifier) in a leaf node, I is the smallest rectangle that spatially contains the n dimensional data object represented in the indicated tuple.

    • Every non-leaf node has between m and M children. Root node is the exception.

    • For each entry (I, child-pointer) in a non-leaf node, I is the smallest rectangle that spatially contains the rectangles in the child node.

    • The root node has at least two children unless it is a leaf.

    • All leaves appear on the same level.

    • Height of a tree = Ceiling(logmN)-1.

    • Worst case utilization for all nodes except the root is m/M.


Searching l.jpg

Descend from root to leaf in a B+-tree manner.

If multiple sub-trees contain the point of interest then follow all.

Assume:

EI denotes the rectangle part of an index entry E,

Ep denotes the tuple-identifier or child-pointer.

Search (T: Root of the R-tree, S: Search Rectangle)

If T is not a leaf, check each entry E to determine whether EI overlaps S. For all overlapping entries, invoke Search(Ep, S).

If T is a leaf, check all entries E to determine whether EI overlaps S. If so, E is a qualifying record.

Searching


Insertion l.jpg

Insertion

  • Similar to B-trees, new index records are added to the leaves, nodes that overflow are split, and splits propagate up the tree.

  • Insert (T: Root of the R-tree, E: new index entry)

    • Find position for new record: Invoke ChooseLeaf to select a leaf node L in which to place E.

    • Add record to leaf node: If L has room for E then insert E and return. Otherwise, invoke SplitNode to obtain L and LL containing E and all the old entries of L.

    • Propagate changes upwards: Invoke AdjustTree on L, also passing LL if a split was performed.

    • Grow tree taller: If node split propagation caused the root to split, create a new root whose children are the two resulting nodes.


Insertion chooseleaf l.jpg

ChooseLeaf (E: new index entry)

Initialize: Set N to be the root node,

Leaf check: If N is a leaf, return N.

Choose subtree: Let F be the entry in N whose rectangle FI needs least enlargement to include E. Resolve ties by choosing the entry with the rectangle of smallest area.

Descend until a leaf is reached: Set N to be the child node pointed to by Fp and repeat from step 2.

Insertion: ChooseLeaf


Splitnode node splitting l.jpg

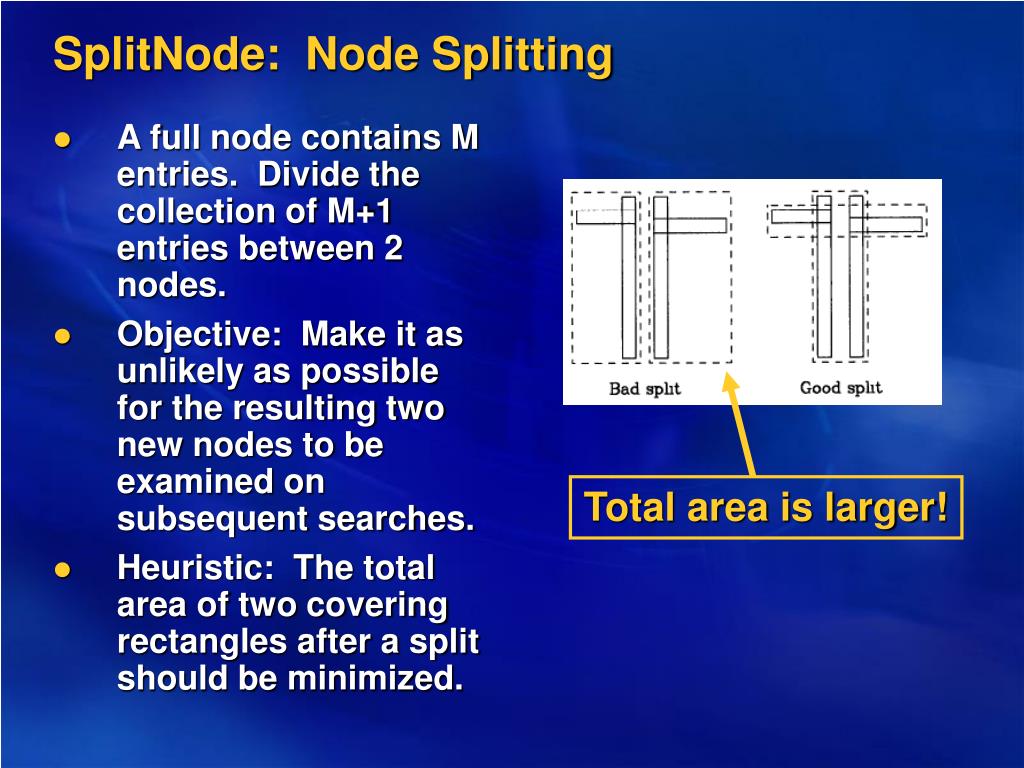

A full node contains M entries. Divide the collection of M+1 entries between 2 nodes.

Objective: Make it as unlikely as possible for the resulting two new nodes to be examined on subsequent searches.

Heuristic: The total area of two covering rectangles after a split should be minimized.

SplitNode: Node Splitting

Total area is larger!


Splitnode node splitting18 l.jpg

A full node contains M entries. Divide the collection of M+1 entries between 2 nodes.

Objective: Make it as unlikely as possible for the resulting two new nodes to be examined on subsequent searches.

Heuristic: The total area of two covering rectangles after a split should be minimized.

SplitNode: Node Splitting

Total area is larger!


Node splitting how l.jpg

Node Splitting: How?

  • How to find the minimum area node split?

    • Exhaustive algorithm,

    • Quadratic-cost algorithm,

    • Linear cost algorithm.


Exhaustive algorithm l.jpg

Exhaustive Algorithm

  • Generate all possible groups and choose the best with minimum area.

  • Number of possibilities ~ 2 to power of M-1

    • M ~ 50  Number of possibilities ~ 600 Trillion


Exhaustive algorithm21 l.jpg

Exhaustive Algorithm

  • Generate all possible groups and choose the best with minimum area.

  • Number of possibilities ~ 2 to power of M-1

    • M ~ 50  Number of possibilities ~ 600 Trillion

    • US deficit pales!


Quadratic cost algorithm l.jpg

A heuristic to find a small-area split.

Cost is quadratic in M and linear in the number of dimensions.

Pick two of the M+1 entries to be the first elements of the two new groups.

Choose these in a manner to waste the most area if both were put in the same group.

Assign remaining entries to groups one at a time.

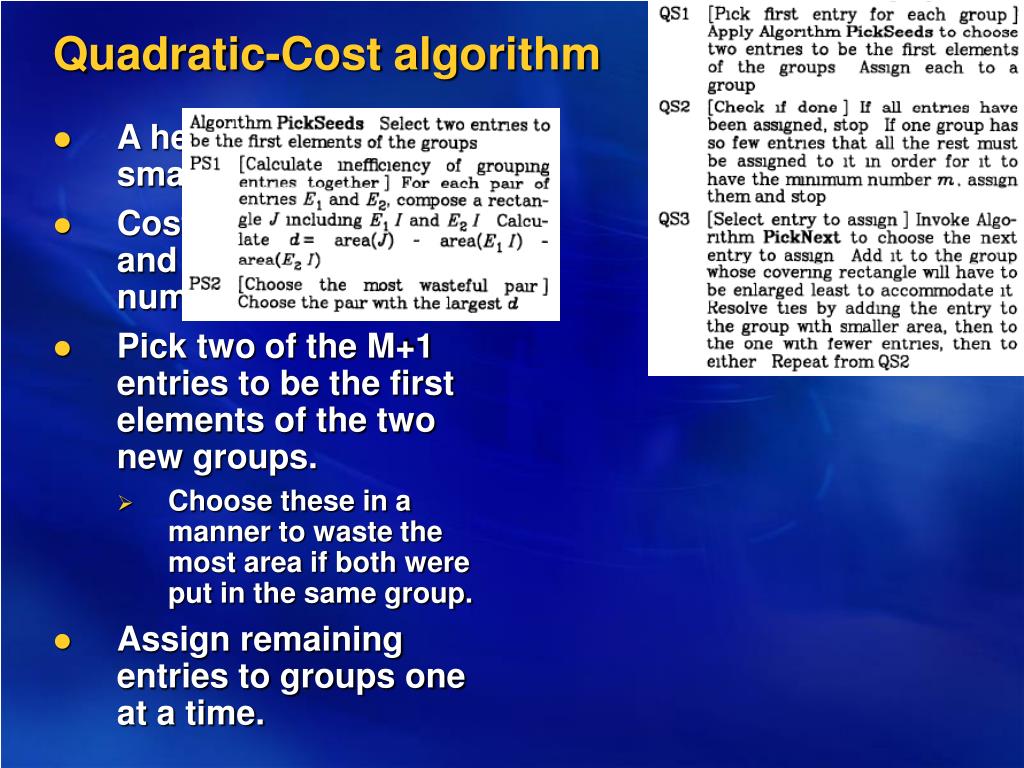

Quadratic-Cost algorithm


Quadratic cost algorithm23 l.jpg

A heuristic to find a small-area split.

Cost is quadratic in M and linear in the number of dimensions.

Pick two of the M+1 entries to be the first elements of the two new groups.

Choose these in a manner to waste the most area if both were put in the same group.

Assign remaining entries to groups one at a time.

Quadratic-Cost algorithm


Quadratic cost algorithm24 l.jpg

A heuristic to find a small-area split.

Cost is quadratic in M and linear in the number of dimensions.

Pick two of the M+1 entries to be the first elements of the two new groups.

Choose these in a manner to waste the most area if both were put in the same group.

Assign remaining entries to groups one at a time.

Quadratic-Cost algorithm


Linear cost algorithm l.jpg

Identical to Quadratic with the following differences:

Uses a different version of PickSeeds.

PickNext simply chooses any of the remaining entries.

Linear Cost Algorithm

Linear: Choose two objects that are furthest apart.

Quadratic: Choose two objects that create as much empty space as possible.


Comparison l.jpg

Comparison

  • Linear node-split is simple, fast, and as good as quadratic!

    • Quality of the splits is slightly worse!


Insertion27 l.jpg

Insertion

  • Similar to B-trees, new index records are added to the leaves, nodes that overflow are split, and splits propagate up the tree.

  • Insert (T: Root of the R-tree, E: new index entry)

    • Find position for new record: Invoke ChooseLeaf to select a leaf node L in which to place E.

    • Add record to leaf node: If L has room for E then insert E and return. Otherwise, invoke SplitNode to obtain L and LL containing E and all the old entries of L.

    • Propagate changes upwards: Invoke AdjustTree on L, also passing LL if a split was performed.

    • Grow tree taller: If node split propagation caused the root to split, create a new root whose children are the two resulting nodes.


Adjusttree l.jpg

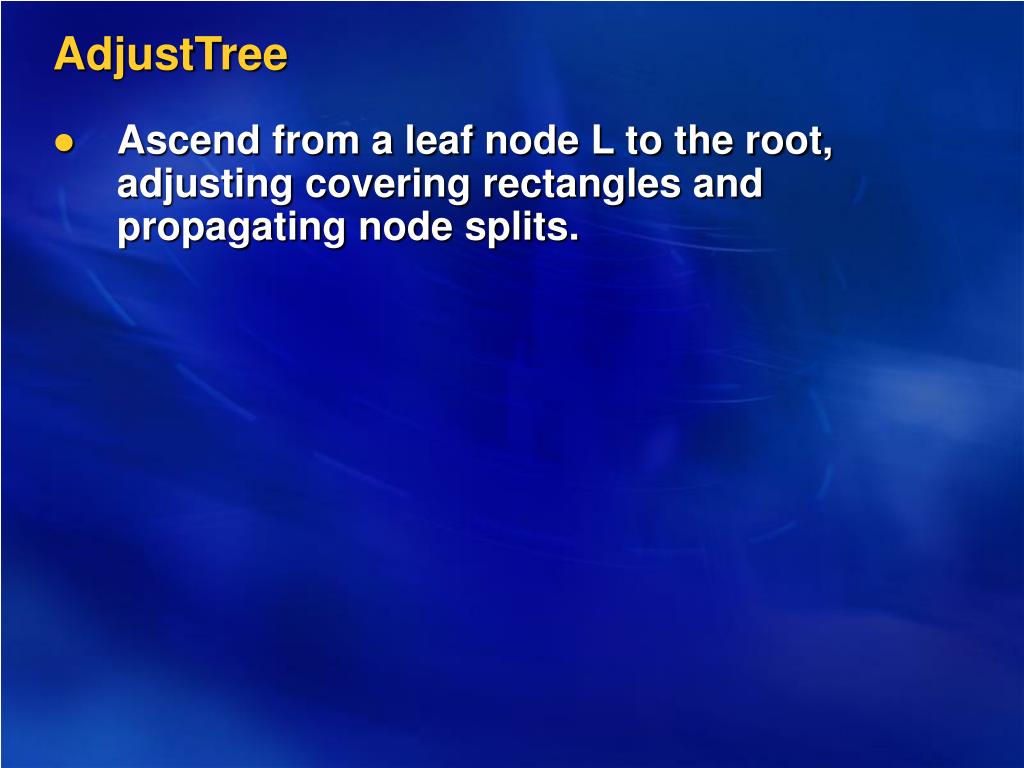

AdjustTree

  • Ascend from a leaf node L to the root, adjusting covering rectangles and propagating node splits.


Deletes l.jpg

Deletes

  • Straightforward. The only complication is under-flows:

  • An under-full node can be merged with whichever sibling will have its area increased least.

    • Orphaned entries are inserted back into the R-Tree.


R tree l.jpg

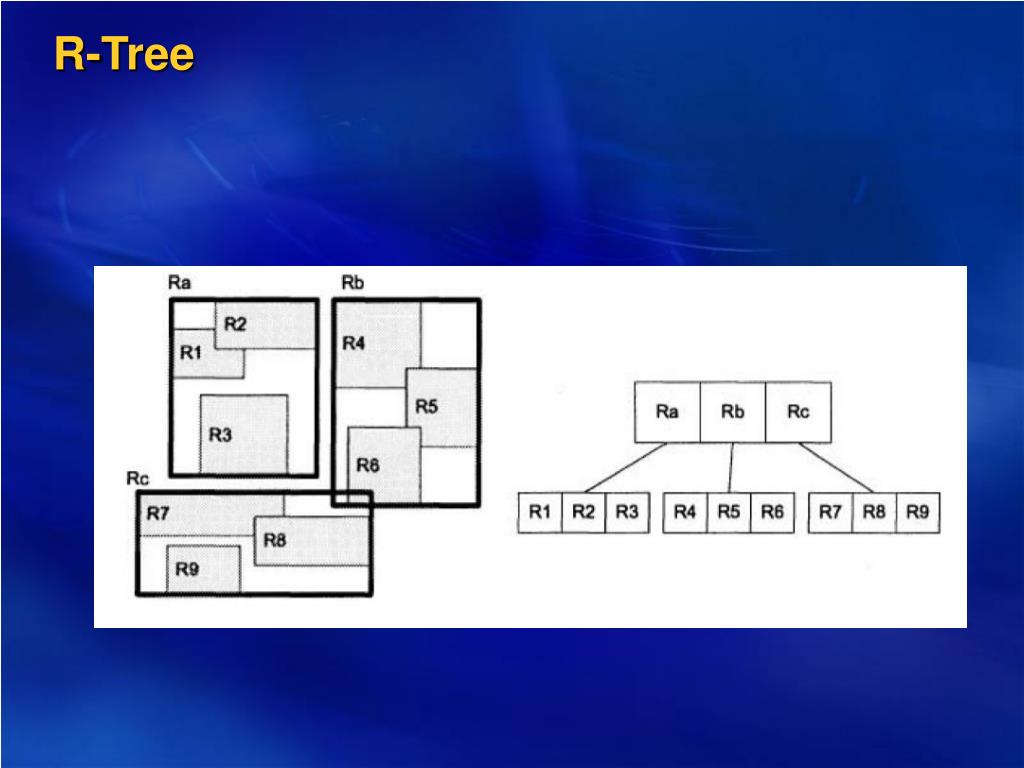

R-Tree


R tree variations l.jpg

R-tree Variations

  • R+-tree enhances retrieval performance by avoiding visiting multiple paths when searching for point queries.

    • No overlap for minimum bounding rectangels at the same level.

    • Specific object’s entry might be duplicated.

    • Insertions might lead to a series of update operations in a chain-reaction.

    • Under certain circumstances, the structure may lead to a deadlock, e.g., every rectangle encloses a smaller one.


R tree 1990 l.jpg

R*-tree [1990]

  • Node split is more sophisticated.

    • Does not obey the limitation of the number of pairs per node.

    • When a node overflows, p entries are extracted and reinserted in the tree (p might be 25%).

    • Considers minimization of:

      • the overlapping between minimum bounding rectangles at the same level.

      • the perimeter of the produced minimum bounding rectangles.

  • Insertion is more expensive while retrievals are faster.


Static r trees l.jpg

Static R-trees

  • Assumes the dataset is known in advance.

  • Static R-trees are more efficient than dynamic ones:

    • Tree structure is more compact,

    • Contains fewer news,

    • Overlap between minimum bounding rectangles is reduced.


Summary l.jpg

Summary

  • R-tree is a spatial index structure that provides competitive average performance.

  • Many different variations in the literature:

    • Spatio-temporal access methods, 3-d R-tree.

    • Historical R-trees and Time-Parameterized R-tree fo spatiotemporal applications.

  • Have been used to speed-up operations in OLAP applications, data warehouses and data mining.
