  1. WIND TURBINE PROJECT Group members: Devon Martinez Vu Nguyen Alex Oyler

  2. Building process • - Identify: Wind turbine that can produce 6W of power- Ideation: Darrieus, Lenz and Savonius rotors

  3. - Refinement: Darius and Lenz rotors, materials chosen, foam insulation, rip-stop nylon- Analysis: Darrieus and Lenz rotors built

  4. Discussion • Bill of materials • Viability:Based on our reasonable dimensions, materials… associated with the components, the prototype will be able to charge a cell-phone of 5-6 W of energy.

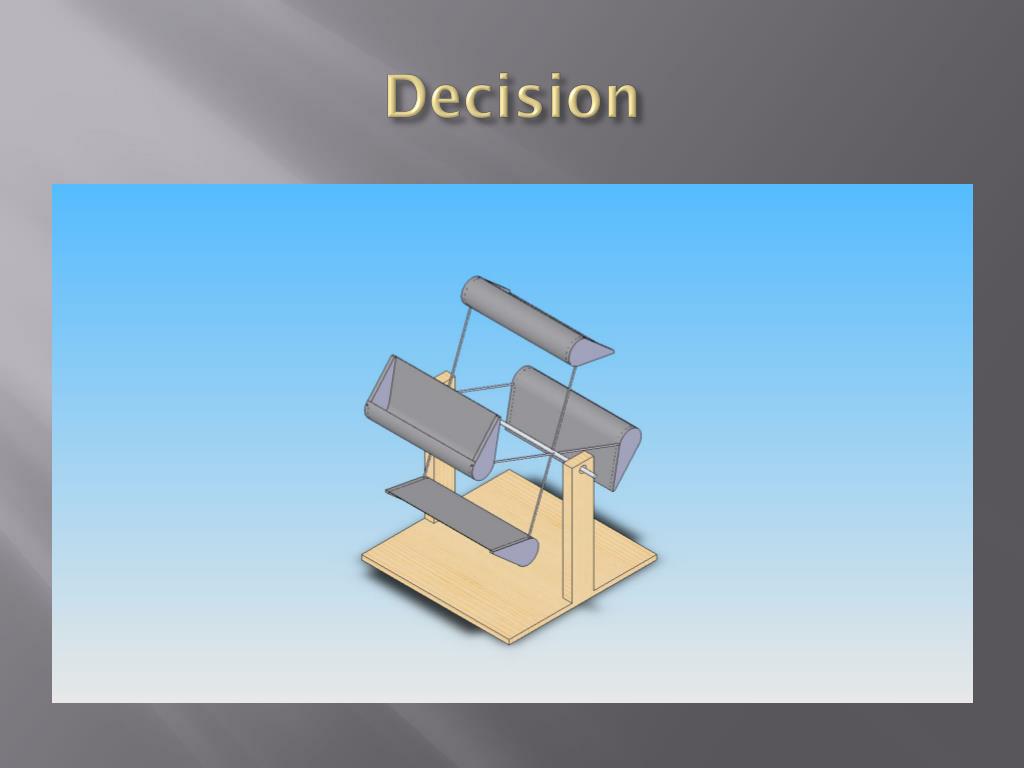

  5. Decision

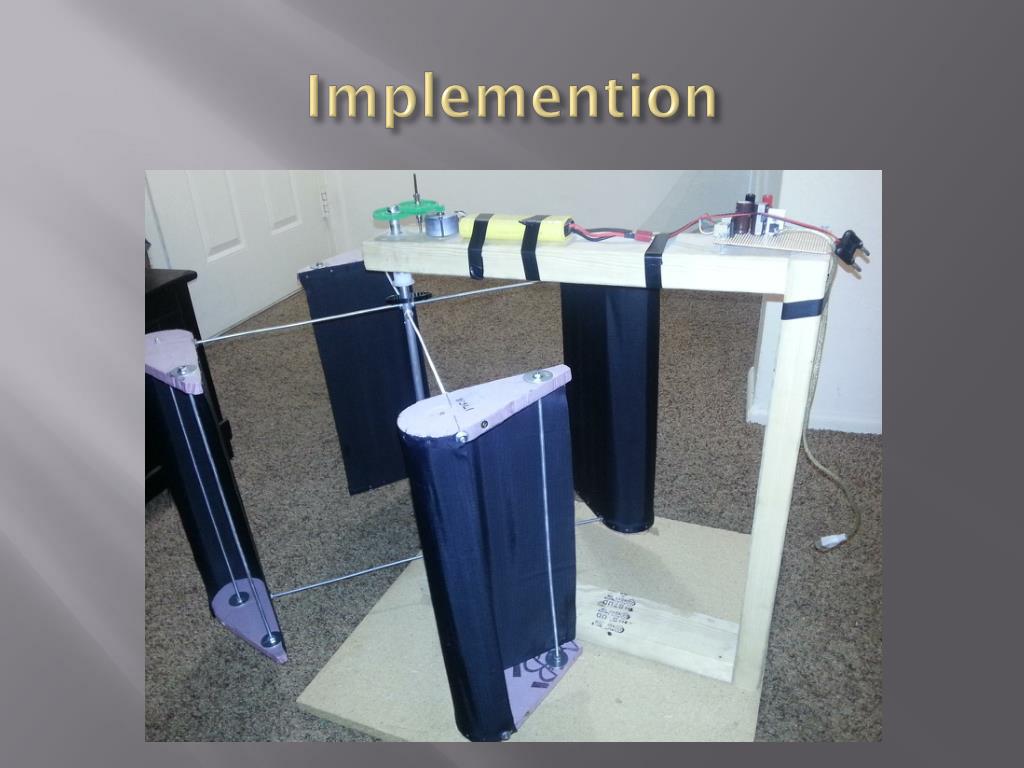

  6. Implemention
