Presentation Transcript


The mushroom tower l.jpg

The Mushroom Tower

By:

Max Winek, Stew Shannon, Raza Memon,

Christopher Smith, David Weil


Problem statement l.jpg

Problem Statement

  • Our team has been selected by C/S to design and model/prototype an architecturally appealing building-integrated wind energy generation system. The forces are driving the building integrated wind energy market include:

  • Green building movement

  • Skyrocketing energy prices

  • Building energy retrofitting

  • Reduced dependence on foreign oil

  • Growing interest & awareness in renewable energy

  • Increased government incentives

  • Improved technologies


Mission statement l.jpg

Mission Statement

  • Design an architecturally appealing building-integrated wind energy generation system.  The primary objective is the integration and application of wind energy generation technology into commercial building types.  A successful product would enable new product growth while advocating clean energy production.


Possible solutions l.jpg

Possible Solutions

Jenga

Road Down Under

Funnel

Mushroom Building


Possible solutions5 l.jpg

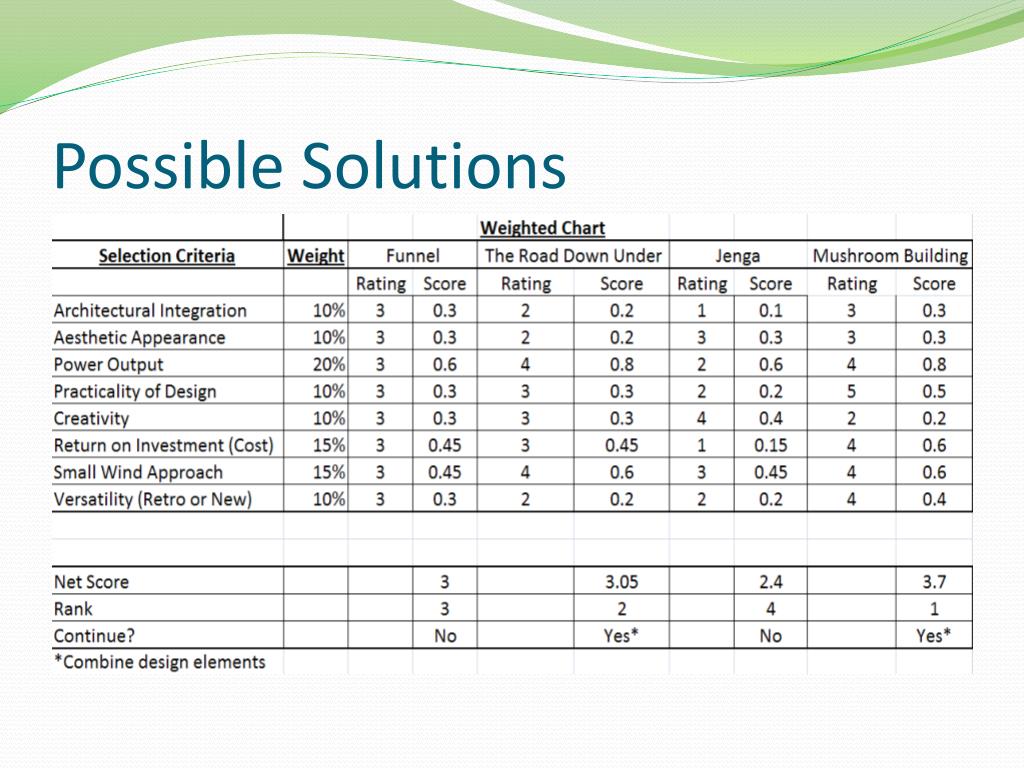

Possible Solutions


The chosen design l.jpg

The Chosen Design

  • Our chosen design was the mushroom tower

  • It will consist of a “cap” at the top of a building (recommended for skyscrapers) which will funnel in wind

  • Fins will funnel wind towards the turbines and support the cap

  • Wind will flow through turbines and out the top of the cap

  • Variations of the mushroom cap can be made to alter the dimensions or the aesthetic appearance


Design features l.jpg

Design Features

  • Aluminum Alloy Cap

  • 60 4ft radius Horizontal Axis Wind Turbines for electricity

  • Design uses small wind approach

  • 64 Fins to straighten out the wind and provide support


Engineering analysis l.jpg

Engineering Analysis

Headwinds are strongest coming up to the top of the building

Creating a “cap” will capture the wind that blows up and over the side of the building

The wind will be allowed to escape out the middle of the cap so it doesn’t interfere with wind flow inside the rest of the cap

http://www.urban-wind.org/pdf/SMALL_WIND_TURBINES_GUIDE_final.pdf


Power output l.jpg

Power Output

  • Pmax = ½ ρ A V^3

  • Pmax= 0.5*(1.2kg/m^3)*(5.6m^3)*(3.97m/s)^3

  • Pmax= 210.24 watts or Joules/second per turbine

  • P = 0.59 Na Nb Ng Pmax (coefficients chosen by average wind turbine capability)

  • Actual Power = 0.226* Pmax

  • 47.51 watts per turbine and 60 turbines total = 2.85 kilowatts


Return on investment l.jpg

Return on Investment

  • How much money will you save from this investment?

  • Example City: Albany, New York

  • If you receive the wanted 8.9 mph winds for 12 hours every day, you would produce approximately 12,480 kilowatts in one year

  • If each of the 60 turbines cost about $400, then total price = $24,000

  • Average electricity in New York cost .1578dollars/kw-hour in Jan-09, so Break-Even Point would be in 12.2 years from time of investment

  • Depending on variation of wind or energy prices, the amount of profit received could increase

  • Other “soft” benefits would be the source of cleaner wind energy


Summary and conclusions l.jpg

Summary and Conclusions

  • Through concept generation and the engineering design process, we chose the mushroom tower

  • This design will not be able to fully supply all of the building’s energy needs but it will reduce the costs

  • Break-Even Point = 12.2 years

  • One skyscraper will not make a significant difference but many will help to combat the energy crisis with clean and green energy
