Bank-aware Dynamic Cache Partitioning for Multicore Architectures

1. Bank-aware Dynamic Cache Partitioning for Multicore Architectures Dimitris Kaseridis1Jeff Stuecheli1,2 & Lizy K. John1 1University of Texas – Austin 2IBM – Austin Laboratory for Computer Architecture

2. Outline • Motivation/background • Cache partitioning/profiling • Proposed system • Results • Conclusion/future work Laboratory for Computer Architecture

3. Motivation • Shared resources in CMPs • Last Level Cache • Memory bandwidth • Opportunity and Pitfalls • Constructive • Mixing low and high cache requirements in shared pool • Destructive • Thrashing workloads (spec cpu 2000 art + mcf) • Cache partitioning required • Primary opportunity requires heterogeneous workload mixes • Typical in consolidation + virtualization Laboratory for Computer Architecture

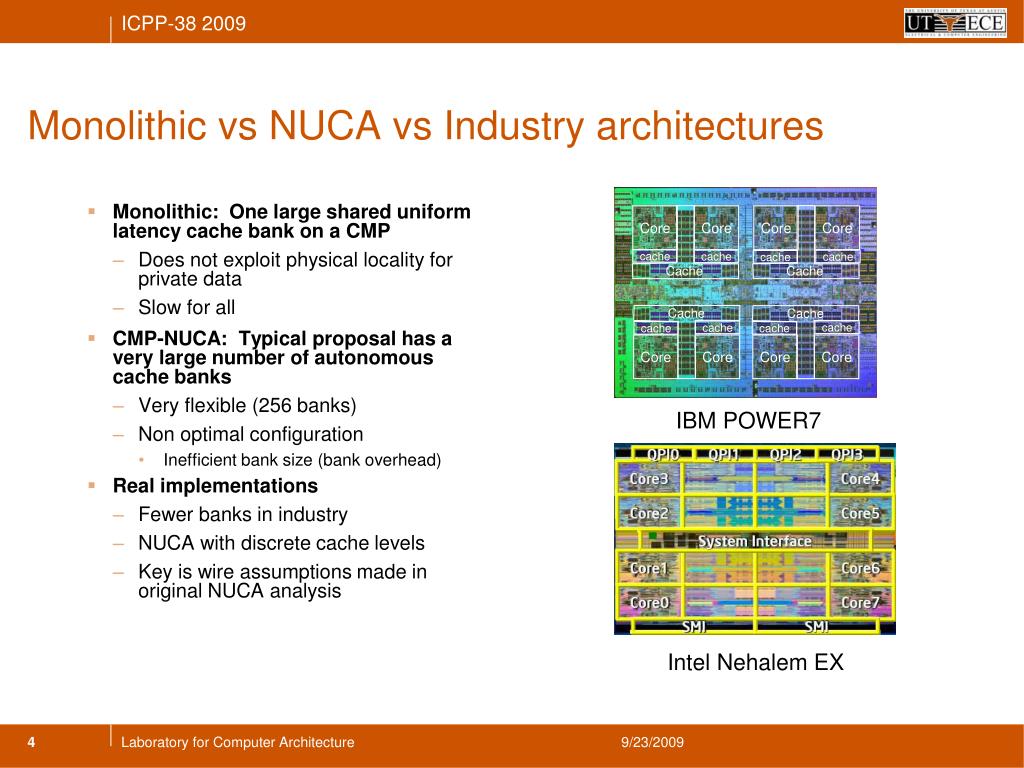

4. Cache Cache Cache Cache Monolithic vs NUCA vs Industry architectures • Monolithic: One large shared uniform latency cache bank on a CMP • Does not exploit physical locality for private data • Slow for all • CMP-NUCA: Typical proposal has a very large number of autonomous cache banks • Very flexible (256 banks) • Non optimal configuration • Inefficient bank size (bank overhead) • Real implementations • Fewer banks in industry • NUCA with discrete cache levels • Key is wire assumptions made in original NUCA analysis Core Core Core Core cache cache cache cache cache cache cache cache Core Core Core Core IBM POWER7 Intel Nehalem EX Laboratory for Computer Architecture

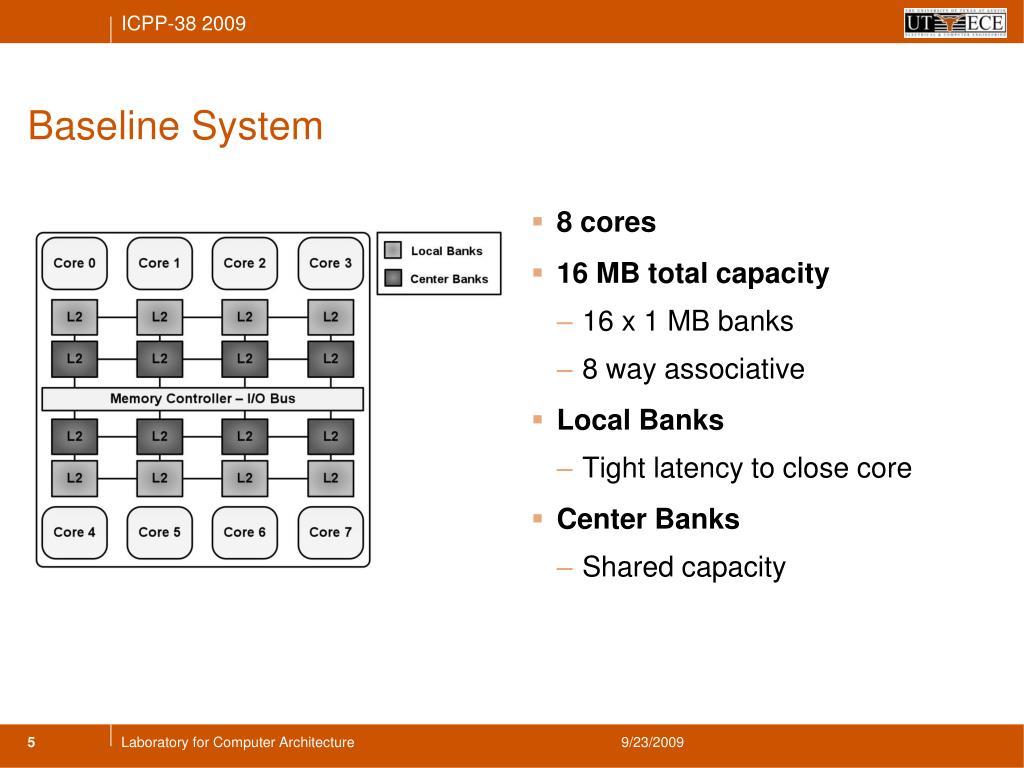

5. Baseline System • 8 cores • 16 MB total capacity • 16 x 1 MB banks • 8 way associative • Local Banks • Tight latency to close core • Center Banks • Shared capacity Laboratory for Computer Architecture

6. Cache Partitioning/Profiling Laboratory for Computer Architecture

7. Cache Sharing/Partitioning • Last level cache of CMP • Once isolated resources now shared • Drove need for isolation • Design space • Non-configurable • Shared vs private caches • Static partitioning/policy • Long term policy choice • Dynamic • Real time profiling directed partitions • Trial and error (experiment to find ideal configuration) • Predictive profilers • Non-invasive state space exploration (our system) Laboratory for Computer Architecture

8. Bank-aware cache partitions • System components • Non-invasive profiling using MSA (Mattson Stack Algorithm) • Cache allocation using marginal utility • Bank-aware LLC partitions Laboratory for Computer Architecture

9. MSA Based Cache Profiling • Mattson stack algorithm • Originally proposed to concurrently simulate many cache sizes • Structure is a true LRU cache • Stack distance from MRU of each reference is recorded • Misses can be calculated for fraction of ways Laboratory for Computer Architecture

10. ways Hardware MSA implementation • Naïve algorithm is prohibitive • Fully associative • Complete cache directory of maximum cache size for every core on the CMP (total size) • Reduction • Set Sampling • Partial Tags • Maximal Capacity • Configuration in paper • 12 bit tag • 1/32 set sampling • 9/16 bank per core • 0.4% overhead of cache on chip sets Laboratory for Computer Architecture

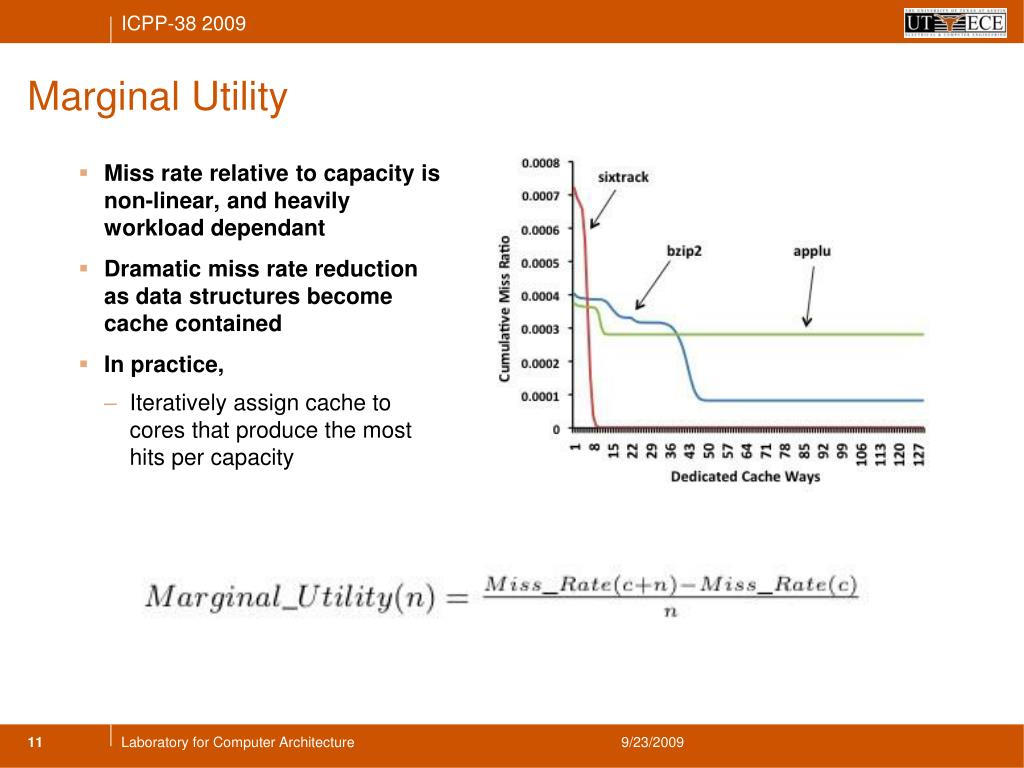

11. Marginal Utility • Miss rate relative to capacity is non-linear, and heavily workload dependant • Dramatic miss rate reduction as data structures become cache contained • In practice, • Iteratively assign cache to cores that produce the most hits per capacity Laboratory for Computer Architecture

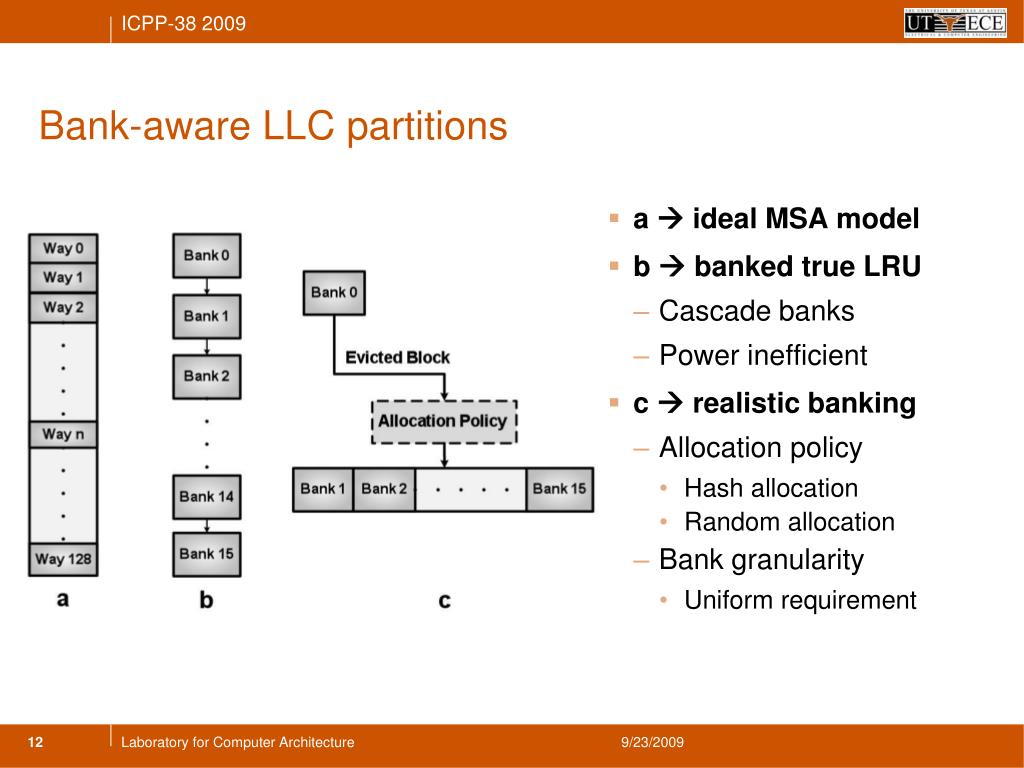

12. Bank-aware LLC partitions • a  ideal MSA model • b  banked true LRU • Cascade banks • Power inefficient • c  realistic banking • Allocation policy • Hash allocation • Random allocation • Bank granularity • Uniform requirement Laboratory for Computer Architecture

13. Bank-aware allocation heuristics • General idea • As capacity grows, courser assignment is good enough • Only share portions of Local cache banks between neighbors • Central banks are assigned to a specific core • Any core to receive central banks is also assigned full local capacity Laboratory for Computer Architecture

14. Cache allocation flowchart • Assign full cache banks first (steps 1-3) • All cores that have multiple banks are complete • Partition remaining local banks (steps 4-7) • Fine tune assignment • Sharing pairs Laboratory for Computer Architecture

15. Evaluation Laboratory for Computer Architecture

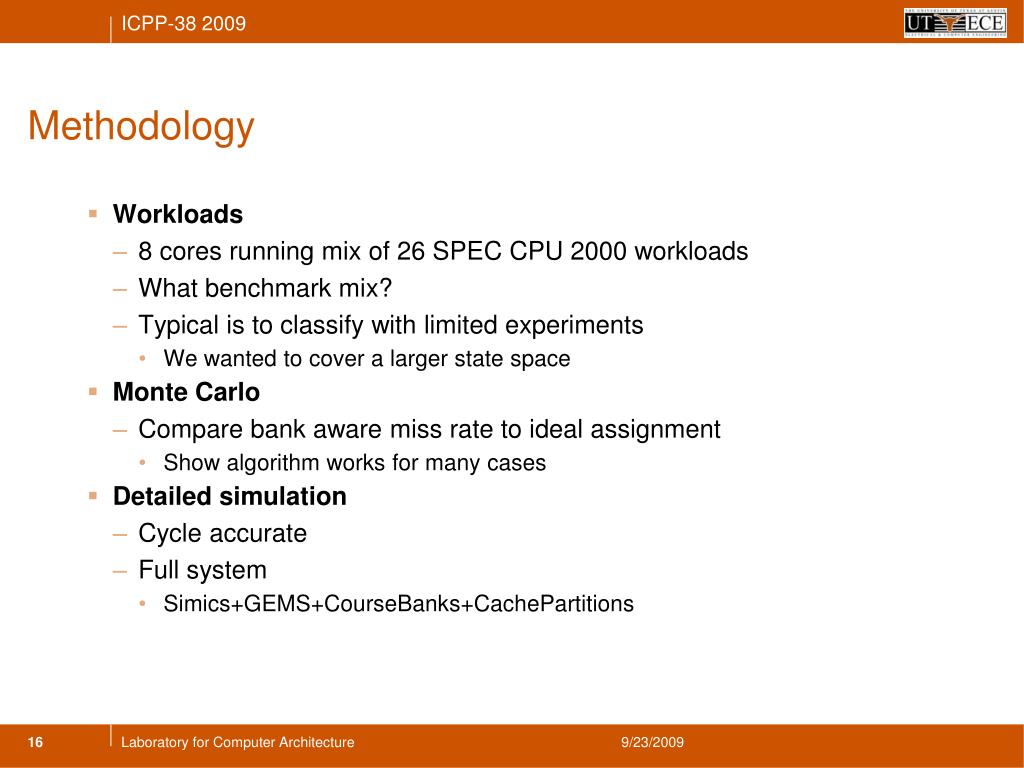

16. Methodology • Workloads • 8 cores running mix of 26 SPEC CPU 2000 workloads • What benchmark mix? • Typical is to classify with limited experiments • We wanted to cover a larger state space • Monte Carlo • Compare bank aware miss rate to ideal assignment • Show algorithm works for many cases • Detailed simulation • Cycle accurate • Full system • Simics+GEMS+CourseBanks+CachePartitions Laboratory for Computer Architecture

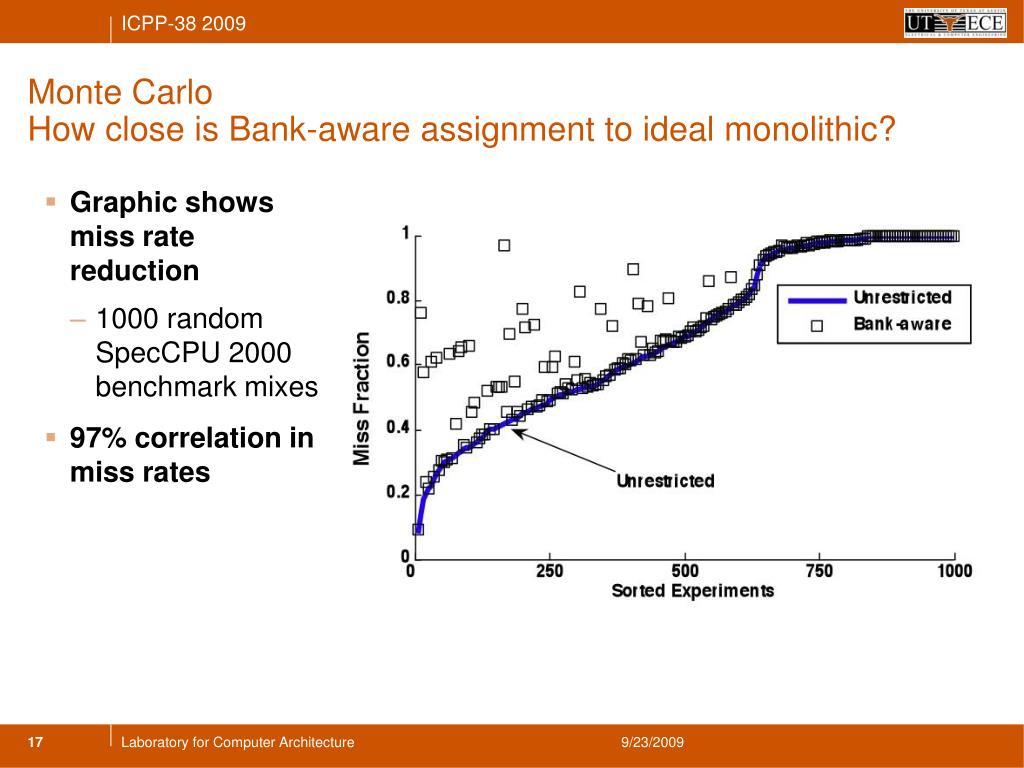

17. Monte CarloHow close is Bank-aware assignment to ideal monolithic? • Graphic shows miss rate reduction • 1000 random SpecCPU 2000 benchmark mixes • 97% correlation in miss rates Laboratory for Computer Architecture

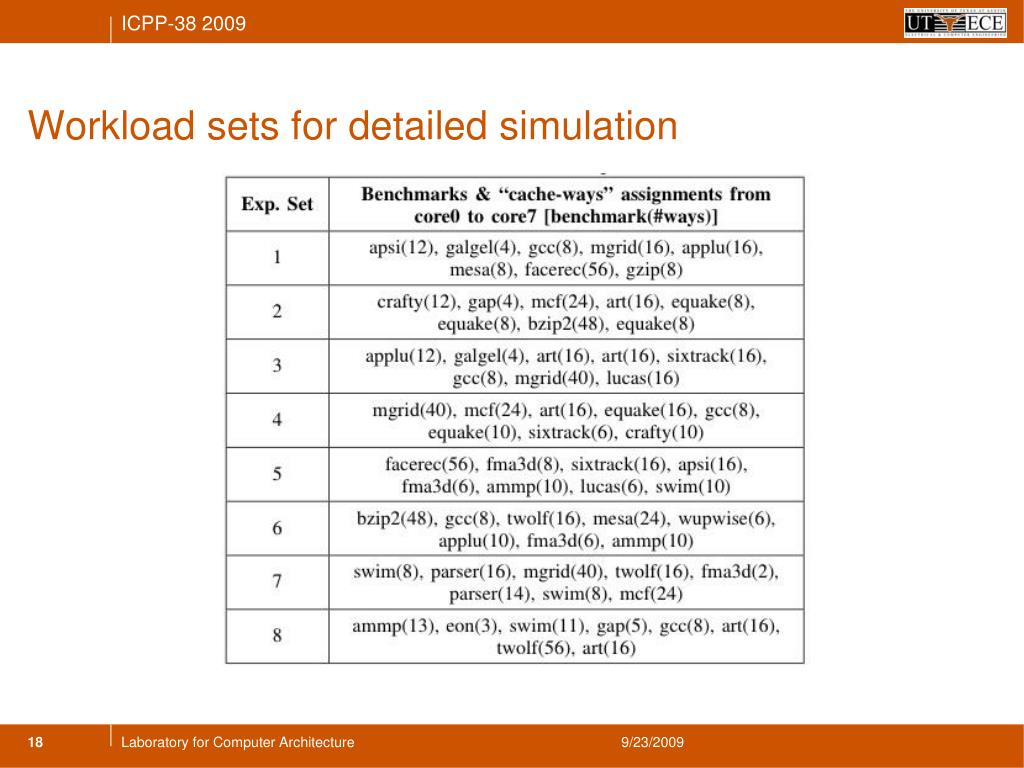

18. Workload sets for detailed simulation Laboratory for Computer Architecture

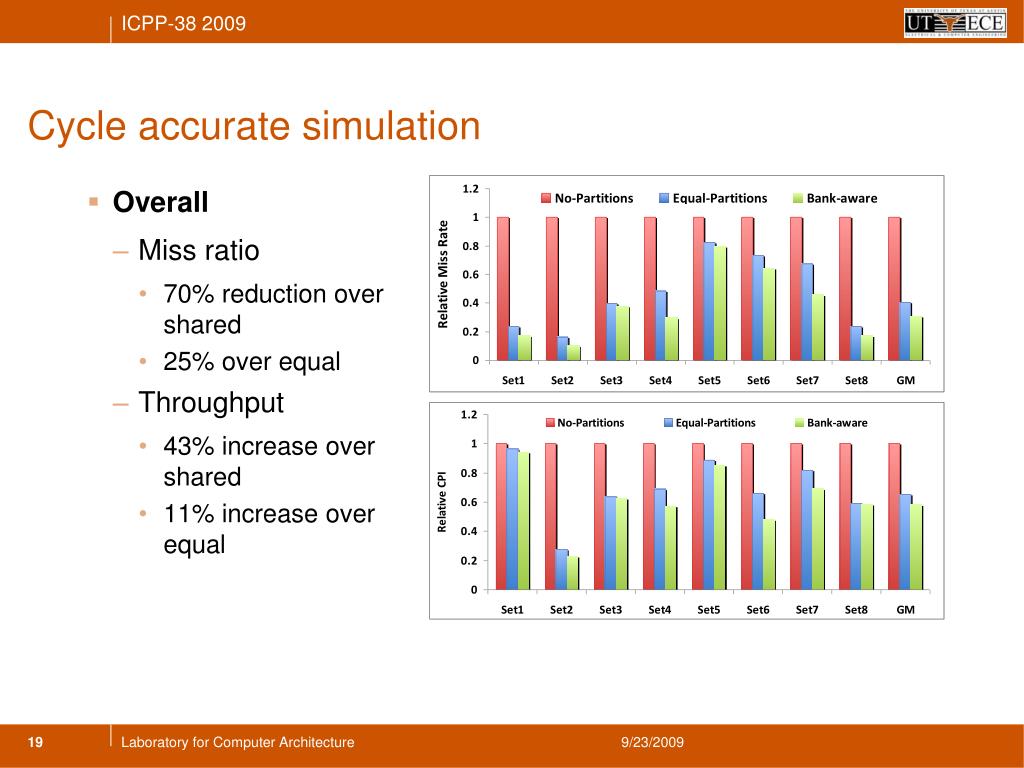

19. Cycle accurate simulation • Overall • Miss ratio • 70% reduction over shared • 25% over equal • Throughput • 43% increase over shared • 11% increase over equal Laboratory for Computer Architecture

20. Conclusion/future work • Significant miss rate reduction/throughput improvement possible • Partitions are very important • Marginal utility can work with realistic banked CMP caches • Heterogeneous Benchmarks needed • Can’t evaluate all combinations • Hand chosen combinations are hard to compare across proposals Laboratory for Computer Architecture

21. Thank You,Questions?Laboratory for Computer ArchitectureUniversity of Texas Austin&IBM Austin Laboratory for Computer Architecture
