  1. SIF Basics - Building a Working Knowledge and Vocabulary of  the Specification and Projecting ROI MIS 2009

  2. WelcomeandIntroductions

  3. Agenda • Overview • Software Components • ZIS • Agents • Applications • SIF Data Objects • SIF Data Elements • Other Concepts • Examples • Getting a bang for your buck – ROI and SIF

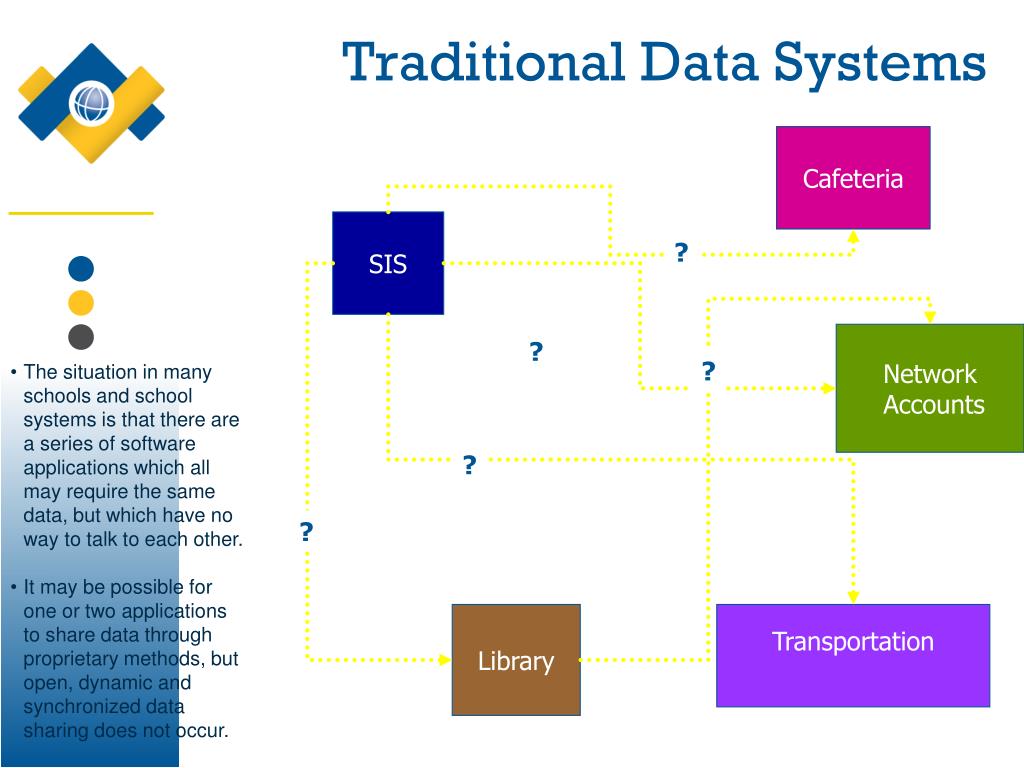

  4. Traditional Data Systems Cafeteria SIS ? Network Accounts ? ? • The situation in many schools and school systems is that there are a series of software applications which all may require the same data, but which have no way to talk to each other. • It may be possible for one or two applications to share data through proprietary methods, but open, dynamic and synchronized data sharing does not occur. ? ? Library Transportation

  5. SIF Overview SIS DirXML Network Account Library Automation H.R. & Finance Transportation • Zone Integration Server (ZIS) • SIF Agents • Applications • SIF Data Objects Grade Book Data Warehouse Instructional Services

  6. Software Components of a SIF Implementation • Zone Integration Server (ZIS) – The central point of data exchange in a SIF implementation. Provides queuing, security, and communication services to Agents. • Software vs. Hardware • SIF Agents – Software which allows an individual application to communicate via the SIF Infrastructure. An agent can publish and/or subscribe data. It sits on top of EACH application and is typically different from application to application. Multiple agents (at least 2) are needed in order to implement SIF.

  7. Zone Integration Server (ZIS) • Routes messages • Controls access – which agents are allowed to see which messages and request which information • Persists messages when agents are asleep • Configure HTTP or HTTPS transport • Health of Zone and Monitoring

  8. SIFData Model Application “Native” Agents: The Universal Translator • SIF Agents have 2 “faces” • Translate between the application and the SIF data model • Responsible for generating and processing SIF objects ZIS Agent Application

  9. SIF Agents • Publisher and Subscriber Agents • Publish – Events that may be published (currently) include Add, Change, and Delete. • Subscribe – The process of “listening” for and processing SIF Events. • Integrated vs. Standalone • Contains core business logic of Subscribing application

  10. Applications • Applications – Specific software for a particular department or internal client. Typical SIF applications include SIS, Directory, Transportation, Food Service, Library Science, Assessment, etc. • Determining “SIFAbility” of Applications in your network • SIF Certified vs. SIF “Compliant” • SIF Certification – Part of SIF’s product standard that includes 3rd party verification that the Application and Agent conform to the SIF specification. Certification includes a legal component that guarantees vendors will adapt their software to meet requirements, if needed. • SIF Compliance– A general term used by software vendors that are not Certified. Such agents may work with SIF, but lack third party and vendor guarantees of interoperability. • Find your Application • http://certification.sifinfo.org/cert_prodlist.tpl • How to siphon what you need

  11. SIF Data Objects • SIF Data Objects – A logical grouping of fields (similar to a database table) within an application that can be shared among applications. SIF’s Data Model defines Data Objects using XML Schema Definition language. • The data exchanged using SIF standards • Objects comprise the schemas that define information managed by the applications • Objects contain specific data elements that serve to characterize them. • For example, the StudentPicture Object shown below is made up of three data elements.

  12. SIF Elements • Objects are expressed using standardized web-based structured data formatting called eXtensible Markup Language [XML] • XML allows the creation of customized data tags that enable the definition, transmission, validation, and interpretation of data between applications and between organizations • REFID’s • Examples -<SchoolInfo RefId="48449997F1304423950763677A23DB05"> <LocalId>S31</LocalId> <SchoolName>SMITH HIGH SCHOOL</SchoolName> <SchoolTypeCode="HS" /> -<PrincipalInfo> <ContactName>Dr. John Doe</ContactName> </PrincipalInfo> <PhoneNumber Format="NA" Type="18">(999) 9994227</PhoneNumber> -<Address Type="04"> -<Street> <Line1>999 STRAWBERRY HILL AVE.</Line1> </Street> <City>SMITHFORD</City> <StatePrCode="CT" /> <PostalCode>06902</PostalCode> </Address> <IdentificationInfo Code="15">S31</IdentificationInfo> </SchoolInfo>

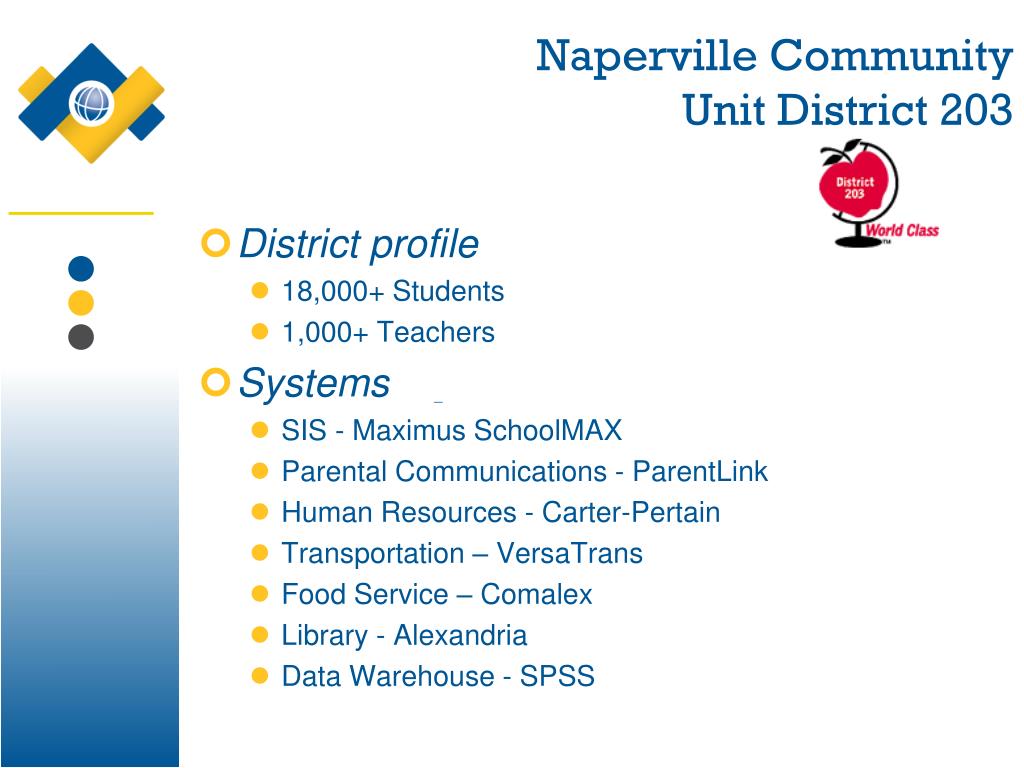

  13. Naperville Community Unit District 203 • District profile • 18,000+ Students • 1,000+ Teachers • Systems • SIS - Maximus SchoolMAX • Parental Communications - ParentLink • Human Resources - Carter-Pertain • Transportation – VersaTrans • Food Service – Comalex • Library - Alexandria • Data Warehouse - SPSS

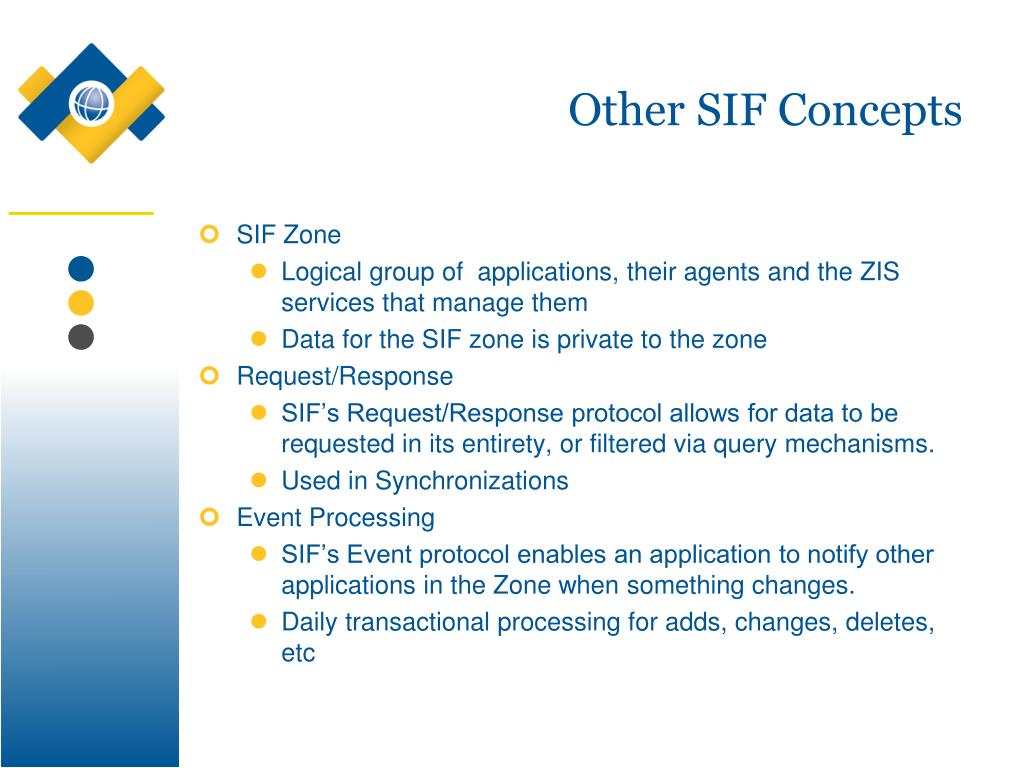

  14. SIF Zone Logical group of applications, their agents and the ZIS services that manage them Data for the SIF zone is private to the zone Request/Response SIF’s Request/Response protocol allows for data to be requested in its entirety, or filtered via query mechanisms. Used in Synchronizations Event Processing SIF’s Event protocol enables an application to notify other applications in the Zone when something changes. Daily transactional processing for adds, changes, deletes, etc Other SIF Concepts

  15. Be Informed, Get Involved! Working Groups • Assessment • Data Warehouse • Data Model Task Force • Food Services • Grade Book • Human Resources & Financials • Infrastructure • Instructional Services • Library Automation • Professional Development • Special Programs • Student Information Systems • Student Record Exchange • Transportation • Vertical Reporting

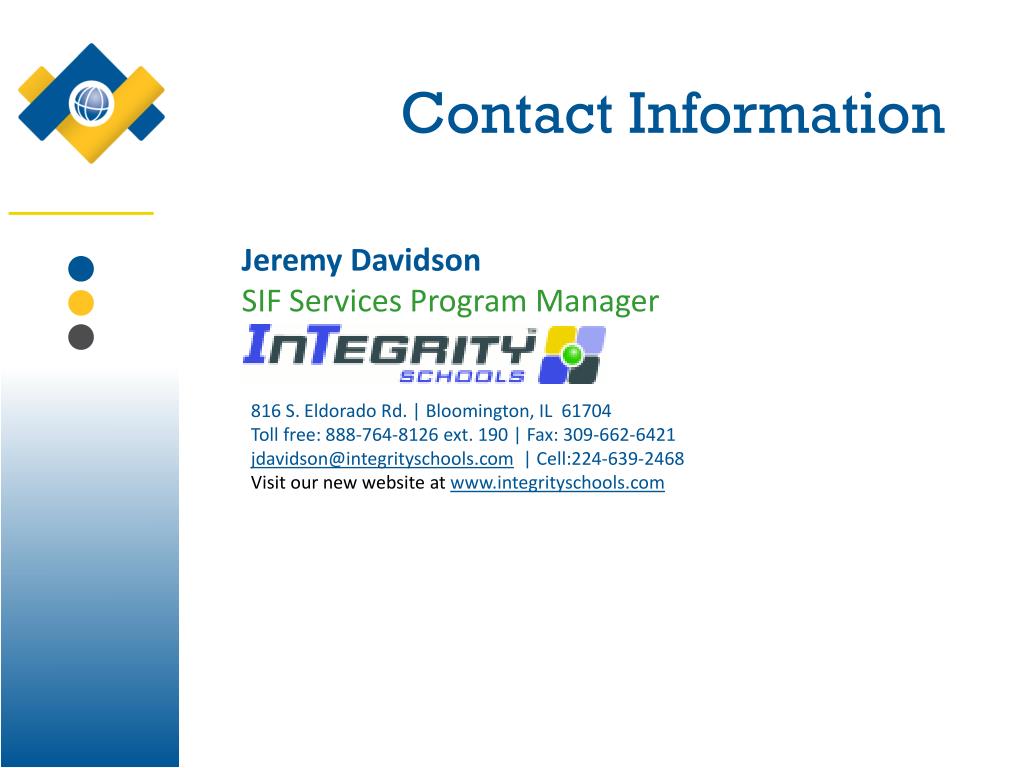

  16. Contact Information Jeremy Davidson SIF Services Program Manager 816 S. Eldorado Rd. | Bloomington, IL  61704 Toll free: 888-764-8126 ext. 190 | Fax: 309-662-6421 jdavidson@integrityschools.com  | Cell:224-639-2468 Visit our new website atwww.integrityschools.com

  17. Getting the most bang for your buck with SIF - - Projecting ROI MIS 2009

  18. “Pains” Addressed by SIF • Situational • Fast growth • Legacy systems • Large student enrollment • Small staff size • Data • Redundant data entry • Data accuracy • Data integrity • Data latency

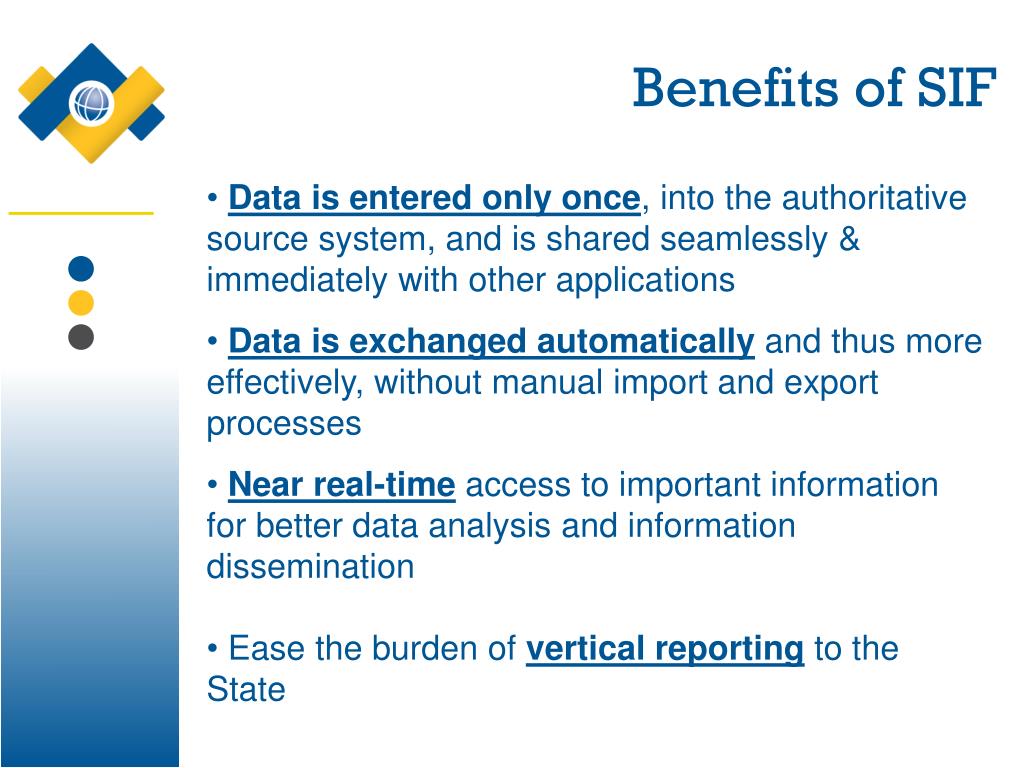

  19. Benefits of SIF • Data is entered only once, into the authoritative source system, and is shared seamlessly & immediately with other applications • Data is exchanged automatically and thus more effectively, without manual import and export processes • Near real-time access to important information for better data analysis and information dissemination • Ease the burden of vertical reporting to the State

  20. Cost-Benefit Example • Network Account Creation and Management • SIF capability • Student directory accounts created at registration into SIS • Example • SIF is used to create and manage user accounts and home directories, eliminating the additional manual step as the student is enrolled • Benefit • Huge time savings to I.T. department Does your I.T. staff have more valuable ways to spend its time?

  21. Cost-Benefit Example • Transportation • SIF capability • Data accuracy & Saved data entry time • Example • SIF is used to update the transportation system data from the student information system as the student is enrolled in school • Benefit • Real time communication of bus stop information is possible for every student • Potential liability issues are avoided How many phone calls could be saved? How much bad publicity could be avoided?

  22. Cost-Benefit Example • Food Services • SIF capability • Data accuracy • Example • SIF is used to update the student management system with meal status information that is stored in the food services system • Benefit • Accurate free/reduced lunch count possible. How much additional funding could be generated?

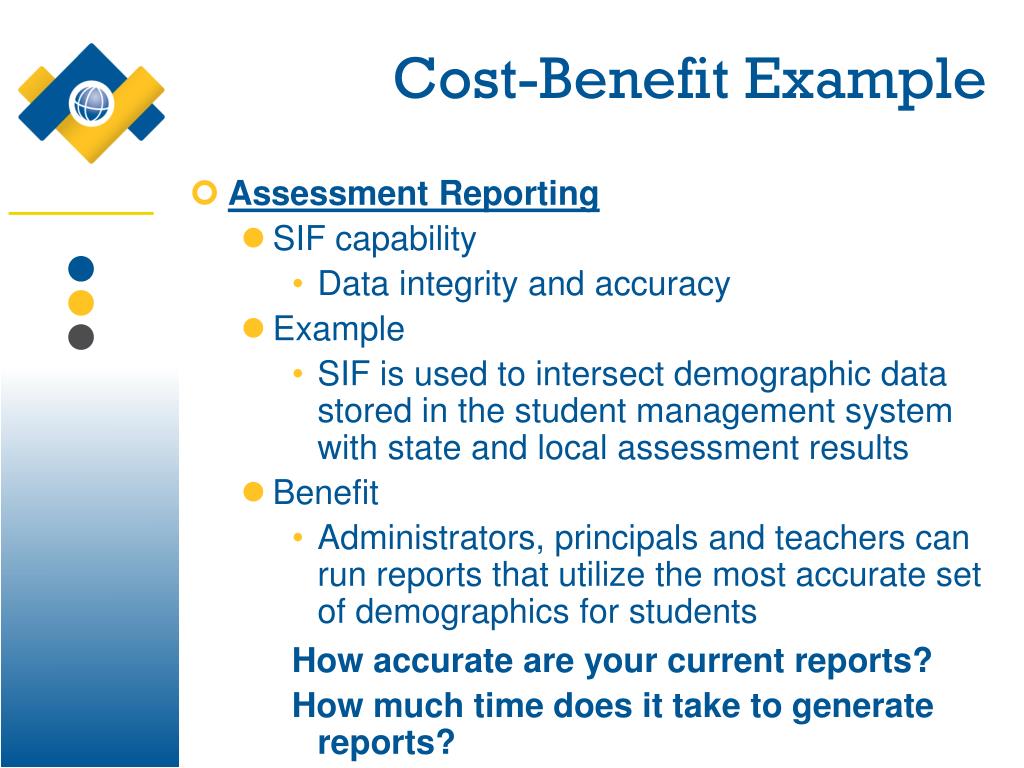

  23. Cost-Benefit Example • Assessment Reporting • SIF capability • Data integrity and accuracy • Example • SIF is used to intersect demographic data stored in the student management system with state and local assessment results • Benefit • Administrators, principals and teachers can run reports that utilize the most accurate set of demographics for students How accurate are your current reports? How much time does it take to generate reports?

  24. Cost-Benefit Example • Library • SIF capability • Near real time information dissemination • Example • SIF is used to update the library system with up to date student information from the SIS • Benefit • The media specialist who used to spend 4 hrs a week updating student information and class lists on the computer can reallocate that time towards students • (ROI can be seen in better utilization of resources as well as bottom line numbers)

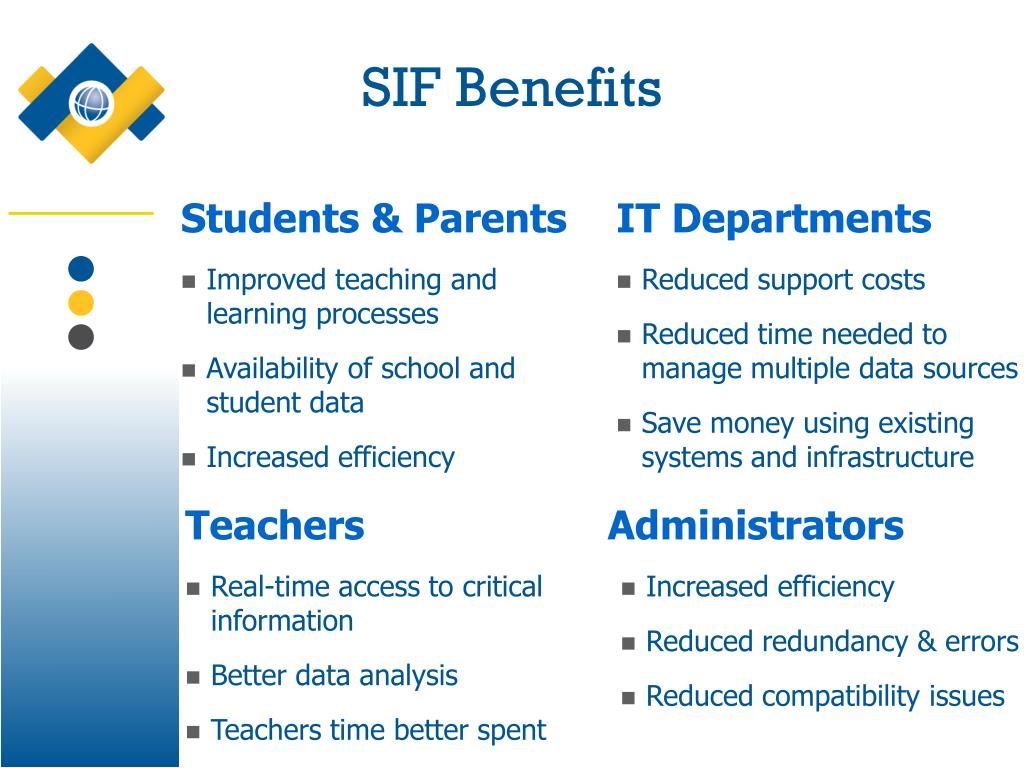

  25. SIF Benefits Students & Parents • Improved teaching and learning processes • Availability of school andstudent data • Increased efficiency IT Departments • Reduced support costs • Reduced time needed to manage multiple data sources • Save money using existing systems and infrastructure Teachers • Real-time access to critical information • Better data analysis • Teachers time better spent Administrators • Increased efficiency • Reduced redundancy & errors • Reduced compatibility issues

  26. ROI Calculator
