BMC Transaction Management. John Barnard MAINVIEW Development Director. BMC Transaction Management Value. BMC Transaction Management helps IT improve business service delivery by detecting, isolating and resolving business transaction performance problems across the enterprise.

Download Presentation

BMC Transaction Management

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Bmc transaction management

BMC Transaction Management

John Barnard

MAINVIEW Development Director


Bmc transaction management value

BMC Transaction Management Value

BMC Transaction Management helps IT improve business service delivery by detecting, isolating and resolving business transaction performance problems across the enterprise.

  • Understand there is a problem before “the phone rings”

  • Ensures applications meet their business needs

  • Increased revenue and improved customer satisfaction


What do customers do without transaction management

What do customers do without Transaction Management

  • End users flood the service desk with complaints aboutpoor service (performance, availability, or accuracy)

  • Monitor components (databases, servers, operatingsystems, etc) without considering the end user orquality of service delivered

  • Point fingers when there is a problem and say “My piece (db, server, OS) was working great”

  • Waste time and money researching and replicating problems

  • IT is viewed as an inhibitor of business rather than an enabler

  • Business is lost due to failed and poor performing transactions

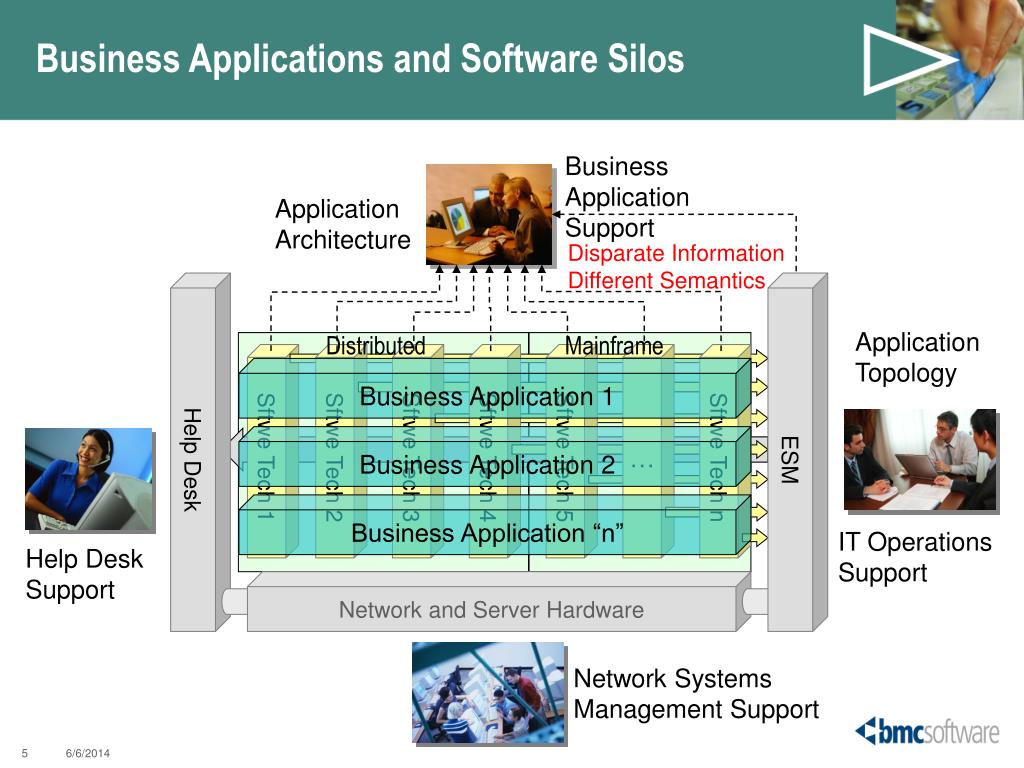

Moving beyond silos

Moving Beyond Silos

80%

BMC Transaction Management moves beyond technology monitoring to provide the end user’s point of view of application performance


Business applications and software silos

Help Desk

ESM

Application

Topology

IT Operations Support

Help Desk Support

Network Systems Management Support

Business Applications and Software Silos

Business Application Support

Application

Architecture

Disparate Information

Different Semantics

Distributed

Mainframe

Sftwe Tech 1

Sftwe Tech 2

Sftwe Tech 3

Sftwe Tech 4

Sftwe Tech 5

Sftwe Tech n

Business Application 1

Business Application 2

Business Application “n”

Network and Server Hardware


Business application service management

Business Application/Service Management

Business Application Support

Application

Architecture

Integrated Information

Common Semantics

Help Desk

Business Service and Transaction Management

ESM

Application

Topology

Distributed

Mainframe

Sftwe Tech 1

Sftwe Tech 2

Sftwe Tech 3

Sftwe Tech 4

Sftwe Tech 5

Sftwe Tech n

Business Application 1

Business Application 2

Business Application “n”

IT Operations Support

Help Desk Support

Network and Server Hardware

Network Systems Management Support


Business application service management1

Business Application Support

Application

Architecture

Integrated Information

Common Semantics

Help Desk

ESM

Application

Topology

IT Operations Support

Help Desk Support

Network Systems Management Support

Business Application/Service Management

Business Service and Transaction Management

Distributed

Mainframe

Sftwe Tech 1

Sftwe Tech 2

Sftwe Tech 3

Sftwe Tech 4

Sftwe Tech 5

Sftwe Tech n

Business Application 1

Business Application 2

Business Application “n”

Network and Server Hardware


Spanning distributed and mainframe applications

MAINVIEW

BMC DS

Spanning Distributed and Mainframe Applications

MAINVIEW Transaction Analyzer

Q Nami! by MQSoftware

WEB

Business Service and Transaction Management

Distributed

Mainframe

Web Server

Data Base

CICS

App Server

App Server

App Server J2EE

Websphere

Business Application 1

Business Application 2

Business Application “n”

End Devices


An integral part of bmc s bsm strategy itil best practices existing infrastructure investments

MAINVIEW Transaction Analyzer

Q Nami! by MQSoftware

Business Service and Transaction Management

Distributed

Mainframe

CICS

Web Server

App Server

App Server

App Server J2EE

Websphere

Data Base

Business Application 1

Business Application 2

Business Application “n”

BMC DS

MAINVIEW

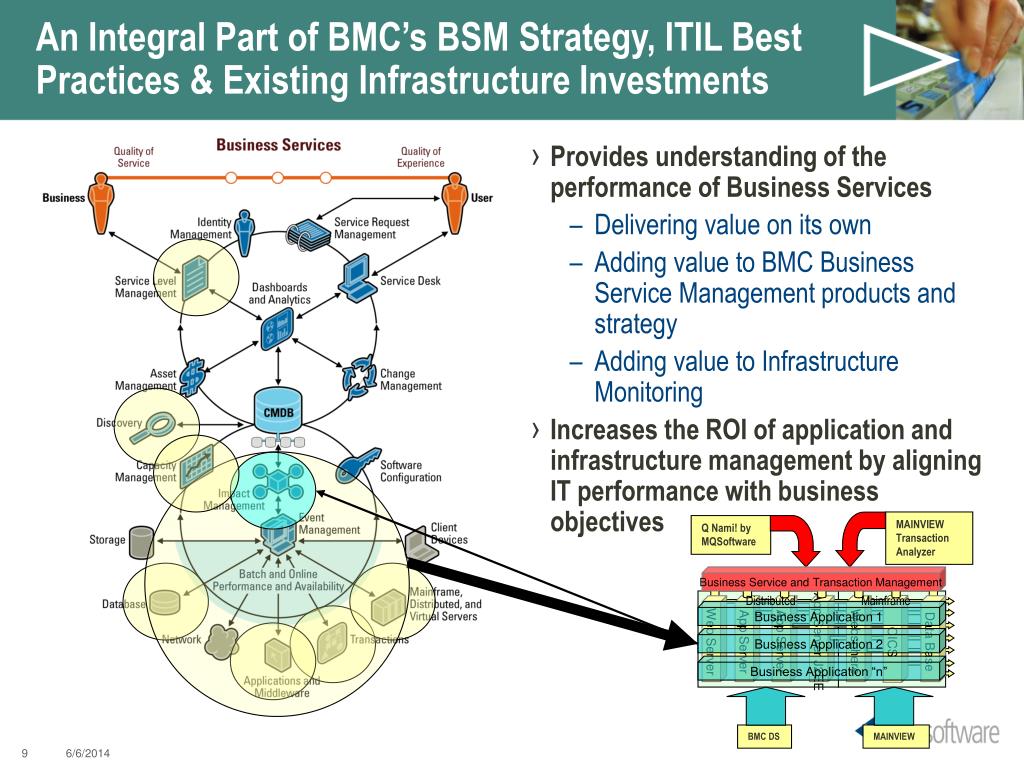

An Integral Part of BMC’s BSM Strategy, ITIL Best Practices & Existing Infrastructure Investments

  • Provides understanding of the performance of Business Services

    • Delivering value on its own

    • Adding value to BMC Business Service Management products and strategy

    • Adding value to Infrastructure Monitoring

  • Increases the ROI of application and infrastructure management by aligning IT performance with business objectives


The mainframe world

The Mainframe World

  • MVTA Introduction

  • MVTA Technical Description

  • MVTA Next Steps

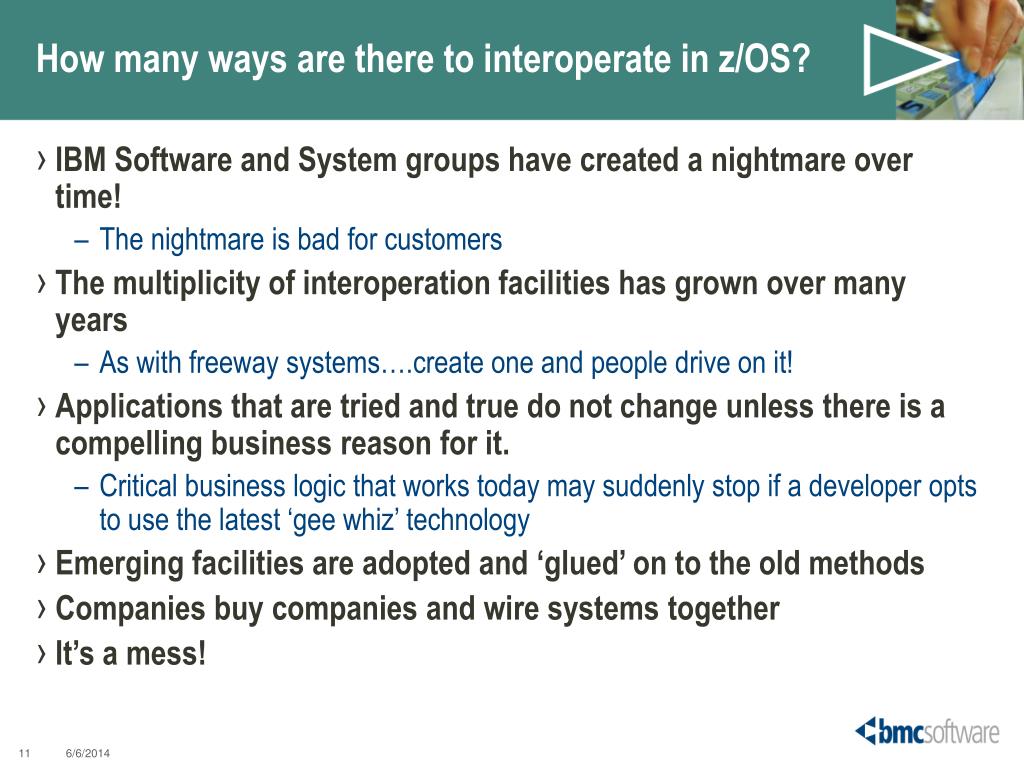

How many ways are there to interoperate in z os

How many ways are there to interoperate in z/OS?

  • IBM Software and System groups have created a nightmare over time!

    • The nightmare is bad for customers

  • The multiplicity of interoperation facilities has grown over many years

    • As with freeway systems….create one and people drive on it!

  • Applications that are tried and true do not change unless there is a compelling business reason for it.

    • Critical business logic that works today may suddenly stop if a developer opts to use the latest ‘gee whiz’ technology

  • Emerging facilities are adopted and ‘glued’ on to the old methods

  • Companies buy companies and wire systems together

  • It’s a mess!


A day in the life of a transaction

3270

Batch

TSO

CTG

Web

A day in the life of a transaction

CICS

DB2

IMS

MQ

WAS


Mainview transaction analyzer mvta

MAINVIEW Transaction Analyzer (MVTA)

  • MVTA is part of the MAINVIEW family

    • Benefits from common infrastructure and communication

    • Utilizes data from existing BMC monitoring solutions

  • Correlates transaction information

    • Consolidates transaction information from different subsystems across the mainframe environment

  • Tracks transaction through and across z/OS environments

    • User sees the path taken for each unit of work in the logical order in which they were invoked

    • Near real time

  • Improves debugging capabilities

    • Provides information about transactions as they flow

  • Makes it easier to pinpoint problems (problem isolation)

    • Application-level units of work summarize what happened during the transaction

    • No need to hunt through several products to see where breakdown occurred


Architectural overview of mvta

DB2

IMS

CICS

MQ

Coming Up

(Event)

(UOR)

(UOR)

(UOR)

MVCICS

PAS

MVDB2

PAS

MVIMS

PAS

MVMQS

PAS

(API)

MQS

Log

(API)

(API)

MVTA Data Read for CICS IMS, DB2, MQ

MVTA

PAS

MVLOG

STC

TXM

MVTA Data Write for CICS, IMS, DB2

MVE

MVTA

Log

MVI

CAS

3270

Architectural Overview of MVTA

IP?

Qnami!

eWLM

WAS

CTG


Example transaction flow

Example transaction flow

  • CICS-DB2 Transaction

    • 1. Transaction TRN1 in Region CICS1 on image MVS1

    • 2. TRN1 Invokes DB2 system DB21using Plan PLAN1

    • 3. TRN1 Uses Distributed Program Link (DPL) to program PROG2 in CICS2 on image MVS2. This runs under the standard mirror task CSMI

    • 4. CSMI invokes DB2 system DB22 using Plan PLAN2

    • 5. CSMI returns

    • 6. Transaction TRN1 returns

    • 7. UOR created

      • TRN1 has a UOR – UOR1

      • DB21 using PLAN1 has a UOR – UOR2

      • CSMI has a UOR – UOR3

      • DB22 using PLAN2 has a UOR – UOR4


Sample flow for illustration

Sample Flow for illustration

CICS1

CICS2

DB21

DB22

SQL PLAN1

SQL PLAN2

TRN1

CSMI

UOR1

UOR3

DPL to PROG2

UOR2

UOR4

SYNCPOINT

And

End

MVCICS

PAS

MVDB2

PAS

MVCICS

PAS

MVDB2

PAS

MVTA

PAS

MVLOG

STC

MVTA

PAS

MVLOG

STC

MVI

CAS

MVI

CAS

MVTA Log

MVTA Log

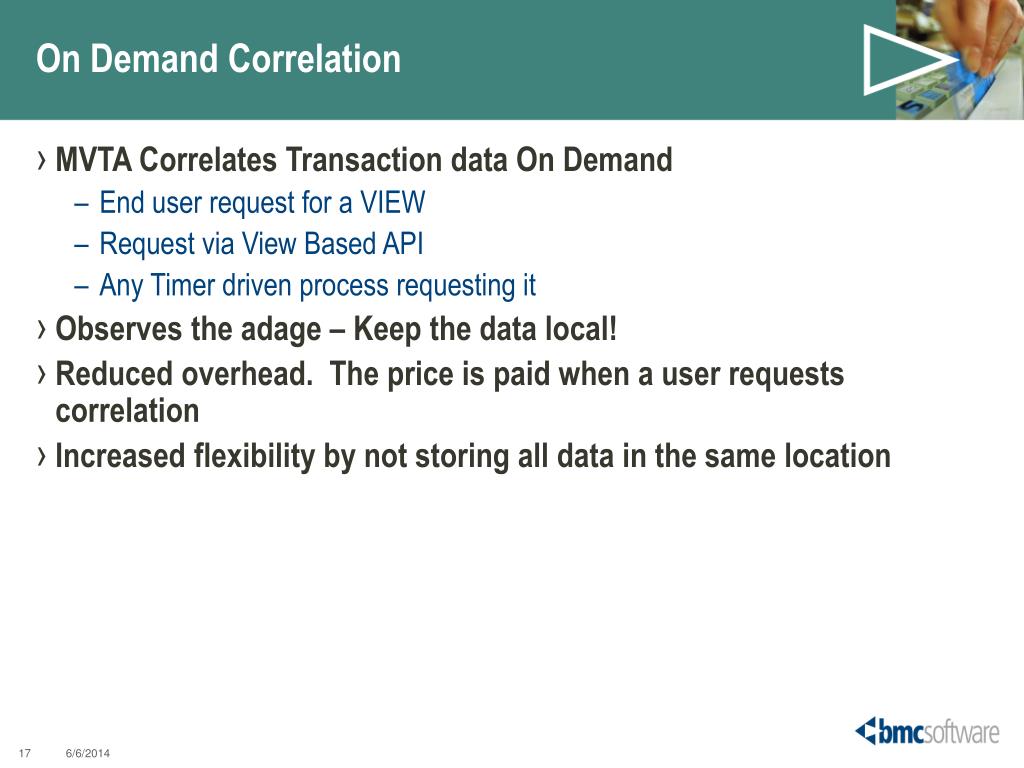

On demand correlation

On Demand Correlation

  • MVTA Correlates Transaction data On Demand

    • End user request for a VIEW

    • Request via View Based API

    • Any Timer driven process requesting it

  • Observes the adage – Keep the data local!

  • Reduced overhead. The price is paid when a user requests correlation

  • Increased flexibility by not storing all data in the same location


Correlation view

Correlation View

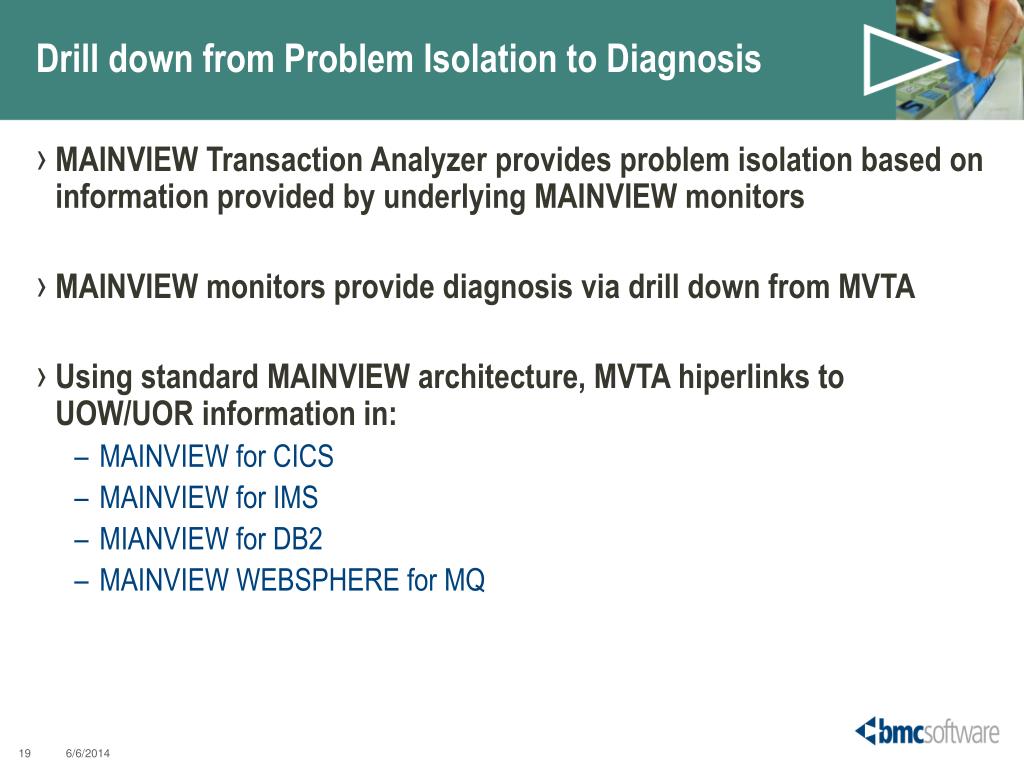

Drill down from problem isolation to diagnosis

Drill down from Problem Isolation to Diagnosis

  • MAINVIEW Transaction Analyzer provides problem isolation based on information provided by underlying MAINVIEW monitors

  • MAINVIEW monitors provide diagnosis via drill down from MVTA

  • Using standard MAINVIEW architecture, MVTA hiperlinks to UOW/UOR information in:

    • MAINVIEW for CICS

    • MAINVIEW for IMS

    • MIANVIEW for DB2

    • MAINVIEW WEBSPHERE for MQ

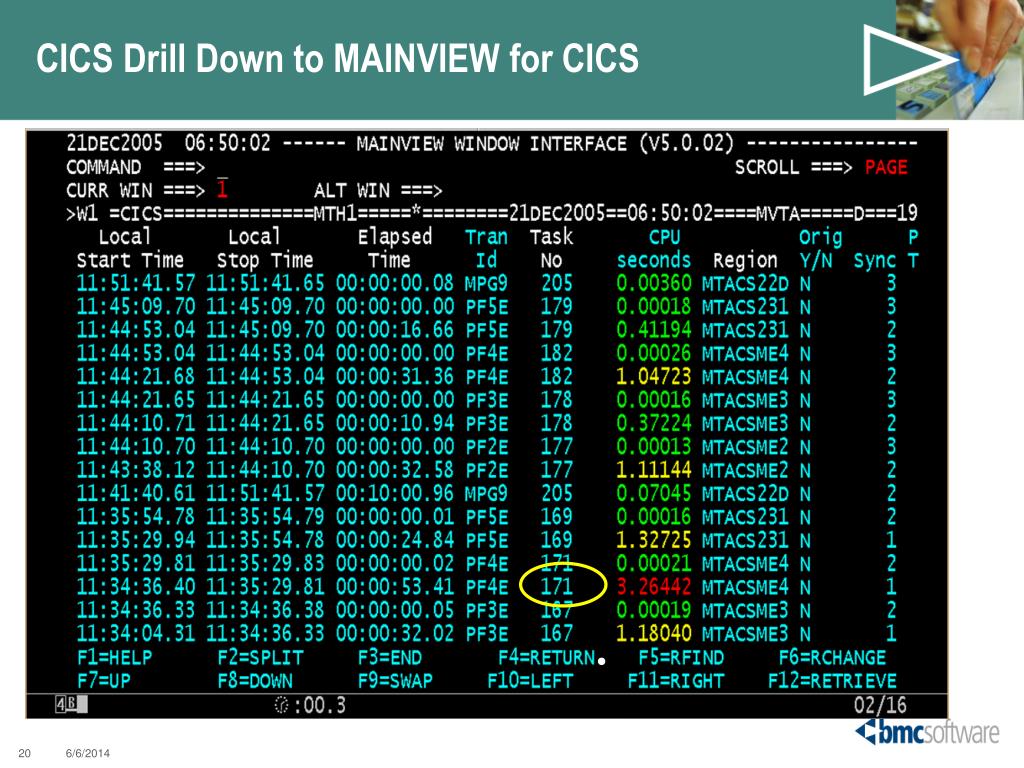

Cics drill down to mainview for cics

CICS Drill Down to MAINVIEW for CICS


Cics direct link to mainview for cics

CICS Direct Link to MAINVIEW for CICS


Cics drill down on file to see delay reason

CICS Drill Down on File to see delay reason

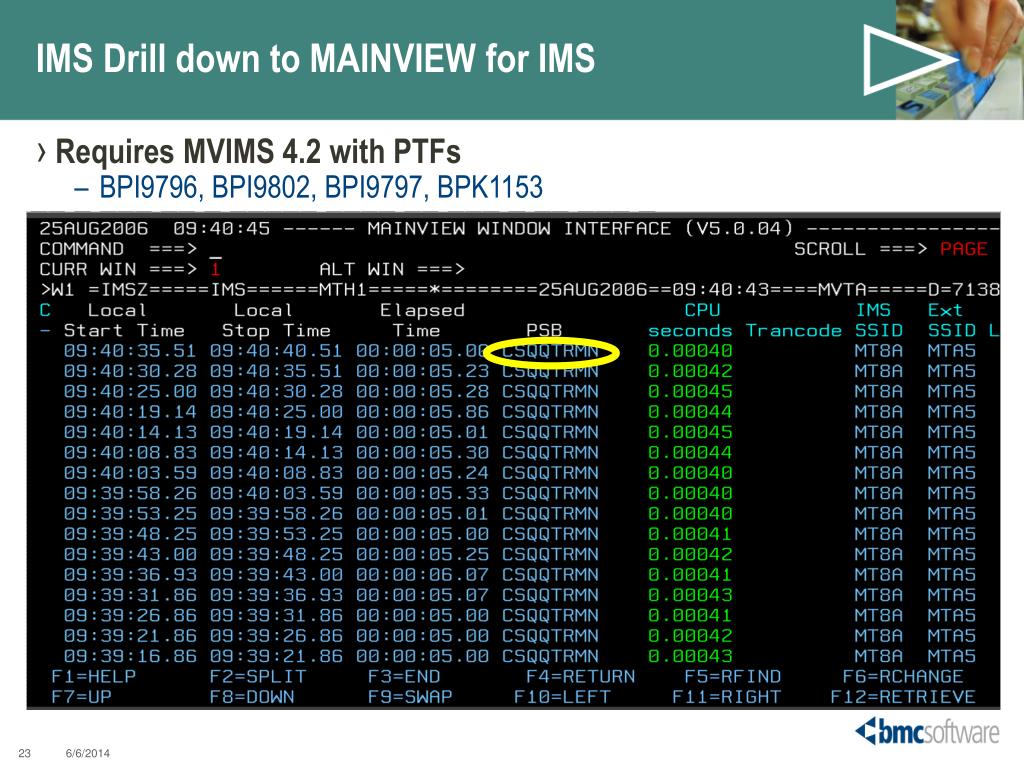

Ims drill down to mainview for ims

IMS Drill down to MAINVIEW for IMS

  • Requires MVIMS 4.2 with PTFs

    • BPI9796, BPI9802, BPI9797, BPK1153


Ims hyperlink into mainview for ims

IMS Hyperlink into MAINVIEW for IMS


Db2 drill down to mainview for db2

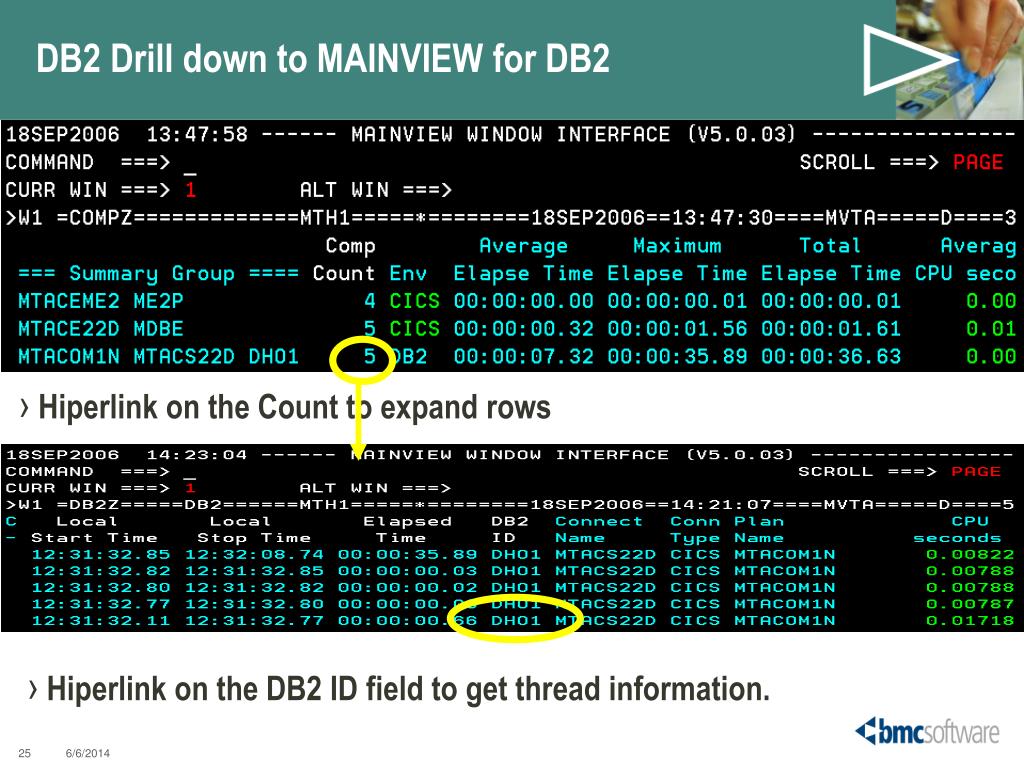

DB2 Drill down to MAINVIEW for DB2

  • Hiperlink on the Count to expand rows

  • Hiperlink on the DB2 ID field to get thread information.


Db2 domeqrpn thread accounting report

DB2 DOMEQRPN – Thread Accounting Report


Db2 domeqrpn thread accounting report cont

DB2 DOMEQRPN – Thread Accounting Report (cont.)


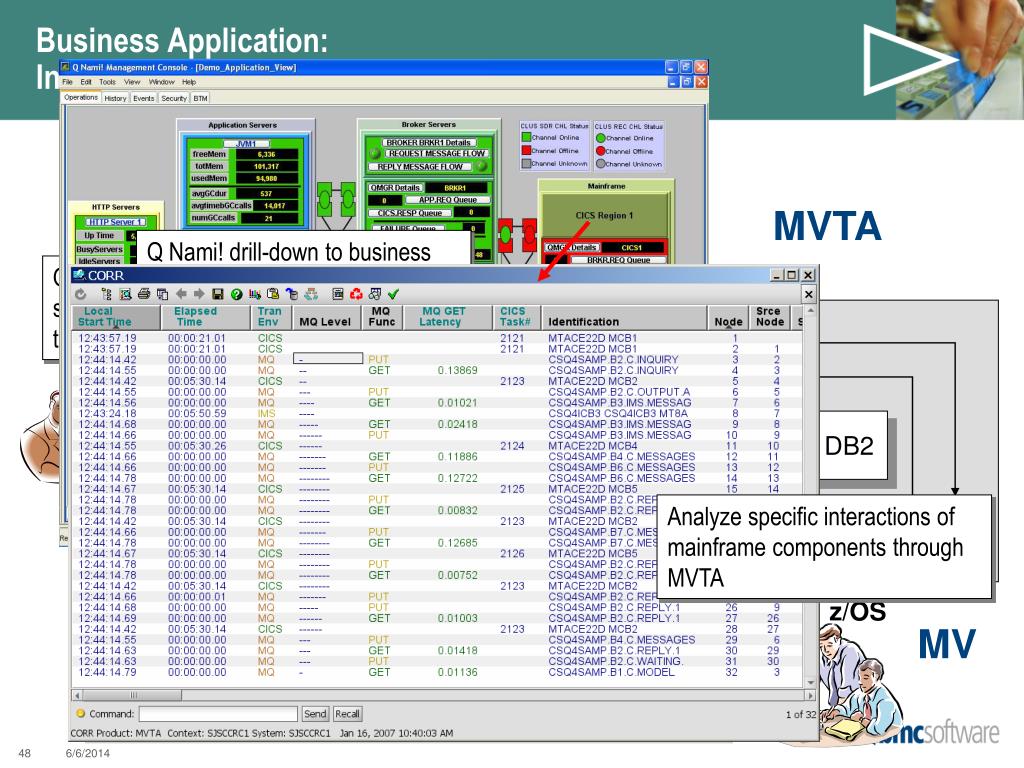

Mq search result

MQ Search Result

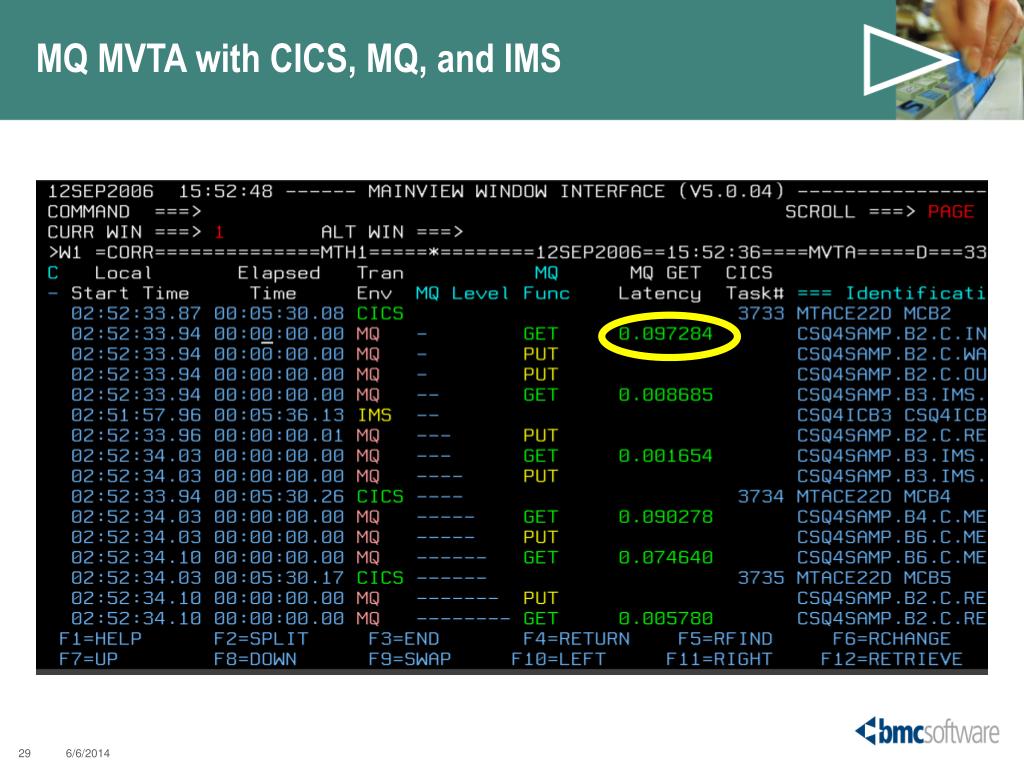

Mq mvta with cics mq and ims

MQ MVTA with CICS, MQ, and IMS


Mq hyperlink to mq from get latency page1 page2

MQ Hyperlink to MQ from GET latency – page1, page2


Next steps for mvta

Next Steps for MVTA

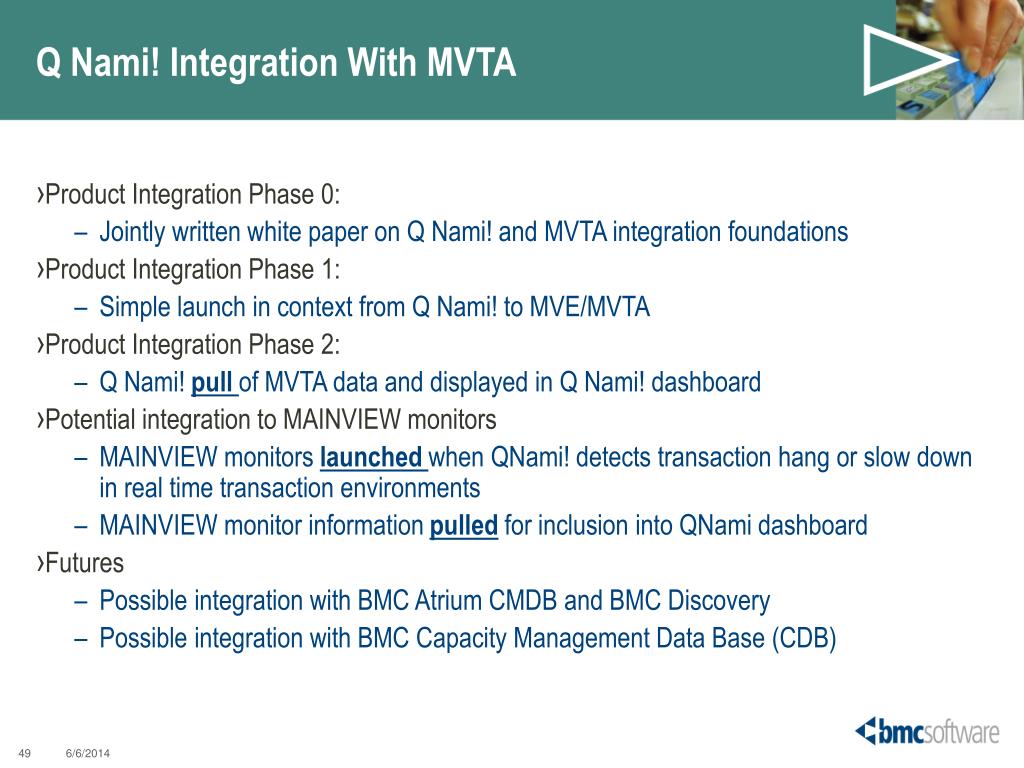

  • Additional z/OS support

    • Integration with MAINVIEW Websphere for Application Server (MVWAS)

  • Tracking transaction flows at the enterprise level.

    • MVTA captures MQ related transaction flows when they enter z/OS

      • For MQ applications following ‘best practices’ where MQ MSGIDs are unique, MVTA answer important questions:

        • A CICS task executes MQPUT to a Queue for which an IMS trigger is defined

        • Question: What IMS transaction ran and how well did it perform?

    • MVTA does not capture MQ related flows before they enter z/OS

      • From where did the initial MQ request originate in the distributed environment and how well did application processes associated with it perform


Qnami by mqsoftware

Qnami! By MQSoftware


People process and information delivers business application value

People, Process and Information Delivers Business Application Value

  • Information

    • The management tools that address the visibility of the business application and expose information in the appropriate semantics

  • People

    • The virtual and/or dedicated application support team (and others)

  • Process

    • The organization's way of providing business application support and the interaction of the support team with other members of the enterprise

Efficiency Depends on People, Process and Information

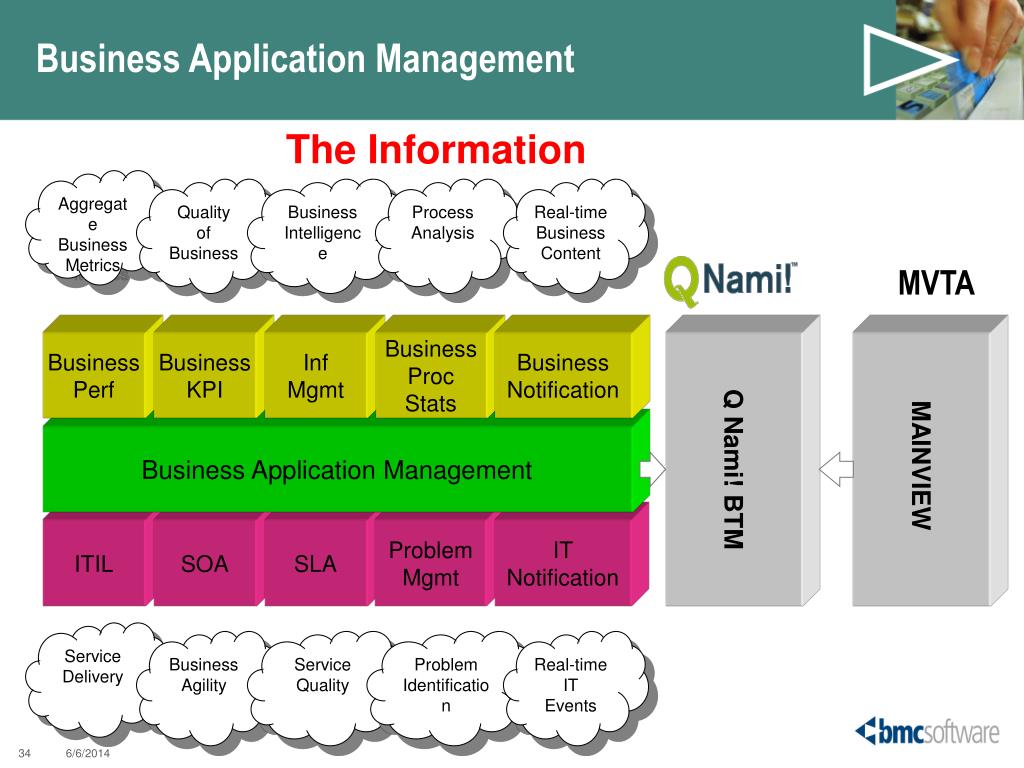

Business application management

Business Application Management

The Information

Aggregate

Business Metrics

Quality

of

Business

Business

Intelligence

Process

Analysis

Real-time Business

Content

MVTA

Business

Perf

Business

KPI

Inf

Mgmt

Business

Proc

Stats

Business

Notification

Q Nami! BTM

MAINVIEW

Business Application Management

ITIL

SOA

SLA

Problem

Mgmt

IT

Notification

Service Delivery

Business

Agility

Service

Quality

Problem

Identification

Real-time IT

Events

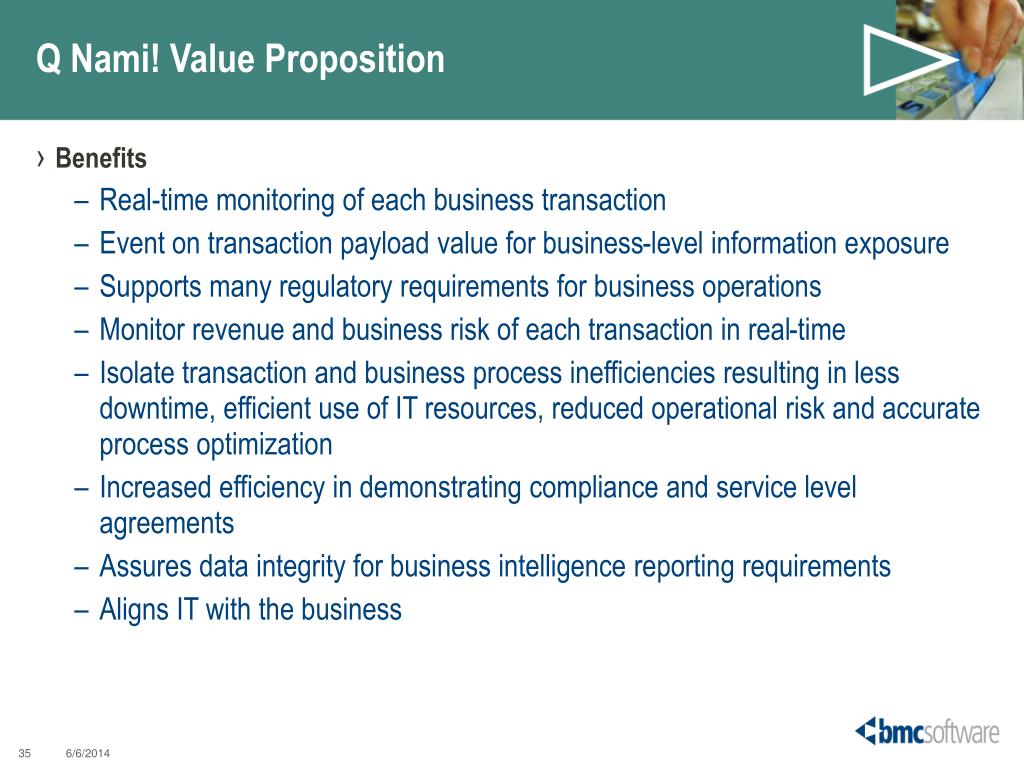

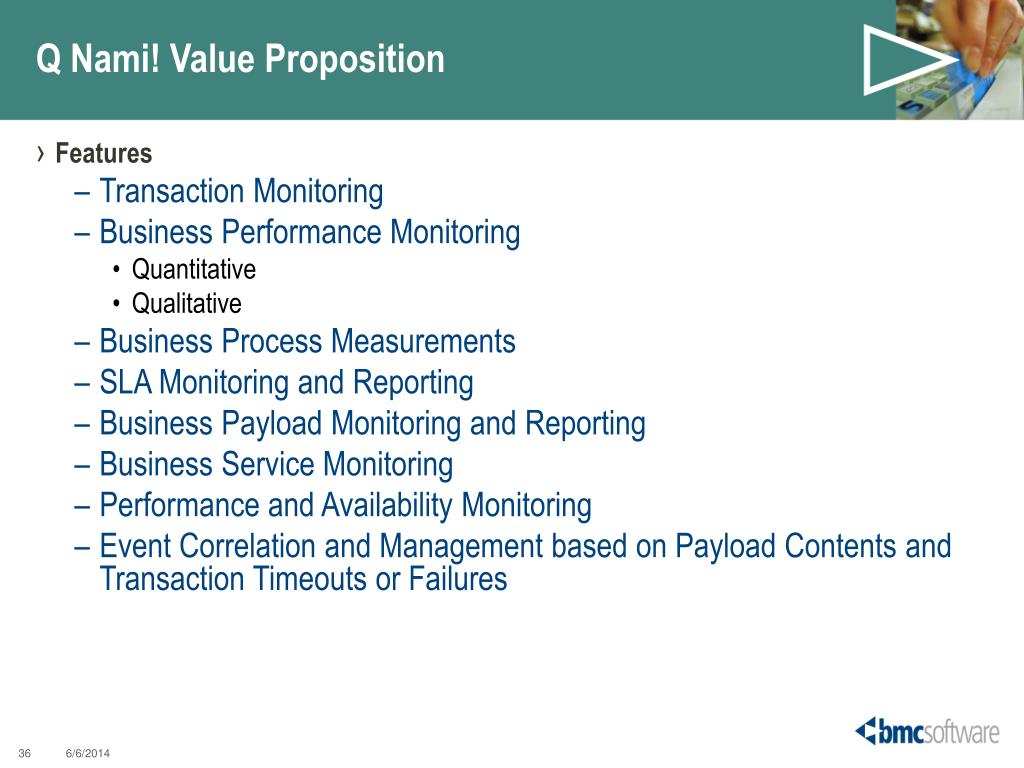

Q nami value proposition

Q Nami! Value Proposition

  • Benefits

    • Real-time monitoring of each business transaction

    • Event on transaction payload value for business-level information exposure

    • Supports many regulatory requirements for business operations

    • Monitor revenue and business risk of each transaction in real-time

    • Isolate transaction and business process inefficiencies resulting in less downtime, efficient use of IT resources, reduced operational risk and accurate process optimization

    • Increased efficiency in demonstrating compliance and service level agreements

    • Assures data integrity for business intelligence reporting requirements

    • Aligns IT with the business


Q nami value proposition1

Q Nami! Value Proposition

  • Features

    • Transaction Monitoring

    • Business Performance Monitoring

      • Quantitative

      • Qualitative

    • Business Process Measurements

    • SLA Monitoring and Reporting

    • Business Payload Monitoring and Reporting

    • Business Service Monitoring

    • Performance and Availability Monitoring

    • Event Correlation and Management based on Payload Contents and Transaction Timeouts or Failures


Q nami transaction monitoring support

Q Nami! Transaction Monitoring Support

Java API

C API

CICS API

COM/.NET API

Q Nami! provides a robust transaction monitoring solution regardless of technologies used or architectural styles employed.


Business performance information

Business Performance Information

Business Performance Information through the Payload Monitoring Engine


Business notification

Business Notification

Payload monitoring provides the ability to set business thresholds for out of range payload data and take appropriate automated action


Technical user perspective

Technical User Perspective

Business service views from performance and availability data provides immediate status of business application with respect to infrastructure performance


Technical user perspective1

Technical User Perspective

IT operations and application support teams can observe the real-time transaction status of transactions flowing through the business application


Technical notification

Technical Notification

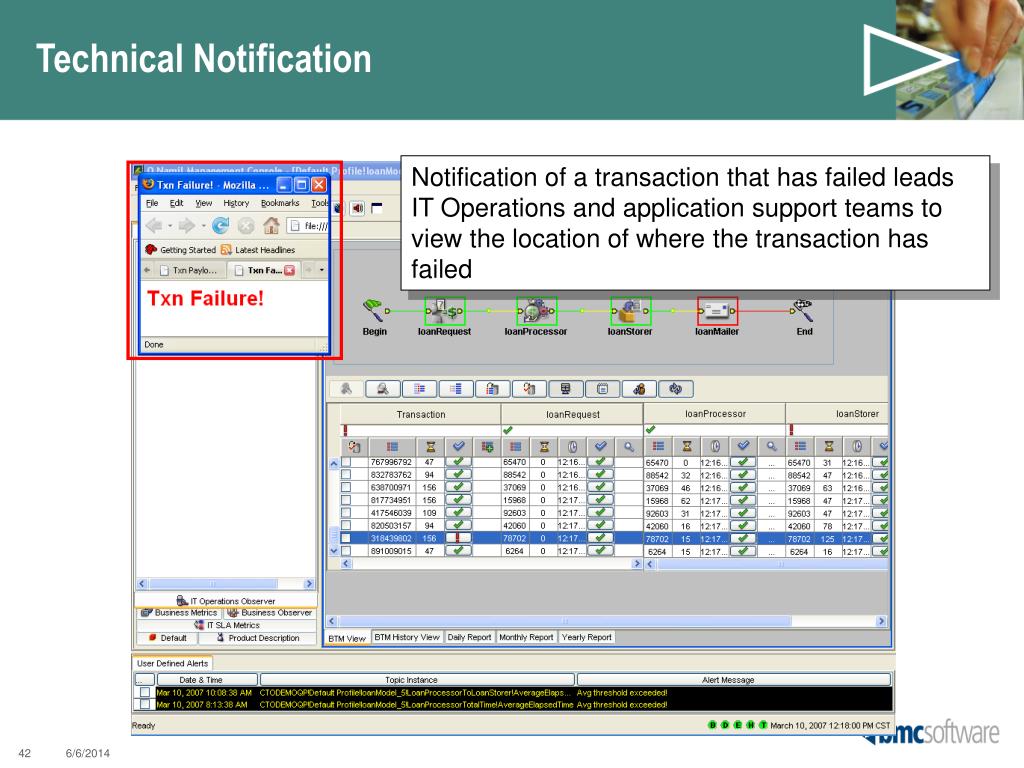

Notification of a transaction that has failed leads IT Operations and application support teams to view the location of where the transaction has failed


Problem determination in multi tier heterogeneous technology business applications

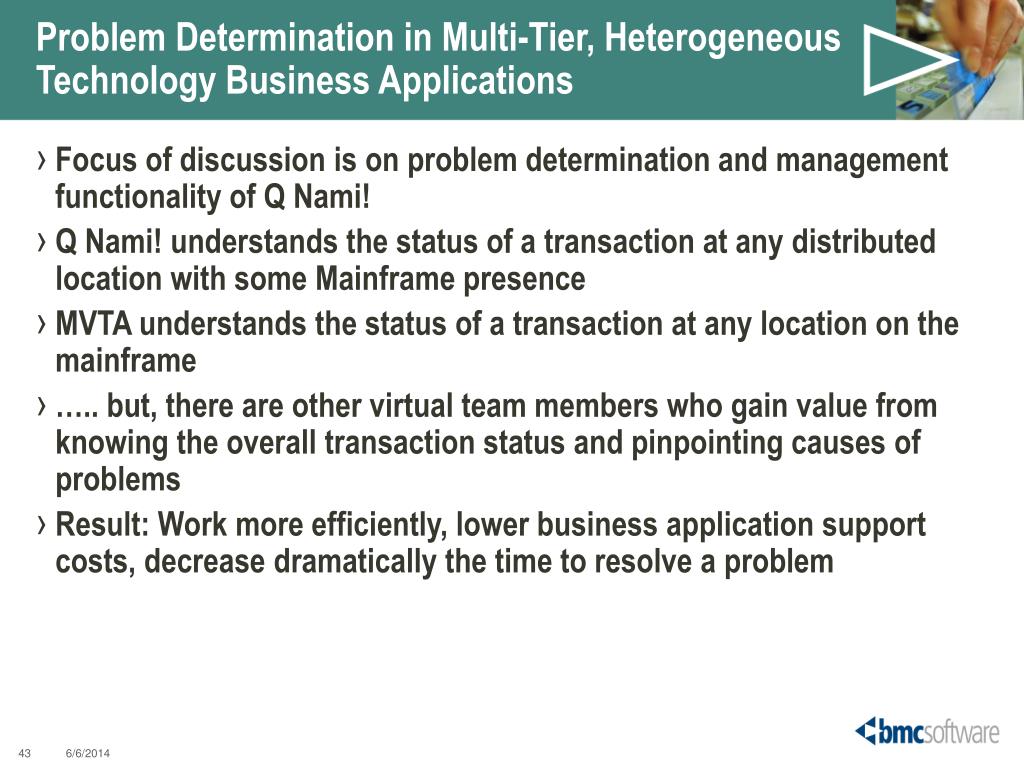

Problem Determination in Multi-Tier, Heterogeneous Technology Business Applications

  • Focus of discussion is on problem determination and management functionality of Q Nami!

  • Q Nami! understands the status of a transaction at any distributed location with some Mainframe presence

  • MVTA understands the status of a transaction at any location on the mainframe

  • ….. but, there are other virtual team members who gain value from knowing the overall transaction status and pinpointing causes of problems

  • Result: Work more efficiently, lower business application support costs, decrease dramatically the time to resolve a problem


Business application insurance policy purchase

Business Application:Insurance Policy Purchase

MVTA

Architectural view of data flow for Insurance Policy Purchase business application

CICS

WAS

WMB

DB2

WMQ

WMQ

Linux

IMS

AIX

z/OS

MV

Business Application Support Virtual Team


Business application insurance policy purchase1

Business Application:Insurance Policy Purchase

Everything is running with no problems. Virtual team members can concentrate on other value producing activities

MVTA

Life is good!

CICS

Txn 1 Start

WAS

WMB

DB2

WMQ

WMQ

Linux

IMS

AIX

Txn 1 End

z/OS

MV

Business Application Support Virtual Team


Business application insurance policy purchase2

RCA

Business Application:Insurance Policy Purchase

Q Nami! operations console showing the status of individual transactions

MVTA

Q Nami! drill-down to performance and availability metrics for WAS

CICS

Txn 1 Start

WAS

WMB

DB2

WMQ

Linux

IMS

AIX

z/OS

MV

BMC RCA deep-dive JEE analysis finding root cause of problem

Business Application Support Virtual Team


Business application insurance policy purchase3

Business Application:Insurance Policy Purchase

Q Nami! operations console showing the status of individual transactions

MVTA

Q Nami! drill-down to performance and availability metrics for WMB

CICS

Txn 1 Start

WAS

WMB

DB2

WMQ

WMQ

Analyze specific node in WMB execution group to optimize response times

Linux

IMS

AIX

z/OS

MV

Business Application Support Virtual Team


Business application insurance policy purchase4

Business Application:Insurance Policy Purchase

MVTA

Q Nami! drill-down to business service views for insurance policy purchase business application

Q Nami! operations console showing the status of individual transactions

CICS

Txn 1 Start

WAS

WMB

DB2

WMQ

WMQ

Analyze specific interactions of mainframe components through MVTA

Linux

IMS

AIX

z/OS

MV

Business Application Support Virtual Team


Q nami integration with mvta

Q Nami! Integration With MVTA

  • Product Integration Phase 0:

    • Jointly written white paper on Q Nami! and MVTA integration foundations

  • Product Integration Phase 1:

    • Simple launch in context from Q Nami! to MVE/MVTA

  • Product Integration Phase 2:

    • Q Nami! pull of MVTA data and displayed in Q Nami! dashboard

  • Potential integration to MAINVIEW monitors

    • MAINVIEW monitors launched when QNami! detects transaction hang or slow down in real time transaction environments

    • MAINVIEW monitor information pulled for inclusion into QNami dashboard

  • Futures

    • Possible integration with BMC Atrium CMDB and BMC Discovery

    • Possible integration with BMC Capacity Management Data Base (CDB)


Summary

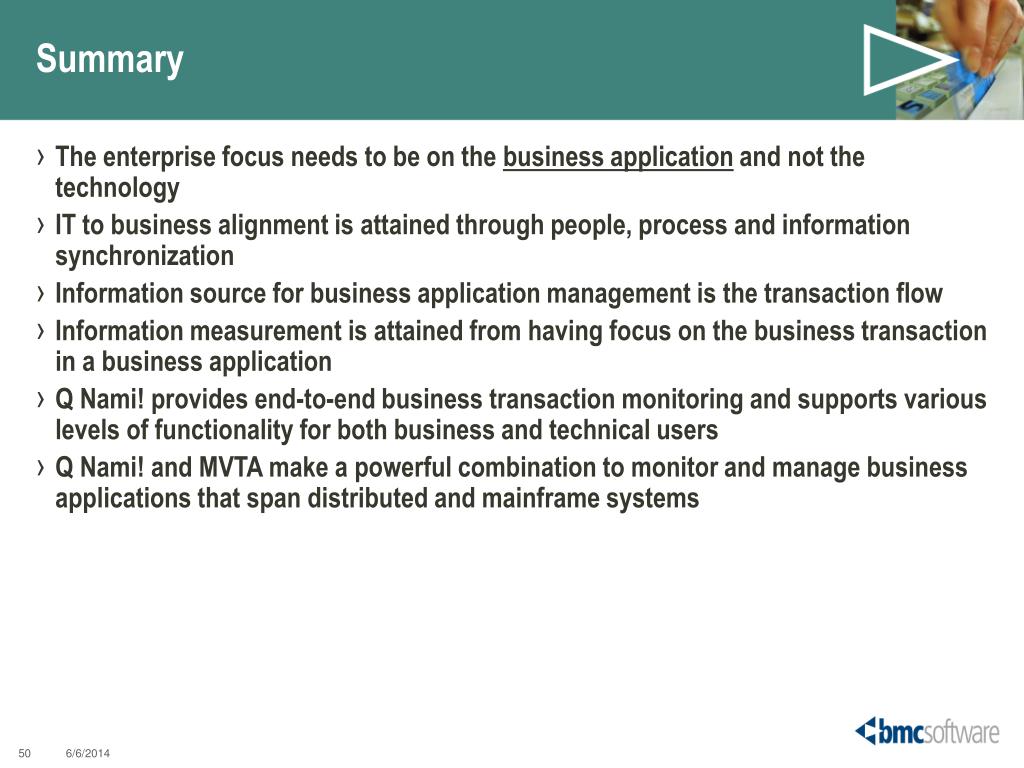

Summary

  • The enterprise focus needs to be on the business application and not the technology

  • IT to business alignment is attained through people, process and information synchronization

  • Information source for business application management is the transaction flow

  • Information measurement is attained from having focus on the business transaction in a business application

  • Q Nami! provides end-to-end business transaction monitoring and supports various levels of functionality for both business and technical users

  • Q Nami! and MVTA make a powerful combination to monitor and manage business applications that span distributed and mainframe systems


Thank you

Thank You!


  • Login
