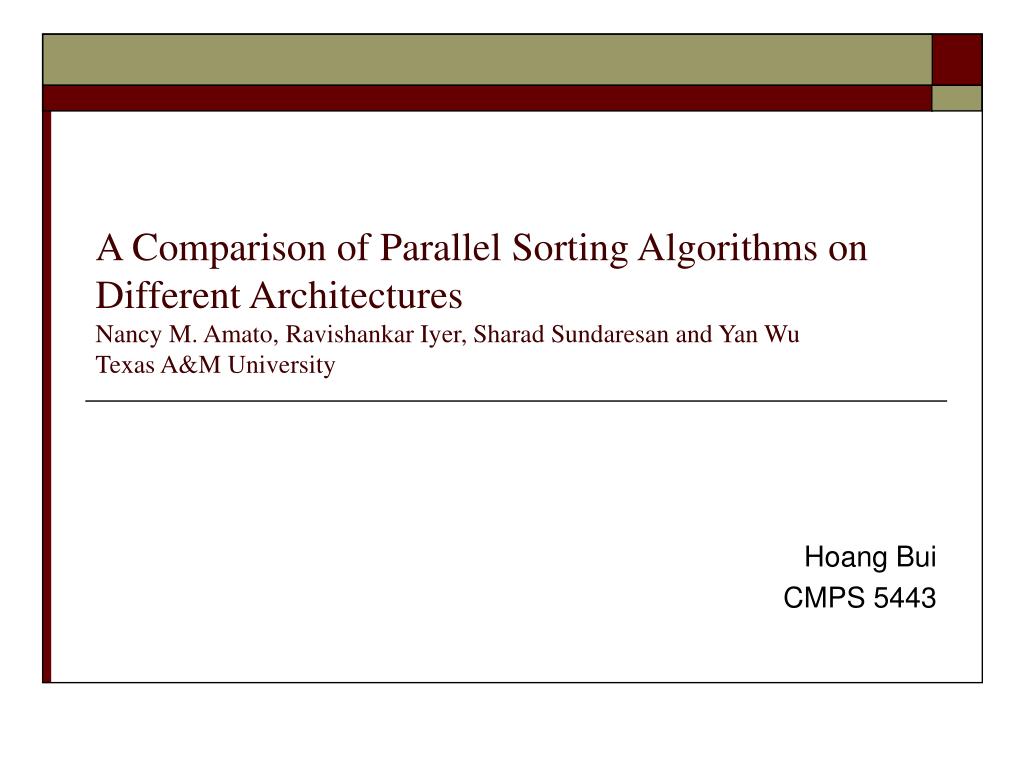

  1. A Comparison of Parallel Sorting Algorithms on Different ArchitecturesNancy M. Amato, Ravishankar Iyer, Sharad Sundaresan and Yan WuTexas A&M University Hoang Bui CMPS 5443

  2. Overview • Introduction • Machine Descriptions • Parallel Sorting Algorithms • Experimental Results • Comparisons and Recommendations

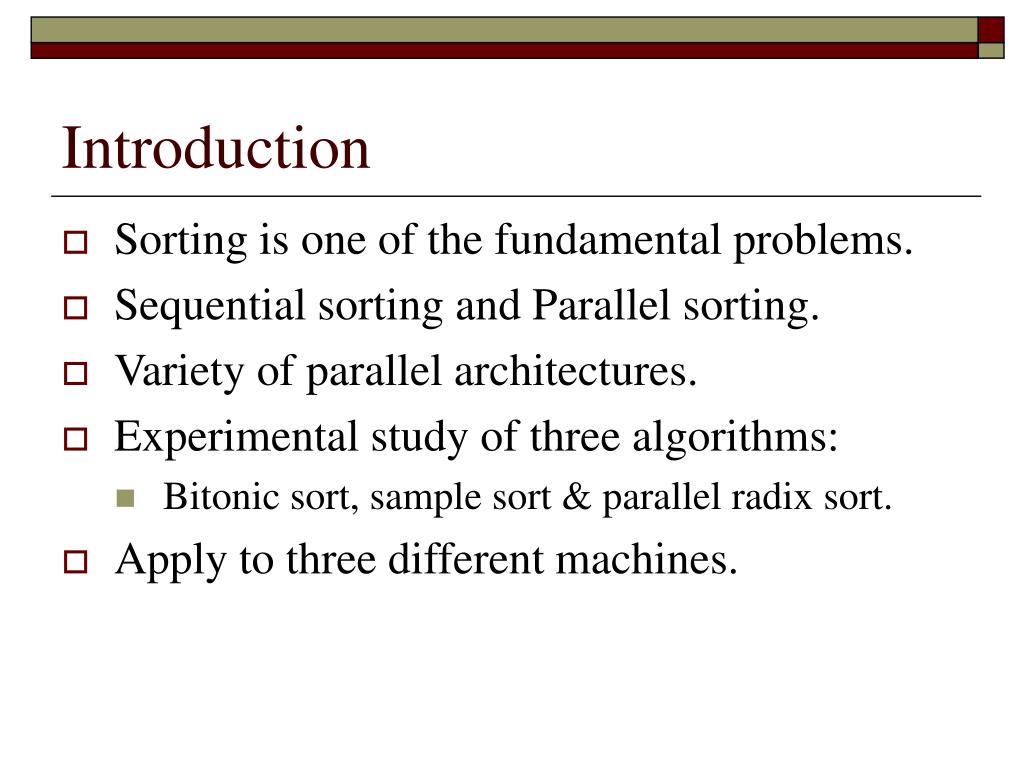

  3. Introduction • Sorting is one of the fundamental problems. • Sequential sorting and Parallel sorting. • Variety of parallel architectures. • Experimental study of three algorithms: • Bitonic sort, sample sort & parallel radix sort. • Apply to three different machines.

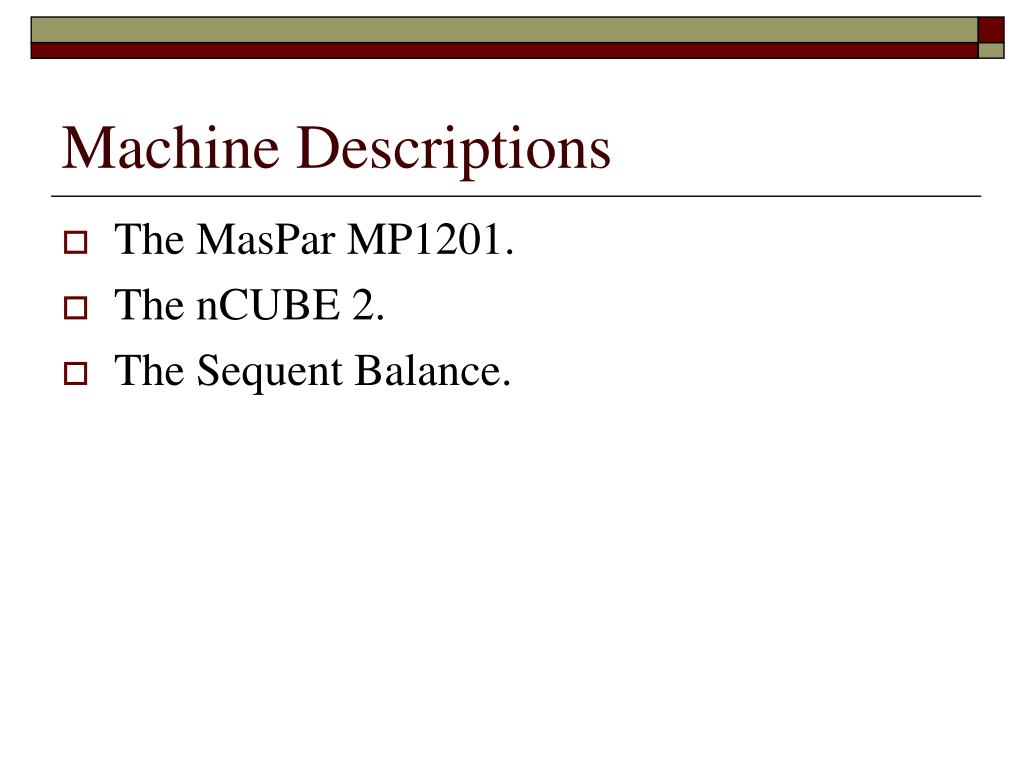

  4. Machine Descriptions • The MasPar MP1201. • The nCUBE 2. • The Sequent Balance.

  5. The MasPar MP1201 • SIMD machine. • 2,048 processors, 1.8 MIPS, 16Kbytes RAM. • Mesh based architecture. • X-Net and Global Router for communication. • Programming languages: C-Like and Fortran.

  6. The nCUBE 2 • MIMD machine. • 64 processors, 7.5 MIPS 1Mbyte RAM. • Hypercube architecture. • Broadcasting. • Language: C.

  7. The Sequent Balance • MIMD. • Shared Memory • 10 processors, 8 Kbytes RAM. • Communicate through shared memory. • Running Unix, language: C.

  8. Parallel Sorting Algorithms • Bitonic Sort. • Sample Sort. • Parallel Radix Sort.

  9. Bitonic Sort • Bitonic Sequence: • Is the concatenation of an ascending and descending sequence of numbers. • Example: 2,4,6,8,9,24,6,3,2,0. • Algorithm: • Convert n numbers into a bitonic sequence with n/2 numbers in an increasing subsequence. • Merge into an ordered sequence (increasing or decreasing.)

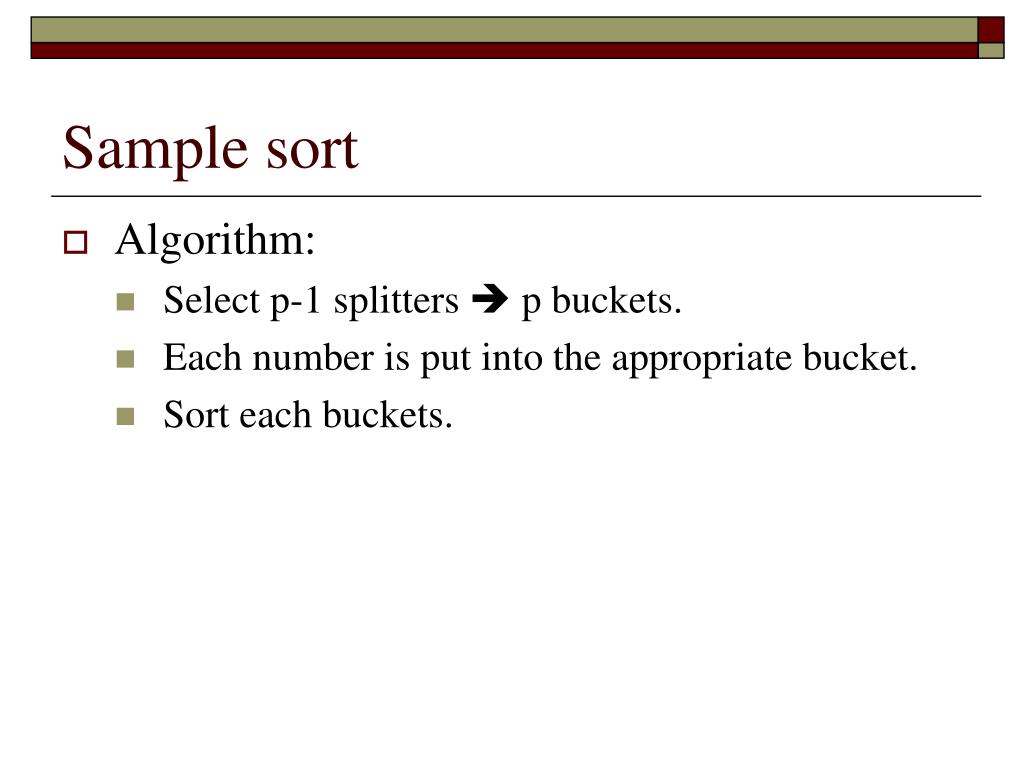

  10. Sample sort • Algorithm: • Select p-1 splitters  p buckets. • Each number is put into the appropriate bucket. • Sort each buckets.

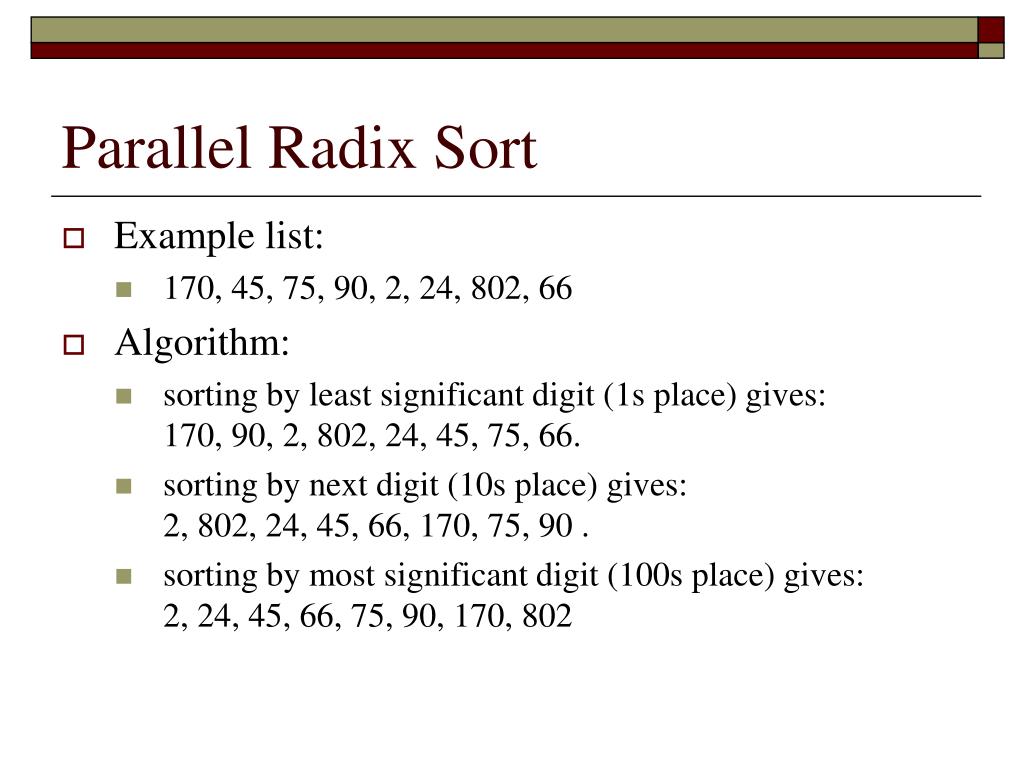

  11. Parallel Radix Sort • Example list: • 170, 45, 75, 90, 2, 24, 802, 66 • Algorithm: • sorting by least significant digit (1s place) gives:170, 90, 2, 802, 24, 45, 75, 66. • sorting by next digit (10s place) gives:2, 802, 24, 45, 66, 170, 75, 90 . • sorting by most significant digit (100s place) gives:2, 24, 45, 66, 75, 90, 170, 802

  12. Experimental Results • Make modifications to each machine. • Code was written in C. • Keys are randomly generated 32 bit integers. • Repeat 25 times and calculate the average.

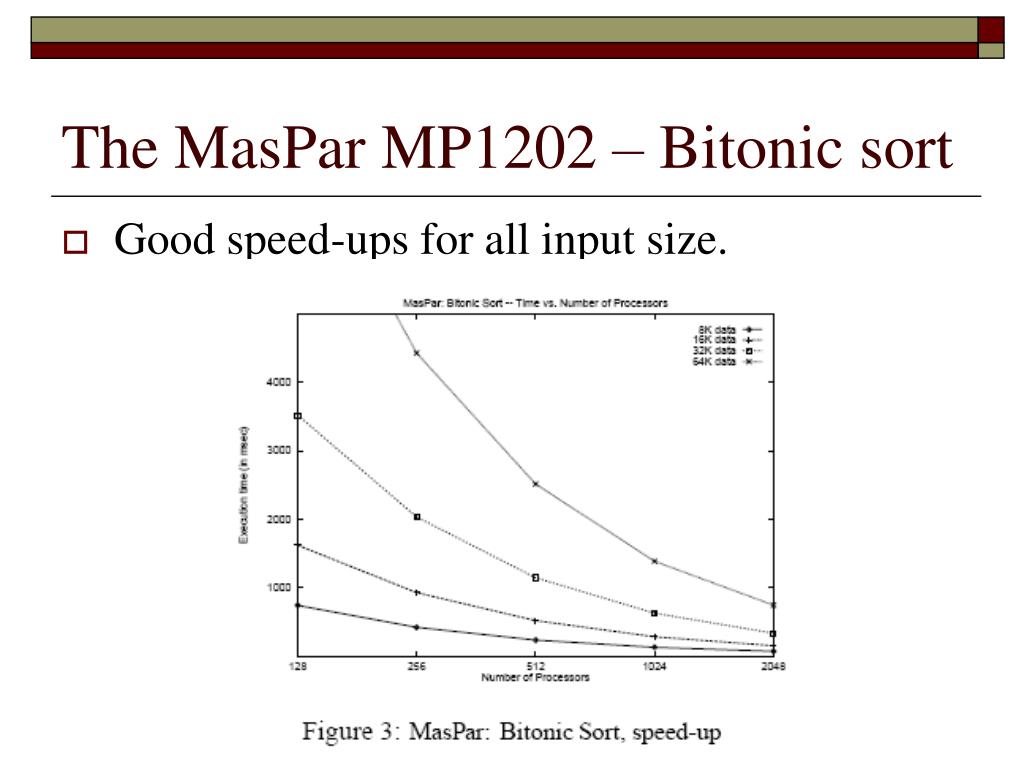

  13. The MasPar MP1202 – Bitonic sort • Good speed-ups for all input size.

  14. The MasPar MP1202 – Sample sort • Also good speed-ups.

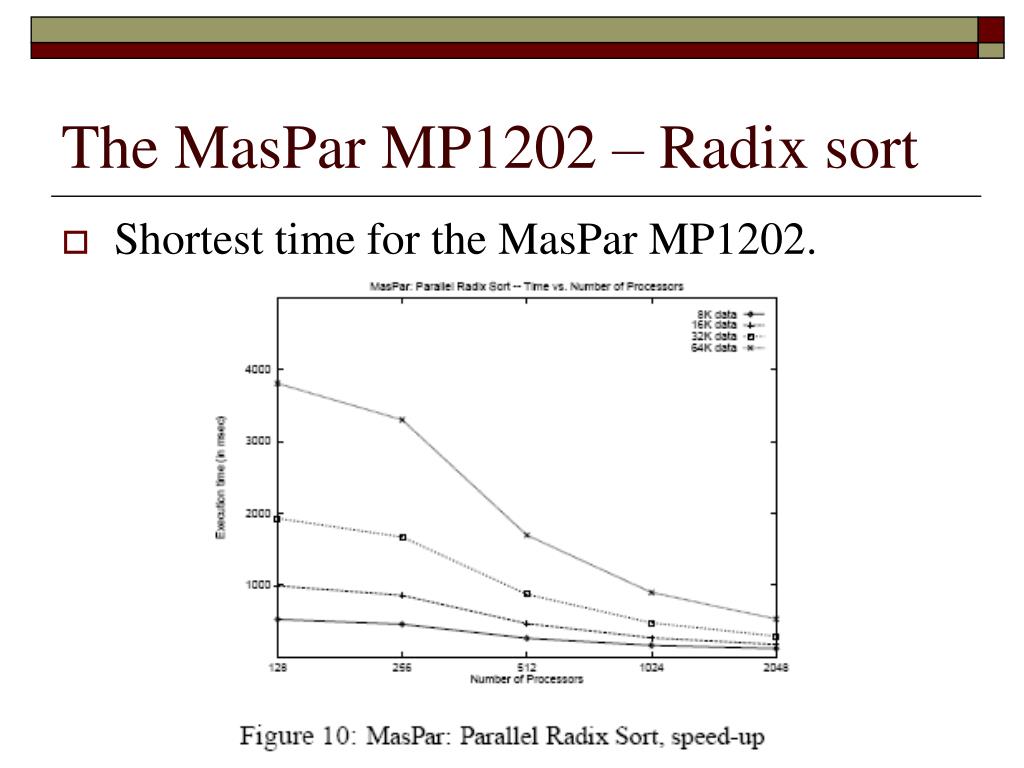

  15. The MasPar MP1202 – Radix sort • Shortest time for the MasPar MP1202.

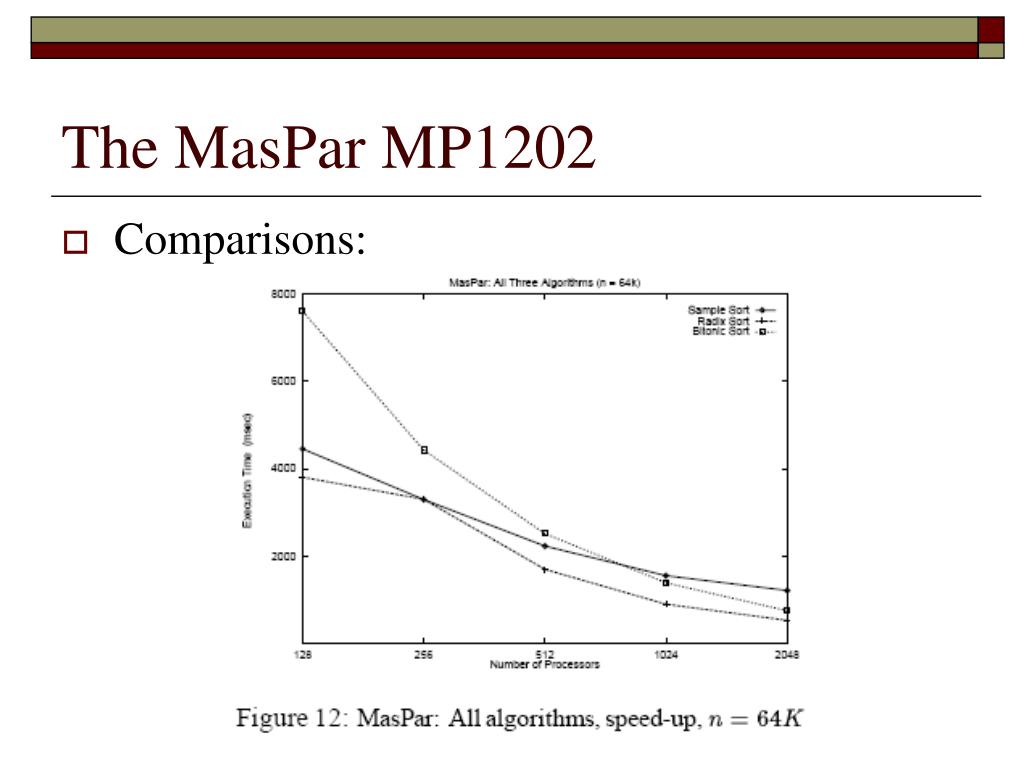

  16. The MasPar MP1202 • Comparisons:

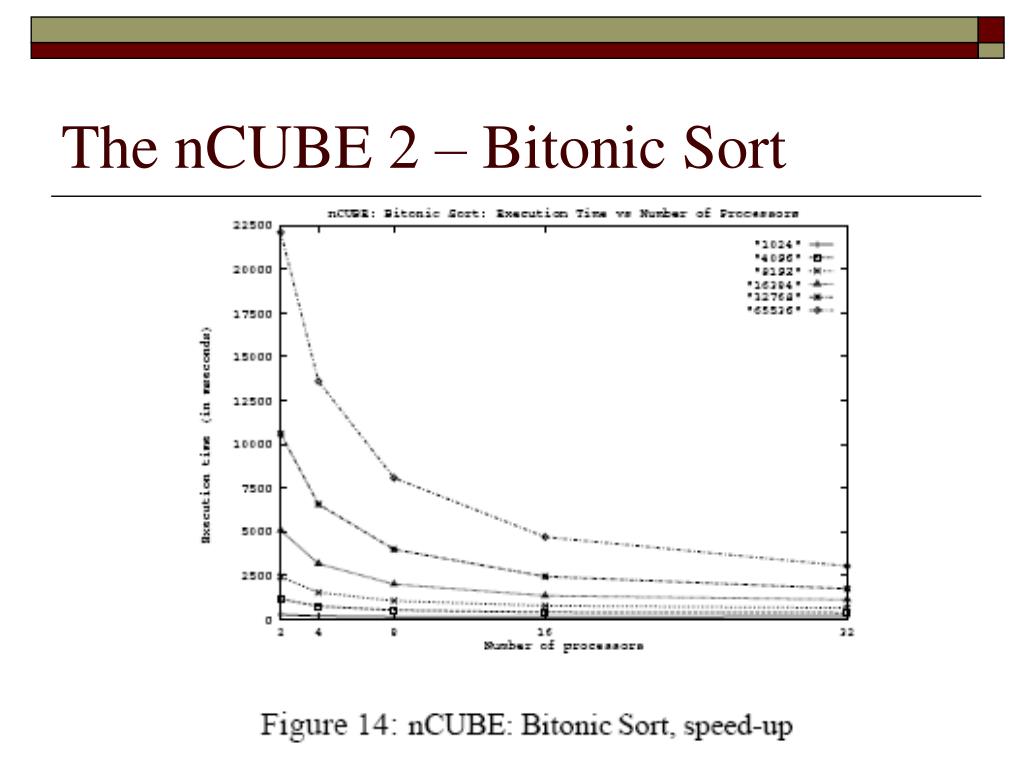

  17. The nCUBE 2 – Bitonic Sort

  18. The nCUBE 2 – Sample Sort

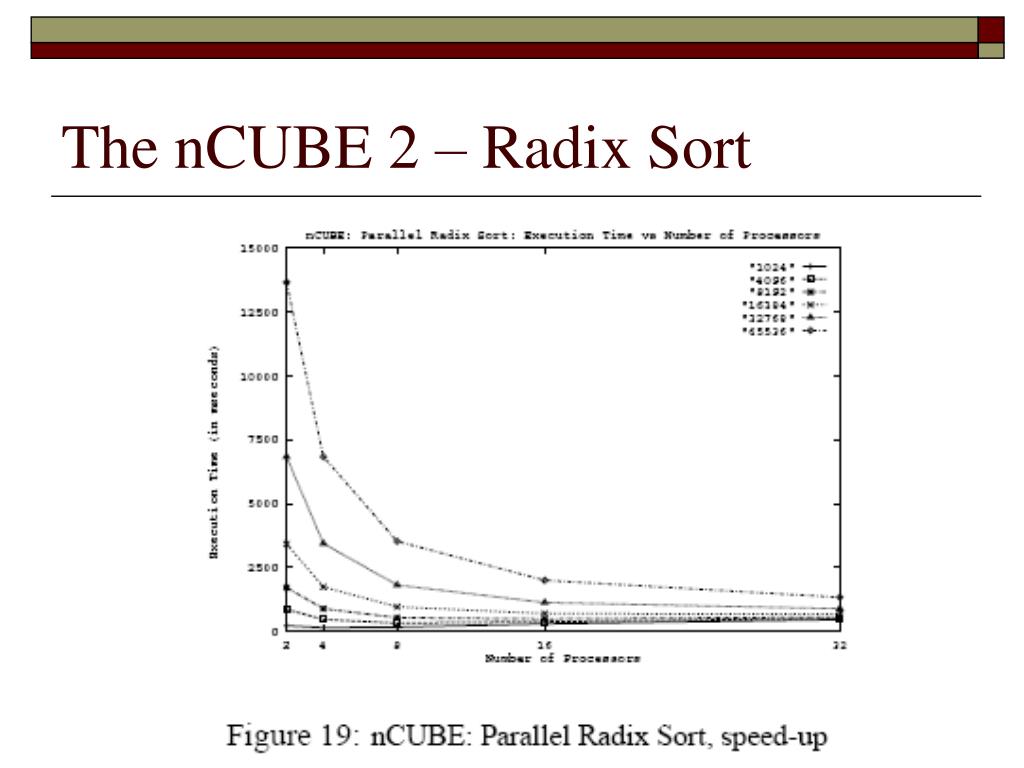

  19. The nCUBE 2 – Radix Sort

  20. The nCUBE 2

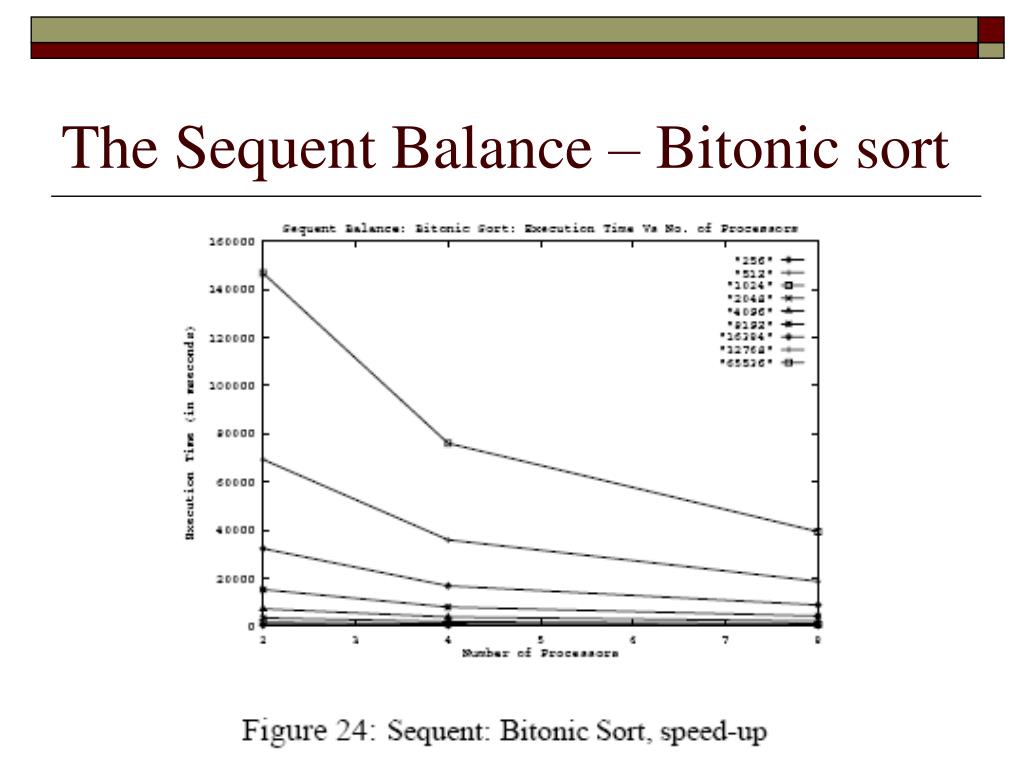

  21. The Sequent Balance – Bitonic sort

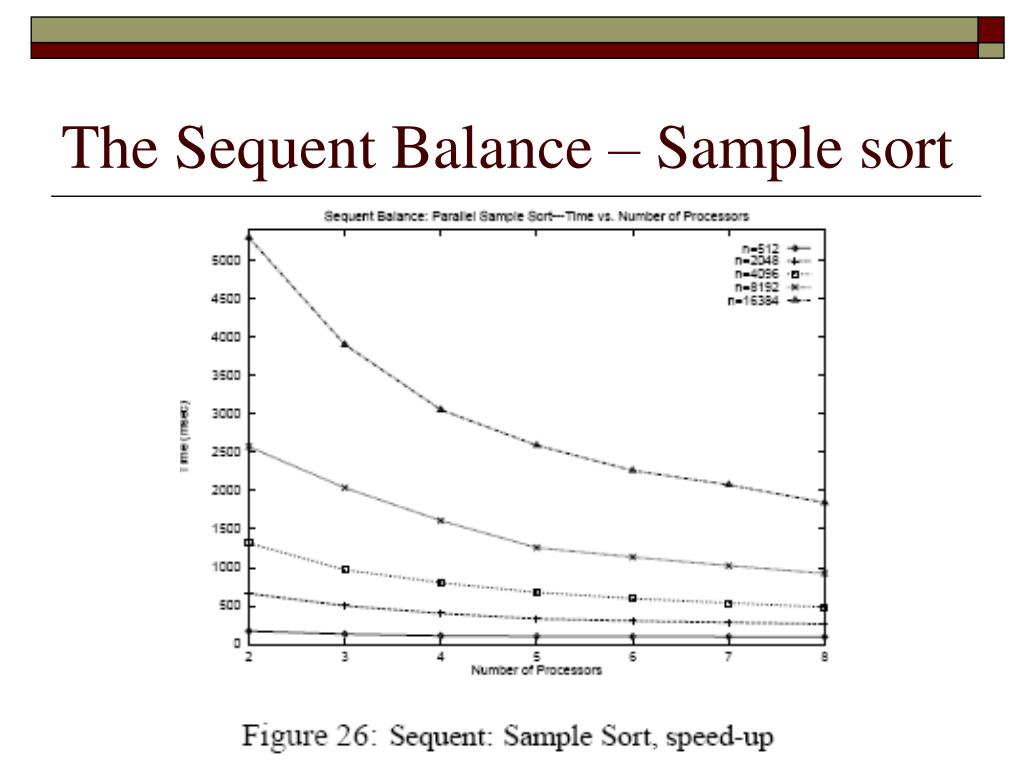

  22. The Sequent Balance – Sample sort

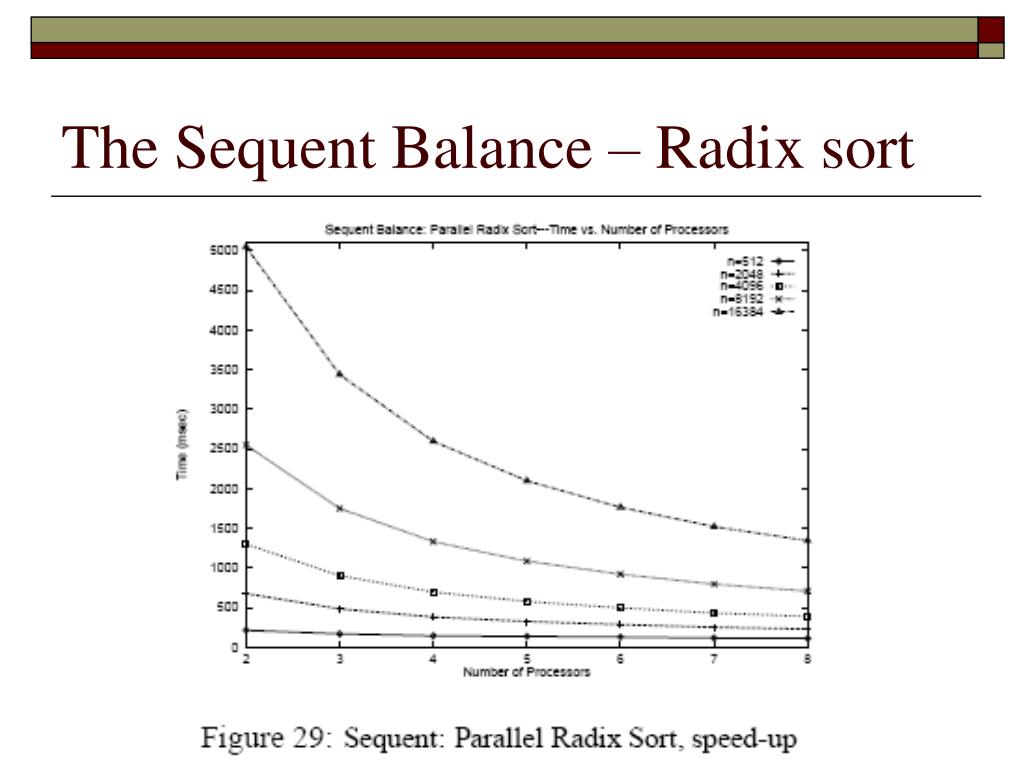

  23. The Sequent Balance – Radix sort

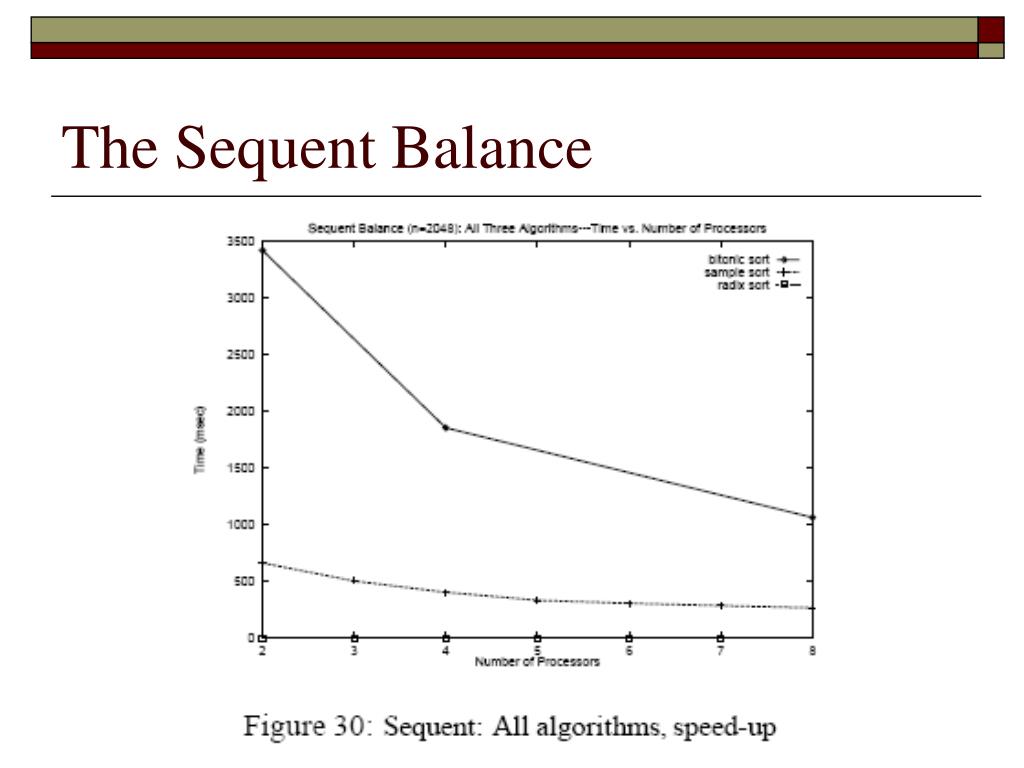

  24. The Sequent Balance

  25. Comparisons and Recommendations • MasPar MP1202: • Bitonic Sort for smaller input size. • Parallel Radix Sort for larger input size. • nCUBBE 2: • Sample Sort is the best. • Sequent Balance: • Sample Sort for smaller input size. • Parallel Radix Sort for larger input size.

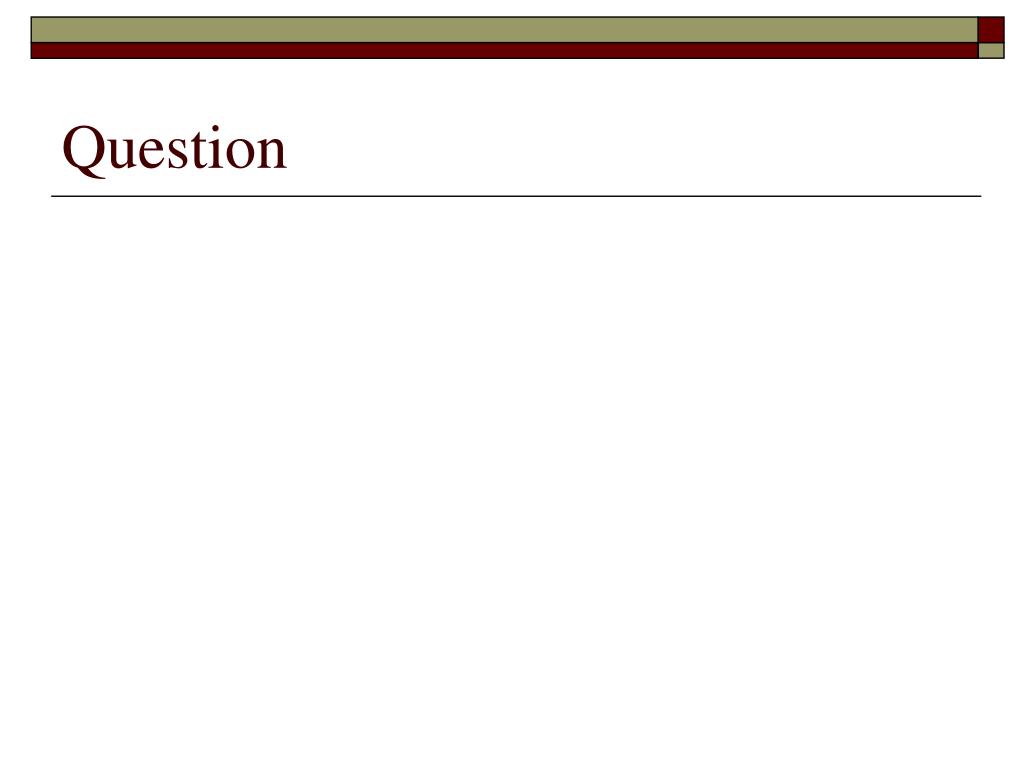

  26. Question
