Overview
Overview making

  • What is Operational Analysis (OA)?

  • Difficulties facing a decision maker – how can the analytical community help?

  • Ways to inform a decision maker

  • Ways to ensure the decision maker understands the information

  • An example of a technique that sets out to both inform & make the information understandable

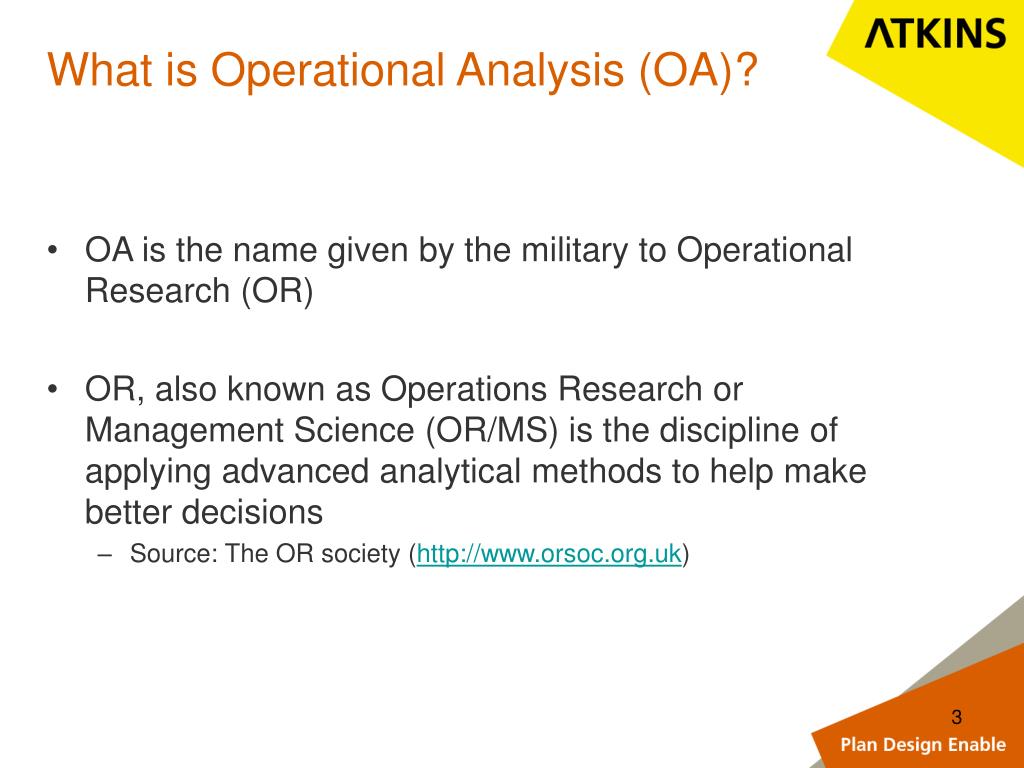

What is operational analysis oa
What is Operational Analysis (OA)? making

  • OA is the name given by the military to Operational Research (OR)

  • OR, also known as Operations Research or Management Science (OR/MS) is the discipline of applying advanced analytical methods to help make better decisions

    • Source: The OR society (http://www.orsoc.org.uk)

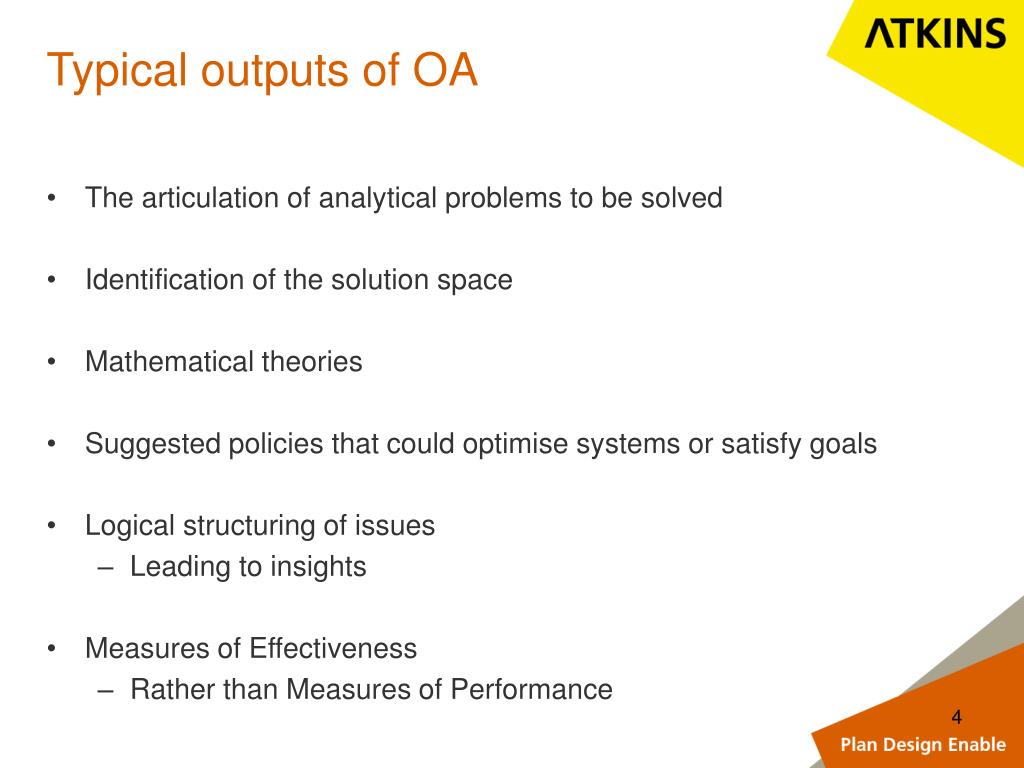

Typical outputs of oa
Typical outputs of OA making

  • The articulation of analytical problems to be solved

  • Identification of the solution space

  • Mathematical theories

  • Suggested policies that could optimise systems or satisfy goals

  • Logical structuring of issues

    • Leading to insights

  • Measures of Effectiveness

    • Rather than Measures of Performance

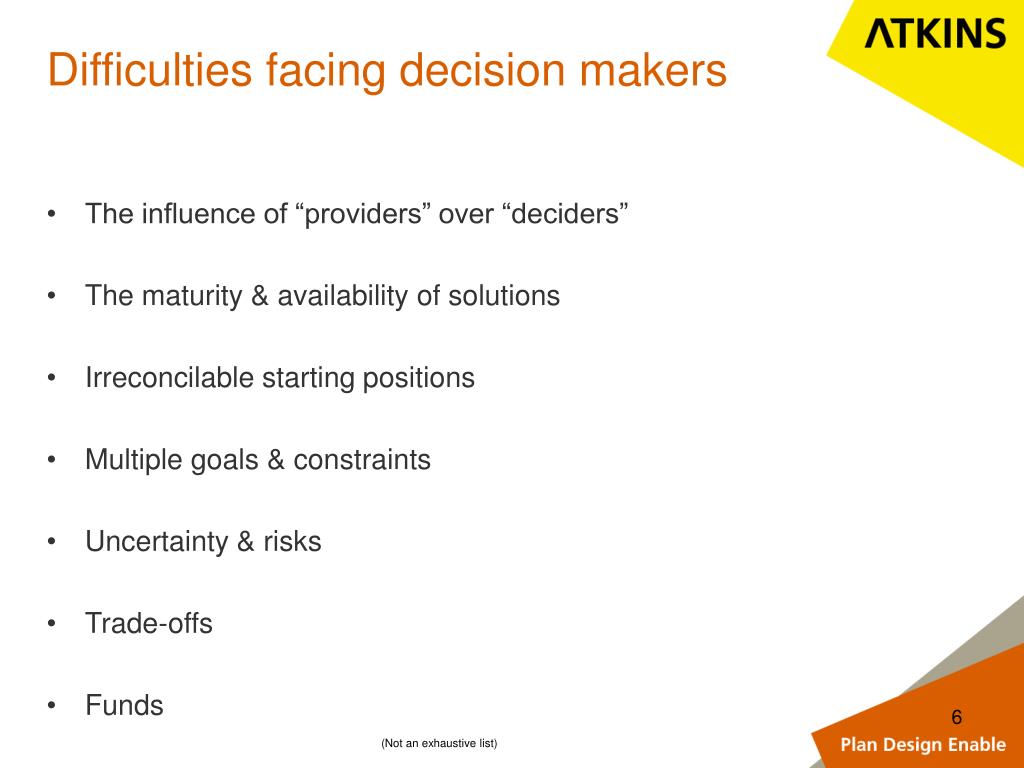

Difficulties facing decision makers1
Difficulties facing decision makers making

  • The influence of “providers” over “deciders”

  • The maturity & availability of solutions

  • Irreconcilable starting positions

  • Multiple goals & constraints

  • Uncertainty & risks

  • Trade-offs

  • Funds

(Not an exhaustive list)

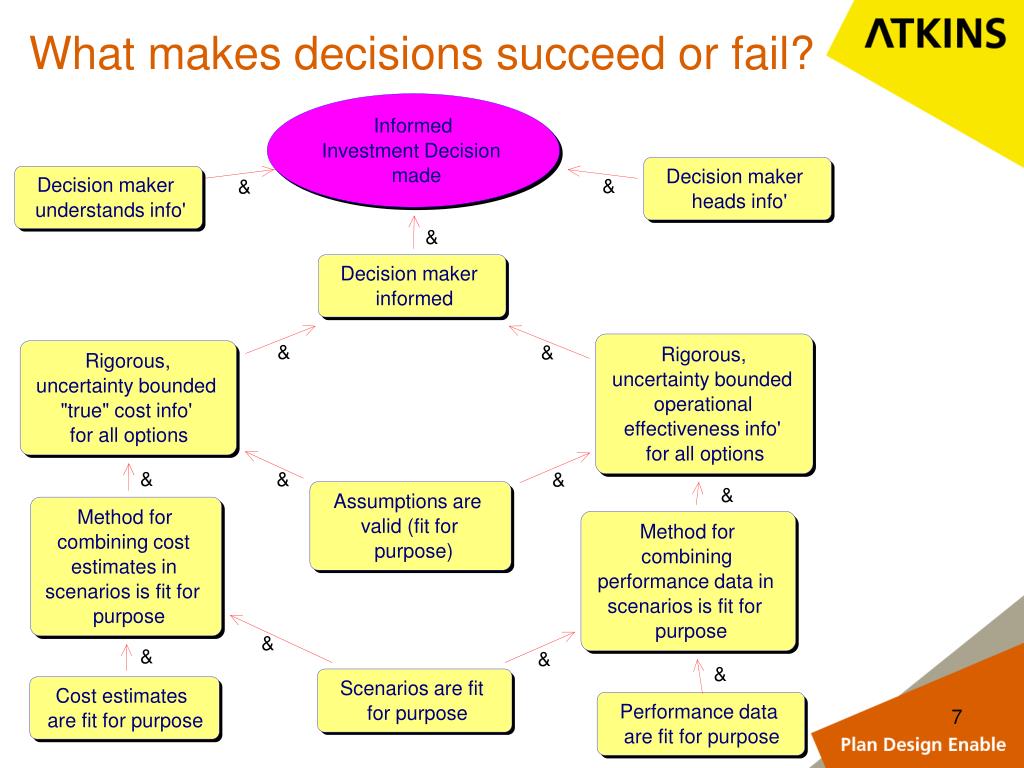

What makes decisions succeed or fail
What makes decisions succeed or fail? making

Informed

Investment Decision

made

Decision maker

Decision maker

&

&

heads info'

understands info'

&

Decision maker

informed

&

&

Rigorous,

Rigorous,

uncertainty bounded

uncertainty bounded

operational

"true" cost info'

effectiveness info'

for all options

for all options

&

&

&

&

Assumptions are

Method for

valid (fit for

Method for

combining cost

purpose)

combining

estimates in

performance data in

scenarios is fit for

scenarios is fit for

purpose

purpose

&

&

&

&

Scenarios are fit

Cost estimates

Performance data

for purpose

are fit for purpose

are fit for purpose

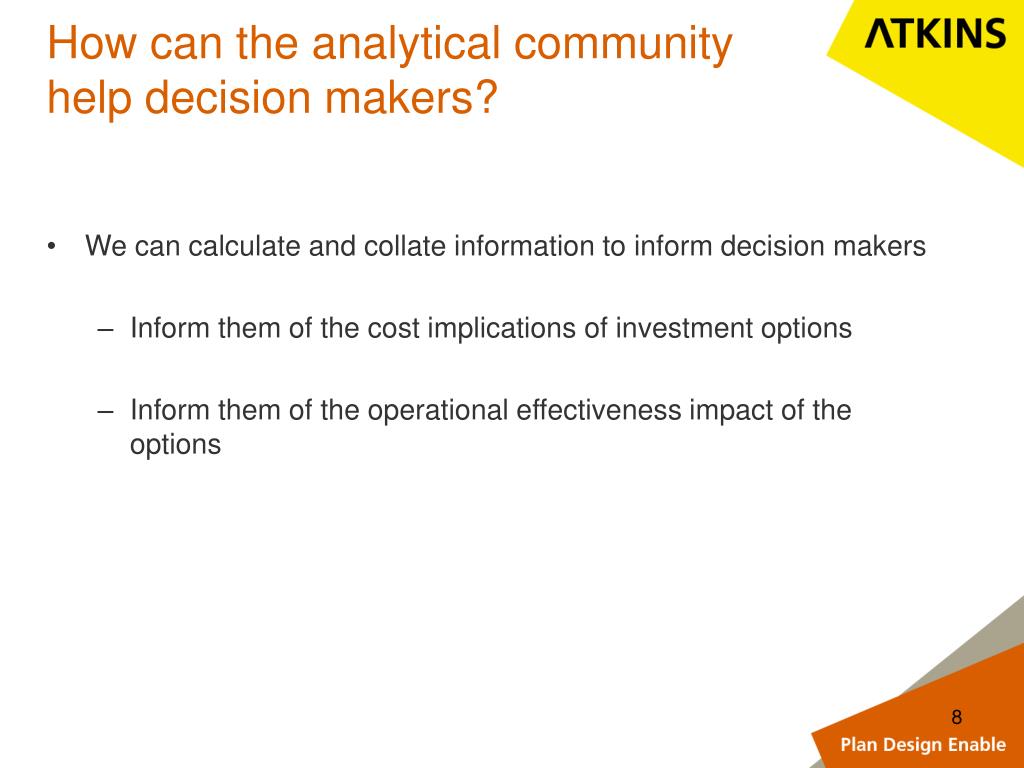

How can the analytical community help decision makers
How can the analytical community help decision makers? making

  • We can calculate and collate information to inform decision makers

    • Inform them of the cost implications of investment options

    • Inform them of the operational effectiveness impact of the options

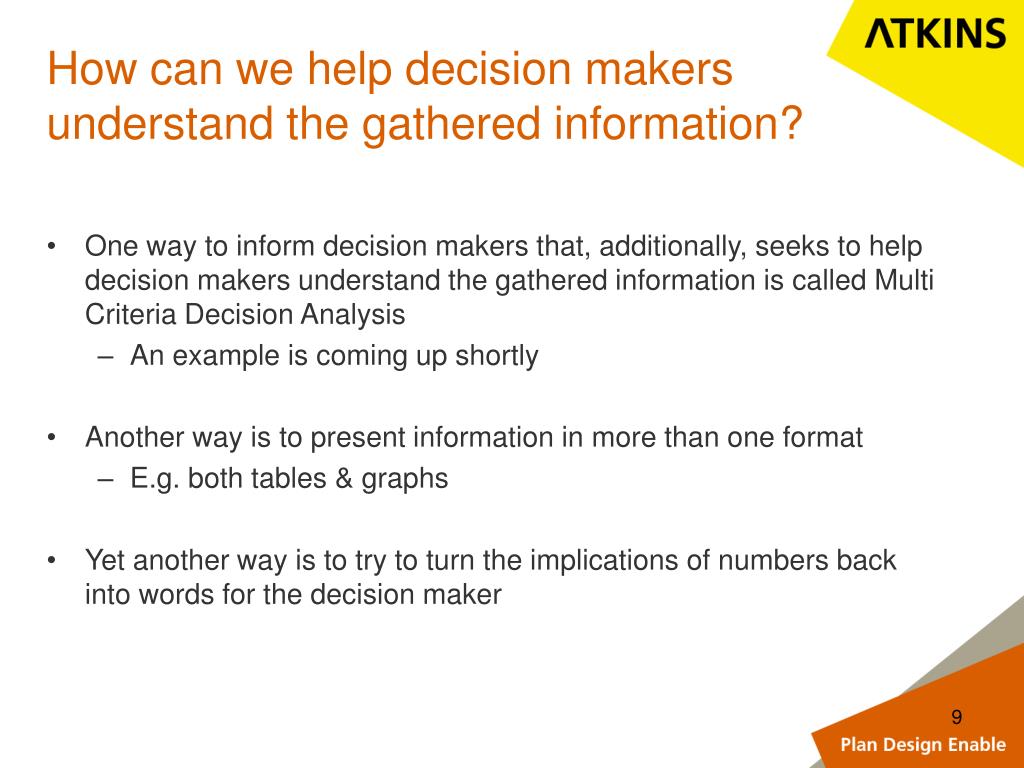

How can we help decision makers understand the gathered information
How can we help decision makers understand the gathered information?

  • One way to inform decision makers that, additionally, seeks to help decision makers understand the gathered information is called Multi Criteria Decision Analysis

    • An example is coming up shortly

  • Another way is to present information in more than one format

    • E.g. both tables & graphs

  • Yet another way is to try to turn the implications of numbers back into words for the decision maker



Background to mcda
Background to MCDA information?

What MDCA is:

  • MCDA is the name given to a group of techniques by the OR Society

  • A technique for supporting decision makers who are trying to simultaneously satisfy multiple, potentially conflicting goals

  • MCDA techniques pop-up in all sorts of domains with different names & conducted in different ways to different standards of analytical rigour

  • MCDA is a technique for helping decision makers make choices

    • Arguably it does not:

      • do predictive modelling

      • produce Measures of Effectiveness

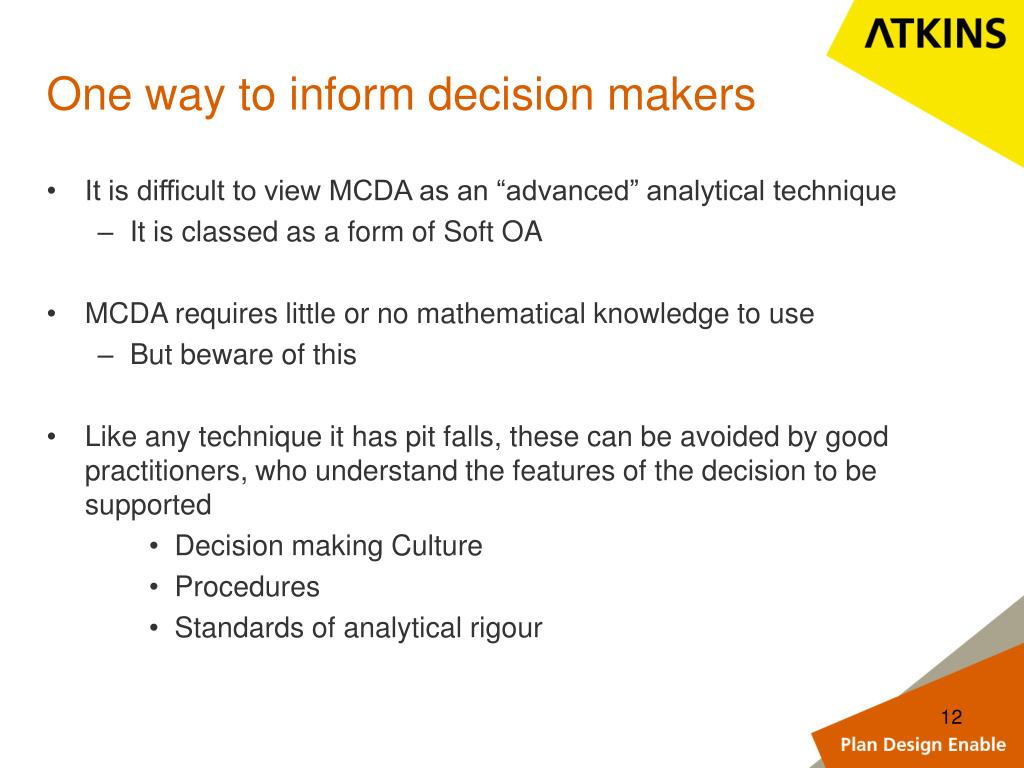

One way to inform decision makers
One way to inform decision makers information?

  • It is difficult to view MCDA as an “advanced” analytical technique

    • It is classed as a form of Soft OA

  • MCDA requires little or no mathematical knowledge to use

    • But beware of this

  • Like any technique it has pit falls, these can be avoided by good practitioners, who understand the features of the decision to be supported

    • Decision making Culture

    • Procedures

    • Standards of analytical rigour

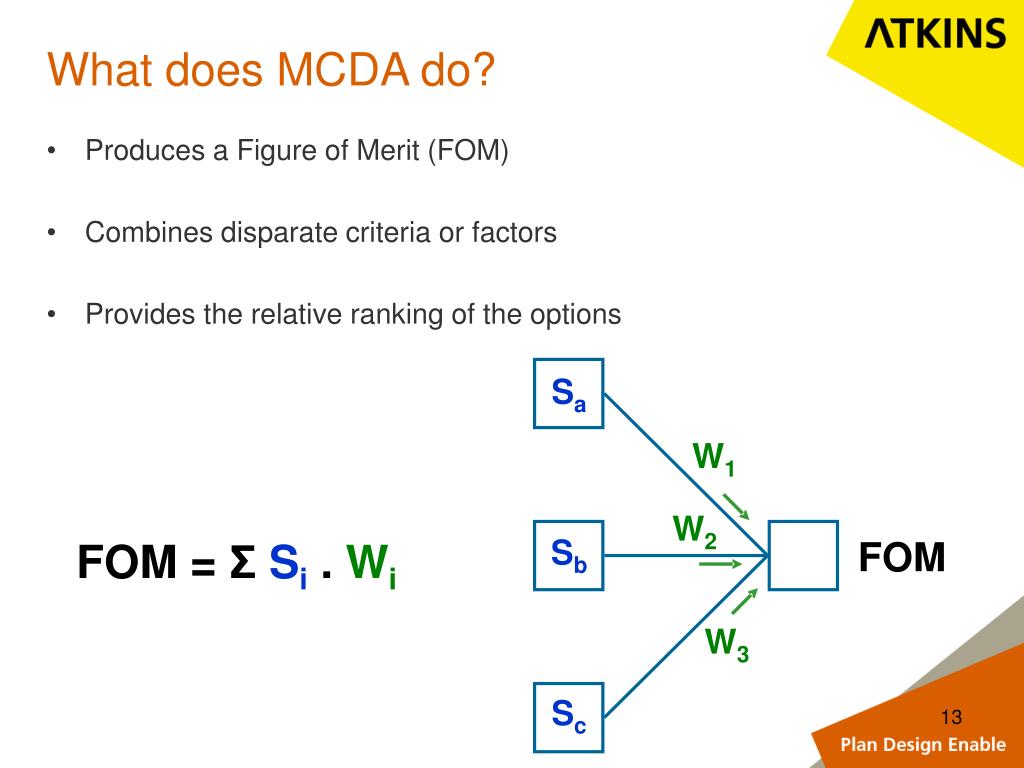

What does mcda do
What does MCDA do? information?

  • Produces a Figure of Merit (FOM)

  • Combines disparate criteria or factors

  • Provides the relative ranking of the options


Mcda sequence of events

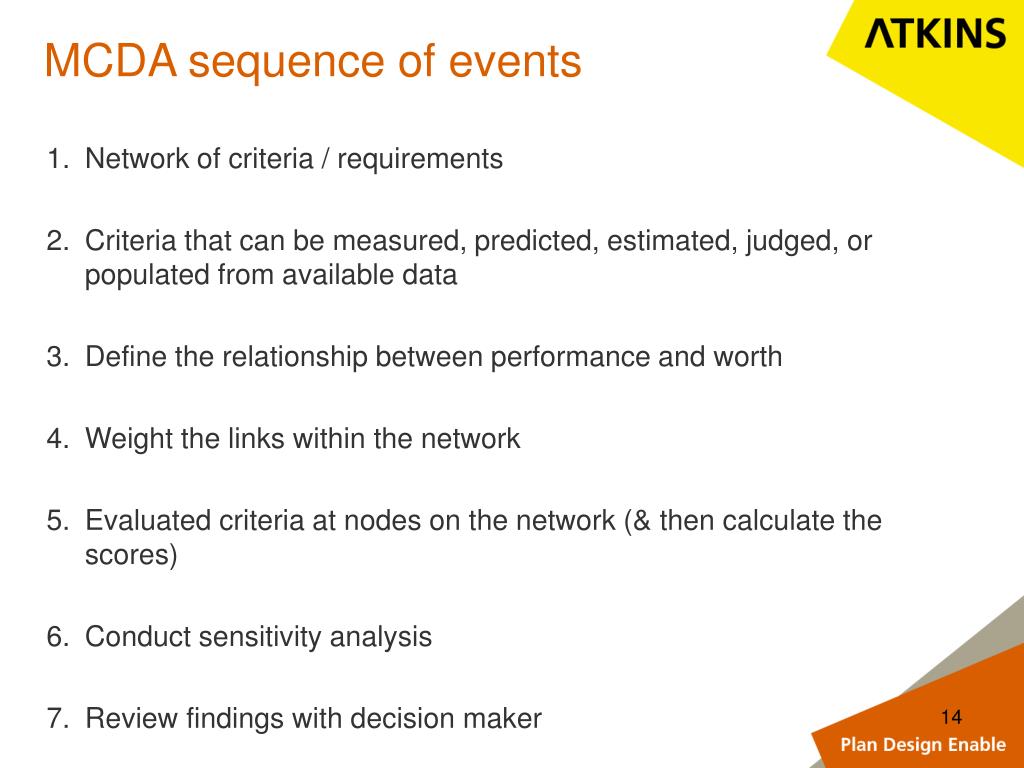

MCDA sequence of events information?

  • Network of criteria / requirements

  • Criteria that can be measured, predicted, estimated, judged, or populated from available data

  • Define the relationship between performance and worth

  • Weight the links within the network

  • Evaluated criteria at nodes on the network (& then calculate the scores)

  • Conduct sensitivity analysis

  • Review findings with decision maker


Mcda example
MCDA Example information?


How mcda works simple example

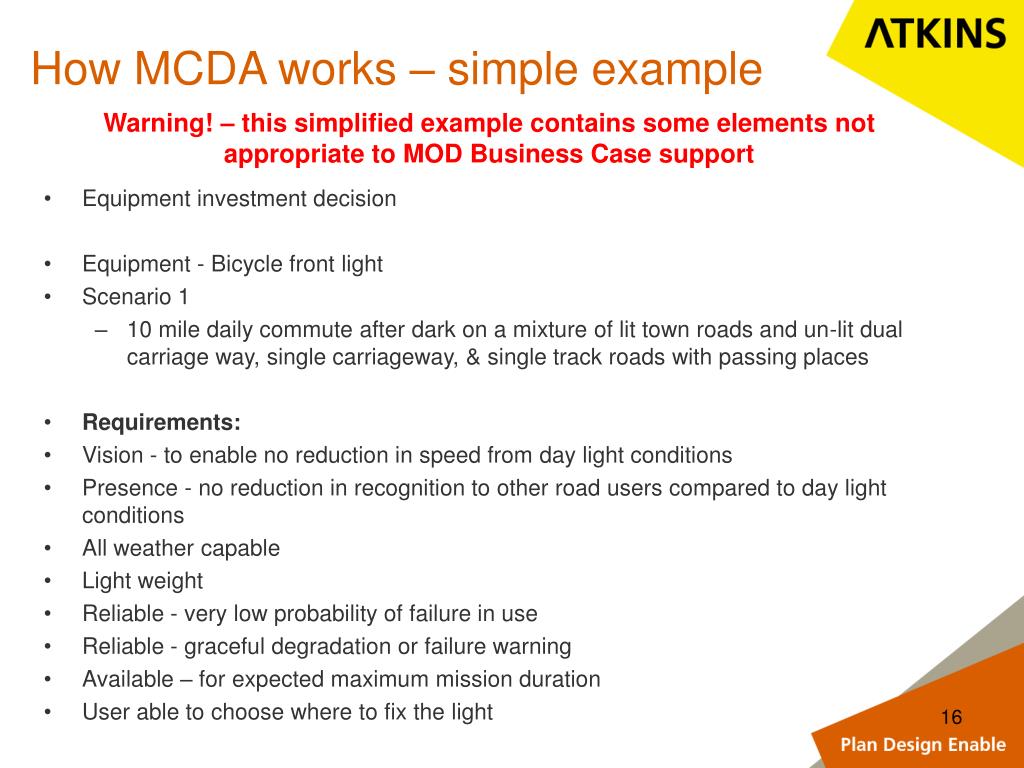

How MCDA works – simple example information?

Warning! – this simplified example containssome elements not

appropriate to MOD Business Case support

  • Equipment investment decision

  • Equipment - Bicycle front light

  • Scenario 1

    • 10 mile daily commute after dark on a mixture of lit town roads and un-lit dual carriage way, single carriageway, & single track roads with passing places

  • Requirements:

  • Vision - to enable no reduction in speed from day light conditions

  • Presence - no reduction in recognition to other road users compared to day light conditions

  • All weather capable

  • Light weight

  • Reliable - very low probability of failure in use

  • Reliable - graceful degradation or failure warning

  • Available – for expected maximum mission duration

  • User able to choose where to fix the light

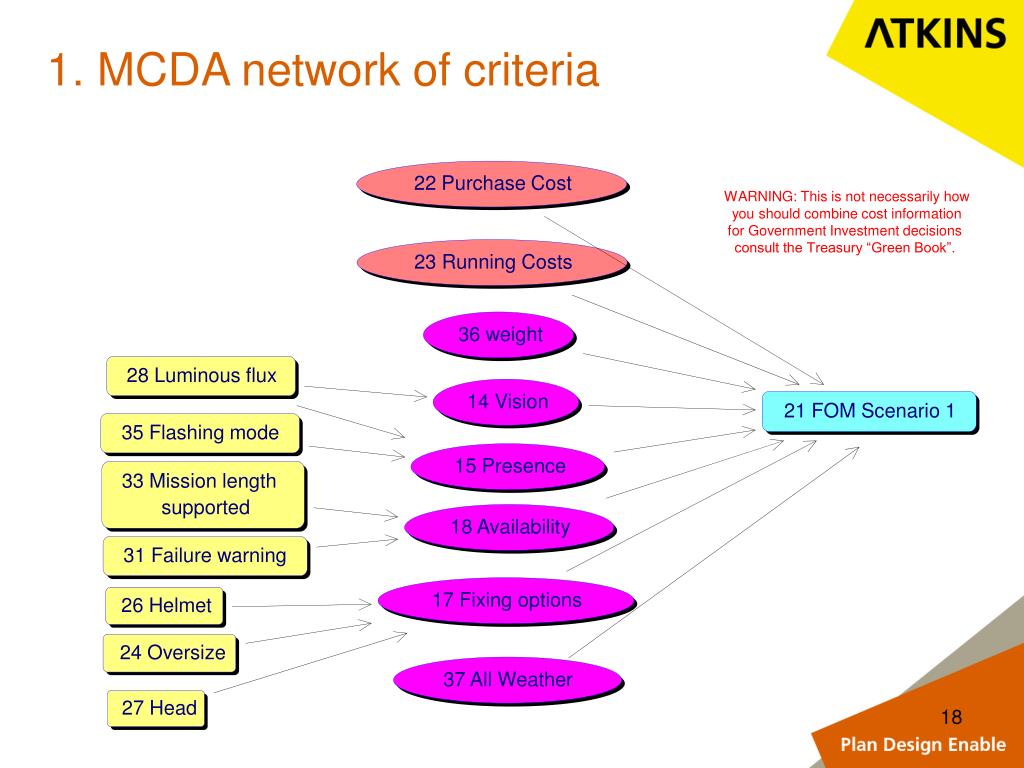

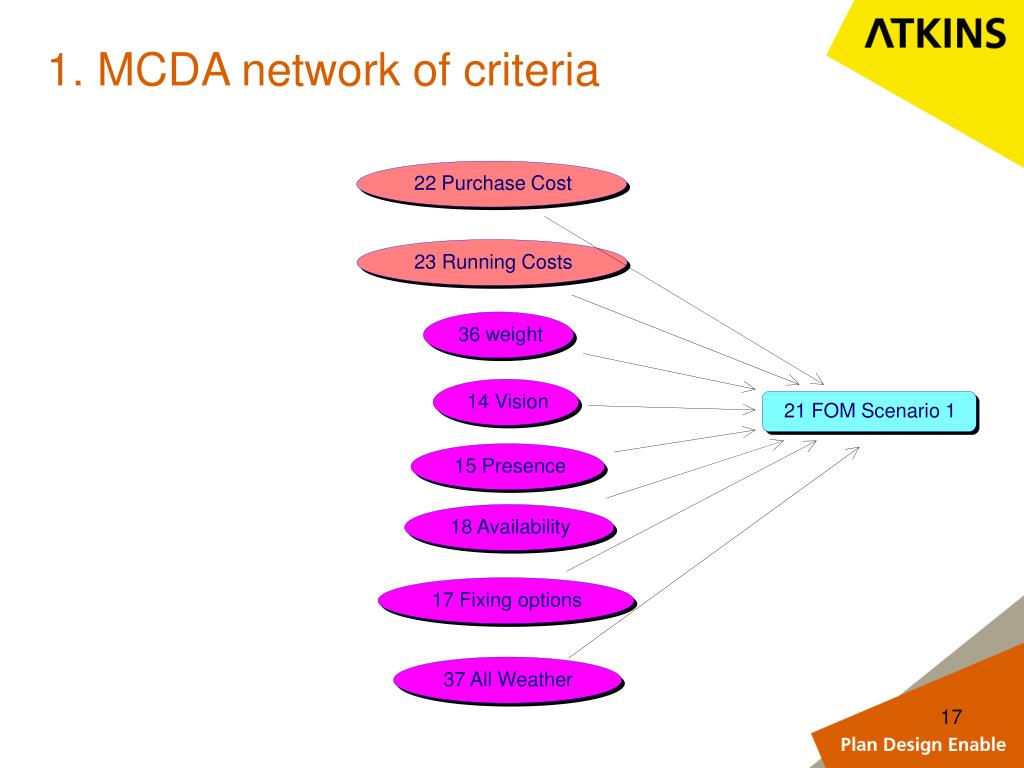

1 mcda network of criteria
1. MCDA network of criteria information?

37 All Weather

22 Purchase Cost

23 Running Costs

36 weight

14 Vision

21 FOM Scenario 1

15 Presence

18 Availability

17 Fixing options


1 mcda network of criteria1
1. MCDA network of criteria information?

37 All Weather

22 Purchase Cost

WARNING: This is not necessarily how

you should combine cost information

for Government Investment decisions

consult the Treasury “Green Book”.

23 Running Costs

36 weight

28 Luminous flux

14 Vision

21 FOM Scenario 1

35 Flashing mode

15 Presence

33 Mission length

supported

18 Availability

31 Failure warning

17 Fixing options

26 Helmet

24 Oversize

27 Head

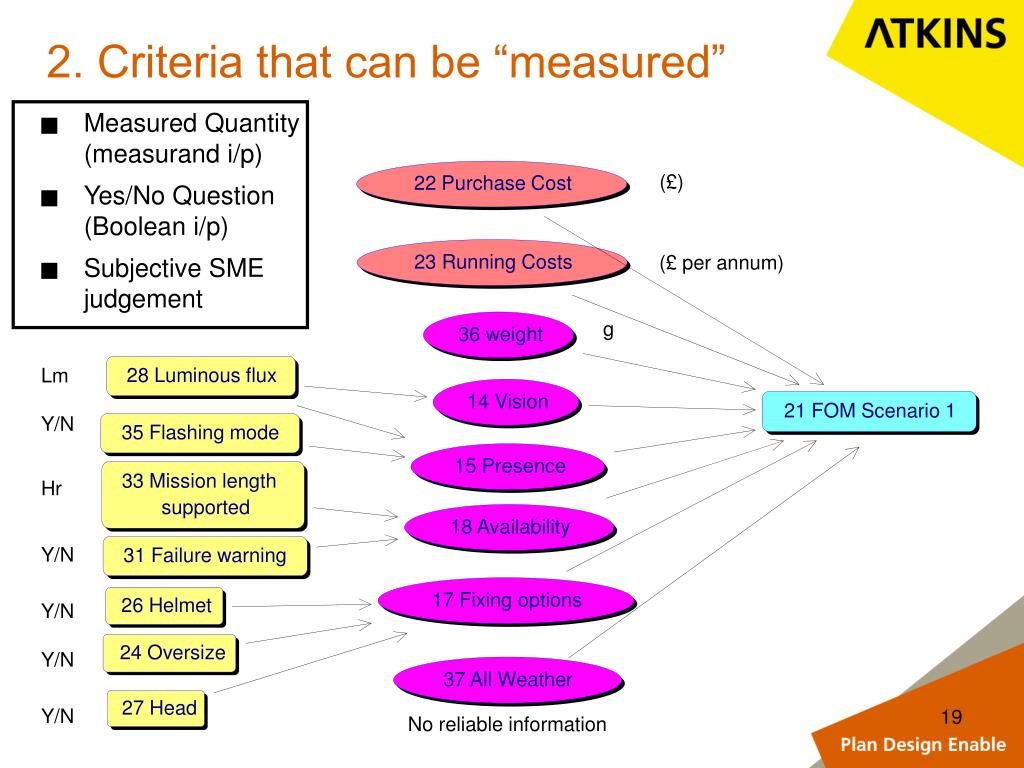

2 criteria that can be measured
2. Criteria that can be “measured” information?

37 All Weather

Measured Quantity

(measurand i/p)

(£)

22 Purchase Cost

Yes/No Question

(Boolean i/p)

(£ per annum)

Subjective SME

judgement

23 Running Costs

g

36 weight

Lm

28 Luminous flux

14 Vision

21 FOM Scenario 1

Y/N

35 Flashing mode

15 Presence

33 Mission length

Hr

supported

18 Availability

Y/N

31 Failure warning

17 Fixing options

26 Helmet

Y/N

24 Oversize

Y/N

27 Head

Y/N

No reliable information

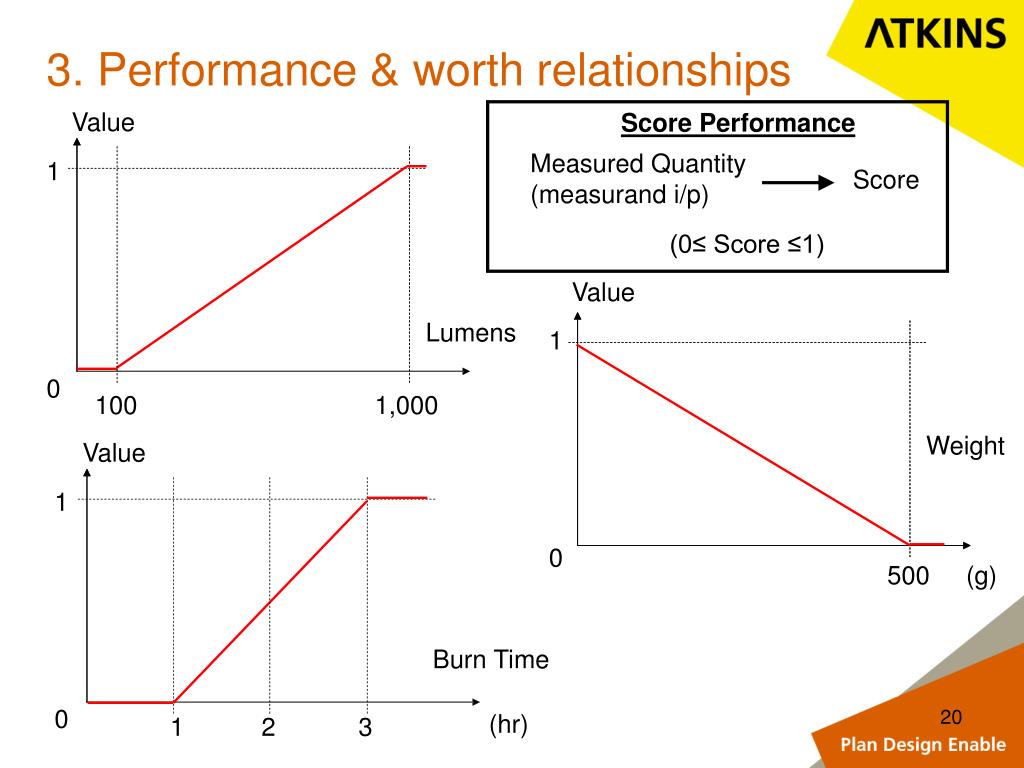

3 performance worth relationships
3. Performance & worth relationships information?

Value

Score Performance

Measured Quantity

(measurand i/p)

1

Score

(0≤ Score ≤1)

Value

Lumens

1

0

100

1,000

Weight

Value

1

0

500

(g)

Burn Time

0

(hr)

1

2

3


3 performance worth relationships1
3. Performance & worth relationships information?

Value

Score Performance

Measured Quantity

(measurand i/p)

1

Score

(0≤ Score ≤1)

Purchase

Cost

0

(£)

75

100

200

300

Value

1

Running

Cost

0

10

15

30

(£)

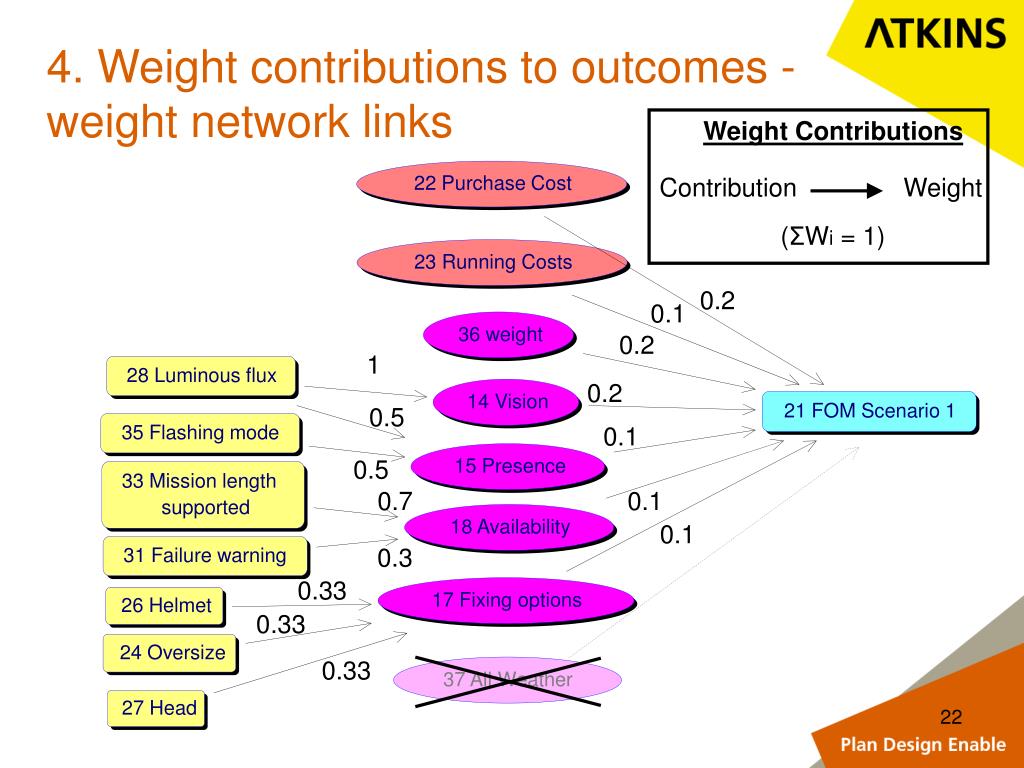

4 weight contributions to outcomes weight network links
4. Weight contributions to outcomes - weight network links information?

Weight Contributions

Contribution

Weight

22 Purchase Cost

(ΣWi = 1)

23 Running Costs

0.2

0.1

36 weight

0.2

1

28 Luminous flux

0.2

14 Vision

0.5

21 FOM Scenario 1

0.1

35 Flashing mode

0.5

15 Presence

33 Mission length

0.7

0.1

supported

0.1

18 Availability

0.3

31 Failure warning

0.33

17 Fixing options

26 Helmet

0.33

24 Oversize

0.33

37 All Weather

27 Head



Sensitivity analysis
Sensitivity Analysis information?

  • Having got initial results out of the models may have felt like arriving at the destination …

  • This is NOT correct

    • the Analysts job is not done

    • there is a need to conduct Sensitivity Analysis

    • to understand how uncertainty affects the ranking of the options

    • indeed once uncertainty is considered it may not be possible to discriminate between the options


5 evaluate criteria for each option top fom results
5. Evaluate criteria – for each Option information? - Top FOM results

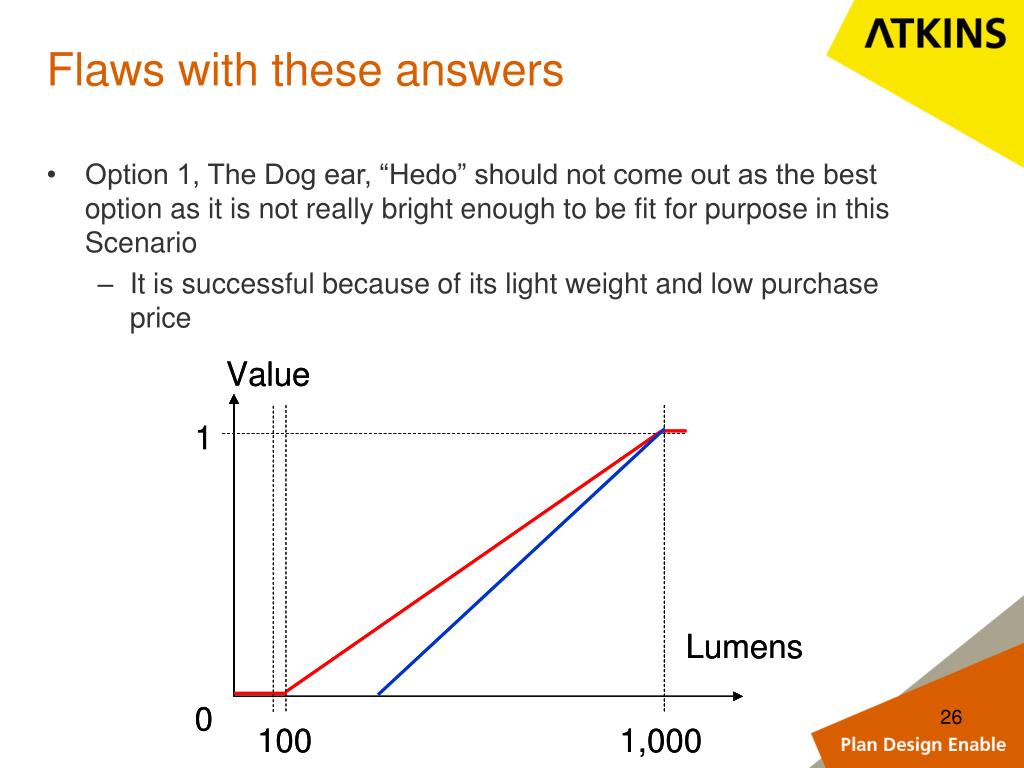

Flaws with these answers
Flaws with these answers information?

  • Option 1, The Dog ear, “Hedo” should not come out as the best option as it is not really bright enough to be fit for purpose in this Scenario

    • It is successful because of its light weight and low purchase price


Flaws with these answers1
Flaws with these answers information?

  • Options 13 & 14, The Faith, “Four 1” and The “Four 1+1” should not be equal in merit


7 review findings with decision maker
7.Review findings with decision maker information?

  • Should not use this technique in the absence of decision makers from relevant parts of the process

  • Review findings with decision maker

  • Sometimes the analysis (or thought process) does not get as far as MCDA results

    • We gain some insight that reframes or satisfactorily solves the exam question before the analysis is concluded

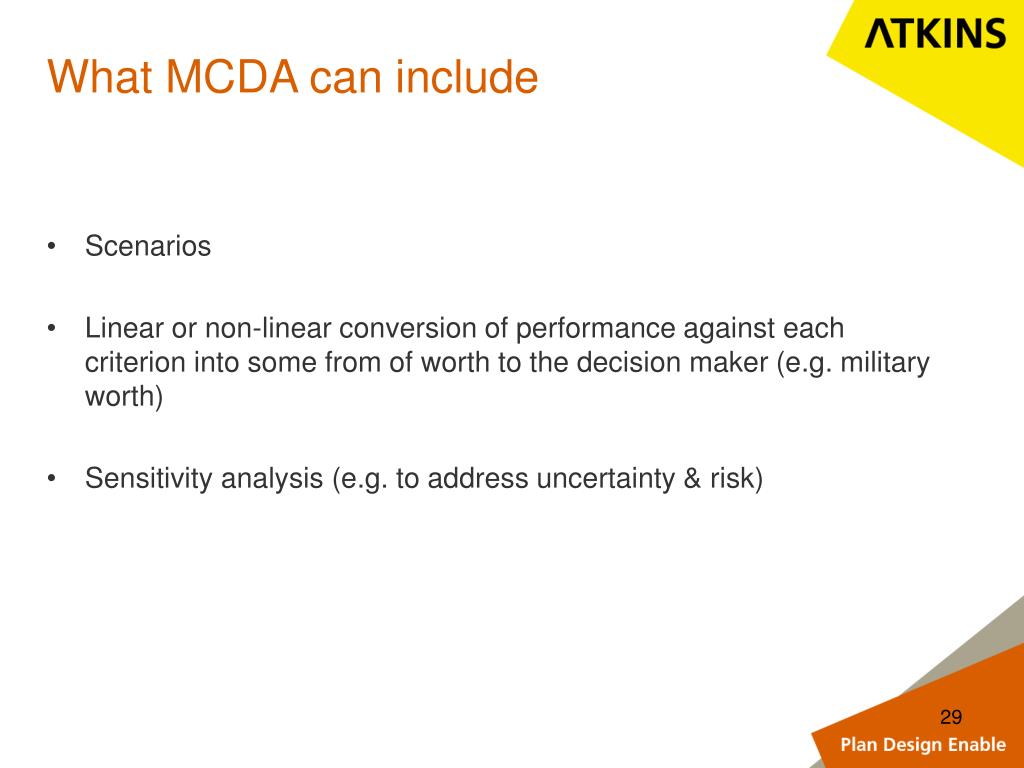

What mcda can include
What MCDA can include information?

  • Scenarios

  • Linear or non-linear conversion of performance against each criterion into some from of worth to the decision maker (e.g. military worth)

  • Sensitivity analysis (e.g. to address uncertainty & risk)

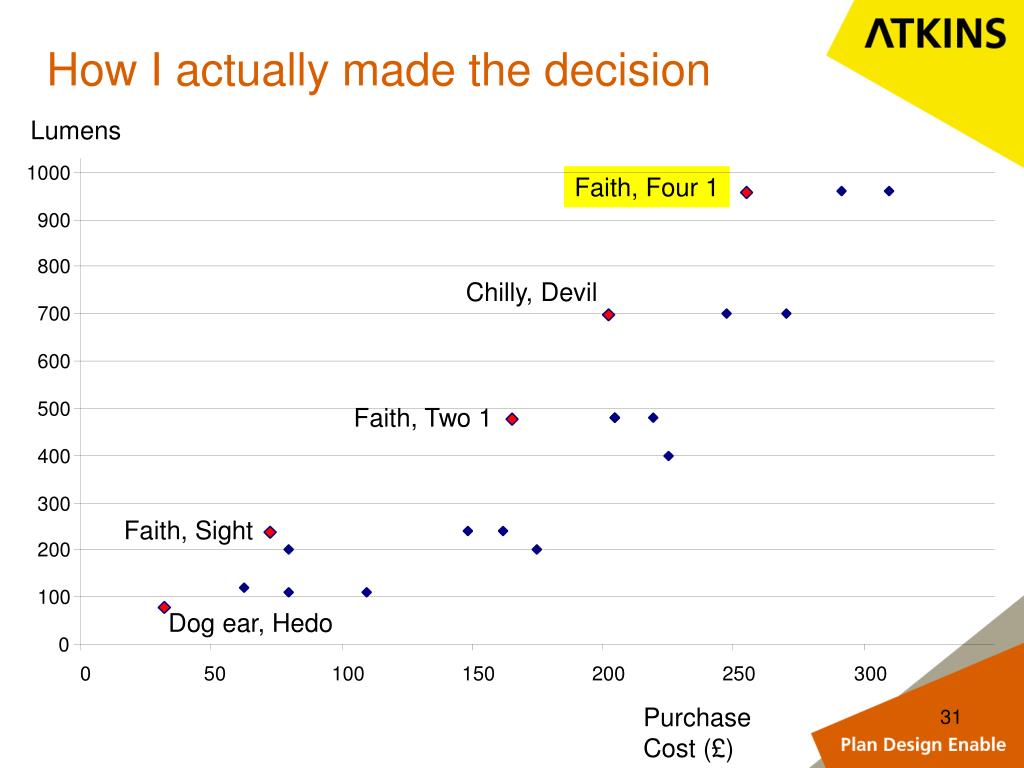

How i actually made the decision1
How I actually made the decision information?

Lumens

1000

Faith, Four 1

900

800

Chilly, Devil

700

600

500

Faith, Two 1

400

300

Faith, Sight

200

100

Dog ear, Hedo

0

0

50

100

150

200

250

300

Purchase

Cost (£)

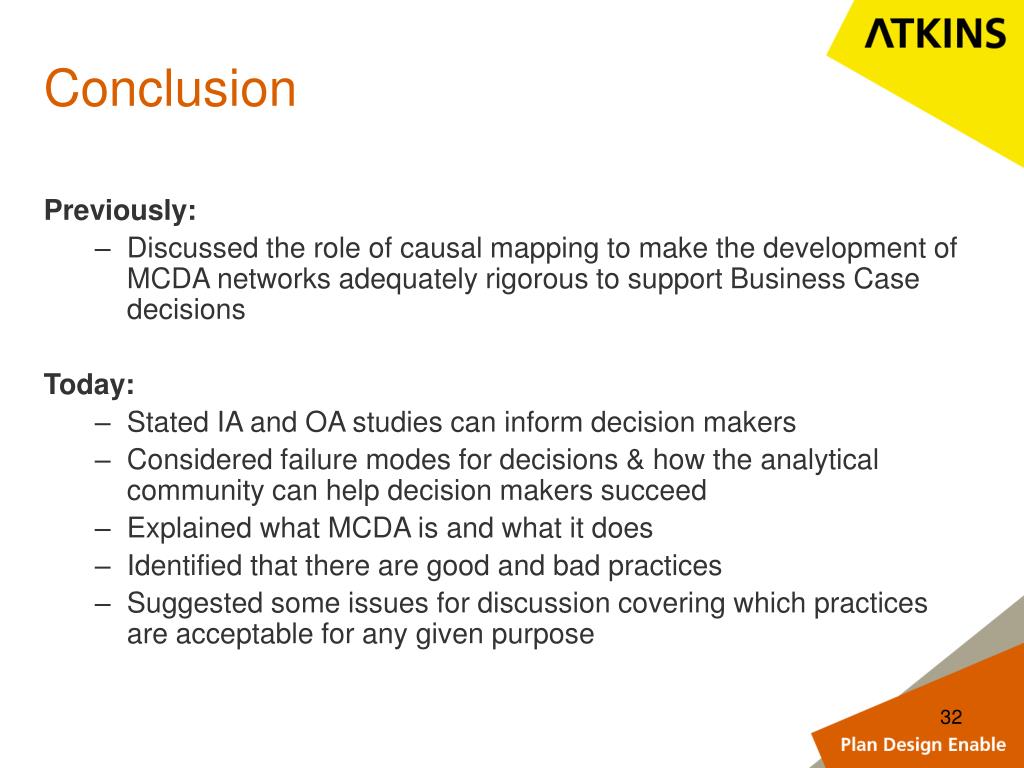

Conclusion
Conclusion information?

Previously:

  • Discussed the role of causal mapping to make the development of MCDA networks adequately rigorous to support Business Case decisions

    Today:

  • Stated IA and OA studies can inform decision makers

  • Considered failure modes for decisions & how the analytical community can help decision makers succeed

  • Explained what MCDA is and what it does

  • Identified that there are good and bad practices

  • Suggested some issues for discussion covering which practices are acceptable for any given purpose

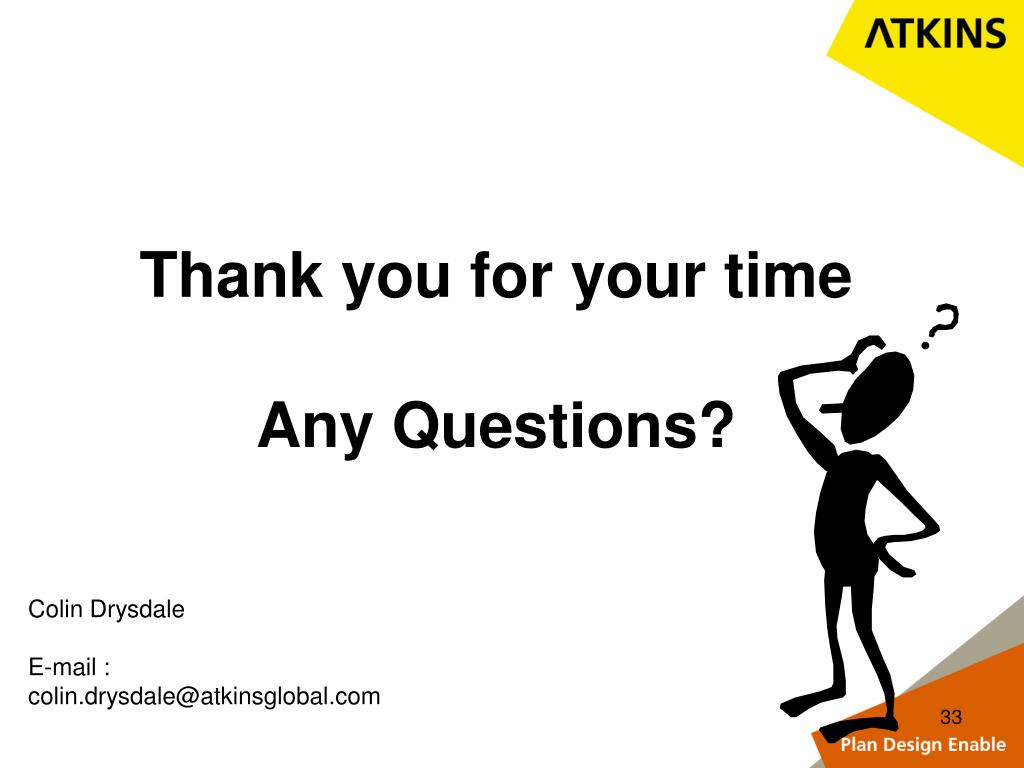

Thank you for your time information?

Any Questions?

Colin Drysdale

E-mail : [email protected]


END information?

Colin Drysdale

E-mail : [email protected]

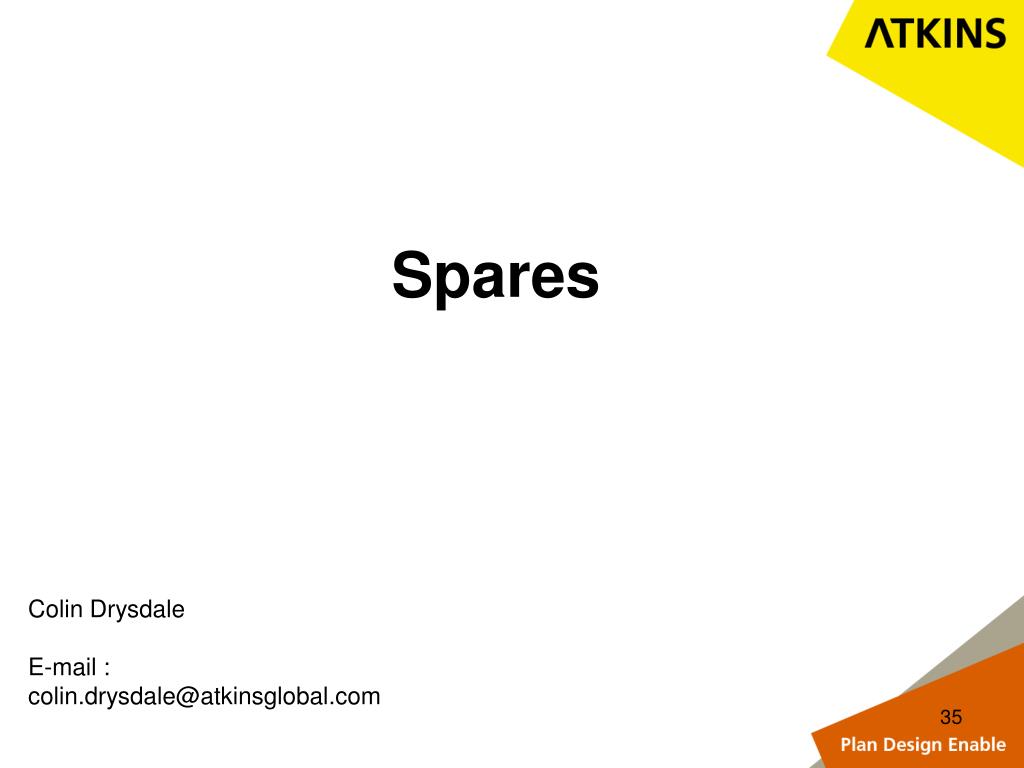

Spares information?

Colin Drysdale

E-mail : [email protected]


Options and data
Options and data information?


Evaluated criteria evaluate network leaf nodes
Evaluated criteria – information? evaluate network “leaf” nodes

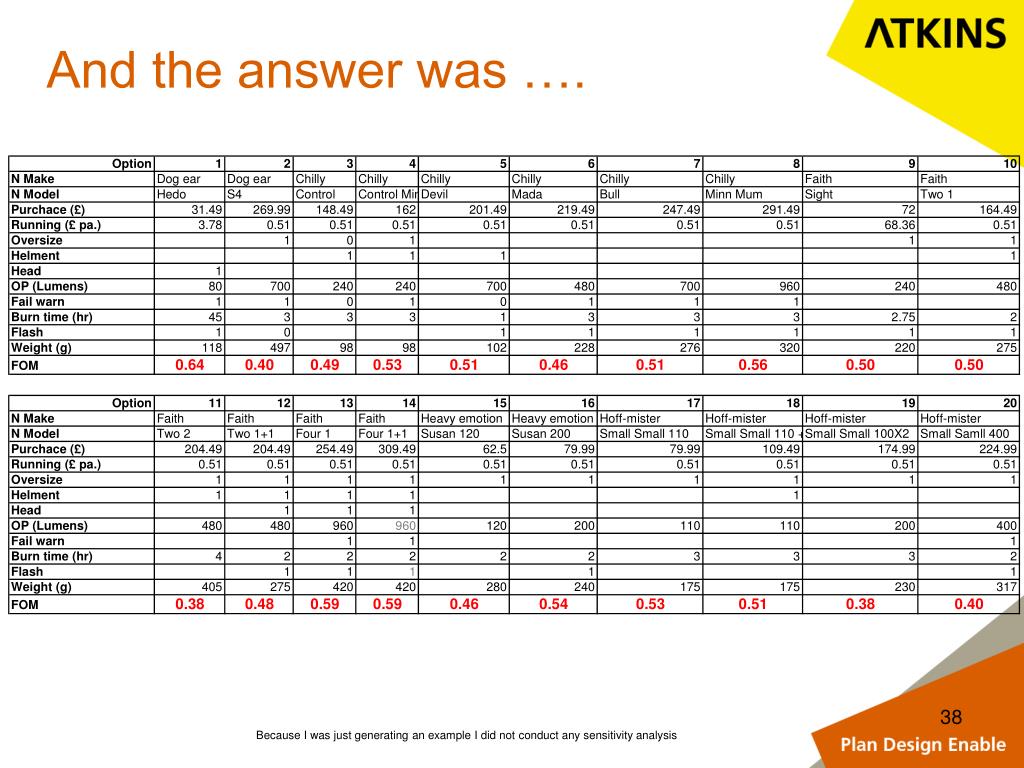

And the answer was
And the answer was …. information?

Because I was just generating an example I did not conduct any sensitivity analysis

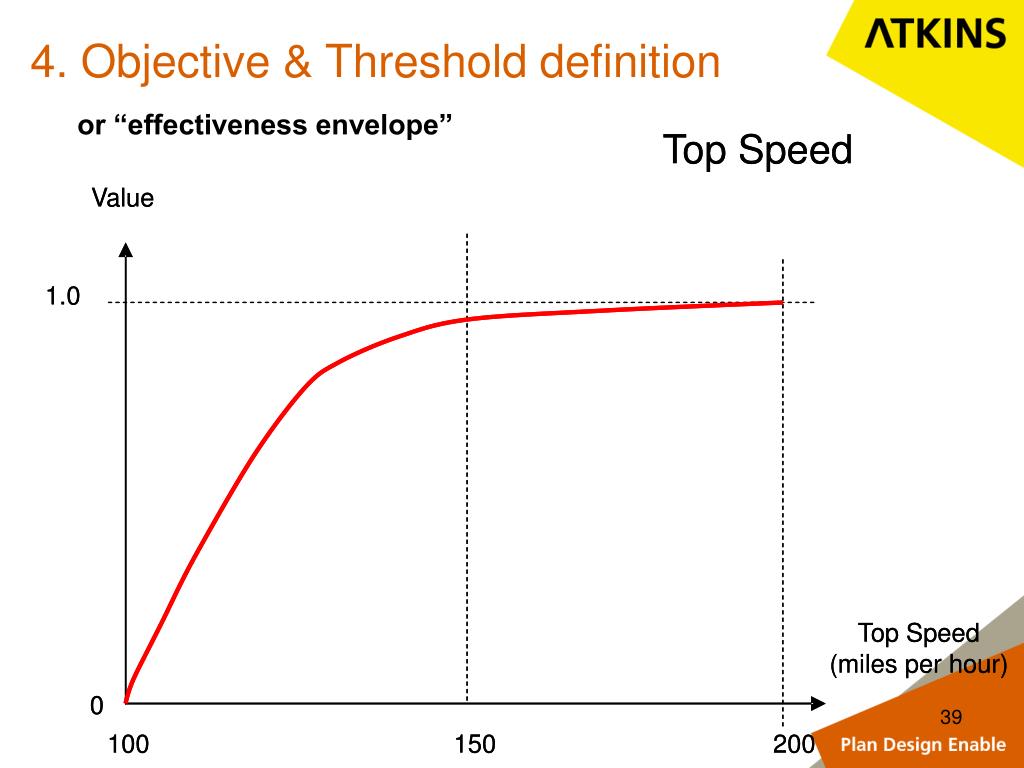

4 objective threshold definition
4. Objective & Threshold definition information?

or “effectiveness envelope”

Top Speed

Top Speed

Value

Value

1.0

1.0

Top Speed

Top Speed

(miles per hour)

(miles per hour)

0

0

100

100

150

150

200

200
