  1. Communication between Wireless Sensor Devices and GNU Radio Gaurav Konchady Sriram Sanka

  2. Outline • Wireless Sensor Networks • Motes • GNU Radio as Base-station • CC1000 RF Transceiver • IEEE 802.15.4 Standard • Block Diagram • Results Gaurav Konchady and Sriram Sanka

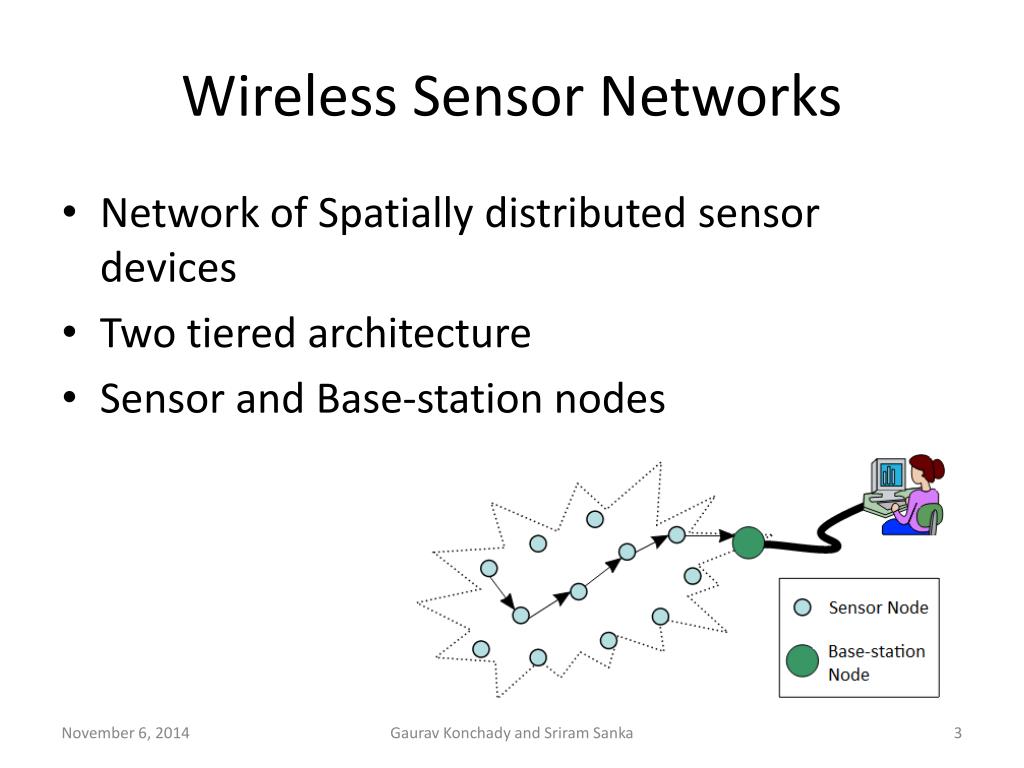

  3. Wireless Sensor Networks • Network of Spatially distributed sensor devices • Two tiered architecture • Sensor and Base-station nodes Gaurav Konchady and Sriram Sanka

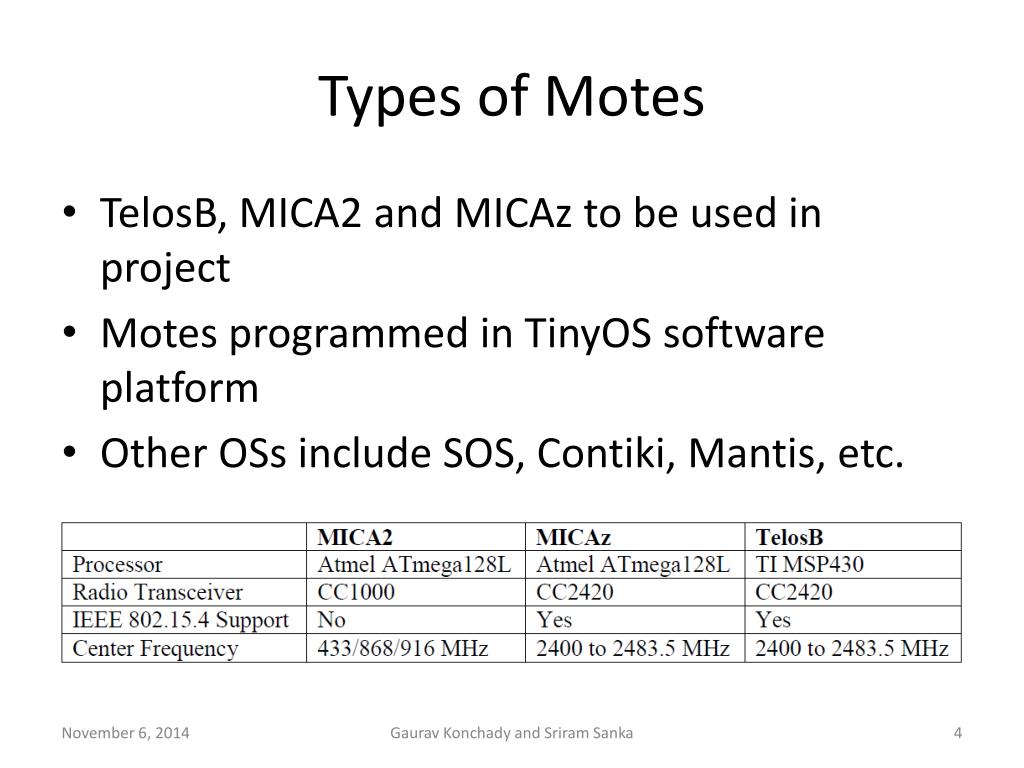

  4. Types of Motes • TelosB, MICA2 and MICAz to be used in project • Motes programmed in TinyOS software platform • Other OSs include SOS, Contiki, Mantis, etc. Gaurav Konchady and Sriram Sanka

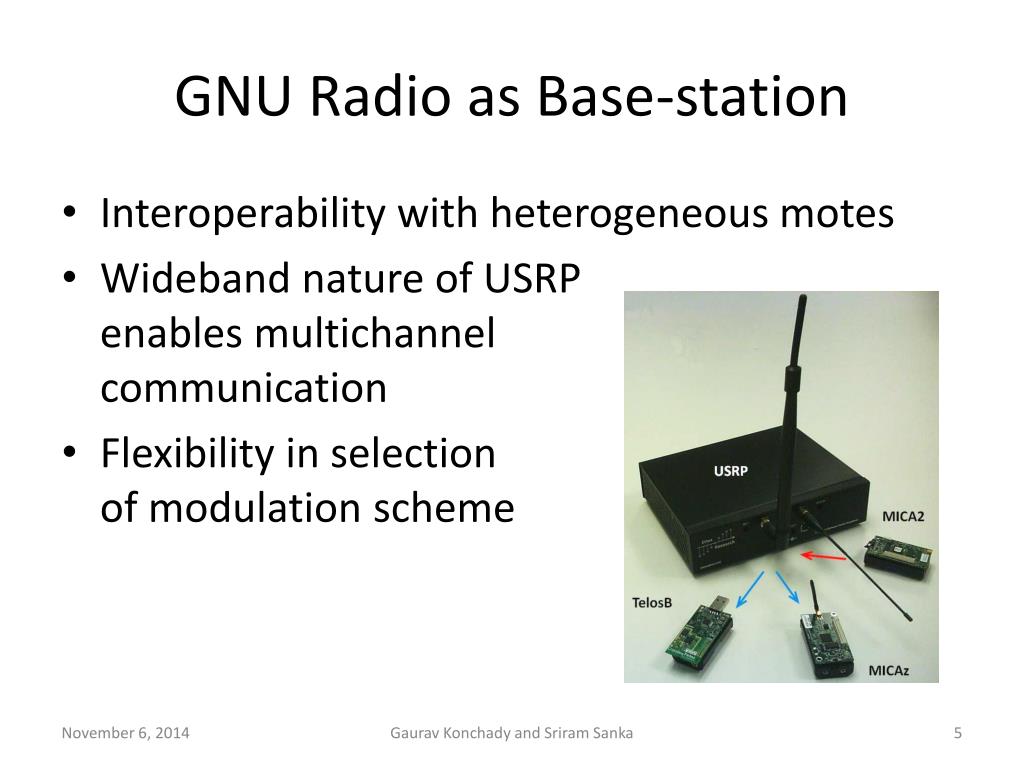

  5. GNU Radio as Base-station • Interoperability with heterogeneous motes • Wideband nature of USRP enables multichannel communication • Flexibility in selection of modulation scheme Gaurav Konchady and Sriram Sanka

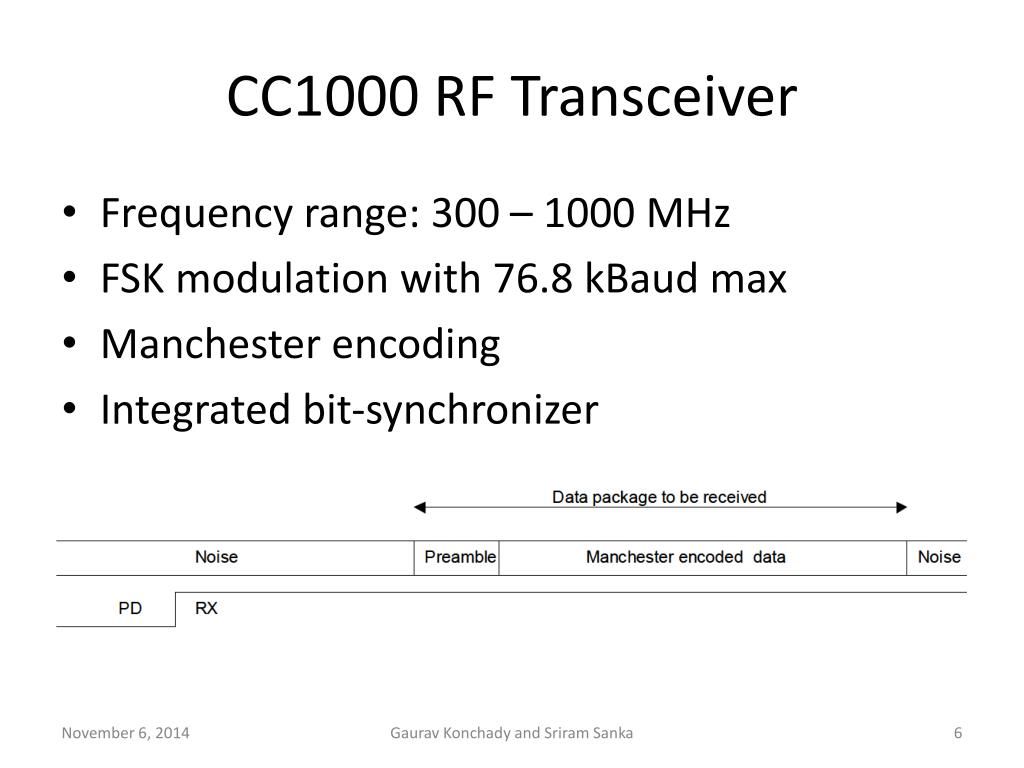

  6. CC1000 RF Transceiver • Frequency range: 300 – 1000 MHz • FSK modulation with 76.8 kBaud max • Manchester encoding • Integrated bit-synchronizer Gaurav Konchady and Sriram Sanka

  7. TinyOS CC1000 Frame Format • TinyOS and SOS CC1000 frame formats have different fields • Requires changes in CC1000 modulator and demodulator blocks in GNU Radio Gaurav Konchady and Sriram Sanka

  8. IEEE 802.15.4 Standard • MAC and Physical layer protocol for short-distance, low-power, low-data-rate wireless communication • 128 byte maximum MAC frame size • 2400 MHz to 2483.5 MHz frequency range • DSSS employing O-QPSK modulation Gaurav Konchady and Sriram Sanka

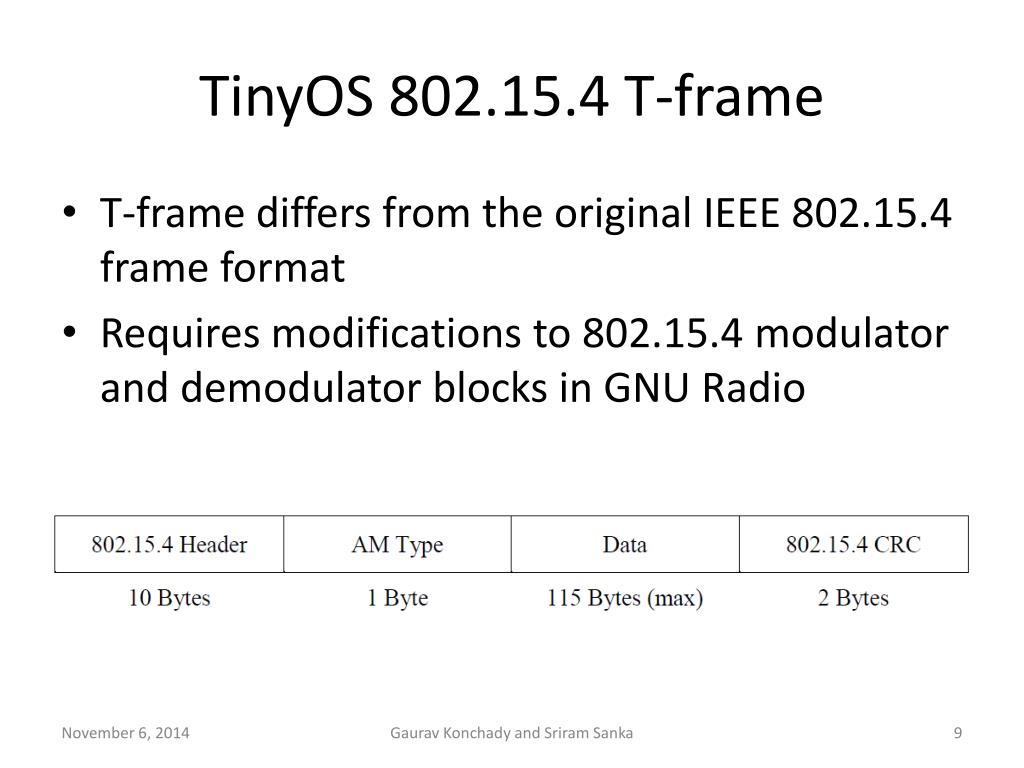

  9. TinyOS 802.15.4 T-frame • T-frame differs from the original IEEE 802.15.4 frame format • Requires modifications to 802.15.4 modulator and demodulator blocks in GNU Radio Gaurav Konchady and Sriram Sanka

  10. Project Setup • MICA2 mote sends data to USRP (FLEX400) • USRP extracts payload from CC1000 frame • Payload inserted in an 802.15.4 T-frame • T-frame transmitted by USRP (RFX2400) • Packets received by TelosB mote Gaurav Konchady and Sriram Sanka

  11. Block Diagram FLEX400 CC1000 Demodulator Python Callback USRP Python send_pkt() RFX2400 802.15.4 Modulator Packet Queue Gaurav Konchady and Sriram Sanka

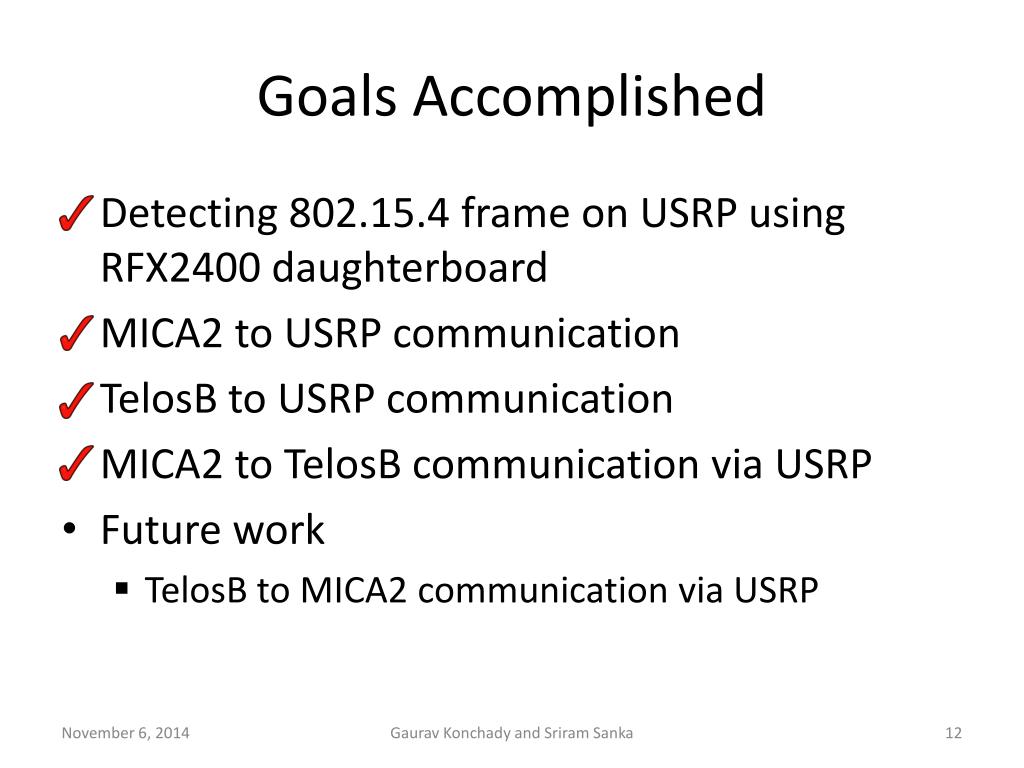

  12. Goals Accomplished • Detecting 802.15.4 frame on USRP using RFX2400 daughterboard • MICA2 to USRP communication • TelosB to USRP communication • MICA2 to TelosB communication via USRP • Future work • TelosB to MICA2 communication via USRP Gaurav Konchady and Sriram Sanka

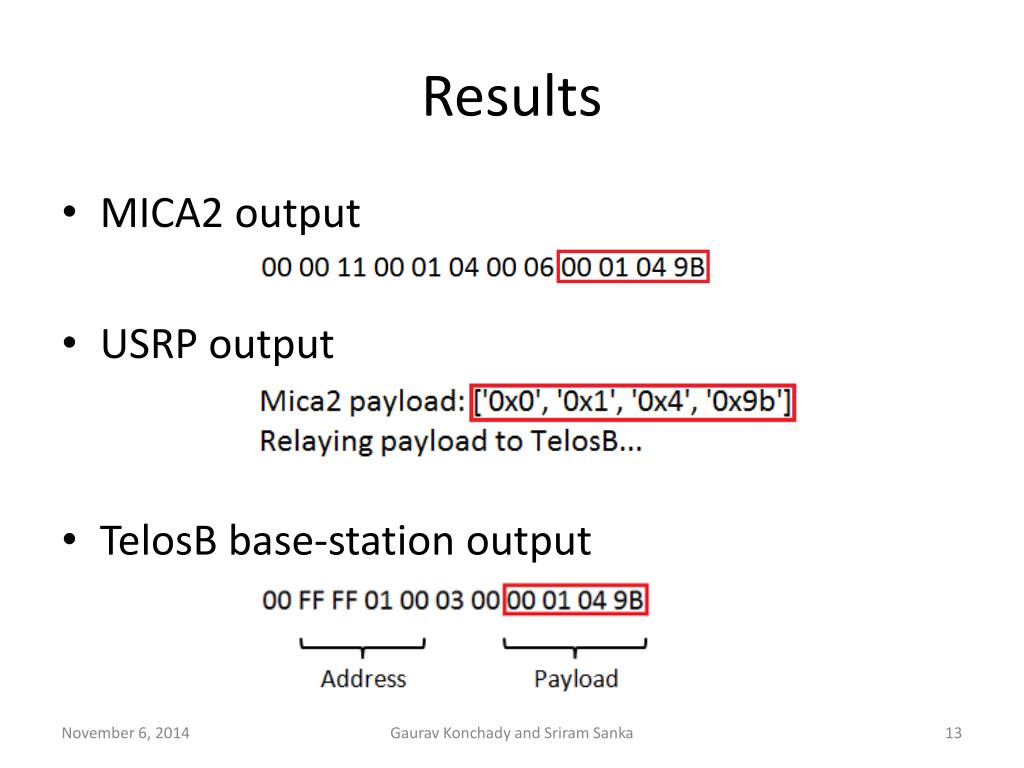

  13. Results • MICA2 output • USRP output • TelosB base-station output Gaurav Konchady and Sriram Sanka

  14. References • IEEE 802.15.4-2006 standard, http://standards.ieee.org/getieee802/802.15.html • Thomas Schmid, GNU Radio 802.15. 4 En-and Decoding, http://nesl.ee.ucla.edu/fw/thomas/thomas_project_report.pdf • TEP 125 – TinyOS 802.15.4 Frames, http://tinyos.cvs.sourceforge.net/*checkout*/tinyos/tinyos-2.x/doc/html/tep125.html • CC1000 datasheet, http://www.cse.ohio-state.edu/siefast/nest/nest_webpage/datasheet/Chipcon%20-%20CC1000%20Data%20Sheet%20v2.1.pdf Gaurav Konchady and Sriram Sanka
