Audio power amplifier apa operation and measurement

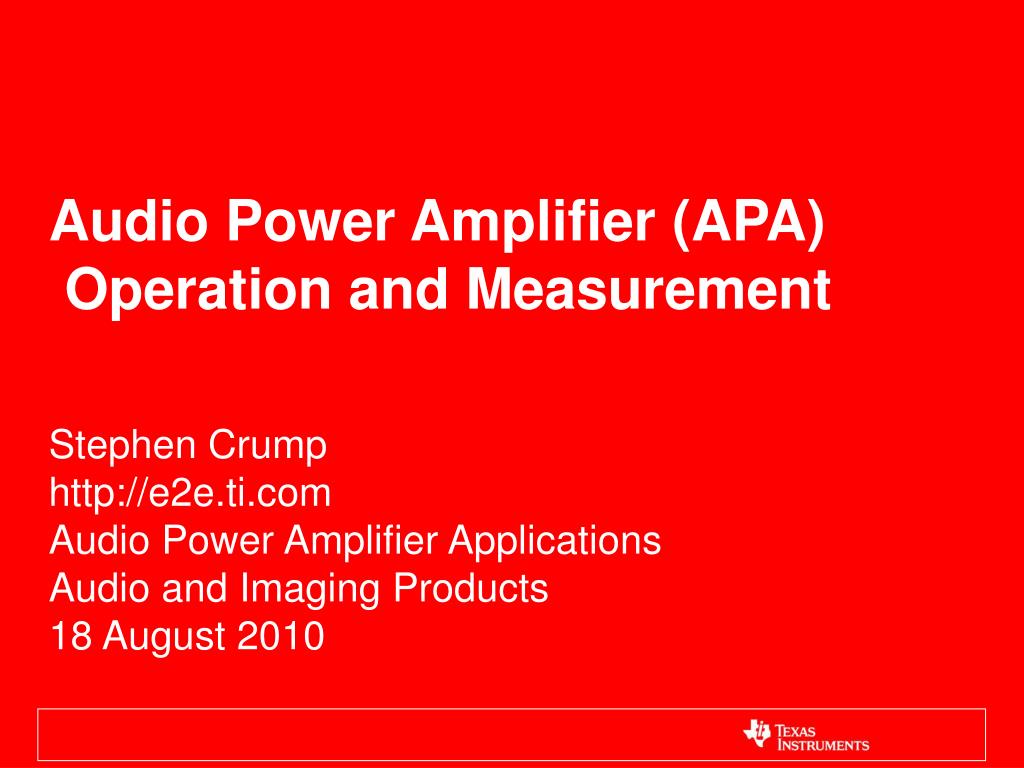

Audio Power Amplifier (APA) Operation and Measurement

Stephen Crumphttp://e2e.ti.comAudio Power Amplifier ApplicationsAudio and Imaging Products18 August 2010


Contents

Contents

  • Audio Power Amplifier Operation

  • Class-D APA Operation

  • Measuring Class-D and Class-AB Outputs


Audio power amplifier apa operation and measurement

Audio Power Amplifier Operation

APA ClassesInput ConfigurationsOutput ConfigurationsFully Differential APAs


Audio power amplifier classes

Audio Power Amplifier Classes

  • There are two classes of audio power amplifiers in common use.

  • Class-AB – continuous output. The traditional configuration.

  • Class-D – switching output. We will examine Class-D in detail later.

  • Class-D output is the short-term average of the switching waveform.


Advantages and disadvantages

Advantages and Disadvantages

  • Advantages and disadvantages of Class-AB.

    • Simple application.

    • Inexpensive (but not necessarily in SYSTEM cost).

    • Low efficiency, high power drain and heat generation.

  • Advantages and disadvantages of Class-D.

    • High efficiency, low power drain and heat generation.

    • Somewhat more expensive (but not in SYSTEM cost).

    • More complicated application.

  • Class-D advantages usually are compelling.


Apa input configurations

APA Input Configurations

  • There are two common input configurations.

  • Single-ended – single input line referred to ground. Traditional configuration.

  • Differential – a pair of input lines. A superior configuration.

  • May be connected to a differential source OR a single-ended source.


Single ended inputs disadvantages

Single-Ended Inputs: Disadvantages

  • Input DC blocking cap are practically always required in single-supply systems.

  • No rejection of input noise or interference.


Differential inputs advantages

Differential Inputs: Advantages

  • Input blocking caps may not be required.

  • High rejection of input noise and interference.


Differential inputs cont d

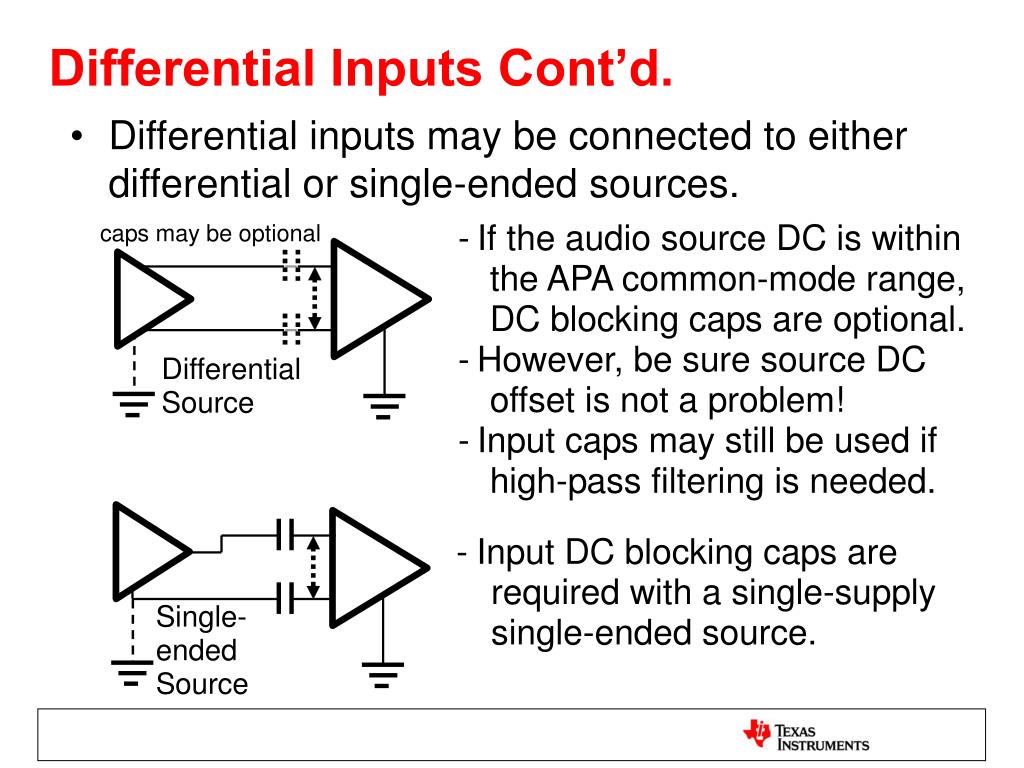

Differential Inputs Cont’d.

  • Differential inputs may be connected to either differential or single-ended sources.


Differential inputs cont d1

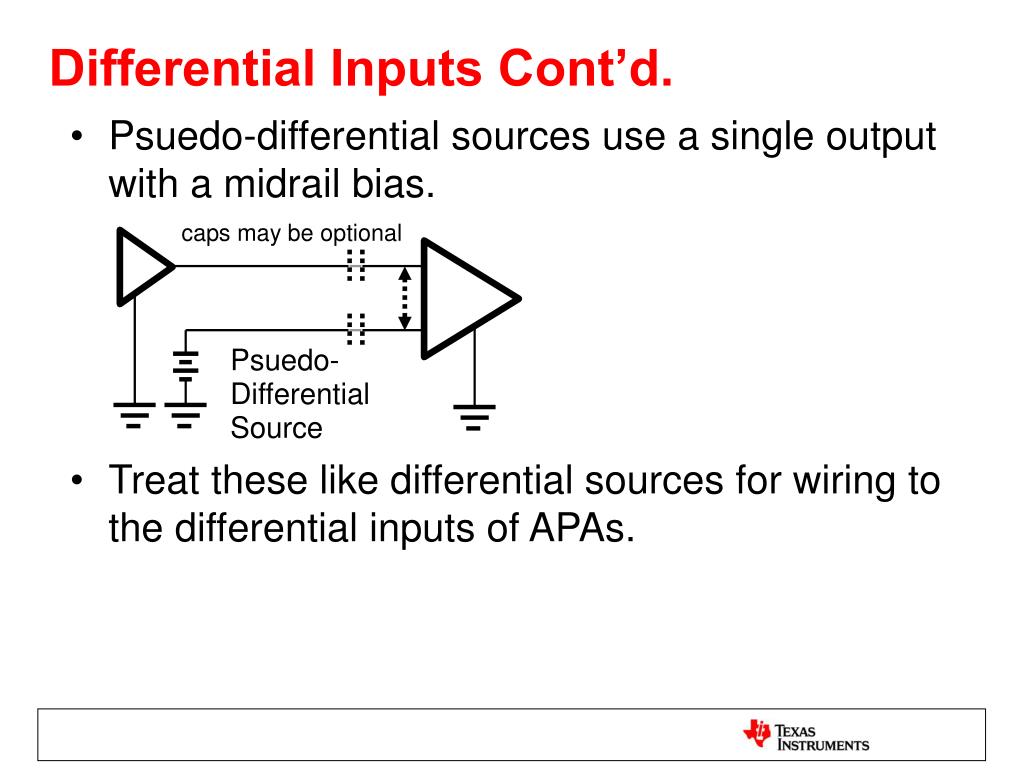

Differential Inputs Cont’d.

  • Psuedo-differential sources use a single output with a midrail bias.

  • Treat these like differential sources for wiring to the differential inputs of APAs.


Differential input connections

Differential Input Connections

  • Keep the 2 input leads close together.

  • With single-ended sources connect the APA input ground lead at source ground, NOT at APA ground.

  • This lets the CMRR of the APA reject any common-mode radiation or any ground noise between the APA and the source.


Apa output configurations

APA Output Configurations

  • There are two common output configurations.

  • Single-ended – single output line. Traditional configuration.

  • Differential – a pair of output lines. Also called BTL (for Bridge-Tied Load).

  • Must be connected to a floating load.


Single ended outputs disadvantages

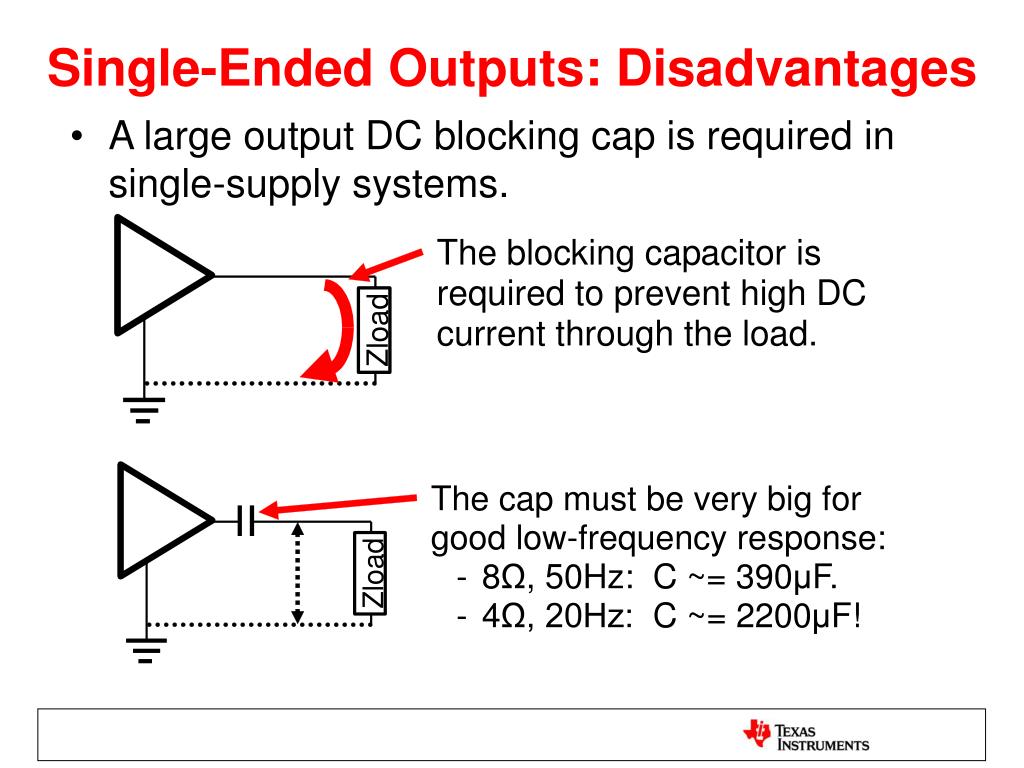

Single-Ended Outputs: Disadvantages

  • A large output DC blocking cap is required in single-supply systems.


Differential outputs advantages

Differential Outputs: Advantages

  • Output power is nearly 4 times S/E output power.

  • DC blocking capacitor is not required.


Fully differential apas

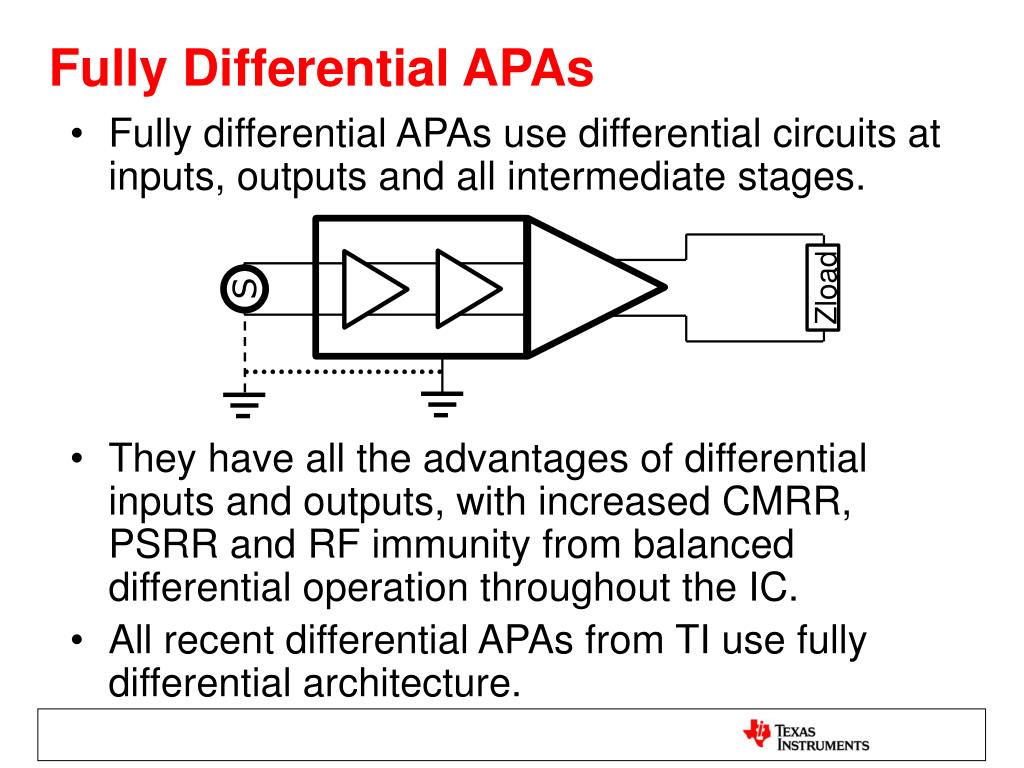

Fully Differential APAs

  • Fully differential APAs use differential circuits at inputs, outputs and all intermediate stages.

  • They have all the advantages of differential inputs and outputs, with increased CMRR, PSRR and RF immunity from balanced differential operation throughout the IC.

  • All recent differential APAs from TI use fully differential architecture.


Fully differential vs traditional

Fully Differential vs. Traditional

  • APAs with differential inputs and outputs, like master-slave IC’s, may not be fully differential.

  • These cannot match the performance of fully differential APAs.

Noise on input

Gain amp

Noise coupled into inputs is amplified to the outputs

1

1

Noise on output

2

RF coupled into inputs or outputs can cause RF Rectification –

BAD!

2

2

Noise on output

Inverting amp


Audio power amplifier apa operation and measurement

Class-D Audio Power Amplifier Operation

BenefitsBlock Diagram and Circuit Description of OperationOutput WaveformsAD and BD Modulation


Class d apa benefits

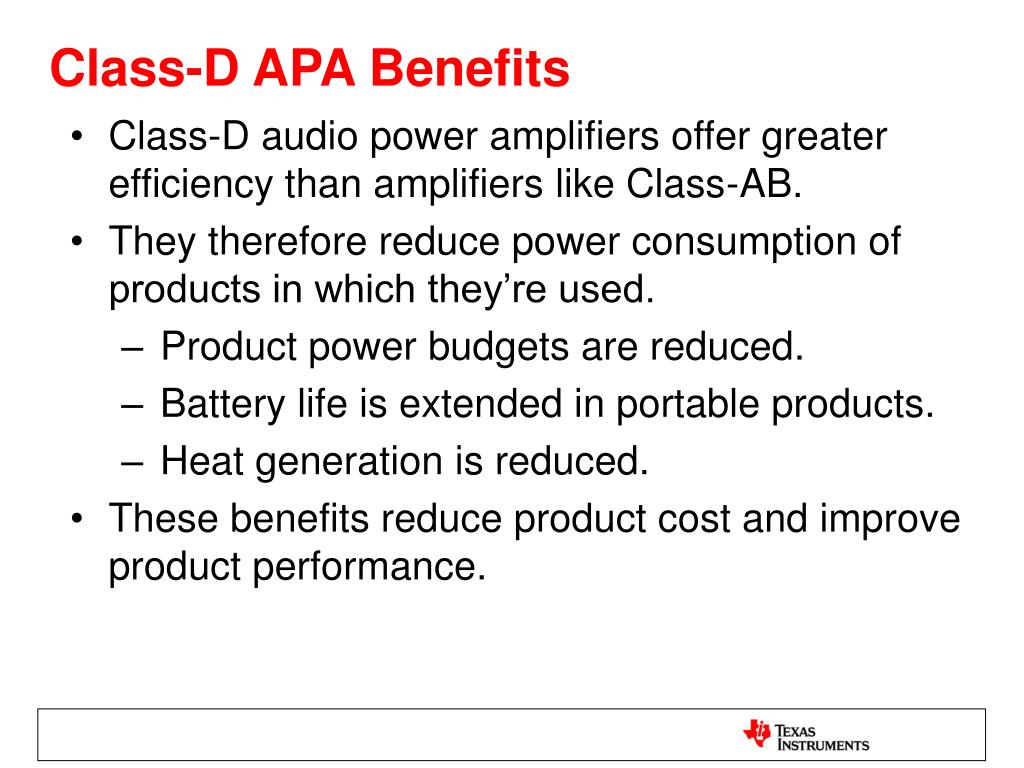

Class-D APA Benefits

  • Class-D audio power amplifiers offer greater efficiency than amplifiers like Class-AB.

  • They therefore reduce power consumption of products in which they’re used.

    • Product power budgets are reduced.

    • Battery life is extended in portable products.

    • Heat generation is reduced.

  • These benefits reduce product cost and improve product performance.


Class d apa block diagram

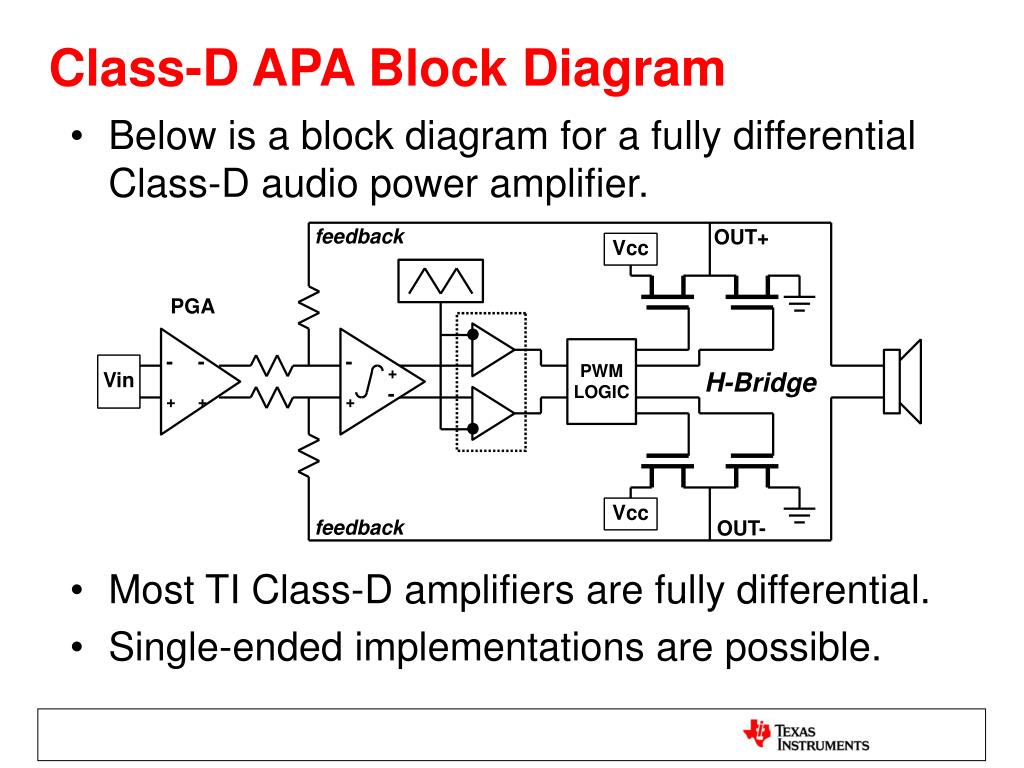

Class-D APA Block Diagram

  • Below is a block diagram for a fully differential Class-D audio power amplifier.

  • Most TI Class-D amplifiers are fully differential.

  • Single-ended implementations are possible.


Class d differential apa circuits

Class-D Differential APA Circuits

  • A programmable-gain differential amplifier feeds a differential integrator and comparator.

  • The integrator takes feedback from the output pulse train, subtracts it from the input signal and low-pass filters the result.

  • The comparator compares integrator output to a triangle wave to set output pulse width.

  • PWM (pulse width modulation) interface logic drives output FET gates.

  • A MOSFET bridge supplies switching pulses to a loudspeaker, which low-pass filters them to produce an audio output.


Class d analog pwm conversion

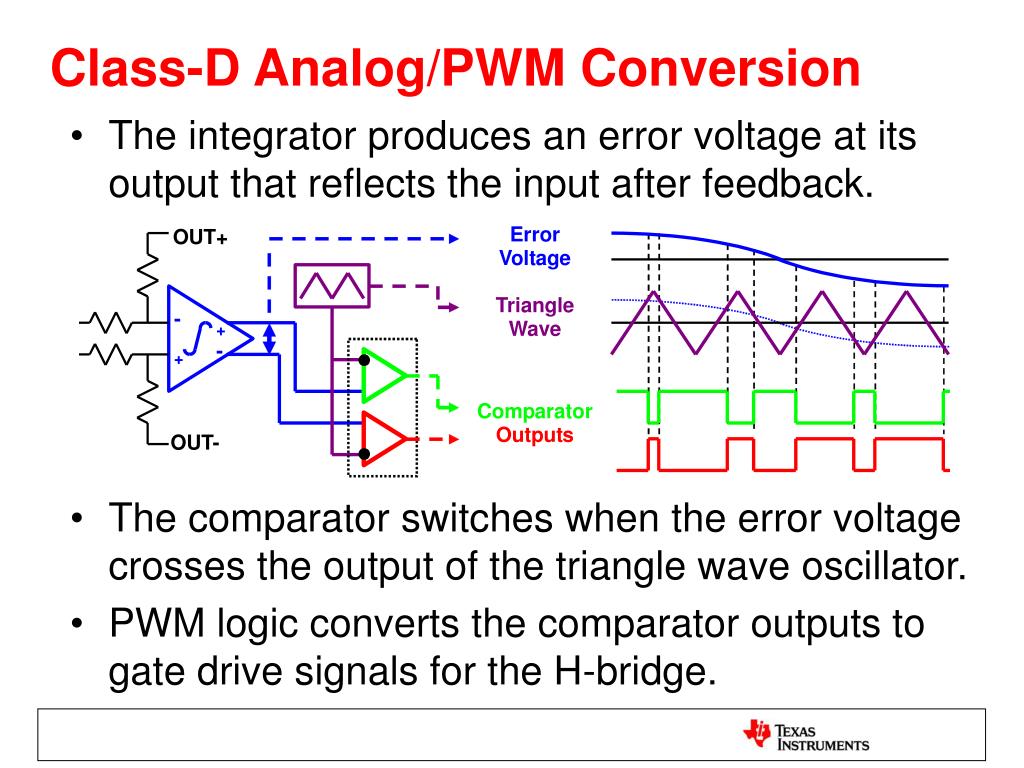

Class-D Analog/PWM Conversion

  • The integrator produces an error voltage at its output that reflects the input after feedback.

  • The comparator switches when the error voltage crosses the output of the triangle wave oscillator.

  • PWM logic converts the comparator outputs to gate drive signals for the H-bridge.


Class d output waveforms

Class-D Output Waveforms

  • The PWM output switches at a frequency well above the audio frequency range.

  • Its short-term average is the audio-band output.


Ad modulation

AD Modulation

  • AD modulation, the simplest technique, puts the full differential output voltage across the load at all times, varying the duty cycle to control output.

    • (Differential or BTL AD modulation is shown on the preceding page. In differential AD modulation the outputs are always switched in opposite phase.)

  • AD modulation is a powerful technique, but it can generate high ripple current in the load at the switching frequency.

  • So AD modulation generally requires an LC filter before the load to eliminate the ripple current.


Ad modulation ripple current

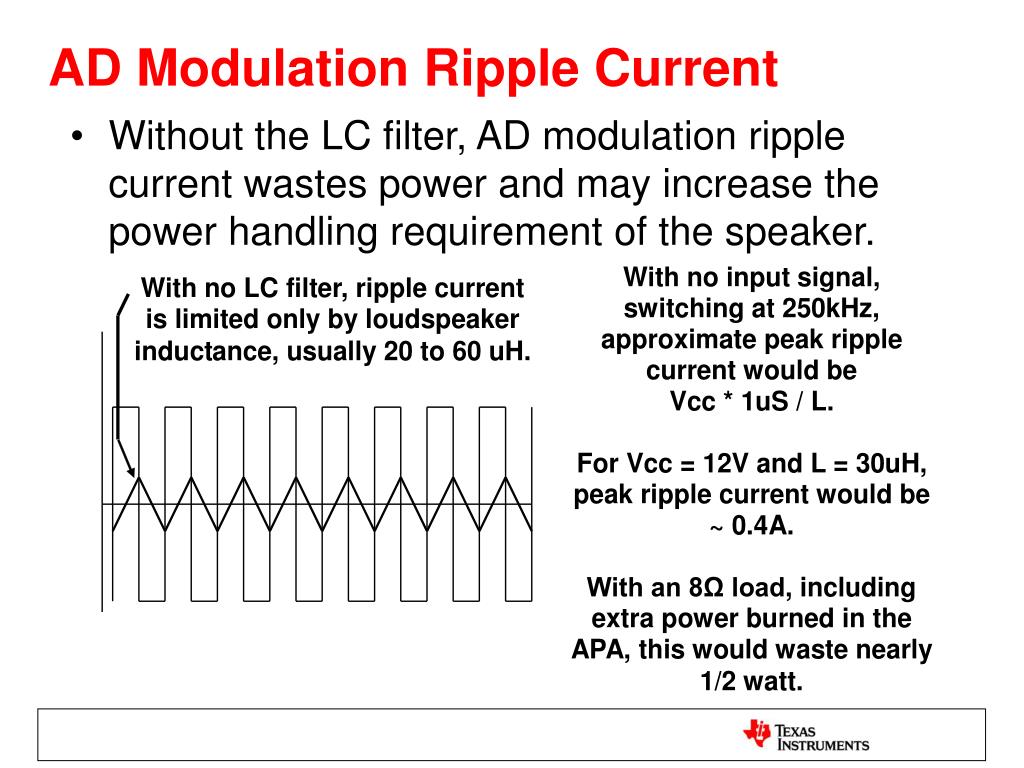

AD Modulation Ripple Current

  • Without the LC filter, AD modulation ripple current wastes power and may increase the power handling requirement of the speaker.


Bd filter free modulation

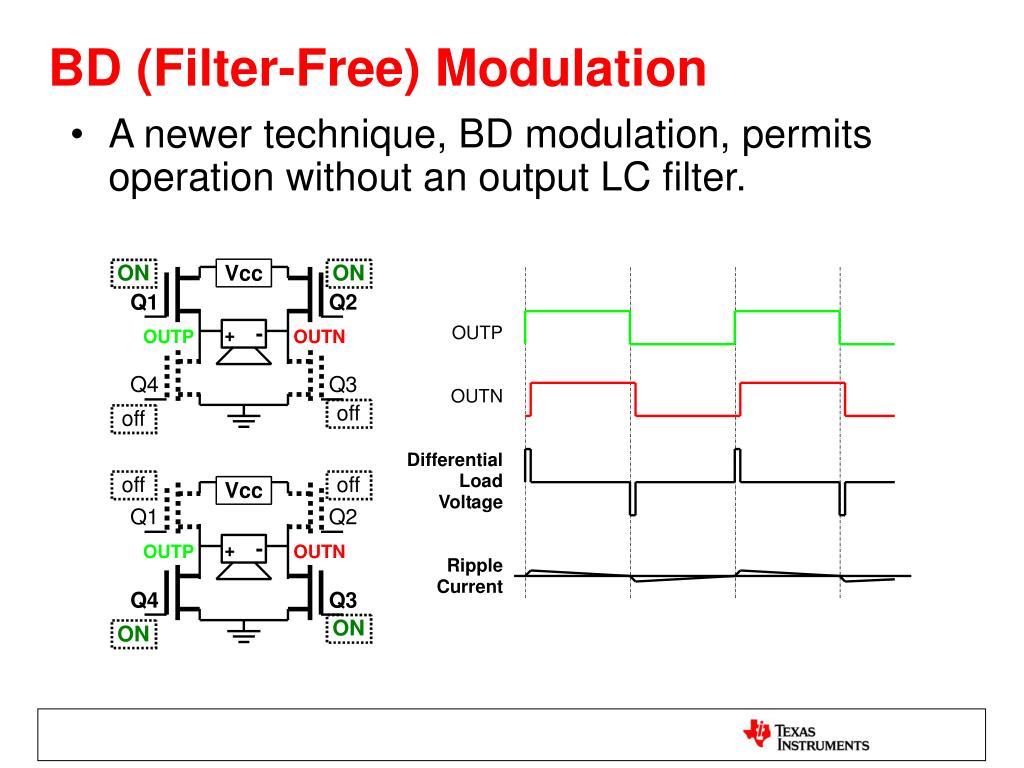

BD (Filter-Free) Modulation

  • A newer technique, BD modulation, permits operation without an output LC filter.


Bd modulation characteristics

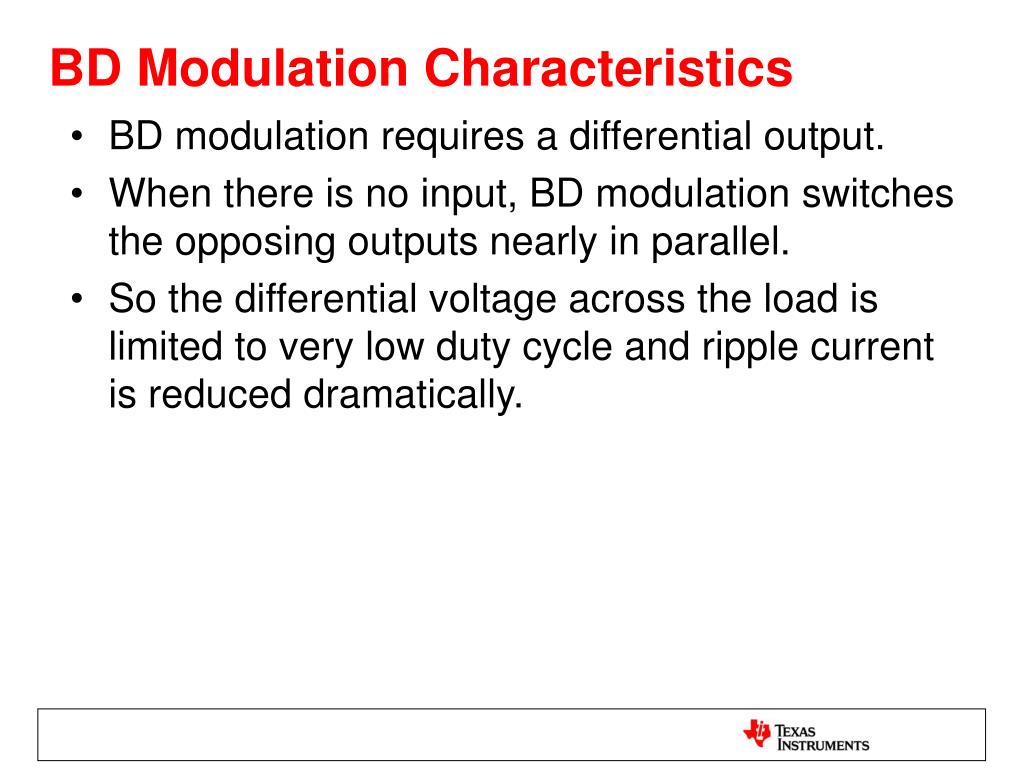

BD Modulation Characteristics

  • BD modulation requires a differential output.

  • When there is no input, BD modulation switches the opposing outputs nearly in parallel.

  • So the differential voltage across the load is limited to very low duty cycle and ripple current is reduced dramatically.


Bd modulation waveforms

BD Modulation Waveforms

OUTP

OUTN

Differential Load Voltage

+5V

0V

-5V

Load Current

Current Increasing

Current Decaying

Filter free modulation output voltage and current waveforms, example signal

  • As input increases, output duty cycles are modulated in opposite phase to produce a net load voltage at twice the switching frequency.


A note about output filtering

A Note About Output Filtering

  • BD modulation eliminates the problem of ripple current without an output LC filter.

  • However, a output filter may be required for EMC even with BD modulation.

  • This will depend on the system or product configuration!


Audio power amplifier apa operation and measurement

Measuring Class-D and Class-AB Outputs


Viewing class d outputs

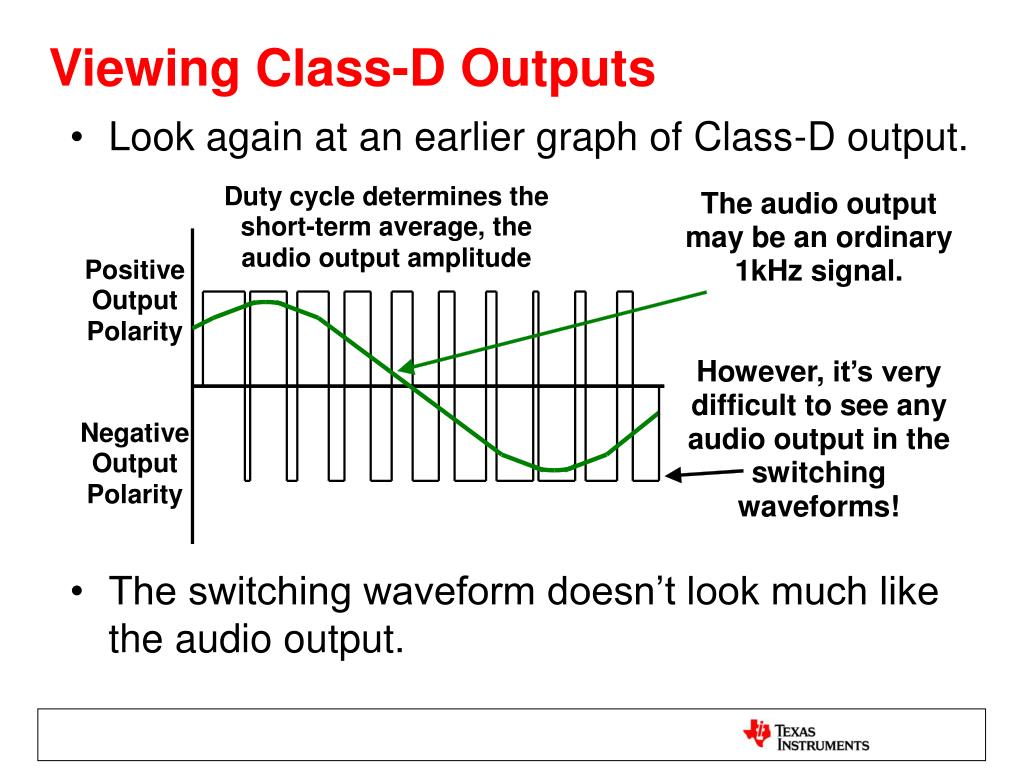

Viewing Class-D Outputs

  • Look again at an earlier graph of Class-D output.

  • The switching waveform doesn’t look much like the audio output.


Rc filter for viewing class d output

RC Filter for Viewing Class-D Output

  • To view the audio content of a Class-D output use an RC low-pass filter at each output.

  • Filter frequency should be 30 to 40 kHz.

  • Recent work shows that 330Ω+15nF works best.


Measuring differential outputs

Measuring Differential Outputs

  • Single-ended outputs are measured between output and ground.

  • HOWEVER ! – measure differential outputs BETWEEN the 2 output lines to be accurate.

  • Do not connect probe ground to a differential output – that will short it to ground.

  • Measure single-ended outputs to ground.

  • Measuring a differential output vs. ground is NOT accurate, and it overlooks half the output voltage.

  • Connect a scope probe to each side and use a math difference function.


Class d output rise and fall

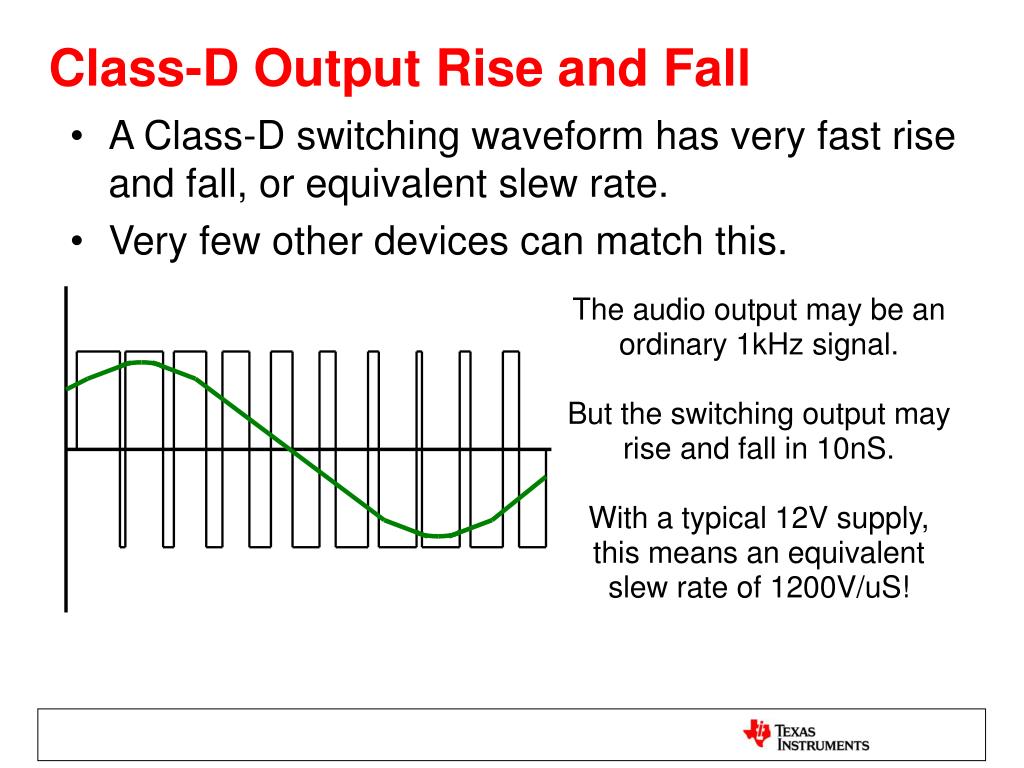

Class-D Output Rise and Fall

  • A Class-D switching waveform has very fast rise and fall, or equivalent slew rate.

  • Very few other devices can match this.


Filters for measuring class d apas

Filters for Measuring Class-D APAs

  • Many audio analyzers require filtering because extreme slew rates of Class-D waveforms cause slew-induced distortion in their input stages.

  • A first-order RC filter with time constant around 4.7μS eliminates this problem in most cases.

  • At high gains such analyzers may require second-order filters. These may be cascaded RCs, with time constants around 2.7μS.

  • Be aware that there is some frequency response rolloff in the audio band! It is generally not large enough to cause significant loss in results.


1st and 2nd order filter responses

1st and 2nd Order Filter Responses

  • Schematics and frequency responses for suggested 1st and 2nd order filters appear at right.

0

-10

-20

-30

-40

1kHz3kHz10kHz30kHz100kHz300kHz1MHz


Other filter possibilities

Other Filter Possibilities

  • It’s possible active filters could be used for measuring outputs of Class-D amplifiers.

    • HOWEVER, active filters can have the same slewing problems as analyzers.

  • It’s possible transformers could be used for measuring outputs of Class-D amplifiers.

    • HOWEVER, transformers often have problems like saturation and overshoot.

  • MAKE SURE YOUR FILTER DOES NOT ADD TROUBLE !


Audio power amplifier apa operation and measurement

QUESTIONS ?
