Selection if then else

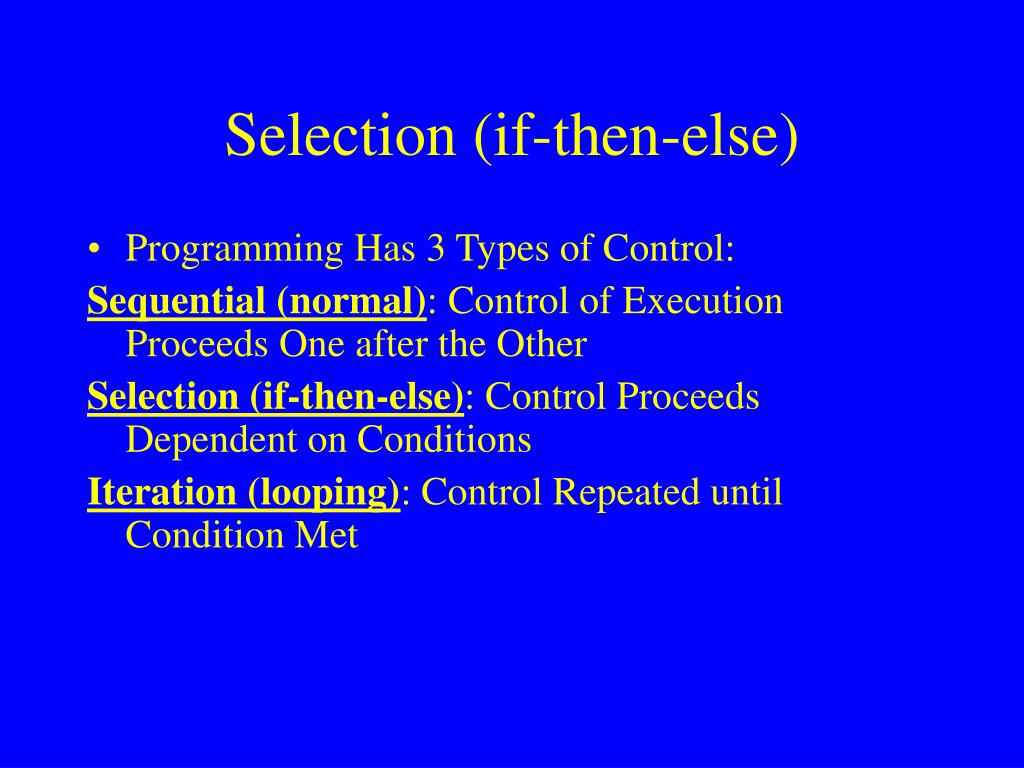

Selection (if-then-else)

  • Programming Has 3 Types of Control:

    Sequential (normal): Control of Execution Proceeds One after the Other

    Selection (if-then-else): Control Proceeds Dependent on Conditions

    Iteration (looping): Control Repeated until Condition Met


Java if statement syntax

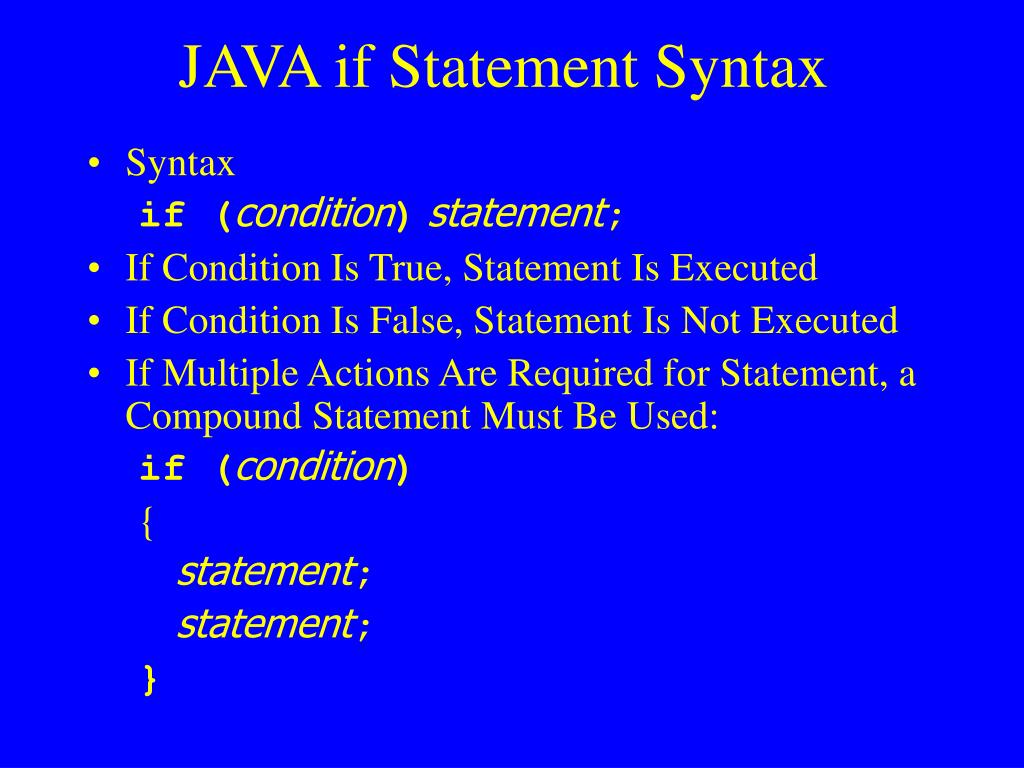

JAVA if Statement Syntax

  • Syntax

    if (condition)statement;

  • If Condition Is True, Statement Is Executed

  • If Condition Is False, Statement Is Not Executed

  • If Multiple Actions Are Required for Statement, a Compound Statement Must Be Used:

    if (condition)

    {

    statement;

    statement;

    }


Conditional operators

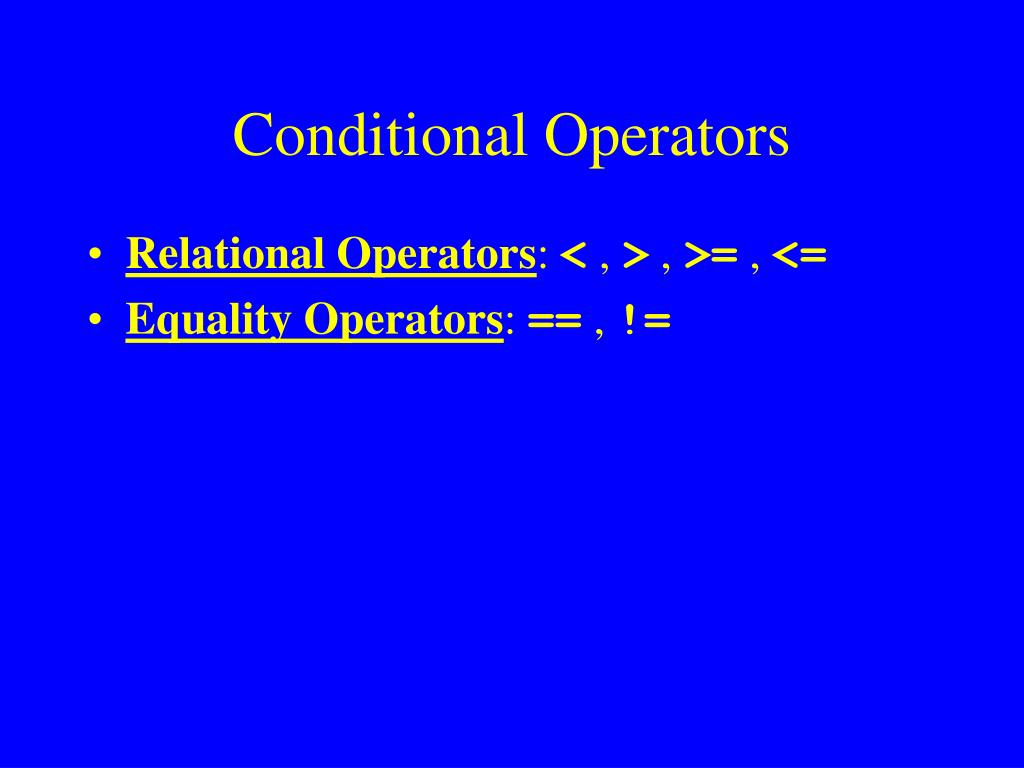

Conditional Operators

  • Relational Operators: < , > , >= , <=

  • Equality Operators: == , !=


Selection examples

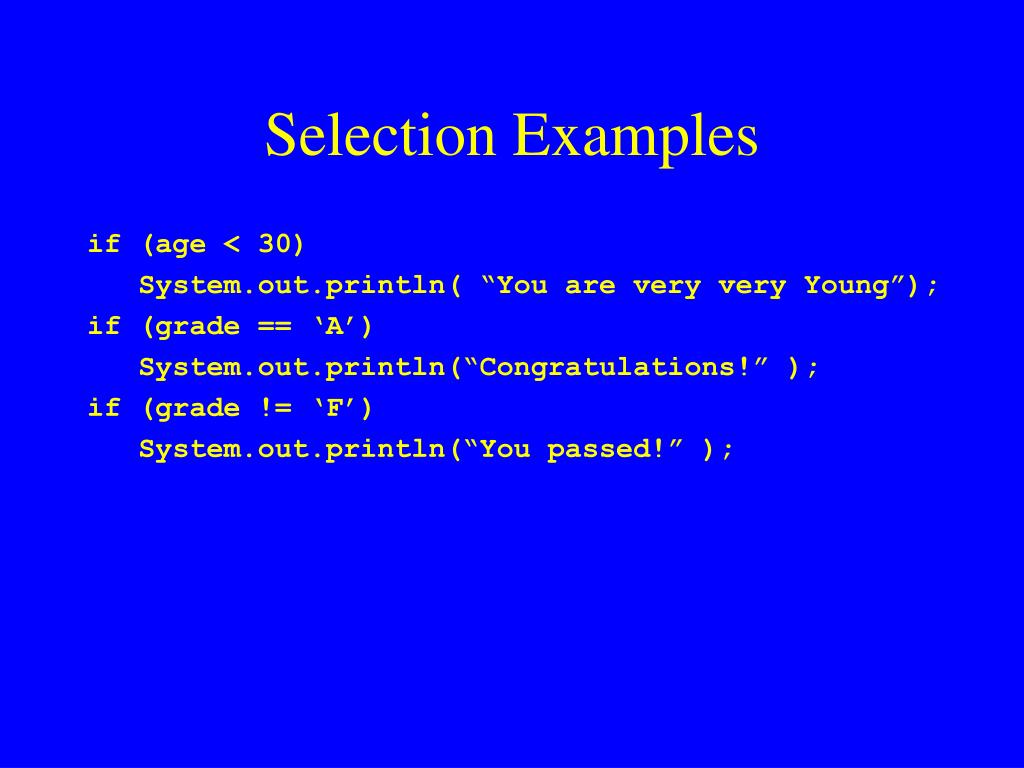

Selection Examples

if (age < 30)

System.out.println( “You are very very Young”);

if (grade == ‘A’)

System.out.println(“Congratulations!” );

if (grade != ‘F’)

System.out.println(“You passed!” );


Selection if then else

else Statement

  • Syntax:

  • if (condition)

  • {

    • statement(s);//condition true

  • }

  • else

  • {

    • statement(s);//condition false

  • }


  • Selection if then else

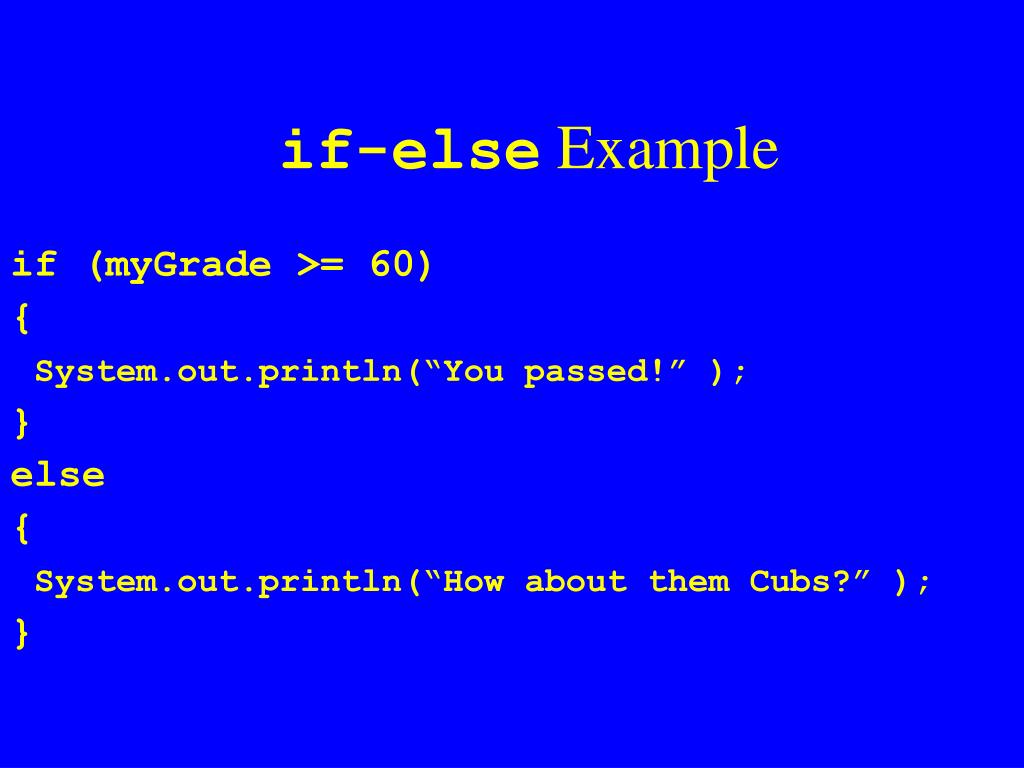

    if-else Example

    • if (myGrade >= 60)

    • {

    • System.out.println(“You passed!” );

    • }

    • else

    • {

    • System.out.println(“How about them Cubs?” );

    • }


    Selection if then else

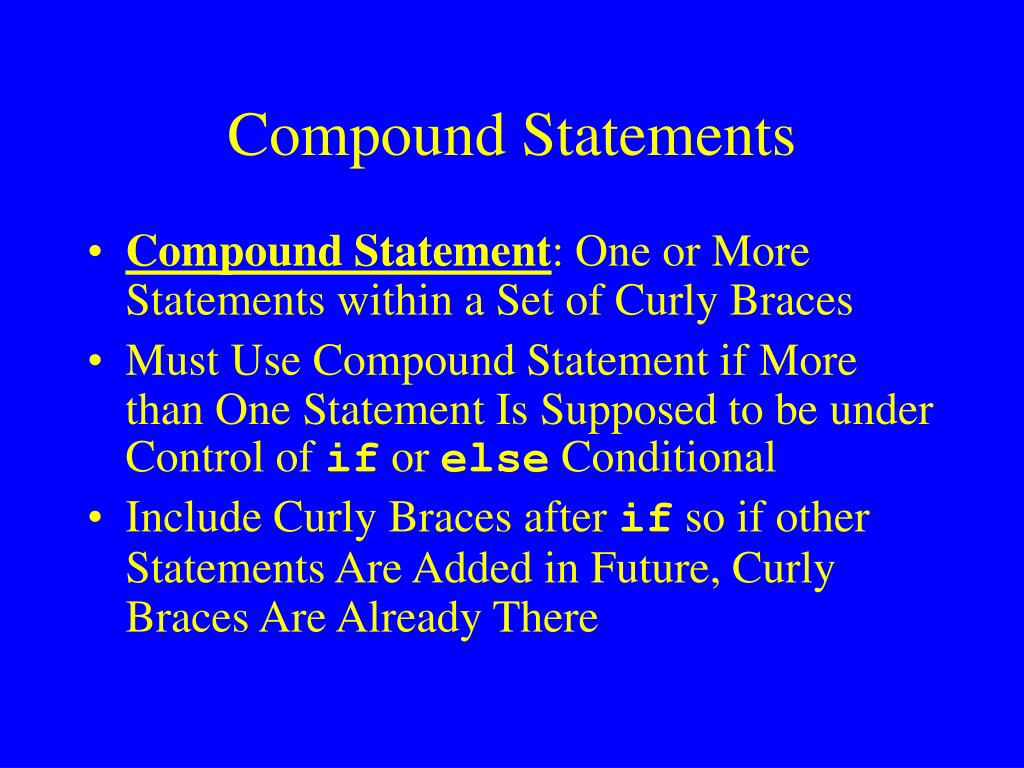

    Compound Statements

    • Compound Statement: One or More Statements within a Set of Curly Braces

    • Must Use Compound Statement if More than One Statement Is Supposed to be under Control of if or else Conditional

    • Include Curly Braces after if so if other Statements Are Added in Future, Curly Braces Are Already There


    Nested if statements

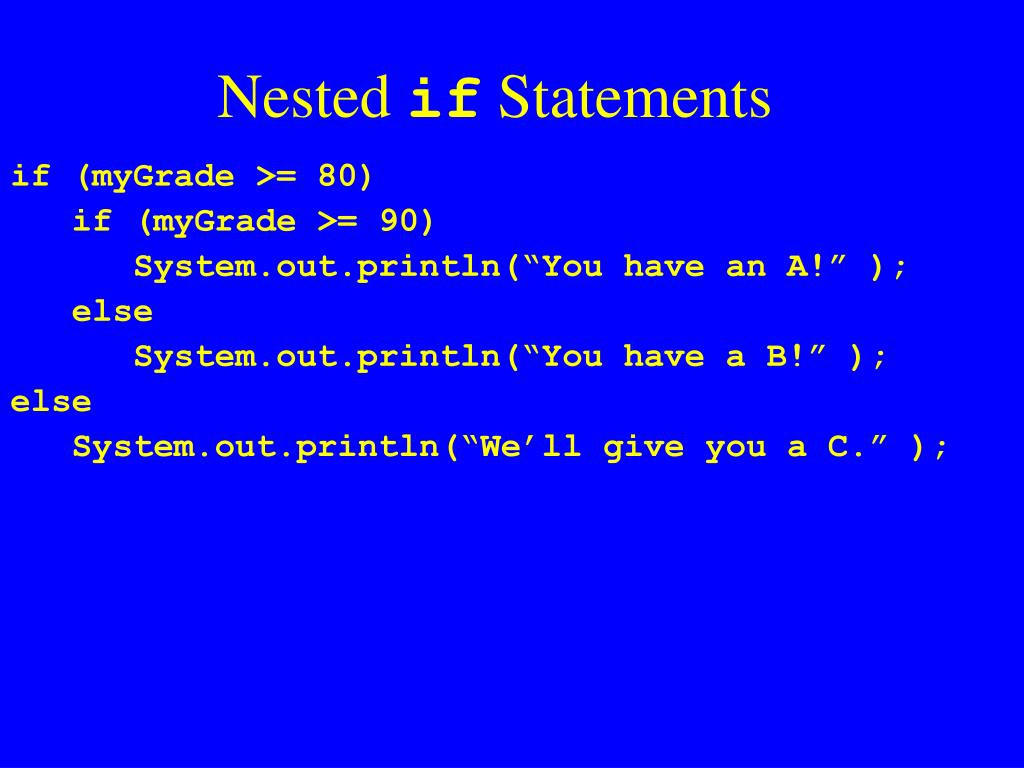

    Nested if Statements

    if (myGrade >= 80)

    if (myGrade >= 90)

    System.out.println(“You have an A!” );

    else

    System.out.println(“You have a B!” );

    else

    System.out.println(“We’ll give you a C.” );


    If else cascaded

    if/else (Cascaded)

    • Sequence of if/else Statements

    • Example:

      if (myGrade > 90)

      System.out.println(“You have an A!” );

      else

      if (myGrade > 80)

      System.out.println(“You have a B!” );

      else

      if (myGrade > 70)

      System.out.println(“You have a C!” );

      else

      System.out.println(“Oh-oh!” );


    Boolean type

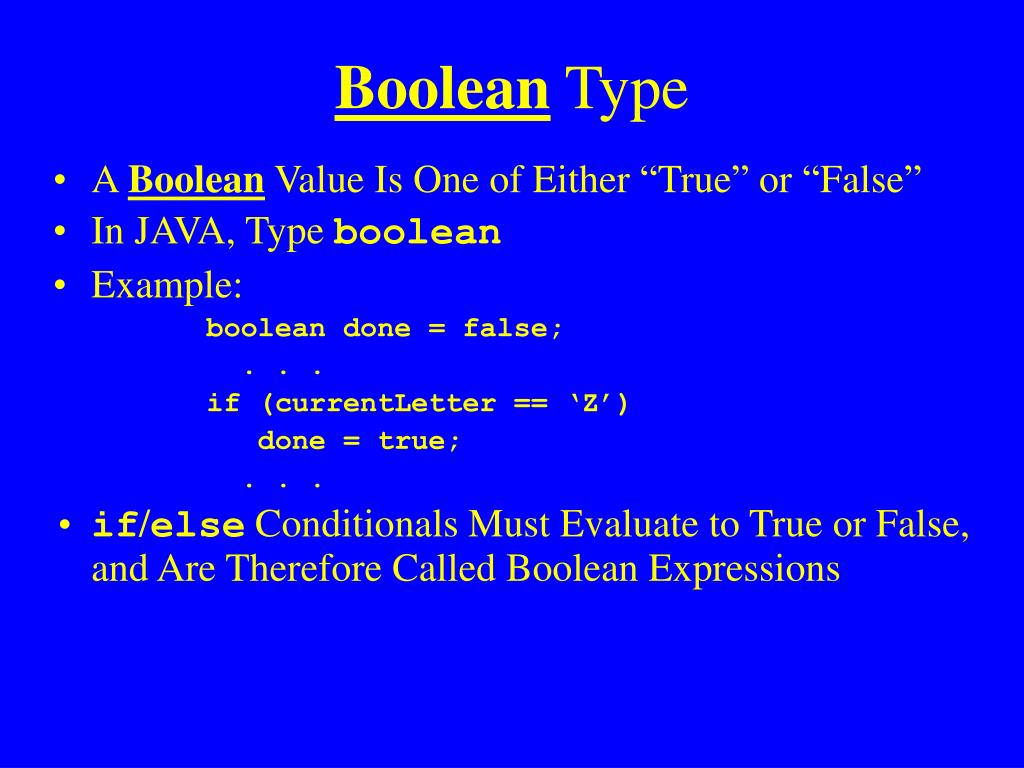

    Boolean Type

    • A Boolean Value Is One of Either “True” or “False”

    • In JAVA, Type boolean

    • Example:

      boolean done = false;

      . . .

      if (currentLetter == ‘Z’)

      done = true;

      . . .

    • if/else Conditionals Must Evaluate to True or False, and Are Therefore Called Boolean Expressions


    Logical operators

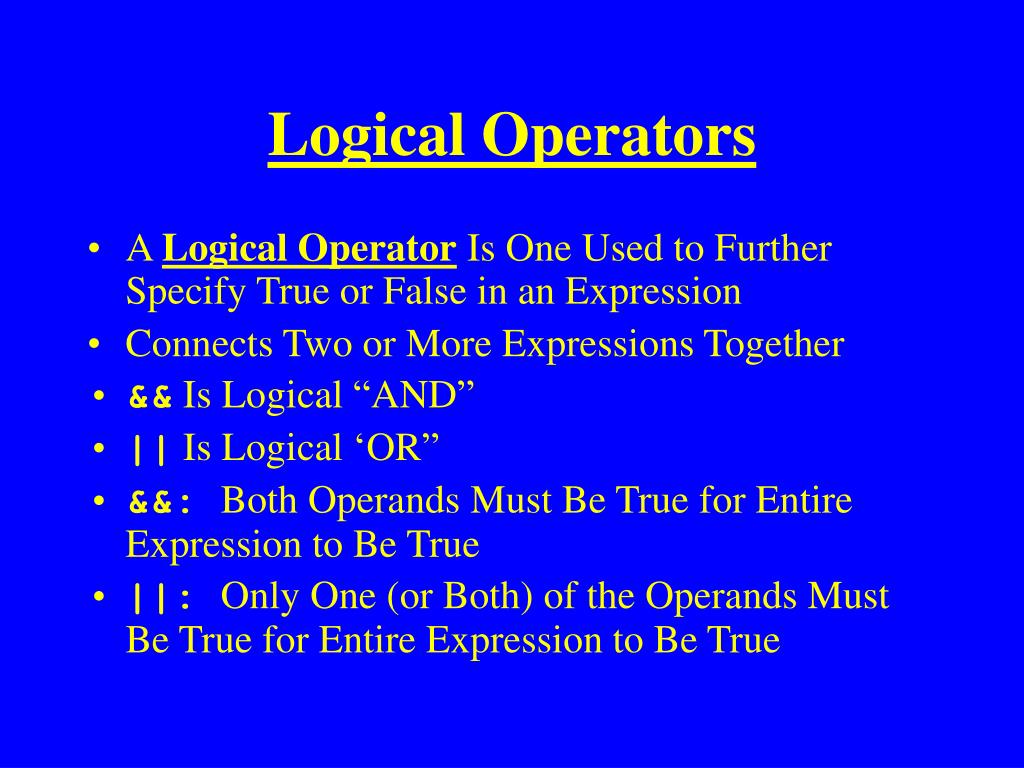

    Logical Operators

    • A Logical Operator Is One Used to Further Specify True or False in an Expression

    • Connects Two or More Expressions Together

    • && Is Logical “AND”

    • || Is Logical ‘OR”

    • &&: Both Operands Must Be True for Entire Expression to Be True

    • ||: Only One (or Both) of the Operands Must Be True for Entire Expression to Be True


    Logical operators1

    Logical Operators

    if (numStudents > MIN && numStudents < MAX)

    classRun = true;

    if (numStudents > MAX || numInstructors == 0)

    classRun = false;


    Operator precedence

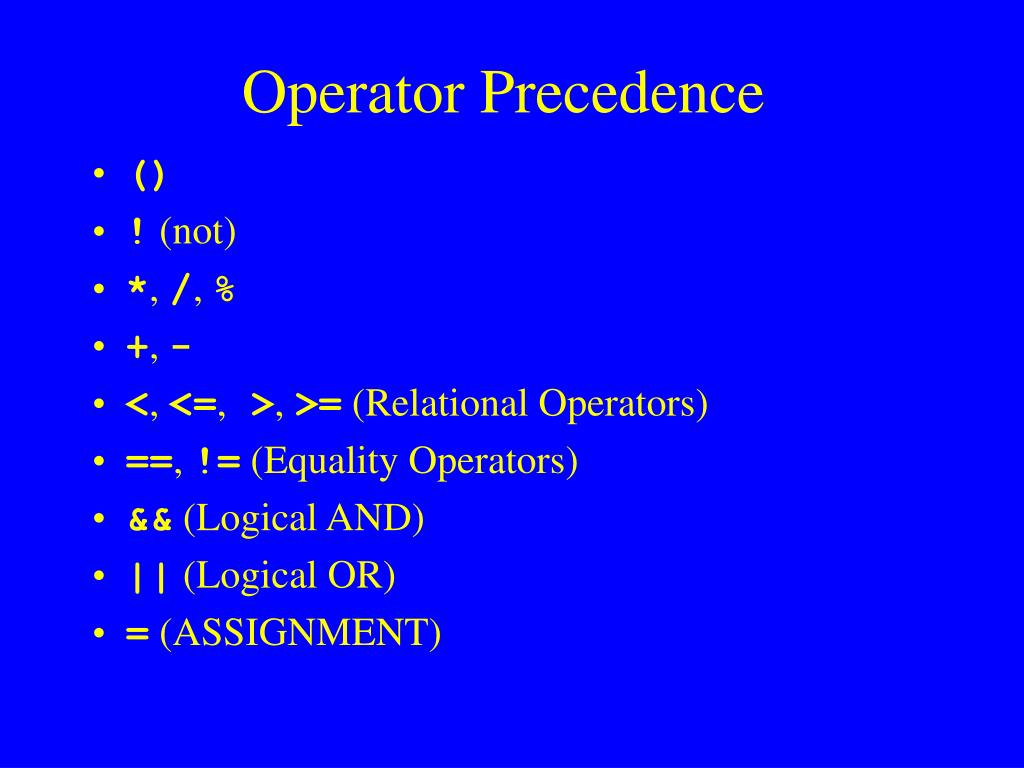

    Operator Precedence

    • ()

    • ! (not)

    • *, /, %

    • +, -

    • <, <=, >, >= (Relational Operators)

    • ==, != (Equality Operators)

    • && (Logical AND)

    • || (Logical OR)

    • = (ASSIGNMENT)


    Order of operations

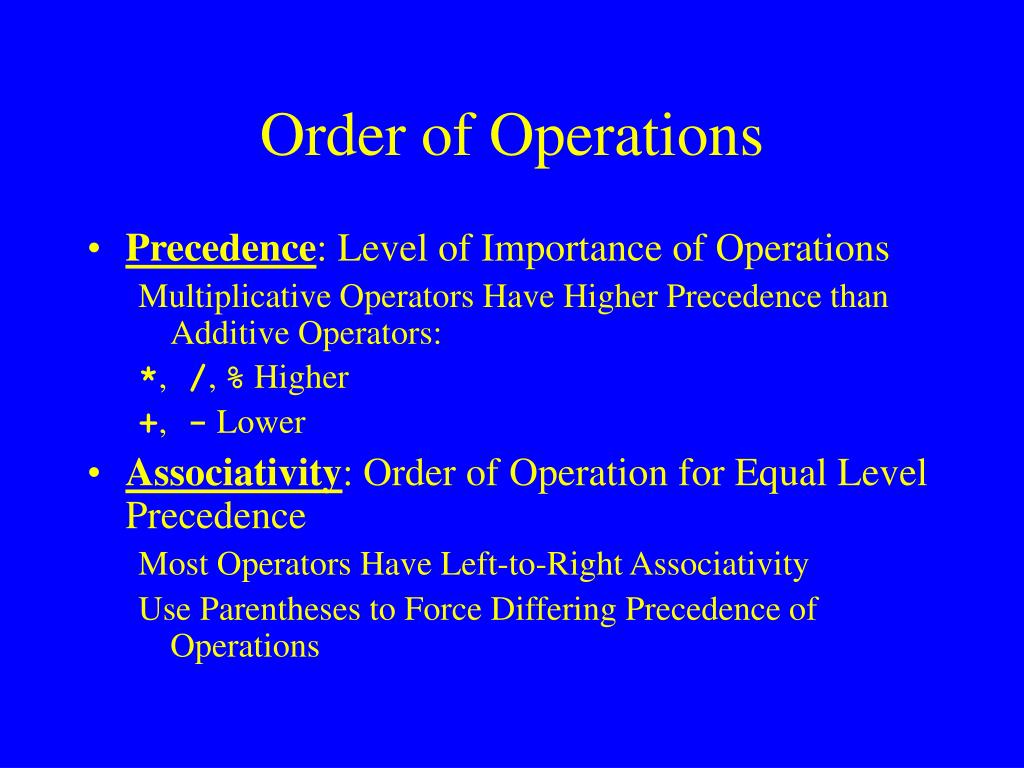

    Order of Operations

    • Precedence: Level of Importance of Operations

      Multiplicative Operators Have Higher Precedence than Additive Operators:

      *, /, % Higher

      +, - Lower

    • Associativity: Order of Operation for Equal Level Precedence

      Most Operators Have Left-to-Right Associativity

      Use Parentheses to Force Differing Precedence of Operations


    Multiple logical operators

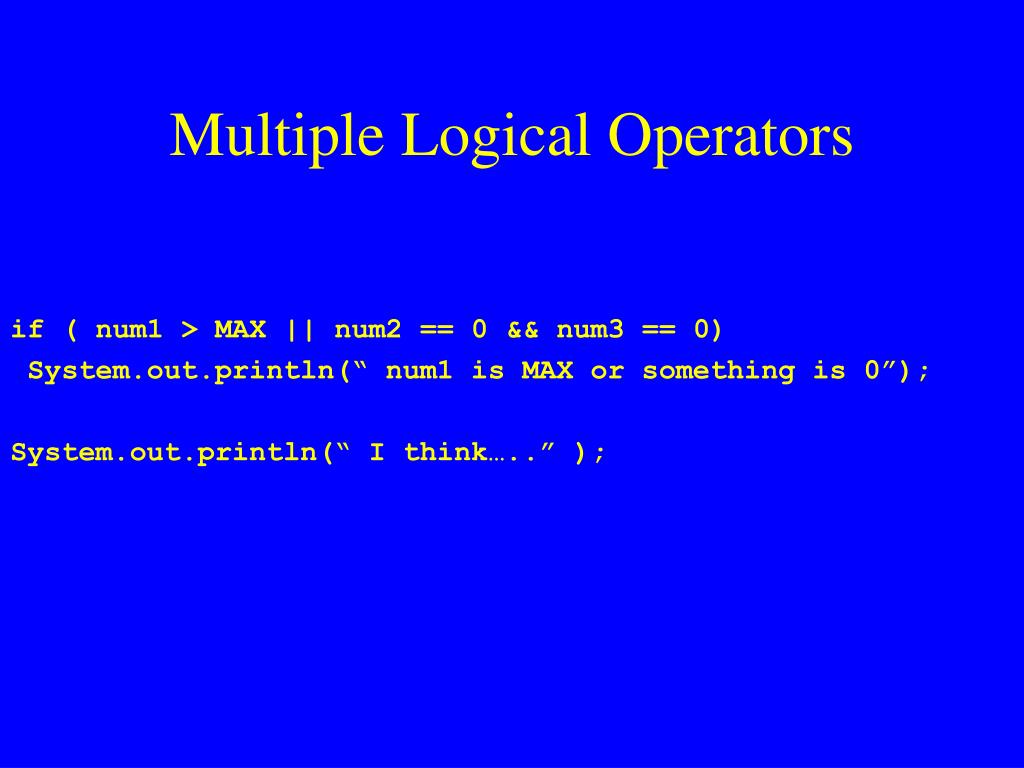

    Multiple Logical Operators

    if ( num1 > MAX || num2 == 0 && num3 == 0)

    System.out.println(“ num1 is MAX or something is 0”);

    System.out.println(“ I think…..” );


    Switch statements

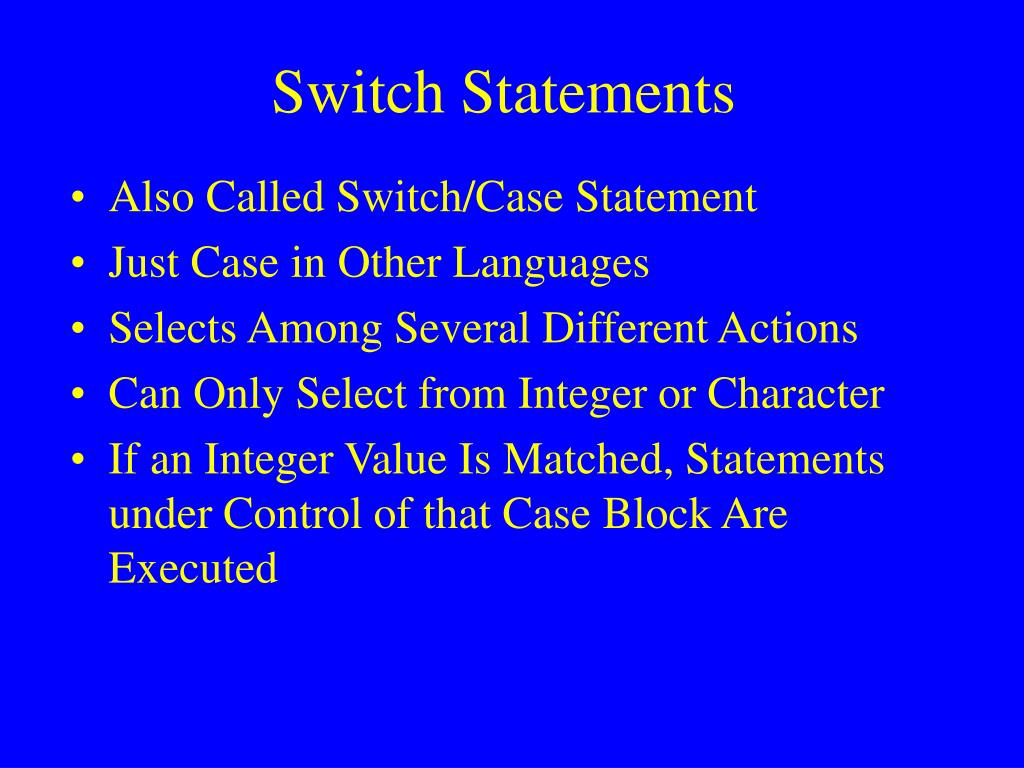

    Switch Statements

    • Also Called Switch/Case Statement

    • Just Case in Other Languages

    • Selects Among Several Different Actions

    • Can Only Select from Integer or Character

    • If an Integer Value Is Matched, Statements under Control of that Case Block Are Executed


    Switch case example

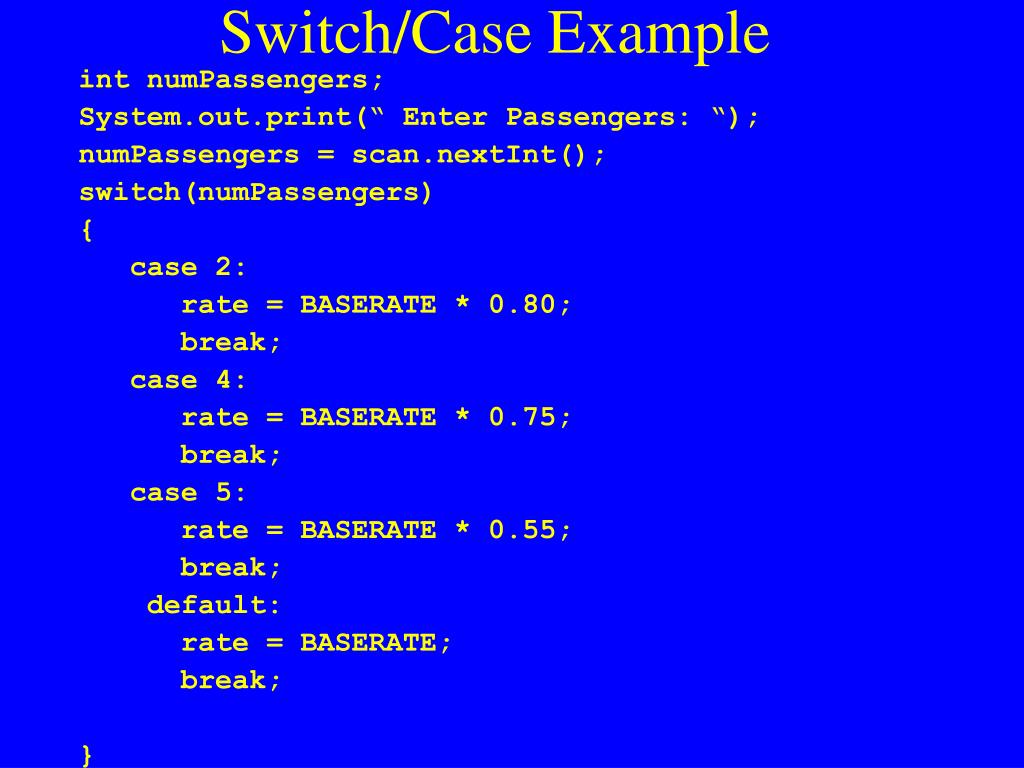

    Switch/Case Example

    int numPassengers;

    System.out.print(“ Enter Passengers: “);

    numPassengers = scan.nextInt();

    switch(numPassengers)

    {

    case 2:

    rate = BASERATE * 0.80;

    break;

    case 4:

    rate = BASERATE * 0.75;

    break;

    case 5:

    rate = BASERATE * 0.55;

    break;

    default:

    rate = BASERATE;

    break;

    }


    Switch case example1

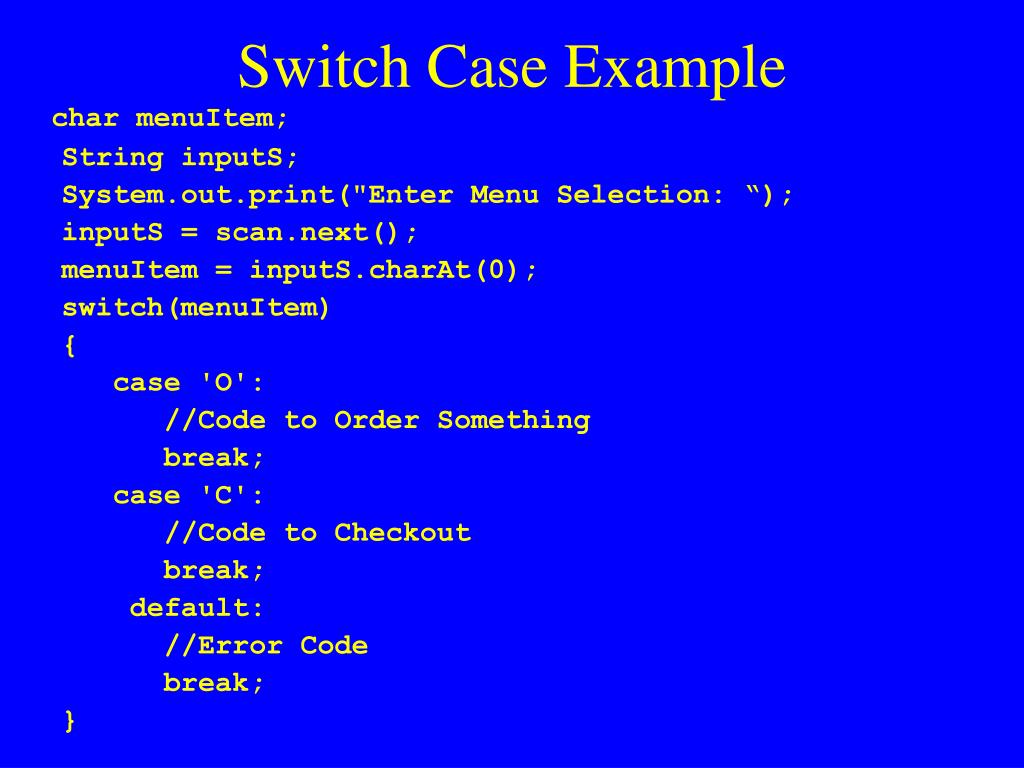

    Switch Case Example

    char menuItem;

    String inputS;

    System.out.print("Enter Menu Selection: “);

    inputS = scan.next();

    menuItem = inputS.charAt(0);

    switch(menuItem)

    {

    case 'O':

    //Code to Order Something

    break;

    case 'C':

    //Code to Checkout

    break;

    default:

    //Error Code

    break;

    }


    Announcements

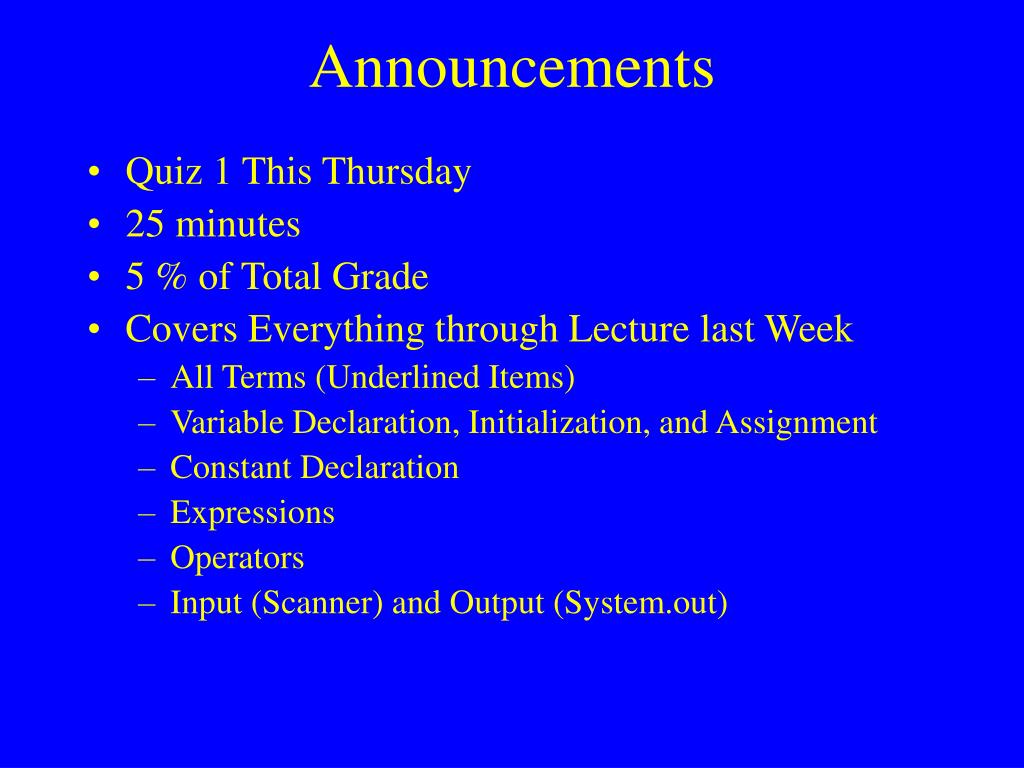

    Announcements

    • Quiz 1 This Thursday

    • 25 minutes

    • 5 % of Total Grade

    • Covers Everything through Lecture last Week

      • All Terms (Underlined Items)

      • Variable Declaration, Initialization, and Assignment

      • Constant Declaration

      • Expressions

      • Operators

      • Input (Scanner) and Output (System.out)
