Presentation Transcript


Partial oxidation of propylene to acrolein l.jpg

Partial Oxidation of Propylene to Acrolein

Final Design Presentation

April 23, 2008

Kerri M. May

Megerle L. Scherholz

Christopher M. Watts

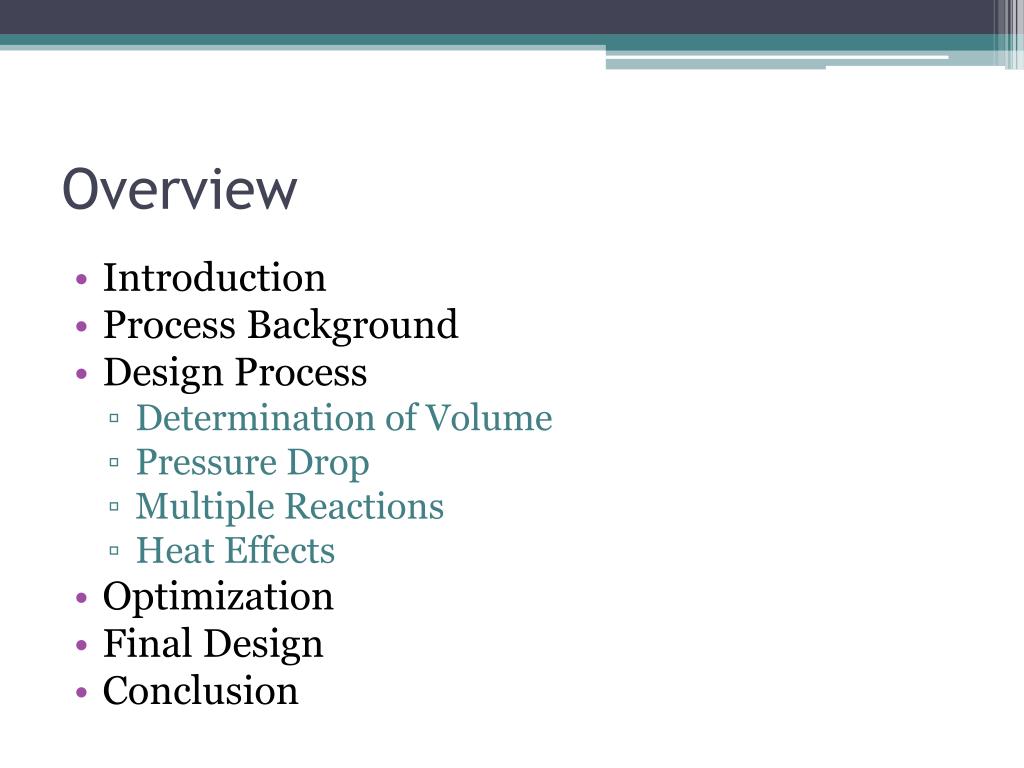

Overview l.jpg

Overview

  • Introduction

  • Process Background

  • Design Process

    • Determination of Volume

    • Pressure Drop

    • Multiple Reactions

    • Heat Effects

  • Optimization

  • Final Design

  • Conclusion


Introduction l.jpg

Introduction

  • Design of fixed-bed reactor

  • Production of acrolein by partial oxidation

    • CH2 = CH - CH3 + O2 → CH2 = CH – CHO + H2O

  • 13,500 Mtons/year with a 2 week downtime

    • Corresponds to 0.007941 kmol/s

  • Original design: ideal/isobaric/isothermal

  • Final design: pressure drop, multiple reactions and heat effects

  • Optimized using selectivity and gain


Process background l.jpg

Process Background

  • Literature Operating Conditions (1,2)


Process background continued l.jpg

Process Background Continued

  • Assumptions

  • Given for final design

  • Deviations for other models discussed


Process background continued6 l.jpg

Process Background Continued

  • Stoichiometric Flow Rates


Process background continued7 l.jpg

Process Background Continued

  • Catalyst chosen based on kinetics

    • Bismuth molybdate (6)

  • Co-current Heat Exchanger Fluid

    • Exothermic reaction

    • Molten Salt used as coolant fluid

    • Sodium tetrasulfide (7)

      • Melting temperature (294°C)


Process background continued8 l.jpg

Process Background Continued

  • Selectivity of Acrolein

  • Selectivity of Other Profitable Products

  • Gain


Process background continued9 l.jpg

Process Background Continued

  • Reaction Kinetics of Byproducts (6,8)

    • Reaction Pathway

    • Assumptions:

      • Steady State

      • Single-site oxygen adsorption

      • Rate of oxidation of acrolein to carbon oxides is negligible compared to other rates


Process background continued10 l.jpg

Process Background Continued

  • Reaction rates for the formation of acrolein and byproducts (6,8)

Where:

r2 = rate of formation of acrolein, kmol/kgcat-s

r3co2 = rate of formation of carbon dioxide, kmol/kgcat-s

r3co = rate of formation of carbon monoxide, kmol/kgcat-s

r4 = rate of formation of acetaldehyde, kmol/kgcat-s s

ka = rate constant for oxygen adsorption, (kmol-m3)1/2/kgcat-s

k12 = rate constant for propylene reaction to acrolein, m3/kgcat-s

k13co2 = rate constant for propylene reaction to carbon dioxides, m3/kgcat-s

k13co = rate constant for propylene reaction to carbon monoxide, m3/kgcat-s

k14 = rate constant for propylene reaction acetaldehyde, m3/kgcat-s

Co = concentration of oxygen, kmol/m3

Cp = concentration of propylene, kmol/m3

n12 = number of moles of oxygen which react with one mole of propylene to produce acrolein, kmol/kmol

n13co2 = number of moles oxygen which react with one mole of propylene to product carbon dioxide, kmol/kmol

n13co = number of moles of oxygen which react with one mole of propylene to produce carbon monoxide, kmol/kmol

n14 = number of moles of oxygen which react with one mole of propylene to produce acetaldehyde, kmol/kmol


Process background continued11 l.jpg

Process Background Continued

  • Rate Constants at 325, 350, and 390°C

  • Pre-exponential Factors and Activation Energies


Design process l.jpg

Design Process


Optimization l.jpg

Optimization

  • Acrolein Selectivity

    • Greater at increased temperatures

    • Improved when coolant and inlet temperatures are equal

    • Higher pressure, higher selectivity

  • Other Usable Product Selectivity

    • Decreased at increased temperatures

    • Favored at lower pressures

    • Greater when coolant temperature less than the inlet temperature


Optimization continued l.jpg

Optimization Continued

  • Gain

    • Greater at increased inlet temperature

    • Independent of coolant and inlet temperature relationship

  • Optimization Conclusion:

    • Focus on selectivity opposed to gain


Final design l.jpg

Final Design

  • Operating Conditions

    • Temperature- 390°C

    • Pressure- 3 atm

  • Reactor Configurations

    • Volume- 19.08 m3

    • Diameter- 3.4 m

    • Length- 2.01 m

    • Number of Tubes- 17920 (1” Dia.)

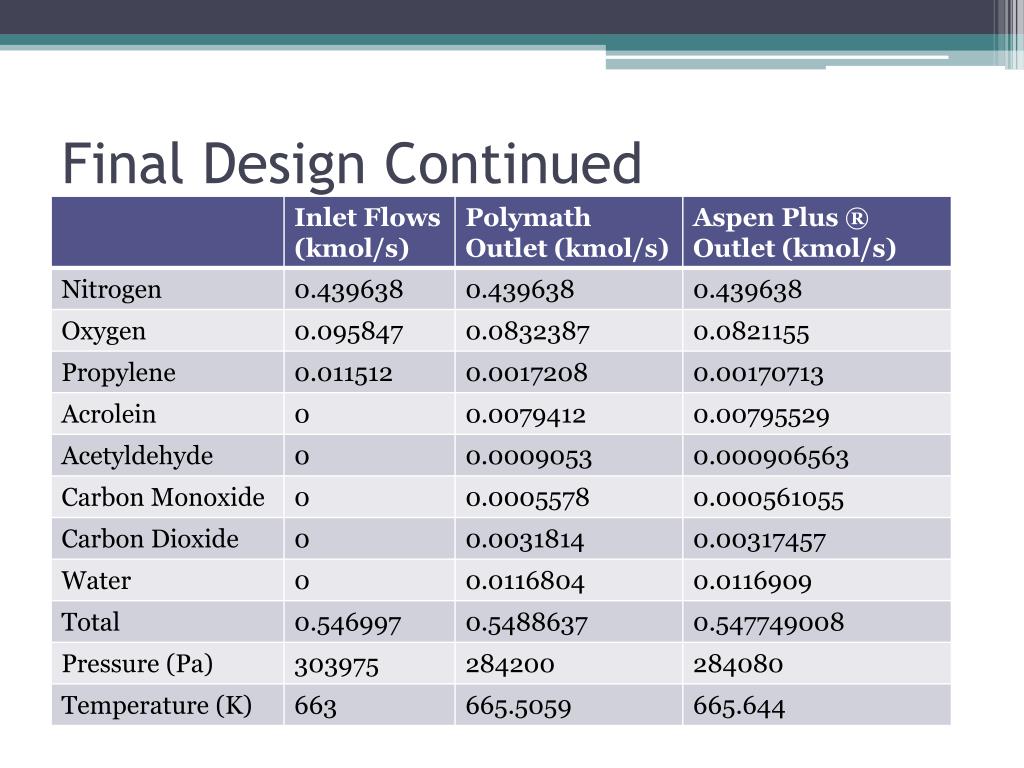

Final design continued l.jpg

Final Design Continued


Final design continued17 l.jpg

Final Design Continued


Final design continued18 l.jpg

Final Design Continued

  • Temperature Profile


Conclusions l.jpg

Conclusions

  • Reactor volume decreased with complexity increase

  • Selectivity crucial to optimization

  • Final model discussed would operate viably

  • Changed reactor dimensions to optimize final design


Questions l.jpg

Questions?


Works cited l.jpg

Works Cited

  • Maganlal, Rashmikant, et al. Vapor phase oxidation of propylene to acrolein. 6437193 United States, August 20, 2002.

  • Chemical Database Property Constants. DIPPR Database [Online]. Available from Rowan Hall 3rd Floor Computer Lab. (Accessed on 1/24/2008).

  • LaMarca, Concetta, PhD. Chemical Reaction Engineering Design Project. February 2008. Chemical Engineering Department, Rowan University, Glassboro.

  • Transient Kinetics from the TAP Reactor System: Application to the Oxidation of Propylene to Acrolein. Creten, Glenn, Lafyatis, David S., and Froment, Gilbert F. Belgium: Journal of Catalysis, 1994, Vol. 154.

  • Chemical Database Property Constants. DIPPR Database [Online]. Available from Rowan Hall 3rd Floor Computer Lab. (Accessed on 1/24/2008).

  • The reaction network for the oxidation of propylene over a bismuth molybdate catalyst. Tan, H. S., Downie, J. and Bacon, D. W. Kingston : The Canadian Journal of Chemical Engineering, 1989, Vol. 67

  • Physical Properties Data Compilations Relevant to Energy Storage.  II. Molten Salts:  Data on Single and Multi-Component Salt Systems.  G.J. Janz, C.B. Allen, N.P. Bansal, R.M. Murphy, and R.P.T. Tomkins Molten Salts Data Center, Rensselaer Polytechnic Institute, NSRDS-NBS61-II, April 1979

  • The kinetics of the oxidation of propylene over a bismuth molybdate catalyst. Tan, H. S., Downie, J. and Bacon, D. W. Kingston : The Canadian Journal of Chemical Engineering, 1988, Vol. 66
