Advanced digital circuits ecet 146 week 1

Advanced Digital CircuitsECET 146Week 1

Professor Iskandar Hack

ET 205B, 481-5733

[email protected]


Week s goals

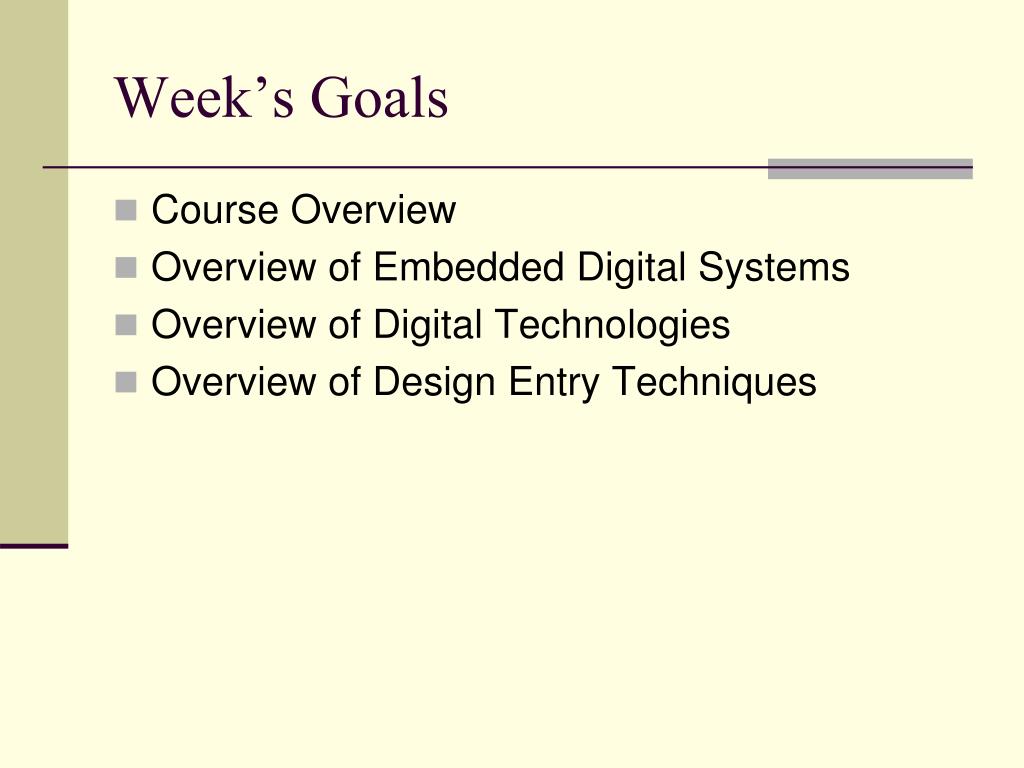

Week’s Goals

  • Course Overview

  • Overview of Embedded Digital Systems

  • Overview of Digital Technologies

  • Overview of Design Entry Techniques


Goals of course
Goals of Course

  • Understanding of basic concepts of programmable logic

  • Understand various types of programmable logic devices such as Field Programmable Gate Arrays, Masked Gate Arrays, Standard Cell, and Full Custom Chips

  • To be able to use an industry standard digital design package such as Altera’s Max Plus or Xilinx’s ISE Foundation


Goals of course ii

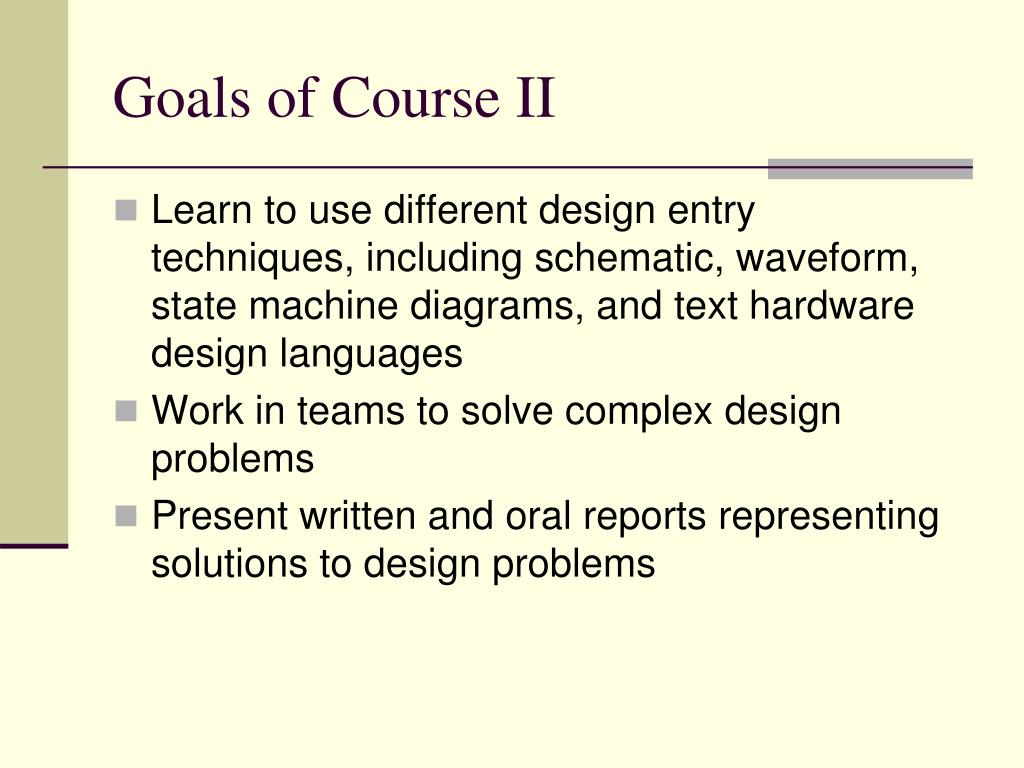

Goals of Course II

  • Learn to use different design entry techniques, including schematic, waveform, state machine diagrams, and text hardware design languages

  • Work in teams to solve complex design problems

  • Present written and oral reports representing solutions to design problems


Course structure

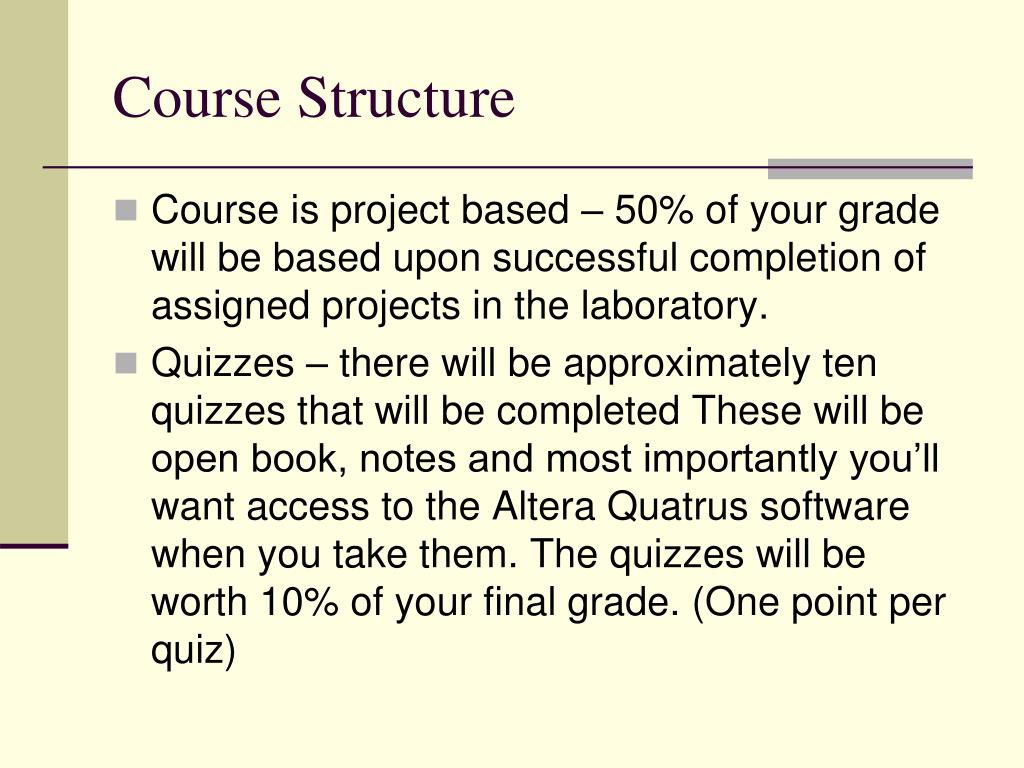

Course Structure

  • Course is project based – 50% of your grade will be based upon successful completion of assigned projects in the laboratory.

  • Quizzes – there will be approximately ten quizzes that will be completed These will be open book, notes and most importantly you’ll want access to the Altera Quatrus software when you take them. The quizzes will be worth 10% of your final grade. (One point per quiz)


Course structure ii
Course Structure II

  • Major projects – there will be a Midterm and Final Project that will each count 20% of your course grade.

  • Lab Teams – Each Lab team will consist of two members. You are free to choose your own lab partner. However, each lab must be written by one member each time and alternate between lab members. You will need to identify which lab member is writing the report. The same is true with the midterm and final projects, however writes the midterm does not write the final report. You do not have to have a lab partner, if you desire you may work alone.


Grades
Grades

  • Grading is simple in this course – You finish all of the assignments (ON TIME of course) and you receive an A.

  • Of course if you’re late, your lab reports don’t meet the standard format, or your projects don’t work then the final grade is adjusted.

  • Most students that take this course will receive an A, those that don’t are ones that don’t finish the projects on time or they don’t work.

  • The primary reason that students do poorly is they wait until the project is due before they start working on it.


Course requirements
Course Requirements

  • Digital Electronics with VHDL by William Kleitz (same book as ECET 111)

  • Altera Quatrus II II Design software (can be downloaded from www.altera.com or from course website)


Additional comments
Additional Comments

  • In order to transport your design files from home to the lab and to save your design files while working in the lab you will need to have either a USB-Flash drive. If you do all of your work on either a laptop that you carry back and forth or on the lab computers then you don’t need the USB-Flash drive.

  • NOTE – there has been some minor problems with Flash drives losing data, be sure to back up regularly.


Definition of an embedded system

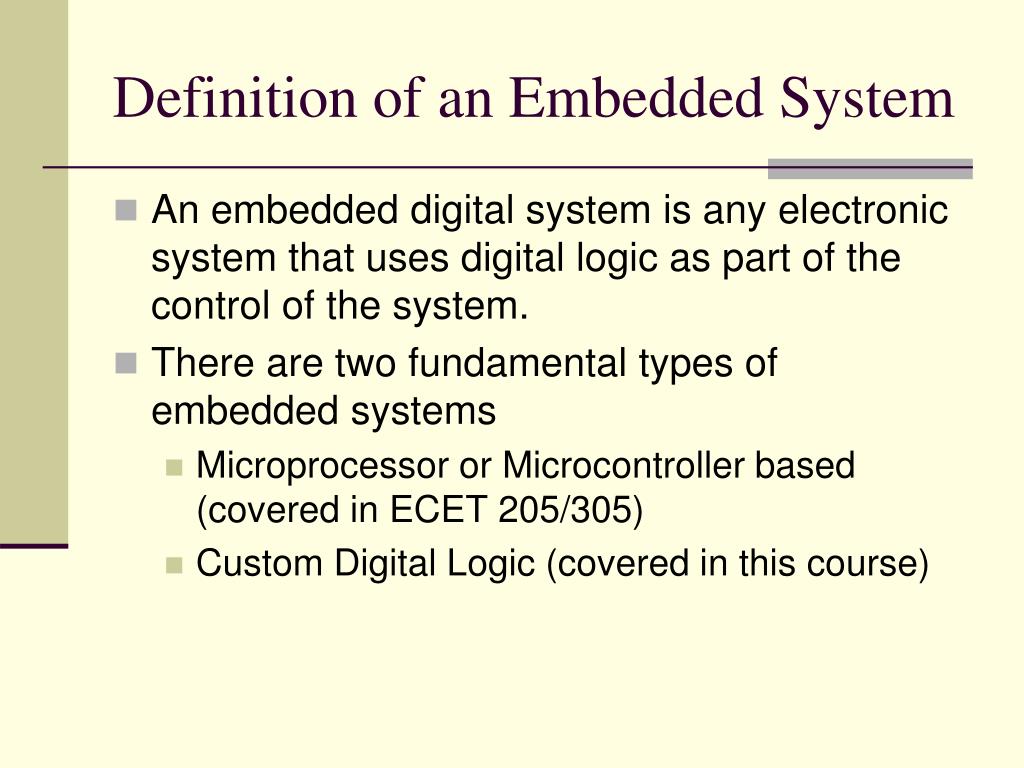

Definition of an Embedded System

  • An embedded digital system is any electronic system that uses digital logic as part of the control of the system.

  • There are two fundamental types of embedded systems

    • Microprocessor or Microcontroller based (covered in ECET 205/305)

    • Custom Digital Logic (covered in this course)


Types of custom digital logic devices
Types of Custom Digital Logic Devices

  • Discrete Logic as covered in ECET 111

  • Programmable Logic

    • Simple Programmable Logic Devices

    • Complex Programmable Logic Devices (CPLD’s)

    • Field Programmable Gate Arrays

  • Masked Gate Arrays

  • Standard Cell Custom Logic Integrated Circuits

  • Full Custom Logic Integrated Circuits


Simple programmable logic devices
Simple Programmable Logic Devices

  • These devices are also known as

    • PAL (Programmable Array Logic)

    • GAL (Generic Array Logic)

    • PLA (Programmable Logic Array)

    • PLD (Programmable Logic Device)

  • SPLDs are the smallest and consequently the least-expensive form of programmable logic. An SPLD is typically comprised of four to 22 macro cells and can typically replace a few 7400-series TTL devices. Each of the macro cells is typically fully connected to the others in the device. Most SPLDs use either fuses or non-volatile memory cells such as EPROM, EEPROM, or FLASH to define the functionality.


Cpld c omplex p rogrammable l ogic d evices

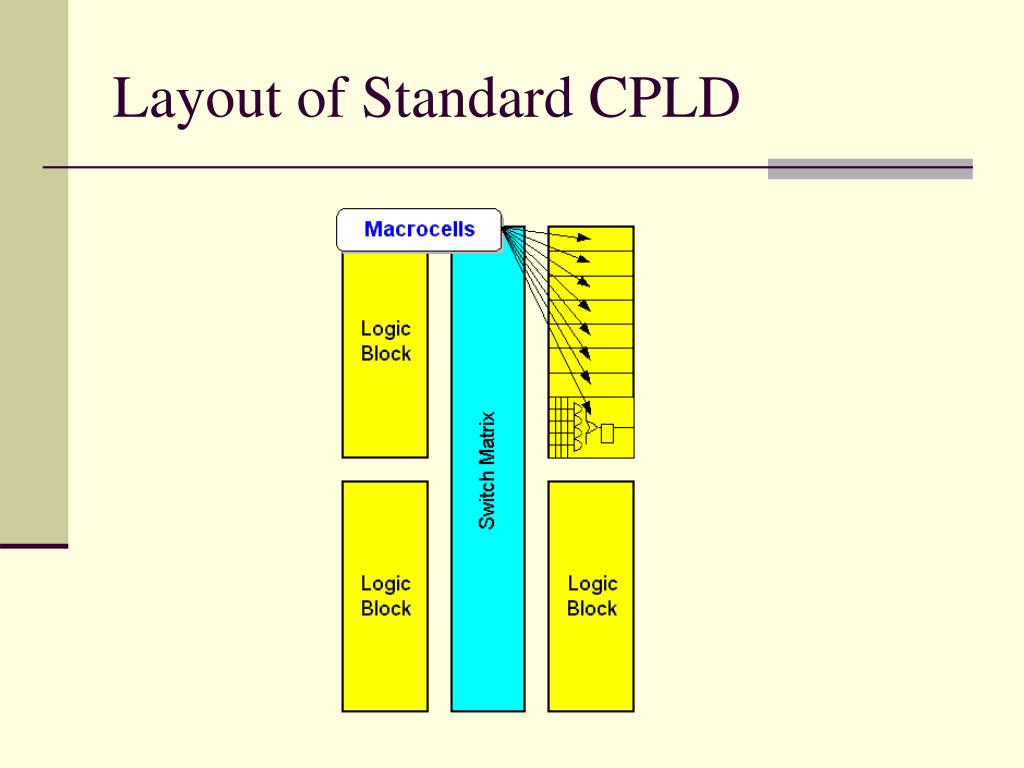

CPLD - Complex Programmable Logic Devices

  • Also known as:

    • EPLD (Erasable Programmable Logic Device)

    • PEEL

    • EEPLD (Electrically-Erasable Programmable Logic Device)

    • MAX (Multiple Array matriX from Altera)

  • CPLDs are similar to SPLDs except that they are significantly higher capacity. A typical CPLD is the equivalent of two to 64 SPLDs. A CPLD typically contains from tens to a several hundred macro cells. A group of eight to 16 macro cells is typically grouped together into a larger function block. The macrocells within a function block are usually fully connected. If a device contains multiple function blocks, then the function blocks are further interconnected.


Cpld c omplex p rogrammable l ogic d evices ii
CPLD - Complex Programmable Logic Devices II

  • In concept, CPLD’s consist of multiple PAL-like logic blocks interconnected together via a programmable switch matrix. Typically, each logic block contains 4 to 16 macrocells, depending on the architecture





Field programmable gate arrays

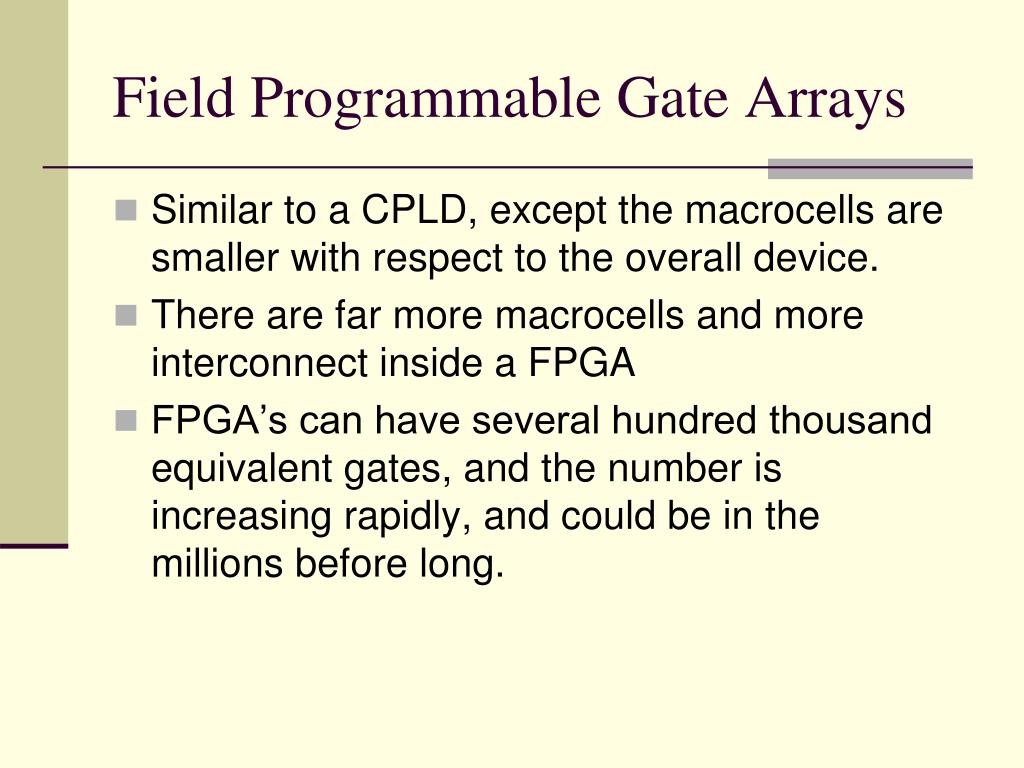

Field Programmable Gate Arrays

  • Similar to a CPLD, except the macrocells are smaller with respect to the overall device.

  • There are far more macrocells and more interconnect inside a FPGA

  • FPGA’s can have several hundred thousand equivalent gates, and the number is increasing rapidly, and could be in the millions before long.


Layout of a fpga
Layout of a FPGA

I/O Blocks


Masked gate array

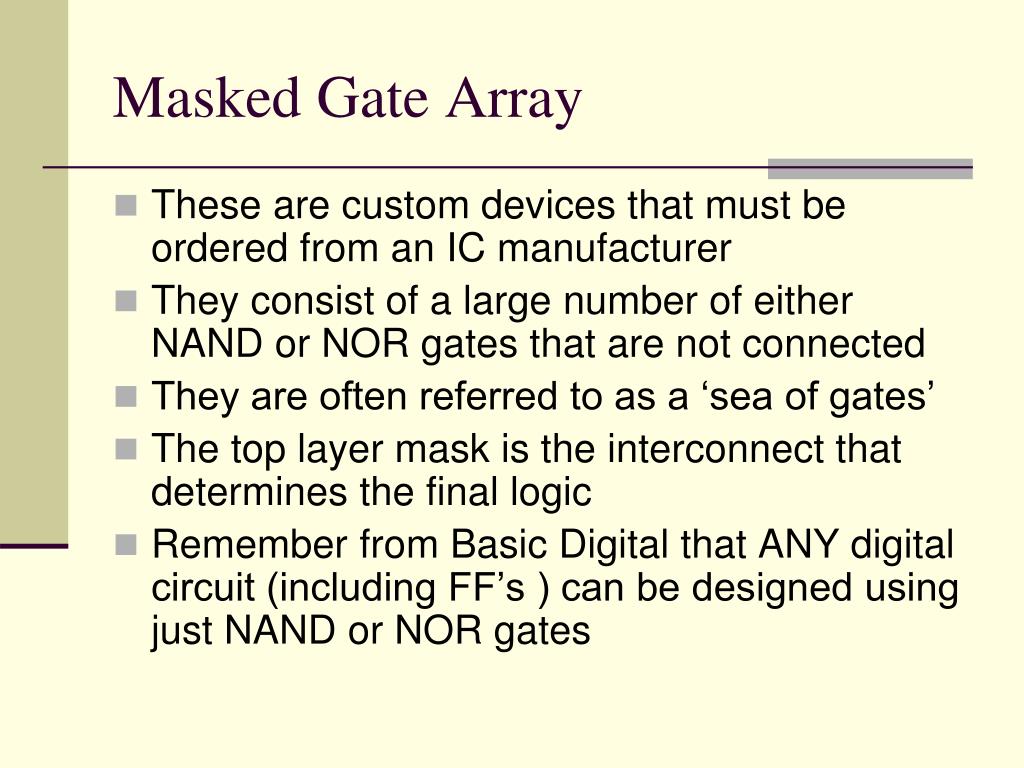

Masked Gate Array

  • These are custom devices that must be ordered from an IC manufacturer

  • They consist of a large number of either NAND or NOR gates that are not connected

  • They are often referred to as a ‘sea of gates’

  • The top layer mask is the interconnect that determines the final logic

  • Remember from Basic Digital that ANY digital circuit (including FF’s ) can be designed using just NAND or NOR gates


Layout of a mask gate array
Layout of a Mask Gate Array

I/O

Blocks

Gate Array with Channels for interconnect

Gate Array without Channels


Standard cell device
Standard Cell Device

  • Made up of standard Digital Logic cells such as counters, adders, multipliers memory components and even microcontrollers

  • All mask layers are custom made

  • Because of the need for all masks to be custom there is a long lead time for manufacturing and high cost for the fabrication of the masks


Sample layout of standard cell
Sample Layout of Standard Cell

Standard Cell

Shift register

Gate Array

With routing

Chan.

Standard Cell

adder

Input/Output


Full custom device

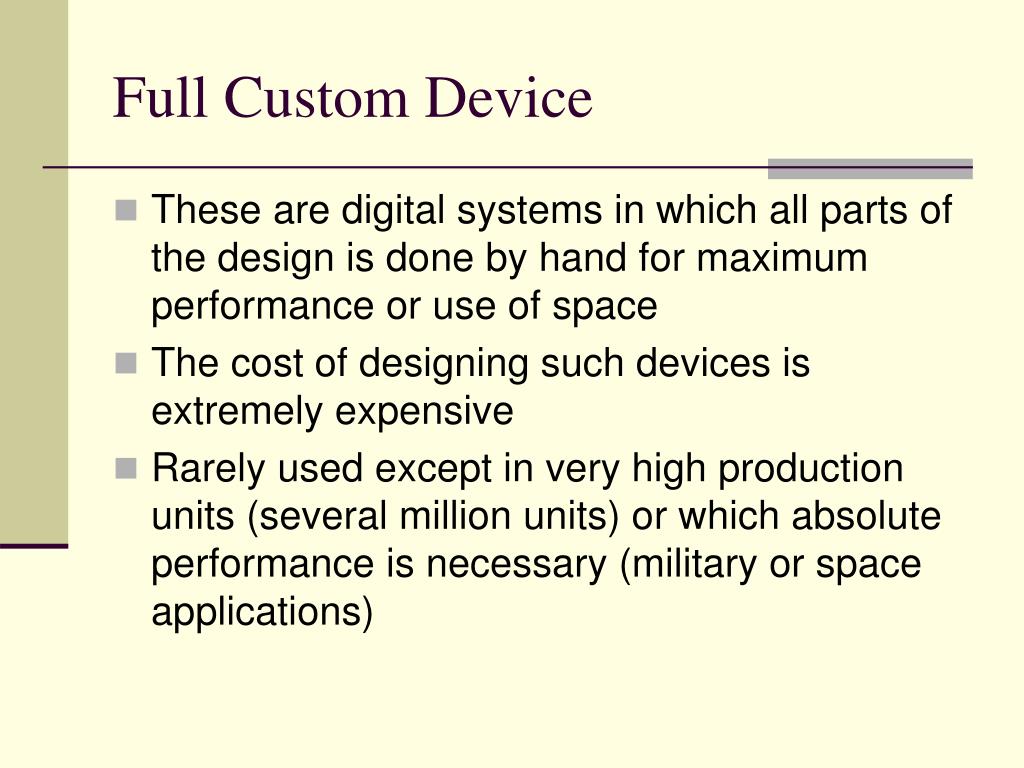

Full Custom Device

  • These are digital systems in which all parts of the design is done by hand for maximum performance or use of space

  • The cost of designing such devices is extremely expensive

  • Rarely used except in very high production units (several million units) or which absolute performance is necessary (military or space applications)


Example of a full custom device
Example of a Full Custom Device

80486 Chip from Intel


Design cost vs per unit cost
Design Cost vs. Per Unit Cost

  • Design Cost is the ‘one time’ cost of designing the device, usually referred to as the NRE or ‘Non-Recurring Engineering’ cost

  • The per unit cost is the cost of each unit AFTER the NRE has been satisfied

  • The Total Unit Cost (TUC) is equal to the (NRE)/(# of Units) + Per Unit cost

  • It is important to compare TUC using available technologies to decide the appropriate technology

  • There may be other reasons to use a particular technology such as security, power or size restrictions


Example of calculating total unit cost
Example of Calculating Total Unit Cost

  • The NRE is $125,000 for this particular design

  • The Per Unit Cost is $1.35

  • The Expected Number of units to be produced is 325,000

  • The Total Per Unit cost is (125000/325000) + 1.35 = 1.73 per device



Design entry techniques
Design Entry Techniques

  • Schematic – Designer draws the equivalent design using gates and other logic circuits (can include IC’s such as JK FF or 74xxx parts)

  • Waveform – Design draws the desired input and output waveforms for the device

  • State Machine Diagram – Designer enters the design using a Finite State Machine Bubble Diagram

  • Text Design Files – Design specifies the design using a design language such as Altera Hardware Design Language (AHDL)





Example of ahdl design file
Example of AHDL Design File

SUBDESIGN priority

(

low, middle, high : INPUT;

highest_level[1..0] : OUTPUT; --group,vector,bus

)

BEGIN

IF high THEN --IF-THEN-ELSE statement

highest_level[] = 3; --high -> decimal 3 = binary 11

ELSIF middle THEN

highest_level[] = 2; --middle -> 10

ELSIF low THEN

highest_level[] = 1; --low -> 01

ELSE

highest_level[] = 0; --no input was true -> 00

END IF;

END;


Summary of week 1
Summary of Week 1

  • Overview of the course

  • Definition of Embedded Systems

    • Microprocessor/Microcontroller

    • Custom Digital Logic

  • Technologies used in Custom Digital Logic

    • Discrete Components

    • Small Scale Programmable Logic

    • Large Scale Programmable Logic

      • CPLD’s

      • FPGA’s

    • Masked Gate Arrays

    • Standard Cell

    • Full Custom

  • Design Entry Methods

    • Schematic

    • Waveform

    • State Machine Bubble Graphs

    • Text Design Files
