Presentation Transcript

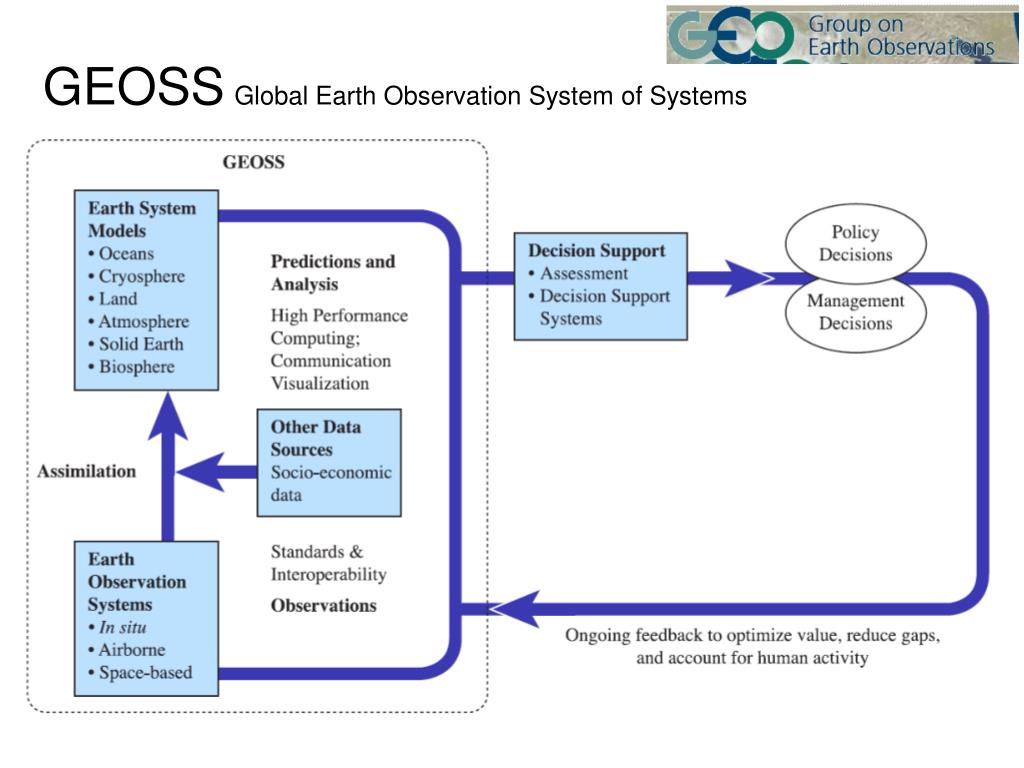

  1. GEOSSGlobal Earth Observation System of Systems

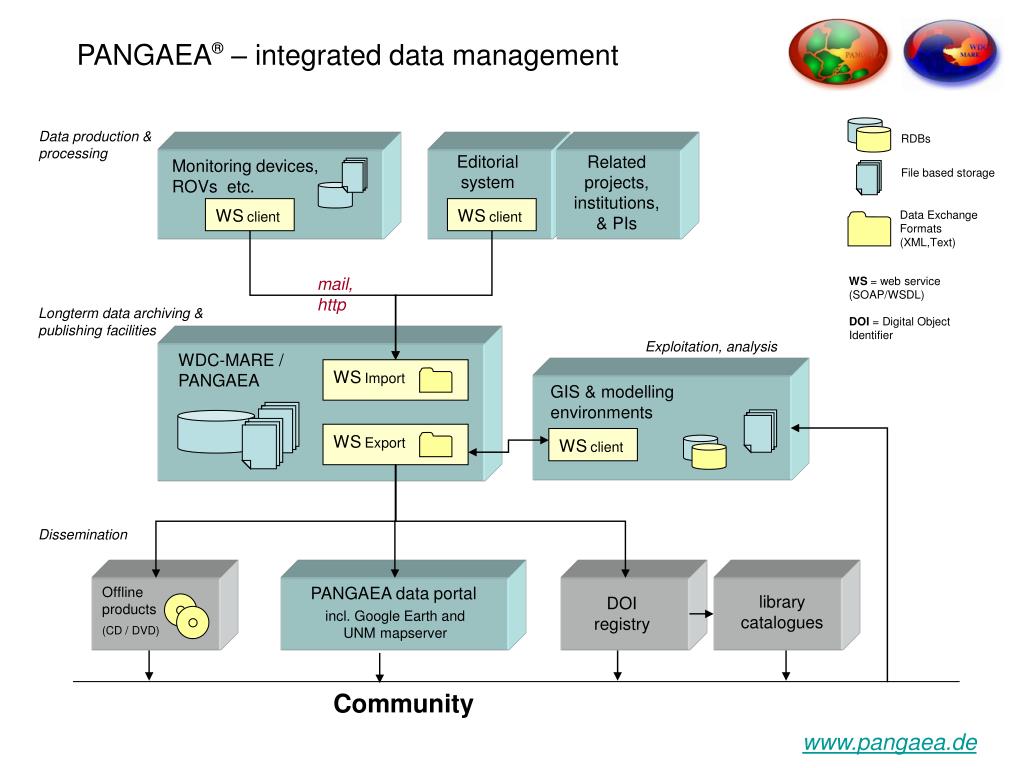

  2. PANGAEA® – integrated data management Data production & processing RDBs Editorial system Related projects, institutions, & PIs Monitoring devices, ROVs etc. File based storage WS client WS client Data Exchange Formats (XML,Text) mail, http WS = web service (SOAP/WSDL) Longterm data archiving & publishing facilities DOI = Digital Object Identifier Exploitation, analysis WDC-MARE / PANGAEA WS Import GIS & modelling environments WS Export WS client Dissemination PANGAEA data portal Offline products library catalogues DOIregistry incl. Google Earth and UNM mapserver (CD / DVD) Community www.pangaea.de

  3. PANGAEA® – sensor network of sites FINO & ANTARES FINO ANTARES S S S S S S W S+ W S+ internet WDC-MARE WAS SOS RX/Proxy SPS WNS Registry Archive &warehouse Scientist Early Warning System

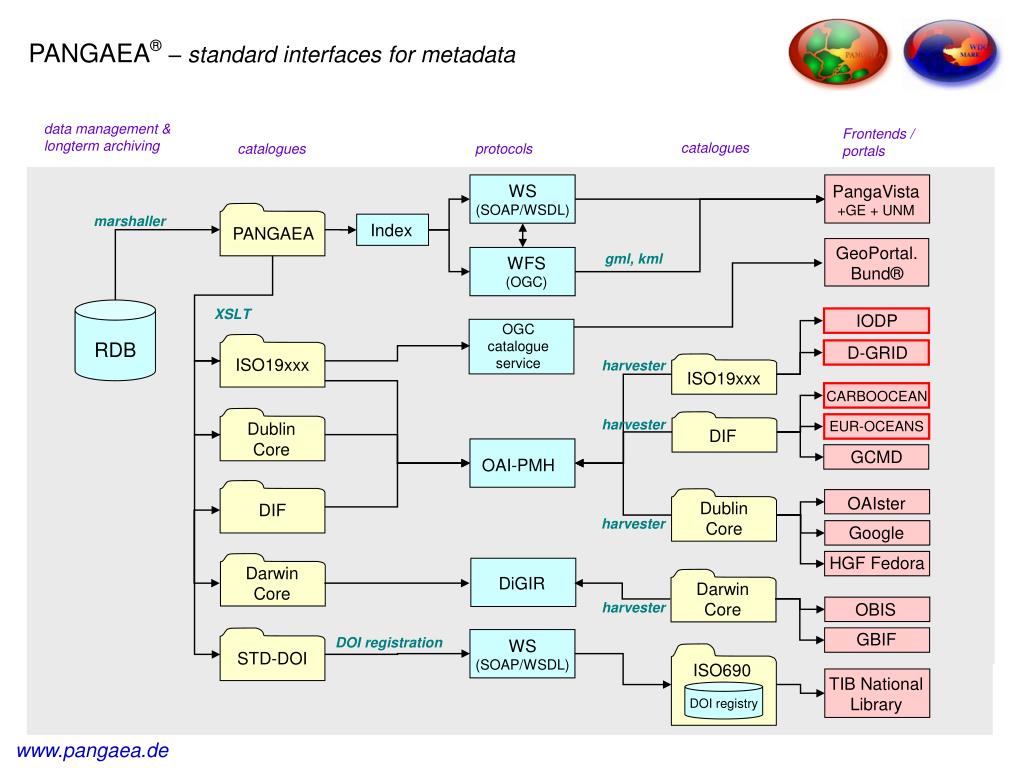

  4. PANGAEA®– standard interfaces for metadata data management & longterm archiving Frontends / portals catalogues catalogues protocols WS(SOAP/WSDL) PangaVista+GE + UNM marshaller Index PANGAEA GeoPortal.Bund® gml, kml WFS(OGC) XSLT IODP OGCcatalogue service RDB D-GRID ISO19xxx harvester ISO19xxx CARBOOCEAN harvester EUR-OCEANS Dublin Core DIF GCMD OAI-PMH OAIster DublinCore DIF harvester Google HGF Fedora Darwin Core DiGIR Darwin Core harvester OBIS GBIF DOI registration WS(SOAP/WSDL) STD-DOI ISO690 TIB NationalLibrary DOI registry www.pangaea.de

  5. WDC-MARE - recommendations • Data centers need to prepare to serve data and metadata for multiple scopes / communities / stakeholders • Metadata have to ensure re-usage of data (data publication) • Complete & consistent metadata fullfill most common standards • De facto standards and protocols build the mainstream of network development • Data management has to be an integral part of research (user driven) • Data centers should operate like publishers and libraries

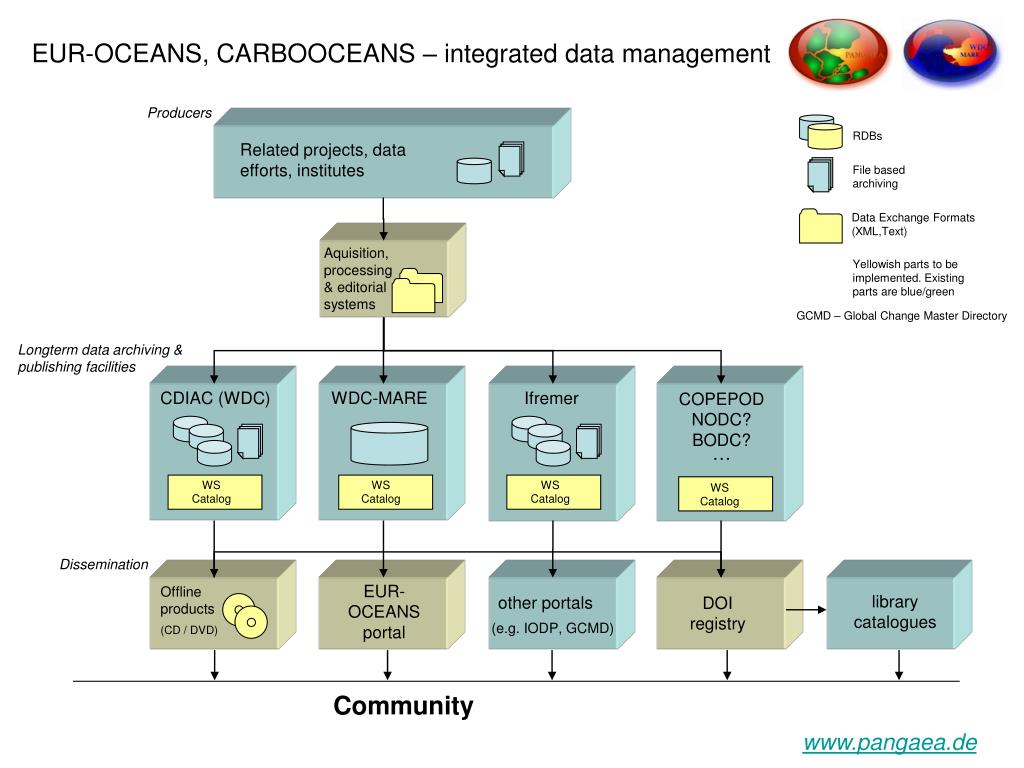

  6. EUR-OCEANS, CARBOOCEANS – integrated data management Producers RDBs Related projects, data efforts, institutes File based archiving Data Exchange Formats (XML,Text) Aquisition, processing & editorial systems Yellowish parts to be implemented. Existing parts are blue/green GCMD – Global Change Master Directory Longterm data archiving & publishing facilities CDIAC (WDC) WDC-MARE Ifremer COPEPODNODC?BODC?… WSCatalog WSCatalog WSCatalog WSCatalog Dissemination EUR-OCEANSportal Offline products library catalogues other portals DOIregistry (e.g. IODP, GCMD) (CD / DVD) Community www.pangaea.de

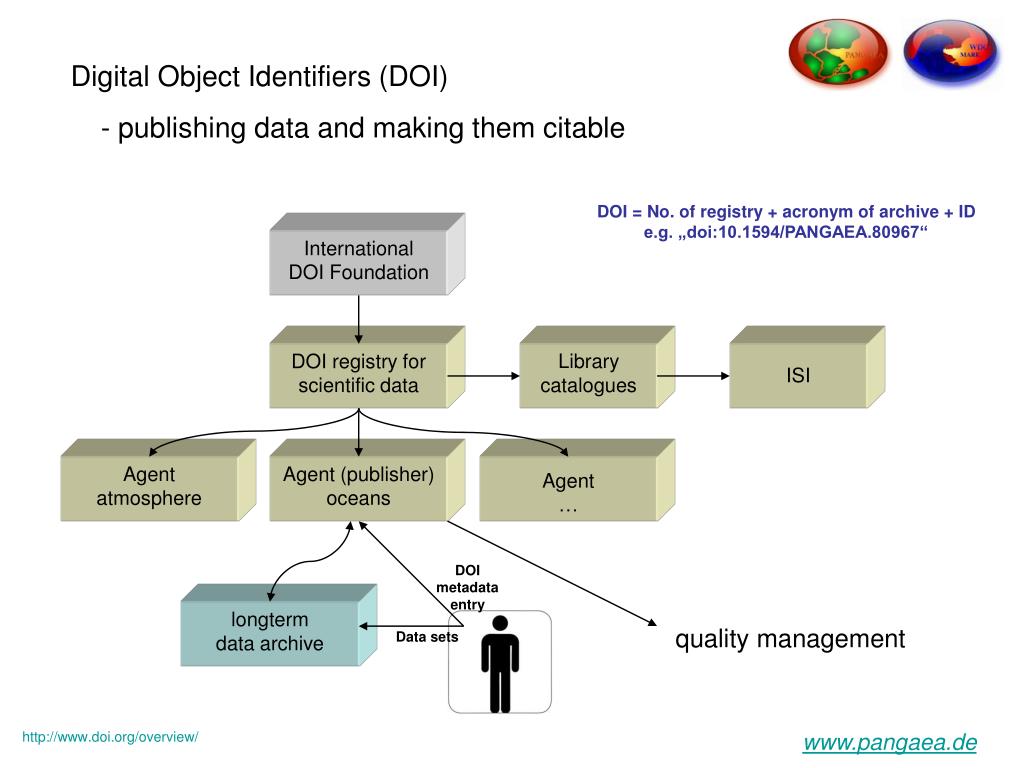

  7. Digital Object Identifiers (DOI) - publishing data and making them citable DOI = No. of registry + acronym of archive + ID e.g. „doi:10.1594/PANGAEA.80967“ International DOI Foundation Library catalogues DOI registry for scientific data ISI Agent atmosphere Agent (publisher) oceans Agent … DOI metadata entry longterm data archive quality management Data sets http://www.doi.org/overview/ www.pangaea.de

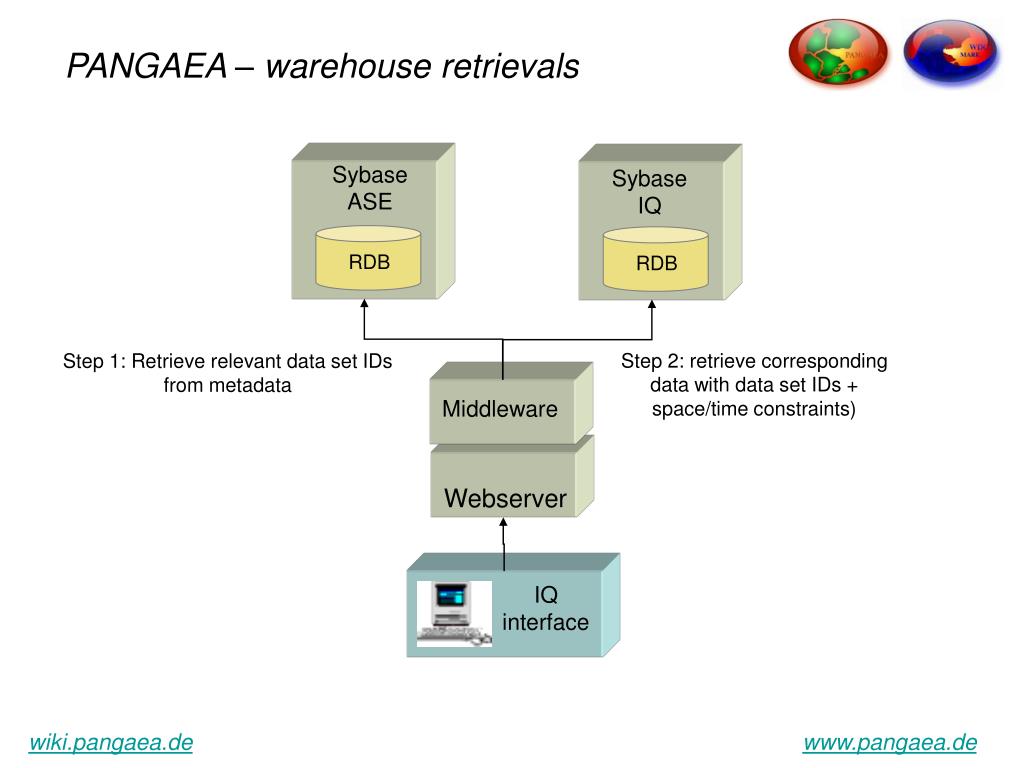

  8. PANGAEA – warehouse retrievals Sybase ASE Sybase IQ RDB RDB Step 2: retrieve corresponding data with data set IDs + space/time constraints) Step 1: Retrieve relevant data set IDs from metadata Middleware Webserver IQ interface wiki.pangaea.de www.pangaea.de

  9. PANGAEA - Technical architecture Sybase ASE Editorial system Harddisk + tape (silo) Sybase IQ RDB RDB Webserver Middleware … IQ interface Panga-Vista ART wiki.pangaea.de www.pangaea.de

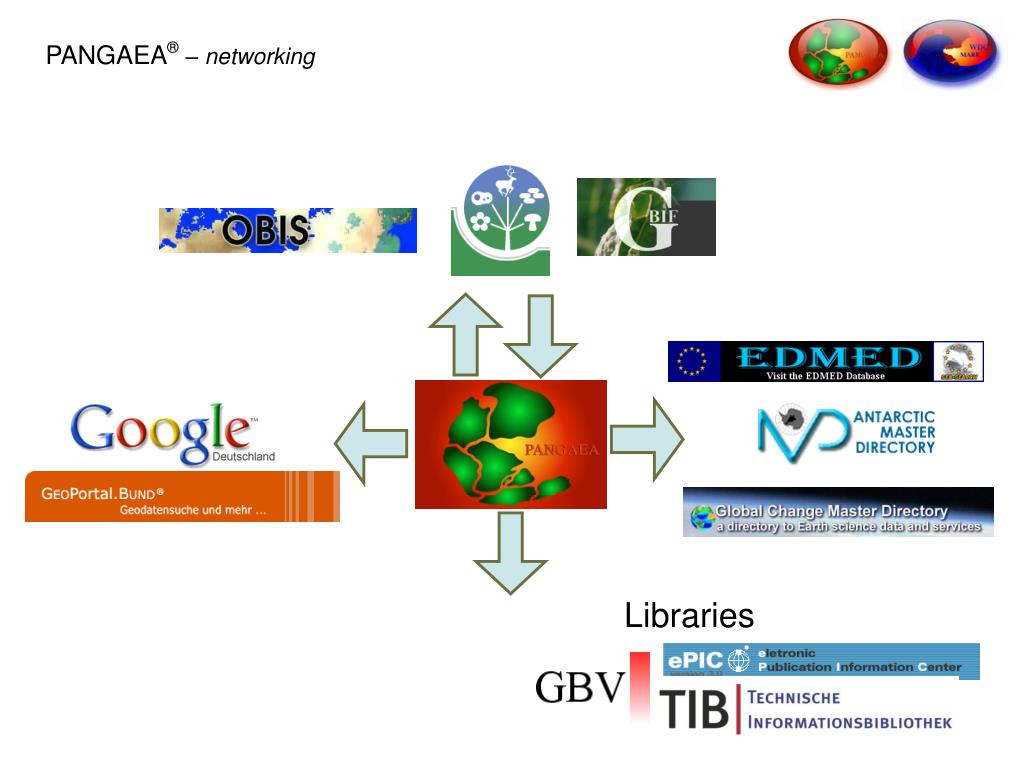

  10. PANGAEA®– networking Libraries
