Bluetooth Advances In Windows Vista And Beyond

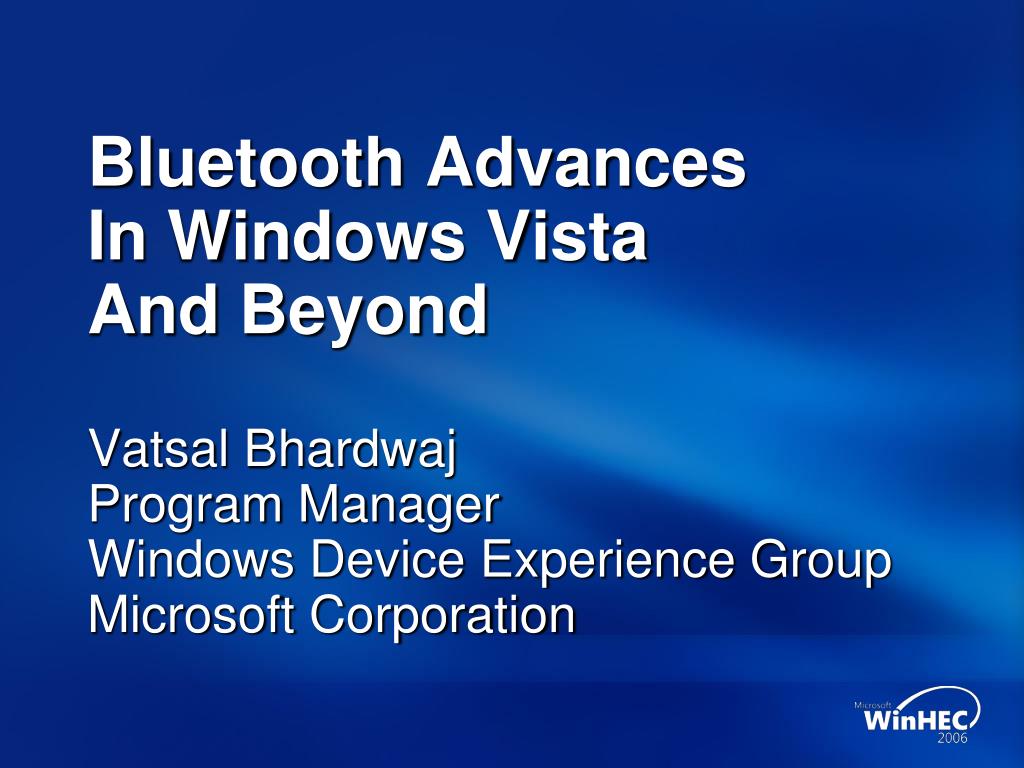

1. Bluetooth Advances In Windows Vista And Beyond Vatsal BhardwajProgram ManagerWindows Device Experience GroupMicrosoft Corporation

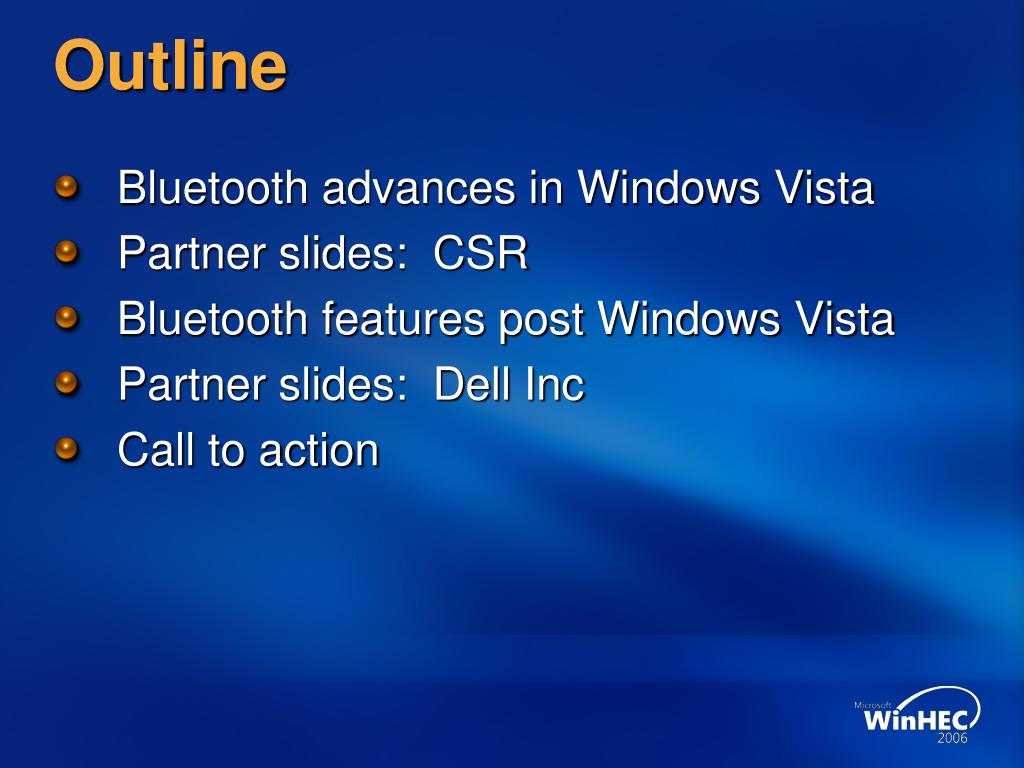

2. Outline • Bluetooth advances in Windows Vista • Partner slides: CSR • Bluetooth features post Windows Vista • Partner slides: Dell Inc • Call to action

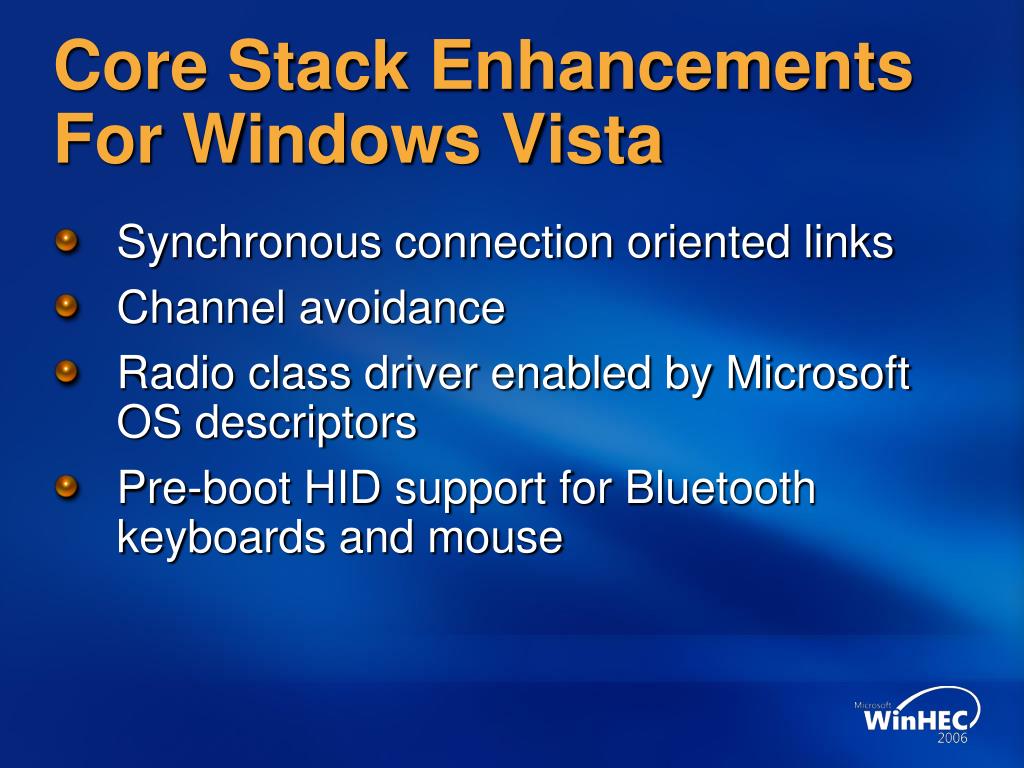

3. Core Stack Enhancements For Windows Vista • Synchronous connection oriented links • Channel avoidance • Radio class driver enabled by Microsoft OS descriptors • Pre-boot HID support for Bluetooth keyboards and mouse

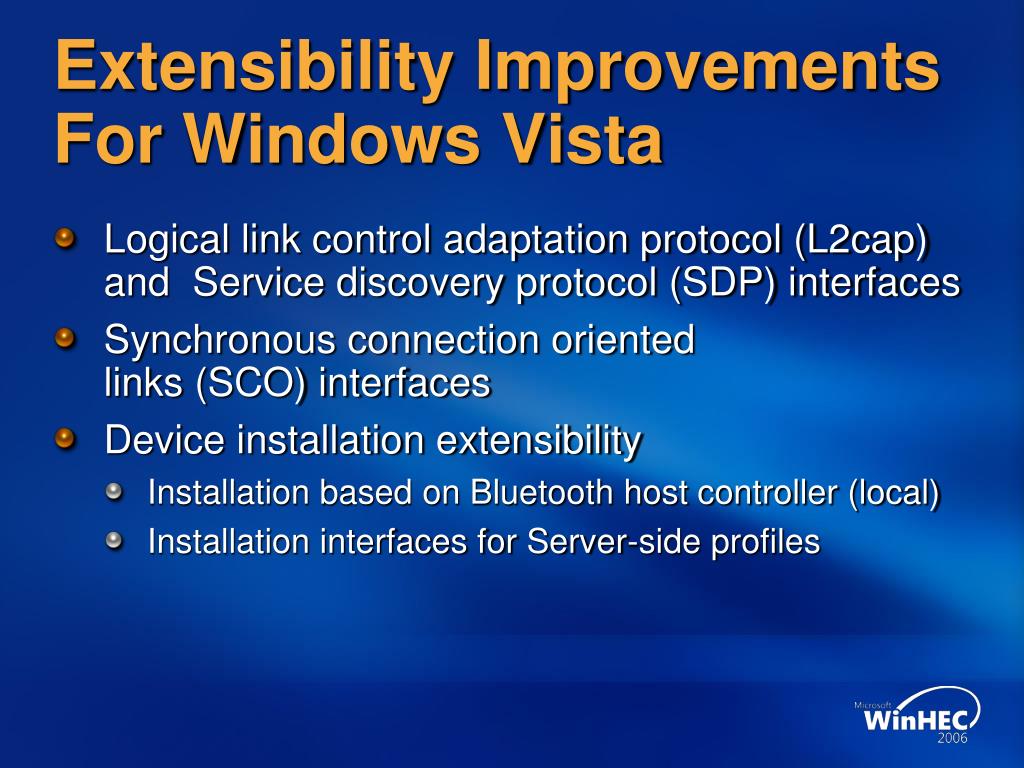

4. Extensibility Improvements For Windows Vista • Logical link control adaptation protocol (L2cap) and Service discovery protocol (SDP) interfaces • Synchronous connection oriented links (SCO) interfaces • Device installation extensibility • Installation based on Bluetooth host controller (local) • Installation interfaces for Server-side profiles

5. Profiles On Windows Vista • Silicon agnostic headset and handsfree profiles available via Microsoft Updateon Windows Vista • Also available to PC OEMs for factory preinstall • Stereo audio profiles (A2DP, AVRCP) available on Windows native stack via Bluetooth silicon vendors • Microsoft update for stereo audio profiles currently being investigated • Other profiles (FTP, BIP, BPP) available via Bluetooth silicon vendors

6. New Logo Requirements For Bluetooth Radios On Windows Vista • Must support Bluetooth 2.0 + EDR specifications as defined by theBluetooth SIG • Microsoft plans to upgrade stackqualification to Bluetooth 2.0 + EDR • Must support synchronous connection oriented links as defined by theBluetooth SIG

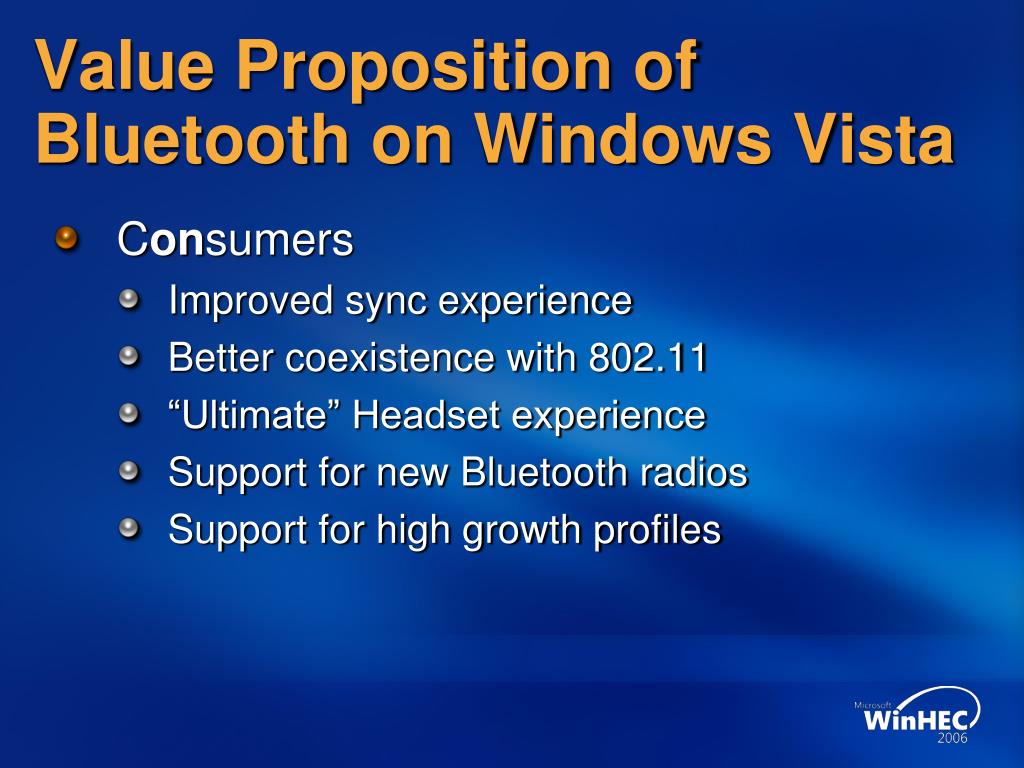

7. Value Proposition of Bluetooth on Windows Vista • Consumers • Improved sync experience • Better coexistence with 802.11 • “Ultimate” Headset experience • Support for new Bluetooth radios • Support for high growth profiles

8. Value Proposition of Bluetooth on Windows Vista • OEMs and device vendors • Extensible platform and reduced time to market for partners developing custom solutions • Improved device coverage by Microsoft OS descriptors based radio class driver • Support for high growth profiles • Qualification update to Bluetooth 2.0 + EDR

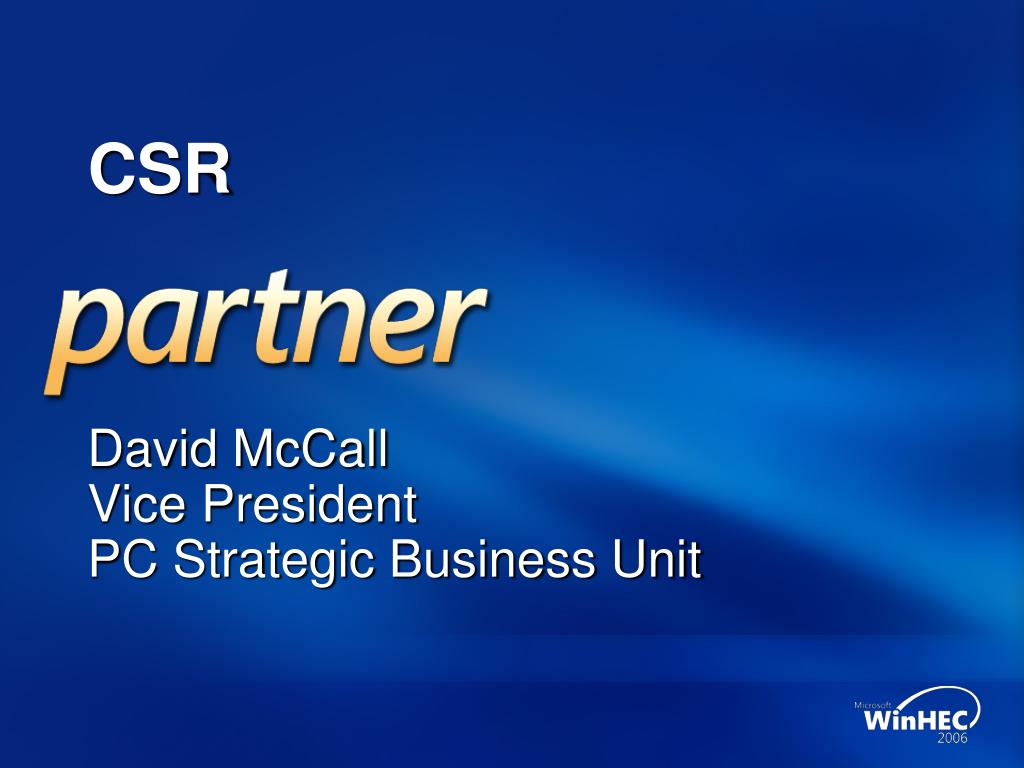

9. CSR David McCallVice PresidentPC Strategic Business Unit

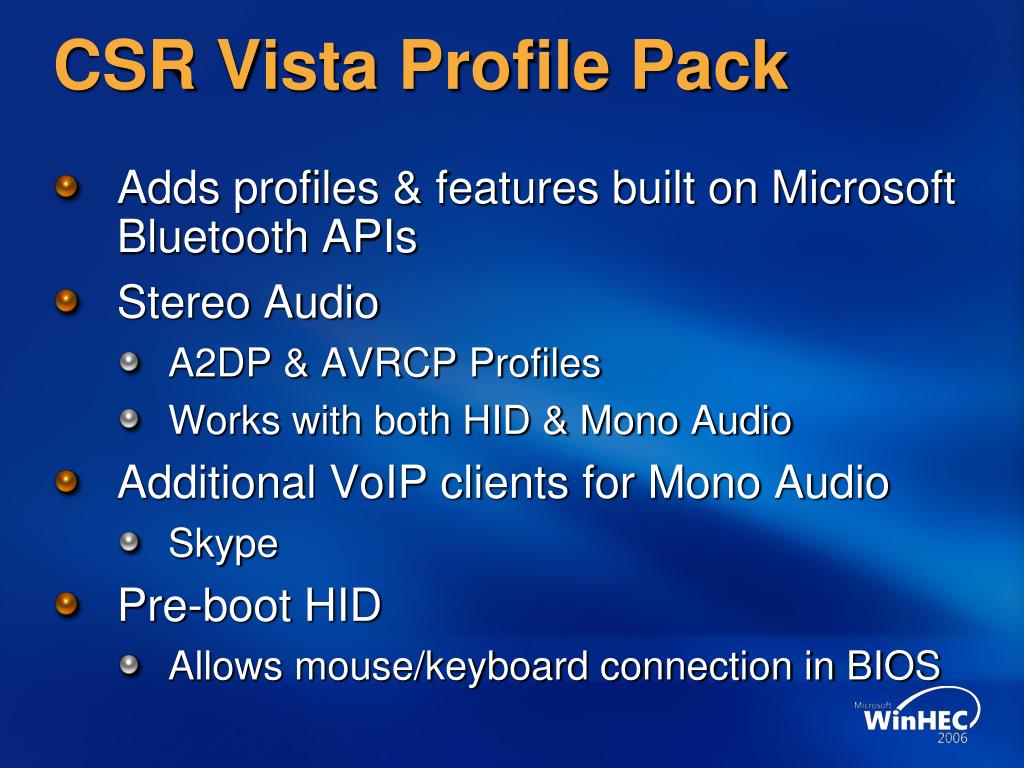

10. CSR Vista Profile Pack • Adds profiles & features built on Microsoft Bluetooth APIs • Stereo Audio • A2DP & AVRCP Profiles • Works with both HID & Mono Audio • Additional VoIP clients for Mono Audio • Skype • Pre-boot HID • Allows mouse/keyboard connection in BIOS

11. CSR’s Experience • APIs are straight forward to use • Rich interface with good granularity • BRB interface follows familiar URB pattern • Limitations: • No RFCOMM access from kernel mode • No API for QoS (bandwidth management & allocation) • Error return codes for kernel mode APIs give limited information

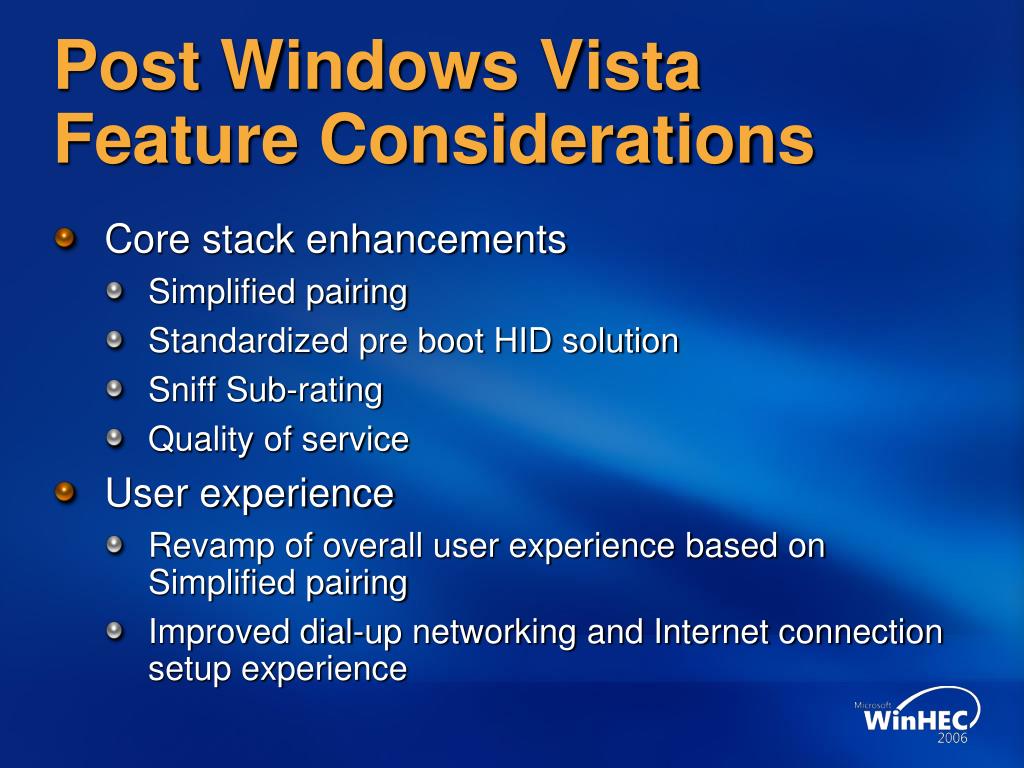

12. Post Windows Vista Feature Considerations • Core stack enhancements • Simplified pairing • Standardized pre boot HID solution • Sniff Sub-rating • Quality of service • User experience • Revamp of overall user experience based on Simplified pairing • Improved dial-up networking and Internet connection setup experience

13. Post Windows Vista Feature Considerations • Inbox inclusion of high growth profiles • Headset and Handsfree profile • Stereo audio profiles (A2DP, AVRCP) • Other profiles which customers request • Additional developer support • New samples for SDK • Function discovery integration (consistent APIs to discover Bluetooth devices)

14. Post Windows Vista Logo Requirements & Considerations • Bluetooth 2.0 + EDR requirementsfor HID, Printers and Headsets • Microsoft OS descriptors requirementfor Bluetooth radios • Logo program for Bluetooth headset devices

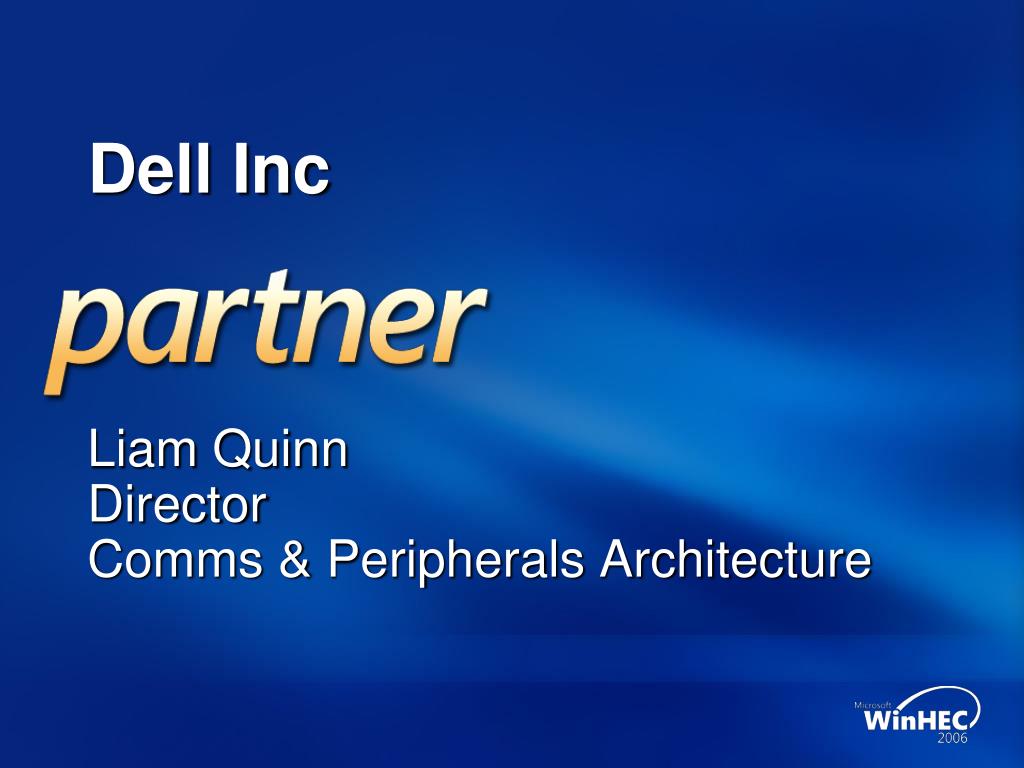

15. Dell Inc Liam QuinnDirectorComms & Peripherals Architecture

16. The VisionUbiquitous connectivity Wireless usage continues to evolve, enabling seamless network and device connectivity… My_Network My_Data GPS WLAN WWAN BWA RFID WPAN • Airport • Customer • Office • Home

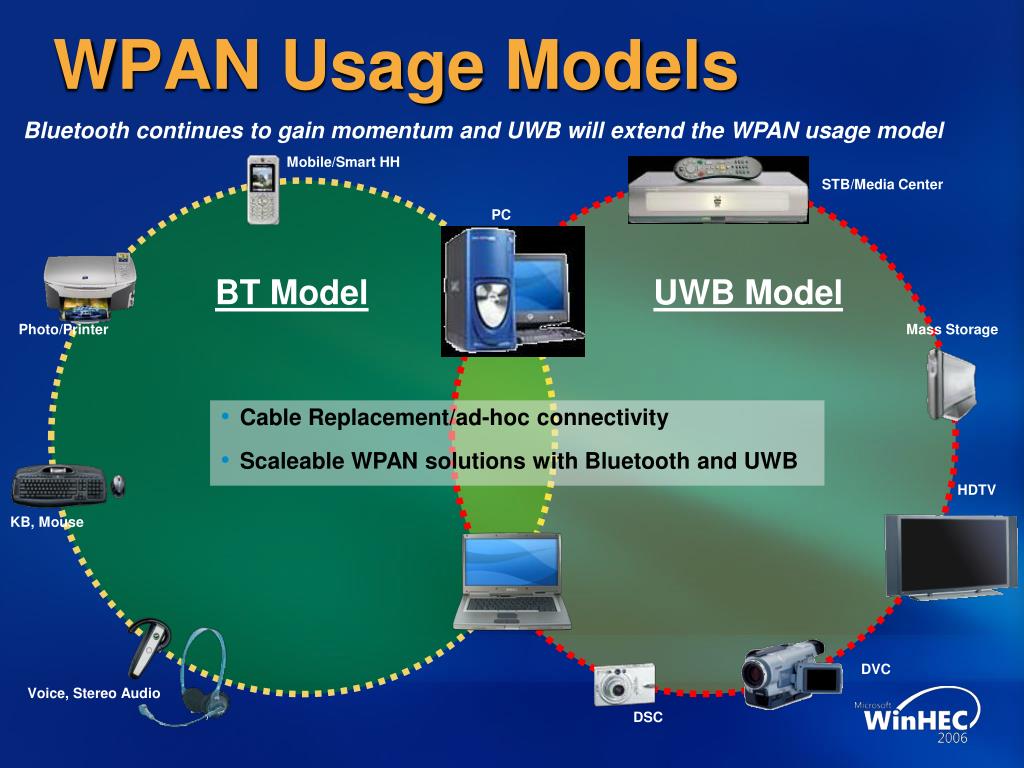

17. WPAN Usage Models Bluetooth continues to gain momentum and UWB will extend the WPAN usage model Mobile/Smart HH STB/Media Center PC BT Model UWB Model Photo/Printer Mass Storage • Cable Replacement/ad-hoc connectivity • Scaleable WPAN solutions with Bluetooth and UWB HDTV KB, Mouse DVC Voice, Stereo Audio DSC

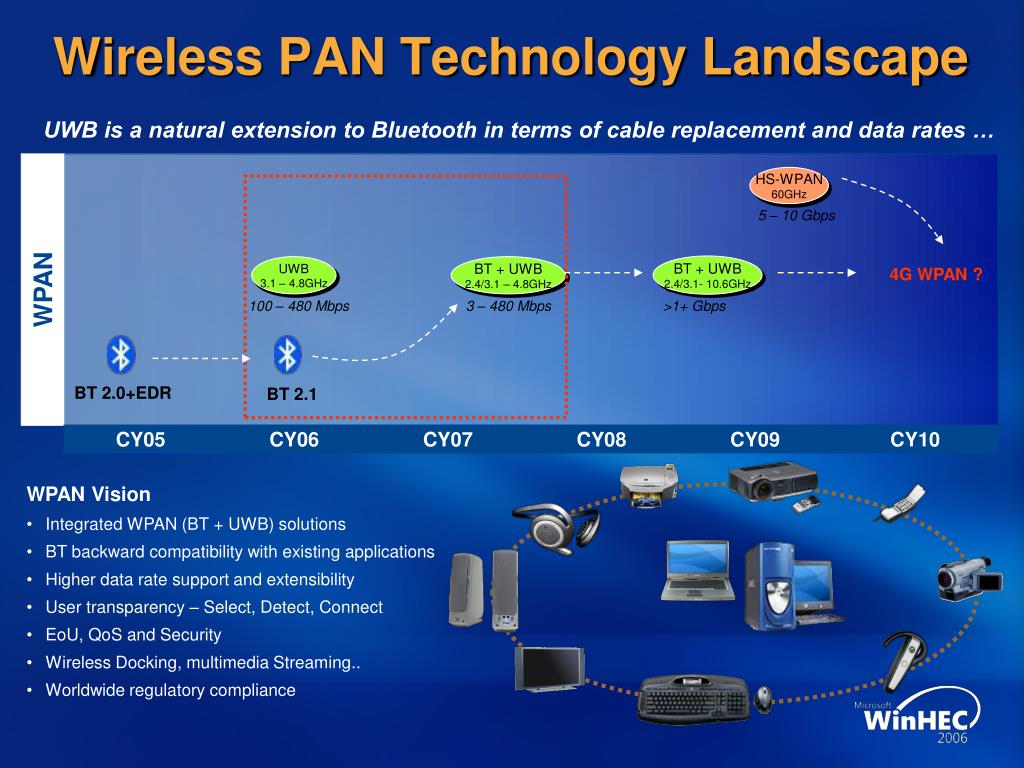

18. Wireless PAN Technology Landscape UWB is a natural extension to Bluetooth in terms of cable replacement and data rates … HS-WPAN 60GHz 5 – 10 Gbps BT + UWB 2.4/3.1- 10.6GHz UWB 3.1 – 4.8GHz BT + UWB 2.4/3.1 – 4.8GHz 4G WPAN ? WPAN 100 – 480 Mbps 3 – 480 Mbps >1+ Gbps BT 2.0+EDR BT 2.1 CY05 CY06 CY07 CY08 CY09 CY10 • WPAN Vision • Integrated WPAN (BT + UWB) solutions • BT backward compatibility with existing applications • Higher data rate support and extensibility • User transparency – Select, Detect, Connect • EoU, QoS and Security • Wireless Docking, multimedia Streaming.. • Worldwide regulatory compliance

19. WWAN/GPS Antennas WLAN Antennas Mini Card Mini Card Bluetooth + UWB SIM Design Challenges & Opportunities The number of integrated wireless devices and design challenges continues to increase … • Platform Design Challenges • Platform Size and mechanicals • I/O Bus Interface Transitions • System Power, Thermal, Voltage Rails • RF, EMI, regulatory and Public Policy • Where You can help • Leverage economies of scale in terms of silicon integration, product interoperability, logo certification, lower power, size and cost • Develop solutions for global markets • Provide seamless WPAN solutions for end-user experience and usage transparency • Single user interface, auto connect and pairing. • Develop a clear marketing and branding Strategy RFID Tag

20. Call to Action • ALL • Install the Vista Beta 2 builds on your machines and use the Microsoft stack for Bluetooth • Send us your feedback on Bthfb @microsoft.com • OEMs • Adopt Microsoft stack for Bluetooth on Windows Vista • Device vendors and IHVs • Support Bluetooth 2.0 + EDR in your products • Support Simple pairing • Support Quality of service

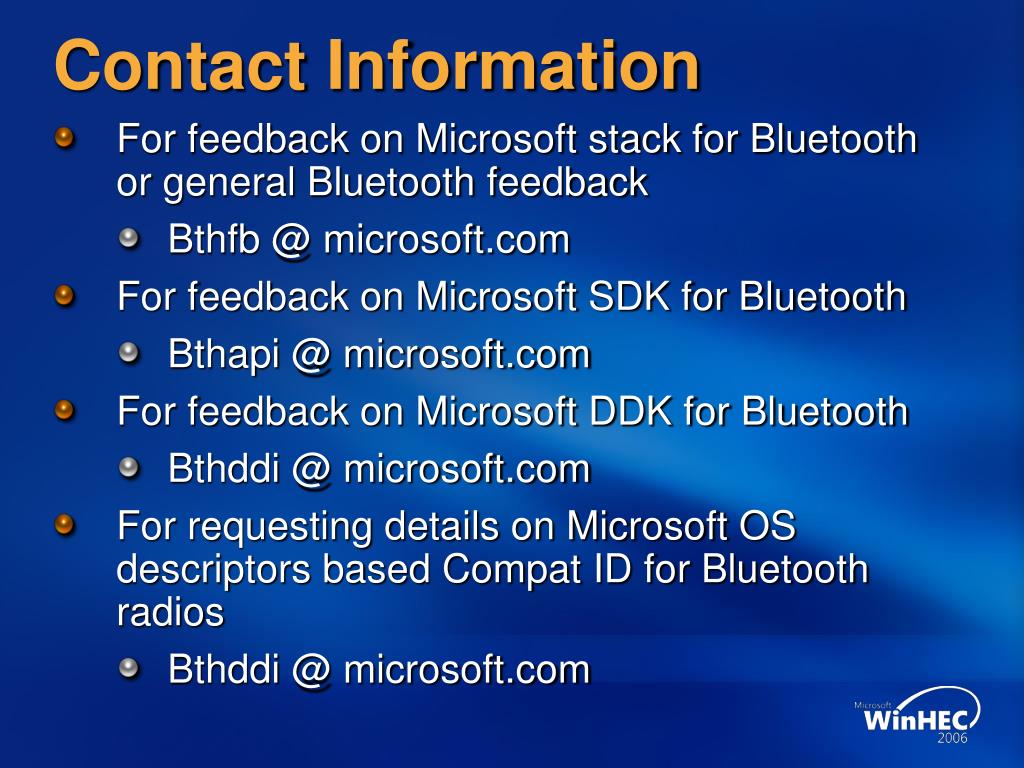

21. Contact Information • For feedback on Microsoft stack for Bluetoothor general Bluetooth feedback • Bthfb @ microsoft.com • For feedback on Microsoft SDK for Bluetooth • Bthapi @ microsoft.com • For feedback on Microsoft DDK for Bluetooth • Bthddi @ microsoft.com • For requesting details on Microsoft OS descriptors based Compat ID for Bluetooth radios • Bthddi @ microsoft.com
