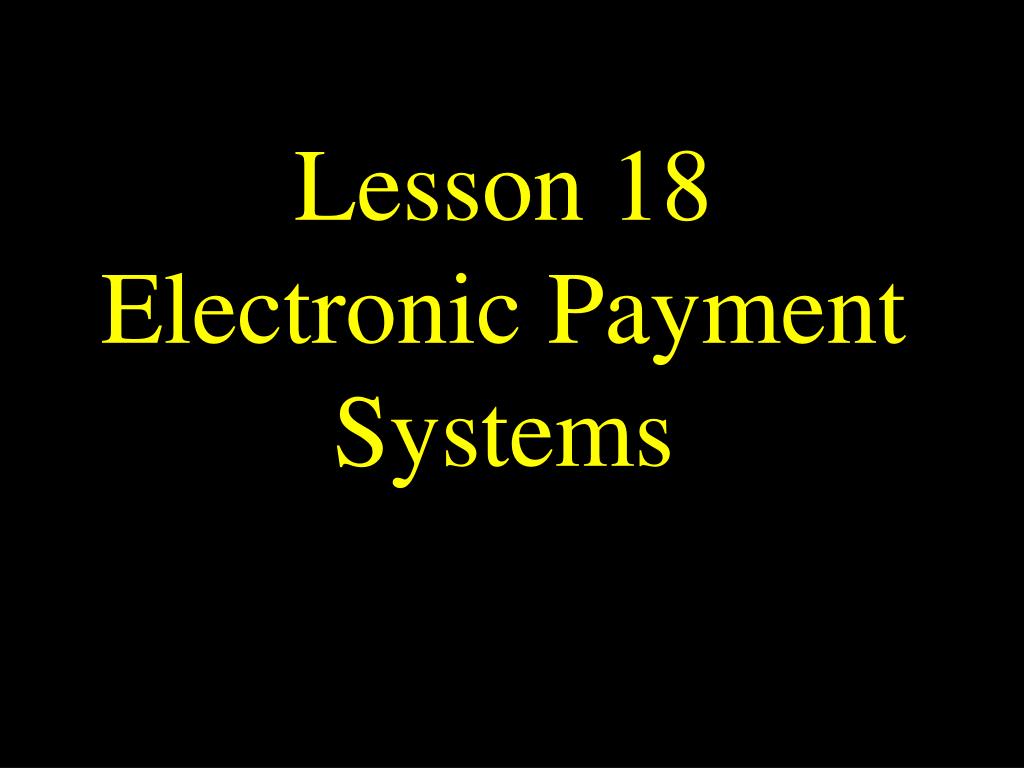

  1. Lesson 18Electronic Payment Systems

  2. Overview • Data Transaction Systems • Securing the Transaction • Real World Examples

  3. Data Transaction Systems • Stored Account Systems • Modeled after existing electronic payment systems such as credit/debit card transactions • New way of shifting funds electronically over the internet (Paving Cow Paths) • Stored Value Payment Systems • Use bearer certificates much like hard cash • Bearer certificates reside within PCs or smart cards

  4. Stored Account Systems • Uses existing infrastructure for transactions • Actual monetary value never leaves bank • Accounting in the future through clearing houses and settlement systems • Hallmarks are: • High accountability • Traceability

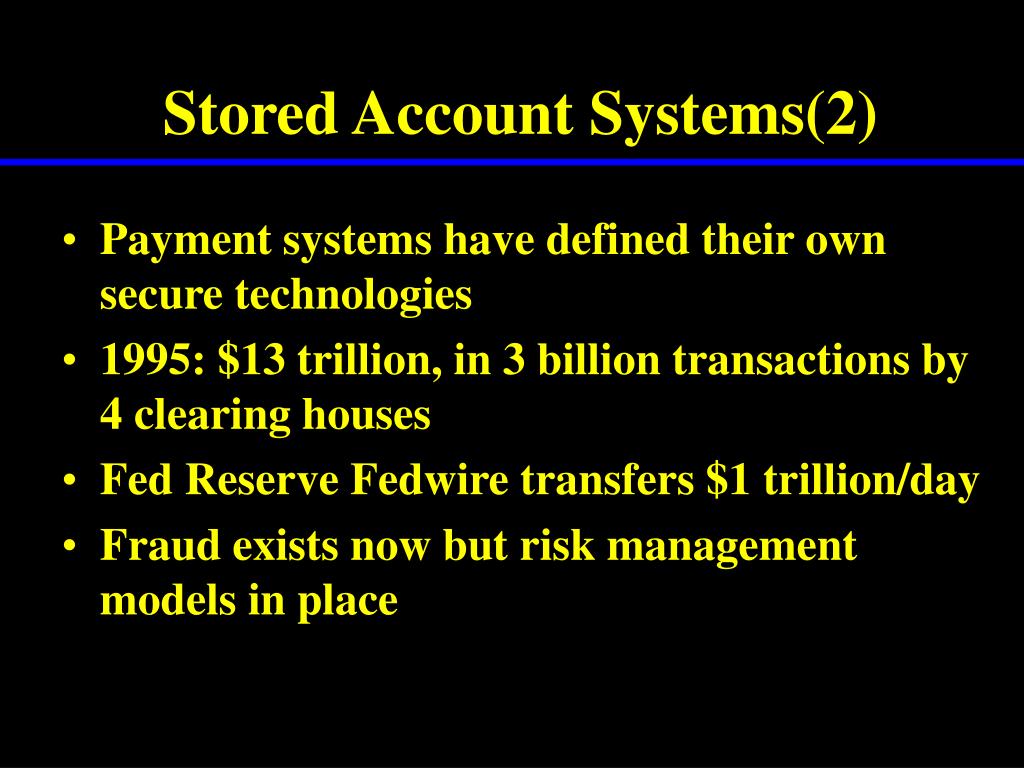

  5. Stored Account Systems(2) • Payment systems have defined their own secure technologies • 1995: $13 trillion, in 3 billion transactions by 4 clearing houses • Fed Reserve Fedwire transfers $1 trillion/day • Fraud exists now but risk management models in place

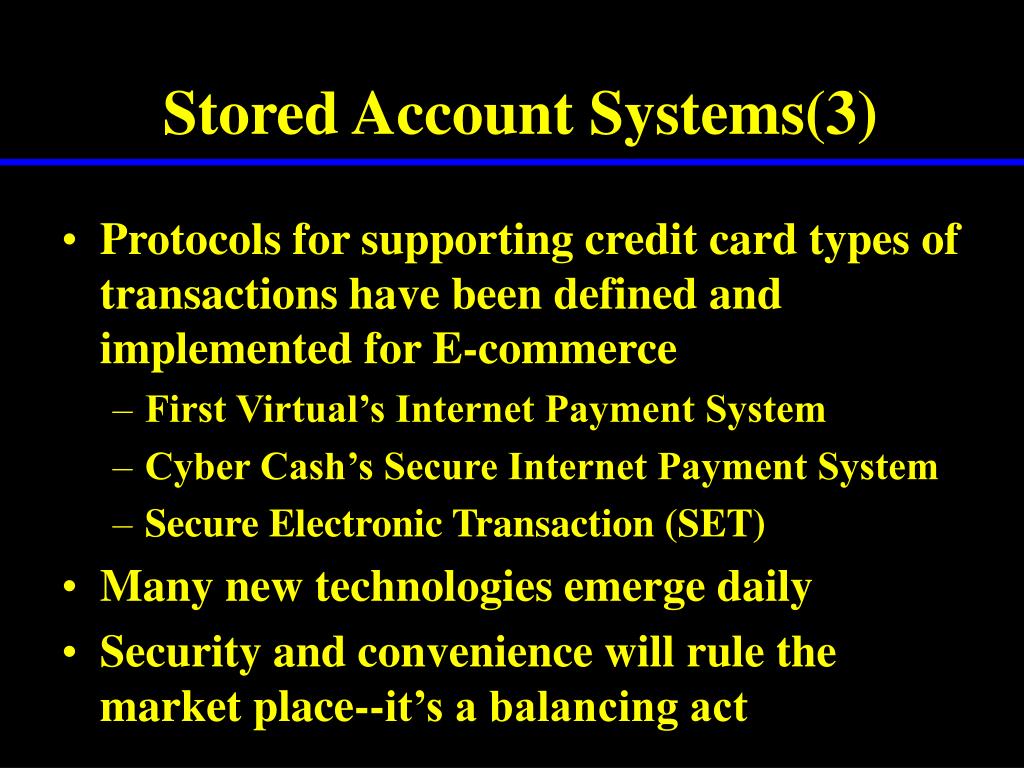

  6. Stored Account Systems(3) • Protocols for supporting credit card types of transactions have been defined and implemented for E-commerce • First Virtual’s Internet Payment System • Cyber Cash’s Secure Internet Payment System • Secure Electronic Transaction (SET) • Many new technologies emerge daily • Security and convenience will rule the market place--it’s a balancing act

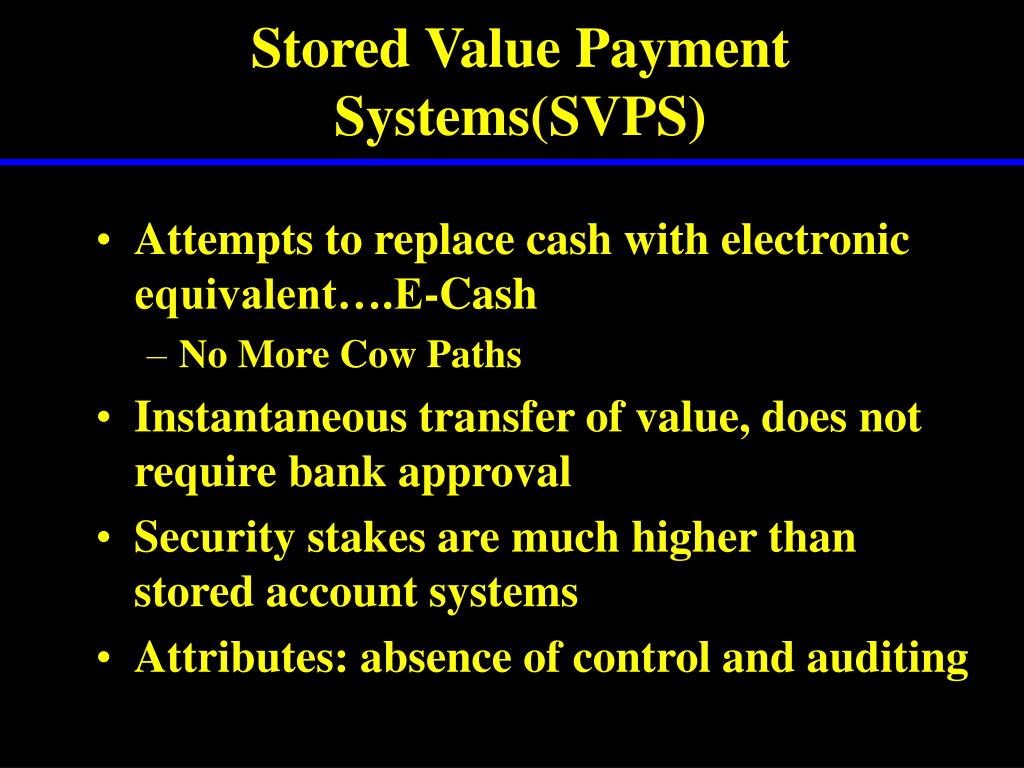

  7. Stored Value Payment Systems(SVPS) • Attempts to replace cash with electronic equivalent….E-Cash • No More Cow Paths • Instantaneous transfer of value, does not require bank approval • Security stakes are much higher than stored account systems • Attributes: absence of control and auditing

  8. SVPS(2) • Possible to counterfeit E-Cash • Typically used in small-value transaction • Small value transaction market = $8 trillion • Lack of privacy bothers some • Finding new cow paths not easy

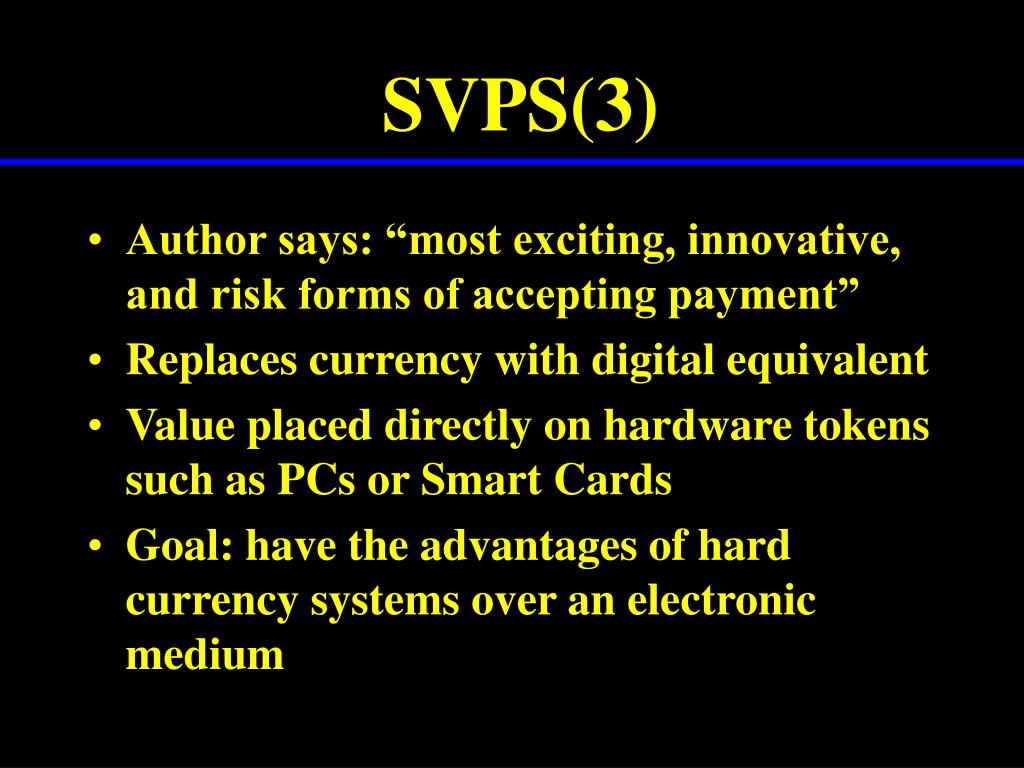

  9. SVPS(3) • Author says: “most exciting, innovative, and risk forms of accepting payment” • Replaces currency with digital equivalent • Value placed directly on hardware tokens such as PCs or Smart Cards • Goal: have the advantages of hard currency systems over an electronic medium

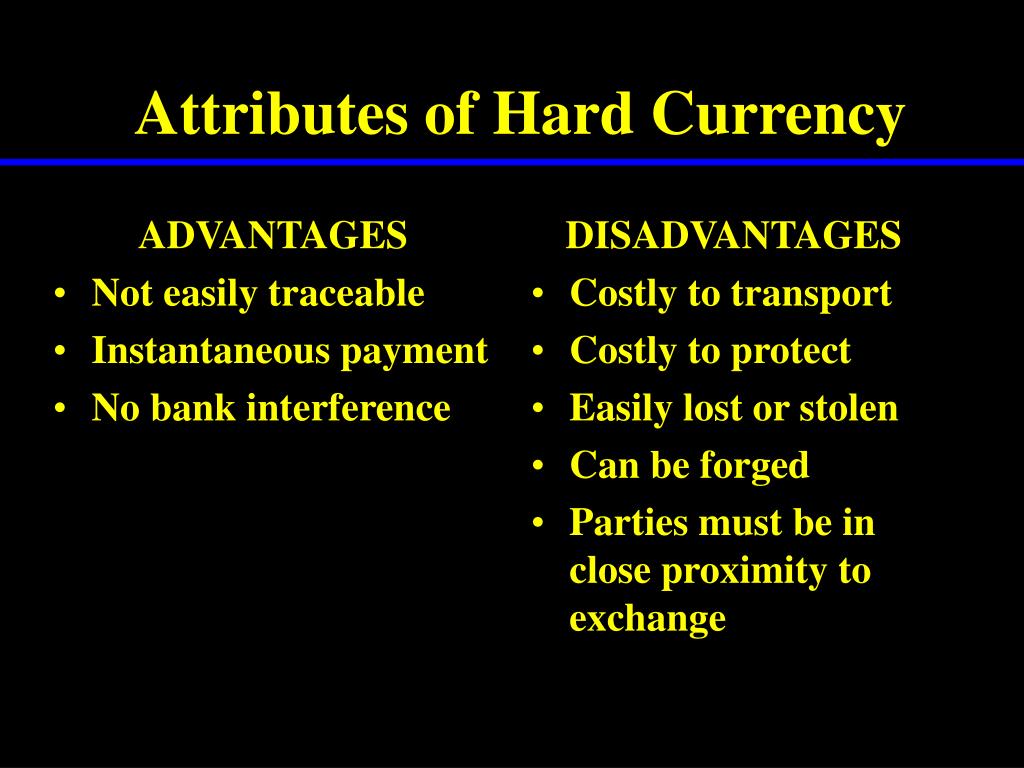

  10. ADVANTAGES Not easily traceable Instantaneous payment No bank interference DISADVANTAGES Costly to transport Costly to protect Easily lost or stolen Can be forged Parties must be in close proximity to exchange Attributes of Hard Currency

  11. Pros Instantaneous (no approval needed) Potentially Anonymous (traceability hard) Supports low-value payment Cons Secret key from one can be used for many Secret key extraction makes counterfeit money indistinguishable for E-Cash SVPS must strike balance between privacy and tracking illicit activity SVPS Pros/Cons

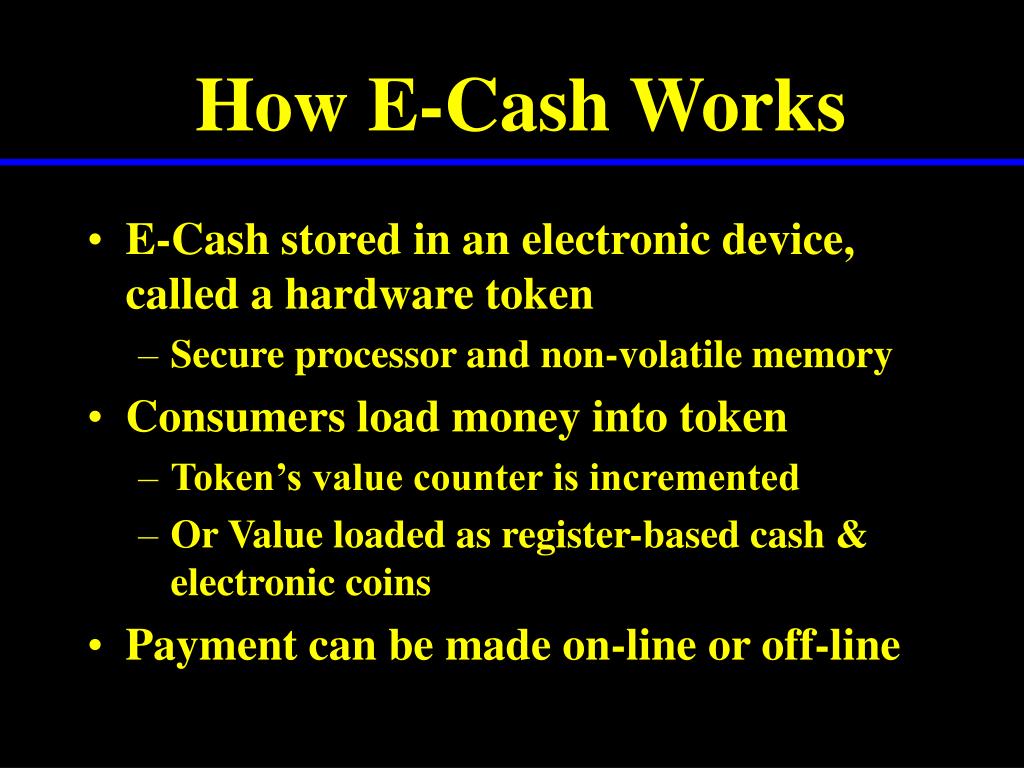

  12. How E-Cash Works • E-Cash stored in an electronic device, called a hardware token • Secure processor and non-volatile memory • Consumers load money into token • Token’s value counter is incremented • Or Value loaded as register-based cash & electronic coins • Payment can be made on-line or off-line

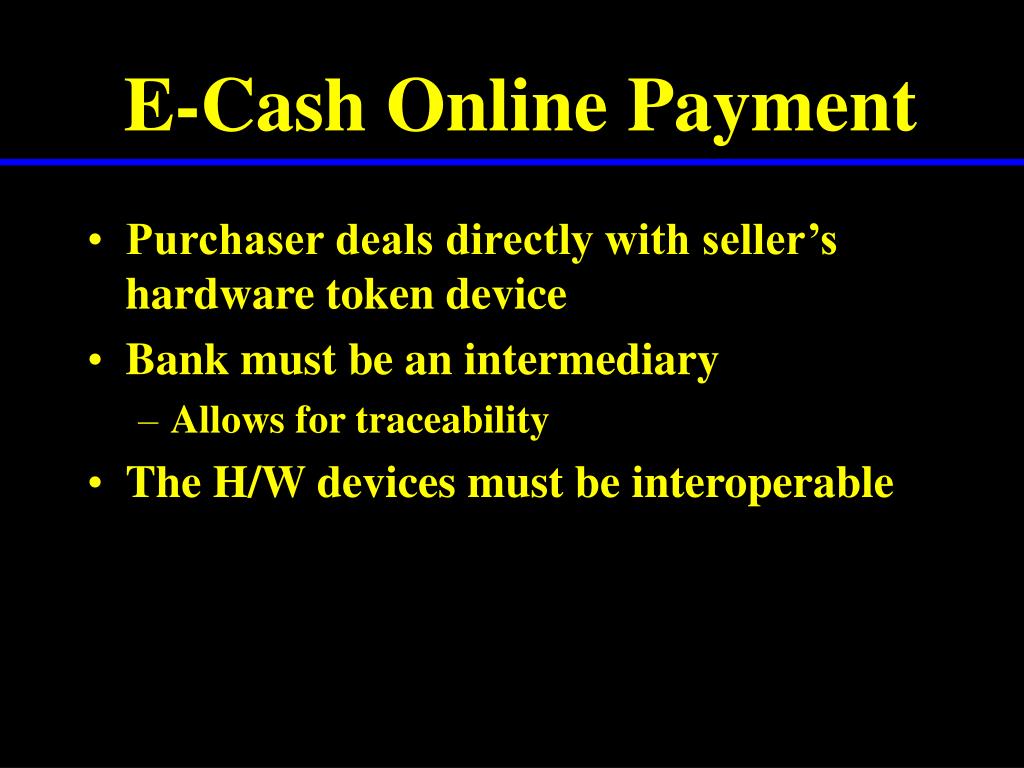

  13. E-Cash Online Payment • Purchaser deals directly with seller’s hardware token device • Bank must be an intermediary • Allows for traceability • The H/W devices must be interoperable

  14. Off-line Payment • Buyer’s H/W token interfaces with seller’s device • IR, dial-up modem, or the Internet • Sellers device increases by transaction amount • Buyers’s device decreases by transaction amount • Safeguards needed to prevent “counter” malfunction • E-Cash ultimately must be sold back to issuing bank

  15. E-Cash Representation • A value stored in a counter of a H/W token (aka register-based) • From of cryptographic tokens called electronic coins E-Coin System “A Purse” Cents = count + digital signature $ = count + digital signature 5$ = count + digital signature Token value is sum of all Register Based Basic unit = 1 cent Token cntr = 10000 Token value = $100.00

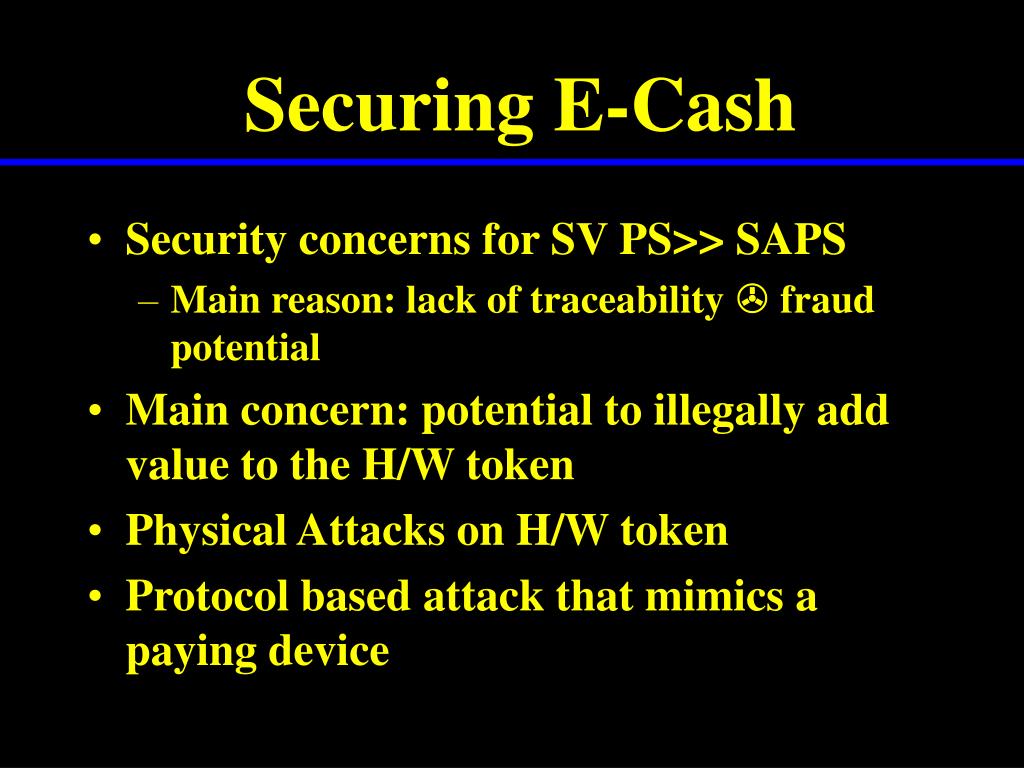

  16. Securing E-Cash • Security concerns for SV PS>> SAPS • Main reason: lack of traceability  fraud potential • Main concern: potential to illegally add value to the H/W token • Physical Attacks on H/W token • Protocol based attack that mimics a paying device

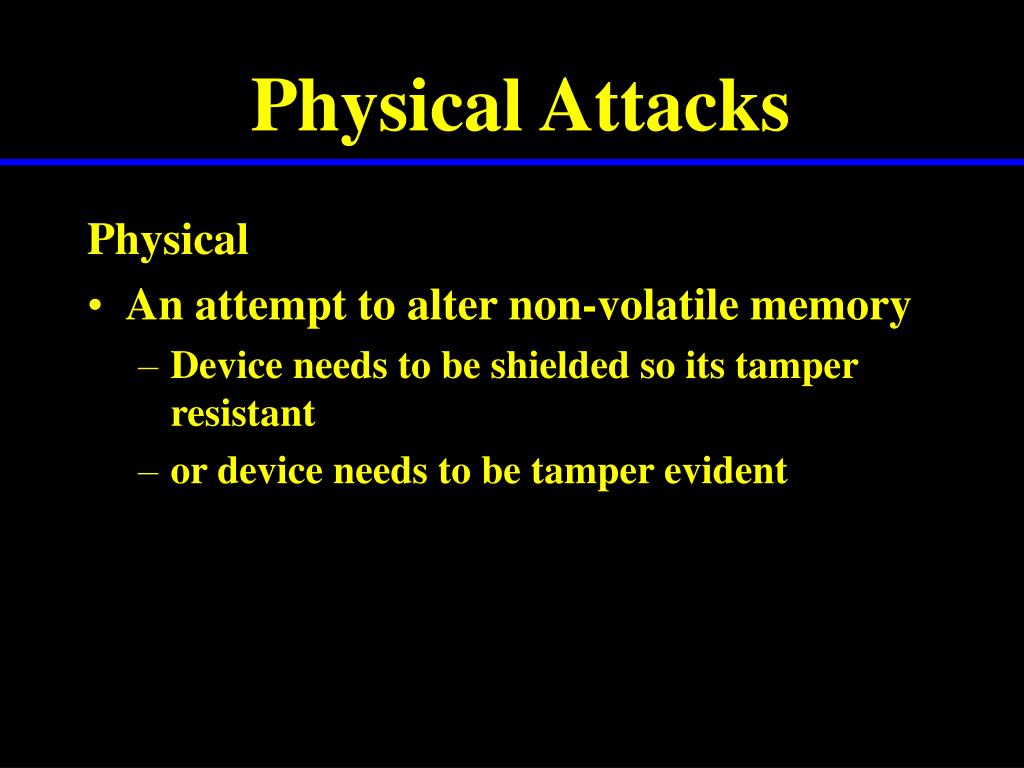

  17. Physical Attacks Physical • An attempt to alter non-volatile memory • Device needs to be shielded so its tamper resistant • or device needs to be tamper evident

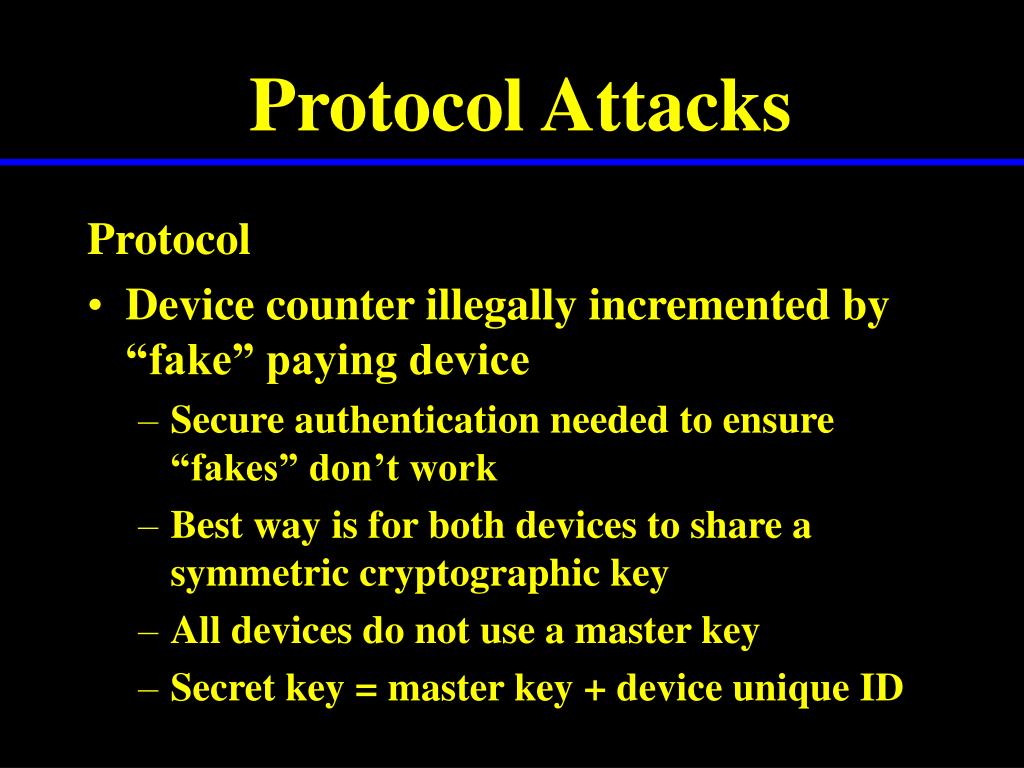

  18. Protocol Attacks Protocol • Device counter illegally incremented by “fake” paying device • Secure authentication needed to ensure “fakes” don’t work • Best way is for both devices to share a symmetric cryptographic key • All devices do not use a master key • Secret key = master key + device unique ID

  19. Protocol Attacks(2) • Key must be resistant to replay attacks • Wiretap captures key and “replays” the session • Challenge/Response systems can thwart replay attacks • Gives motive for the token bearer to recover secret key • Greed is a powerful sin

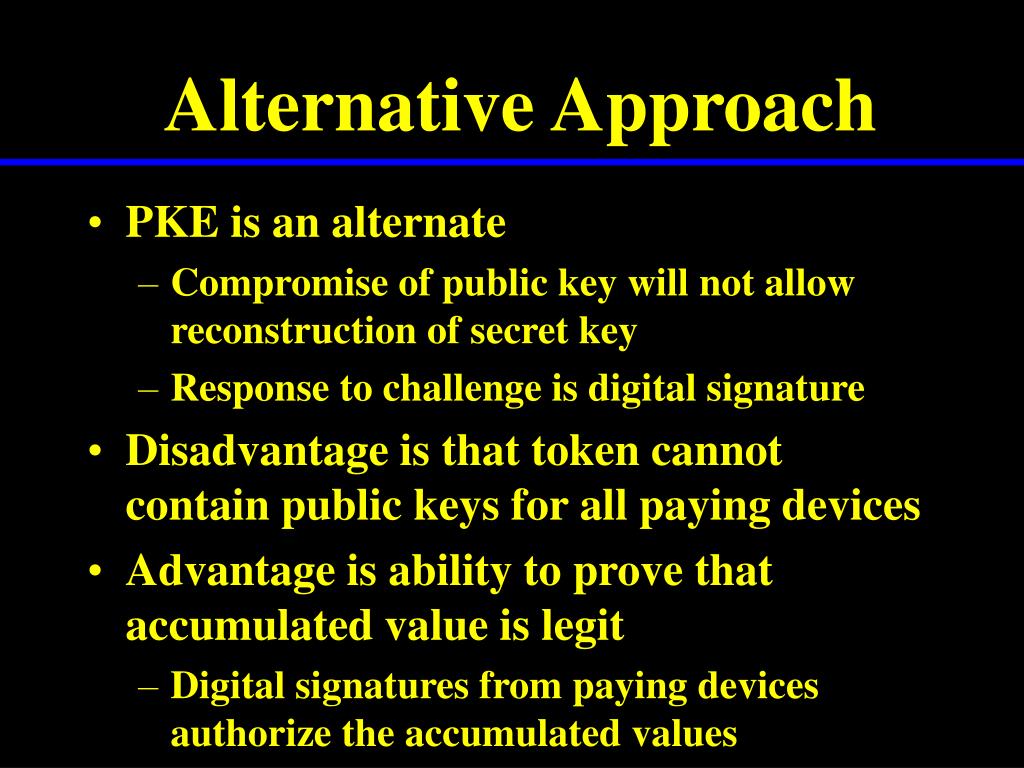

  20. Alternative Approach • PKE is an alternate • Compromise of public key will not allow reconstruction of secret key • Response to challenge is digital signature • Disadvantage is that token cannot contain public keys for all paying devices • Advantage is ability to prove that accumulated value is legit • Digital signatures from paying devices authorize the accumulated values

  21. Securing the TransactionWEB Protocols • SSL: provides secure channel between Web clients and Web servers • Layered approach--remember protocol stack • Secures channel by providing end-to-end encryption of the data • Prevents “easy” packet sniffing • S-HTTP: application level protocol

  22. HTTP SSL TCP TCP IP IP Protocol and Security: SSL SECURE NOT SECURE HTTP SMTP FTP

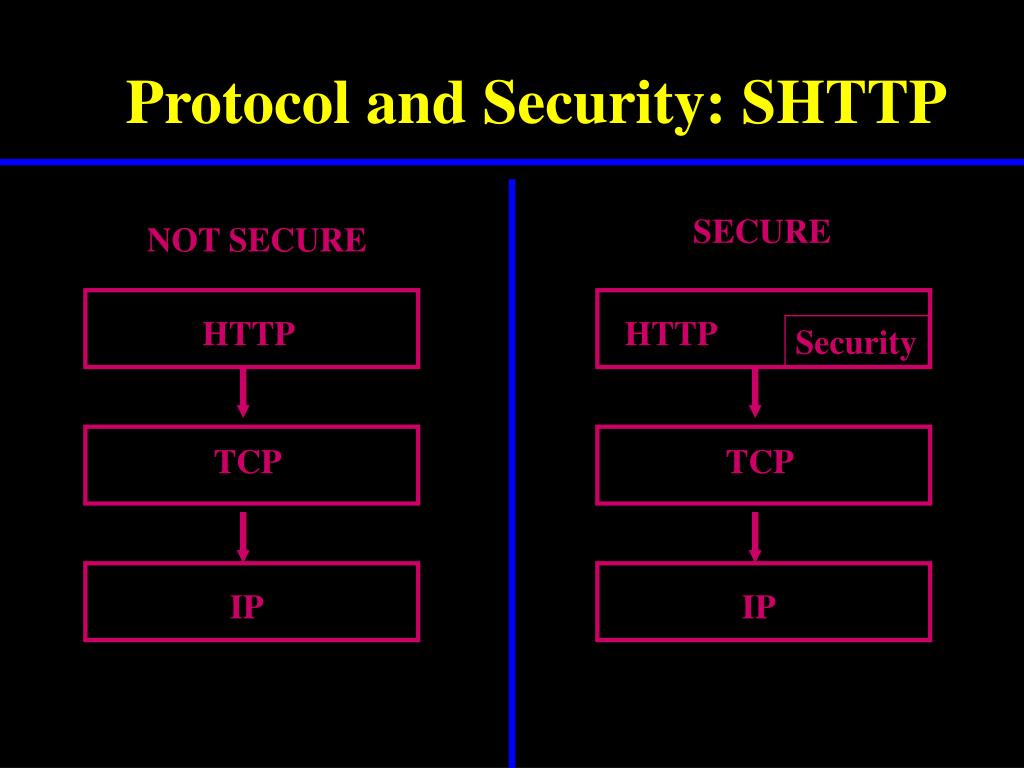

  23. HTTP TCP IP Protocol and Security: SHTTP SECURE NOT SECURE HTTP Security TCP IP

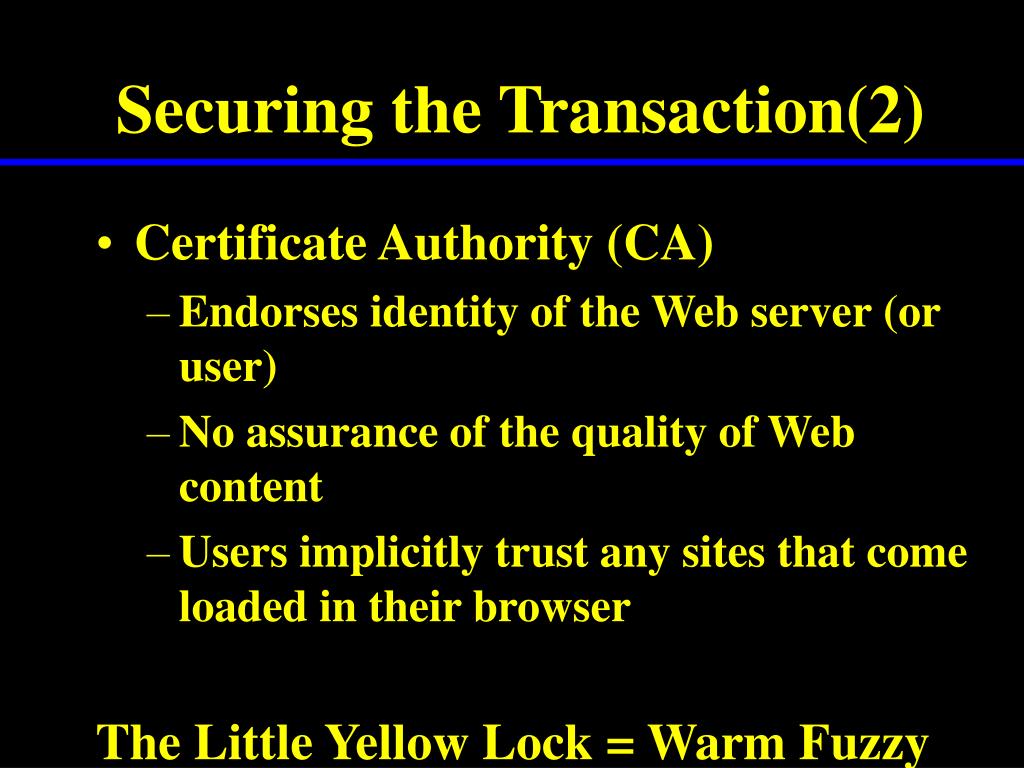

  24. Securing the Transaction(2) • Certificate Authority (CA) • Endorses identity of the Web server (or user) • No assurance of the quality of Web content • Users implicitly trust any sites that come loaded in their browser The Little Yellow Lock = Warm Fuzzy

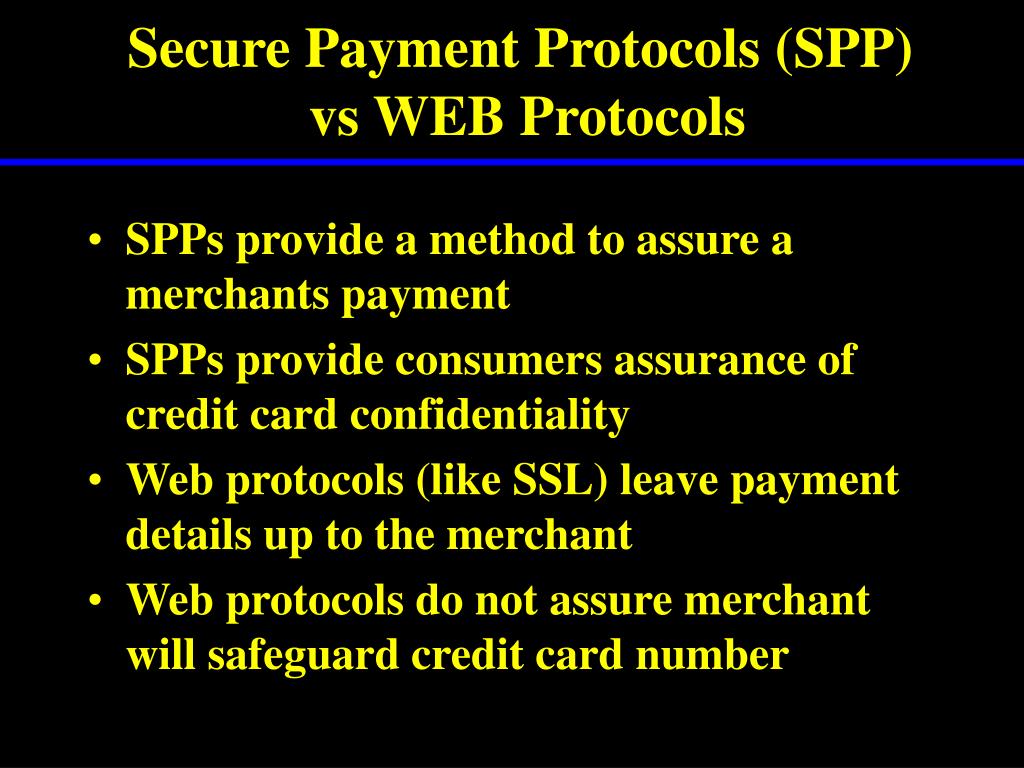

  25. Secure Payment Protocols (SPP) vs WEB Protocols • SPPs provide a method to assure a merchants payment • SPPs provide consumers assurance of credit card confidentiality • Web protocols (like SSL) leave payment details up to the merchant • Web protocols do not assure merchant will safeguard credit card number

  26. Real World Examples • First Virtual • Cybercash • Secure Electronic Transactions (SET) • Others

  27. First Virtual(FV) • WWW.fv.com--circa 1994 • Does not use cryptography or secure communications • Based on exchange of email messages and customer honesty • Protocol I simple • 1996: 180,000 buyers, 2650 merchants

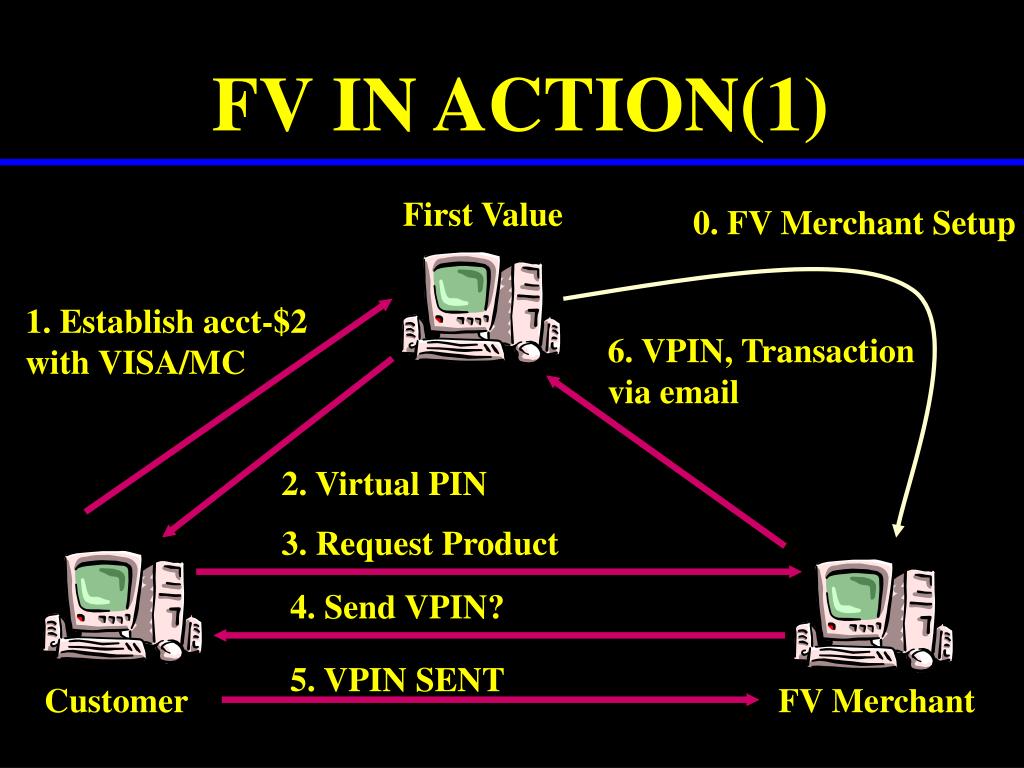

  28. First Value 0. FV Merchant Setup 1. Establish acct-$2 with VISA/MC 6. VPIN, Transaction via email 2. Virtual PIN 3. Request Product 4. Send VPIN? 5. VPIN SENT Customer FV Merchant FV IN ACTION(1)

  29. First Value 3. MC/VISA Charge 1. Transaction Confirmation? 3. Or Return product 2. Yes, No, Fraud Customer FV Merchant FV IN ACTION(2) SEVERAL DAYSLATER

  30. CyberCash • Cybercash is a downloadable applications software • Consumers must generate public/private key pair based on RSA encryption technology • Merchants must also install CyberCash Library • Software free to stimulate acceptance • Future: could be integrated into browsers • More to come…CyberCoin, and E-Cash Soln

  31. CyberCash(2) • Uses Cryptography to protect transaction data during a purchase (does not use SSL) • Provides a secure protocol for credit card purchases over the internet • Uses existing back-end credit card infrastructure for settling payment • Payment details of credit card transaction are specified and implemented in the protocol

  32. CyberCash(3)Merchant’s Perspective • There is no separate back-office system for batch processing card transaction • Payment assured for each transaction before product sold • Much like point-of-sale(POS) credit card transactions in physical stores

  33. CyberCash(4) • Credit card number is protected--even from merchants • Card number encrypted with CyberCash public key • Only consumer, cybercahs and bank sees the credit card number

  34. 2. Go E-Shopping, Request Product 3. Invoice Sent Customer Merchant 5. Send Payment Info 1. Register Credit Card 6a. Strip Order Form 6b. Digitally Sign Info 4a. Select Cybercash Pay button in browser 4b. Select Credit card from E-wallet 4c. Encrypt payment info with CyberCash Public Key 4d. Digitally Sign Payment info CYBERCASH BANK BANK CYBERCASH IN ACTION

  35. 2. Go E-Shopping, Request Product 3. Invoice Sent Customer Merchant 5. Send Payment Info 7. Transmit Payment info Bank EDI 8. Decrypt payment info & verify signatures 9. Brokering 20 SECONDS TOTAL 10. Approval/Deny CYBERCASH BANK Card Holder BANK 9. Brokering CYBERCASH IN ACTION

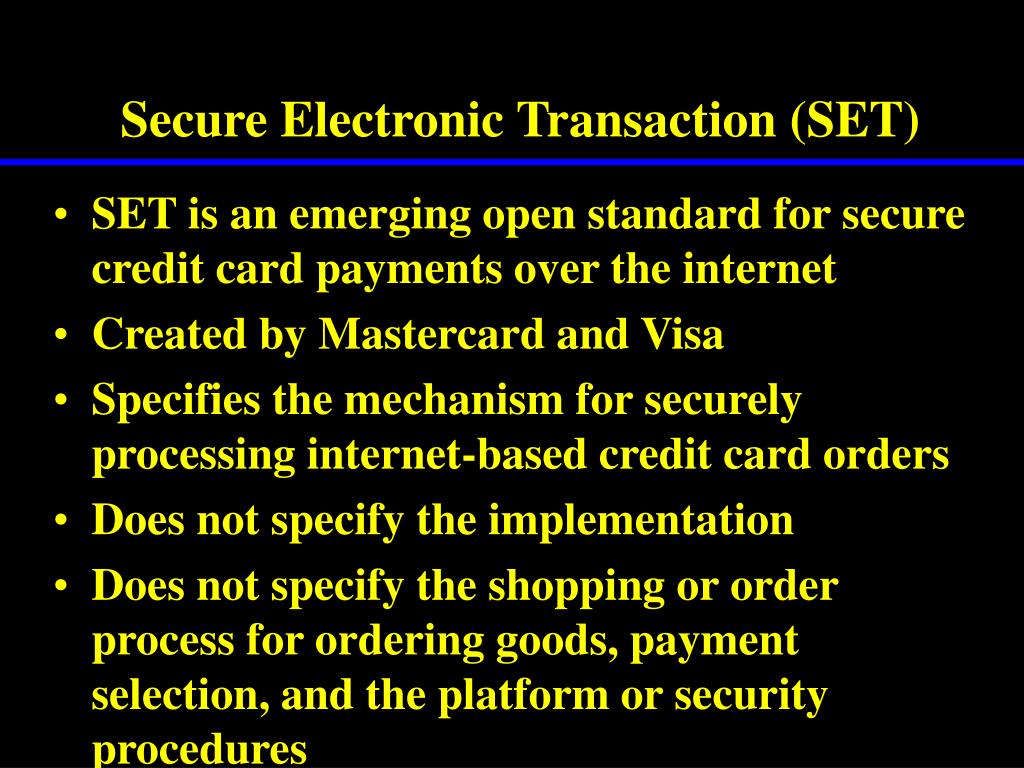

  36. Secure Electronic Transaction (SET) • SET is an emerging open standard for secure credit card payments over the internet • Created by Mastercard and Visa • Specifies the mechanism for securely processing internet-based credit card orders • Does not specify the implementation • Does not specify the shopping or order process for ordering goods, payment selection, and the platform or security procedures

  37. SET Security Assurances • Confidentiality -- secures payment info • Data integrity -- uses digital signatures • Client Authentication -- uses digital certificates: identity plus public key • Merchant authentication -- uses digital certificate

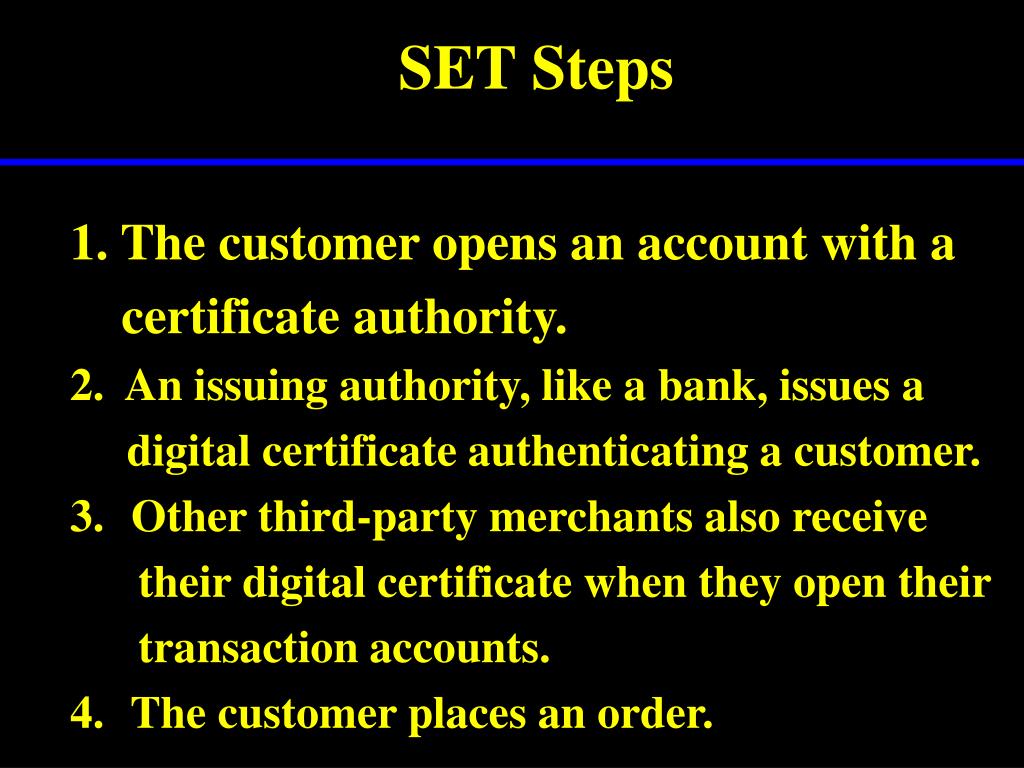

  38. SET Steps 1.The customer opens an account with a certificate authority. 2. An issuing authority, like a bank, issues a digital certificate authenticating a customer. 3. Other third-party merchants also receive their digital certificate when they open their transaction accounts. 4. The customer places an order.

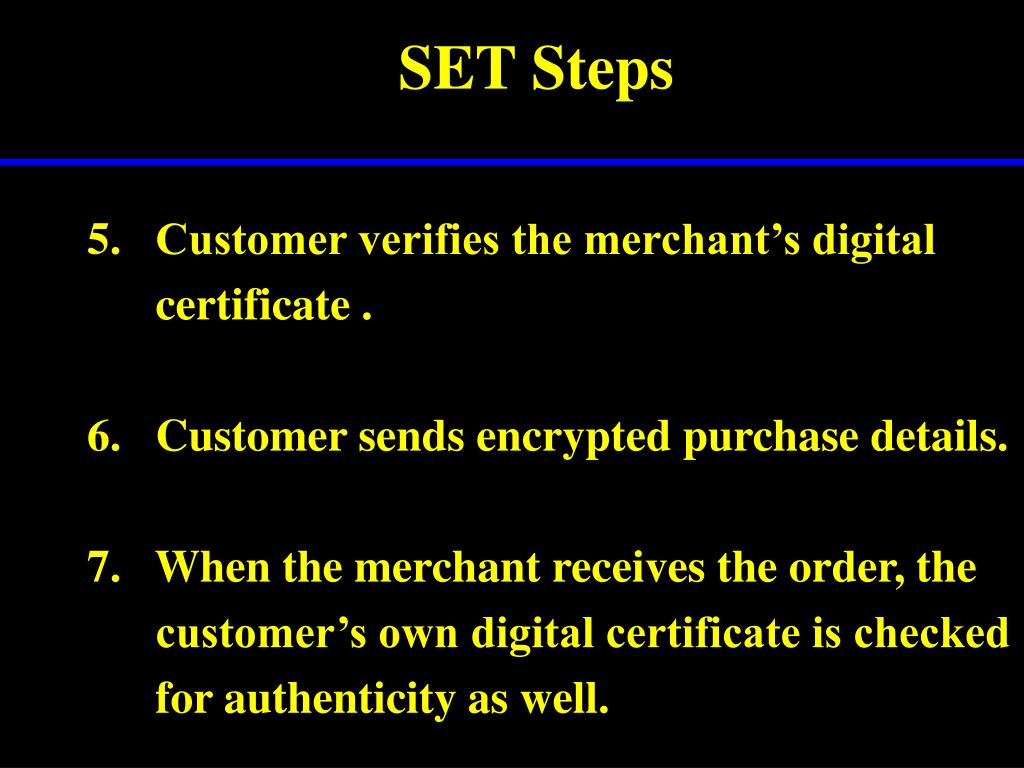

  39. SET Steps 5. Customer verifies the merchant’s digital certificate . 6. Customer sends encrypted purchase details. 7. When the merchant receives the order, the customer’s own digital certificate is checked for authenticity as well.

  40. SET Steps 8. The merchant then returns its own certificate, order details, customer payment information, and the bank’s digital certificate back to the bank to be used to authenticate the transaction. 9. The bank will then verify the merchant certificate and order information. 10. The bank will digitally sign and return an authorization back to the merchant. 11. When these transactions are finished, the order is completed.

  41. 4. Place Order Customer Merchant 5. Merchant Certificate Sent 6. Send encrypted purchase details w/ Certificate 2. Buyer Opens Acct 1. Merchant receives Digital Certificate 3. Buyer receives Digital Certificate 7. Sends order to Bank w/ customer payment info & digital certificate BANK SET IN ACTION

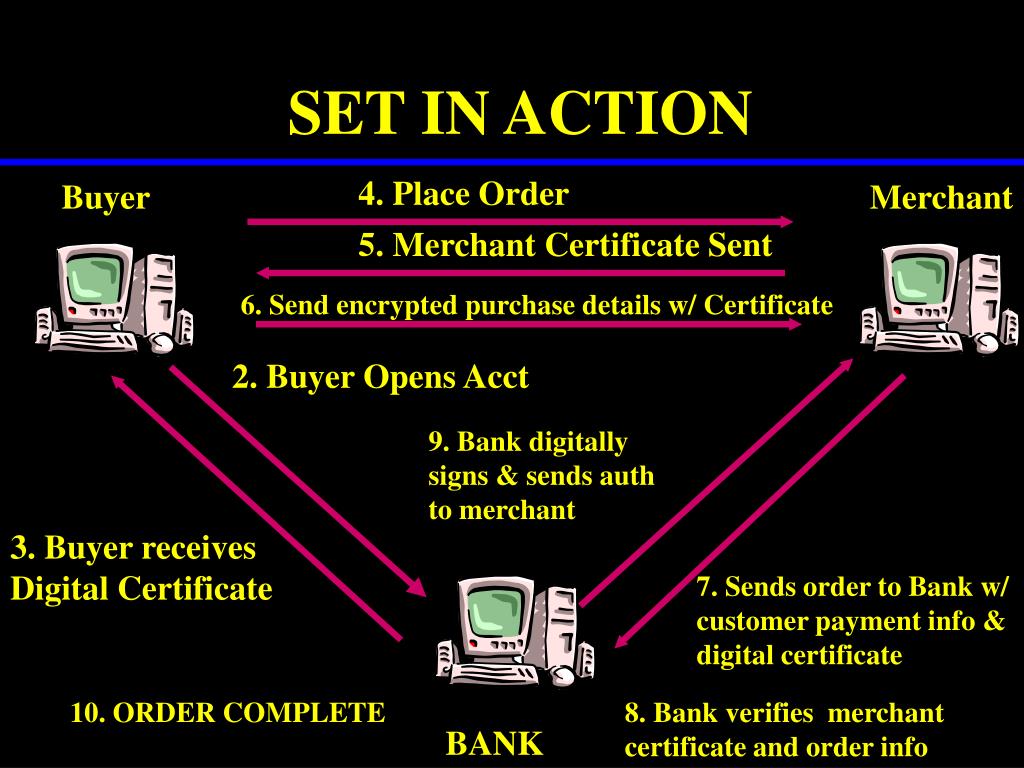

  42. Buyer Merchant 9. Bank digitally signs & sends auth to merchant BANK SET IN ACTION 4. Place Order 5. Merchant Certificate Sent 6. Send encrypted purchase details w/ Certificate 2. Buyer Opens Acct 3. Buyer receives Digital Certificate 7. Sends order to Bank w/ customer payment info & digital certificate 10. ORDER COMPLETE 8. Bank verifies merchant certificate and order info

  43. SET Summary • Large industry backing • Supports credit card transactions on-line • Does not support debit card payments • Does not address stored-value payment solutions • Does not use SSL, but it could • Implementations: • Cybercash • RSA Data Security’s: S/PAY

  44. Other Examples • DigiCash’s e-cash: stored-value cryptographic coin system • CyberCoin--CyberCash’s payment system for on-line commerce • Designed for small-value payments • Smart Cards • Conditional Access for Europe (CAFÉ) • Mondex • Visa Cash

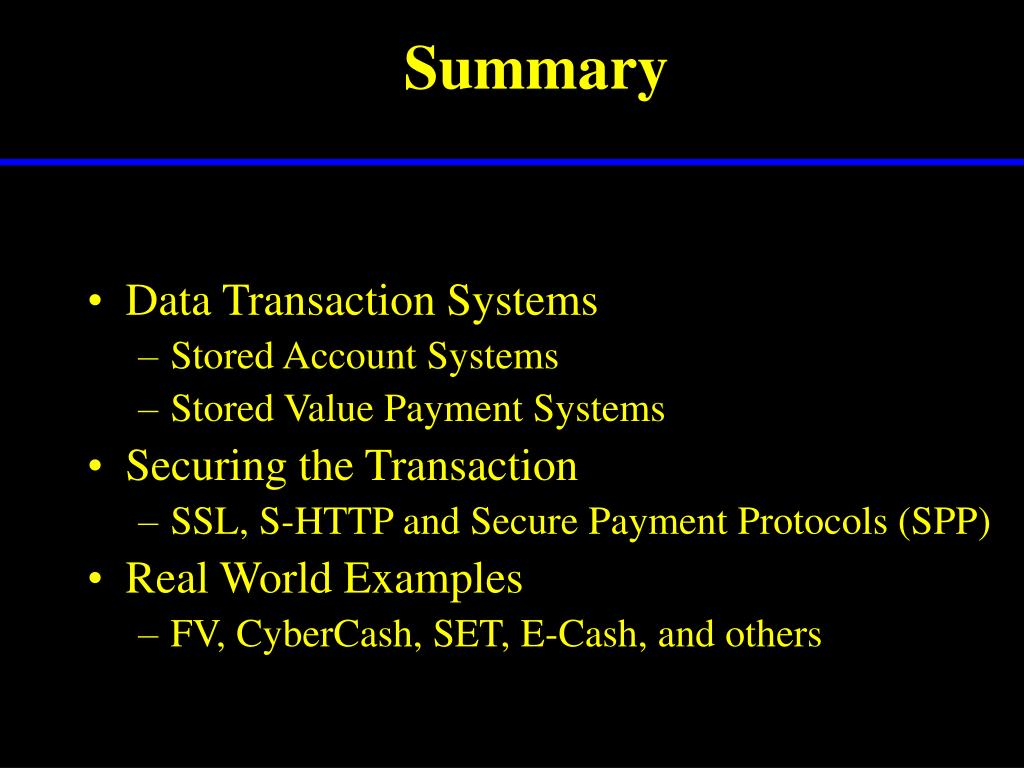

  45. Summary • Data Transaction Systems • Stored Account Systems • Stored Value Payment Systems • Securing the Transaction • SSL, S-HTTP and Secure Payment Protocols (SPP) • Real World Examples • FV, CyberCash, SET, E-Cash, and others
