Diagnosing your application on the jvm

Diagnosing Your Application on the JVM

Staffan LarsenJava SE Serviceability Architect

[email protected]

@stalar


Notice

Notice

THE FOLLOWING IS INTENDED TO OUTLINE OUR GENERAL PRODUCT DIRECTION. IT IS INTENDED FOR INFORMATION PURPOSES ONLY, AND MAY NOT BE INCORPORATED INTO ANY CONTRACT. IT IS NOT A COMMITMENT TO DELIVER ANY MATERIAL, CODE, OR FUNCTIONALITY, AND SHOULD NOT BE RELIED UPON IN MAKING PURCHASING DECISION. THE DEVELOPMENT, RELEASE, AND TIMING OF ANY FEATURES OR FUNCTIONALITY DESCRIBED FOR ORACLE'S PRODUCTS REMAINS AT THE SOLE DISCRETION OF ORACLE.


Diagnosing your application on the jvm

404 – Not Found

java.security.AccessControlException: access denied ("java.lang.management.ManagementPermission" "control")

at java.security.AccessControlContext.checkPermission(AccessControlContext.java:364)

at java.security.AccessController.checkPermission(AccessController.java:555)

at java.lang.SecurityManager.checkPermission(SecurityManager.java:549)

at oracle.jrockit.jfr.JFR.checkControl(JFR.java:43)

at oracle.jrockit.jfr.RepositoryChunk.<init>(RepositoryChunk.java:68)

at Demo$1.<init>(Demo.java:14)

at Demo.start(Demo.java:14)

at sun.applet.AppletPanel.run(AppletPanel.java:474)

at java.lang.Thread.run(Thread.java:722)


Diagnosing your application on the jvm

jstack

attach

JMX

jinfo

jstatd

jps

jvisualvm

jstat

jcmd

perf counters

jmap

serviceability agent


Agenda

  • Demos, walk-through

  • Internals

  • Future

Agenda


Diagnosing your application on the jvm

DEMO


Agenda1

  • Demos, walk-through

  • Internals

  • Future

Agenda


Remote access

Remote access

  • JMX

    • jvisualvm, jconsole

    • Access information from java.lang.managementMBeans

    • SSL and authentication

    • Enable startup: -Dcom.sun.management.jmxremote

    • Enable runtime: jcmdManagementServer.start

  • jstatd

    • Daemon that runs on remote machine

    • jstat can connect to daemon

New!


Discovery

Discovery

What is running on my system?

  • Well-known file for each JVM

    • <temp>/hsperfdata_<user>/<pid>

    • /tmp/hsperfdata_staffan/3636

  • Created on JVM startup

  • Deleted on JVM shutdown

  • Unused files deleted on startup


Java discovery protocol

Java Discovery Protocol

JDP

From freedigitalphotos.net/by digitalart


Attach

Attach

Talking to the JVM

  • Allows sending "commands" for execution in the JVM

  • Receive text output

  • Local access by same user only

  • Used by jcmd, jstack, jmap

  • Mechanics differ on platforms


Attach linux bsd solaris

Attach: Linux / BSD / Solaris

  • Create file /tmp/.attach_pid<pid>

  • Send SIGQUIT to JVM

  • JVM looks for /tmp/.attach_pid<pid>

    • If not found a normal thread dump is done

  • JVM will create /tmp/.java_pid<pid> socket

  • Use socket for communication

  • Solaris uses door API instead of socket


Attach windows

Attach: Windows

  • Remote process injects code (!) into the JVM

    • VirtualAllocEx / WriteProcessMemory

  • Remote process creates a thread in the JVM to call the code

    • CreateRemoteThread

  • The code dynamically looks up JVM_EnqueueOperation() and calls it

  • Reads result from a pipe


Diagnostic commands

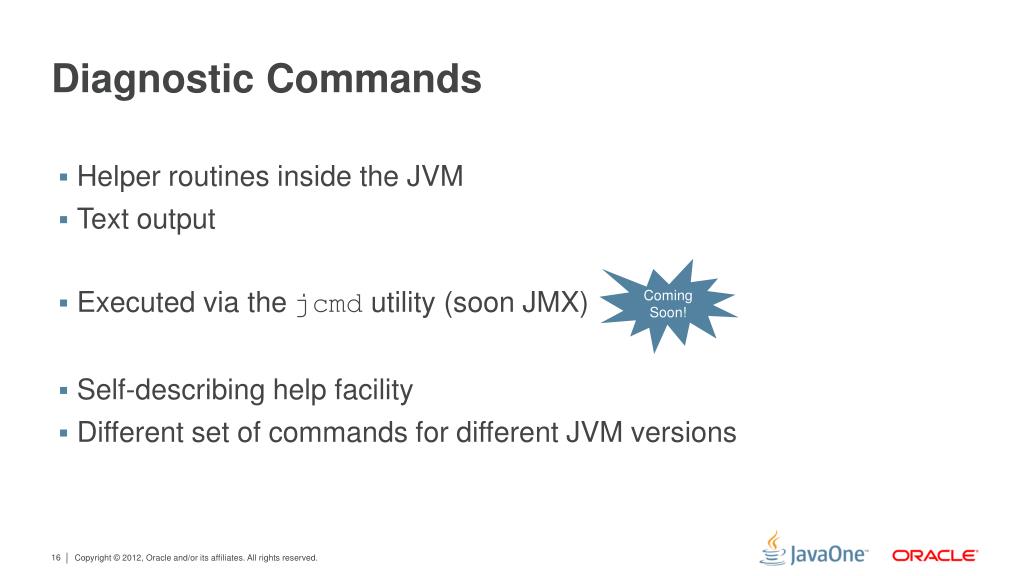

Diagnostic Commands

  • Helper routines inside the JVM

  • Text output

  • Executed via the jcmd utility (soon JMX)

  • Self-describing help facility

  • Different set of commands for different JVM versions

Coming Soon!


J vmstat perfcounter

jvmstat / PerfCounter

  • /tmp/hsperfdata_staffan/3636

    • Contains a lot of run-time information about the JVM

  • Memory mapped file

  • Updated continuously by JVM

  • Use jstat to show information in readable form

  • Use "jcmd PerfCounter.print" to see raw contents


Accessing the jvm

Accessing the JVM

jcmd

jstack

jmap

jinfo

Monitored JVM

JMX

JMX

RMI

j*

jstat(d)

jstat

JMX client

dcmd

JVM

attach

jvmstat

attach

Mission Control

VisualVM

JConsole


Communicating with the jvm

Communicating with the JVM


Serviceability agent

Serviceability Agent

  • For core-files or non-responsive JVMs

  • Uses debugger to read information

  • Last resort - suspends process in unknown state

    jstack <executable> <core>

    jstack –F <pid>


Accessing the jvm1

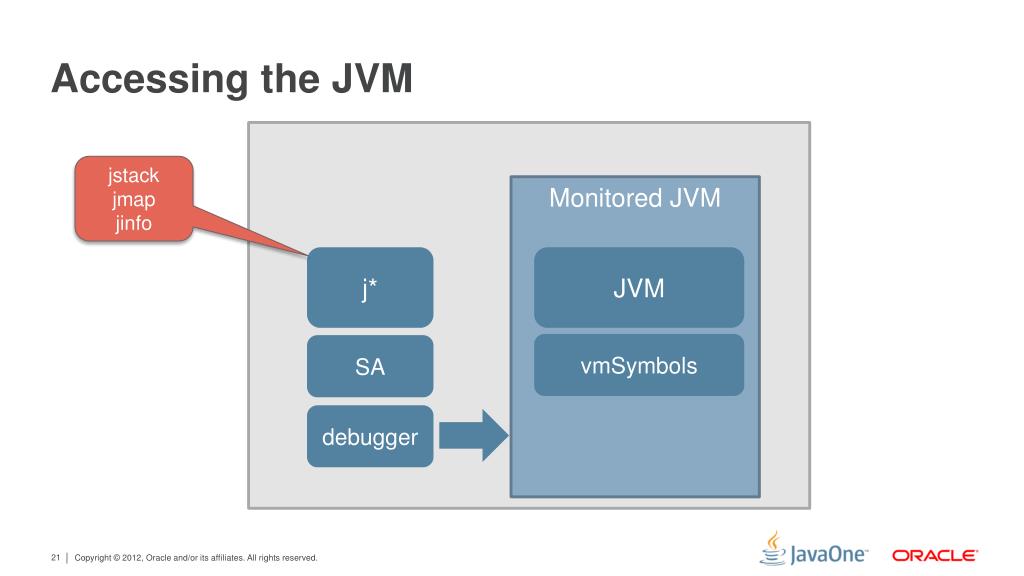

Accessing the JVM

jstack

jmap

jinfo

Monitored JVM

j*

JVM

vmSymbols

SA

debugger


Java mission control

Java Mission Control

  • Java Mission Control


Java flight recorder

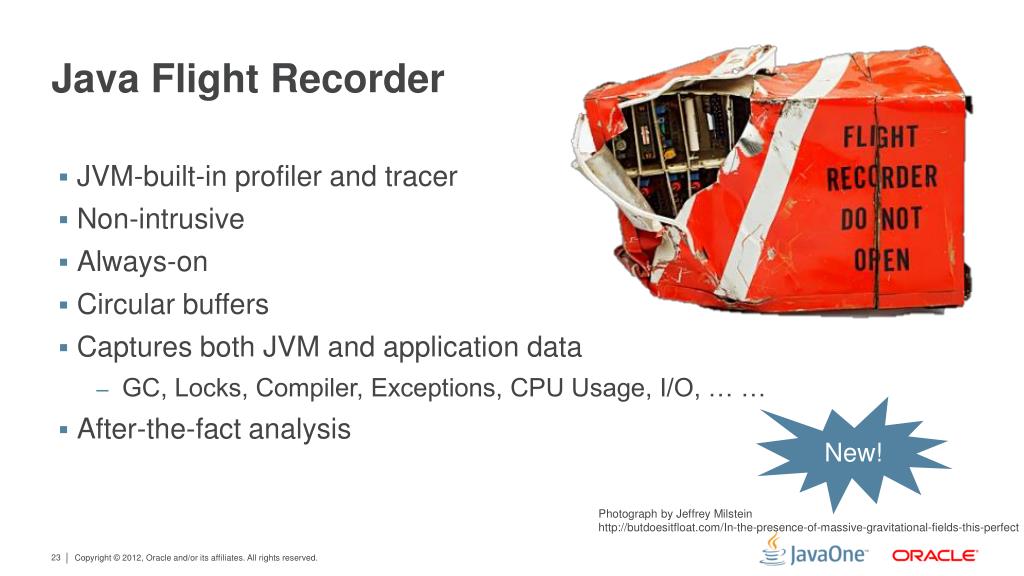

Java Flight Recorder

  • JVM-built-in profiler and tracer

  • Non-intrusive

  • Always-on

  • Circular buffers

  • Captures both JVM and application data

    • GC, Locks, Compiler, Exceptions, CPU Usage, I/O, … …

  • After-the-fact analysis

New!

Photograph by Jeffrey Milstein

http://butdoesitfloat.com/In-the-presence-of-massive-gravitational-fields-this-perfect


Agenda2

  • Demos, walk-through

  • Internals

  • Future

Agenda


Future

Future

It’s soon here!

  • More Diagnostic Commands (jcmd)

    • Eventually replacing jstack, jmap, jinfo

  • JMX 2.0

  • Improved Logging for the JVM

    • JEP 158

  • Deprecate JConsole, hprof agent (?)


Take away

Take-away

  • Know which tools exists

  • Seen the tools in use

  • Something new and something useful

  • Go and experiment with the tools!

@stalar

[email protected]

[email protected]


Diagnosing your application on the jvm

Q&A

@stalar

[email protected]

[email protected]
