  1. Cervical Spine InjuriesClassification and Non-operative Treatment Dr. Heather Roche Dec. 12, 2002

  2. Evaluation • MVA, diving accidents most common cause • should suspect in anyone with head or high energy trauma or neurological deficit • can be missed with multiple trauma and if non-contiguous vertebrae involved or altered consciousness • 16% people will have non-contiguous spine fractures • 50% will have other skeletal or visceral injuries

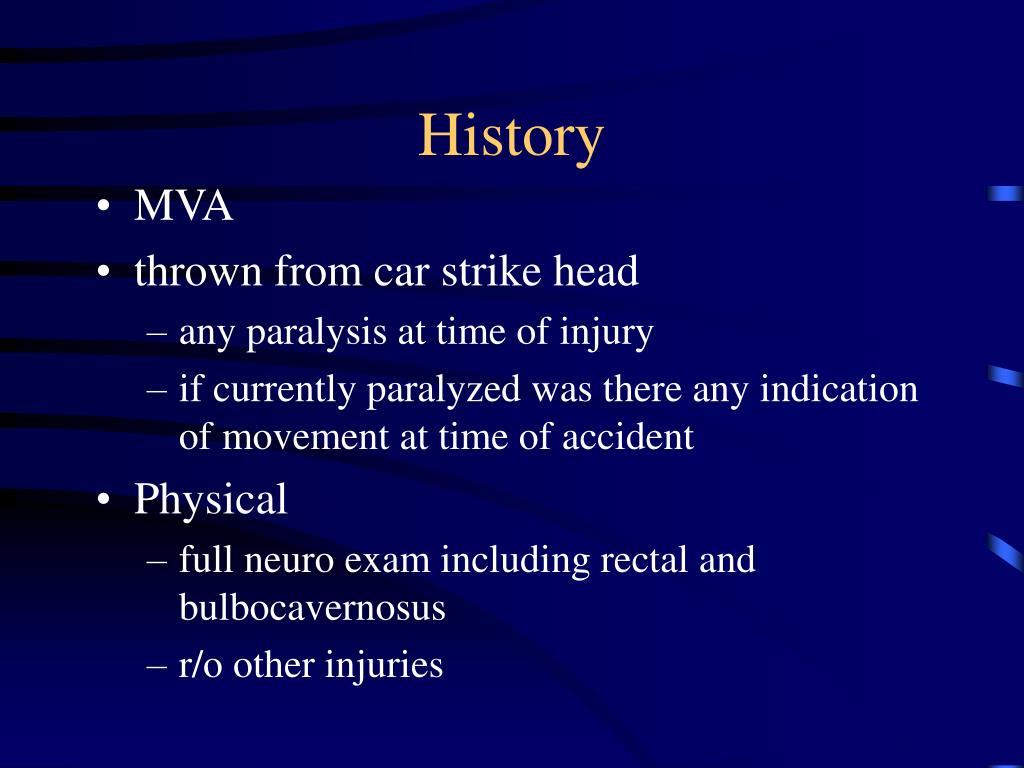

  3. History • MVA • thrown from car strike head • any paralysis at time of injury • if currently paralyzed was there any indication of movement at time of accident • Physical • full neuro exam including rectal and bulbocavernosus • r/o other injuries

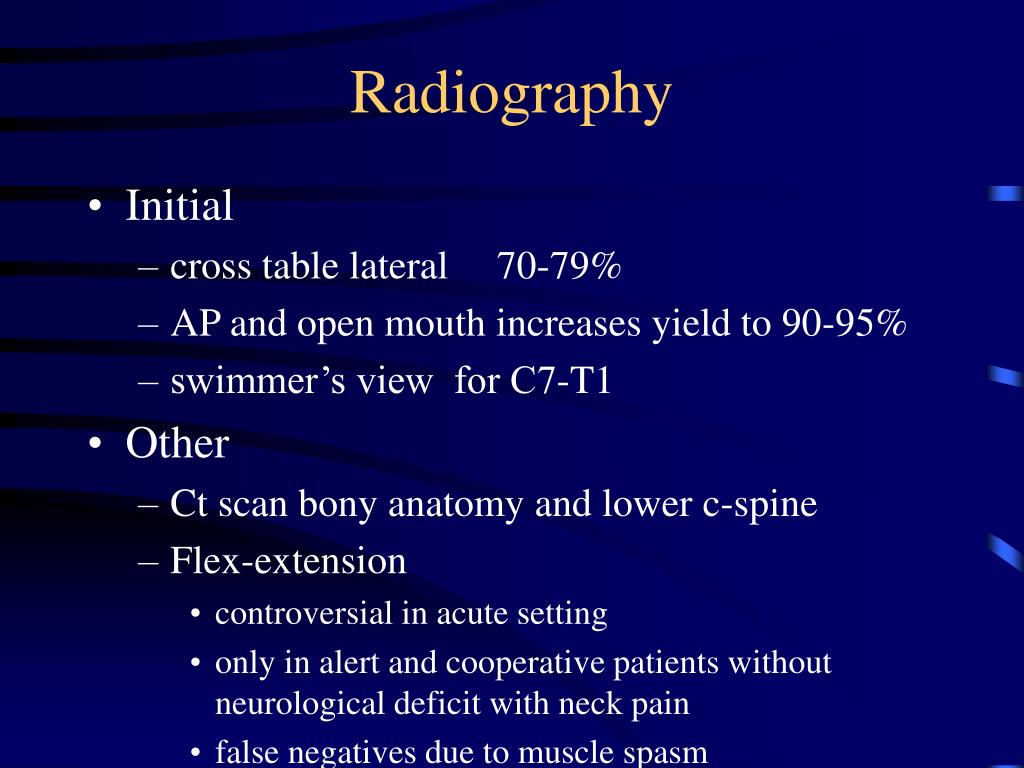

  4. Radiography • Initial • cross table lateral 70-79% • AP and open mouth increases yield to 90-95% • swimmer’s view for C7-T1 • Other • Ct scan bony anatomy and lower c-spine • Flex-extension • controversial in acute setting • only in alert and cooperative patients without neurological deficit with neck pain • false negatives due to muscle spasm

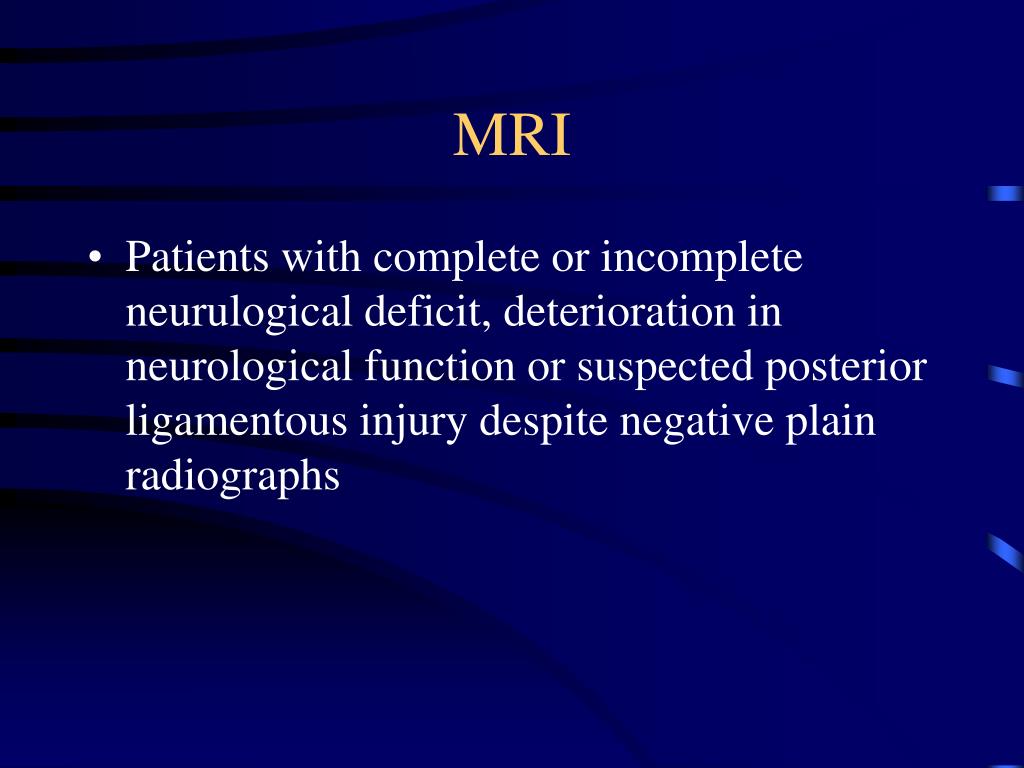

  5. MRI • Patients with complete or incomplete neurulogical deficit, deterioration in neurological function or suspected posterior ligamentous injury despite negative plain radiographs

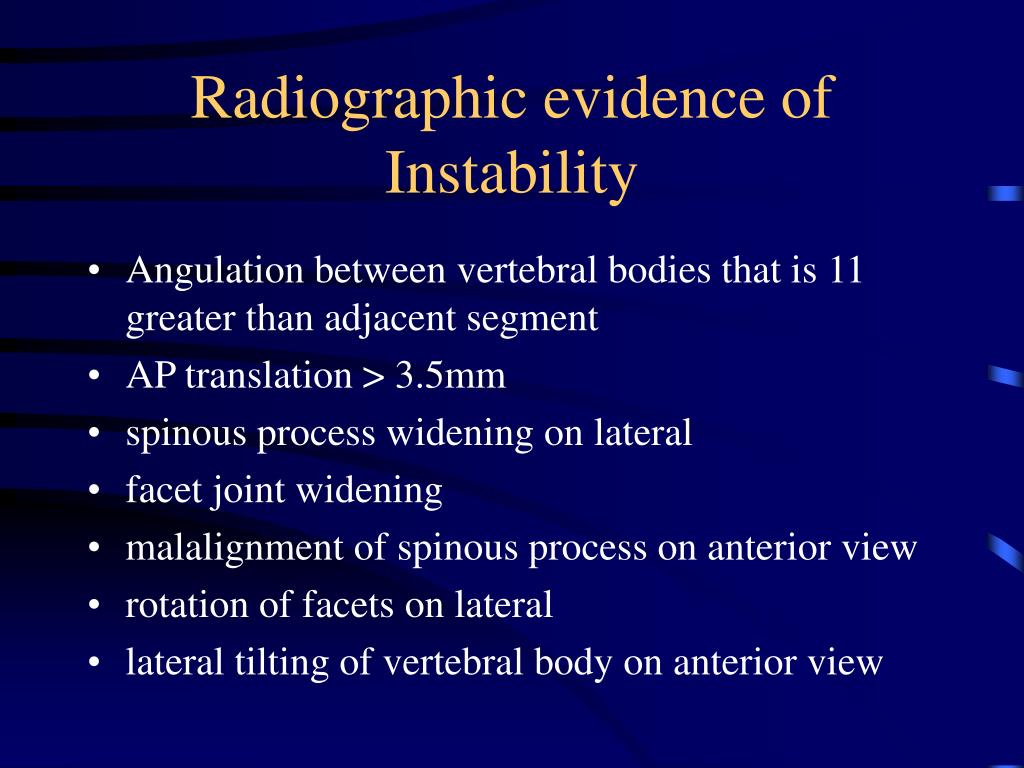

  6. Radiographic evidence of Instability • Angulation between vertebral bodies that is 11 greater than adjacent segment • AP translation > 3.5mm • spinous process widening on lateral • facet joint widening • malalignment of spinous process on anterior view • rotation of facets on lateral • lateral tilting of vertebral body on anterior view

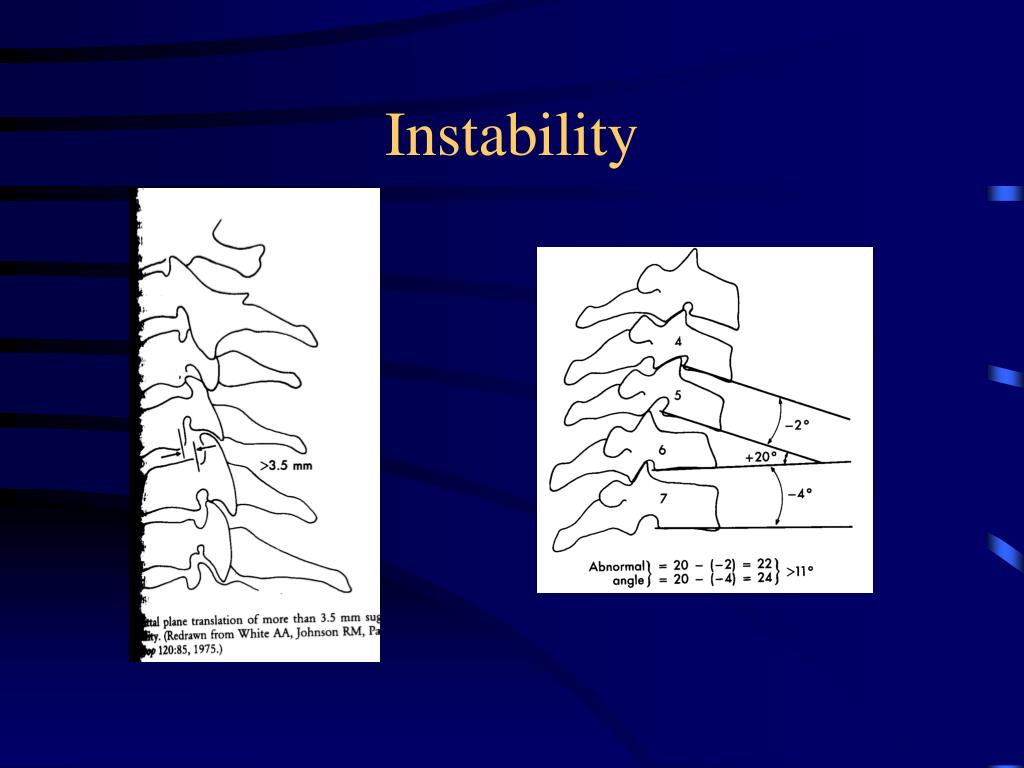

  7. Instability

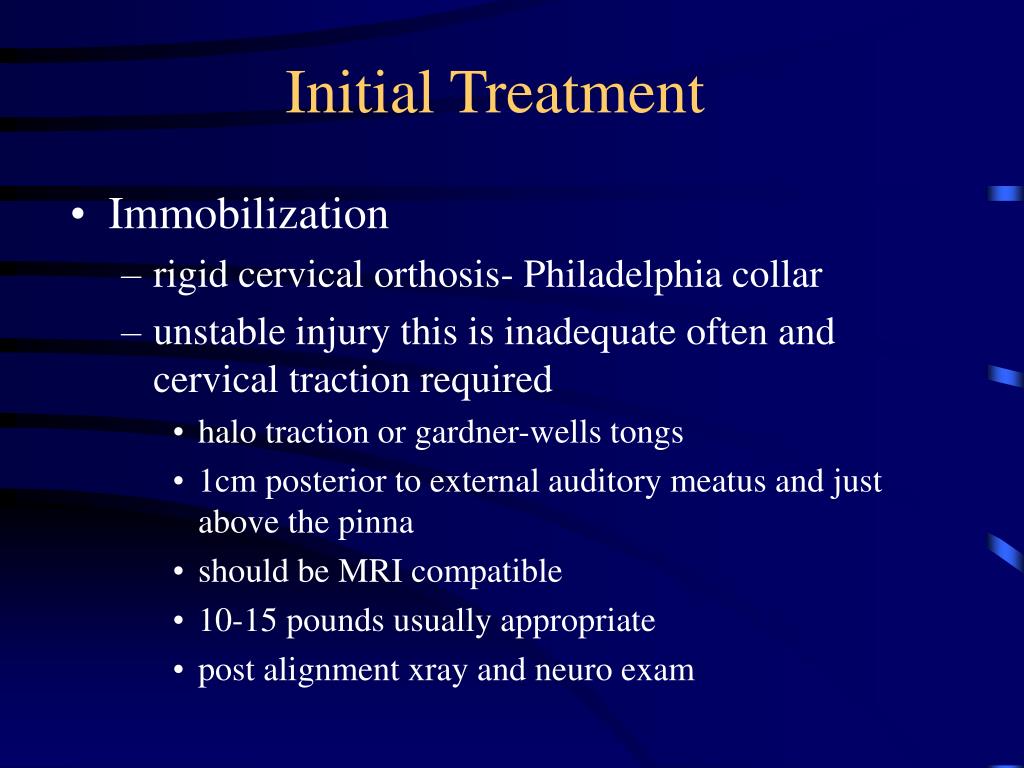

  8. Initial Treatment • Immobilization • rigid cervical orthosis- Philadelphia collar • unstable injury this is inadequate often and cervical traction required • halo traction or gardner-wells tongs • 1cm posterior to external auditory meatus and just above the pinna • should be MRI compatible • 10-15 pounds usually appropriate • post alignment xray and neuro exam

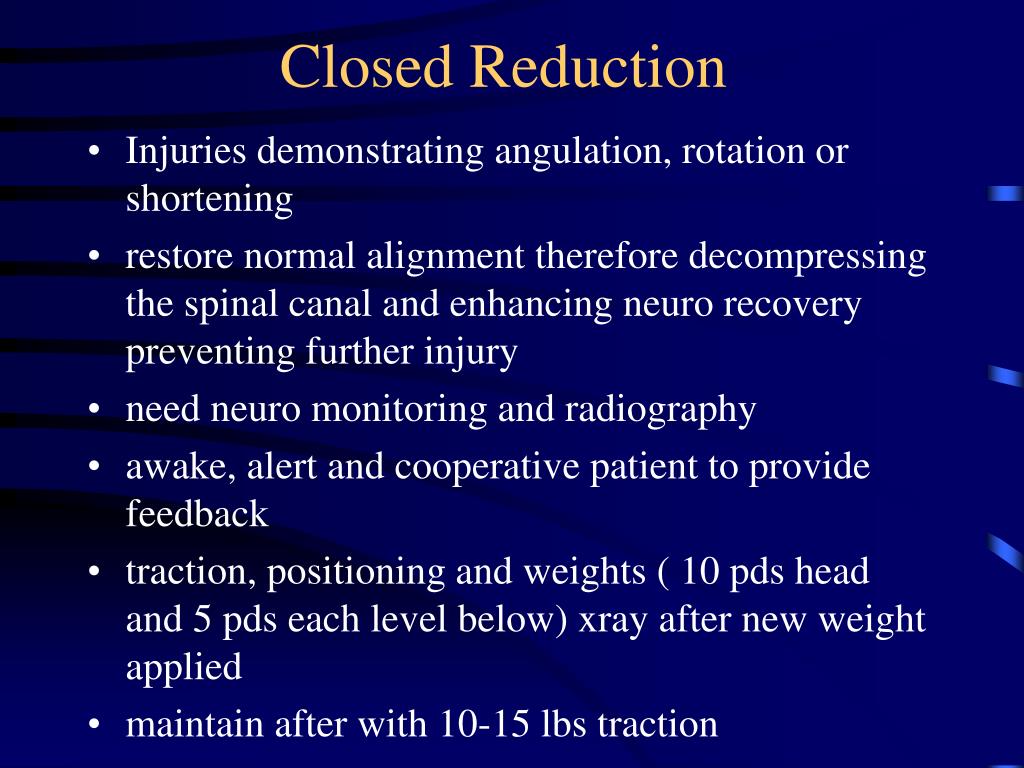

  9. Closed Reduction • Injuries demonstrating angulation, rotation or shortening • restore normal alignment therefore decompressing the spinal canal and enhancing neuro recovery preventing further injury • need neuro monitoring and radiography • awake, alert and cooperative patient to provide feedback • traction, positioning and weights ( 10 pds head and 5 pds each level below) xray after new weight applied • maintain after with 10-15 lbs traction

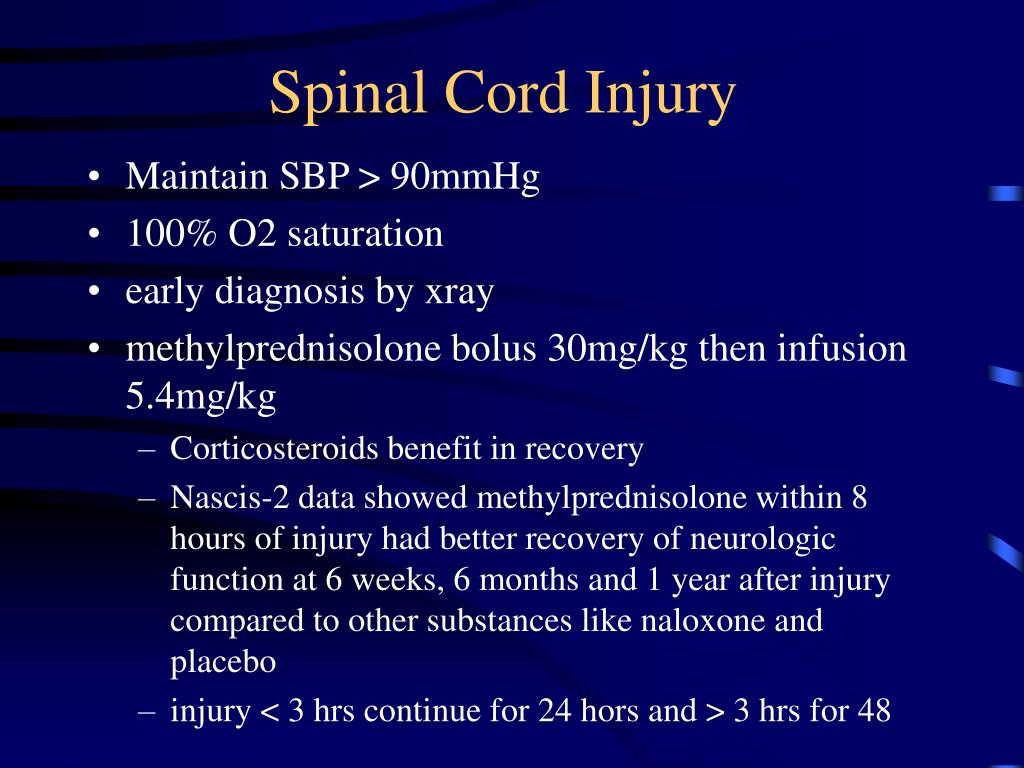

  10. Spinal Cord Injury • Maintain SBP > 90mmHg • 100% O2 saturation • early diagnosis by xray • methylprednisolone bolus 30mg/kg then infusion 5.4mg/kg • Corticosteroids benefit in recovery • Nascis-2 data showed methylprednisolone within 8 hours of injury had better recovery of neurologic function at 6 weeks, 6 months and 1 year after injury compared to other substances like naloxone and placebo • injury < 3 hrs continue for 24 hors and > 3 hrs for 48

  11. Anatomy of Upper cervical spine

  12. Injuries to Upper cervical Spine • Occipitoatlantal Dislocation • hyperextension distraction and rotation of craniovertebral junction • severe neurological injuries from complete C1 quadriplegia to incomplete syndromes • xray • diastasis at craniovertebral junction • Powers ratio • distance between basion and post arch of atlas by distance between opisthion and ant arch atlas with > 1 abnormal • avoid traction and stabilize head to neack with halo • surgical Rx required as primarily a ligamentous injury

  13. Occipital-atlantal Dissociation

  14. Atlas Fractures • Axial compression injuries • neurological injury rare • 3 types • Jefferson fracture- direct compression and lateral masses forced apart • asymmetric load fracture ant or post to mass and displaces it • posterior arch fractures with an extension moment through it

  15. Rx ? Transverse ligament intact • avulsion at insertion on CT • lateral overhang of C1 over outer edges of C2 • > 6.9 mm= rupture • ADI > 4mm • MRI visualization of ligament • Ligament intact • cervical orthosis ( Philadelphia, SOMI, Minerva) for posterior arch or undisplaced Jefferson • Halo - asymmetric lateral mass or displaced Jefferson fractures • No ligament • Fusion

  16. Odontoid Fracture • 15 % all cervical fractures • usually MVA or blow to the head Three types • Type 1 Avulsion off tip by alar ligament • Type 2 fracture at junction of dens with the central body • Type 3 fracture in body of axis and primarily cancellous bone • usually hyperflexion with anterior displacement • assoc injuries to C1 common • neurological deficit in 15-25% cases

  17. Odontoid Fractures

  18. Treatment • Type 1 - • Philadelphia collar for 6-8 weeks • Type 3 - • collar inadequate • Halo vest immobilization after reduction in traction 80 % union rate ( 3-4 months)

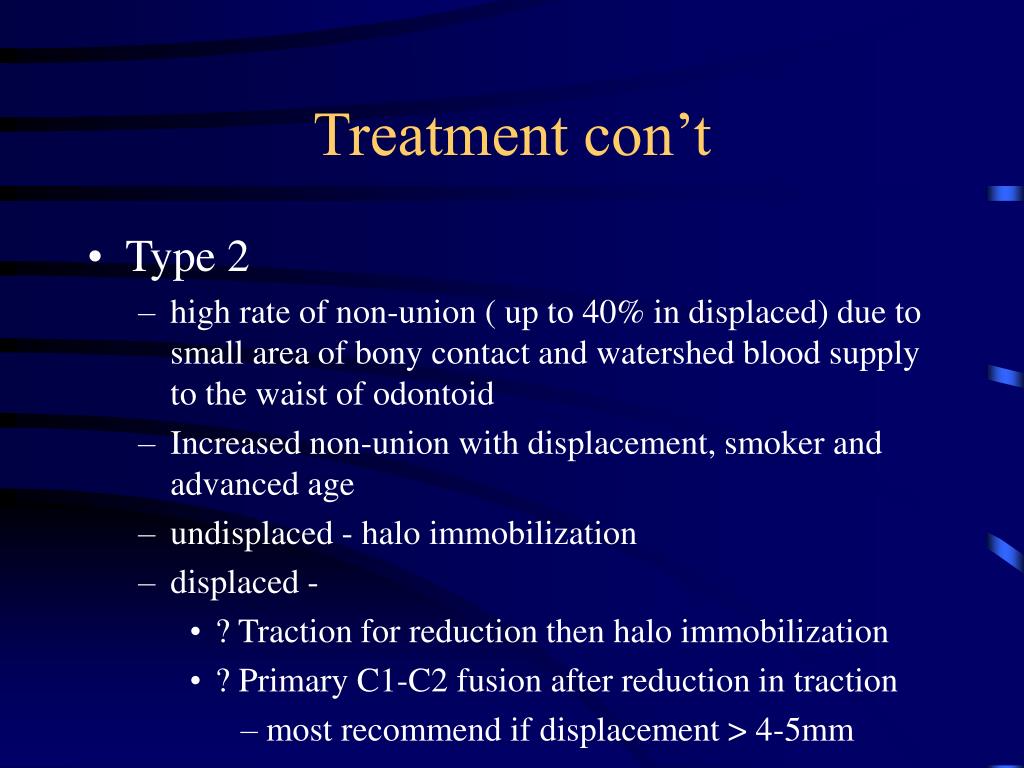

  19. Treatment con’t • Type 2 • high rate of non-union ( up to 40% in displaced) due to small area of bony contact and watershed blood supply to the waist of odontoid • Increased non-union with displacement, smoker and advanced age • undisplaced - halo immobilization • displaced - • ? Traction for reduction then halo immobilization • ? Primary C1-C2 fusion after reduction in traction • most recommend if displacement > 4-5mm

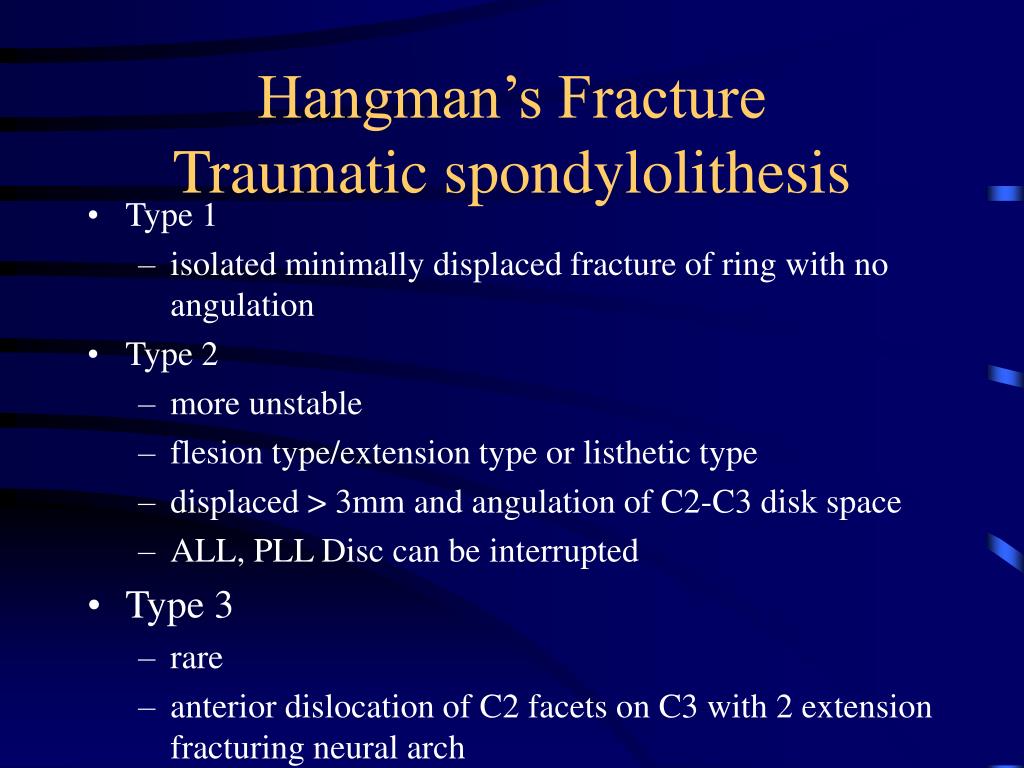

  20. Hangman’s FractureTraumatic spondylolithesis • Type 1 • isolated minimally displaced fracture of ring with no angulation • Type 2 • more unstable • flesion type/extension type or listhetic type • displaced > 3mm and angulation of C2-C3 disk space • ALL, PLL Disc can be interrupted • Type 3 • rare • anterior dislocation of C2 facets on C3 with 2 extension fracturing neural arch

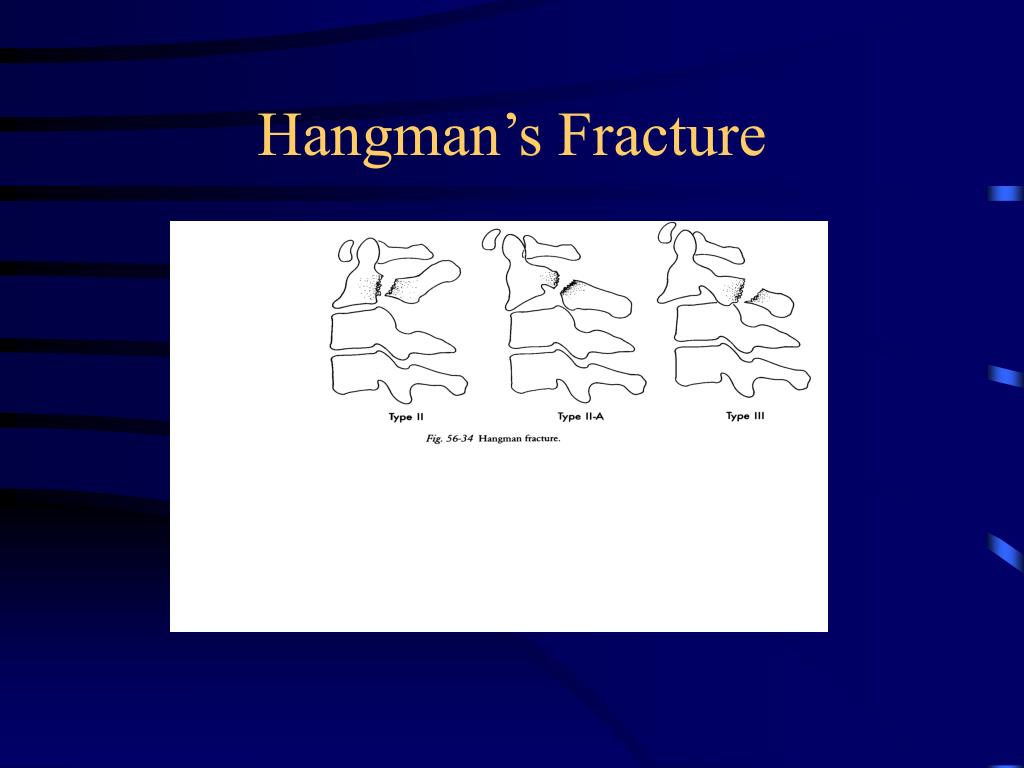

  21. Hangman’s Fracture

  22. Treatment • Type 1 • rigid cervical orthosis • Type 2 • closed reduction with trection and position opposite direction instability • halo vest immobilization • follow for loss of reduction • Type 3 • reduction of facet dislocation with traction • C2 -C3 fusion after pre-op MRI

  23. Sub axial Spine • bodies articulate by intervertebral disc, ALL and PLL • facet joints are in a coronal plane 45 to horizontal allowing flexion and extension 14 degrees in sagittal plane • due to 45 incline lateral tilt accompanied by rotation • 9 degrees in coronal plane and 5 rotation in each segment • vertebral foramen in lateral mass contain vertebal artery which transverses C6 through C1

  24. Biomechanics • Denis • three column spine for TL spine now applied to c-spine • Anterior region • disk and centrum resist compression • ALL, anterior annulus resist distraction • Middle • post vertebral body and uncovertebral joints • PLL and Annulus resist distraction • Posterior • facet joints and lateral mass compression • facet capsule, intra and supraspinous ligaments

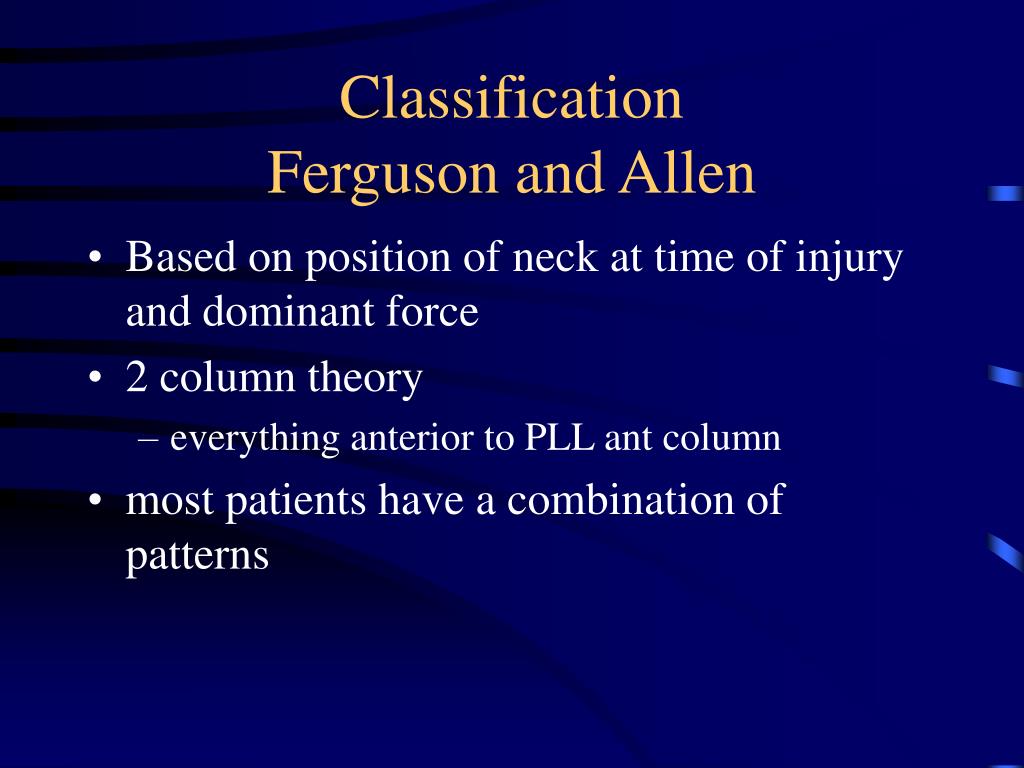

  25. ClassificationFerguson and Allen • Based on position of neck at time of injury and dominant force • 2 column theory • everything anterior to PLL ant column • most patients have a combination of patterns

  26. Compression and Flexion • Level C4-5 and C5-6 • compression of ant column and distraction of post • different stages with later stages having more post involvement and displacement of vertebral body • MRI to evaluate post ligaments • intact - HALO sufficient • not - risk of late kyphotic deformity therefore fusion

  27. Vertical Compression • C6-7 most common • shortening of ant and post columns • stage 1 - • cupping of end plate with partial failure anteriorly and normal post ligaments • rigid orthosis • stage 3 - • fragmentation and displacement of body “ burst” • neurologic injury common with assoc post element fractures • anterior corpectomy and reconstruction for neuro recovery plus post fusion to prevent kyphosis

  28. Distraction Flexion • Most common pattern • tensile failure and lengthening of post column with possible compression of ant column • ant translation superior vertebra • 25% facet subluxation • 50% unilateral facet dislocation • > 50% bilateral dislocation • full body displacement

  29. Treatment • Closed reduction initially max weight controversial • successful • non-operative treatment 64% late instability • fusion recommended • unsuccessful • open reduction and fusion

  30. Flexion distraction con’t • 50-80% assoc acute disk herniation at level of injury • awake closed reduction has not shown worsening of neuro deficit and should not undergo major delay in reduction while waiting for MRI • MRI prerequisite to open reduction • Disk present ant cervical diskectomy prior to reduction

  31. Compression Extension • Early compressive failure of post column and late tensile failure ant column • late stages body displacement unstable and require anterior fusion

  32. Compression Distraction • Tensile failure of both ant and post columns bony or ligamentous • stage1 • no body displacement on static or flexion/ext • rigid orthosis • Stage 2 • displacement present • fusion

  33. Lateral Flexion • Asymmetric loading in coronal plane • displacement • fusion

  34. Halo Skeletal Fixation
