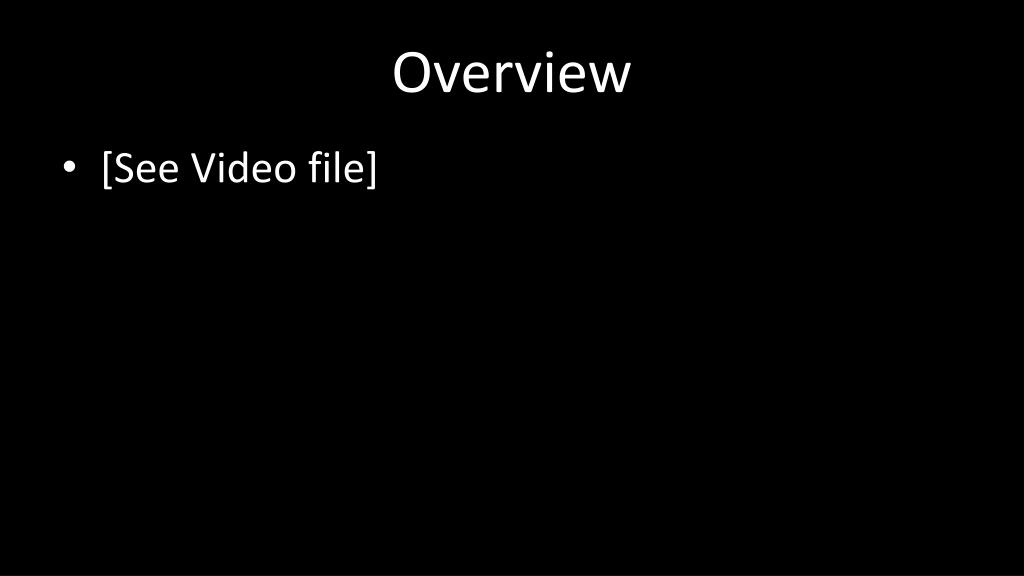

Overview

Overview

  • [See Video file]


Architecture overview

Architecture Overview


Asynchronous resource loading

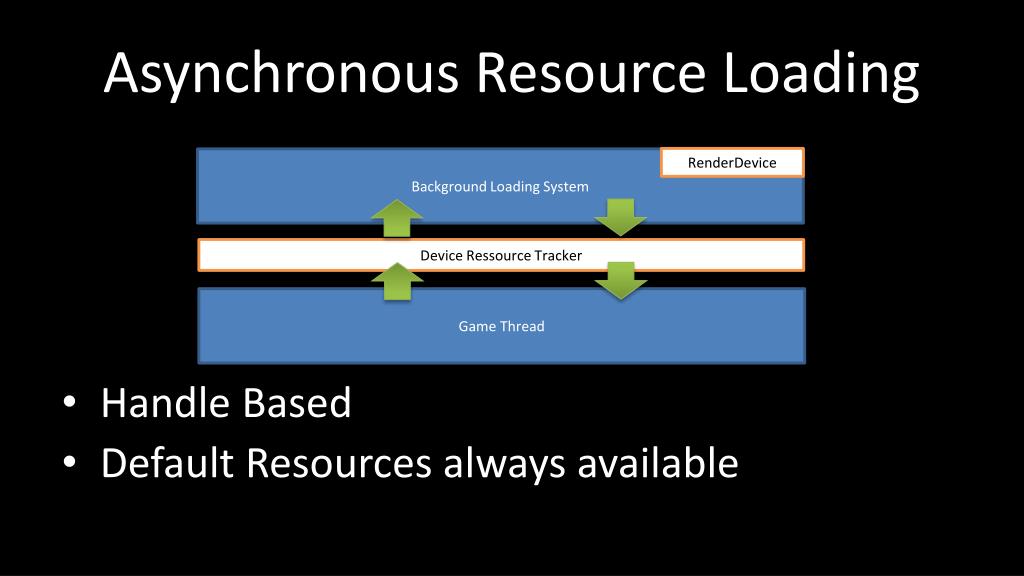

Asynchronous Resource Loading

  • Handle Based

  • Default Resources always available

RenderDevice

Background Loading System

Device Ressource Tracker

Game Thread

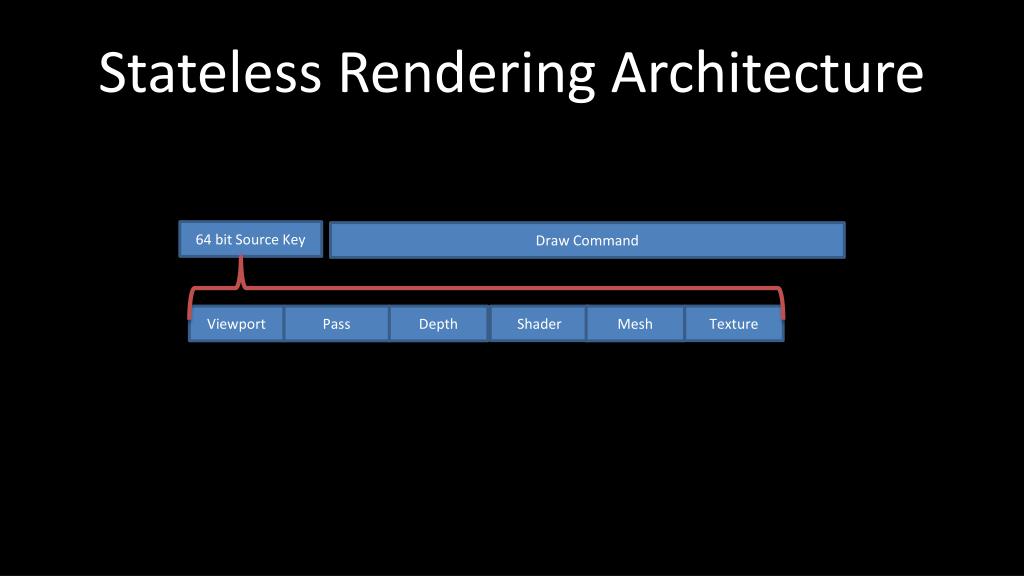

Stateless rendering architecture

Stateless Rendering Architecture

64 bit Source Key

Draw Command

Shader

Texture

Viewport

Pass

Depth

Mesh


Stateless rendering architecture1

Stateless Rendering Architecture

64 bit Source Key

Draw Command

Mesh

Depth

Viewport

Pass

Shader

Texture


Shader cross compilation system

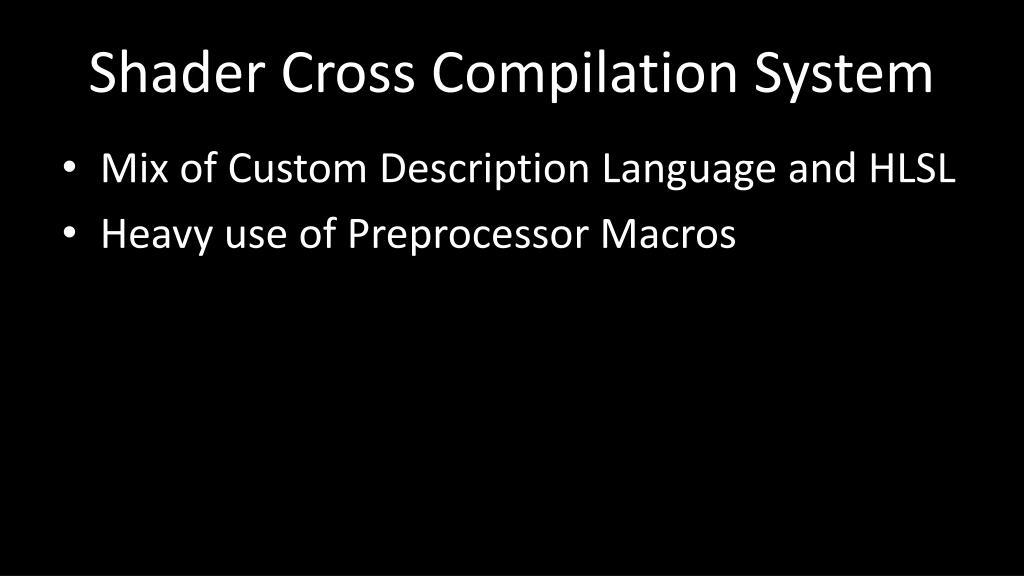

Shader Cross Compilation System

  • Mix of Custom Description Language and HLSL

  • Heavy use of Preprocessor Macros


Overview

.shader2

PSSL

structSRT_PerMaterial

{

Texture2D diffuse_texture_srt;

SamplerStatediffuse_texture_sampler_srt;

};

#define diffuse_texture (srt_data.per_material->diffuse_texture_srt)

#define diffuse_texture_sampler(srt_data.per_material->diffuse_texture_sampler_srt)

(texture_input

(texture_2d diffuse_texture)

texture_input)

(sampler_input

(sampler_statediffuse_texture_sampler)

sampler_input)


Overview

float4 PS( PS_INPUT input, SRT_Globalsrt_data)

{

output = TEXTURE_2D_SAMPLE_RGBA( diffuse_texture, diffuse_texture_sampler,

IL_PIXEL_INPUT(tex) );

}


Overview

  • All resources are bound by convention at runtime

  • Constants organized by Frequency Frame, Camera, Material, Object

  • Textures in the order they are defined


Changes since submission

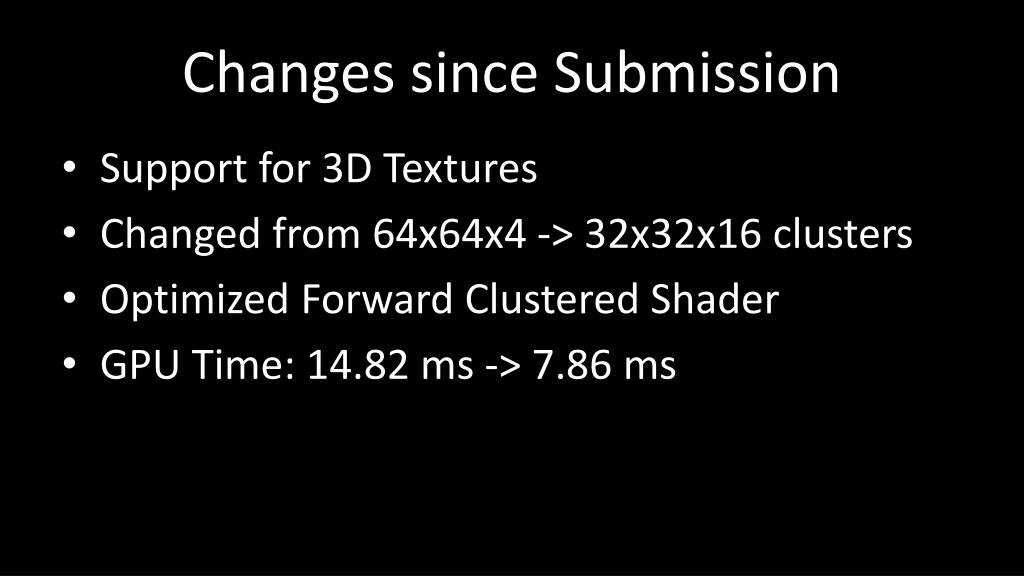

Changes since Submission

  • Support for 3D Textures

  • Changed from 64x64x4 -> 32x32x16 clusters

  • Optimized Forward Clustered Shader

  • GPU Time: 14.82 ms -> 7.86 ms


Changes since submission1

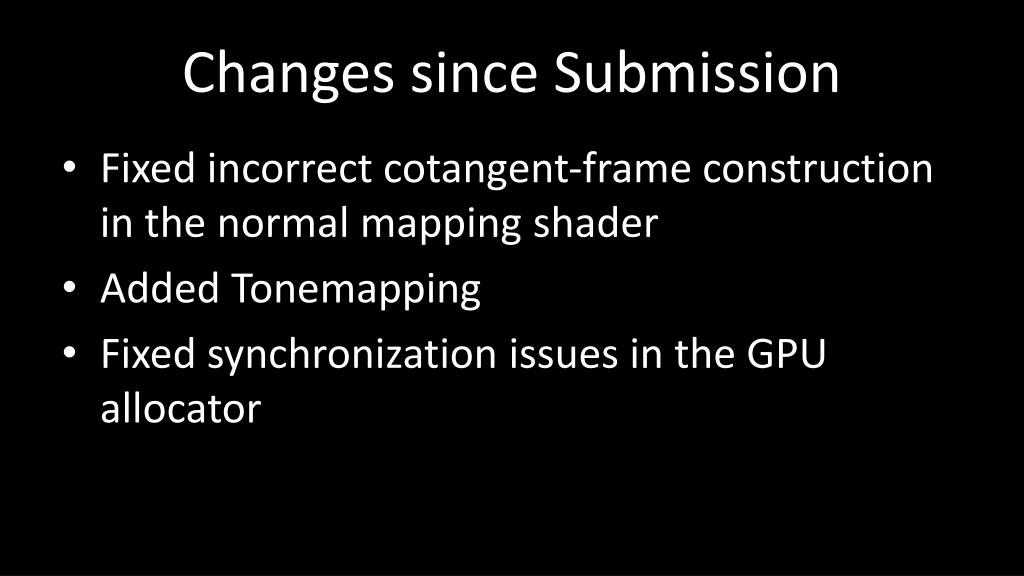

Changes since Submission

  • Fixed incorrect cotangent-frame construction in the normal mapping shader

  • Added Tonemapping

  • Fixed synchronization issues in the GPU allocator


Restructured rendering loop

Restructured Rendering Loop

Old Scheme

New Scheme

2 / 3 frames

Input Latency:

3 / 4 frames


Demonstration

Demonstration


Planned changes

Planned Changes

  • Add support for Pipeline objects (D3D12, Mantle, Metal)

  • Restructure the Stateless Draw Command implementation

    • Add Passes, one pass per logical operation

    • Reduces overhead from hazard tracking

    • Reduces sorting overhead, only need to sort local in a pass

  • Improve Light Clustering

  • Implement Deferred Rendering Scheme, compare to current Clustered Forward

  • Better Shading Language, maybe based on the ideas of Spark?


Questions

Questions?

  • Jendrik Illner

  • [email protected]
