Presentation Transcript


Business data communications

Business Data Communications

Chapter Eleven

Trends in

Business Data Communications

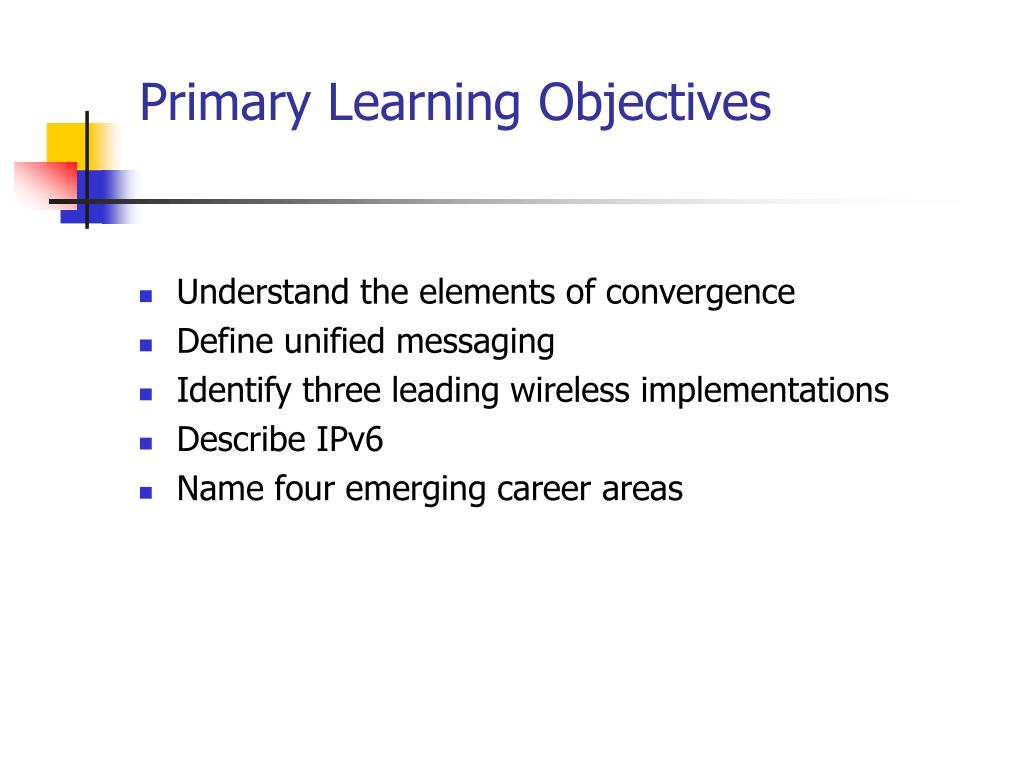

Primary learning objectives

Primary Learning Objectives

  • Understand the elements of convergence

  • Define unified messaging

  • Identify three leading wireless implementations

  • Describe IPv6

  • Name four emerging career areas

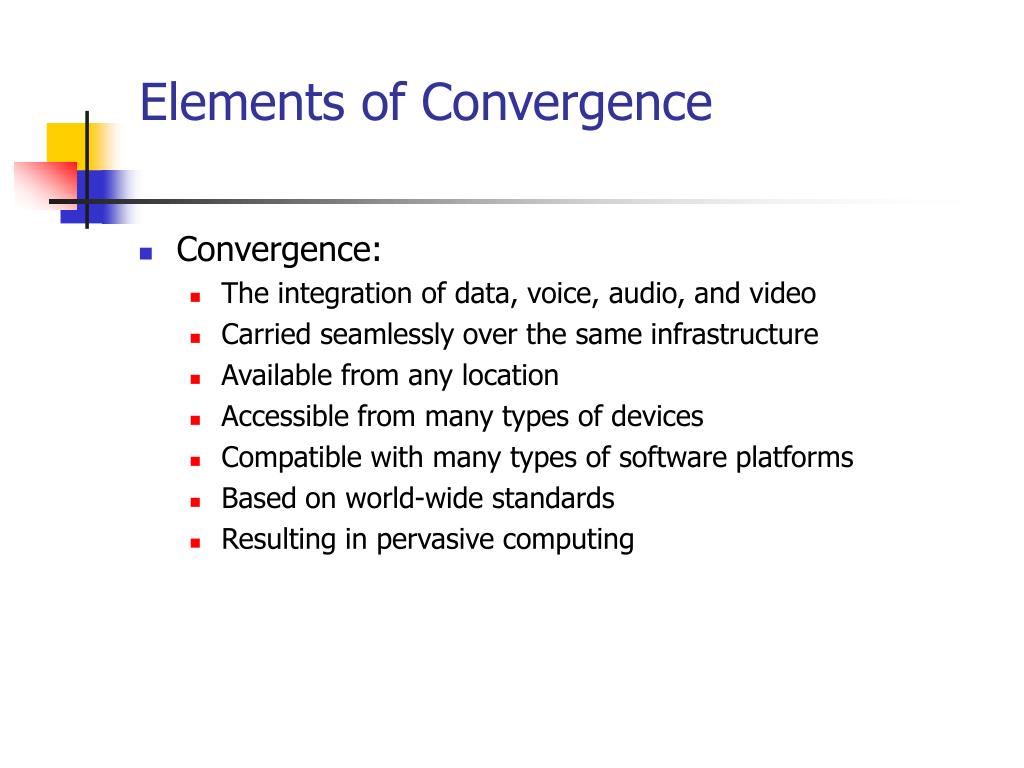

Elements of convergence

Elements of Convergence

  • Convergence:

    • The integration of data, voice, audio, and video

    • Carried seamlessly over the same infrastructure

    • Available from any location

    • Accessible from many types of devices

    • Compatible with many types of software platforms

    • Based on world-wide standards

    • Resulting in pervasive computing

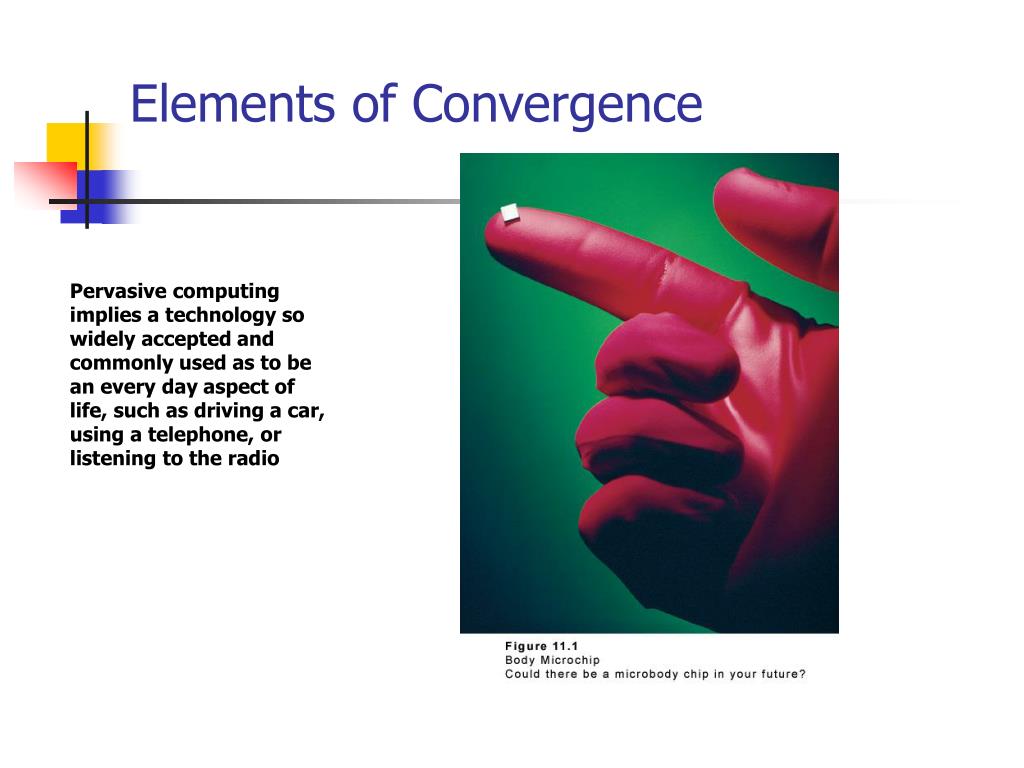

Elements of convergence1

Elements of Convergence

Pervasive computing implies a technology so widely accepted and commonly used as to be an every day aspect of life, such as driving a car, using a telephone, or listening to the radio

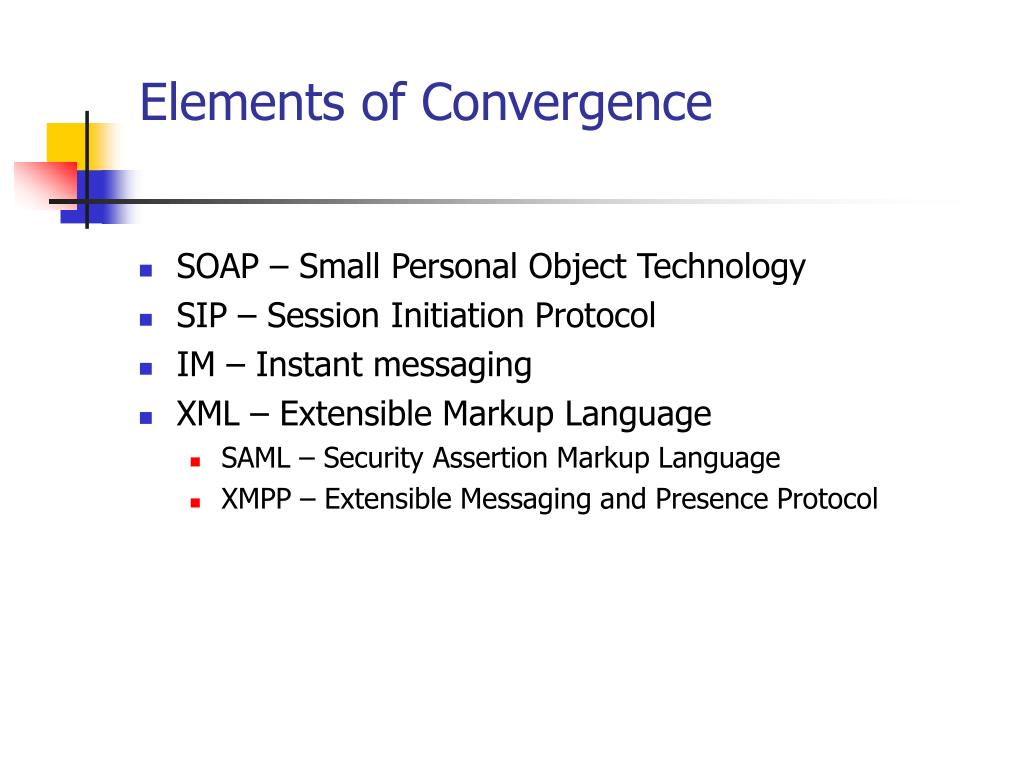

Elements of convergence2

Elements of Convergence

  • SOAP – Small Personal Object Technology

  • SIP – Session Initiation Protocol

  • IM – Instant messaging

  • XML – Extensible Markup Language

    • SAML – Security Assertion Markup Language

    • XMPP – Extensible Messaging and Presence Protocol

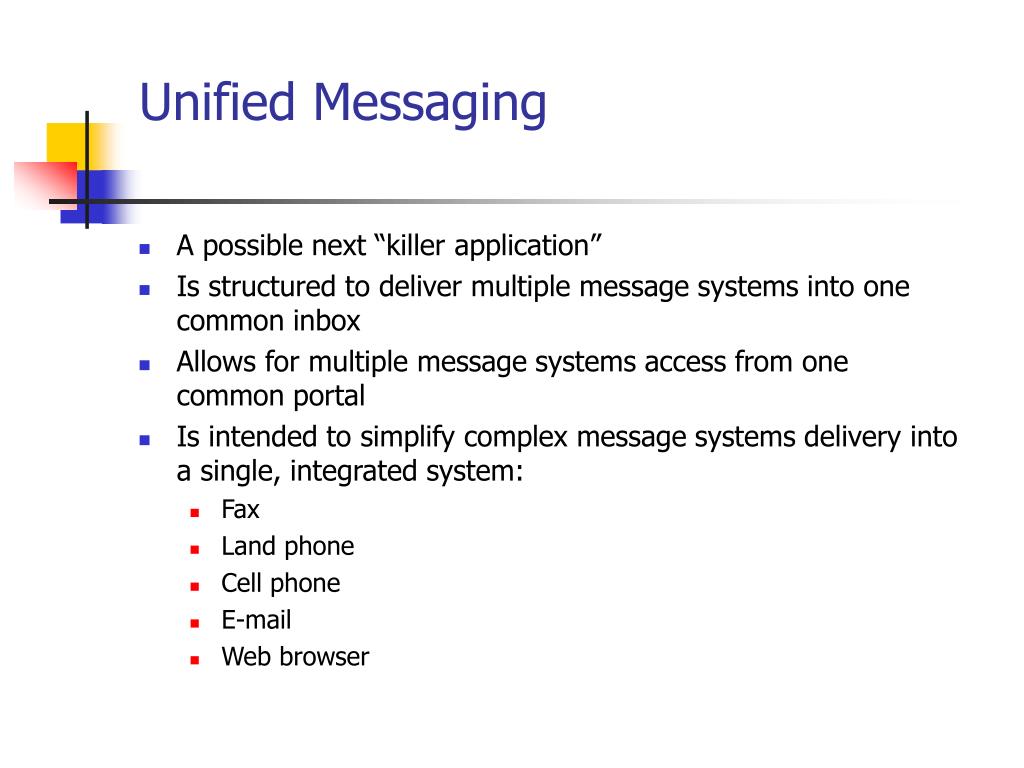

Unified messaging

Unified Messaging

  • A possible next “killer application”

  • Is structured to deliver multiple message systems into one common inbox

  • Allows for multiple message systems access from one common portal

  • Is intended to simplify complex message systems delivery into a single, integrated system:

    • Fax

    • Land phone

    • Cell phone

    • E-mail

    • Web browser

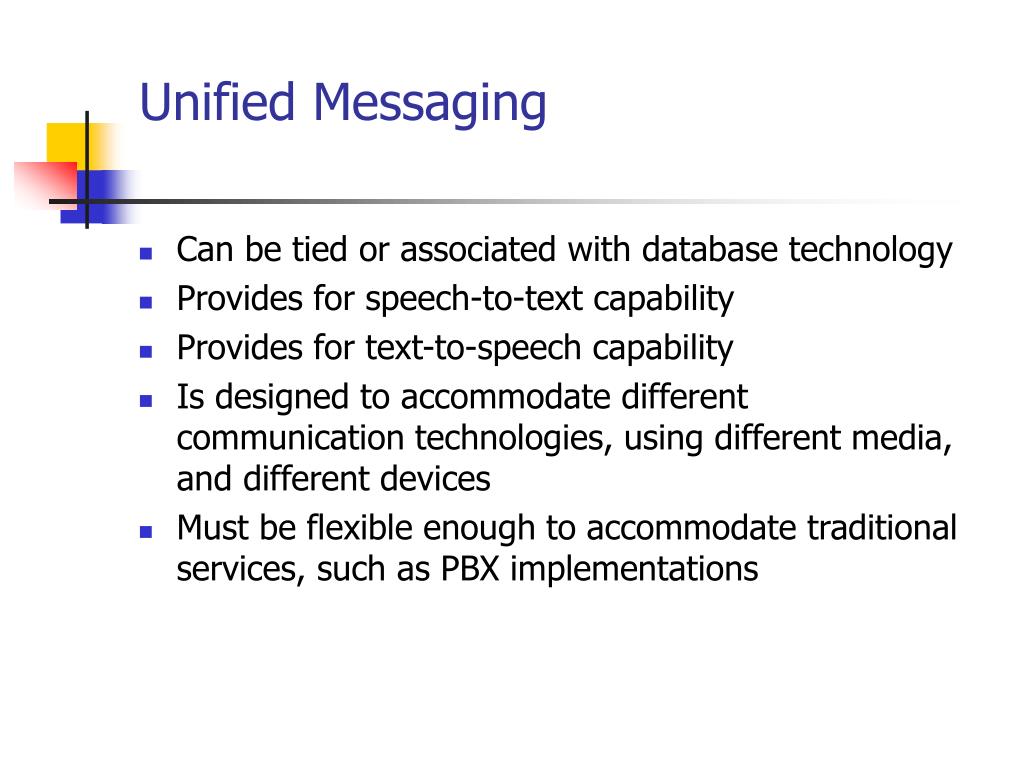

Unified messaging1

Unified Messaging

  • Can be tied or associated with database technology

  • Provides for speech-to-text capability

  • Provides for text-to-speech capability

  • Is designed to accommodate different communication technologies, using different media, and different devices

  • Must be flexible enough to accommodate traditional services, such as PBX implementations

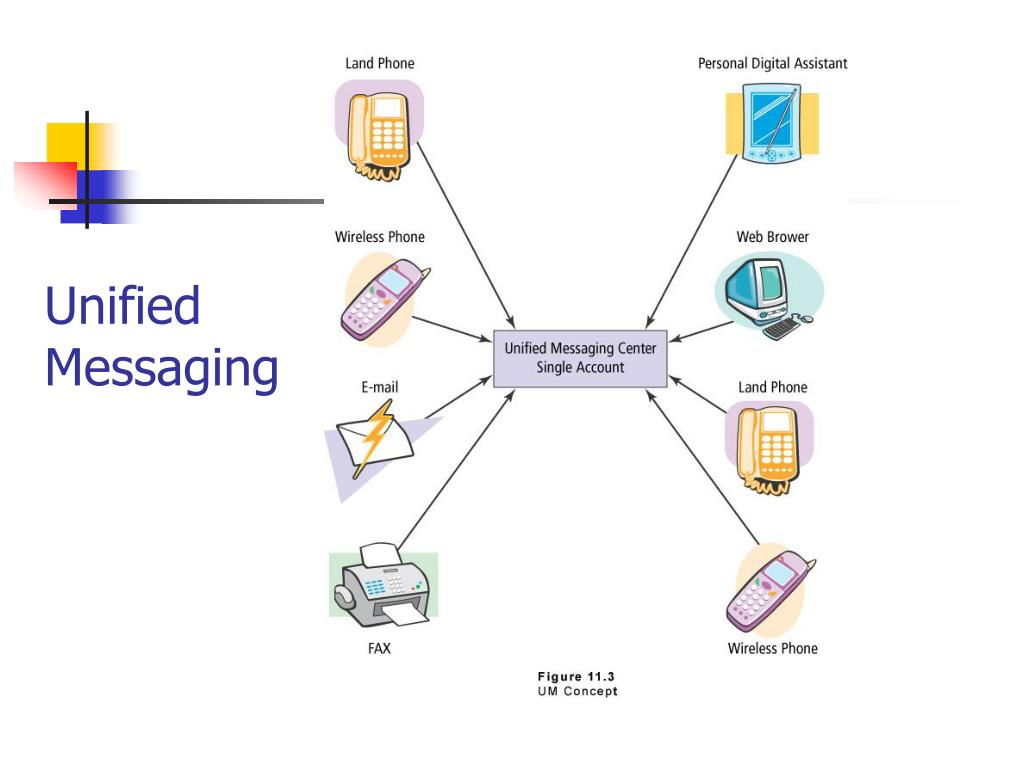

Unified messaging2

Unified Messaging


Wireless implementations

Wireless Implementations

  • Are another possible next “killer application”

  • Will be essential if applications such as IM and UM are to meet their promise

  • Must address concerns related to security, bandwidth, and standardization

  • Range from global, to local, to personal:

    • 3G

    • 802.11

    • Bluetooth


Wireless implementations 3g global

Wireless Implementations – 3G, Global

  • Third generation wireless:

    • Evolved from 1G and 2G

    • Designed to support traditional as well as multimedia forms of data

    • Provides for wide-area mobile communications using a worldwide standard: Universal Mobile Telecommunications System (UMTS)

    • Is a broadband, packet-based wireless transmission

    • Provides for three types of data rates

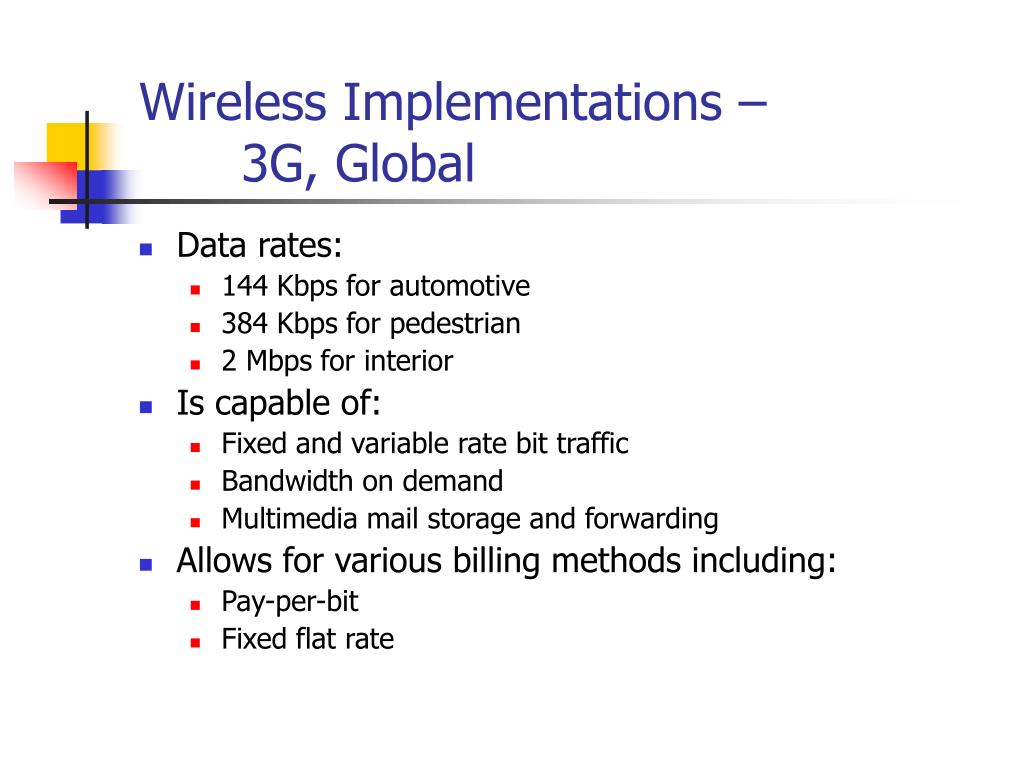

Wireless implementations 3g global1

Wireless Implementations – 3G, Global

  • Data rates:

    • 144 Kbps for automotive

    • 384 Kbps for pedestrian

    • 2 Mbps for interior

  • Is capable of:

    • Fixed and variable rate bit traffic

    • Bandwidth on demand

    • Multimedia mail storage and forwarding

  • Allows for various billing methods including:

    • Pay-per-bit

    • Fixed flat rate

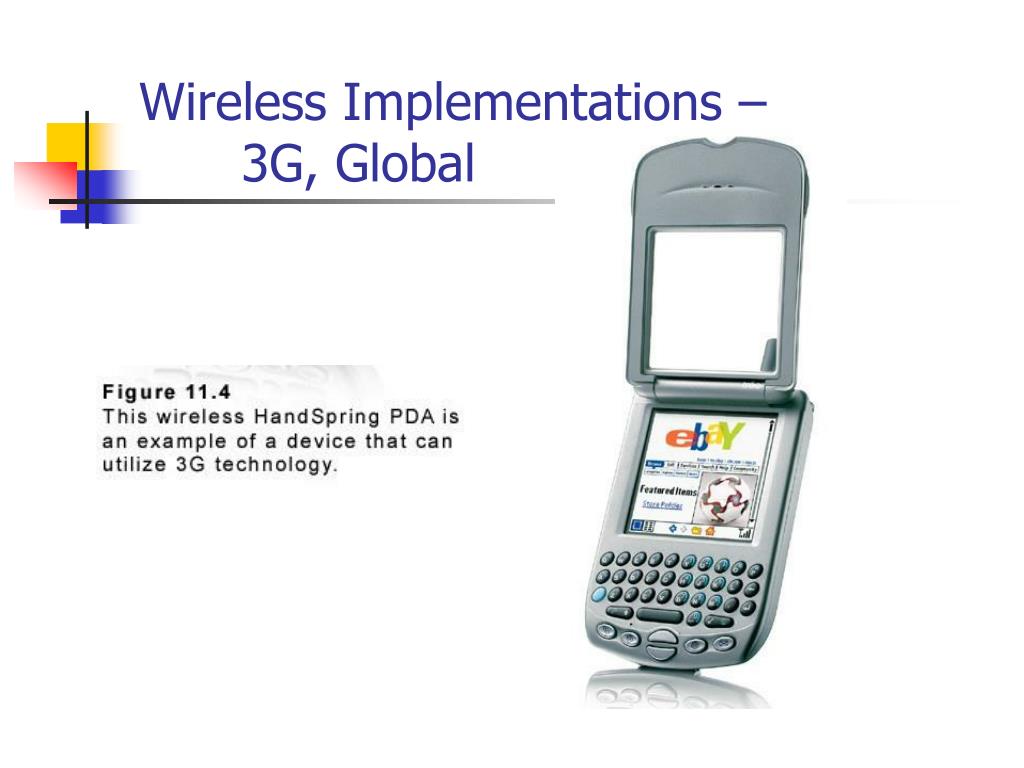

Wireless implementations 3g global2

Wireless Implementations – 3G, Global


Summary of 1g to 4g

Summary of 1G to 4G


Wireless implementations 802 11 local

Wireless Implementations – 802.11, Local

  • An umbrella standard of the IEEE containing, from oldest to newest:

    • 802.11b

    • 802.11a

    • 802.11g

  • Positioned as a wireless LAN solution

  • Referred to as Wi-Fi, for wireless fidelity

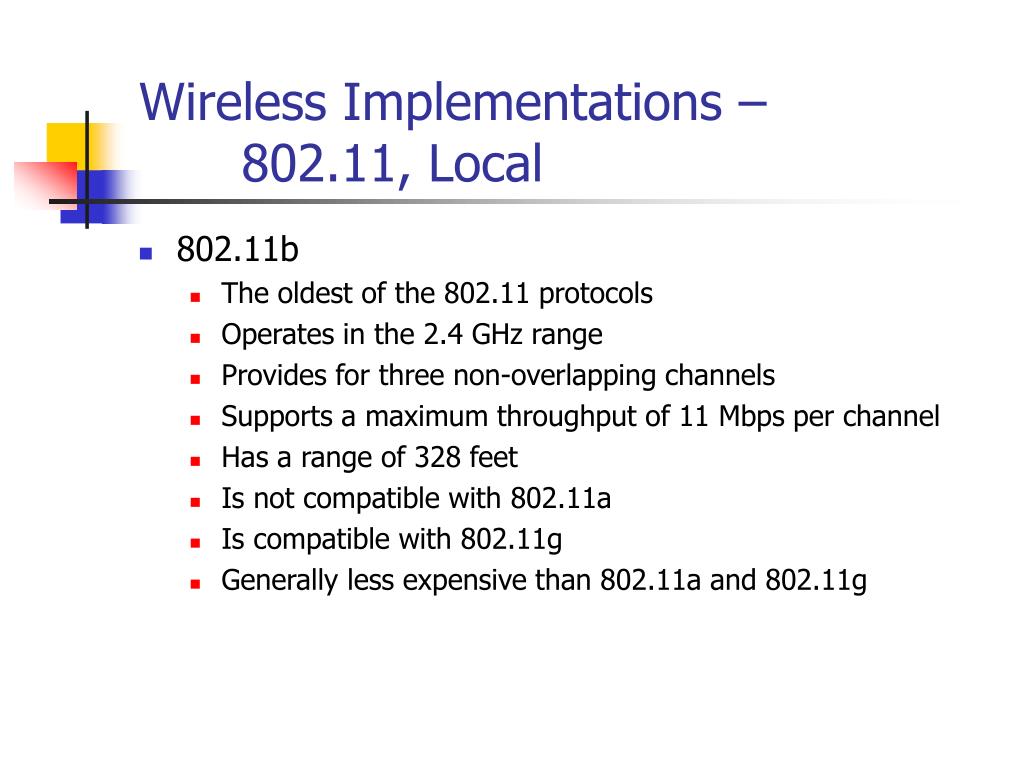

Wireless implementations 802 11 local1

Wireless Implementations – 802.11, Local

  • 802.11b

    • The oldest of the 802.11 protocols

    • Operates in the 2.4 GHz range

    • Provides for three non-overlapping channels

    • Supports a maximum throughput of 11 Mbps per channel

    • Has a range of 328 feet

    • Is not compatible with 802.11a

    • Is compatible with 802.11g

    • Generally less expensive than 802.11a and 802.11g

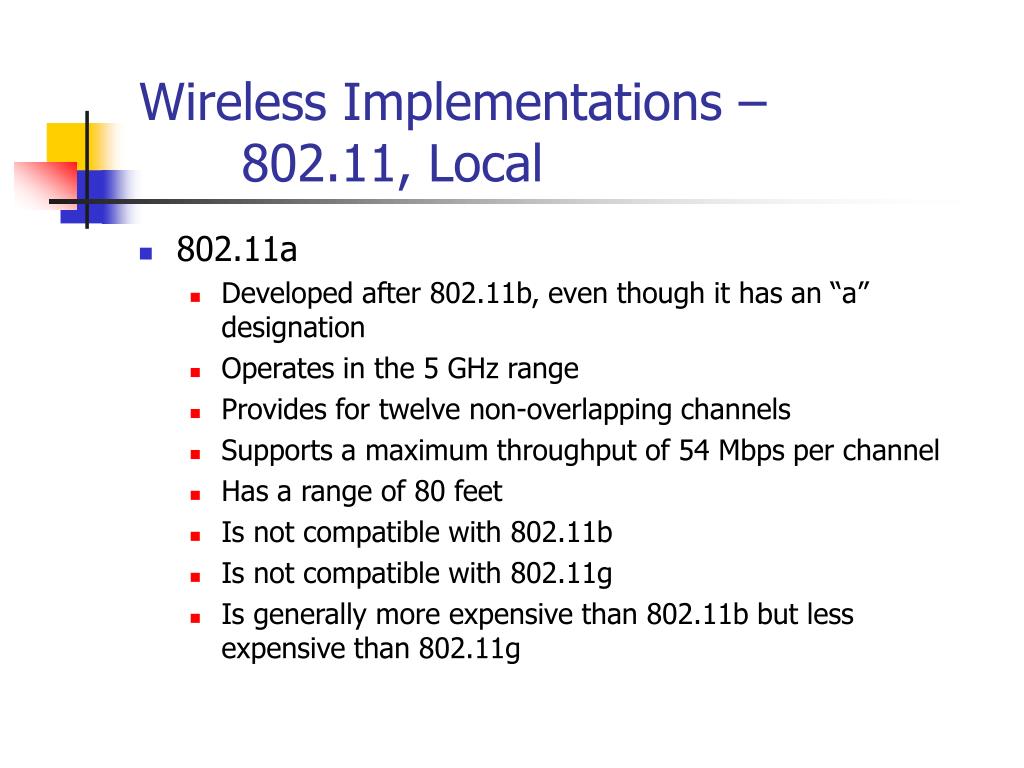

Wireless implementations 802 11 local2

Wireless Implementations – 802.11, Local

  • 802.11a

    • Developed after 802.11b, even though it has an “a” designation

    • Operates in the 5 GHz range

    • Provides for twelve non-overlapping channels

    • Supports a maximum throughput of 54 Mbps per channel

    • Has a range of 80 feet

    • Is not compatible with 802.11b

    • Is not compatible with 802.11g

    • Is generally more expensive than 802.11b but less expensive than 802.11g


Wireless implementations 802 11 local3

Wireless Implementations – 802.11, Local

  • 802.11g

    • The latest of the 802.11 group

    • Operates in the 2.4 GHz range

    • Provides for three non-overlapping channels

    • Supports a maximum throughput of 54 Mbps per channel

    • Has a range of 328 feet

    • Is compatible with 802.11b

    • Is not compatible with 802.11a

    • Is generally more expensive than either 802.11b or 802.11a

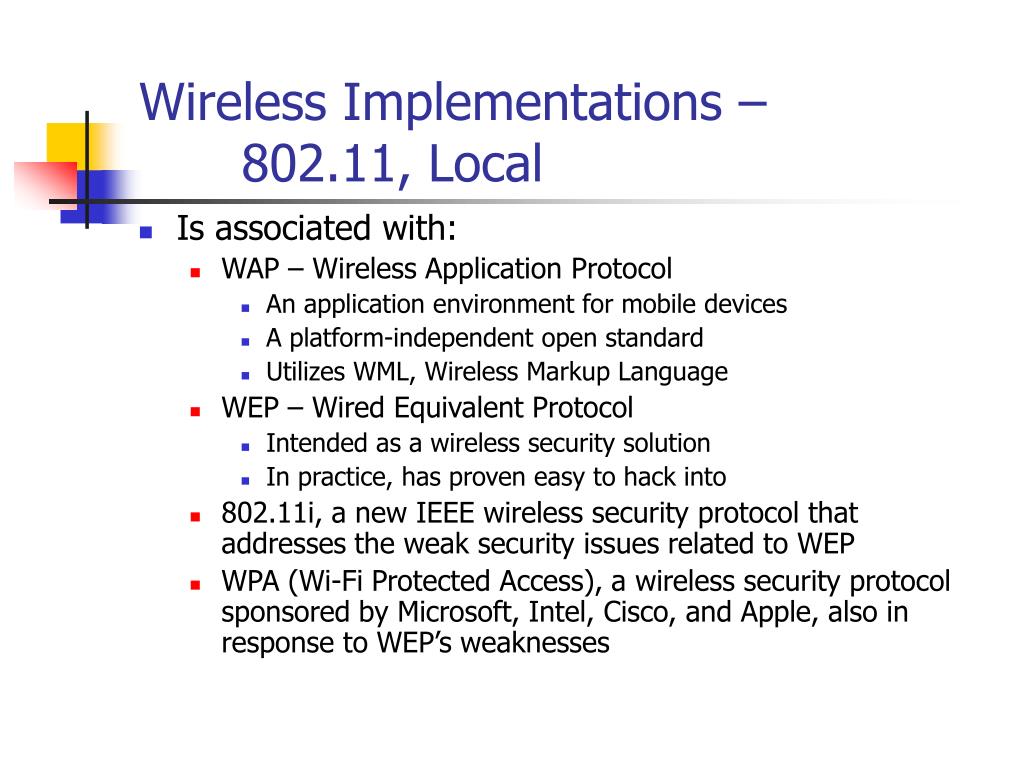

Wireless implementations 802 11 local4

Wireless Implementations – 802.11, Local

  • Is associated with:

    • WAP – Wireless Application Protocol

      • An application environment for mobile devices

      • A platform-independent open standard

      • Utilizes WML, Wireless Markup Language

    • WEP – Wired Equivalent Protocol

      • Intended as a wireless security solution

      • In practice, has proven easy to hack into

    • 802.11i, a new IEEE wireless security protocol that addresses the weak security issues related to WEP

    • WPA (Wi-Fi Protected Access), a wireless security protocol sponsored by Microsoft, Intel, Cisco, and Apple, also in response to WEP’s weaknesses

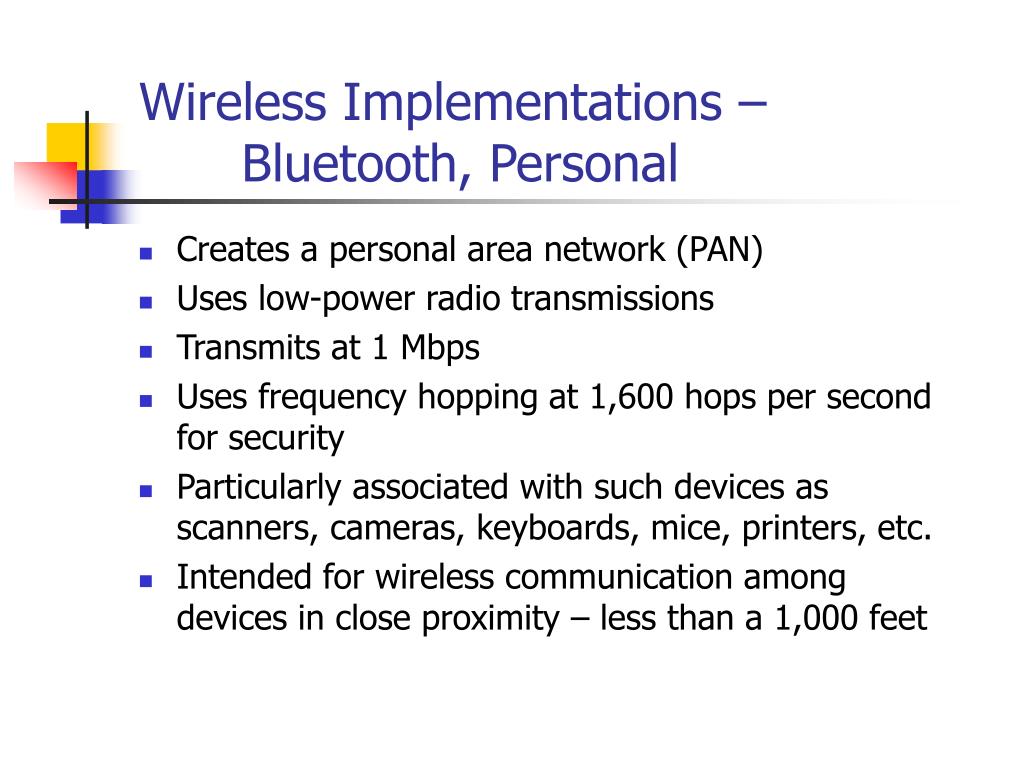

Wireless implementations bluetooth personal

Wireless Implementations – Bluetooth, Personal

  • Creates a personal area network (PAN)

  • Uses low-power radio transmissions

  • Transmits at 1 Mbps

  • Uses frequency hopping at 1,600 hops per second for security

  • Particularly associated with such devices as scanners, cameras, keyboards, mice, printers, etc.

  • Intended for wireless communication among devices in close proximity – less than a 1,000 feet

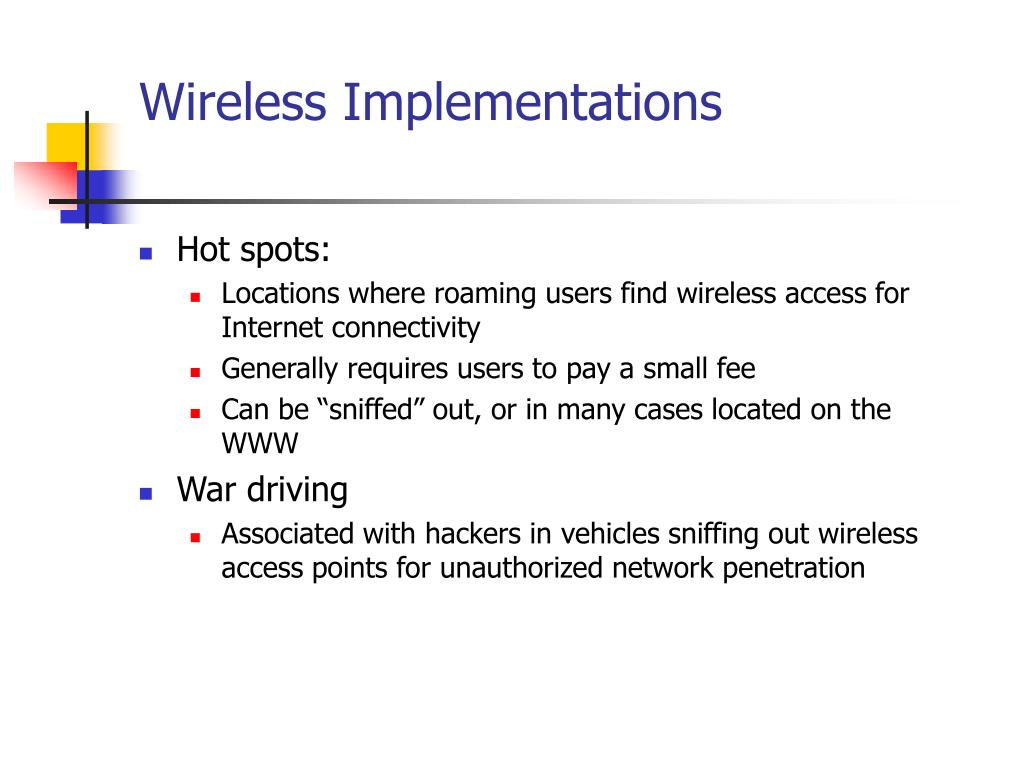

Wireless implementations1

Wireless Implementations

  • Hot spots:

    • Locations where roaming users find wireless access for Internet connectivity

    • Generally requires users to pay a small fee

    • Can be “sniffed” out, or in many cases located on the WWW

  • War driving

    • Associated with hackers in vehicles sniffing out wireless access points for unauthorized network penetration


Business data communications

IPv6

  • Will gradually replace IPv4

  • Is also called IPng for Internetworking Protocol, next generation

  • Provides for 128 bit addressing, referred to as hexadecimal colon notation

    • DA3F:38C7:1934:EC8B:5671:0000:A690:21ED

  • Allows for three addressing types:

    • Unicast

      • Includes the Unspecified and Loopback addresses

    • Multicast

      • Requires subscription

    • Anycast

      • For packets with the same header prefix


Business data communications

IPv6

  • Defines a packet with three potential components:

    • A required header, fixed at 40 bytes

    • An optional extension header

    • The message, or payload

  • By design provides for and incorporates:

    • Prioritization of packets

    • Handling for multimedia types of data

    • Encryption

    • Authentication

    • Significant flexibility in addressing design


Business data communications

IPv6

  • Transitioning from IPv4 to IPv6:

    • Dual stack

      • Devices run both protocol stacks

    • Tunneling:

      • Intended for two IPv6 devices that must communicate through an IPv4 network

      • Can be automatic or configured

        • For configured tunneling a router is the likely mechanism for protocol translation

    • Header Translation

      • Intended for IPv6 packets traveling through an IPv6 network, but the receiver is ultimately an IPv4 device

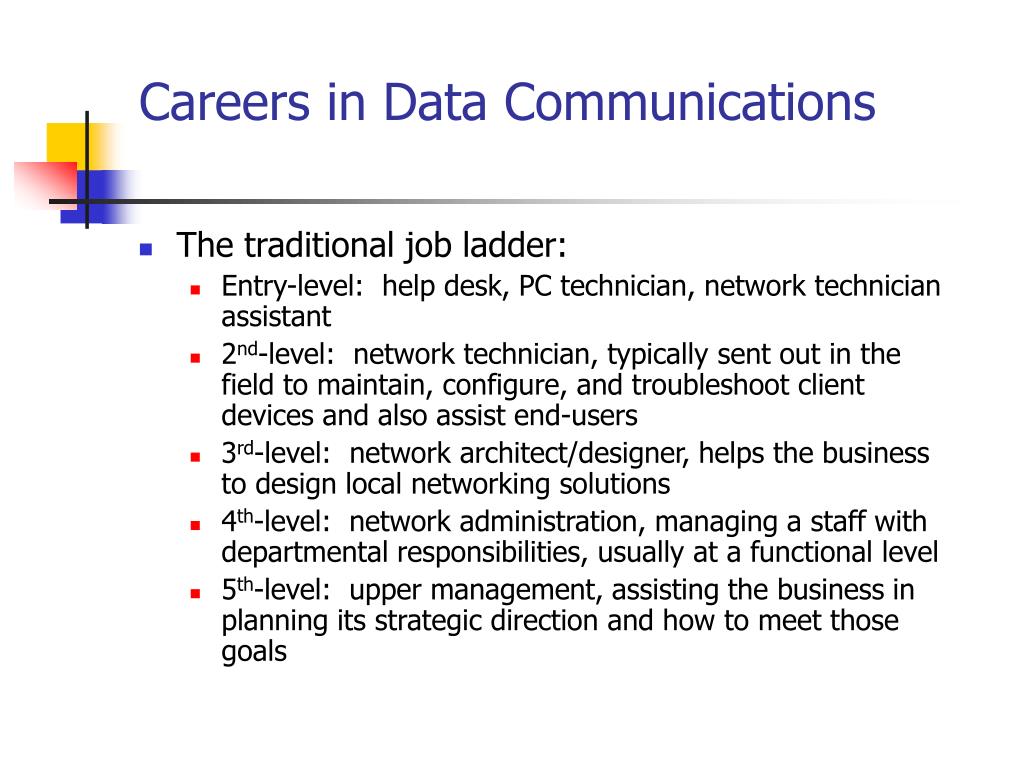

Careers in data communications

Careers in Data Communications

  • The traditional job ladder:

    • Entry-level: help desk, PC technician, network technician assistant

    • 2nd-level: network technician, typically sent out in the field to maintain, configure, and troubleshoot client devices and also assist end-users

    • 3rd-level: network architect/designer, helps the business to design local networking solutions

    • 4th-level: network administration, managing a staff with departmental responsibilities, usually at a functional level

    • 5th-level: upper management, assisting the business in planning its strategic direction and how to meet those goals

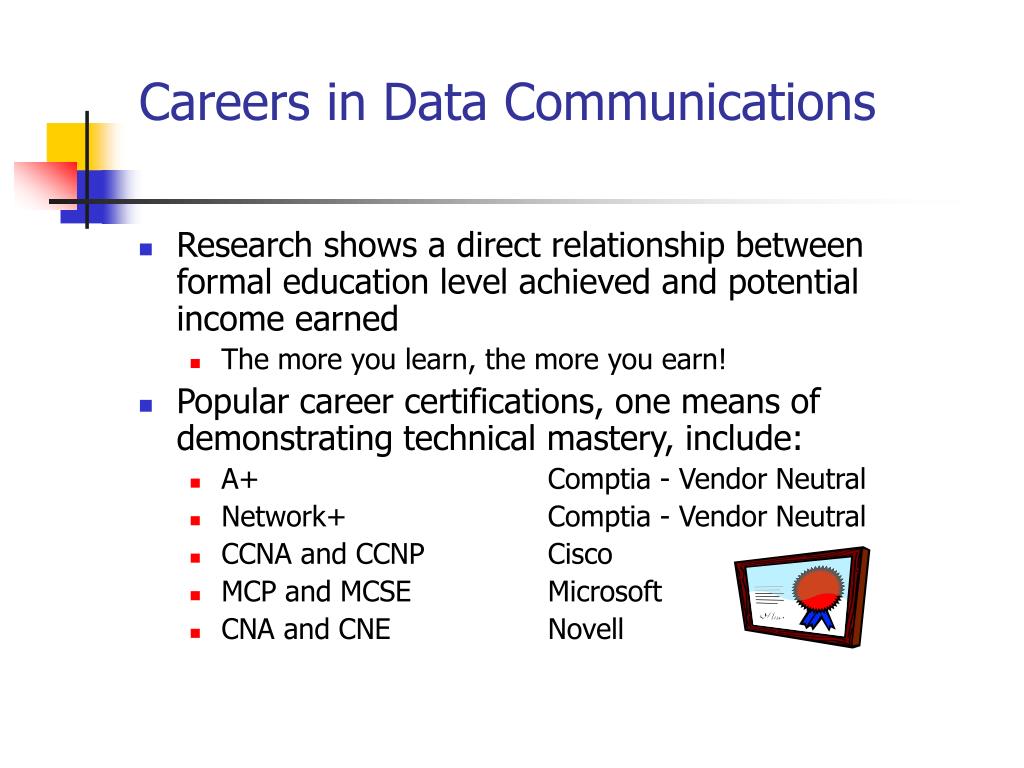

Careers in data communications1

Careers in Data Communications

  • Research shows a direct relationship between formal education level achieved and potential income earned

    • The more you learn, the more you earn!

  • Popular career certifications, one means of demonstrating technical mastery, include:

    • A+Comptia - Vendor Neutral

    • Network+Comptia - Vendor Neutral

    • CCNA and CCNPCisco

    • MCP and MCSEMicrosoft

    • CNA and CNENovell

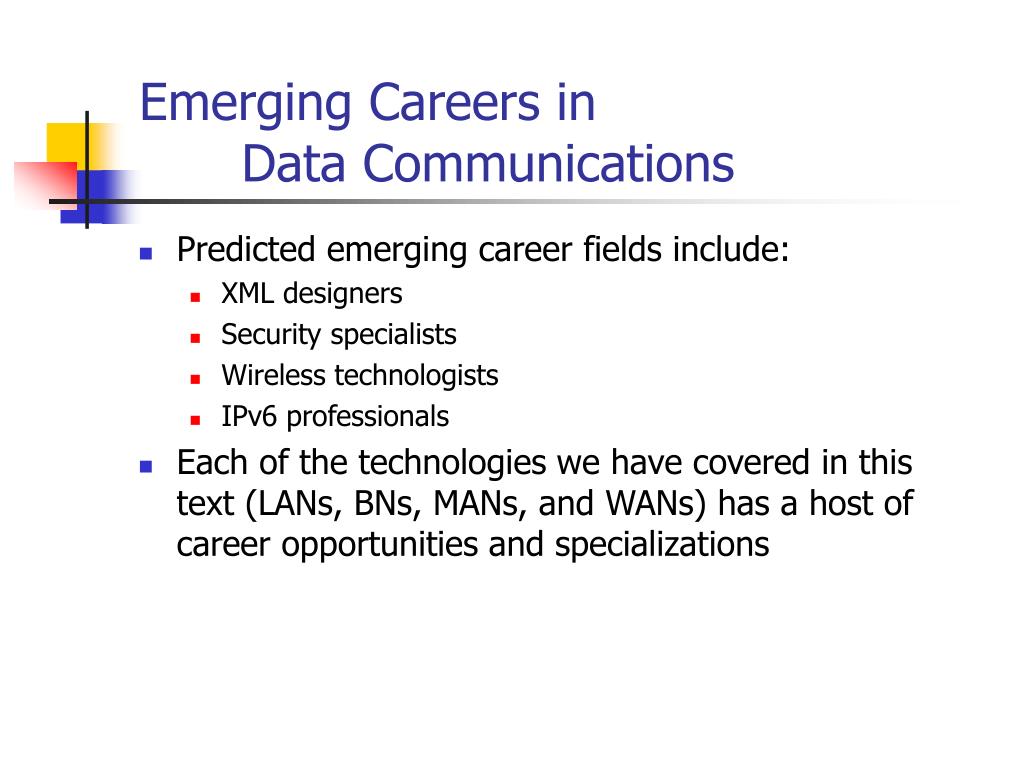

Emerging careers in data communications

Emerging Careers in Data Communications

  • Predicted emerging career fields include:

    • XML designers

    • Security specialists

    • Wireless technologists

    • IPv6 professionals

  • Each of the technologies we have covered in this text (LANs, BNs, MANs, and WANs) has a host of career opportunities and specializations

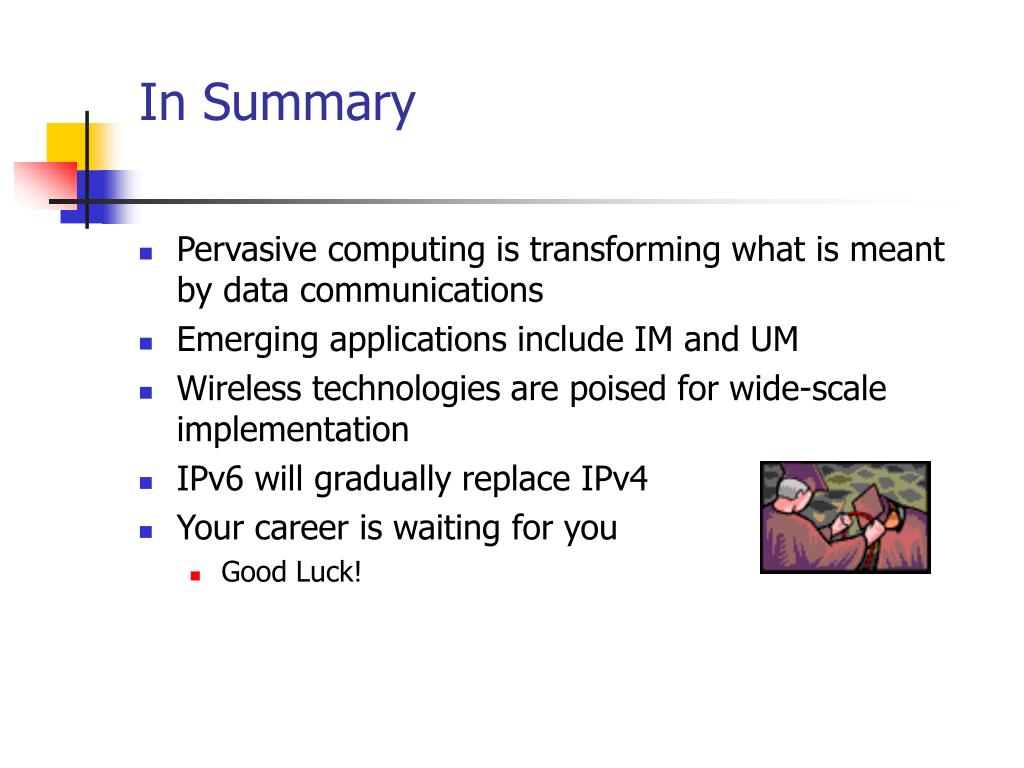

In summary

In Summary

  • Pervasive computing is transforming what is meant by data communications

  • Emerging applications include IM and UM

  • Wireless technologies are poised for wide-scale implementation

  • IPv6 will gradually replace IPv4

  • Your career is waiting for you

    • Good Luck!
