  1. mu0 & algorithm SoC Lab

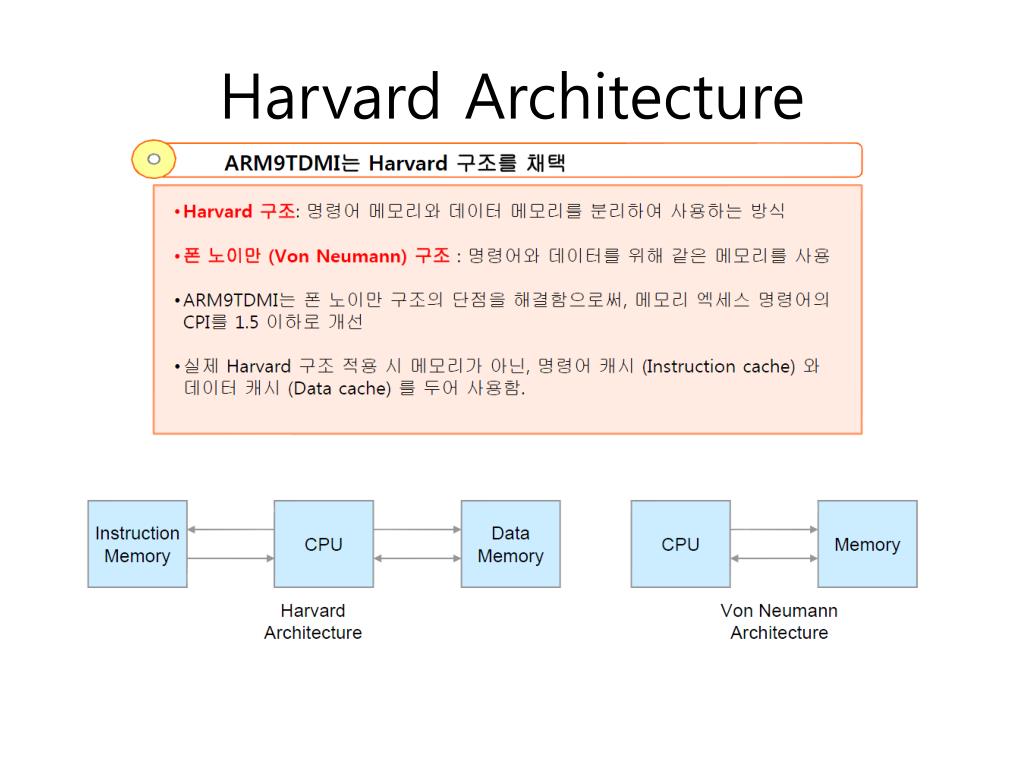

  2. Harvard Architecture

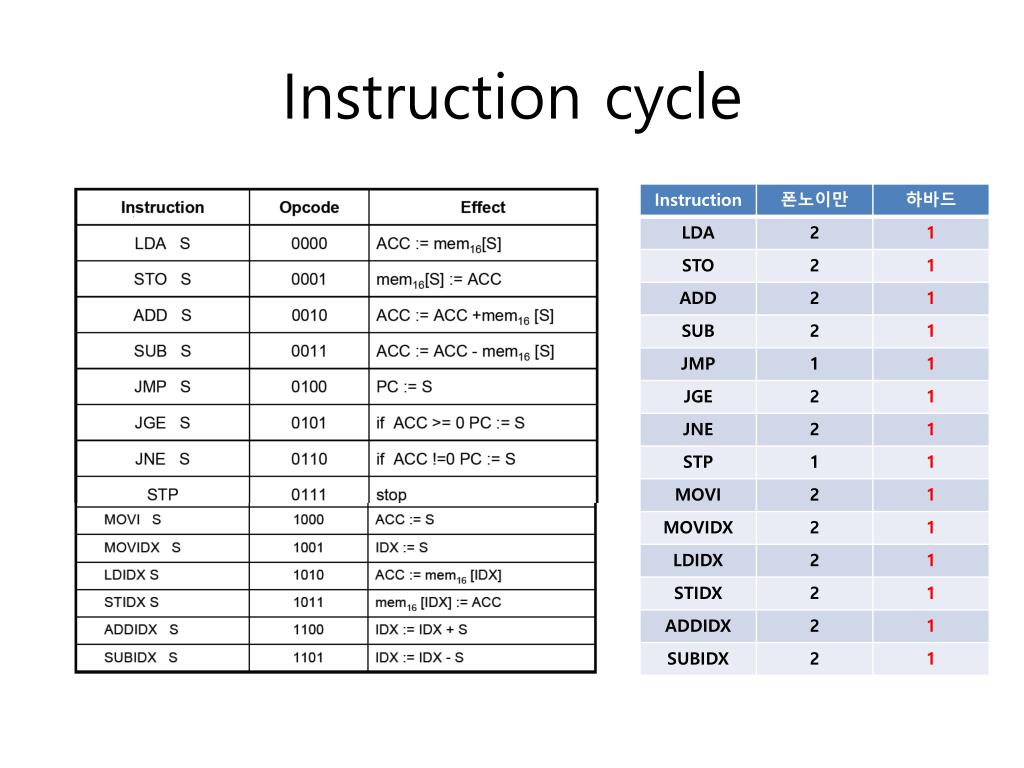

  3. Instruction cycle

  4. Harvard Architecture D_ADDR D_DATA Data Memory INST_ADDR INST_DATA Inst Memory IR MUX PC +1 + ALU MUX ACC

  5. Harvard Architecture with Index Register D_ADDR D_DATA Data Memory MUX INST_ADDR INST_DATA Inst Memory IR MUX PC +1 + ALU MUX MUX ACC IDX

  6. Harvard Architecture with Index & Link Address Register 1/2 • 추가 명령어 • CALL S // call sub-routine • RET // return • 추가 레지스터 • Link address // or stack point • Reset • Link address를 적절한 번지로 초기화 ( 메모리의 뒷부분에 할당)ex) data mem이 1000번지까지 있다면 900 정도로 설정

  7. Harvard Architecture with Index & Link Address Register 2/2 CALL S // dmem[RA] = PC , IR = imem[S], PC = S+1, RA = RA+1 RET // IR = imem[dmem[RA-1]], PC = dmem[RA-1]+1, RA = RA-1 D_ADDR D_DATA Data Memory MUX INST_ADDR INST_ADDR INST_DATA Inst Memory RA IR MUX MUX PC 1 1 + - +1 D_DATA + ALU MUX MUX ACC IDX

  8. 최대 공약수유클리드호제법 Input = 24 , 16 intFindGcdUmethod(intiFirstIn,intiSecondIn) { intiMaxNum,iMinNum; if(iFirstIn>iSecondIn) { iMaxNum=iFirstIn; iMinNum=iSecondIn; }else{ iMaxNum=iSecondIn; iMinNum=iFirstIn; } if(iMinNum==0) return iMaxNum; else return FindGcdUmethod(iMinNum,iMaxNum%iMinNum); } iMaxNum 24 16 8 8 iMinNum 16 8 8 0

  9. Binary search intbinary_search( int *data, int key, intlenth) { int l = 0; // left int r = lenth -1; //right int mid; while( l <= r) { mid = (l + r); mid = mid >> 1; if( data[mid] == key) return mid; // find key else if(data[mid] < key) l = mid + 1; else if (data[mid] > key) r = mid -1; } return -1; // can't find } lenth = 10, key = 66l = 0 , r = 9, mid = 4, data[mid] = 33 l = 5 , r = 9, mid = 7, data[mid] = 67 l = 5 , r = 6, mid = 5, data[mid] = 55 l = 6 , r = 6, mid = 6, data[mid] = 66

  10. Run-Length Coding void run_lenth(int *data,int *comp,int length) { inti; int code = data[0]; intcode_cnt = 1; intdest_cnt = 0; for(i=1;i<length;i++) { if(code == data[i]) code_cnt = code_cnt + 1; else { comp[dest_cnt] = code; dest_cnt = dest_cnt+1; comp[dest_cnt] = code_cnt; code = data[i]; code_cnt = 1; } } comp[dest_cnt] = code; dest_cnt = dest_cnt+1; comp[dest_cnt] = code_cnt; } data : 44444333233333332223334444 comp : 45 32 21 37 23 33 44 Num of data = 26 Num of comp = 14 Compression Rate = 26/14 = 1.86

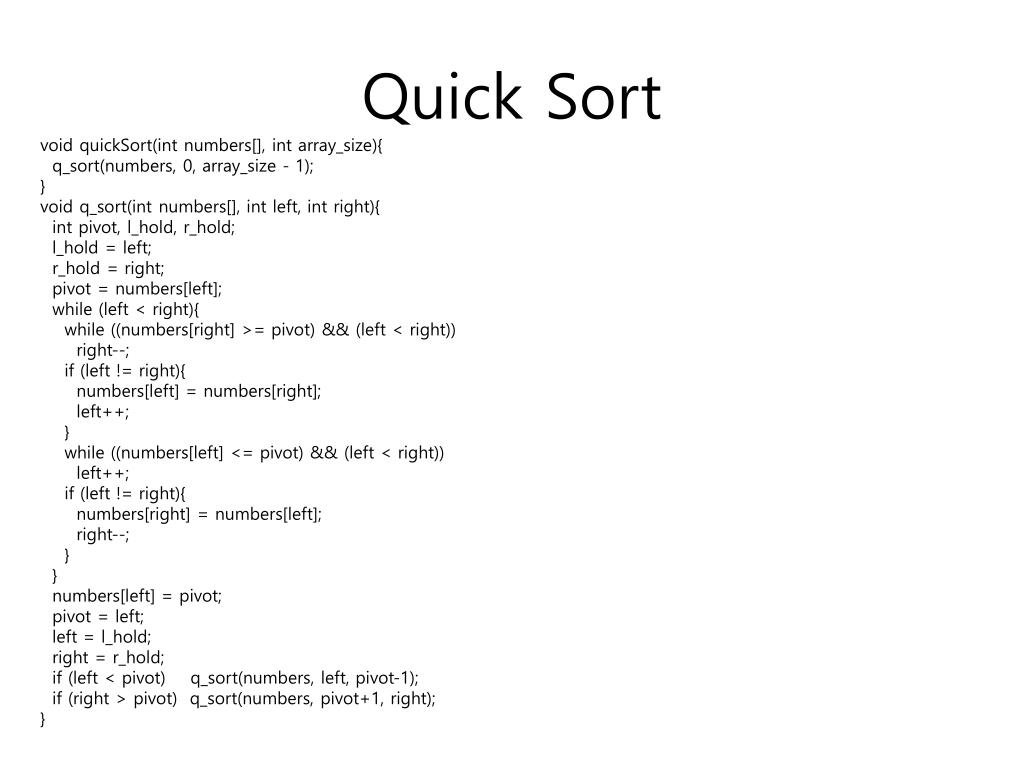

  11. Quick Sort void quickSort(int numbers[], intarray_size){ q_sort(numbers, 0, array_size - 1); } void q_sort(int numbers[], int left, int right){ int pivot, l_hold, r_hold; l_hold = left; r_hold = right; pivot = numbers[left]; while (left < right){ while ((numbers[right] >= pivot) && (left < right)) right--; if (left != right){ numbers[left] = numbers[right]; left++; } while ((numbers[left] <= pivot) && (left < right)) left++; if (left != right){ numbers[right] = numbers[left]; right--; } } numbers[left] = pivot; pivot = left; left = l_hold; right = r_hold; if (left < pivot) q_sort(numbers, left, pivot-1); if (right > pivot) q_sort(numbers, pivot+1, right); }

  12. ModelSim Tip In tb_mu0 module function [8*7-1:0] opcode_expr; input [3:0] opcode; opcode_expr = opcode == 0 ? "LDA": opcode == 1 ? "STO": opcode == 2 ? "ADD": opcode == 3 ? "SUB": opcode == 4 ? "JMP": opcode == 5 ? "JGE": opcode == 6 ? "JNE": opcode == 7 ? "STP": opcode == 8 ? "MOVIDX" opcode == 9 ? "LDIDX" opcode ==10 ? "STIDX" opcode ==11 ? "ADDIDX" opcode ==12 ? "SUBIDX“ "NaO"; endfunction wire [8*7-1:0] opcode_name; assign opcode_name = opcode_expr(dut.ir[15:12]);
