Introduction to Content-aware Switch

Presented by

Li Zhao


Content aware switch cs l.jpg

Content-aware Switch (CS)

www.yahoo.com

Internet

Image Server

IP

TCP

APP. DATA

Application Server

Switch

GET /cgi-bin/form HTTP/1.1

Host: www.yahoo.com…

HTML Server

  • Front-end of a web cluster

  • Route packets based on layer 5/7 (content) information


Why use cs l.jpg

Why use CS

  • Servers can be specialized for certain types of request

    • Content segregation

  • Exploit locality

    • Affinity-based routing

    • Increase the performance because of the improved hit rate

  • Partial replication of server file set

    • Partition the server’s file set over different nodes


Content aware switch architecture l.jpg

Content-aware Switch Architecture

  • Two way architecture

    • Server returns the

    • response to the switch

  • One way architecture

    • Server returns the

    • response to the client

client

switch

server


Layer 7 two way architecture l.jpg

Layer 7 Two-way Architecture


Layer 7 two way mechanisms l.jpg

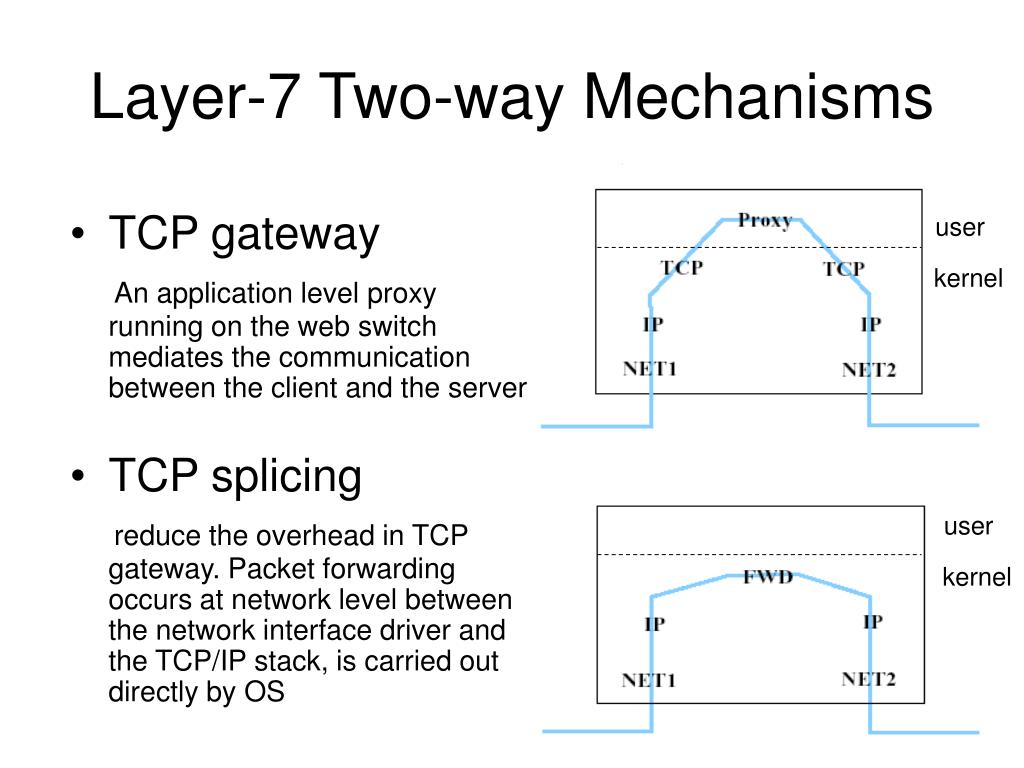

Layer-7 Two-way Mechanisms

  • TCP gateway

    An application level proxy running on the web switch mediates the communication between the client and the server

  • TCP splicing

    reduce the overhead in TCP gateway. Packet forwarding occurs at network level between the network interface driver and the TCP/IP stack, is carried out directly by OS

user

kernel

user

kernel


Tcp splicing l.jpg

SYN(CSEQ)

step4

SYN(SSEQ)

step5

ACK(CSEQ+1)

step6

DATA(CSEQ+1)

ACK(SSEQ+1)

TCP Splicing

client

server

content switch

SYN(CSEQ)

step1

SYN(DSEQ)

step2

ACK(CSEQ+1)

DATA(CSEQ+1)

step3

ACK(DSEQ+1)

step7

DATA(DSEQ+1)

DATA(SSEQ+1)

ACK(CSEQ+LenR+1)

ACK(CSEQ+lenR+1)

step8

ACK(DSEQ+

lenD+1)

ACK(SSEQ+lenD+1)

lenR: size of http request.

.

lenD: size of return document


Tcp splicing w pre forked connections l.jpg

TCP Splicing w/ Pre-forked Connections

switch

client

server

SYN(PSEQ)

step1

SYN(SSEQ)

step2

ACK(PSEQ+1)

ACK(SSEQ+1)

step3

SYN(CSEQ)

step4

SYN(DSEQ)

step5

ACK(CSEQ+1)

DATA(CSEQ+1)

step6

ACK(DSEQ+1)

DATA(PSEQ+1)

step7

ACK(SSEQ+1)

DATA(DSEQ+1)

DATA(SSEQ+1)

step8

ACK(CSEQ+LenR+1)

ACK(PSEQ+lenR+1)

ACK(DSEQ+

lenD+1)

ACK(SSEQ+lenD+1)

step9

lenR: size of http request.

.

lenD: size of return document


Pre allocate server scheme l.jpg

SYN(CSEQ)

SYN(CSEQ)

step1

SYN(SSEQ)

SYN(SSEQ)

step2

ACK(CSEQ+1)

ACK(CSEQ+1)

step3

DATA(CSEQ+1)

DATA(CSEQ+1)

ACK(SSEQ+1)

ACK(SSEQ+1)

step4

DATA(SSEQ+1)

DATA(SSEQ+1)

ACK(CSEQ+LenR+1)

ACK(CSEQ+lenR+1)

step5

lenD+1)

ACK(SSEQ+

ACK(SSEQ+lenD+1)

Pre-Allocate Server Scheme

Pre-allocated

server

client

content switch

  • Use a guess routing decision based on IP/Port#/History

  • Advantage:

    • Faster than TCP splicing.

    • Reduce session processing overheadno need to convert server sequence #


Degenerated to tcp splicing if guess wrong l.jpg

SYN(CSEQ)

step4

SYN(RSEQ)

step5

ACK(CSEQ+1)

step6

DATA(CSEQ+1)

ACK(SSEQ+1)

Degenerated to TCP Splicing If Guess Wrong

Pre-allocated

server

client

content switch

SYN(CSEQ)

SYN(CSEQ)

step1

SYN(SSEQ)

SYN(SSEQ)

step2

ACK(CSEQ+1)

ACK(CSEQ+1)

step3

DATA(CSEQ+1)

FIN(CSEQ+1)

ACK(SSEQ+1)

Right server

step4

DATA(SSEQ+1)

DATA(RSEQ+1)

ACK(CSEQ+LenR+1)

ACK(CSEQ+lenR+1)

step5

lenD+1)

ACK(DSEQ+

ACK(SSEQ+lenD+1)

Sequence # conversion needed


Case study l.jpg

Case Study

  • Linux-based content aware switch [Yang99]

  • IBM Layer 5 [Pradhan00]


Functional overview of content aware distributor l.jpg

Functional Overview of Content-aware Distributor


Results l.jpg

Results

  • Overhead of the switch

    • 89usec reduced  pre-forked connections

  • CS vs. Layer 4 switch

    • Affinity-based routing vs. WRR

    • Content-segregation vs. WRR

      • CGI: 27%

      • Static: 36%


Ibm switch architecture l.jpg

IBM Switch Architecture

  • Switch core

  • Port controller:

    • Identify packets (layer 5) and send them to CPU

    • Processing all other packets

  • CPU: PowerPC 603e

    • Parse http request

    • URL based routing


Flow diagram on layer 5 system l.jpg

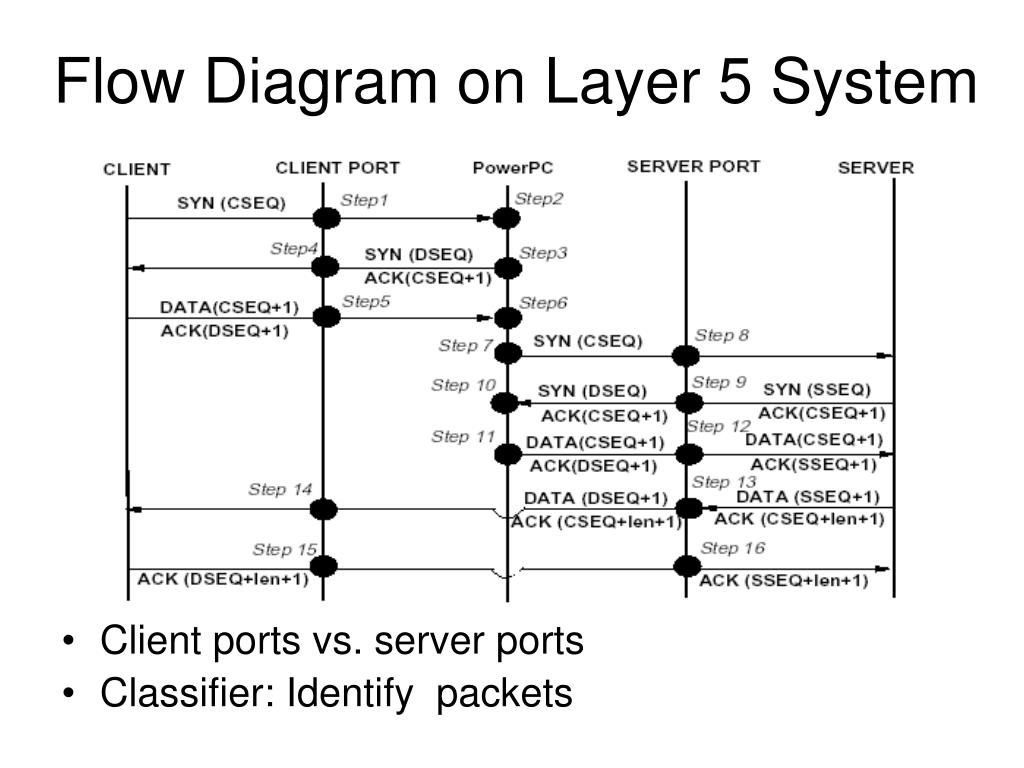

Flow Diagram on Layer 5 System

  • Client ports vs. server ports

  • Classifier: Identify packets


Results16 l.jpg

Results

  • CS vs. Layer 4 switch

    • Entire set of files are replicated

    • Some servers share files by NFS

    • Partitioned file set


Layer 7 one way architecture l.jpg

Layer-7 one-way architecture


Layer 7 one way mechanisms l.jpg

Layer-7 one-way mechanisms

  • TCP handoff

    The switch hands off the TCP connection endpoint to the server

  • TCP connection hop

    • Software-based proprietary solution

    • encapsulating the IP packet in an RPX packet and sending it to the server.


Tcp handoff l.jpg

TCP Handoff

client

content switch

server

SYN(CSEQ)

step1

SYN(DSEQ)

step2

ACK(CSEQ+1)

DATA(CSEQ+1)

step3

ACK(DSEQ+1)

Migrate(Data, CSEQ, DSEQ)

step4

DATA(DSEQ+1)

step5

ACK(CSEQ+lenR+1)

step6

ACK(DSEQ+

lenD+1)

ACK(DSEQ+lenD+1)

  • Migrate the created TCP connection from the switch to the back-end sever

    • Create a TCP connection at the back-end without going through the TCP three-way handshake

    • Retrieve the state of an established connection and destroy the connection without going through the normal message handshake required to close a TCP connection

  • Once the connection is handed off to the back-end server, the switch must forward packets from the client to the appropriate back-end server


References l.jpg

References

  • [Pradhan00] G.Apostolopoulos, et. al, Design, Implementation and Performance of a Content-Based Switch, proceedings of IEEE INFOCOM-2000

  • [Pai98] V.S. Pai, et. al, Locality-Aware Request Distribution in Cluster-based Network Servers. In Proceedings of the 8th Conference on Architectural Support for Programming Languages and Operating Systems, San Jose, CA, Oct.1998

  • [Aron00] Mohit Aron et. al, Scalable Content-aware Request Distribution in Cluster-based Network Servers, Proc. of the 2000 Annual Usenix Technical Conference, June 2000

  • [Edward] C. Edward Chow Chow, Introduction to content switch

  • [Valeria01] Valeria Cardellini, et. al, The state of the Art in Locally Distributed Web-server Systems, IBM research report

  • [Yang99] Chu-Sing Yang, et. Al, Efficient support for content-based rouging in web server clusters, Proc. Of USITS’ 99
