Presentation Transcript


Slide1 l.jpg

Mobile Operating Systems

Symbian

The Symbian OS home page shows the demand paging.

http://www.symbian.com/symbianos/index.html

Developer pages.

http://www.forum.nokia.com/info/sw.nokia.com/id/dbb8841d-832c-43a6-be13-

f78119a2b4cb.html

Android.

Open Handset Alliance --- Android Google mobile OS based on Linux.

http://code.google.com/android/

SW stack

http://code.google.com/android/what-is-android.html

SDK tools

http://code.google.com/android/intro/hello-android.html

Hardware -- Paging

Paging System for Pentium - - 4K pages and 4Mpages

http://www.rcollins.org/ddj/May96/


Cmt603 l.jpg

CMT603

Lecture 10

File Systems


Contents l.jpg

Contents

  • Files

    • File Attributes

    • File Operations

  • Access control

  • File System Mounting

  • Allocation methods

    • Contiguous

    • Linked

    • indexed

  • Real file systems

    • FAT

    • UFS

    • NTFS


Files l.jpg

Files

  • A file is a named collection of related information that is recorded on secondary storage.

    • It is the smallest logical storage unit.

      • Data to be stored has to be in a file

    • It has a certain defined structure, which depends on its type.

      • Text files, source files, executable files, object files, etc.


File attributes l.jpg

File attributes

  • File attributes typically include

    • Name -- human readable name

    • Identifier -- non-human-readable name

    • Type -- is need for those systems that supports different types of files

    • Location -- a pointer to the location

    • Size -- the current size

    • Protection -- access control information

    • Time, date, and user identification.

  • They are kept in the directory structure.


File operations l.jpg

File Operations

  • A file is an abstract data type and is associated with operations.

    • Basic operations

      • Creating a file

      • Writing a file

      • Reading a file

      • Repositioning within a file

      • Deleting a file

      • Truncating a file

    • Other two common operations

      • Appending to a file

      • Renaming a file


Access control l.jpg

Access Control

  • Read Write Execute

    • drwxrwxrwx

  • ls -l

  • chmod [references][operator][modes] file

    • References u-user, g-group, o-others, a-all

    • Operator +, -, =

    • Modes r,w,x

  • Example

    • chmod ug+rw text.txt


File system mounting l.jpg

File System Mounting

File Sys A

File Sys B

Sub Dir B

Sub Dir A

Sub Dir B

Sub Dir A

Sub sub A

Sub sub B

Sub sub A

Sub sub B

File A

File A


File system mounting9 l.jpg

File System Mounting

File Sys A

Sub Dir B

Sub Dir A

File Sys B

Sub sub A

Sub sub B

File A

Sub Dir B

Sub Dir A

Sub sub A

Sub sub B

File A


Linux l.jpg

Linux

  • Log into lapis (or any cslx machine)

    • You are in your directory (scm????)

  • cd .. To the home directory and view the mounted file systems on that specific machine.


Mounting local drives xp l.jpg

Mounting Local drives XP

  • From “My Computer”

    • Right Click > Manage

    • Click on Disk management.

  • From here local drives can be mounted into the directory structure


Access to files l.jpg

Access to files

  • Sequential Access

  • Direct Access


Allocation methods l.jpg

Allocation Methods

  • How to allocate space to files so that disk space is utilized effectively and file can be accessed quickly?

  • Three major methods

    • Contiguous

    • Linked

    • Indexed


Contiguous allocation l.jpg

Contiguous Allocation

  • Each file occupies a set of contiguous blocks of disk.

Problems?

0

1

2

3

4

5

6

7

8

9

11

12

13

14

10

15

16

17

18

19


Contiguous allocation15 l.jpg

Contiguous Allocation

  • Benefits:

    • Quick and easy calculation of block holding data.

    • Supports both sequential and direct access.

  • Disadvantages:

    • Where is the best place to put a new file?

    • Problems when the file gets bigger.

    • Fragmentation problem.

  • IBM VM/CMS


Linked allocation l.jpg

Linked Allocation

  • Each file is a linked list of disk blocks which may be scattered anywhere in the disk.

0

1

2

3

4

8

17

-1

5

-1

5

6

7

8

9

7

19

11

-1

?

11

12

13

14

10

9

18

3

0

4

15

16

17

18

19

10

6

13

2

8


Linked allocation17 l.jpg

Linked Allocation

  • Benefits

    • solves all the problems of contiguous allocation.

  • Disadvantages:

    • Potentially terrible performance for direct access.

    • Each file needs more space because each block contains a pointer to the next block.

    • Reliability problem

      • what if one pointer is lost?


Linked allocation with a file allocation table fat l.jpg

Linked Allocation with a File Allocation Table (FAT)

  • Use a file allocation table (FAT)

    • The table has one entry for each disk block, and is indexed by block number.

    • For each file:

      • The directory entry contains the block number of the first block of the file

      • The FAT is used as a linked list.


Linked allocation with a file allocation table fat19 l.jpg

Linked Allocation with a File Allocation Table (FAT)

Directory

FAT

0

1

2

3

4

R

N

U

A

O

5

6

7

8

9

A

T

C

Y

I

11

12

13

14

10

9

3

F

L

T

15

16

17

18

19

A

2

L

O

P


Linked allocation with a file allocation table fat20 l.jpg

Linked Allocation with a File Allocation Table (FAT)

  • Benefit

    • direct access time is improved.

  • Disadvantage

    • Results in a significant number of disk head seeks.

  • What happens if the FAT is cached?

    • Must save it occasionally!!!!!!


Indexed allocation l.jpg

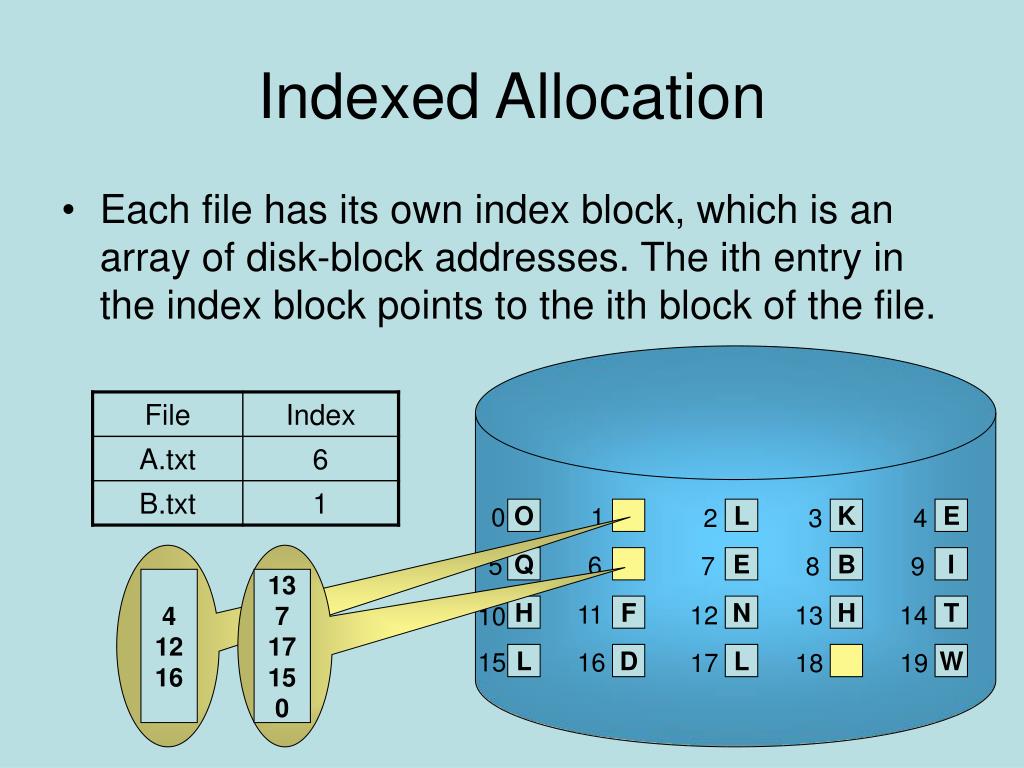

Indexed Allocation

  • Each file has its own index block, which is an array of disk-block addresses. The ith entry in the index block points to the ith block of the file.

0

1

2

3

4

O

L

K

E

5

6

7

8

9

Q

E

B

I

4

12

16

13

7

17

15

0

11

12

13

14

10

H

F

N

H

T

15

16

17

18

19

L

D

L

W


Indexed allocation22 l.jpg

Indexed Allocation

  • Benefits

    • Solves all the problems of contiguous allocation.

    • Support direct access, but not as efficient as FAT.

  • Disadvantages

    • Wasted space due to overhead of index block


Slide23 l.jpg

Unix

  • Directory holds file name and pointer to the inode

  • inode

    • File information

      • Owner

      • Size

      • Time stamp

      • Permissions

    • Pointers to file data blocks


Fat 32 l.jpg

Fat 32

  • Directory holds small attributes

    • Permissions

    • Date etc

    • Pointer to FAT index

  • 32 bits for the block numbers

    • Up to 4 G blocks

    • Typically 4K blocks

  • Windows XP still supports this.


Slide25 l.jpg

NTFS

  • Volumes can be split over physical drives

  • Uses Clusters, size of cluster configured at format time

    • Depends on size of the disk

  • Provides recovery mechanism

    • Logs the redo and undo info, does the change, commits the change

    • Ensures file system is safe not user data


  • Slide26 l.jpg

    NTFS

    • Master File Table (MFT)

    • Structured Object

      • Contains attributes

      • The file data is an attribute

      • Small attributes are stored in the MFT

        • Resident attribute

      • Large attributes stored in One or more extents

        • A pointer to the extents is in the MFT

          • If more space is required, pointer to base file record

      • Data attribute, if small enough, stored in MFT


    Many many many more l.jpg

    Many Many Many More

    • See internet

      • as a starting point

        • http://en.wikipedia.org/wiki/Comparison_of_file_systems


    Free space management l.jpg

    Free Space Management

    • Stored in a free space list

      • Commonly a bit vector

        000110111011111110111101000000010111

      • Modern processors have support for returning the first 1 in a word


    Linked list l.jpg

    Linked List

    • Keep PTR to Head

    • Traversing list not efficient

      • Not done much

    0

    1

    2

    3

    4

    N

    A

    O

    5

    6

    7

    8

    9

    A

    T

    C

    I

    11

    12

    13

    14

    10

    L

    T

    15

    16

    17

    18

    19

    A

    O

    P


    Summary l.jpg

    Summary

    • Files

      • File Attributes

      • File Operations

    • Access control

    • File System Mounting

    • Allocation methods

      • Contiguous

      • Linked

      • indexed

    • Real file systems

      • FAT

      • UFS

      • NTFS


    Course summary l.jpg

    How does it work?

    Modern OS are interrupt driven.

    Dual Mode Operation.

    User mode

    System mode

    Timers

    Architectures of Operating Systems

    Monolithic

    Layered

    Kernel

    Microkernel

    Increasing Efficiency

    Multi program

    Multi User

    Processes and Threads.

    Process - Program in execution.

    Thread - Lightweight process

    Context Switching

    Process Queues

    Thread Mappings

    Course Summary

    Creation

    Termination

    Created

    Exit

    Scheduler Dispatch

    Ready

    Running

    Interrupt

    I/O or Event

    Wait

    Blocked

    I/O or Event

    completion


    Course summary32 l.jpg

    Why schedule processes?

    Preemption

    Scheduling Algorithms

    FCFS

    SJF

    Priority scheduling

    Round Robin

    Average Wait Time

    Turnaround time

    Multi Level Queues

    Real Systems

    Linux

    XP

    Process interaction

    Problems - Process interaction

    Software solutions

    Criteria for the solutions

    Mutual exclusion

    Progression

    Bounded wait

    Hardware solutions

    Locks

    OS solutions

    Semaphores

    Uses

    Classical problem

    What is Deadlock?

    Detecting Deadlock

    Preventing Deadlock

    Avoiding Deadlock

    Course Summary


    Course summary33 l.jpg

    Addressing and Address binding

    Logical - Physical Addressing

    Memory Management Unit

    Contiguous Addressing

    Fixed Partition

    Variable Partition

    Non-Contiguous Addressing

    Paging

    Segmentation

    Virtual Memory

    Implementation

    Page Faults

    Files

    File Attributes

    File Operations

    Access control

    File System Mounting

    Allocation methods

    Contiguous

    Linked

    indexed

    Real file systems

    FAT

    UFS

    NTFS

    Course Summary


    Slide34 l.jpg

    Exam

    • 5 questions,:-

    • Compulsory :

    • 1 mixed (MJWM, MWD, IMC)

    • Choice (2 of 4):

    • 2 Computer Arch (MJWM)

    • 1 Networks (MWD)

    • 1 Operating Systems (IMC)

    • Maximum mark obtainable 75


    Slide35 l.jpg

    Exam

    • What is ….[2]

    • State ….[1]

    • Briefly describe ….[2]

    • Explain …. [5]

    • Describe ….[6]


    Past questions l.jpg

    Past Questions

    (a) CPU scheduling algorithms are designed to keep a computer system running efficiently in a multiprogramming environment. Probably the best known criterion for judging the success of a particular scheduling algorithm is to measure the CPU utilization, i.e. the percentage of time that the CPU is busy (i.e. not sitting idle). Briefly describe three other criteria that could be used to measure the efficiency of CPU scheduling algorithms. [6]

    (b) Outline a scheduling algorithm that you think would be particularly appropriate for maximizing CPU utilization. Why do you consider it to be suitable? Describe scheduling algorithms that you believe would be suited to multiprogramming environments with efficiency measures based on each of the three other criteria from part (a). [8]


    Past question l.jpg

    Past Question

    • (c) Describe the meaning of the term virtual memory? Briefly distinguish between paging and segmentation, as memory management schemes for computer systems[4]

    • (d) Describe the main advantages and disadvantages of using segmentation rather than paging. [3]

    • (e) Consider a computer memory management system in which memory contains the following hole sizes in memory order: 10 KB, 4 KB, 20 KB, 18 KB, 7 KB, 9 KB, 12 KB and 15 KB. Which hole is taken for successive segment requests of: 12 KB, 10 KB, 9 KB when each of the following algorithms is used:-

    • (i) first fit, [1]

    • (ii) best fit, [1]

    • (iii) worst fit and [1]

    • (iv) next fit. [1]


  • Login
