Presentation Transcript


Mc68hc908gp32idk

MC68HC908GP32IDK在线编程开发系统

Tsinghua Motorola MCU&DSP Application Center

2001.11


Gp32idk

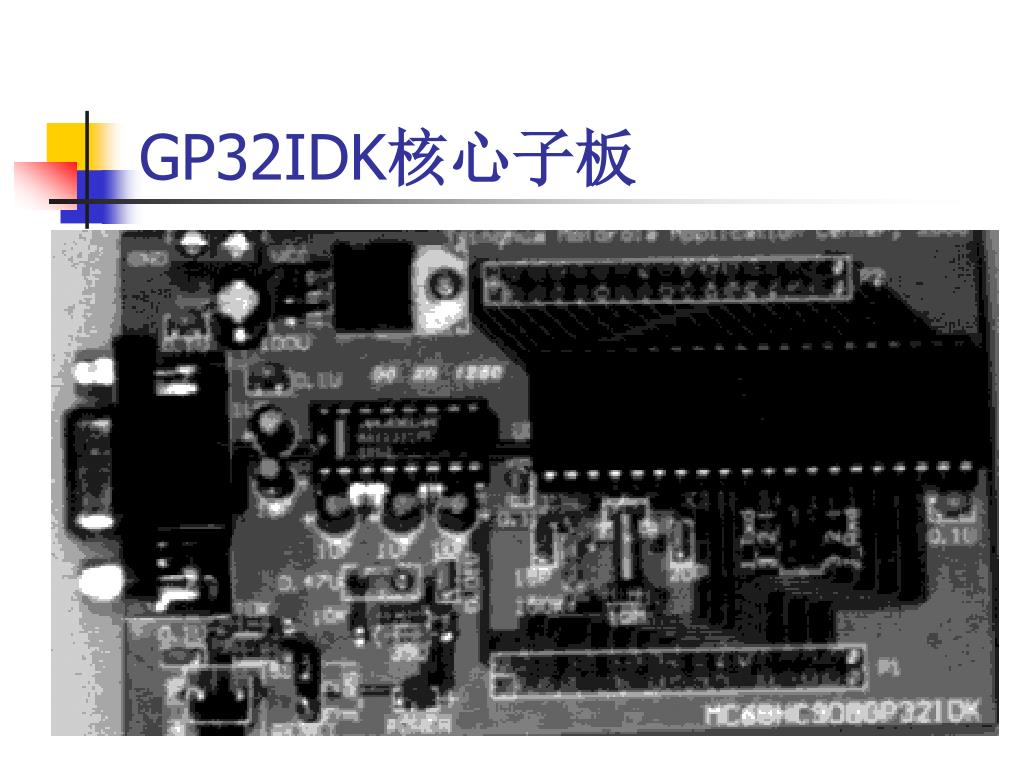

GP32IDK核心子板


Gp32idk1

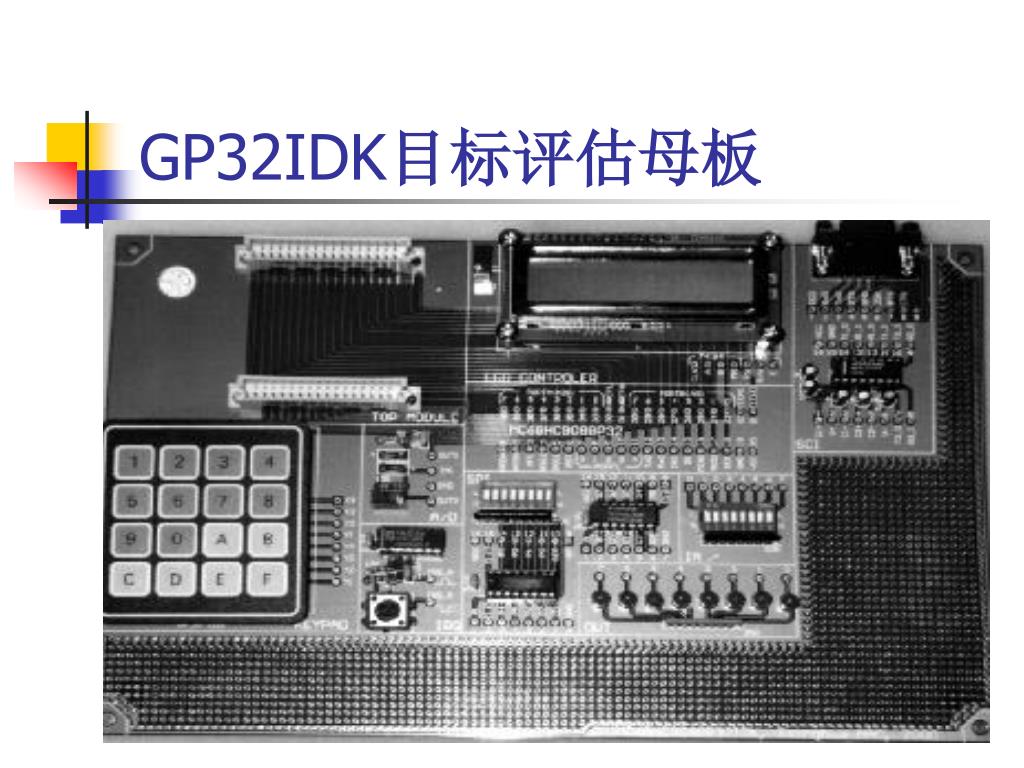

GP32IDK目标评估母板


Mc68hc908gp32idk1

MC68HC908GP32IDK 使用

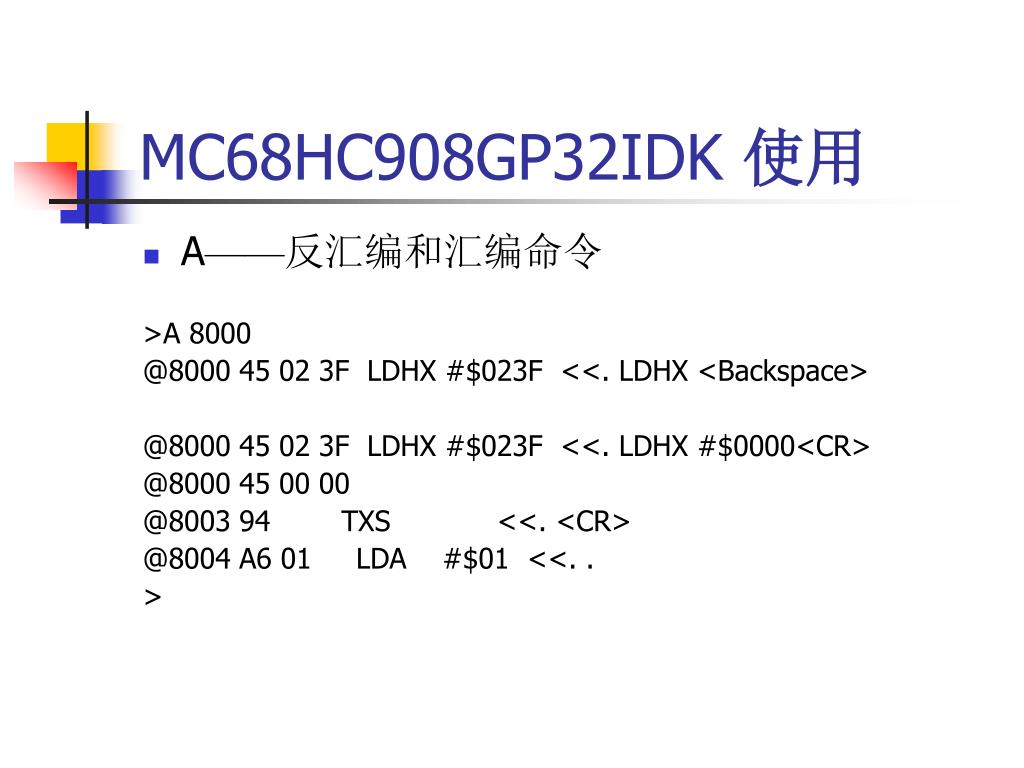

  • A——反汇编和汇编命令

    >A 8000

    @8000 45 02 3F LDHX #$023F <<. LDHX <Backspace>

    @8000 45 02 3F LDHX #$023F <<. LDHX #$0000<CR>

    @8000 45 00 00

    @8003 94 TXS <<. <CR>

    @8004 A6 01 LDA #$01 <<. .

    >


Mc68hc908gp32idk2

MC68HC908GP32IDK 使用

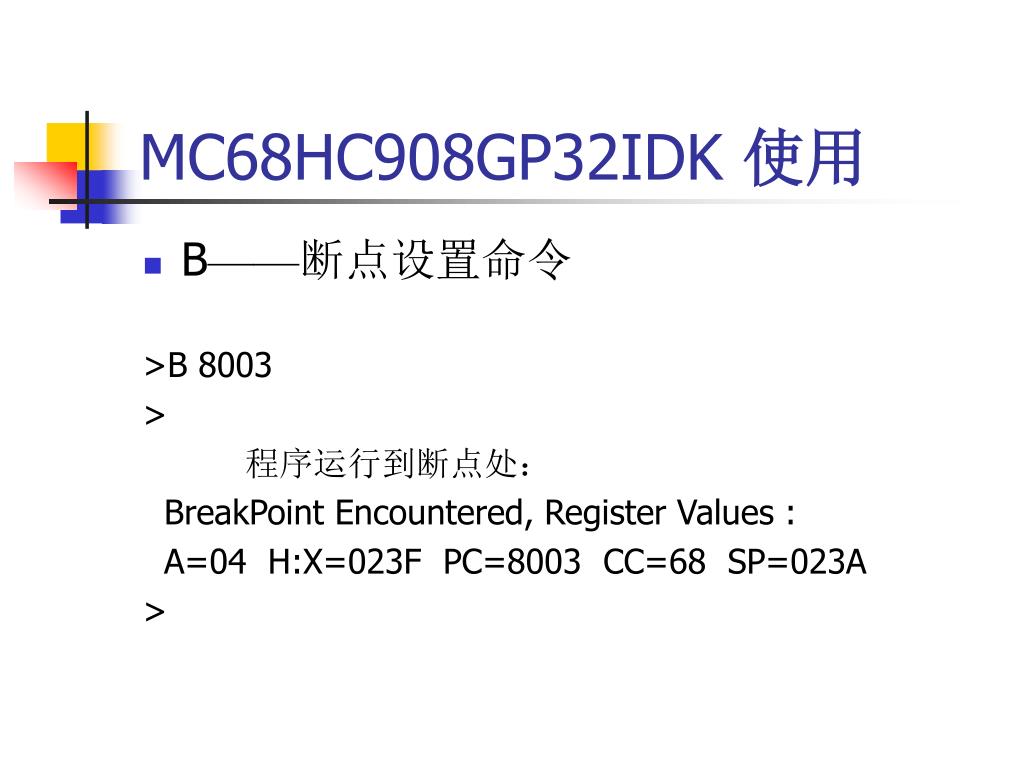

  • B——断点设置命令

    >B 8003

    >

    程序运行到断点处:

    BreakPoint Encountered, Register Values :

    A=04 H:X=023F PC=8003 CC=68 SP=023A

    >


Mc68hc908gp32idk3

MC68HC908GP32IDK 使用

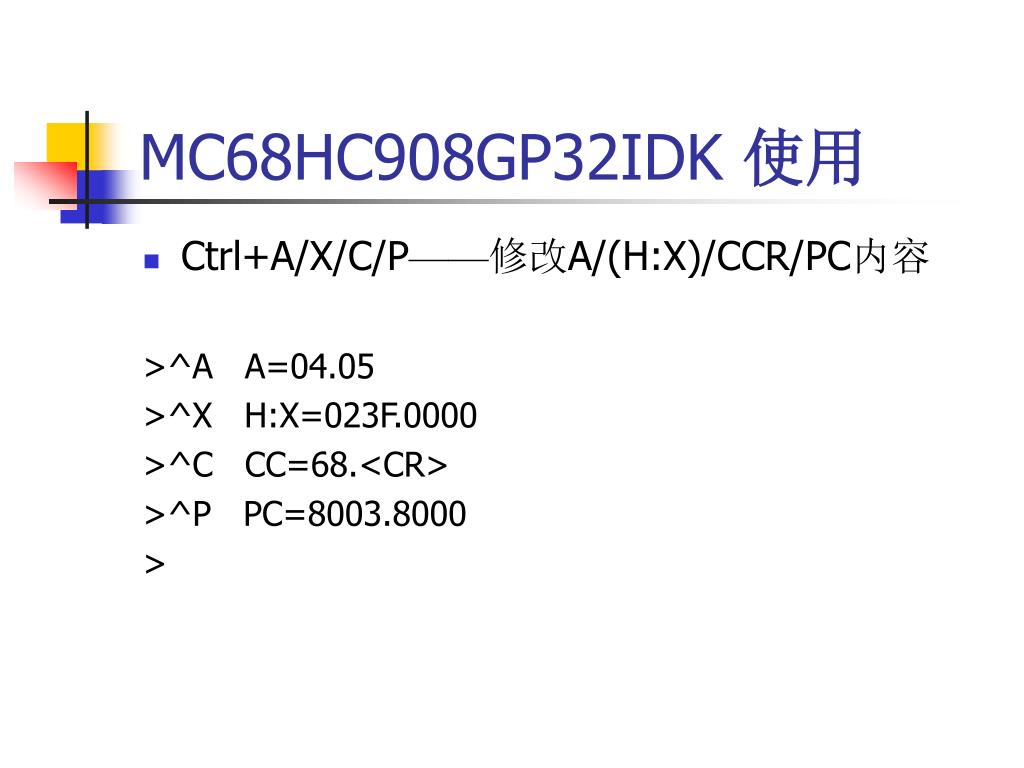

  • Ctrl+A/X/C/P——修改A/(H:X)/CCR/PC内容

    >^A A=04.05

    >^X H:X=023F.0000

    >^C CC=68.<CR>

    >^P PC=8003.8000

    >


Mc68hc908gp32idk4

MC68HC908GP32IDK 使用

  • D——显示存储内容命令

    >D E070-E080

    E070 BD AF 01 65 00 10 26 F4 CD E3 7C 6E FF 04 45 00 ...e..&...|n..E.

    E080 00 D6 E0 8F AF 01 A1 04 27 59 CD F3 77 20 F2 0D ........'Y..w ..

    >


Mc68hc908gp32idk5

MC68HC908GP32IDK 使用

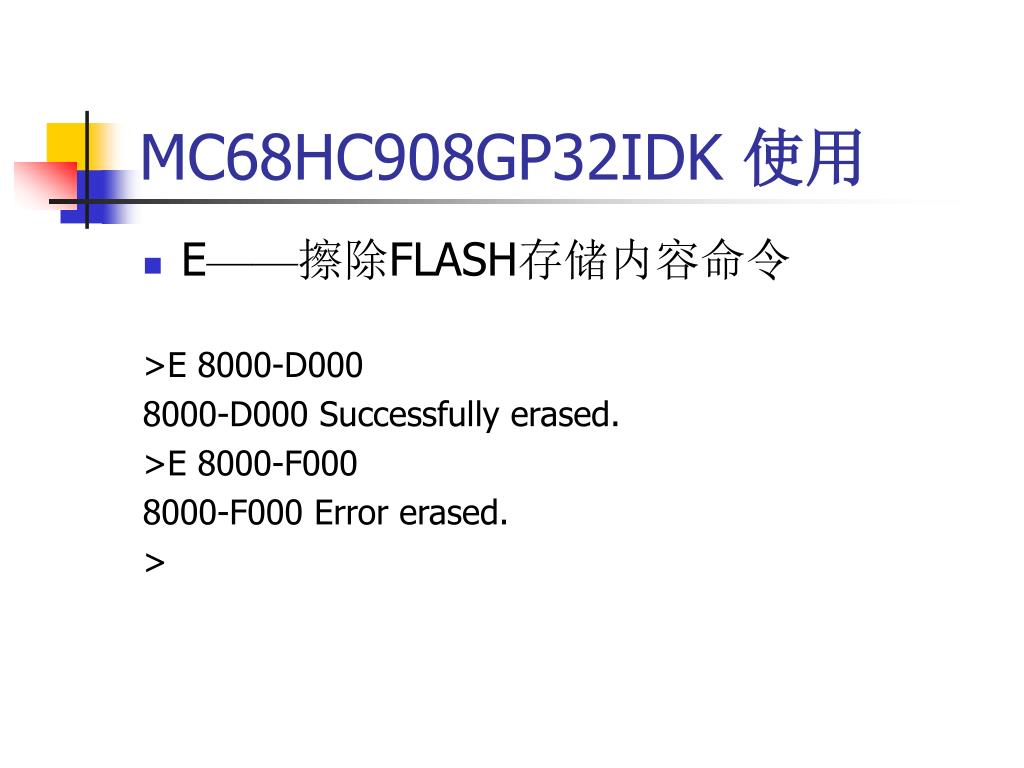

  • E——擦除FLASH存储内容命令

    >E 8000-D000

    8000-D000 Successfully erased.

    >E 8000-F000

    8000-F000 Error erased.

    >


Mc68hc908gp32idk6

MC68HC908GP32IDK 使用

  • G——程序运行命令

    >^P PC=0000.8000

    >G


Mc68hc908gp32idk7

MC68HC908GP32IDK 使用

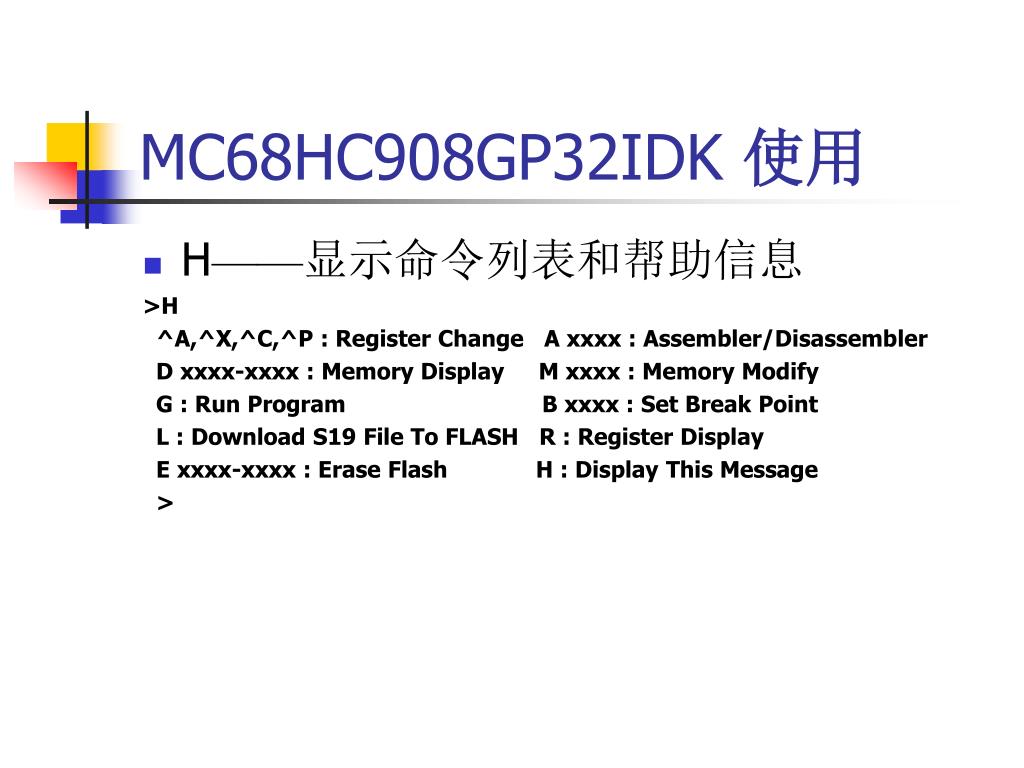

  • H——显示命令列表和帮助信息

    >H

    ^A,^X,^C,^P : Register Change A xxxx : Assembler/Disassembler

    D xxxx-xxxx : Memory Display M xxxx : Memory Modify

    G : Run Program B xxxx : Set Break Point

    L : Download S19 File To FLASH R : Register Display

    E xxxx-xxxx : Erase Flash H : Display This Message

    >


Mc68hc908gp32idk8

MC68HC908GP32IDK 使用

  • L——下载程序命令

    >L

    S12380009BCC81860000804A00000000013F0000801A00008022801A801C0000FFFF000074

    S1238020000000009BA601B71EA63DB71F3F366E01366E04386EB0396EFF3A1A36163614FA

    S90380007C

    Successfully writing FLASH memory.

    >


Mc68hc908gp32idk9

MC68HC908GP32IDK 使用

  • M——修改存储区内容命令

    >M F000

    Address Invalid (Not in RAM or FLASH)

    >M 8000

    8000 9B.1<Backspace>

    8000 9B.11

    8000 11

    8001 CC.<CR>

    8002 81..

    >


Mc68hc908gp32idk10

MC68HC908GP32IDK 使用

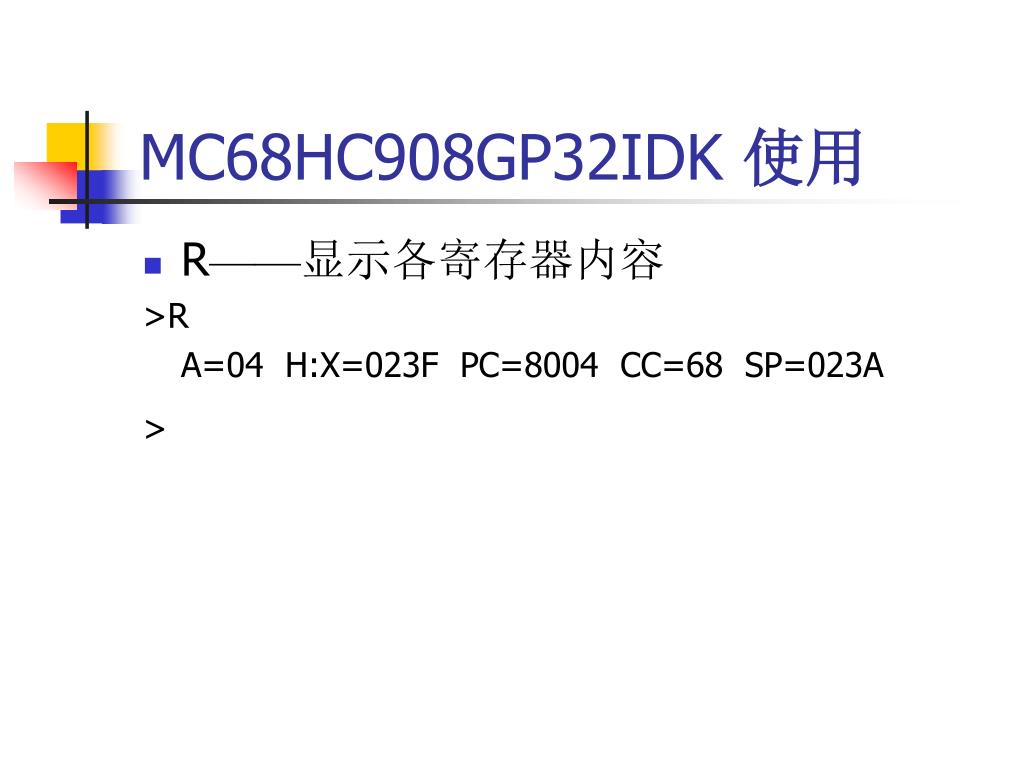

  • R——显示各寄存器内容

    >R

    A=04 H:X=023F PC=8004 CC=68 SP=023A

    >
