Automated surface sampling and imaging systems under ambient conditions

Automated surface sampling and imaging systems under ambient conditions

Automated DESI and SSP

Vilmos Kertesz and Gary J. Van Berkel

10/17/2006


Goal ms friendly interface for automated surface sampling and imaging systems

Goal: MS friendly interface for automated surface sampling and imaging systems

  • Systems:

    • Self-aspirating surface sampling probe (SSP, ORNL patent)

    • Desorption ElectroSpray Ionization (DESI)

  • Requirements:

    • Implement support for different surface analysis methods: imaging, line scanning, spot sampling, array sampling

    • Support different MS instruments

    • Provide REAL-TIME data visualization (chemical image of the surface for multiple m/z, XIC chromatograms)

    • Implement signal optimization automatism (microjunction/capillary-to-surface distance optimization for SSP/DESI, respectively)

    • MS-information-rich software interface


Parts

Parts

  • MS: sprayer and extended sampling capillary (DESI), self-aspirating probe (SSP)

  • computer with MS and HandsFree TLC/MS software installed

  • XYZ stage to move the sample

  • color cameras, digital camera, capture devices and monitors for visualization and monitoring


Features

Features

  • Automated line scanning, imaging, spot and array sampling

  • Corresponding X-Y-time-MS spectrum data structure (full scan, SIM, MRM, etc.)

  • High-resolution photo showing the analyzed surface stored inside the data file with the X-Y-time-MS spectrum data

  • Automated probe(SSP)/capillary(DESI)-to-surface distance control for optimum MS signal

  • REAL-TIME MS image for multiple ions (made possible via real-time communication with Analyst and LCQTune)

  • REAL-TIME XIC chromatograms for multiple ions

  • REAL-TIME MS on screen

  • Display/analyze MS of selected, already-analyzed, area WHILE acquiring new data

  • Powerful post-processing features (image manipulation, MS analysis, ion maps)


Main screen during data acquisition

Main screen – during data acquisition

Parameter settings


Camera picture for

surface distance control

Actual MS

Average MS of

selected area (if any)

XICs

XIC settings


Post processing

Post-processing

MS image (over the

photo of the surface)

Image manipulation (ion,

color scheme,

interpolation etc.)

Ion map for selecting ions to display their image

XIC of selected ions

Individual MSs of selected area (if any)

Sum MS of

selected area (if any)

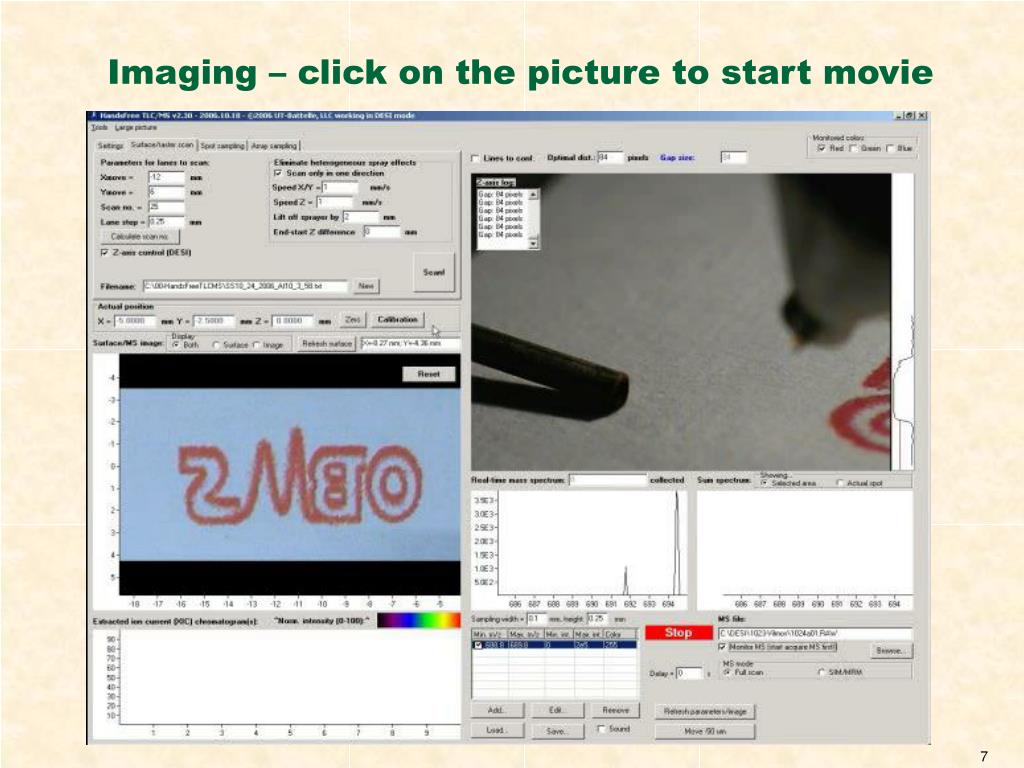

Imaging click on the picture to start movie

Imaging – click on the picture to start movie

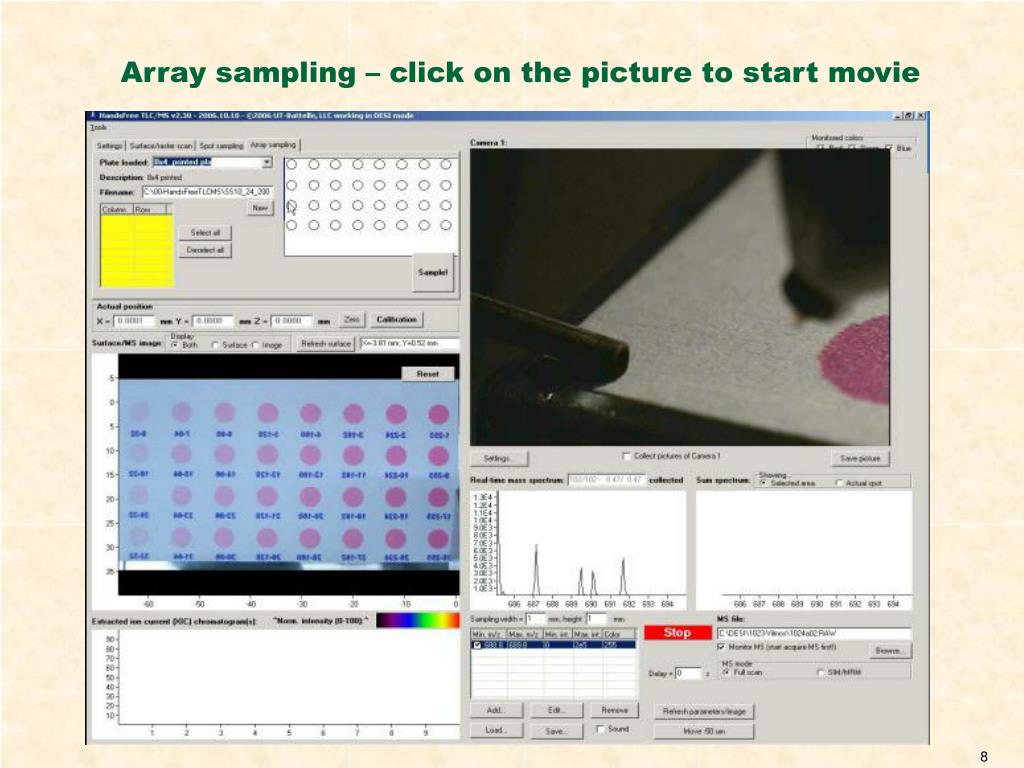

Array sampling click on the picture to start movie

Array sampling – click on the picture to start movie
