Harmonic Motion

Harmonic Motion. Circular motion can be described by components. x = r cos q y = r sin q For uniform circular motion the angle is related to the angular velocity. q = w t. The motion can be described as a function of time. x = r cos w t y = r sin w t. Vector Components.

rhett
Download Presentation

Harmonic Motion

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

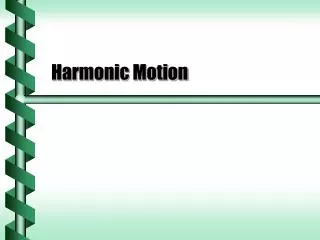

  1. Harmonic Motion

  2. Circular motion can be described by components. x = r cos q y = r sin q For uniform circular motion the angle is related to the angular velocity. q = wt The motion can be described as a function of time. x = r cos wt y = r sin wt Vector Components r r sin q q r cos q

  3. Velocity Components • The velocity vector can also be described by components. • vx = -v sin q • vy = v cos q • This is the derivative of the position. v v cos q q -v sin q q

  4. Acceleration Components • For uniform circular motion the acceleration vector points inward. • ax = -a cos q • ay = -a sin q • This is the derivative of the velocity. -a cos q q a -a sin q q

  5. 1 period Changing Angle to Position • If only one component is viewed the motion is sinusoidal in time. • This is called harmonic motion. • Springs and pendulums also have harmonic motion. x = A cos wt

  6. Acceleration and Position • In uniform circular motion acceleration is opposite to the position from the center . • In harmonic motion the acceleration is also opposite to the position. This is true for all small oscillations

  7. From the law of action the force is proportional to the acceleration. Harmonic motion has a position-dependent force. Force is negative Restoring force Spring Oscilations

  8. Springboard • A diving board oscillates with a frequency of 5.0 cycles per second with a person of mass 70. kg. What is the spring constant of the board? • Find the spring constant from the mass and frequency. • With values: • k = 42(5.0 /s)2(70. kg) • K = 6.9 x 104 N/m next
