ID-based Authenticated Key Exchange for Low-Power Mobile Devices

1. ID-based Authenticated Key Exchange for Low-Power Mobile Devices K. Y. Choi, J. Y. Hwang, D. H. Lee CIST, Korea University

2. key key key key Key Exchange • Two or more users can share a session key Key

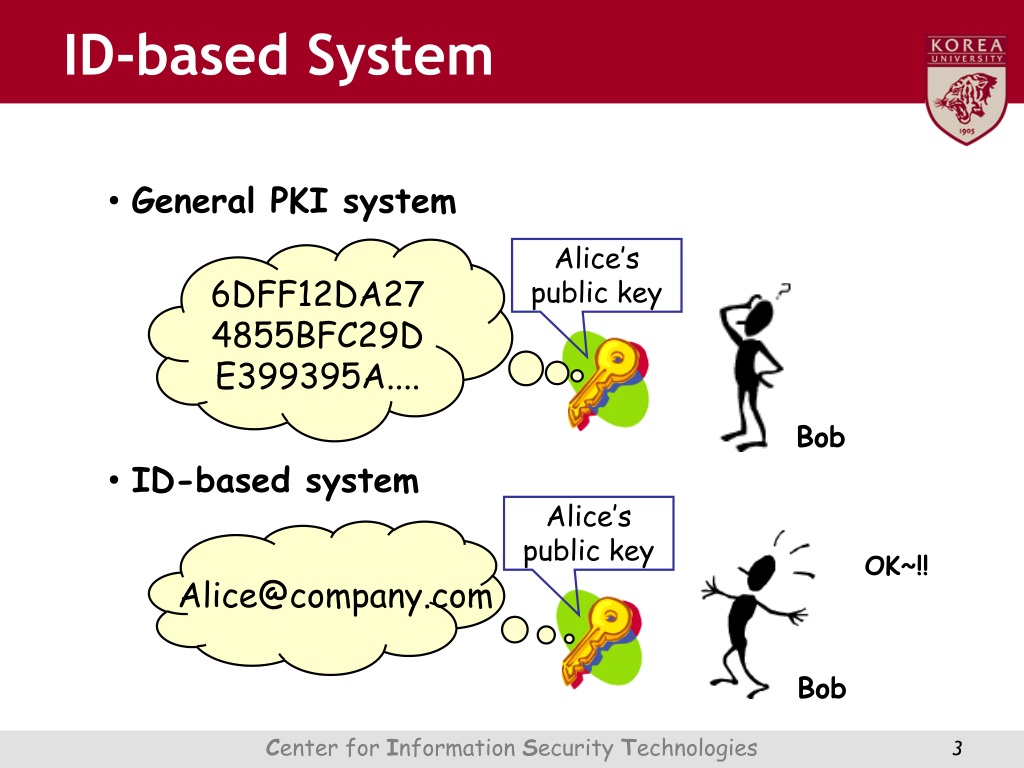

3. ID-based System • General PKI system 6DFF12DA27 4855BFC29DE399395A.... Alice’s public key Bob • ID-based system Alice’s public key OK~!! Alice@company.com Bob

4. Bilinear Map • Assume • G1,G2 be two groups of same order q. • DLP is hard in both G1, G2. • Bilinear Map e : G1Χ G1→ G2 • Admissible Bilinear Map • Bilinearity : e(aP, bQ) = e(P,Q)ab • Non-degeneracy : • P∈G1 such that e(P,P)≠1 • Computability : • an efficient algorithm to compute e(P,Q)

5. Assumptions (1) • Computational Diffie-Hellman (CDH) Problem Given (P, aP, bP) for some a, b ∈ Zq* => Compute abP • Inverse Computational DH (ICDH) Problem Given (P, aP) for some a ∈ Zq* => Compute a-1P • Modified Inverse Computional DH (mICDH) Problem Given (b, P, aP) for some a, b ∈ Zq* => Compute (a+b)-1P CDH ⇔ ICDH ⇔ mICDH

6. Assumptions (2) • Bilinear Diffie-Hellman (BDH) Problem Given (P, aP, bP, cP) for some a, b, c ∈ Zq* => Compute • Bilinear Inverse DH (BIDH) Problem Given (P, aP, cP) for some a, c ∈ Zq* => Compute • Modified Bilinear Inverse DH (mBIDH) Problem Given (b, P, aP, cP) for some a, b, c ∈ Zq* => Compute BDH ⇔ BIDH ⇔ mBIDH

7. Definitions • Collusion Attack Algorithm with k traitor (k-CAA) Given P, sP and h1,h2, … , hk ∈ Zq* , (s+h1)-1P, (s+h2)-1P, . . . , (s+hk)-1P => Compute (s+h)-1P for some h ∈ Zq* • Modified BIDH with k values (k-mBIDH) Given P, sP, tP and h,h1,h2, … , hk ∈ Zq* , (s+h1)-1P, (s+h2)-1P, . . . , (s+hk)-1P => Compute

8. Previous Protocol • Previous ID-based authenticated key exchanges Smart’s Protocol(2002) McCullagh’s Protocol(2005)

9. Our Result • Our protocol is an ID-based authenticated key exchange (AKE) protocol for Client and Server. • We remove complicate operation of bilinear maps from a client side. • Using off-line precomputation, the client only computes hashing and scalar multiplication of the point of elliptic curve during on-line phase. • Thus, our protocol is well suited to unbalanced computing environment.

10. Proposed Protocol ID-AKE (1) • Setup • KGC (Key Generation Center) selects a master secret keys, • generates P and computes Ppub= sP, g = e(P, P) • Cryptographic hash functions H : {0,1}* → Zq* H1 : G2 → Zq* H2 : {0,1}* → {0,1}t (t : secret parameter) H3 : {0,1}* → {0,1}k (k : bit length of a session key) • KGC publishes params={e, G1, G2, q, P, Ppub, g, H, H1, H2, H3}

11. Proposed Protocol ID-AKE (2) • Extract ID KGC Secure Channel SID qID = H(ID) Secret key : SID= (s+qID)-1P e(QID, SID) = e(P, P) = g • Public information of user (ID) : QID = Ppub + qIDP = (s+qID)P • The security of secret key is based on the intractability • of the mICDH problem. • We assume that the mICDH problem in G1 is intractable.

12. Proposed Protocol ID-AKE (3) V U P, Ppub, [ IDV, SV ] P, Ppub, g, [ IDU, SU ] qv = H(IDV), a ← Zq* QV = Ppub + qvP, tu = ga h = H1(tu) X = aQV, Y = (a+h)SU IDU, (X, Y) qu = H(IDU), QU = Ppub + quP tu = e(X, SV), c = e(Y, QU) h = H1(tu), c =? tugh tv← Zq* z = H2(tu, tv, X, Y, IDU, IDV) z, tv z’ = H2(tu, tv, X, Y, IDU, IDV) z’ =? z sk = H3(tu, tv, X, Y, IDU, IDV) sk = H3(tu, tv, X, Y, IDU, IDV)

13. Security Analysis • The ID-AKE protocol provides half forward secrecy. • The security of ID-AKE protocol bases at the intractability of the k-CAA and k-mBIDH problems. k-CAA and k-mBIDH problems, Why?

14. Security Analysis (2) System params={e, G1, G2, q, P, Ppub, g=e(P,P)} ID-AKA Attacker A Simulator B H-query (ID) B chooses random qID in Zq* qID A can compute QID = Ppub + qIDP = (s+qID)P Extract (or Corrupt) – query (ID) B must compute SID = (s+qID)-1P SID e(QID, SID) = e(P, P) = g

15. ID-AKE of Distinct Domains (1) • Extract KGC2 KGC1 master secret key : s’ master secret key : s params’={e, G1, G2, q, P, P’pub=s’P} params={e, G1, G2, q, P, Ppub=sP} Server Client qU = H(IDU) Private key : SU= (s+qU)-1P qV = H(IDV) Private key : SV= (s’+qV)-1P

16. ID-AKE of Distinct Domains (2) V U P, P’pub, [ IDV, SV ] P, Ppub, g, [ IDU, SU ] a ← Zq* qv = H(IDV), QV = P’pub + qvP tu = ga, h = H1(tu) X = aQV, Y = (a+h)SU IDU, (X, Y) qu = H(IDU), QU = Ppub + quP tu = e(X, SV), c = e(Y, QU) h = H1(tu), c =? tugh tv← Zq* z = H2(tu, tv, X, Y, IDU, IDV) z, tv z’ = H2(tu, tv, X, Y, IDU, IDV) z’ =? z sk = H3(tu, tv, X, Y, IDU, IDV) sk = H3(tu, tv, X, Y, IDU, IDV)

17. Comparison • M : scalar multiplication of G1 • P : pairing(bilinear map) operation • Ex : small modular exponentiation MB 05 : CT-RSA 2005 (McCullagh and Barreto)

18. Conclusion • We proposed an efficient ID-AKE protocol which is suitable for low-power mobile devices. • The ID-AKE protocol can be easily applied in different KGCs. • Also, our protocol can be expanded to a group AKE protocol.
