FUTURE DIRECTIONS OFRADON AND TRITIUM MONITORING

Diablo Canyon Nuclear Power Plant


Slide2 l.jpg

James T. (Tom) Voss, NRRPT, CHP

Fellow of the Health Physics Society

PO Box 1362

Los Alamos, NM 87544

[email protected]

505-920-1470

WWW.VOSS-ASSOCIATES.COM


What are the current applications for radon and tritium monitoring l.jpg

What are the Current Applicationsfor Radon and Tritium Monitoring

Current Nuclear Power Reactors

Current Research and Test Reactors

New Nuclear Power Reactors

Small Transportable Nuclear Reactors


What are the current applications for radon and tritium monitoring4 l.jpg

What are the Current Applicationsfor Radon and Tritium Monitoring

International Thermonuclear Experimental

Reactor (ITER)

DOE Operations

Medical

Resurgence in Uranium Mining


What are the current applications for radon and tritium monitoring5 l.jpg

What are the Current Applicationsfor Radon and Tritium Monitoring

Uranium Fuel Fabrication

Thorium as a Reactor Fuel

Nuclear Fuel Reprocessing

Need for Remote Real-time Monitoring of Nuclear Facilities


Current nuclear power reactors l.jpg

Current Nuclear Power Reactors


Current research and test reactors l.jpg

Current Research and Test Reactors


Slide8 l.jpg

New Nuclear Power Reactors


Slide9 l.jpg

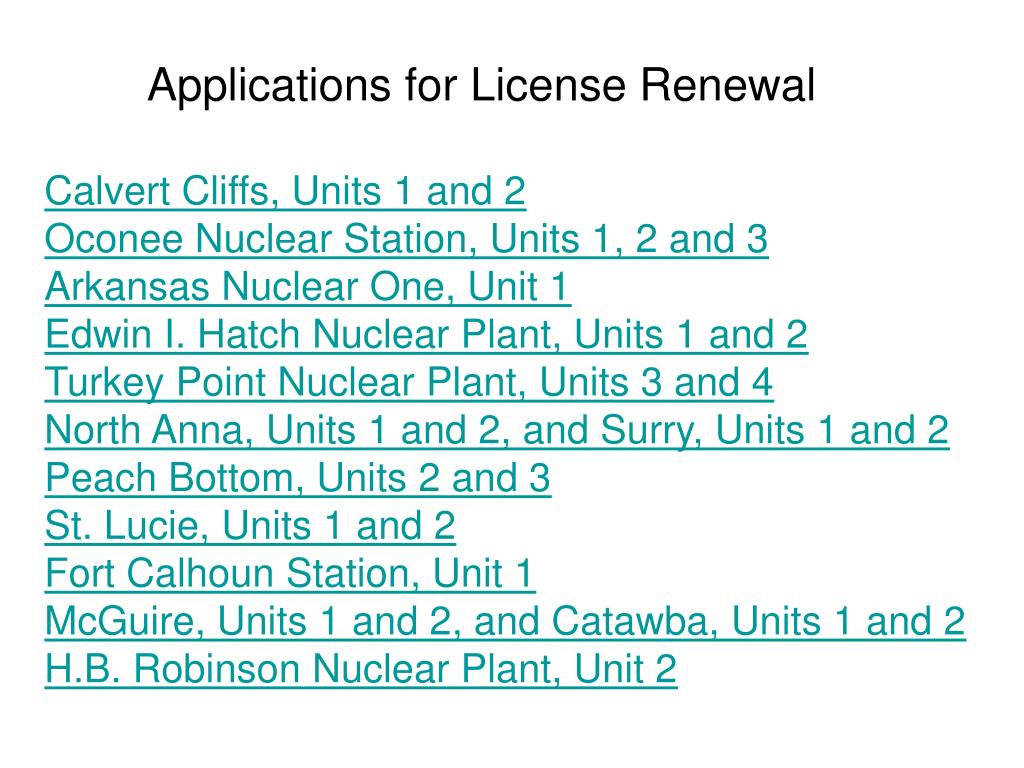

Applications for License Renewal

Calvert Cliffs, Units 1 and 2

Oconee Nuclear Station, Units 1, 2 and 3

Arkansas Nuclear One, Unit 1

Edwin I. Hatch Nuclear Plant, Units 1 and 2

Turkey Point Nuclear Plant, Units 3 and 4

North Anna, Units 1 and 2, and Surry, Units 1 and 2

Peach Bottom, Units 2 and 3

St. Lucie, Units 1 and 2

Fort Calhoun Station, Unit 1

McGuire, Units 1 and 2, and Catawba, Units 1 and 2

H.B. Robinson Nuclear Plant, Unit 2


Slide10 l.jpg

Applications for License Renewal

R.E. Ginna Nuclear Power Plant, Unit 1

V.C. Summer Nuclear Station, Unit 1

Dresden, Units 2 and 3, and Quad Cities, Units 1 & 2

Farley, Units 1 and 2

Arkansas Nuclear One, Unit 2

D.C. Cook, Units 1 and 2

Millstone, Units 2 and 3

Point Beach, Units 1 and 2

Browns Ferry, Units 1, 2, and 3

Brunswick, Units 1 and 2

Nine Mile Point, Units 1 and 2


Slide11 l.jpg

Applications for License Renewal

Monticello

Palisades

James A. FitzPatrick

Wolf Creek, Unit 1

Harris, Unit 1

Oyster Creek

Vogtle, Units 1 and 2

Three Mile Island, Unit 1

Beaver Valley, Units 1 and 2

Susquehanna, Units 1 and 2

59 APPLICATIONS FOR LICENSE RENEWAL HAVE BEEN ACCEPTED


Slide12 l.jpg

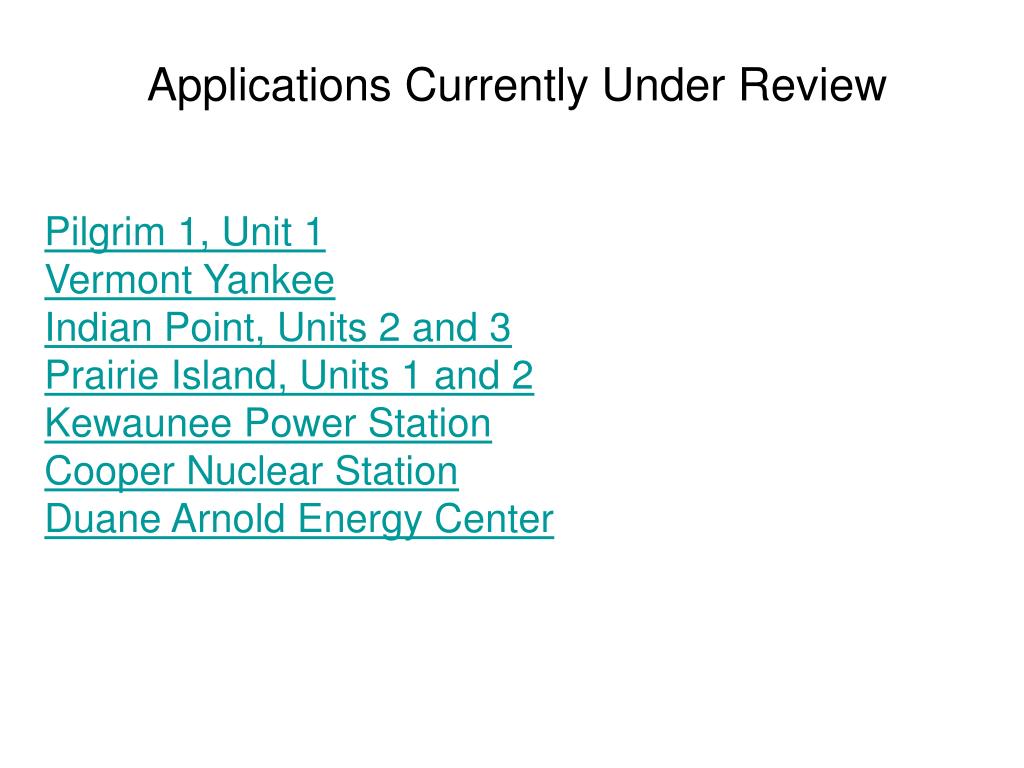

Applications Currently Under Review

Pilgrim 1, Unit 1

Vermont Yankee

Indian Point, Units 2 and 3

Prairie Island, Units 1 and 2

Kewaunee Power Station

Cooper Nuclear Station

Duane Arnold Energy Center


Slide13 l.jpg

Applications Currently Under Review

Palo Verde, Units 1, 2, and 3

Crystal River, Unit 3

Hope Creek

Salem, Units 1 and 2

Diablo Canyon, Units 1 and 2

Columbia Generating Station

19 APPLICATIONS FOR LICENSE RENEWAL ARE UNDER REVIEW


Slide14 l.jpg

  • Radon and Tritium Monitoring in

  • Nuclear Reactor Facilities

  • Radon monitoring is performed to;

  • alert personnel to the potential for personal contamination due to radon

  • alert personnel to the potential for degradation in the performance of alpha CAMs

  • alert personnel to unacceptably high levels of radon in the facility


Slide15 l.jpg

  • Radon and Tritium Monitoring in

  • Nuclear Reactor Facilities

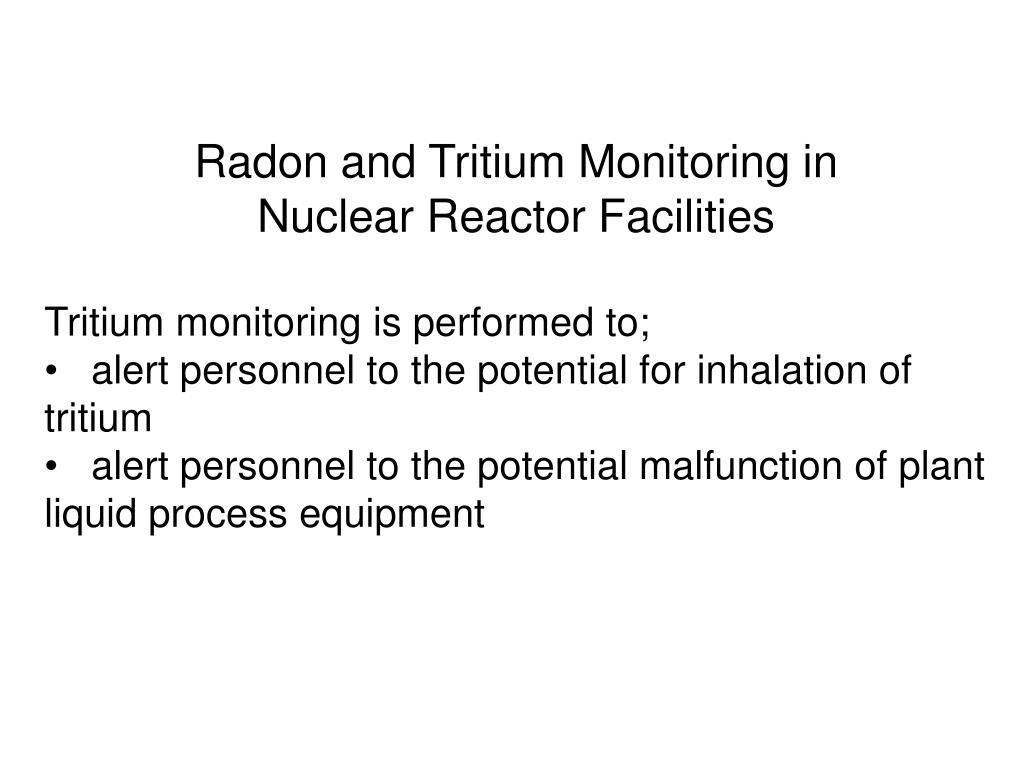

  • Tritium monitoring is performed to;

  • alert personnel to the potential for inhalation of tritium

  • alert personnel to the potential malfunction of plant liquid process equipment


Slide16 l.jpg

Radon and Tritium Monitoring

Outside Nuclear Reactor Facilities

Radon monitoring is performed to establish environmental background levels of alpha and beta emitters in the ambient air.


Slide17 l.jpg

  • Radon and Tritium Monitoring

  • Outside Nuclear Reactor Facilities

  • Tritium monitoring is performed to;

  • establish a baseline level of tritium in the ambient air and water outside the facility boundary

  • alert personnel to the potential malfunction of plant liquid process equipment


Slide18 l.jpg

Special Applications for Tritium Monitors

Inside Nuclear Reactor Facilities

Simultaneous and separate monitoring of elemental tritium and tritium oxide can be used to identify the presence of leaks in the hydrogen recombiner in the facility. Elemental tritium will only exist for a short period of time before it either combines with an oxygen atom or it replaces a hydrogen atom on a water molecule.


Slide19 l.jpg

Special Applications For Tritium

Monitors For The ITER Project

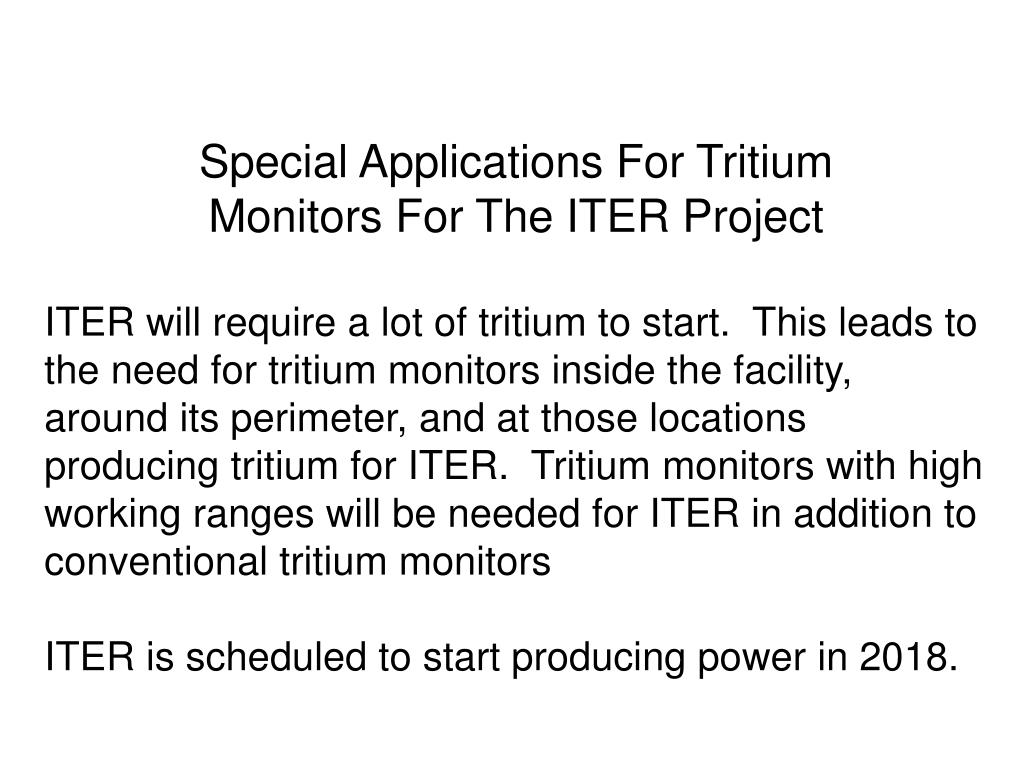

ITER will require a lot of tritium to start. This leads to the need for tritium monitors inside the facility, around its perimeter, and at those locations producing tritium for ITER. Tritium monitors with high working ranges will be needed for ITER in addition to conventional tritium monitors

ITER is scheduled to start producing power in 2018.


Slide20 l.jpg

Special Applications For Tritium

Monitors For DOE

DOE is continuing with refurbishing the US nuclear arsenal. The tritium in those devices must be replaced about every 15 years. The gamma radiation from the device drives the need for tritium monitors with active gamma compensation.


Slide21 l.jpg

Special Applications For Tritium

Monitors For DOE

DOE produces and maintains a supply of elemental tritium for our weapons program. Since the elemental tritium combines with oxygen readily there is a need to simultaneously monitor for elemental tritium and tritium oxide. The presence of elemental tritium outside its containment indicates that tritium is leaking from its containment.


Small transportable nuclear power reactors l.jpg

Small Transportable Nuclear Power Reactors


Small transportable nuclear power reactors23 l.jpg

Small Transportable Nuclear Power Reactors

What is in the future for these power reactors ?

It seem unlikely the NRC will grant operating licenses for these types of nuclear power reactors.

It seems unlikely the final cost for these types of nuclear power reactors could equal that of the new commercial nuclear power reactors.


Resurgence in uranium mining l.jpg

Resurgence in Uranium Mining


Slide25 l.jpg

Resurgence in Uranium MiningThe EPA estimates there will be 10,000 to 15,000 more uranium miners in the US by 2015.The EPA is considering lowering the allowable radon exposures for uranium miners.


World uranium production l.jpg

Production from mines (tonnes U)

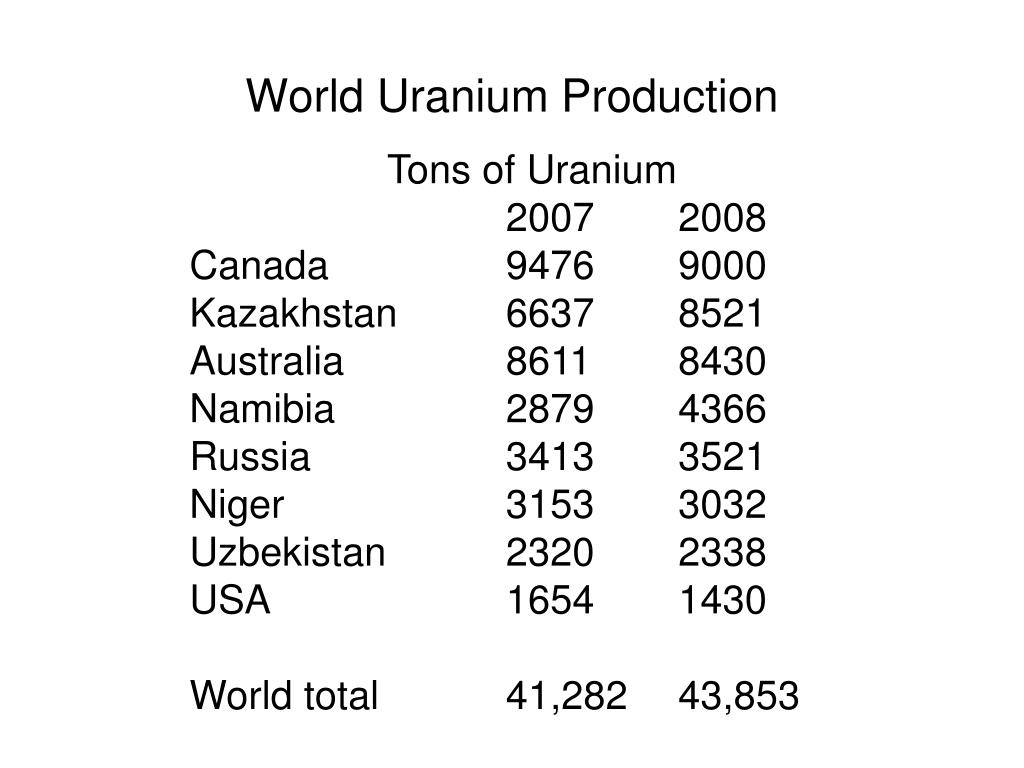

World Uranium Production

Tons of Uranium

20072008

Canada94769000

Kazakhstan66378521

Australia86118430

Namibia28794366

Russia 34133521

Niger31533032

Uzbekistan23202338

USA16541430

World total41,28243,853


United states uranium production l.jpg

Production from mines (tonnes U)

United States Uranium Production

Tons of Uranium

20072008

USA16541430

World total41,28243,853

US Uranium Current Production is Primarily

From 4 Mines.

90% of US Uranium Mining is In-Situ.


Uranium mines in canada l.jpg

Uranium Mines in Canada


Uranium mines in australia l.jpg

Uranium Mines in Australia


Worker public and environmental protection for uranium mining l.jpg

Worker, Public, and Environmental Protection for Uranium Mining

  • Controlled Ventilation

  • Radon and Airborne Uranium Monitoring

  • Portable and Personal Continuous Air Monitors

  • In-Situ Mining

  • Open Pit Mining


Worker protection for uranium mining l.jpg

Worker Protection for Uranium Mining

Radon and Airborne Uranium Monitoring

  • Routine area radon and uranium monitoring with sophisticated instruments

  • Radon monitoring before opening a new area to workers

  • Personal radon and uranium monitors for workers


Public and environmental protection for uranium mining l.jpg

Public and Environmental Protectionfor Uranium Mining

There is a need for a CAM for Continuously Monitoring for Airborne Alpha and Beta Activity at High Volumetric Sampling Rates.


Public and environmental protection for uranium mining33 l.jpg

Public and Environmental Protectionfor Uranium Mining

In-Situ Mining

In-Situ mining leaches the uranium ore from the underground deposit and greatly reduces the volume of above ground waste.


Public and environmental protection for uranium mining34 l.jpg

Public and Environmental Protectionfor Uranium Mining

Open Pit Mining

  • Reduces the risk to the workers by providing better ventilation and reduces other risks in underground mining

  • Exposes more rock dust and uranium ore that could increase the spread of those into the environment

  • Australia’s Olympic Dam mine is converting to an open pit operation


Public and environmental protection for uranium mining35 l.jpg

Public and Environmental Protectionfor Uranium Mining

Closing and covering an open pit mine at the end of its useful life could provide the best permanent solution for protecting the public and the environment.

In-Situ mining could also minimize the mine’s affect on the public and the environment.


Uranium fuel cycle facilities l.jpg

Uranium Fuel Cycle Facilities


Uranium fuel cycle facilities37 l.jpg

Uranium Fuel Cycle Facilities

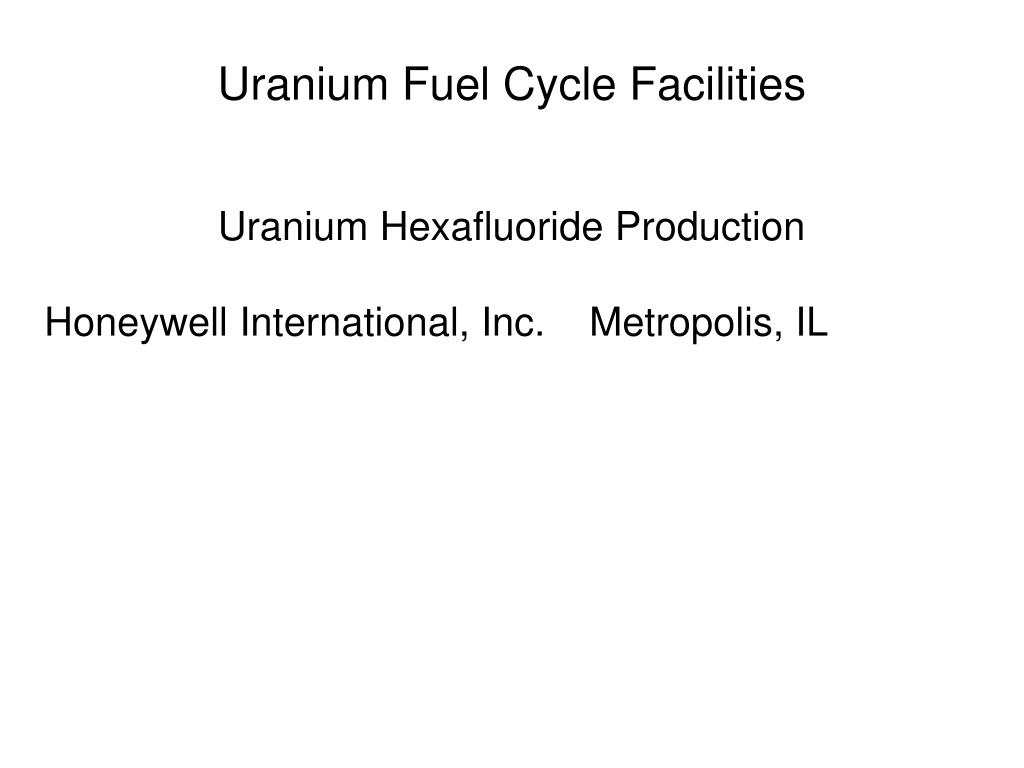

Uranium Hexafluoride Production

Honeywell International, Inc. Metropolis, IL


Uranium fuel cycle facilities38 l.jpg

Uranium Fuel Cycle Facilities

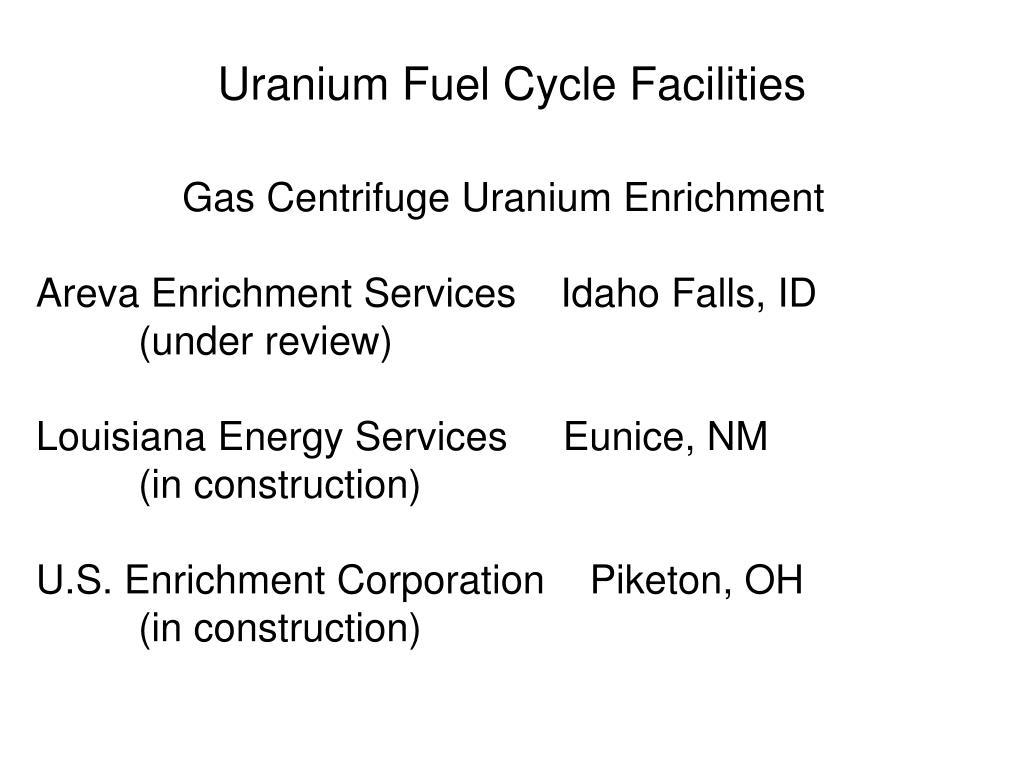

Gas Centrifuge Uranium Enrichment

Areva Enrichment Services Idaho Falls, ID

(under review)

Louisiana Energy Services Eunice, NM

(in construction)

U.S. Enrichment Corporation Piketon, OH

(in construction)


Uranium fuel cycle facilities39 l.jpg

Uranium Fuel Cycle Facilities

Gaseous Diffusion Uranium Enrichment

U.S. Enrichment Corporation Paducah, KY

U.S. Enrichment Corporation Piketon, OH (cold standby)


Uranium fuel cycle facilities40 l.jpg

Uranium Fuel Cycle Facilities

Laser Separation Uranium Enrichment

GE-Hitachi Wilmington, NC

(under review)


Uranium fuel cycle facilities41 l.jpg

Uranium Fuel Cycle Facilities

Uranium Fuel Fabrication

AREVA NP, Inc. Lynchburg, VA

AREVA NP, Inc. Richland, WA

B&W Nuclear Operations Group Lynchburg, VA

Global Nuclear Fuel-Americas, LLC Wilmington, NC

Nuclear Fuel Services Erwin, TN

(license renewal application submitted)

Westinghouse Electric Company, LLC Columbia, SC


Uranium fuel cycle facilities42 l.jpg

Uranium Fuel Cycle Facilities

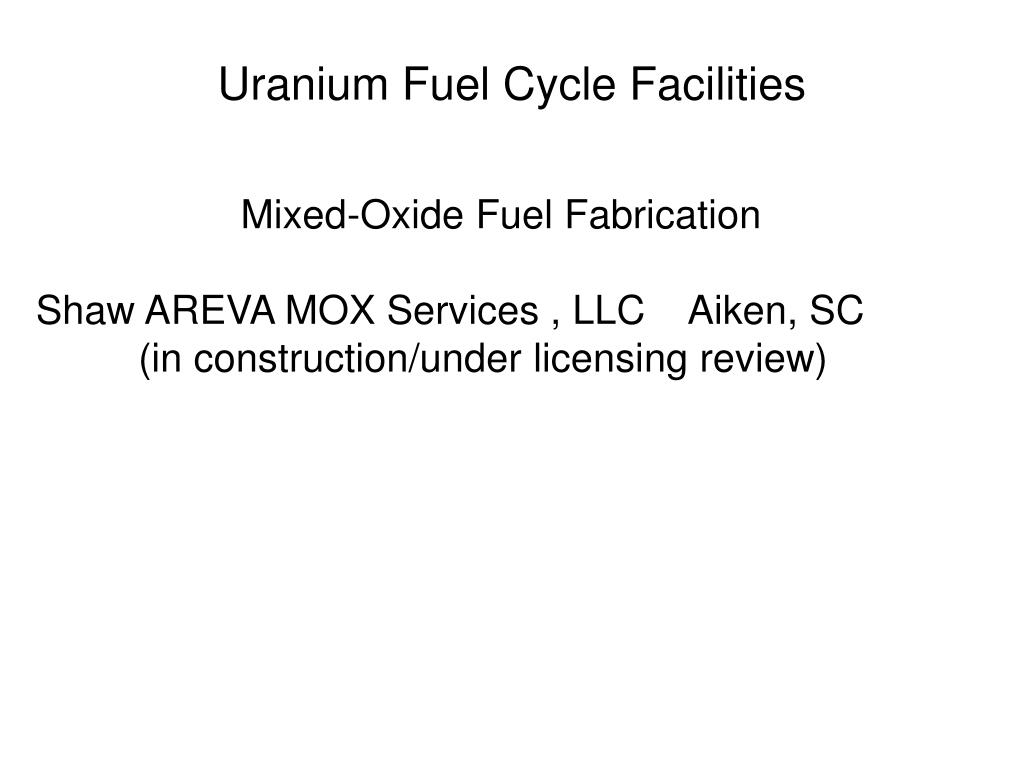

Mixed-Oxide Fuel Fabrication

Shaw AREVA MOX Services , LLC Aiken, SC (in construction/under licensing review)


Uranium fuel cycle facilities43 l.jpg

Uranium Fuel Cycle Facilities

  • Better Ventilation

  • Radiation Monitoring

  • Airborne Radioactivity Monitoring

  • Criticality Monitoring


Uranium fuel cycle facilities44 l.jpg

Uranium Fuel Cycle Facilities

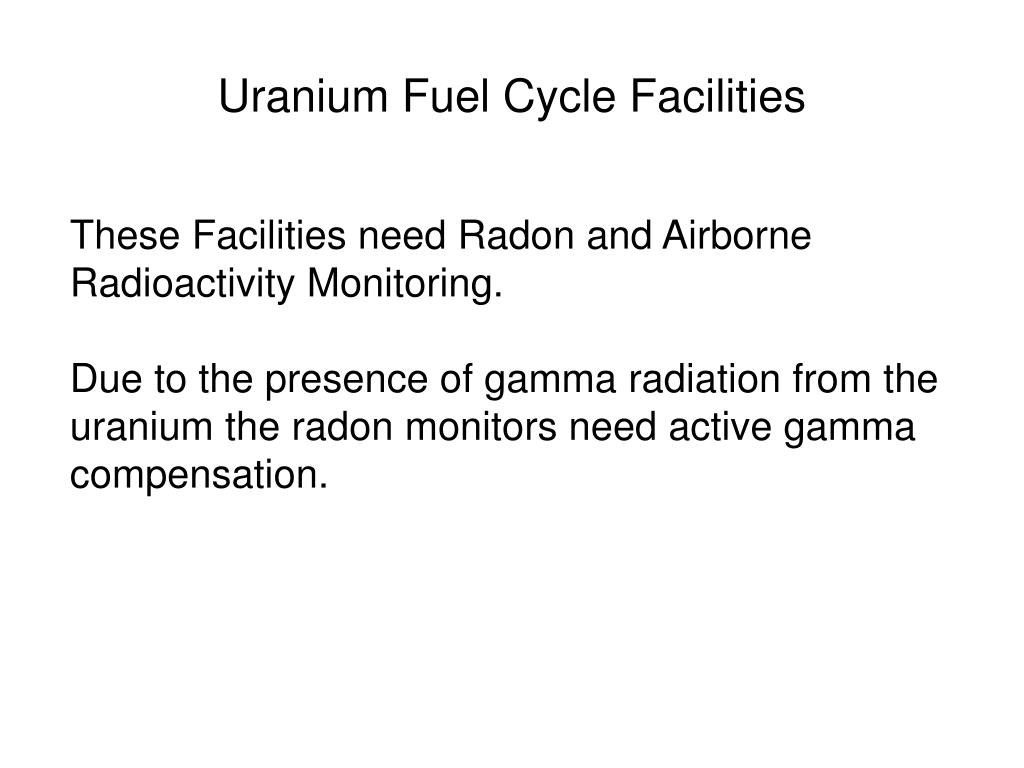

These Facilities need Radon and Airborne Radioactivity Monitoring.

Due to the presence of gamma radiation from the uranium the radon monitors need active gamma compensation.


Nuclear fuel reprocessing l.jpg

Nuclear Fuel Reprocessing

  • Better Ventilation

  • Radiation Monitoring

  • Airborne Radioactivity Monitoring

  • Criticality Monitoring


Nuclear fuel reprocessing46 l.jpg

Nuclear Fuel Reprocessing

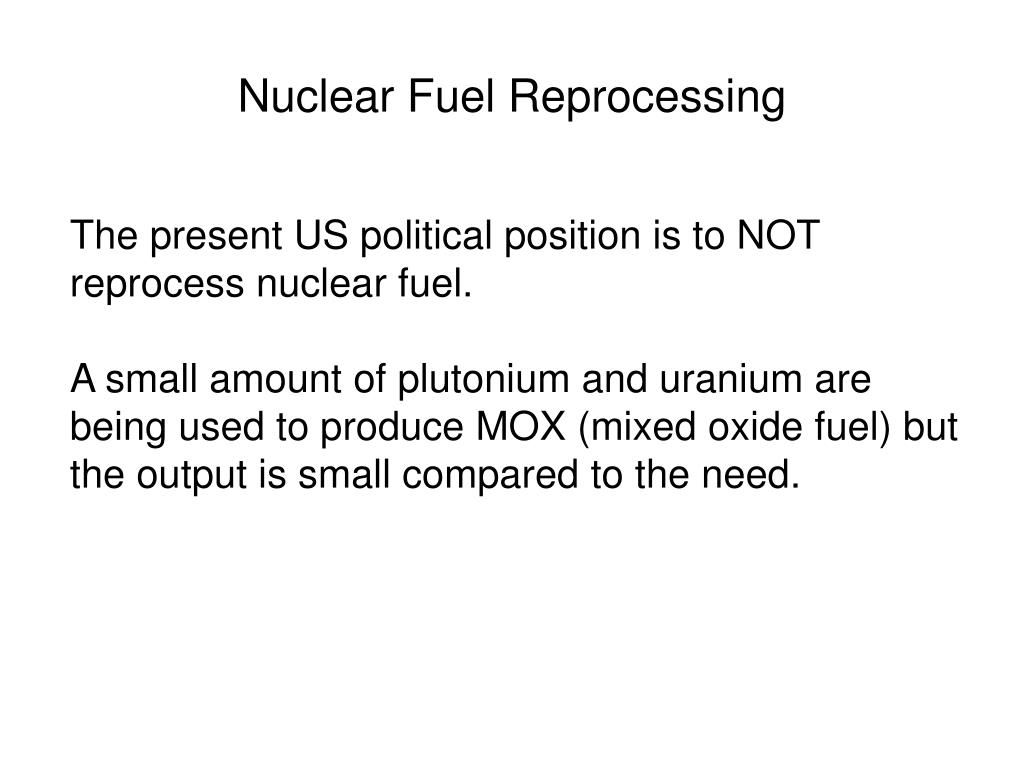

The present US political position is to NOT reprocess nuclear fuel.

A small amount of plutonium and uranium are being used to produce MOX (mixed oxide fuel) but the output is small compared to the need.


Thorium as a nuclear fuel world supplies in tons l.jpg

Thorium as a Nuclear FuelWorld Supplies in Tons

Australia340,000

India 300,000

United States 300,000

Norway 180,000

Canada 100,000

South Africa 39,000

Brazil 18,000

Malaysia 4,500

Other Countries 100,000

World Total 1,400,000


Benefits of thorium as a nuclear fuel l.jpg

Benefits of Thorium as a Nuclear Fuel

  • Greater Abundance than Uranium

  • Production of Thorium Fuel Does Not Require

  • Isotopic Separation

  • Use of Thorium Fuel Produces Much Less

  • Long-Lived Transuranics Than Uranium Fuel


Thorium fueled nuclear power reactors l.jpg

Thorium Fueled Nuclear Power Reactors

Thorium reactors have been used for more than 40 years.

Shippingport Atomic Power Station commenced producing electrical power from its thorium-232, uranium-233 powered reactor in 1957 and was decommissioned in 1982.


Thorium fueled nuclear power reactors50 l.jpg

Thorium Fueled Nuclear Power Reactors

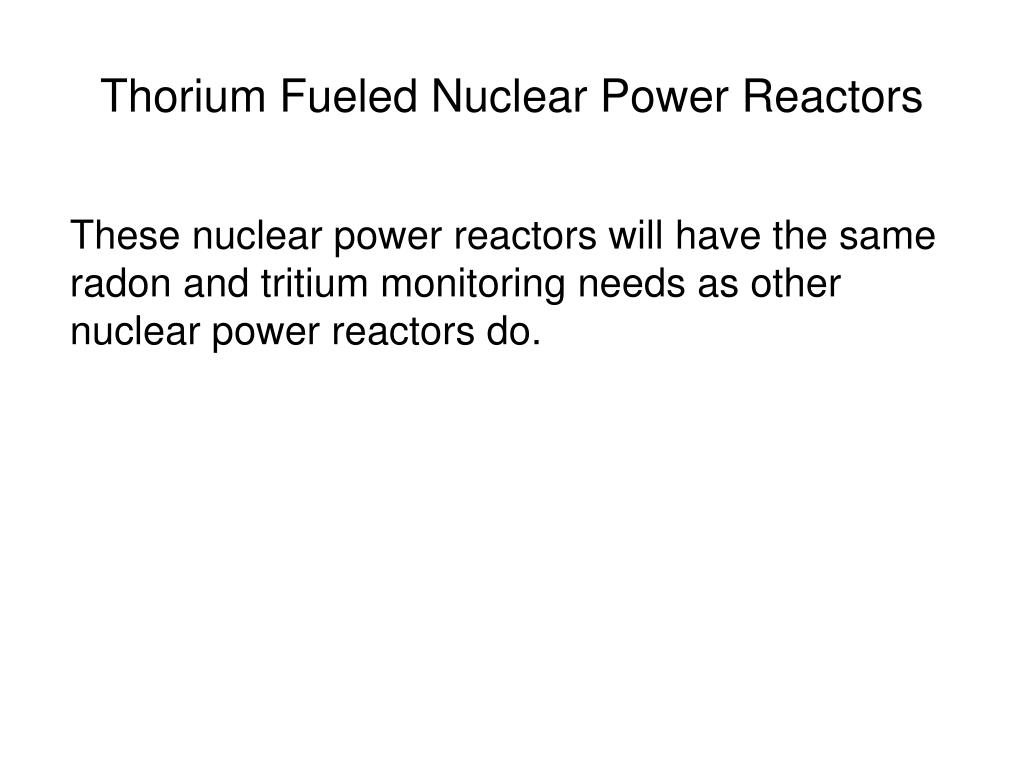

These nuclear power reactors will have the same radon and tritium monitoring needs as other nuclear power reactors do.


Need for remote real time radiological monitoring of nuclear facilities l.jpg

Need For Remote Real-Time Radiological Monitoring of Nuclear Facilities

  • Notification of an Unplanned Release

  • Identification and Quantification of Unplanned

  • Releases

  • Tracking of Unplanned Releases to the

  • Environment

  • Prediction of the Path of Unplanned Releases


Radon potential map of the us l.jpg

Radon Potential Map of the US


Surface uranium deposits l.jpg

Surface Uranium Deposits


Surface thorium deposits l.jpg

Surface Thorium Deposits


Some unplanned releases from nuclear facilities l.jpg

Some Unplanned Releases from Nuclear Facilities

  • Three Mile Island - 1979

  • Contributing Factors

  • Facility Design

  • Equipment Malfunction

  • Operator Training


Some unplanned releases from nuclear facilities56 l.jpg

Some Unplanned Releases from Nuclear Facilities

  • Chernobyl - 1986

  • Contributing Factors

  • Facility Design

  • Equipment Malfunction

  • Operator Training


Some unplanned releases from nuclear facilities57 l.jpg

Some Unplanned Releases from Nuclear Facilities

  • Japan, Tokaimura - 1999

  • Contributing Factors

  • Facility Design

  • Operator Training


Some unplanned releases from nuclear facilities58 l.jpg

Some Unplanned Releases from Nuclear Facilities

  • Practices to Prevent and/or

  • Mitigate the Consequences

  • Better Facility Designs

  • Better Equipment Designs

  • Better Operator Training

  • Better Radiological Monitoring Inside and

  • Outside the Facilities


Summary l.jpg

Summary

Portable, Stationary, High Sampling Rate, and Energy Compensated Radon Monitors are needed.

Portable, Stationary, Elemental vs. Oxide, and Energy Compensated Tritium in Air Monitors are needed.

Stationary Tritium in Water Monitors are needed.


References l.jpg

References

American Nuclear Societywww.ans.org

Health Physics Societywww.hps.org

Institute of Nuclear Power Operations

www.inpo.info

Nuclear Energy Institutewww.nei.org

US Department Of Energywww.doe.gov

US Nuclear Regulatory Commission

www.nrc.org


  • Login
