  1. Automatic compositional reasoning for probabilistic model checking of hardware designs Jayanand Asok KumarandShobha Vasudevan Electrical and Computer Engineering University of Illinois at Urbana-Champaign

  2. Stochastic nature of hardware • Sources of variations • Random data, transient physical faults, process variations • Variable hardware delay can result in incorrect latching of values • Traditional hardware verification (non-probabilistic) “Does the hardware always provide correct input/output functionality ?” • Cannot provide quantitative measures of “correctness” We incorporate statistical reasoning into the high-level hardware verification paradigm

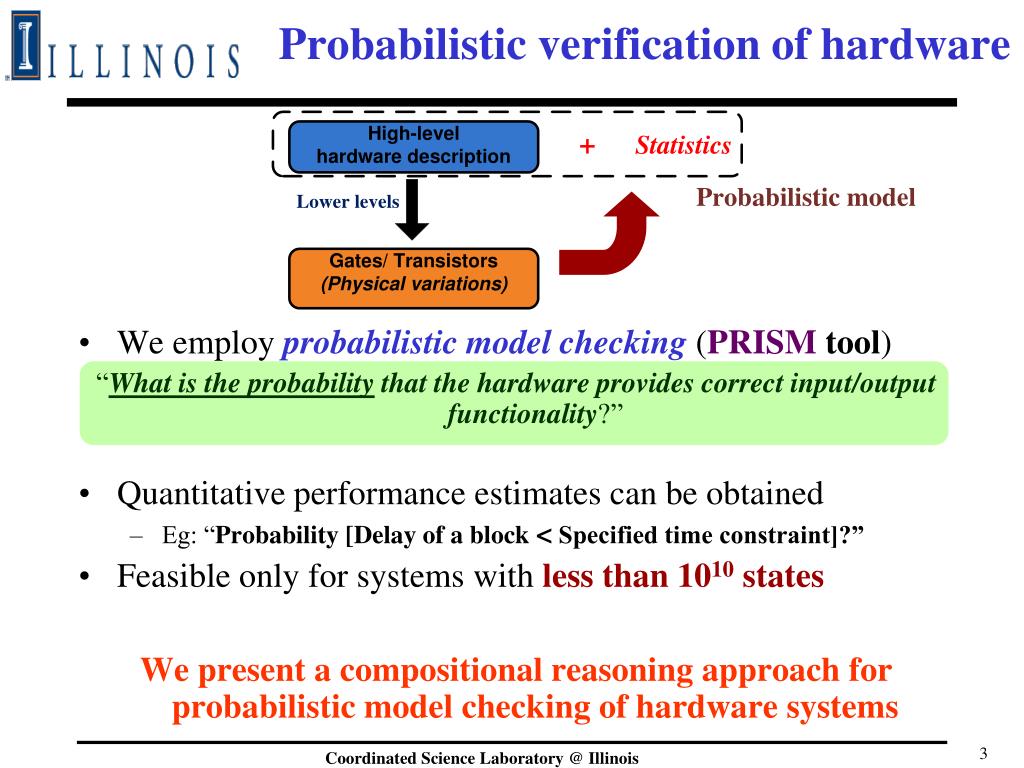

  3. Probabilistic verification of hardware • We employ probabilistic model checking (PRISM tool) “What is the probability that the hardware provides correct input/output functionality?” • Quantitative performance estimates can be obtained • Eg: “Probability [Delay of a block < Specified time constraint]?” • Feasible only for systems withless than1010 states We present a compositional reasoning approach for probabilistic model checking of hardware systems

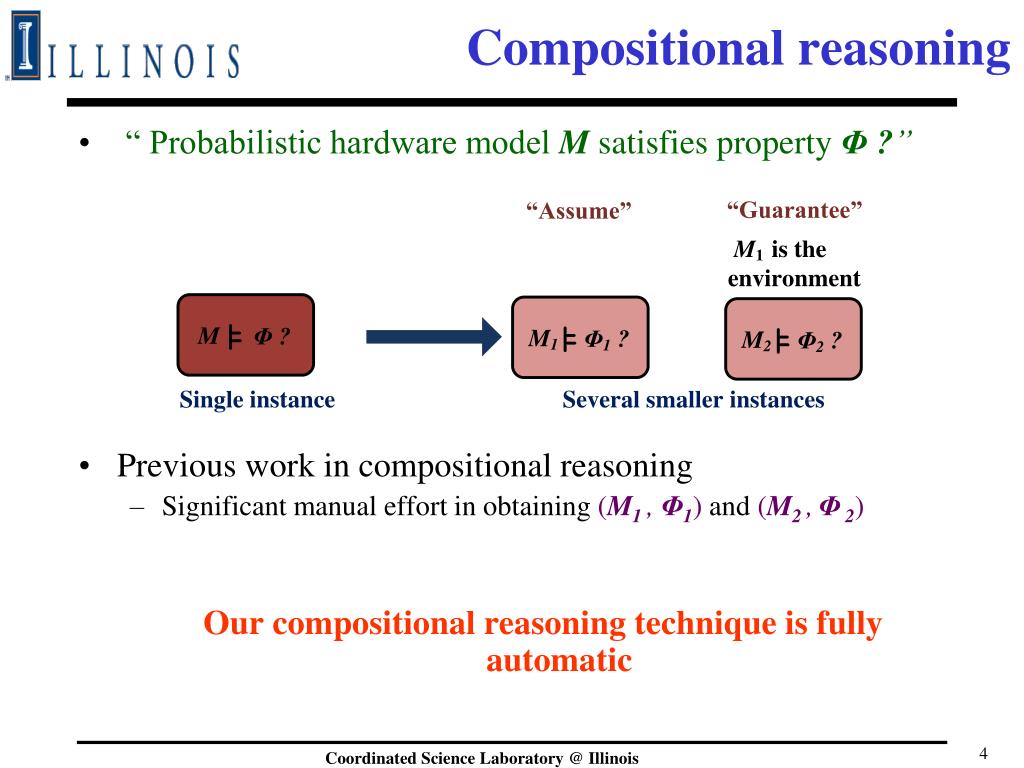

  4. Compositional reasoning • “ Probabilistic hardware model M satisfies property Φ ?” • Previous work in compositional reasoning • Significant manual effort in obtaining (M1 , Φ1)and (M2 ,Φ 2) Our compositional reasoning technique is fully automatic

  5. Our approach

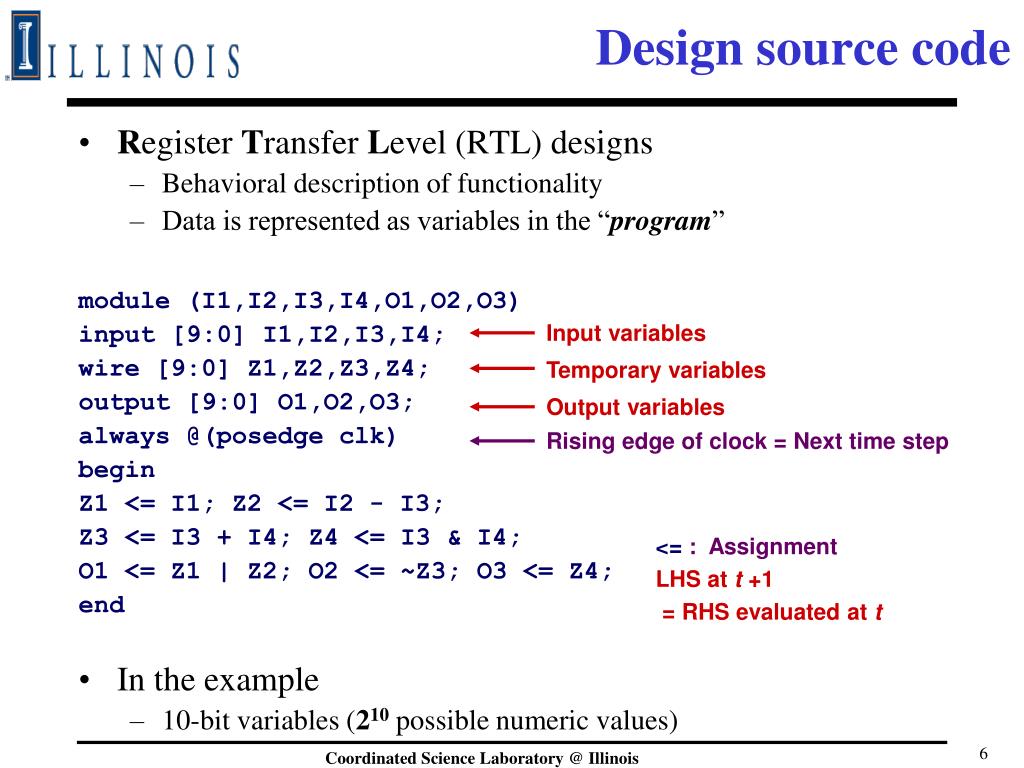

  6. Design source code • Register Transfer Level (RTL) designs • Behavioral description of functionality • Data is represented as variables in the “program” module (I1,I2,I3,I4,O1,O2,O3) input [9:0] I1,I2,I3,I4; wire [9:0] Z1,Z2,Z3,Z4; output [9:0] O1,O2,O3; always @(posedge clk) begin Z1 <= I1; Z2 <= I2 - I3; Z3 <= I3 + I4; Z4 <= I3 & I4; O1 <= Z1 | Z2; O2 <= ~Z3; O3 <= Z4; end • In the example • 10-bit variables (210 possible numeric values) Input variables Temporary variables Output variables Rising edge of clock = Next time step <=: Assignment LHS at t +1 = RHS evaluated at t

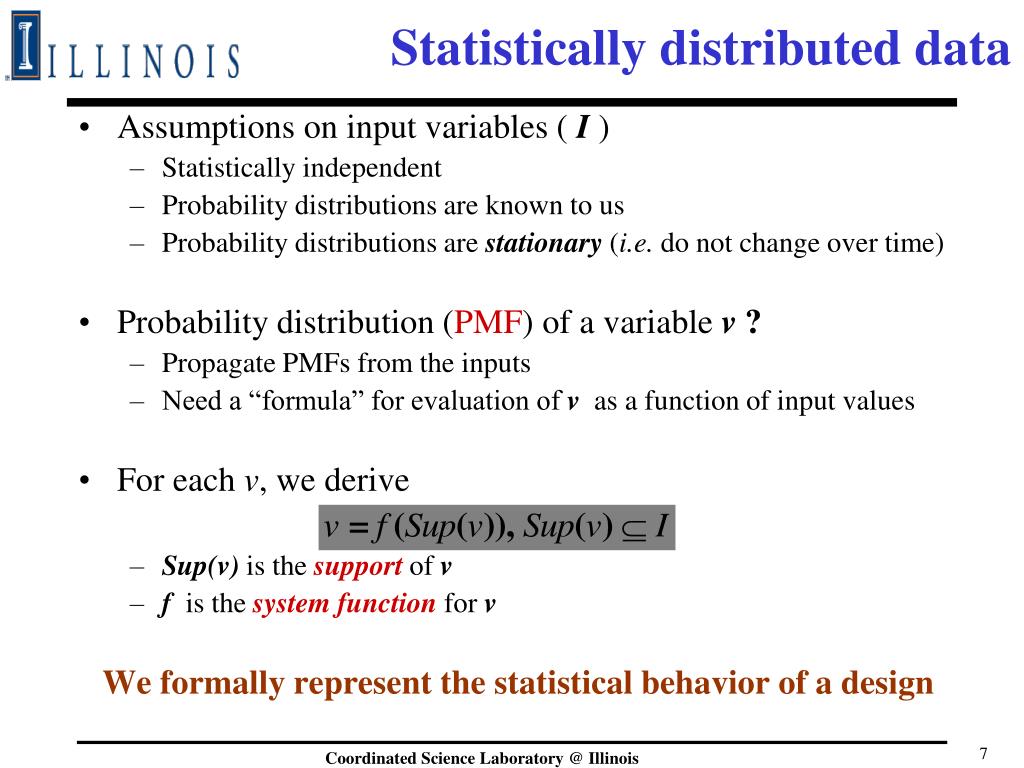

  7. Statistically distributed data • Assumptions on input variables ( I) • Statistically independent • Probability distributions are known to us • Probability distributions are stationary (i.e. do not change over time) • Probability distribution (PMF) of a variable v? • Propagate PMFs from the inputs • Need a “formula” for evaluation ofv as a function of input values • For each v, we derive • Sup(v) is the supportof v • fis the system function for v We formally represent the statistical behavior of a design

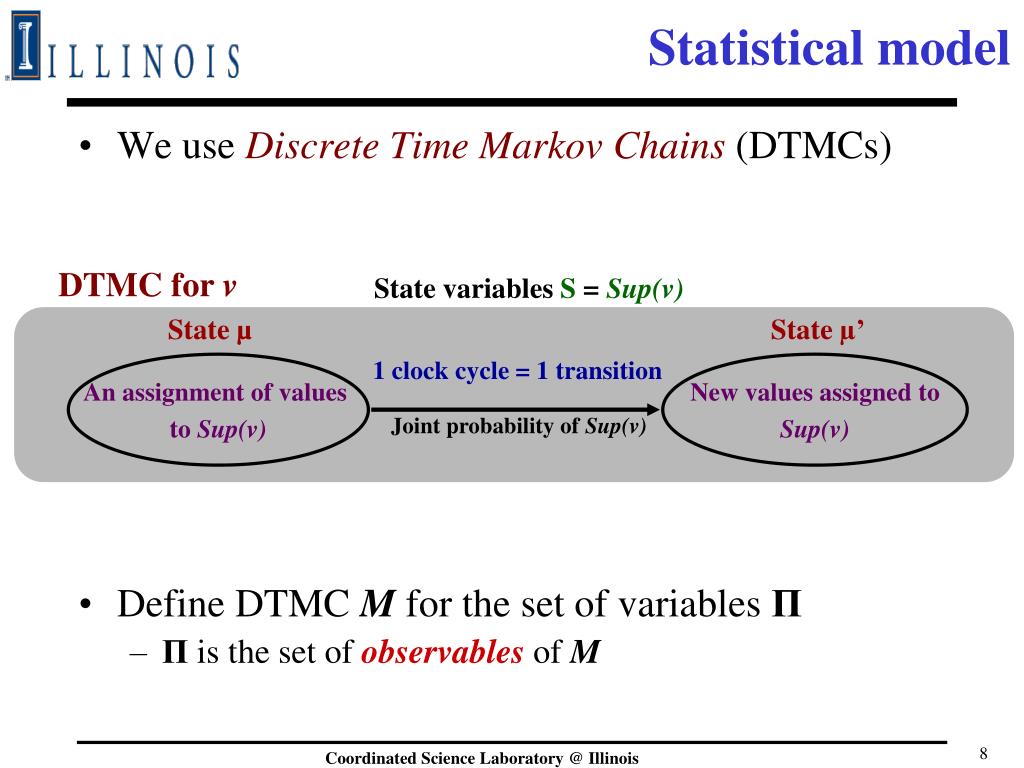

  8. Statistical model • We use Discrete Time Markov Chains (DTMCs) • Define DTMC M for the set of variables Π • Πis the set of observables of M DTMC for v State variables S =Sup(v) State µ State µ’ An assignment of values to Sup(v) New values assigned to Sup(v) 1 clock cycle = 1 transition Joint probability of Sup(v)

  9. Property specification • Performance metrics are data-dependent • Can be expressed in terms of hardware variables (eg: Delay = fP(Π)) We check M satisfies Φusing PRISM Probabilistic invariant where fP is real-valued function, c is a real-valued constant Property where p is a real-valued constant in [0,1]

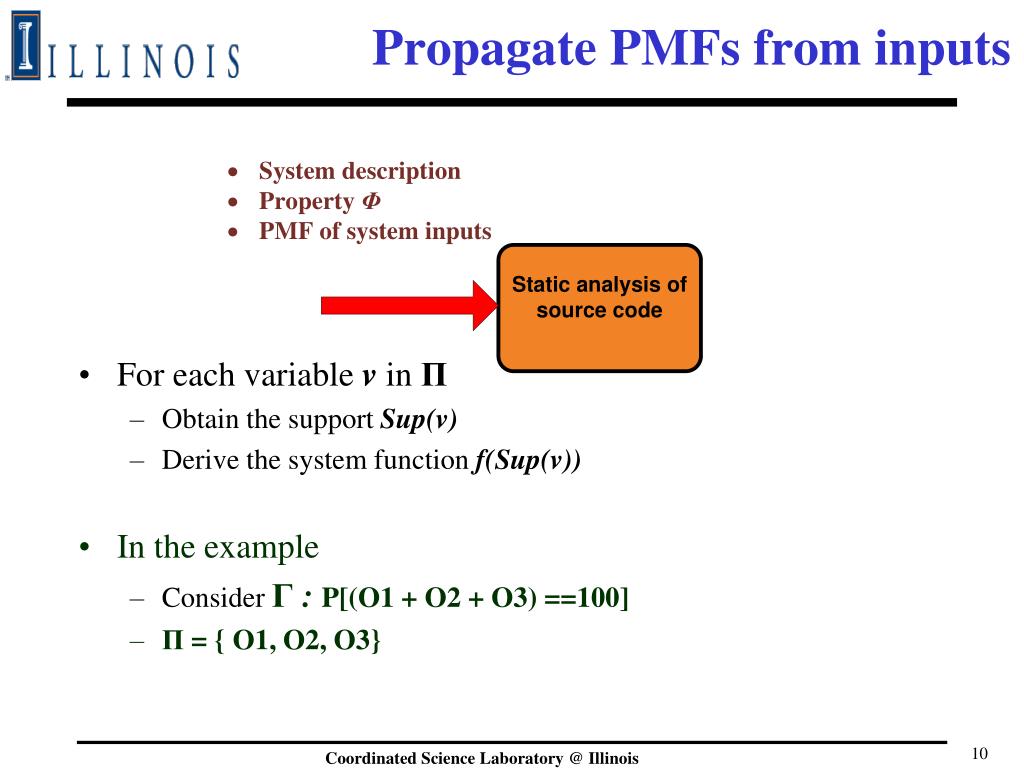

  10. Propagate PMFs from inputs • For each variable v in Π • Obtain the support Sup(v) • Derive the system function f(Sup(v)) • In the example • ConsiderΓ : P[(O1 + O2 + O3) ==100] • Π = { O1, O2, O3}

  11. Static analysis Z1 <= I1; Z2 <= I2 - I3; Z3 <= I3 + I4; Z4 <= I3 & I4; O1 <= Z1 | Z2; O2 <= ~Z3; O3 <= Z4; • Traverse the RHS of assignments statement, transitively • Stop when primary inputs are reached Sup(O1) = {I1, I2, I3} Sup(O2) = {I3, I4} Sup(O3) = {I3, I4} DTMC model: S = {I1, I2, I3, I4}

  12. Obtaining the components: M1,M2

  13. Structural decomposition Partition observables In the example: M2 M1 Ψ= {I3} Π1 = {O1} Π2 = {O2, O3}

  14. Obtaining the properties: Φ1 ,Φ2

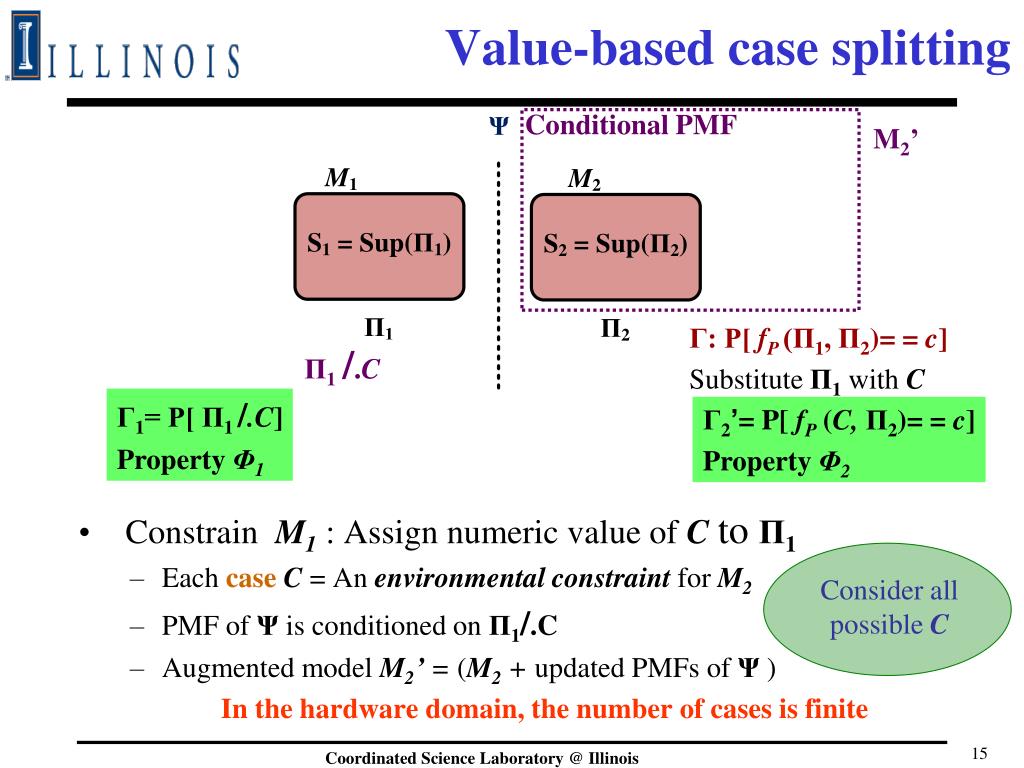

  15. Value-based case splitting Conditional PMF • Constrain M1 : Assign numeric value of Cto Π1 • Each caseC= An environmental constraint for M2 • PMF of Ψ is conditioned on Π1/.C • Augmented model M2’ = (M2 + updated PMFs ofΨ) In the hardware domain, the number of cases is finite M2’ Γ: P[ fP (Π1, Π2)= = c] Substitute Π1with C Π1/.C Γ1= P[ Π1 /.C] Property Φ1 Γ2’= P[ fP(C, Π2)= = c] Property Φ2 Consider all possibleC

  16. Assume-guarantee reasoning

  17. Assume-guarantee reasoning • ComputeΓ12 • In the example Γ : P[(O1 + O2 + O3) ==100] Π1 = { O1}, Π2 = {O2, O3} Γ2’= P[(5 + O2 + O3) = = 100] (Consider the caseC=5 ) Γ1 = P[O1/.5]210=1024 total cases Composing the invariants

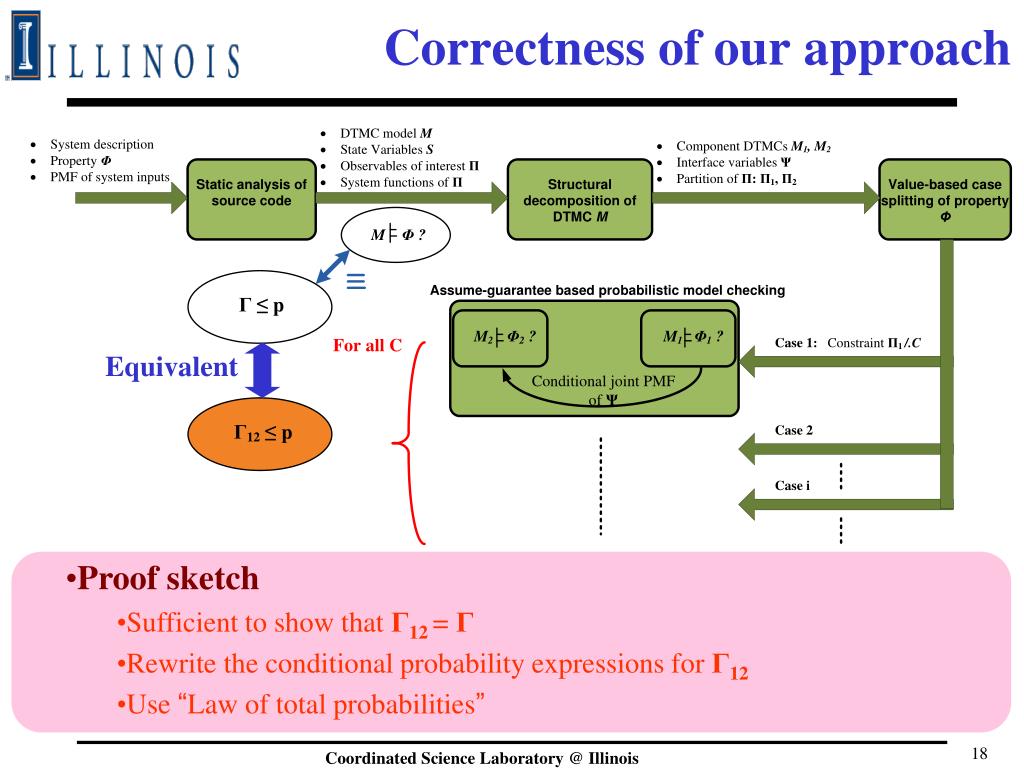

  18. Correctness of our approach Equivalent • Proof sketch • Sufficient to show that Γ12 =Γ • Rewrite the conditional probability expressions for Γ12 • Use “Law of total probabilities”

  19. Case study: Ripple-carry adder • fP is separable • Each case is a numeric value of hP(Π1), instead of Π1 (Abstraction) • Only 17 cases, instead of 232 • Required Invariant: P[fP(ripples) < T] • ripples: length of carry chain

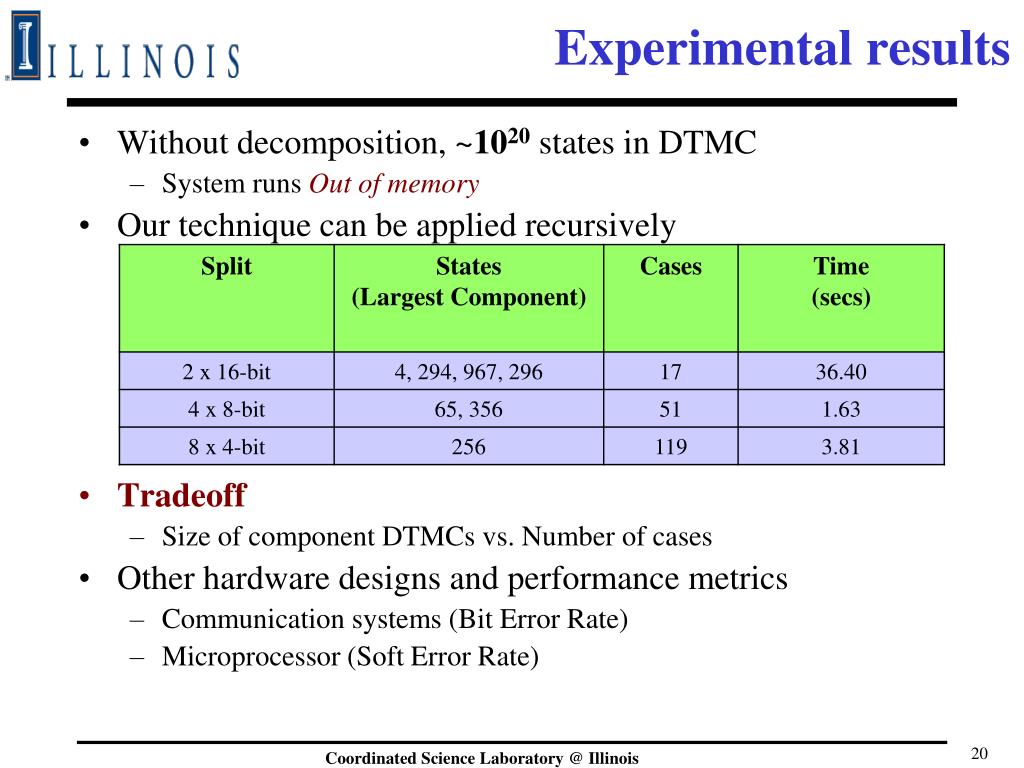

  20. Experimental results • Without decomposition, ~1020 states in DTMC • System runs Out of memory • Our technique can be applied recursively • Tradeoff • Size of component DTMCs vs. Number of cases • Other hardware designs and performance metrics • Communication systems (Bit Error Rate) • Microprocessor (Soft Error Rate)

  21. Summary • Automatic compositional reasoning approach for probabilistic model checking of hardware designs • Approach is sound and applicable to different types of hardware designs and performance metrics • Future work • Optimize decomposition for the size of interface variables • Automatic detection and exploitation of case symmetry
