Time intervals x = 4cos(  π t) Find the time interval between the 1st and 2nd time the particle is at x = 3. x = 3 so 3 = 4cos  π t  = cos  π t so  π t = 0.7227 or 2π – 0.7227 So t = 0.153 or 1.180 s so time interval is 1.03 s.

Download Presentation

Time intervals x = 4cos(  π t)

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Time intervals x 4cos t

Time intervals

x = 4cos(π t)

Find the time interval between the 1st and 2nd time the particle is at x = 3.

x = 3 so 3 = 4cos  π t

 = cos π t

so  π t = 0.7227 or 2π – 0.7227

So t = 0.153 or 1.180 s so time interval is 1.03 s

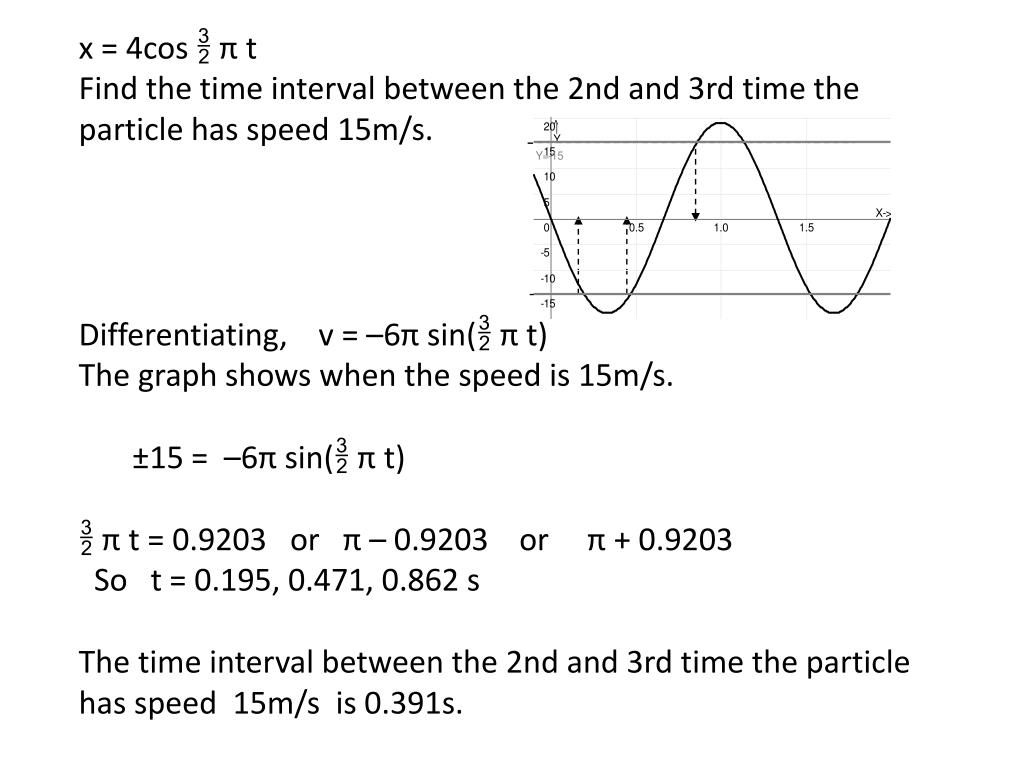

Time intervals x 4cos t

x = 4cos  π t

Find the time interval between the 2nd and 3rd time the particle has speed 15m/s.

Differentiating, v = –6π sin( π t)

The graph shows when the speed is 15m/s.

±15 = –6π sin( π t)

 π t = 0.9203 or π – 0.9203 or π + 0.9203

So t = 0.195, 0.471, 0.862 s

The time interval between the 2nd and 3rd time the particle has speed 15m/s is 0.391s.
