Benefits of hybrid control

South Bay Meeting

Benefits of Hybrid Control

11th February 2003

Presenter Gary Souza

Honeywell Industry Solutions

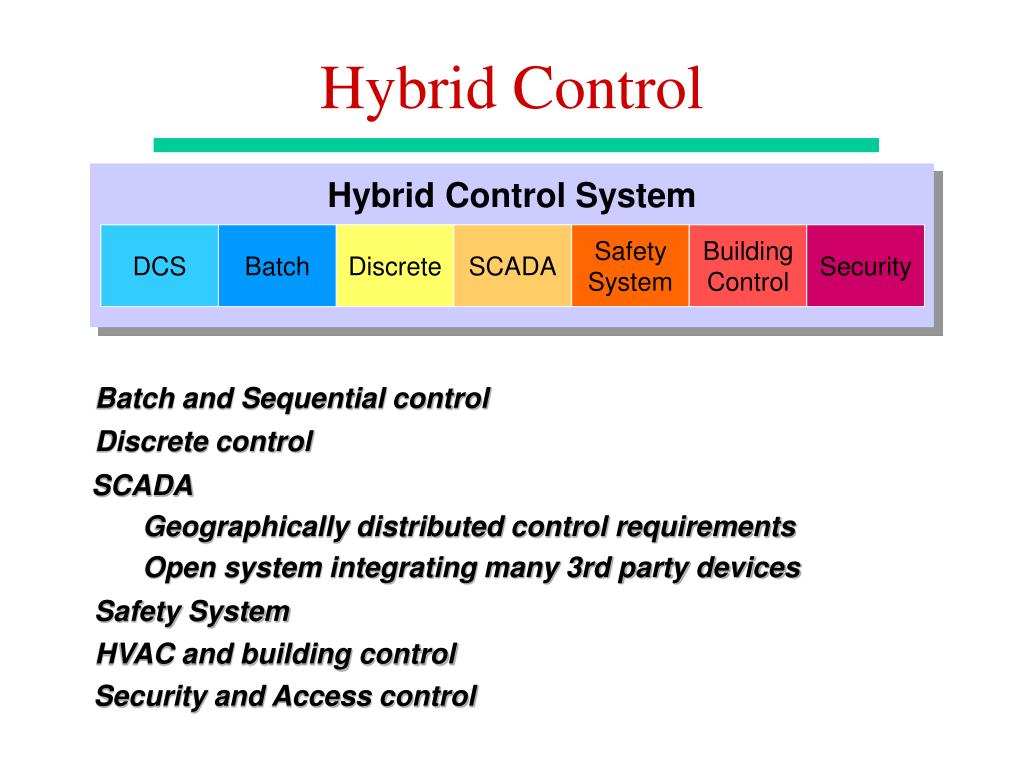

Hybrid control

Hybrid Control

Hybrid Control System

DCS

Batch

Discrete

SCADA

Safety System

Building Control

Security

Batch and Sequential control

Discrete control

  • SCADA

    • Geographically distributed control requirements

    • Open system integrating many 3rd party devices

Safety System

HVAC and building control

Security and Access control


Benefits of hybrid control

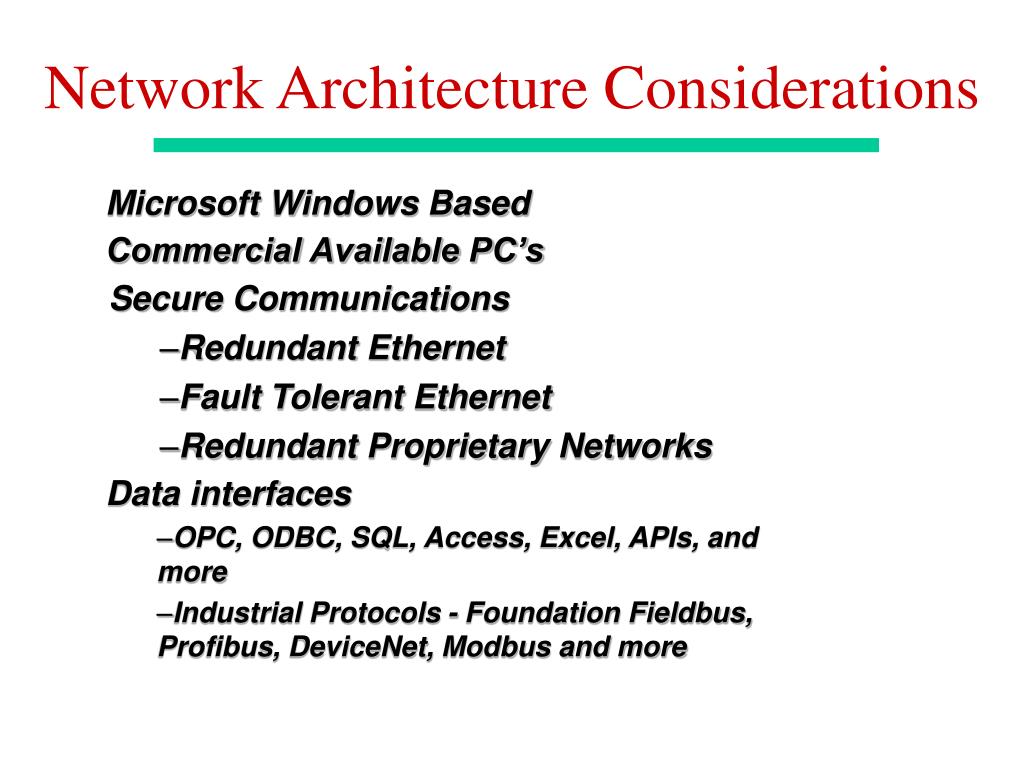

Network Architecture Considerations

Microsoft Windows Based

Commercial Available PC’s

  • Secure Communications

    • Redundant Ethernet

    • Fault Tolerant Ethernet

    • Redundant Proprietary Networks

  • Data interfaces

    • OPC, ODBC, SQL, Access, Excel, APIs, and more

    • Industrial Protocols - Foundation Fieldbus, Profibus, DeviceNet, Modbus and more


Benefits of hybrid control

Network Architecture Considerations

Client/Server

Direct Station

Application Server

ESD/Fire & Gas

Server

High Speed Fault

Tolerant Ethernet

ControlNet

Redundant I/O

Fiber Optic

Isolation

HART


Benefits of hybrid control

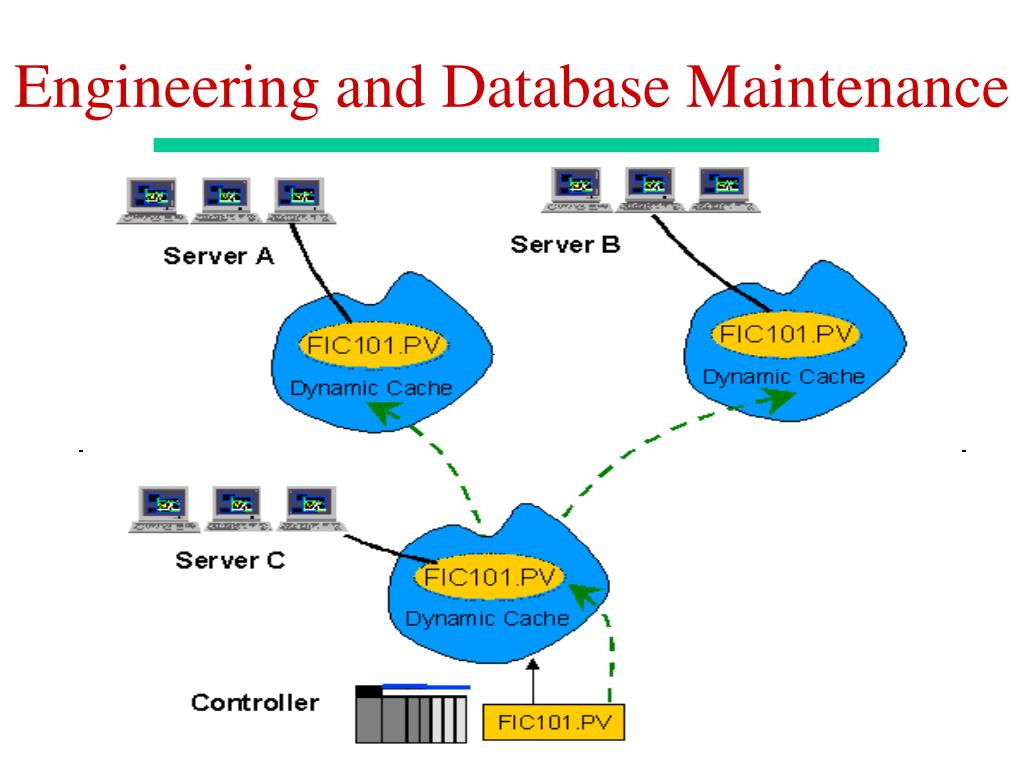

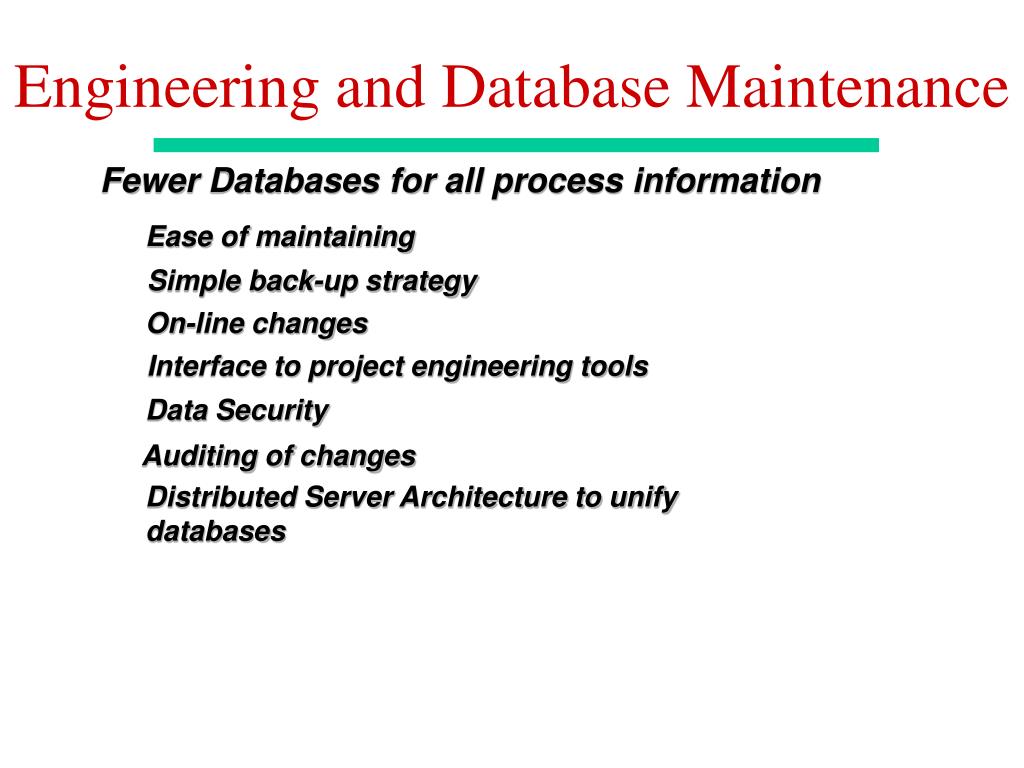

Engineering and Database Maintenance

Fewer Databases for all process information

Ease of maintaining

Simple back-up strategy

On-line changes

Interface to project engineering tools

Data Security

  • Auditing of changes

Distributed Server Architecture to unify databases


Benefits of hybrid control

Engineering and Database Maintenance


Benefits of hybrid control

Engineering and Database Maintenance

Configuration Tools

Graphical interface

Single configuration tool for Continuous/Batch and Discrete

  • Chart Visualization - See controller logic from Operator Station

  • Windows based – drag and drop

XML based Process graphics builder, enabled for Web based graphic


Benefits of hybrid control

Engineering and Database Maintenance


Benefits of hybrid control

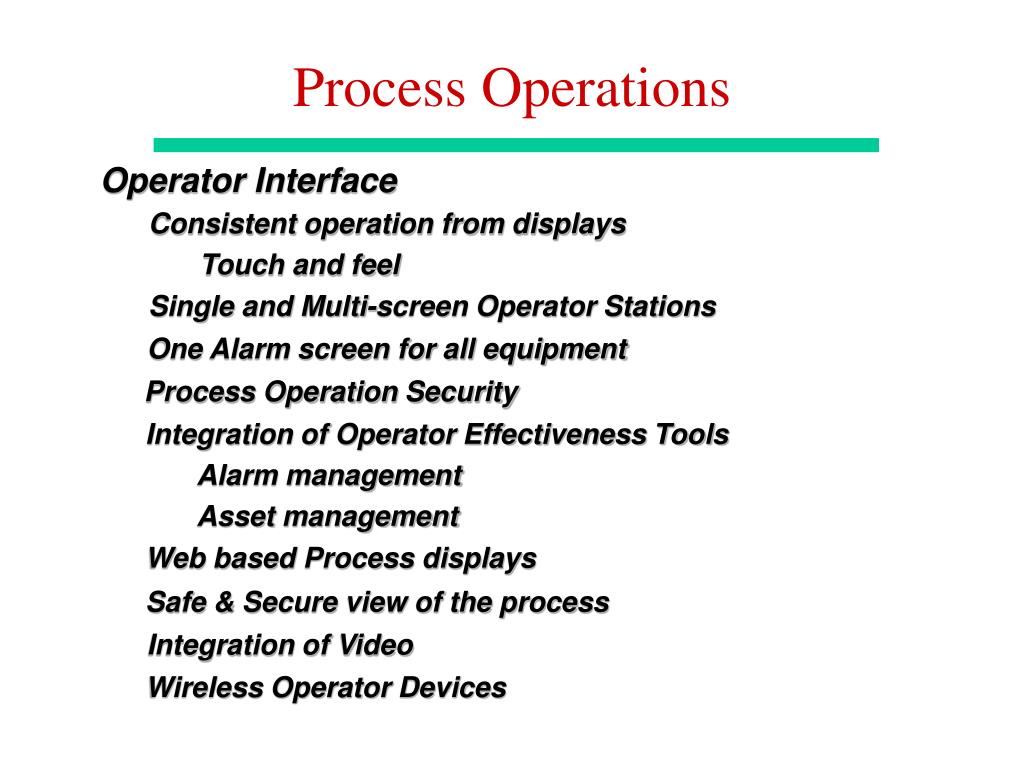

Process Operations

Operator Interface

  • Consistent operation from displays

    • Touch and feel

Single and Multi-screen Operator Stations

One Alarm screen for all equipment

Process Operation Security

  • Integration of Operator Effectiveness Tools

    • Alarm management

    • Asset management

Web based Process displays

Safe & Secure view of the process

Integration of Video

Wireless Operator Devices


Benefits of hybrid control

T123

T123

T123

T123

T123

T123

T123

Process Operations


Benefits of hybrid control

Asset Maintenance

  • All Equipment information sources are integrated

    • Hart / FF for information and monitoring

    • Sensor calibration

    • On-line documents

    • Interface to Computer Maintenance Management Systems - Maximo, SAP

Diagnosis of valves

Applies to all valves, not just smart ones

Diagnoses the entire loop, not just the valve

Asset Management

Detection of equipment failure and maintenance

recommendations to prevent unplanned plant shutdown

Kick out a work order based upon an event


  • Login
