5.2 Proving That Lines Are Parallel

5.2 Proving That Lines Are Parallel. Objective: After studying this section, you will be able to apply the exterior angle inequality theorem and use various methods to prove lines are parallel.

renee
Download Presentation

5.2 Proving That Lines Are Parallel

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. 5.2 Proving That Lines Are Parallel Objective: After studying this section, you will be able to apply the exterior angle inequality theorem and use various methods to prove lines are parallel.

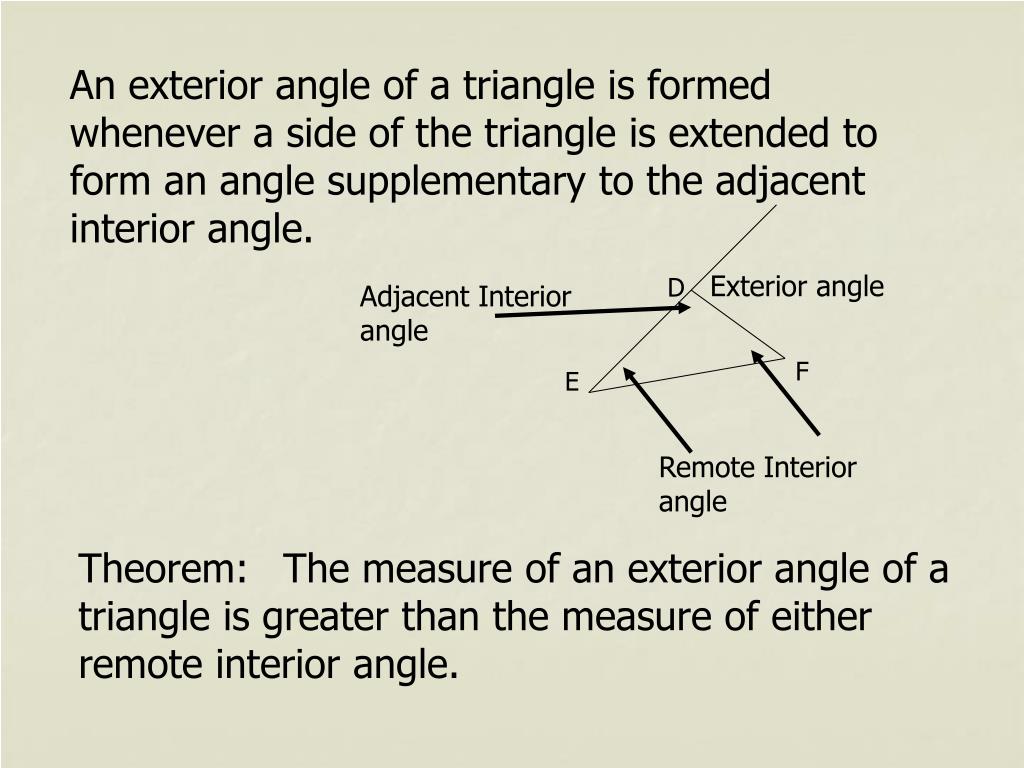

  2. An exterior angle of a triangle is formed whenever a side of the triangle is extended to form an angle supplementary to the adjacent interior angle. Exterior angle D Adjacent Interior angle F E Remote Interior angle Theorem: The measure of an exterior angle of a triangle is greater than the measure of either remote interior angle.

  3. Given: exterior angle BCD B Prove: P M A D C Locate the midpoint, M, of BC. Draw AP so that AM=MP Draw CP Triangles AMB and PMC are congruent because of SAS This makes angle B and angle MCP congruent (CPCTC) This also proves that angle BCD is greater than angle B Extend BC, creating a vertical angle to angle BCD The following results:

  4. Theorem: If two lines are cut by a transversal such that two alternate interior angles are congruent, the lines are parallel. (short form: Alt. int. lines.) a Given: Prove: a ll b 3 b 6 Use an indirect proof to prove that a ll b.

  5. Theorem: If two lines are cut by a transversal such that two alternate exterior angles are congruent, the lines are parallel. (short form: Alt. ext. lines.) a Given: 1 Prove: a ll b b 8 This can be proved by use of Alt. int. lines.

  6. Theorem: If two lines are cut by a transversal such that two corresponding angles are congruent, the lines are parallel. (short form: corr. lines.) a Given: 2 Prove: a ll b b 6 This can be proved by use of Alt. int. lines.

  7. Theorem: If two lines are cut by a transversal such that two interior angles on the same side of the transversal are supplementary, the lines are parallel. a Given: Prove: a ll b 4 b 6 This can be proved by use of Alt. int. lines.

  8. Theorem: If two lines are cut by a transversal such that two exterior angles on the same side of the transversal are supplementary, the lines are parallel. a Given: 2 Prove: a ll b b 8 This can be proved by use of Alt. int. lines.

  9. Theorem: If two coplanar lines are perpendicular to a third line, they are parallel. a b Given: Prove: a ll b c This can be proved by use of corr. lines.

  10. a b Given: Prove: a ll b 1 2 c

  11. Given: Prove: MATH is a parallelogram A T 3 1 2 4 H M

  12. Given: Prove: FROM is a TRAPEZOID S 3 O R 1 2 F M

  13. Summary Name the different ways to prove lines are parallel. Homework: worksheet
