  1. AQT90 FLEX Service Training HANDS ON Task list

  2. RADIOMETER PRESENTATION Task – Wet Section Service Program “Wet Section” • Test Pumps P1 and P2 • Test Pumps P4 and P5 • Test Pump P3 • Test Valve V1 • Test Valve V2 • Calibrate Liquid sensor LS1 • Calibrate Liquid sensor LS2 • Calibrate Liquid sensor LS3 Refer to the service manual chapter 3-6 and chapter 7-19

  3. RADIOMETER PRESENTATION Task – Wet Section Service Program “CAVRO” • Examine the different menus • Run the self test Refer to the service manual chapter 3-6 and chapter 7-19 Service Program “Reagent Pack” • Release RP • Lock - unlock • Tag – see the information

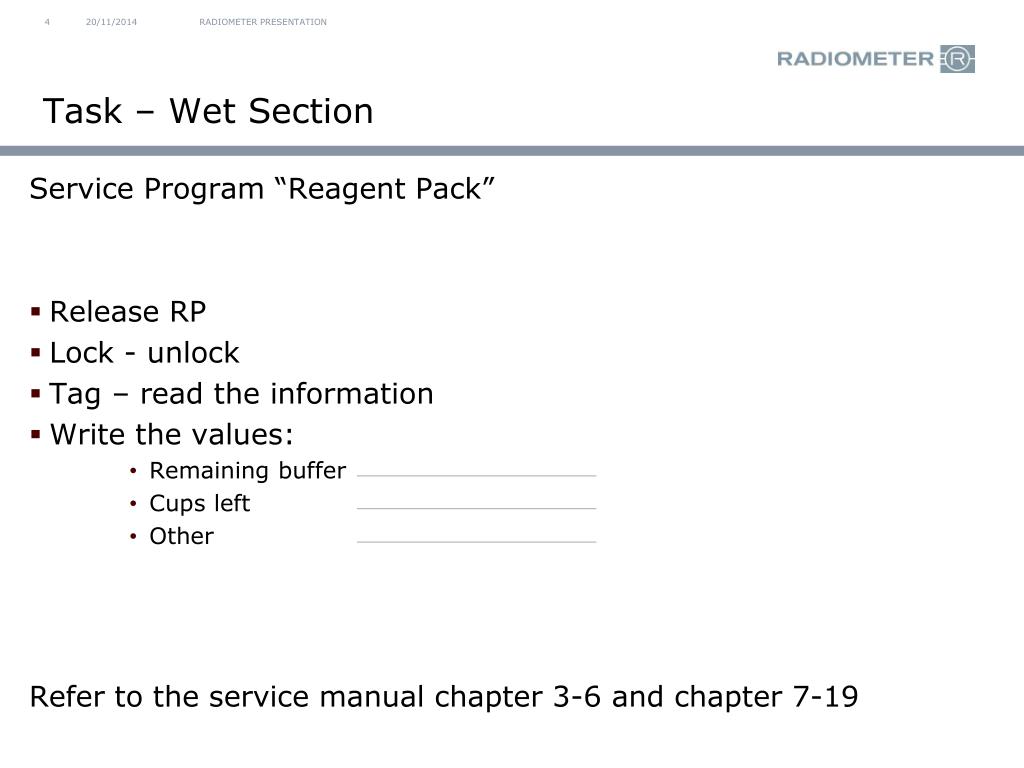

  4. RADIOMETER PRESENTATION Task – Wet Section Service Program “Reagent Pack” • Release RP • Lock - unlock • Tag – read the information • Write the values: • Remaining buffer • Cups left • Other Refer to the service manual chapter 3-6 and chapter 7-19

  5. RADIOMETER PRESENTATION Tasks – Cup transport • Service Program “Cup transport” • perform stepper movement actions. • Remove the RP and feel the cup sensor – calibrate the cup sensor. • Run a “cup transport” • Exchange needle – use torque screwdriver 0.95 Nm • Needle calibration – important to follow the guidelines in SM

  6. RADIOMETER PRESENTATION Task – Inlet Service Program “Inlet Wheel” • Mix and check sensor positions • - try to adjust inlet wheel position on stepper motor rod • Lock and unlock. See the function Service Program “Inlet Door” • Open – close. See the functionality Service Program “Storage Door” • Open – close. See the movement to the sensors • Look eventually into Colour definitions and Vision Control Refer to the service manual chapter 3

  7. RADIOMETER PRESENTATION Task – Inlet Service Program “Inlet Door” • Open – close. • examine the functionality Service Program “Storage Door” • Open – close. See the movement to the sensors Refer to the service manual chapter 3

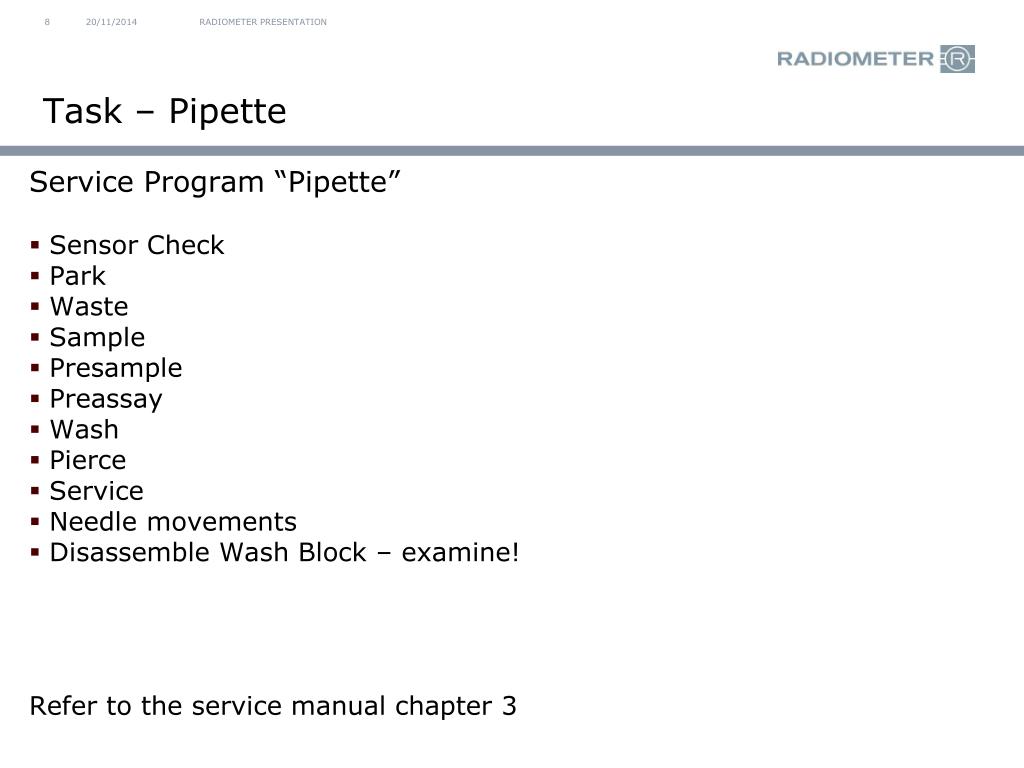

  8. RADIOMETER PRESENTATION Task – Pipette Service Program “Pipette” • Sensor Check • Park • Waste • Sample • Presample • Preassay • Wash • Pierce • Service • Needle movements • Disassemble Wash Block – examine! Refer to the service manual chapter 3

  9. RADIOMETER PRESENTATION Task – Process Unit Pls. perform the following tests and adjustments: Service Program “Process Unit” • Raise • Lower • Sensor and movement check Service Program “Cup Dryer” • Find target temperature • Find blower flow • Dryer flow test • Check the change of values in the special config Refer to the service manual chapter 3

  10. RADIOMETER PRESENTATION Task – Optical Unit Pls. perform the following test and adjustments: Service Program “Measuring” • Go to reference • Dark Meas. • Measure 7 times • Calibrate Factory Reference • Compare value and save. Refer to the service manual chapter 3 and chapter 6-19

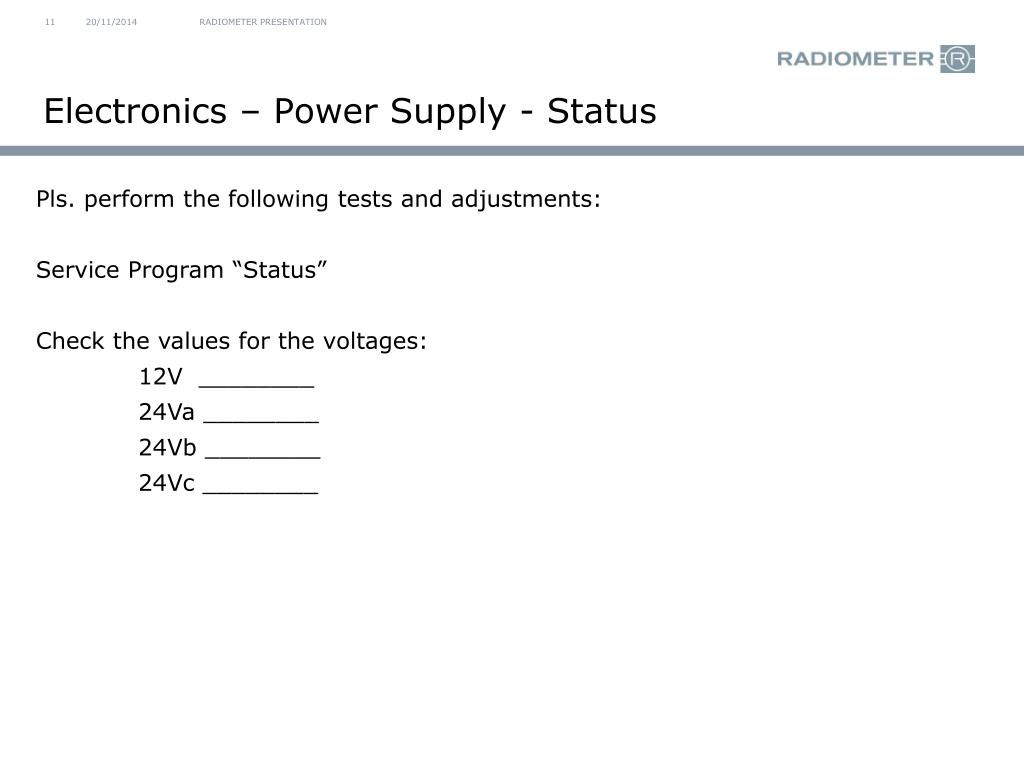

  11. RADIOMETER PRESENTATION Electronics – Power Supply - Status Pls. perform the following tests and adjustments: Service Program “Status” Check the values for the voltages: 12V ________ 24Va ________ 24Vb ________ 24Vc ________

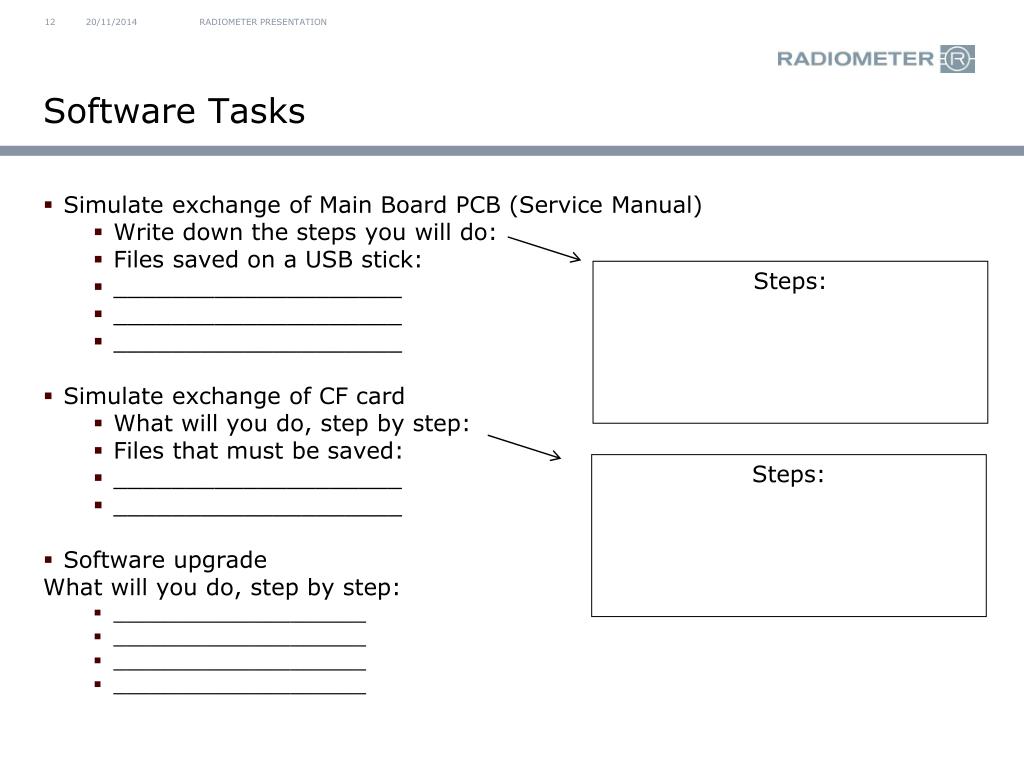

  12. RADIOMETER PRESENTATION Software Tasks • Simulate exchange of Main Board PCB (Service Manual) • Write down the steps you will do: • Files saved on a USB stick: • ____________________ • ____________________ • ____________________ • Simulate exchange of CF card • What will you do, step by step: • Files that must be saved: • ____________________ • ____________________ • Software upgrade What will you do, step by step: • ____________________ • ____________________ • ____________________ • ____________________ Steps: Steps:

  13. RADIOMETER PRESENTATION Software UpgradeDirect approach of accessing a USB device and upgrade DMS software • No sample tests must be running! • Insert the USB device. Press Ctl+Shift+Esc to access the Task Manager. • Click on New Task. A “Create New Task” dialog box comes up. • Enter "explorer" in the dialog text box; a Windows Start icon appears at the bottom of the screen. • Click Start->My Computer. • Double click on file D:\PISA\Temp\ResetAU.bat • Current instance of AQT software will be terminated • Access the root of the USB and click on Setup.cmd • Choose to upgrade – tick the box • Prompted “Calibrate Display” pls. perform precisely • Prompted “Choose Language” pls. choose English • After the installation the analyser will be restarted. • Once Analyser is restarted then Windows start-up sequence comes up and the user is logged on as ABLUser. • Use Task manager to “End Process” explore

  14. RADIOMETER PRESENTATION Software Install Direct approach of accessing a USB device and installing DMS software • No sample tests must be running! • All data logs will be cleared • All parameter calibrations will be cleared • Insert the USB device. Press Ctl+Shift+Esc to access the Task Manager. • Click on New Task. A “Create New Task” dialog box comes up. • Enter "explorer" in the dialog text box; a Windows Start icon appears at the bottom of the screen. • Click Start->My Computer. • Double click on file D:\PISA\Temp\ResetAU.bat • Current instance of AQT software will be terminated • Access the root of the USB and click on Setup.cmd • Choose to “clean install” – tick the box if not already • Prompted “Calibrate Display” pls. perform precisely • Prompted “Choose Language” pls. choose English • After the installation the analyser will be restarted. • Once Analyser is restarted then Windows start-up sequence comes up and the user is logged on as ABLUser. • Use Task Manager to “End Process” explore

  15. Hands-on tasks Refer to the Service Manual • Replace Process Wheel – easy way • Disassemble Bottom plate complete • Disassemble Pipette unit complete • Adjust BCR for cartridge • Needle calibration – save values • Cup transport • Adjust Inlet wheel • Clean BCR mirror under LCD screen

  16. USB Stick • Contents of the pen drive: • Agenda • Documents • Manuals • OSK • Photos • Pre-learning • Service training • Software • Video

  17. Additional • Run osk.exe • Calibrate touch screen • Setup AQT90 for video and show it

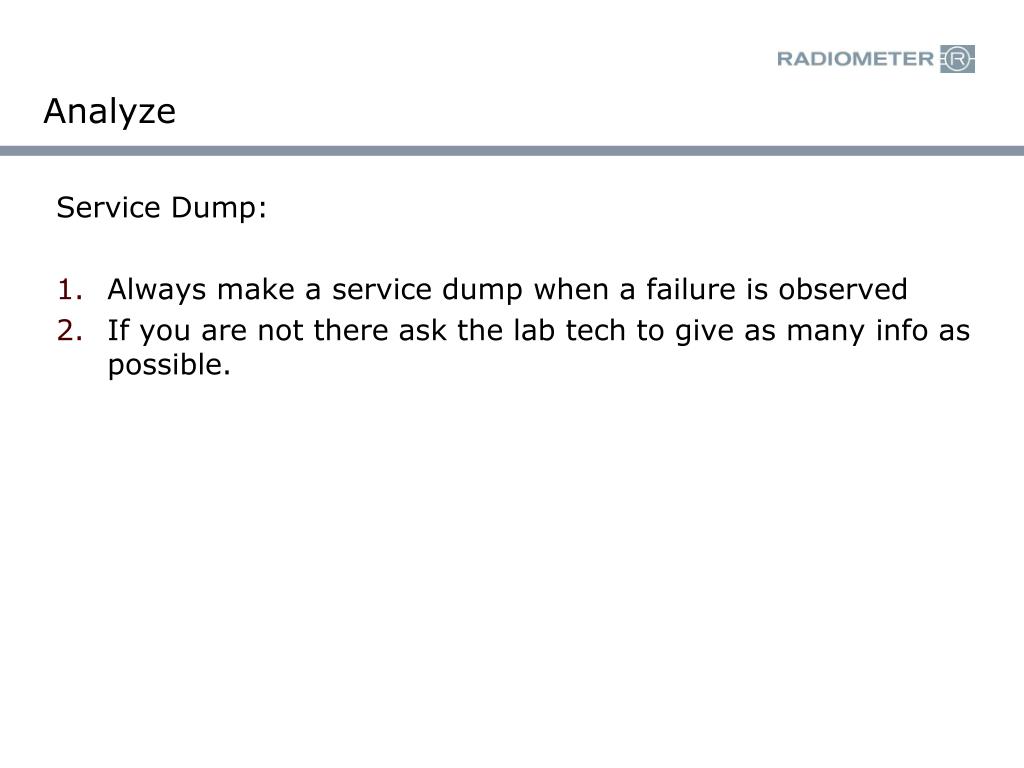

  18. Analyze Service Dump: • Always make a service dump when a failure is observed • If you are not there ask the lab tech to give as many info as possible.

  19. End of HANDS ON Task list
