Mini 4-in-1 Knee Workshop

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Mini 4 in 1 knee workshop

6

3

4

1

2

5

8

7

11

9

10

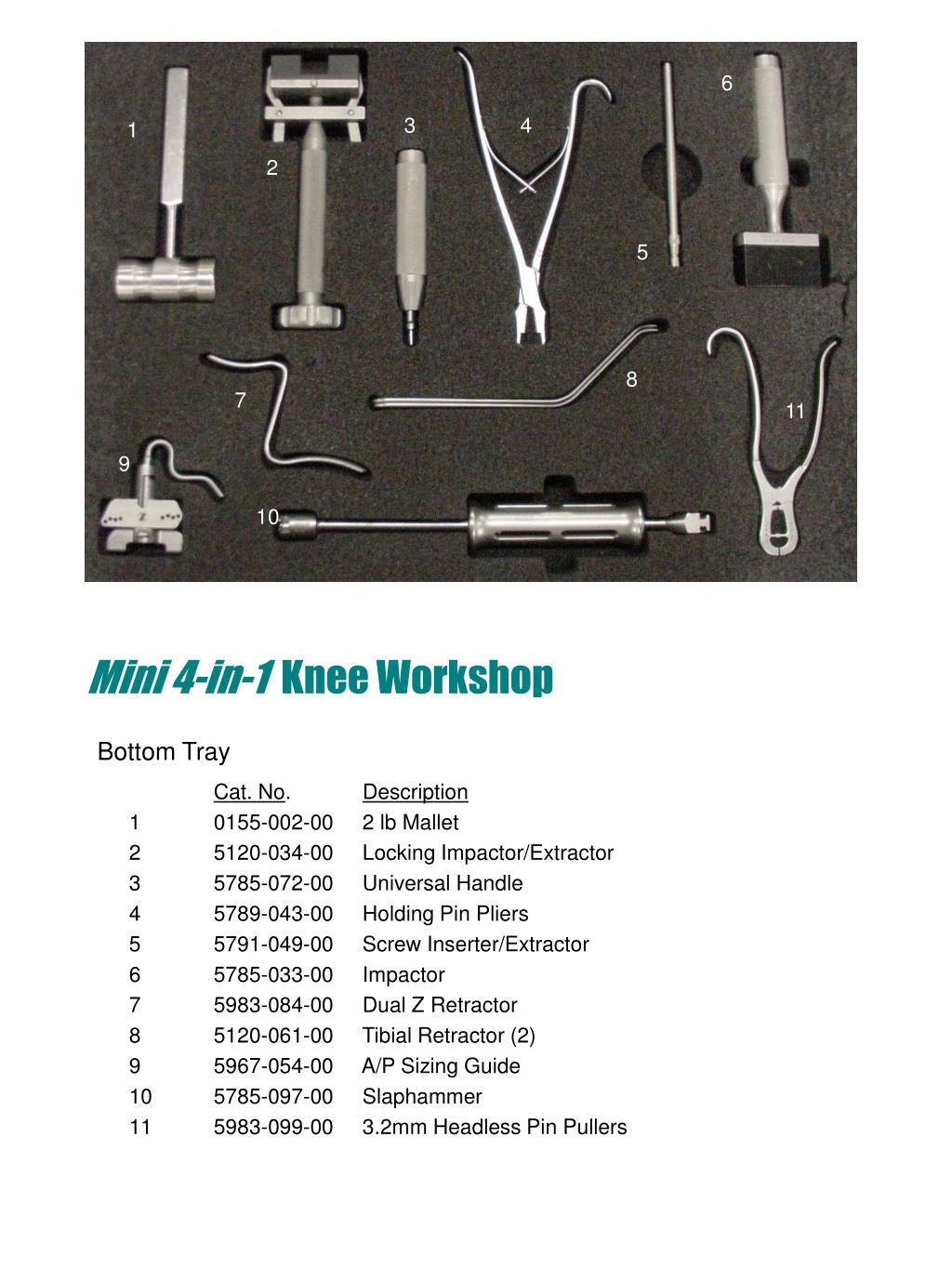

Mini 4-in-1 Knee Workshop

Bottom Tray

  • Cat. No. Description

  • 1 0155-002-00 2 lb Mallet

  • 5120-034-00 Locking Impactor/Extractor

  • 5785-072-00 Universal Handle

  • 5789-043-00 Holding Pin Pliers

  • 5791-049-00 Screw Inserter/Extractor

  • 5785-033-00 Impactor

  • 5983-084-00 Dual Z Retractor

  • 5120-061-00 Tibial Retractor (2)

  • 5967-054-00 A/P Sizing Guide

  • 5785-097-00 Slaphammer

  • 5983-099-00 3.2mm Headless Pin Pullers


Mini 4 in 1 knee workshop

1 2 3 4 5 6 7 8 9 10 11

Mini 4-in-1 Knee Workshop

Cat. No. Description

1 5061-063-00 Hex Head Holding Pin (4)

  • 5997-084-00 Headless Gold Pin (4)

  • 5120-054-00 Fem Finishing Guide Hldg Pin (2)

  • 5791-054-00 Collapsing Holding Pin

  • 5967-033-01 Spring Screw (2)

  • 6250-065-35 Bone Screw 6.5mm x 35mm Self-Tapping

  • 5791-041-00 48mm Headed Screw (2)

  • 5222-039-00 Headless Holding Pin (2)

  • 5791-042-00 48mm Headless Screws (2)

  • 5222-039-00 NexGen Headless Pins, 48mm (2)

  • 5791-043-00 27mm Headed Pins (2)


Mini 4 in 1 knee workshop

1

1

7 8 9

7 8 9

10

10

4

4

6

7

8

9

3

6

6

2

2

5

5

5

1

4

11

11

3

3

10

2

11

12

12

12

13

13

17

17

16

17

18

18

13

14

14

14

15

15

15

16

16

18

19

19

19

20

20

20

21

21

21

22

22

22

23

23

24

24

23

28

24

25

29

29

30

26

29

30

30

31

31

25

25

27

27

27

26

26

28

28

31

32 33 34 35 36

32 33 34 35 36

32

33

35

34

Mini 4-in-1 Knee Workshop

Top Tray

Cat. No. Description

1 5983-064-00 MIS Notch Cutting Guide

2 5983-054-00 Post Cut Guide

3 5967-031-00 Distal Placement Guide 0°

4 5967-032-00 Distal Placement Guide 3°

5 5967-002-00 Hex Driver Bit

6 5120-052-01 Drill 6.4mm

7 5120-085-00 Bone Screw Drill 3.2mm

8 5978-014-00 Step Drill 8mm

9 5061-088-00 File

10 5961-041-10 LPS Flex Articular Prov

11 5967-011-00 Posterior Ref. Rotation Guide

12 5967-015-00 Posterior Resection Gauge

13 5961-014-01 Flex LPS Femoral Prov

14 5983-060-04 QS Notch Guide Size-D

15 5967-049-00 Mod Boom Attachment

16 5983-044-00 MIS Flex Fem. Finishing Guide

17 5983-034-00 MIS Fem Finishing Guide

18 5977-084-00 Depth Resection Guide

Cat. No. Description

19 5978-004-00 Adj Alignment Guide

20 5941-012-00 LPS Art Prov 5.6

21 5975-040-12 CR Art Prov 5.6

22 5983-028-00 Locking Boom

23 5983-002-00 MIS Threaded Handle

24 5997-014-01 NexGen Fem. LPS Prov

25 5971-014-01 NexGen CR Fem. Prov

26 5967-055-00 4-in-1 Ant/Post Sizer

27 5967-055-11 4-in-1 Mod Plate Varus LT 0-3

28 5967-036-00 Distal Cut Guide

29 6250-065-35 Bone Screw 6.5x35 S.T. (x2)

30 5997-084-00 Headless Gold Pin (x4)

31 5791-042-00 Headless Thread Hldg Pin (x2)

32 5791-041-00 Headed Thread Hldg Pin (x2)

33 5061-063-00 Headed Holding Pin (x4)

34 5791-054-00 Slotted Holding Pin

35 5967-033-01 Spring Pin (x2)


Mini 4 in 1 knee workshop

4

5

2

3

1

9

8

7

10

11

6

22

11

12

13

14

15

16

15

23

14

16

17

18

17

18

19

22

20

19

20

21

21

Mini 4-in-1 Knee Workshop

Middle Tray

Cat. No. Description

1 5997-072-00 Spike Arm Telescoping Rod

  • 5785-080-00 Alignment Rod w/coupler

  • 5785-079-00 Alignment Rod

  • 5977-010-02 Drill 15mm

  • 5120-067-00 Tibial Peg Drill 12.7mm Dia

  • 5997-071-00 Distal Telescoping Rod

  • 5997-074-00 Cut Guide Telescoping Rod

  • 5997-073-00 Spike Arm

  • 5120-087-00 Hex Head Screwdriver 3.5mm

  • 5977-024-00 EM Alignment Arch

  • 5977-014-02 Fluted Stem Tibial Bushing 15mm

  • 5997-081-00 Stylus

  • 5983-070-12 Tib Spacer 12mm

  • 5981-047-01 Stemmed Tibial Prov, Size 5

  • 5977-011-00 Stemmed Tibial Broach Impactor

  • 5977-096-00 Locking Tibial Tray Prov. Handle

  • 5120-069-00 Tibial Holding Pegs w/ 5977-056-01 Pins (4)

  • 5997-070-00 Ankle Clamp

  • 5977-013-05 Stemmed Tibial Broach, Size 5-6

  • 5977-012-05 Stem Tibial Sizing Pate, Size 5

  • 5977-015-05 Flat Plate Provisional Drill Guide, Size 5

  • 5977-009-00 Stemmed Tibial Prov. Impactor

  • 5997-079-00 7 Degree Left Cut Guide
