  1. UNIVERSITY OF CAMBRIDGE Dementia Dr Peter J Nestor peter.nestor@mrc-cbu.cam.ac.uk

  2. Imaging challenging patients

  3. Focal lesions to the mesial temporal lobe cause amnesiaAmnesia is the first feature of Alzheimer’s diseaseNeurofibrillary tangle (t) pathology occurs earliest and most severely in the mesial temporal lobe

  4. MRI in established AD Hippocampal atrophy Healthy elderly AD

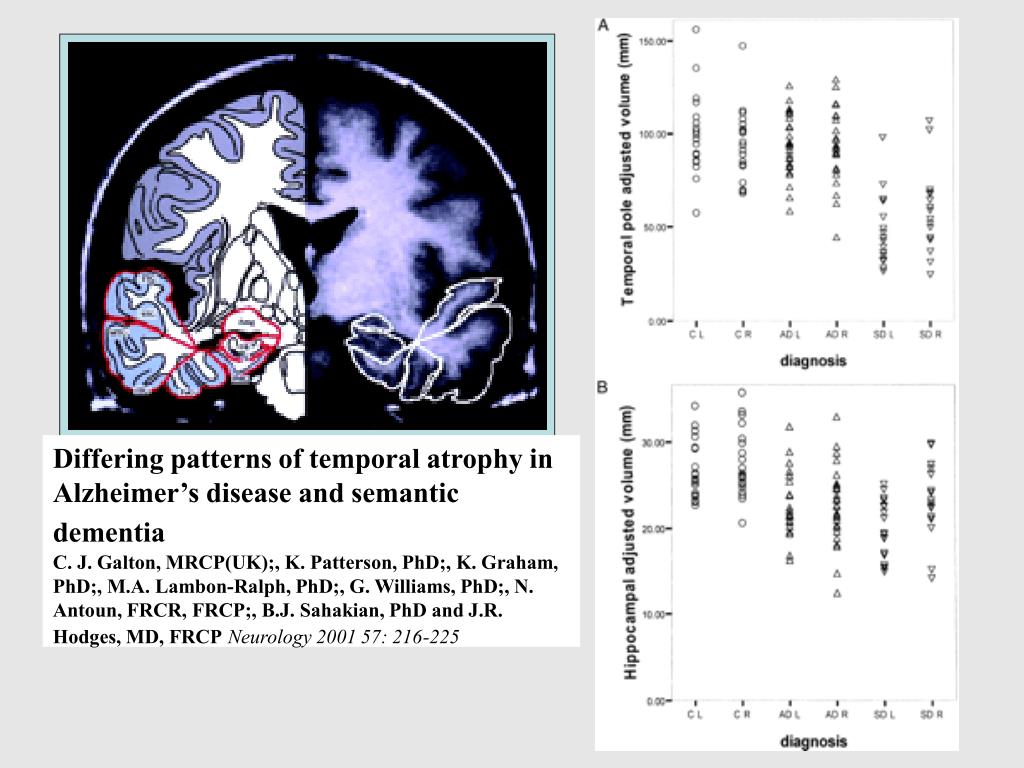

  5. Differing patterns of temporal atrophy in Alzheimer’s disease and semantic dementia C. J. Galton, MRCP(UK);, K. Patterson, PhD;, K. Graham, PhD;, M.A. Lambon-Ralph, PhD;, G. Williams, PhD;, N. Antoun, FRCR, FRCP;, B.J. Sahakian, PhD and J.R. Hodges, MD, FRCPNeurology 2001 57: 216-225

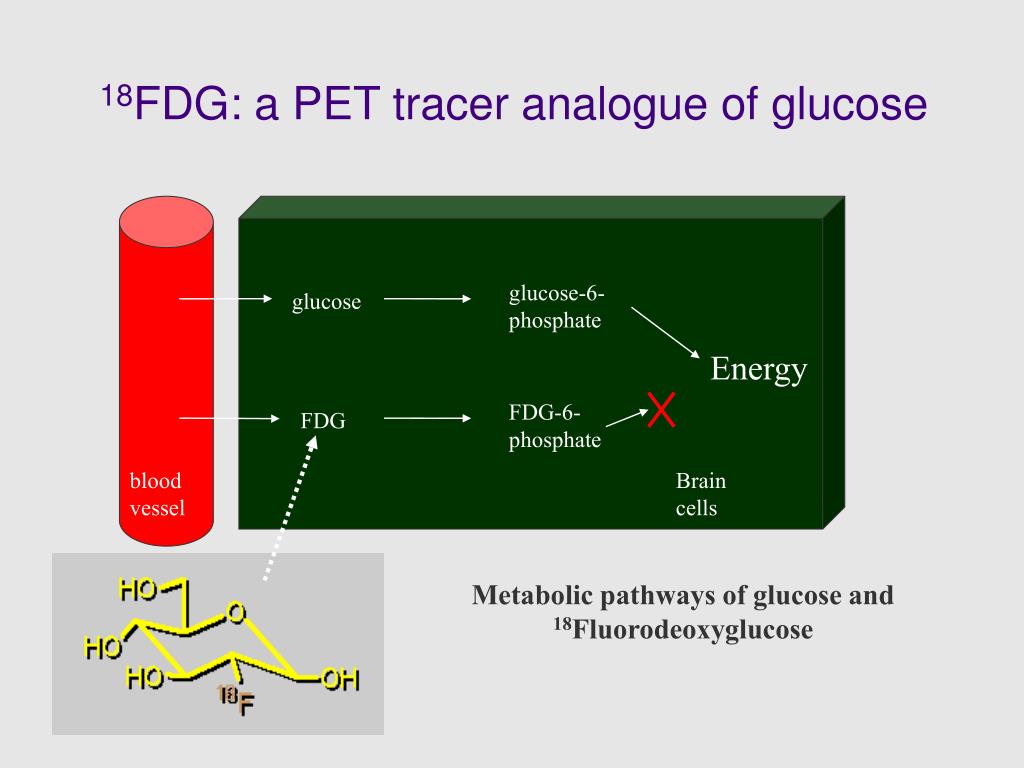

  6. 18FDG: a PET tracer analogue of glucose glucose-6-phosphate glucose Energy FDG-6-phosphate FDG blood vessel Brain cells Metabolic pathways of glucose and 18Fluorodeoxyglucose

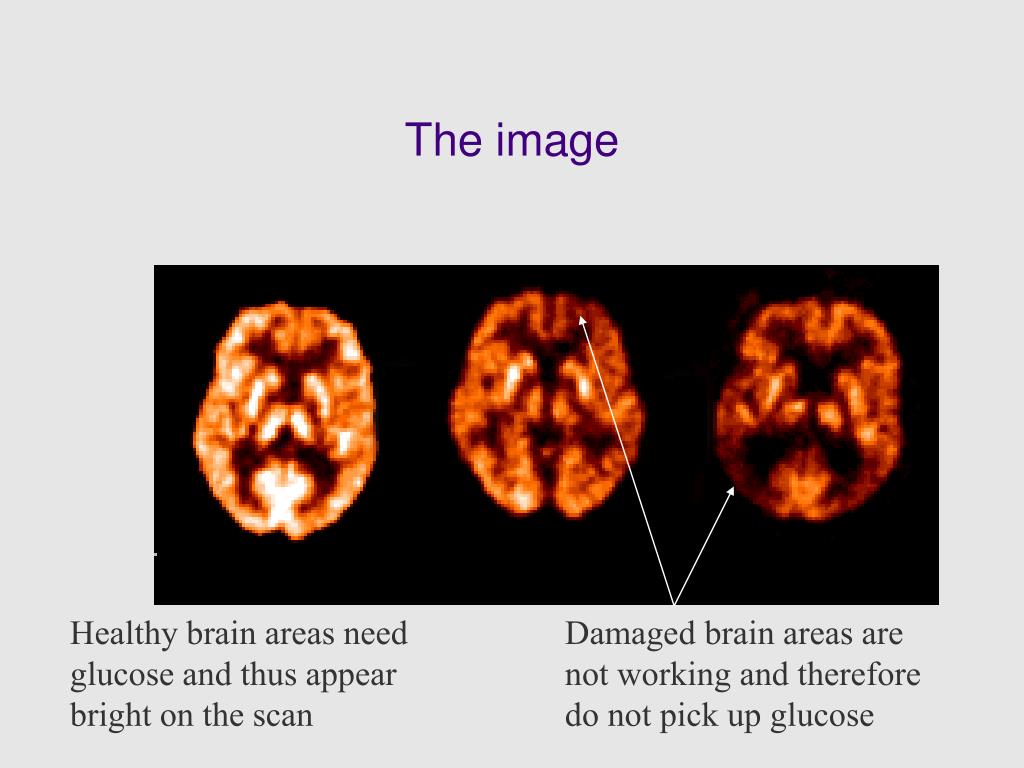

  7. The image Healthy brain areas need glucose and thus appear bright on the scan Damaged brain areas are not working and therefore do not pick up glucose

  8. Alzheimer’s disease Co-registration Spatial normalisation to standard template Smoothing Statistics

  9. Very mild Alzheimer’s-Isolated memory impairment Posterior cingulate hypometabolism

  10. Retrosplenial cortex is the first area universally affected Nestor et al, Eur J Neurosci 2003

  11. 60 year old male, recent onset memory impairment, MMSE = 30/30

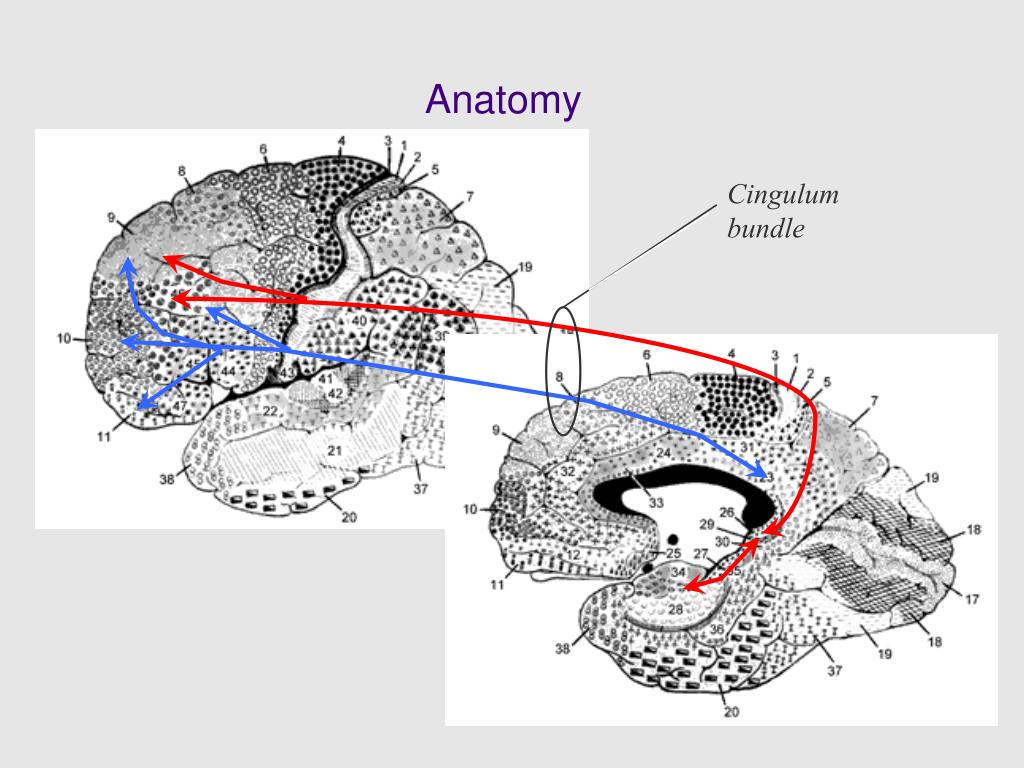

  12. Anatomy Cingulum bundle

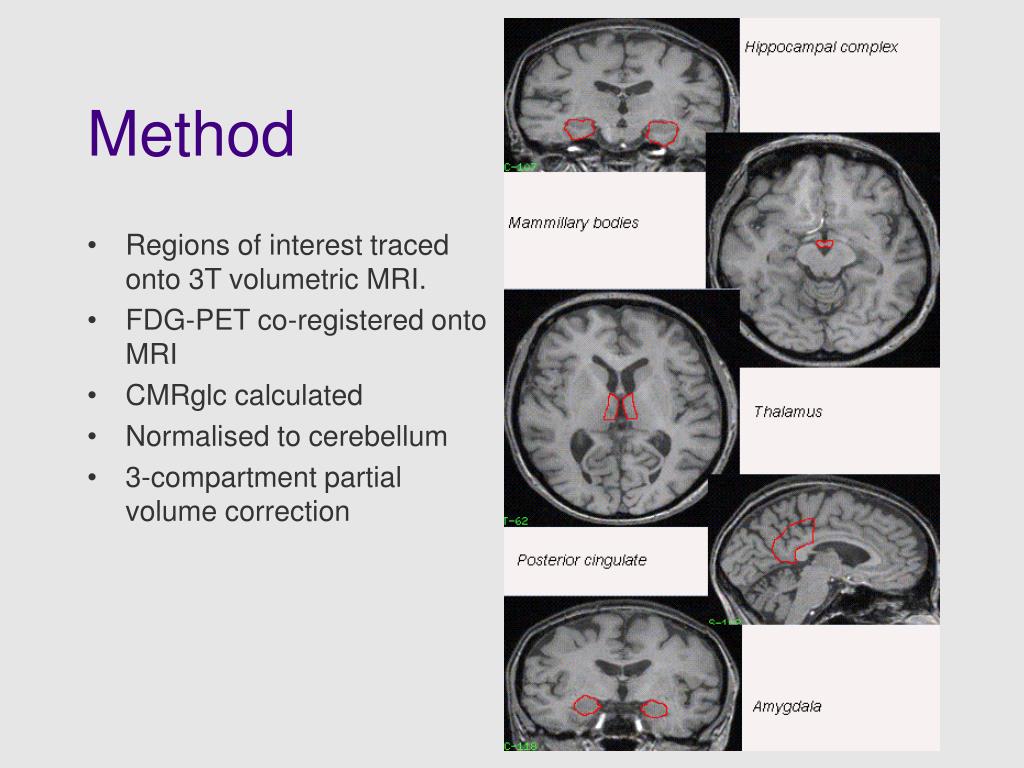

  13. Regions of interest traced onto 3T volumetric MRI. FDG-PET co-registered onto MRI CMRglc calculated Normalised to cerebellum 3-compartment partial volume correction Method

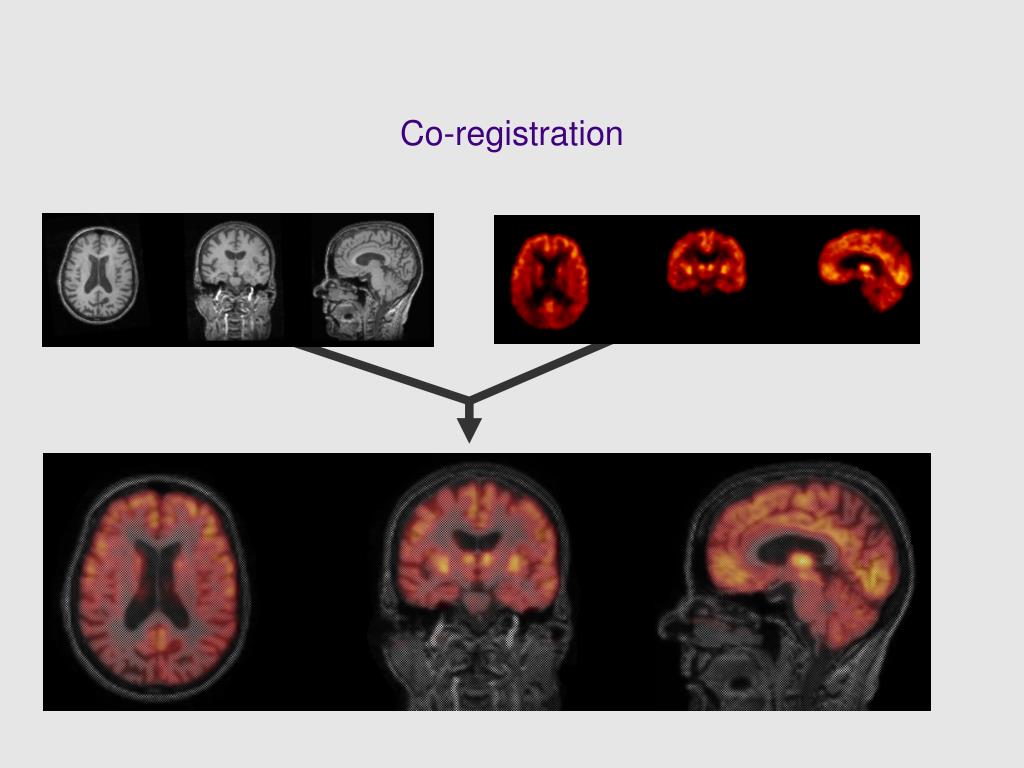

  14. Co-registration

  15. Nestor et al, Ann Neurol, 2003

  16. Pathology Neuronal loss Amyloid deposition ACh activity loss NFT (t) Marker [18F]FDG [11C]PIB [11C]PMP In development Alzheimer’s disease and positron emission tomography
