Presentation Transcript
Slide1 l.jpg

Radioactivity

Atoms and Radioactivity

Introduction

Types of Radiation

Using Radioactive Decay

Carbon Dating

Other methods

Example

Glossary

By Mark Varley 11SY


Slide2 l.jpg

Proton

Neutron

Atoms and Radioactivity

Isotopes of some elements have unstable nuclei

In order to become stable the make break apart or decay

This decay causes the nucleus to emit ionising radiation, and an atom of a different element is formed

These isotopes are called radioisotopes or radionuclides

Example – using Carbon

A normal carbon nucleus looks like this, it has 6 protons and 6 neutrons. This is perfectly stable.


Slide3 l.jpg

Electron

Proton

Neutron

This forms a nitrogen nucleus with 7 protons and 7 neutrons, that is a stable nucleus.

However, another isotope of carbon, (carbon 14) has 6 protons and 8 neutrons, causing the nucleus to be unstable.

The carbon 14 decays by beta radiation, a neutron turns into a proton emitting a beta particle.


Slide4 l.jpg

The alpha radiation, a helium nucleus (2 protons and 2 neutrons).

Different types of radiation

Alpha radiation

It is actually the nucleus of a helium atom consisting of 2 protons and 2 neutrons, held tightly together.

It comes directly from the nucleus, so only big atoms tend to emit it.

This is a massive particle, with 2 positive charge.

It strongly interacts with matter around it, smashing past atoms and ionising them.

This quickly absorbs their energy so they can only penetrate short distances through air.


Slide5 l.jpg

Beta radiation, (a high speed electron) neutrons).

Gamma Radiation, (a short electromagnetic wave)

Beta Radiation

Is a high speedelectron, given off when a neutron turns into a proton

They are many times smaller than alpha radiation

They only carry 1 single negative charge

They interact much less strongly with matter

So the radiation is much less quickly absorbed, so they can travel through thin sheets of aluminium.

Gamma Radiation

Sometimes a nucleus that is still unstable after a beta or alpha decay is still unstable so may emit gamma radiation to become more stable.

This is an electromagnetic wave with a very short wavelength

It does not change the number of protons or neutrons in the nucleus

It is not strongly absorbed by matter at all

It is most penetrating and needs thick lead 10cm plus to absorb most of it.


Slide6 l.jpg

Using Radioactive Decay neutrons).

As radioactive substances decay, the amount of radiation they emit decreases, this means it can be used to date things.

Carbon Dating

High in the earths atmosphere, carbon atoms are bombarded by radiation from space, this converts some stable carbon atoms into radioactive carbon atoms.

Many of these molecules are taken up by plants in photosynthesis (CO2) and incorporated into matter. That can then end up in animals due to them eating plants.

When a plant or creature dies, the amount of radioactive carbon in it decreases through radioactive decay.

The age of the remains of the plant or animal can be calculated from the amount of radioactive carbon in it.


Slide7 l.jpg

Two other ways to remember: neutrons).

Uranium-Lead method

This uses the fact that uranium decays through several short lived radioisotopes to produce a stable isotope of lead.

By measuring the relative proportion of uranium to lead in a rock, an age can be calculated.

Potassium-40 – Argon

Potassium-40 decays to argon and no further

This decay can date many rocks as many rocks have potassium atoms in them.

The age is determined by measuring the relative amounts or argon gas trapped and potassium atoms.

This relies on the gas being trapped therefore meaning it only works for igneous rocks that are impermeable to gas.

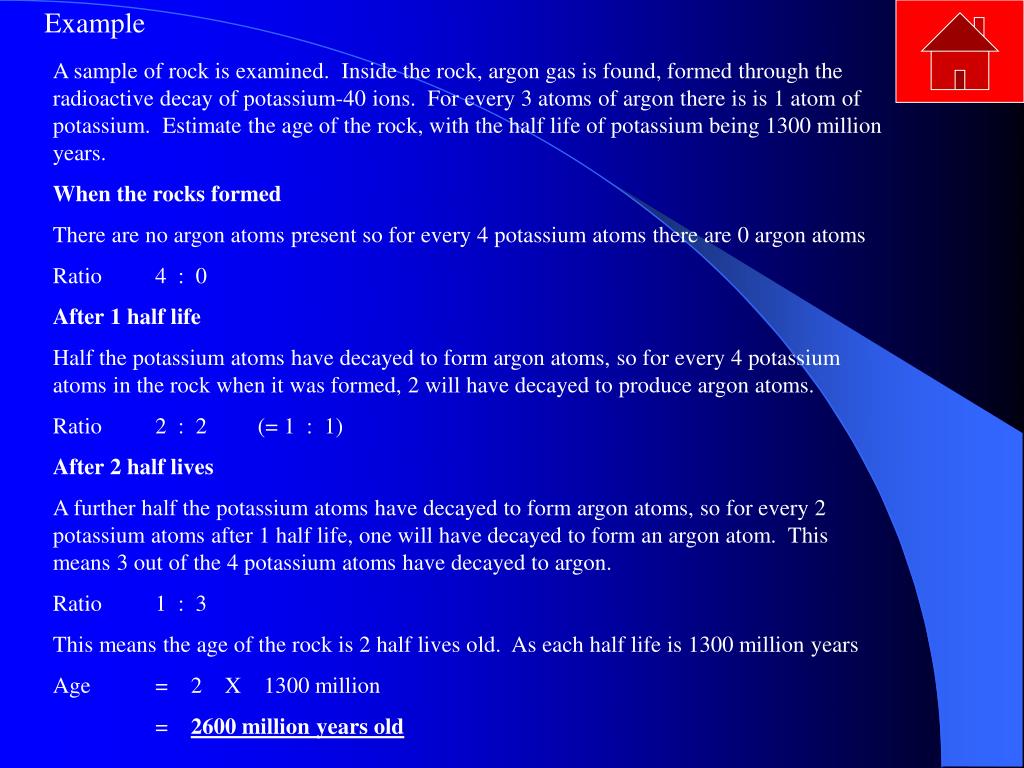

Slide8 l.jpg

Example neutrons).

A sample of rock is examined. Inside the rock, argon gas is found, formed through the radioactive decay of potassium-40 ions. For every 3 atoms of argon there is is 1 atom of potassium. Estimate the age of the rock, with the half life of potassium being 1300 million years.

When the rocks formed

There are no argon atoms present so for every 4 potassium atoms there are 0 argon atoms

Ratio 4 : 0

After 1 half life

Half the potassium atoms have decayed to form argon atoms, so for every 4 potassium atoms in the rock when it was formed, 2 will have decayed to produce argon atoms.

Ratio 2 : 2 (= 1 : 1)

After 2 half lives

A further half the potassium atoms have decayed to form argon atoms, so for every 2 potassium atoms after 1 half life, one will have decayed to form an argon atom. This means 3 out of the 4 potassium atoms have decayed to argon.

Ratio 1 : 3

This means the age of the rock is 2 half lives old. As each half life is 1300 million years

Age = 2 X 1300 million

= 2600 million years old


Slide9 l.jpg

Glossary neutrons).

Isotopes The same element (same number of protons) but with different numbers of neutrons

Nuclei The centre of an atom where almost all the mass is held, (protons and neutrons)

Decay The process of the atom changing into something else by releasing radiation

Ionising Radiation Radiation that can ionise another atom, if it hits

Proton A positive particle with a mass of 1, a charge of +1 and found in the nucleus

Neutron A neutral particle with a mass of 1, no charge and found in the nucleus.

Electron A negative particle with a mass of 1/1840, a charge of –1 and found orbiting the nucleus

Half Life The time it takes for half the atoms in a substance to decay.
