Inleiding meten en modellen 8c120

Inleiding Metenen Modellen – 8C120

Prof.dr.ir. Bart ter Haar Romeny

Dr. Andrea Fuster

Faculteit Biomedische Technologie

Biomedische Beeld Analyse

www.bmia.bmt.tue.nl


Chapter 3 webster operational amplifiers and signal processing

Chapter 3 - WebsterOperational Amplifiers and Signal Processing


Inleiding meten en modellen 8c120

Applications of Operational AmplifierIn Biological Signals and Systems

  • The three major operations done on biological signals using Op-Amps:

  • Amplifications and Attenuations

  • DC offsetting: add or subtract a DC

  • Filtering: Shape signal’s frequency content


Ideal op amp

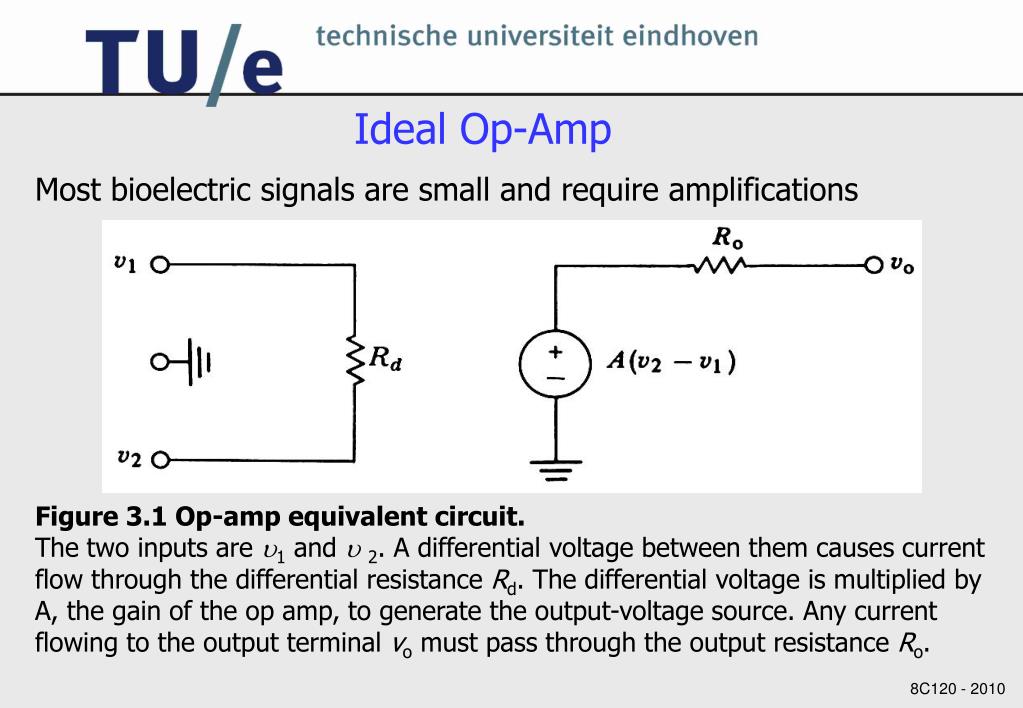

Ideal Op-Amp

Most bioelectric signals are small and require amplifications

Figure 3.1 Op-amp equivalent circuit.The two inputs are 1 and 2. A differential voltage between them causes current flow through the differential resistance Rd. The differential voltage is multiplied by A, the gain of the op amp, to generate the output-voltage source. Any current flowing to the output terminal vo must pass through the output resistance Ro.


Inleiding meten en modellen 8c120

Inside the Op-Amp (IC-chip)

20 transistors

11 resistors

1 capacitor


Ideal characteristics

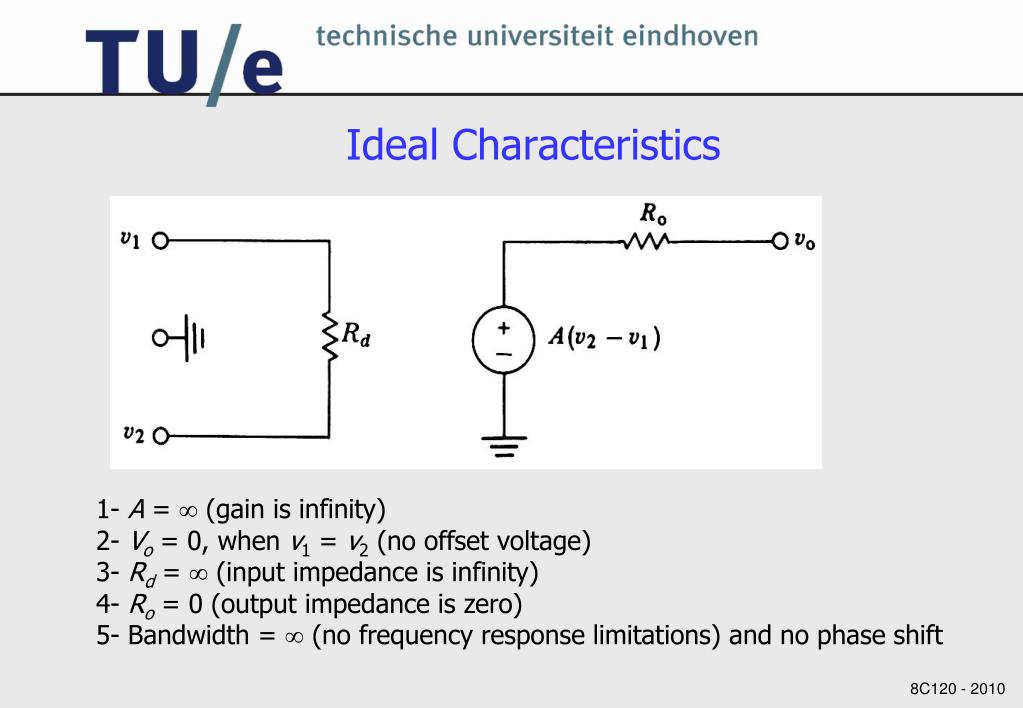

Ideal Characteristics

1- A =  (gain is infinity)

2- Vo = 0, when v1 = v2 (no offset voltage)

3- Rd =  (input impedance is infinity)

4- Ro = 0 (output impedance is zero)

5- Bandwidth =  (no frequency response limitations) and no phase shift


Two basic rules

Two Basic Rules

Rule 1

When the op-amp output is in its linear range, the two input terminals are at the same voltage.

Rule 2

No current flows into or out of either input terminal of the op amp.


Inverting amplifier

o

10 V

i

-10 V

10 V

Rf

i

i

Slope = -Rf / Ri

Ri

-

i

o

-10 V

+

(b)

(a)

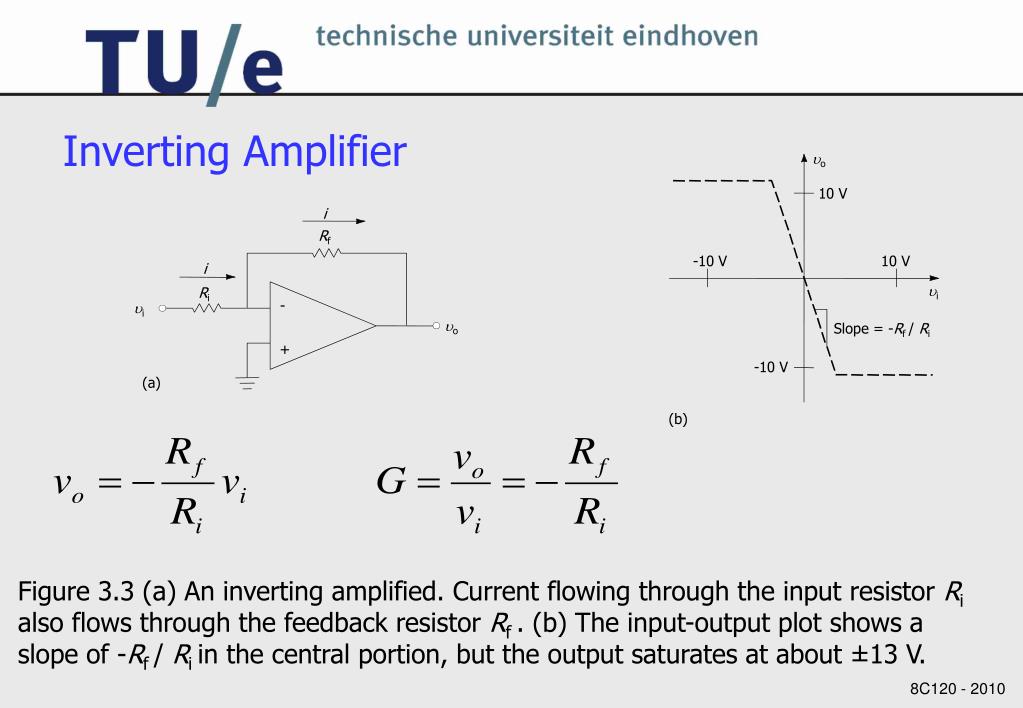

Inverting Amplifier

Figure 3.3 (a) An inverting amplified. Current flowing through the input resistor Ri also flows through the feedback resistor Rf . (b) The input-output plot shows a slope of -Rf / Ri in the central portion, but the output saturates at about ±13 V.


Summing amplifier

Summing Amplifier

Rf

R1

1

-

R2

o

2

+


Example 3 1

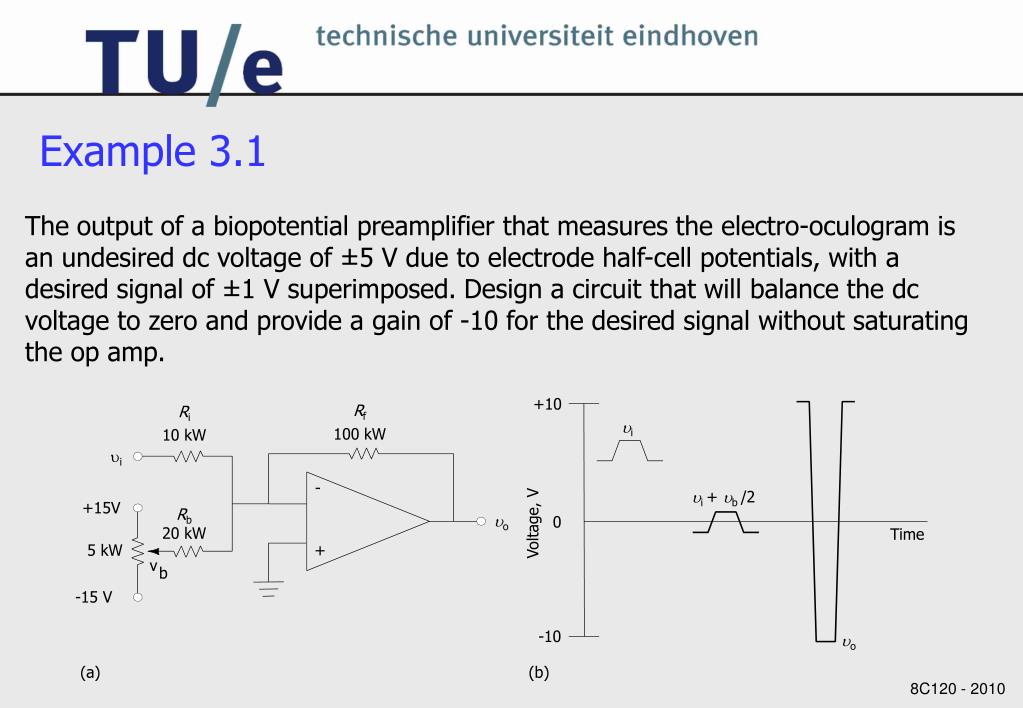

Example 3.1

The output of a biopotential preamplifier that measures the electro-oculogram is an undesired dc voltage of ±5 V due to electrode half-cell potentials, with a desired signal of ±1 V superimposed. Design a circuit that will balance the dc voltage to zero and provide a gain of -10 for the desired signal without saturating the op amp.

+10

Rf

Ri

i

100 kW

10 kW

i

-

i + b /2

+15V

Rb

o

0

Voltage, V

20 kW

Time

5 kW

+

v

b

-15 V

-10

o

(a)

(b)


Follower buffer

Follower (buffer)

Used as a buffer, to prevent a high source resistance from being loaded down by a low-resistance load. In other words: it prevents drawing current from the source.

-

o

i

+


Noninverting amplifier

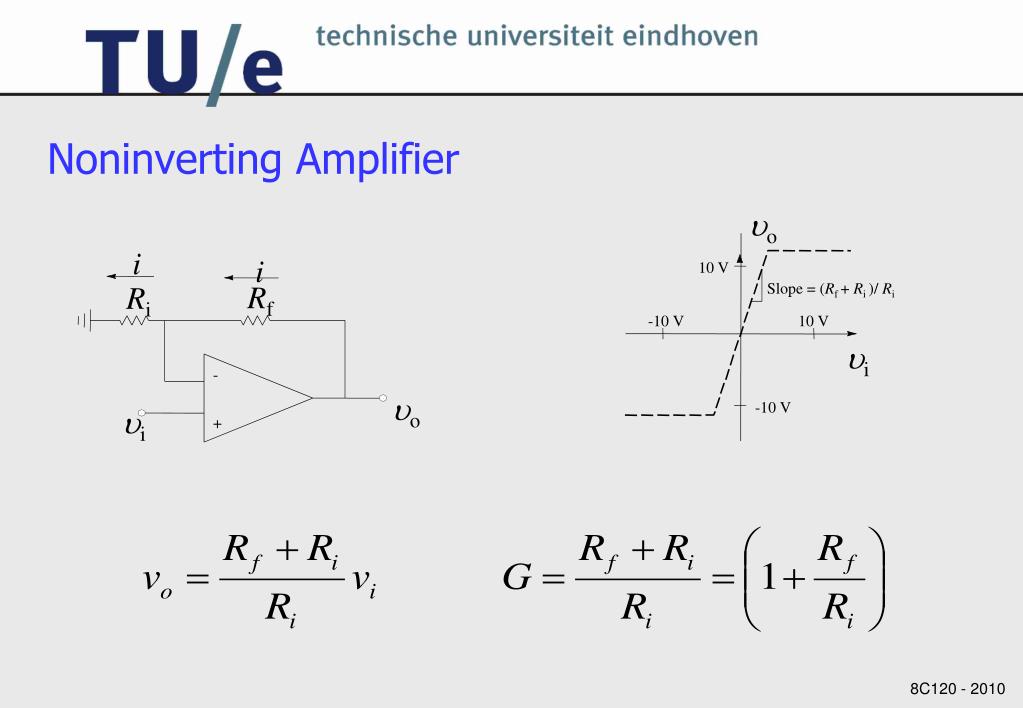

Noninverting Amplifier

o

i

i

10 V

Rf

Ri

Slope = (Rf + Ri )/ Ri

-10 V

10 V

i

-

o

-10 V

i

+


Differential amplifiers

Differential Amplifiers

R4

R3

v3

Differential Gain Gd

R3

v4

vo

R4

Common Mode Gain Gc

For ideal op amp if the inputs are equal then the output = 0, and the Gc =0. No differential amplifier perfectly rejects the common-mode voltage.

Common-mode rejection ratio CMMR

Typical values range from 100 to 10,000

Disadvantage of one-op-amp differential amplifier is its low input resistance


Instrumentation amplifiers

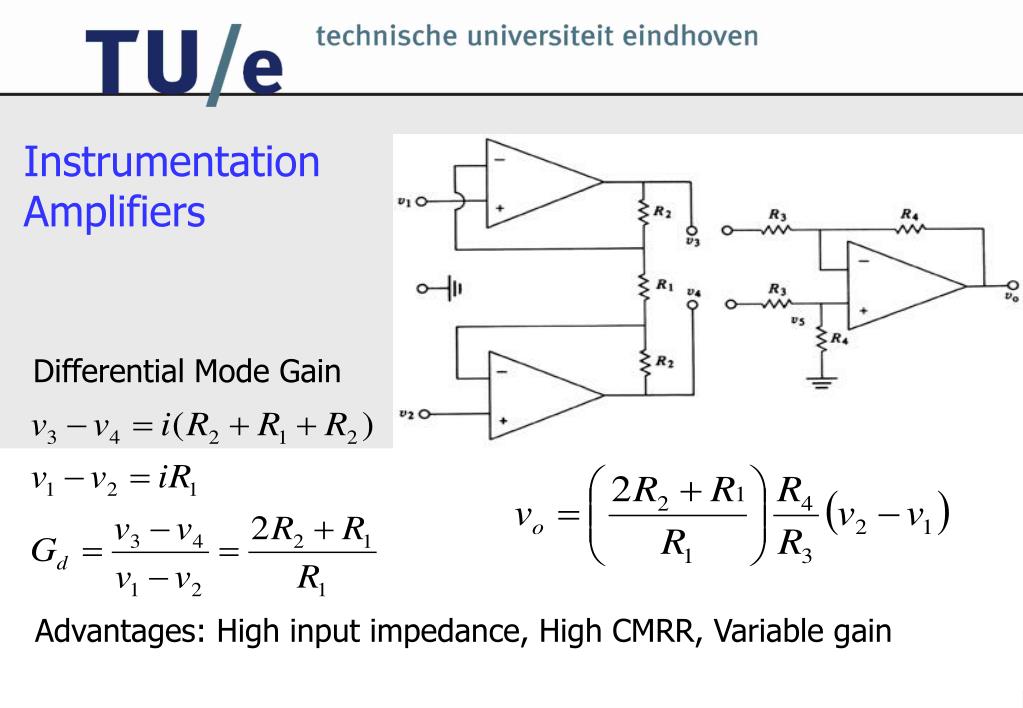

InstrumentationAmplifiers

Differential Mode Gain

Advantages: High input impedance, High CMRR, Variable gain


Comparator no hysteresis

+15

R1

ui

-

v2

uo

R1

uref

+

-15

R2

uo

10 V

-10 V

uref

ui

-10 V

Comparator – No Hysteresis

v1 > v2, vo = -13 V

v1 < v2, vo = +13 V

If (vi+vref) > 0 then vo = -13 Velsevo = +13 V

R1 will prevent overdriving the op-amp


Comparator with hysteresis

uo

R1

With hysteresis

10 V

ui

-

uo

-10 V

R1

10 V

uref

+

- uref

ui

R2

R3

-10 V

Comparator – With Hysteresis

Reduces multiple transitions due to mV noise levels by moving the threshold value after each transition.

Width of the Hysteresis = 4VR3


Rectifier

o

10 V

R

D1

D2

-10 V

10 V

(1-x)R

xR

i

-

-10 V

i

+

R

(b)

i

D4

o=

x

D3

-

+

(a)

Rectifier

xR

(1-x)R

v

o

D2

-

+

i

(a)

Full-wave precision rectifier:a) For i > 0, D2 and D3 conduct, whereas D1 and D4 are reverse-biased.Noninverting amplifier at the top is active


Rectifier1

o

10 V

R

D1

D2

-10 V

10 V

(1-x)R

xR

i

-

-10 V

i

+

R

(b)

i

D4

o=

x

D3

-

+

(a)

Rectifier

xRi

R

i

v

o

D4

-

+

(a)

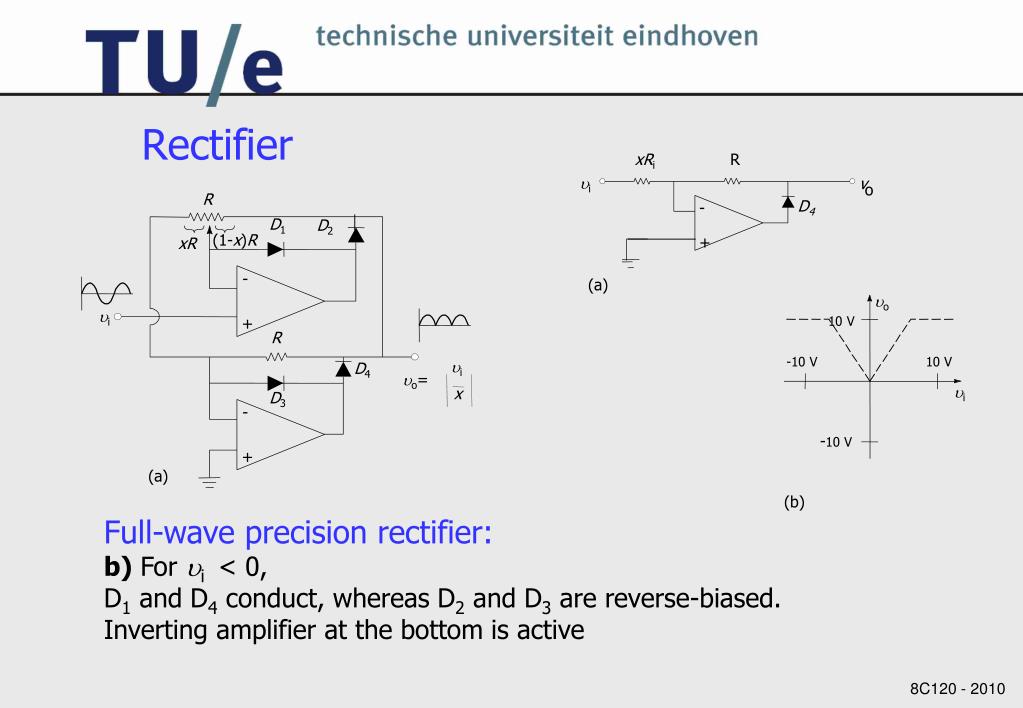

Full-wave precision rectifier:b) For i < 0, D1 and D4 conduct, whereas D2 and D3 are reverse-biased. Inverting amplifier at the bottom is active


Rectifier2

Ri = 2 kW

Rf = 1 kW

i

v

o

D

-

RL = 3 kW

+

(c)

Rectifier

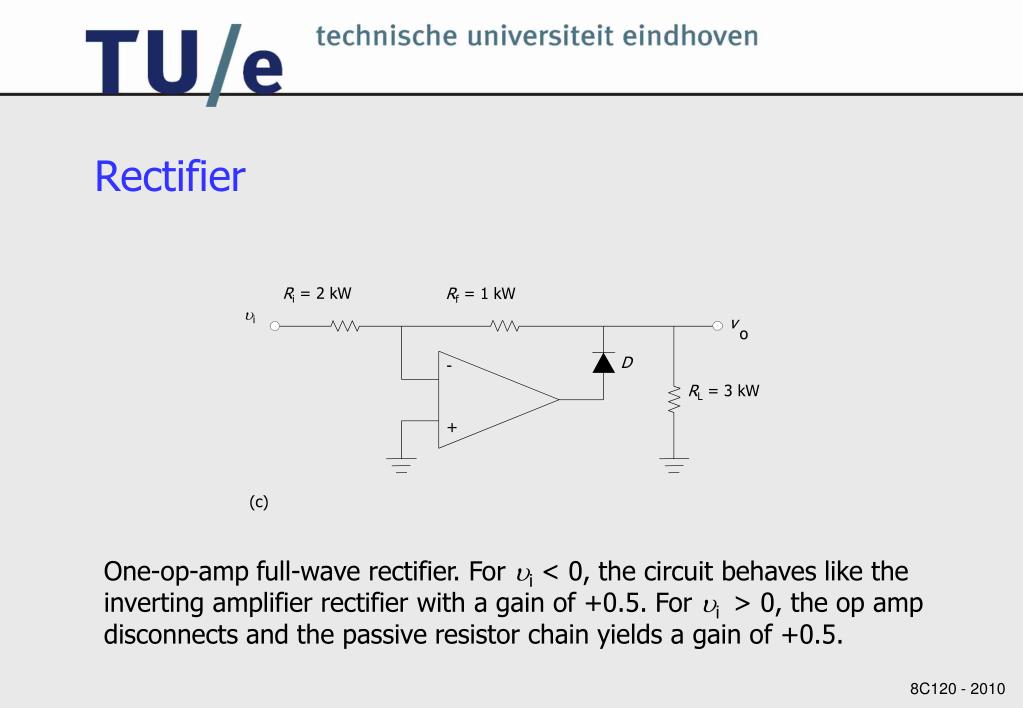

One-op-amp full-wave rectifier. For i < 0, the circuit behaves like the inverting amplifier rectifier with a gain of +0.5. For i > 0, the op amp disconnects and the passive resistor chain yields a gain of +0.5.


Inleiding meten en modellen 8c120

Rf/9

Ic

Rf

Ri

-

i

o

+

(a)

Logarithmic Amplifiers

VBE

Figure 3.8 (a) A logarithmic amplifier makes use of the fact that a transistor's VBE is related to the logarithm of its collector current. For range of Ic equal to 10-7 to 10-2 the range of vo is -.36 to -0.66 V.


Inleiding meten en modellen 8c120

v

o

10 V

-10 V

10 V

i

1

-10 V

10

(b)

Logarithmic Amplifiers

VBE

Rf/9

Ic

VBE

9VBE

Rf

Ri

-

i

o

+

(a)

Figure 3.8 (a) With the switch thrown in the alternate position, the circuit gain is increased by 10. (b) Input-output characteristics show that the logarithmic relation is obtained for only one polarity; 1 and 10 gains are indicated.


Inleiding meten en modellen 8c120

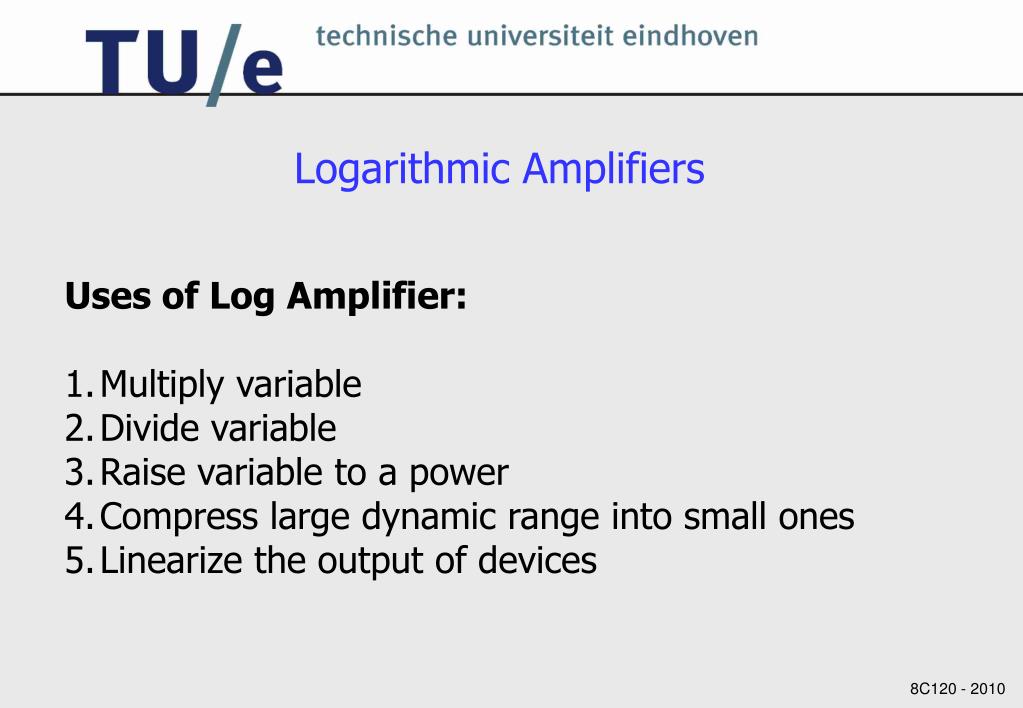

Logarithmic Amplifiers

  • Uses of Log Amplifier:

  • Multiply variable

  • Divide variable

  • Raise variable to a power

  • Compress large dynamic range into small ones

  • Linearize the output of devices


Inleiding meten en modellen 8c120

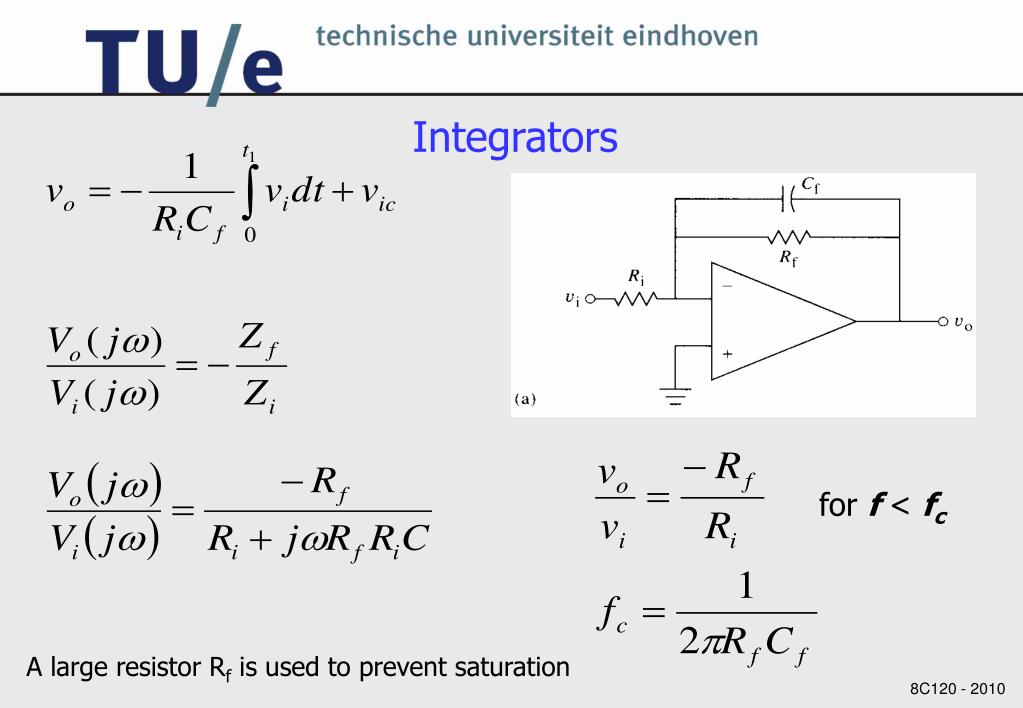

Integrators

for f < fc

A large resistor Rf is used to prevent saturation


Inleiding meten en modellen 8c120

Integrators

Figure 3.9 A three-mode integrator With S1 open and S2 closed, the dc circuit behaves as an inverting amplifier. Thus o = ic and o can be set to any desired initial conduction. With S1 closed and S2 open, the circuit integrates. With both switches open, the circuit holds o constant, making possible a leisurely readout.


Inleiding meten en modellen 8c120

R

is

C

-

dqs/ dt = is = K dx/dt

uo

isC

isR

+

FET

Piezo-electric

sensor

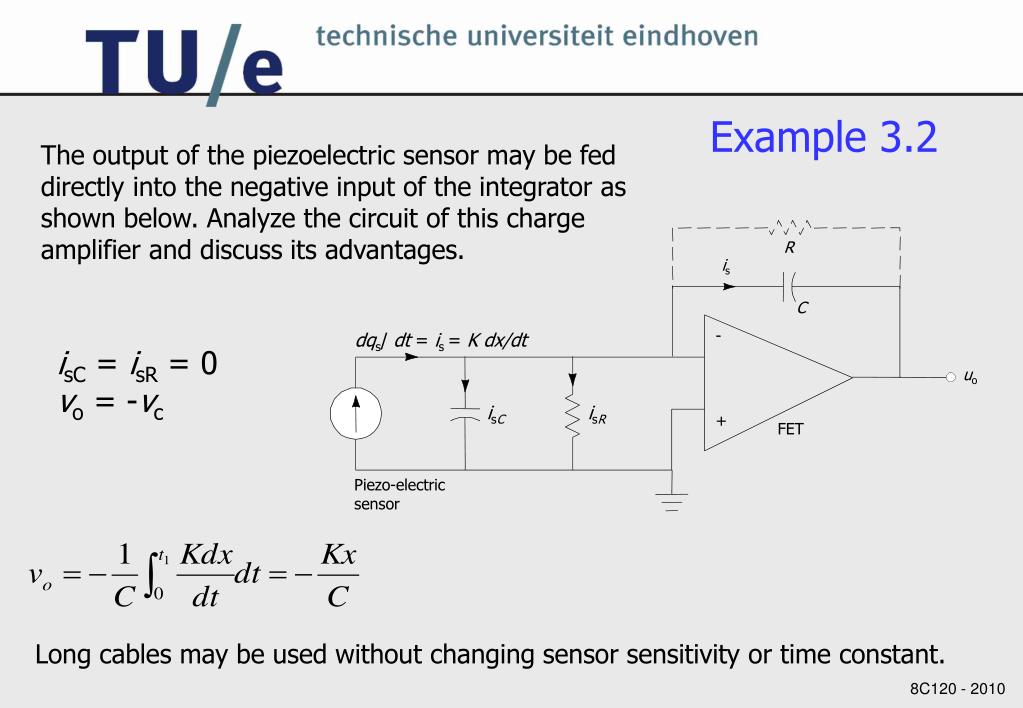

Example 3.2

The output of the piezoelectric sensor may be fed directly into the negative input of the integrator as shown below. Analyze the circuit of this charge amplifier and discuss its advantages.

isC = isR = 0

vo = -vc

Long cables may be used without changing sensor sensitivity or time constant.


Inleiding meten en modellen 8c120

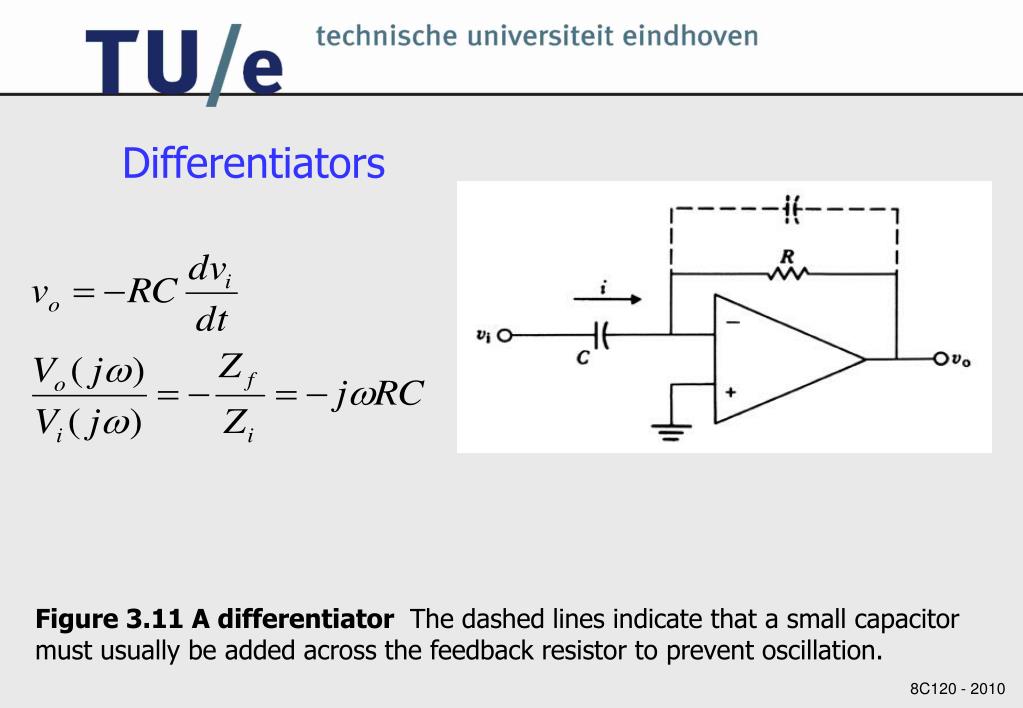

Differentiators

Figure 3.11 A differentiator The dashed lines indicate that a small capacitor must usually be added across the feedback resistor to prevent oscillation.


Inleiding meten en modellen 8c120

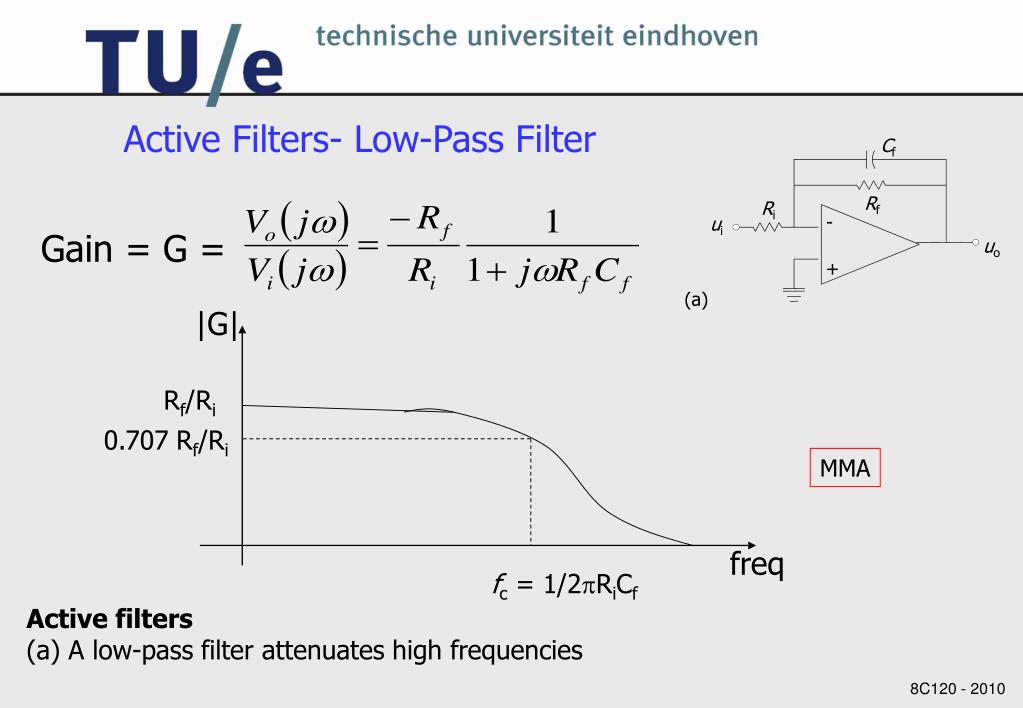

Active Filters- Low-Pass Filter

Cf

|G|

Gain = G =

Rf

Ri

-

ui

uo

Rf/Ri

+

(a)

0.707 Rf/Ri

MMA

freq

fc = 1/2RiCf

Active filters(a) A low-pass filter attenuates high frequencies


Inleiding meten en modellen 8c120

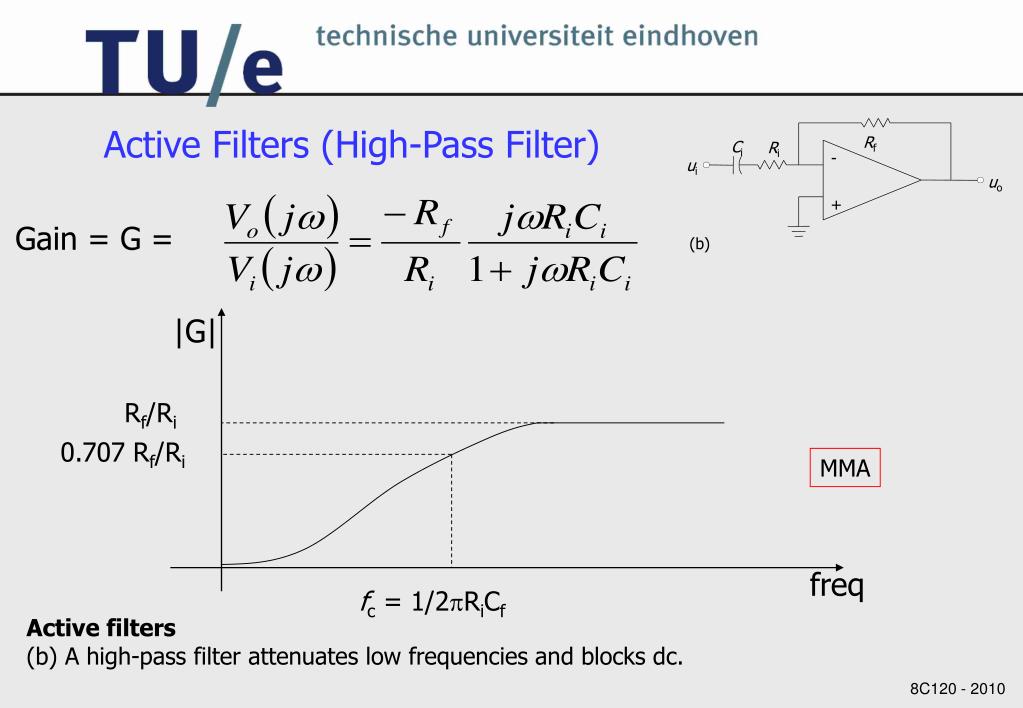

Active Filters (High-Pass Filter)

Rf

Ci

Ri

-

ui

uo

+

Gain = G =

(b)

|G|

Rf/Ri

0.707 Rf/Ri

MMA

freq

fc = 1/2RiCf

Active filters(b) A high-pass filter attenuates low frequencies and blocks dc.


Inleiding meten en modellen 8c120

Cf

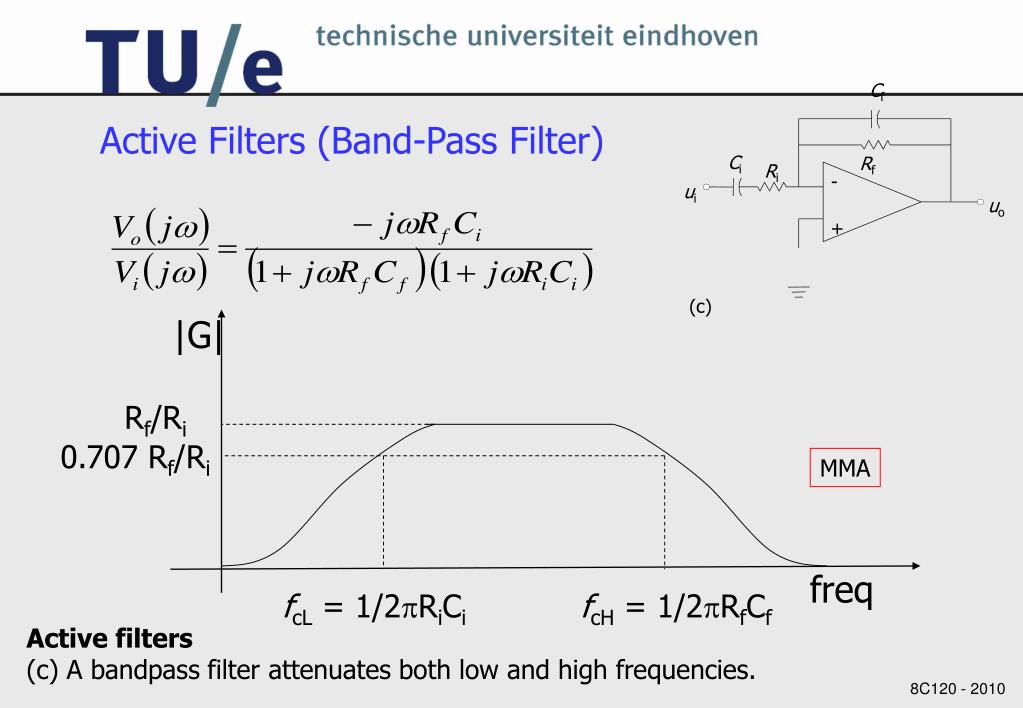

Active Filters (Band-Pass Filter)

Ci

Rf

Ri

-

ui

uo

+

(c)

|G|

Rf/Ri

0.707 Rf/Ri

MMA

freq

fcL = 1/2RiCi

fcH = 1/2RfCf

Active filters(c) A bandpass filter attenuates both low and high frequencies.


Inleiding meten en modellen 8c120

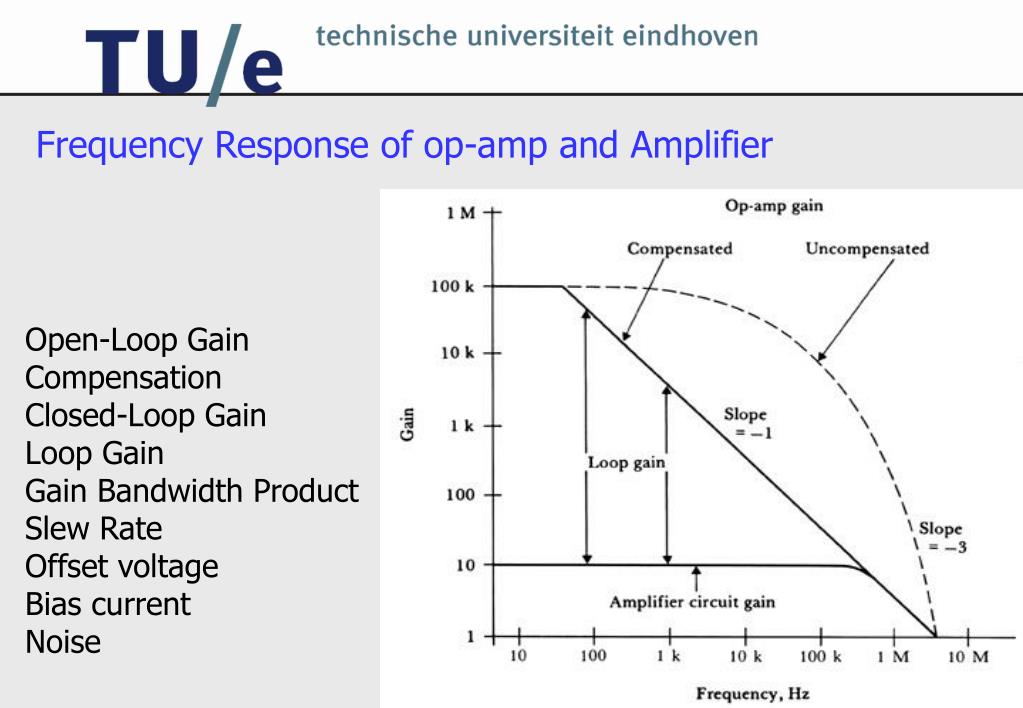

Frequency Response of op-amp and Amplifier

Open-Loop Gain

Compensation

Closed-Loop Gain

Loop Gain

Gain Bandwidth Product

Slew Rate

Offset voltage

Bias current

Noise


Inleiding meten en modellen 8c120

-

Ro

uo

Rd

ud

ii

+

io

Aud

-

ui

RL

+

CL

Input and Output Resistance

Typical value of Ro = 40 

Typical value of Rd = 2 to 20 M
