Presentation Transcript
slide1

The musical fountain „Petra“

designed by miDAS

- your innovative system partner -

Aquanale Cologne, 2007

Am Stockgraben 2 – 36119 Neuhof – Germany

Elena Jakobson

A member of

------------------------------------------E. Jakobson, 31.10.07

musical fountain definition
musical fountain: definition

type of animated fountain for entertainment proposes that creates an aestetic design and a three-dimensional image.

this is done by using the effects of sound waves and light against water particles, in which the water streams, activated in strategic timed durations and refract and reflect the light – and doing so – a

3-dimensional image is created

A member of

------------------------------------------E. Jakobson, 31.10.07

basin and casing
basin and casing

made of resistant plastic material (PP)

basin-diameter

 2,30 m (including flower area)

 2,15 m (excluding flower area)

basin-depth

 0,15 m

water capacity

 284 l = 0,284 m³

4 adjustable basin legs

 0,57 m basin height (from ground level)

A member of

------------------------------------------E. Jakobson, 31.10.07

floating device
floating device

3 spray rings

 1st spray ring,120cm –16 nozzles

 2nd spray ring,130cm –32 nozzles

 3rd spray ring,170cm –48 nozzles

sum: –98 nozzles (bronze)

1 central nozzle (geysir) plumbed in the middle

(stainless steel) – max. splash height = 1,85 m

15 variable sprays / pattern

also available as floating fountain

A member of

------------------------------------------E. Jakobson, 31.10.07

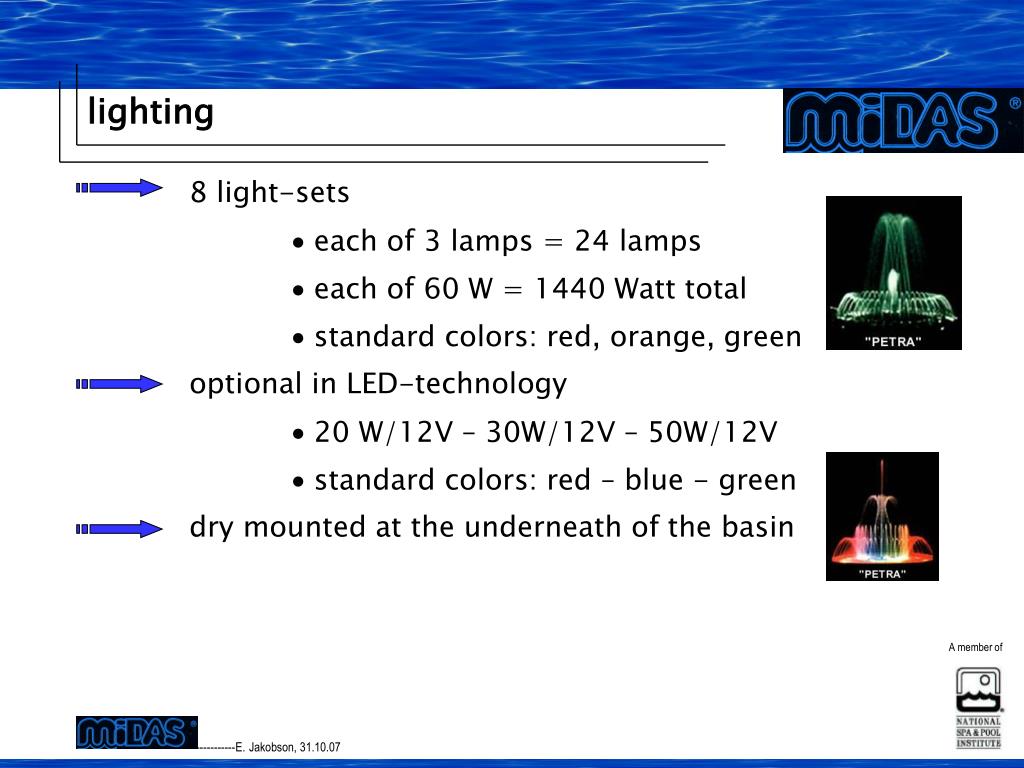

lighting
lighting

8 light-sets

 each of 3 lamps = 24 lamps

 each of 60 W = 1440 Watt total

 standard colors: red, orange, green

optional in LED-technology

 20 W/12V – 30W/12V – 50W/12V

 standard colors: red – blue - green

dry mounted at the underneath of the basin

A member of

------------------------------------------E. Jakobson, 31.10.07

pumps
pumps

4 pumps

 170 W, 230V / 50 Hz

 170 W, 110V / 60 Hz

dry mounted, at the underneath of the basin

each pump suction line has ½‘‘ ball valves for flow regulation

pums can run without water

water level regulator

A member of

------------------------------------------E. Jakobson, 31.10.07
